TROUBLESHOOTING <ACD>

MANUAL TRANSMISSION (FF)

22A-43

(2) Measure the voltage between 4WD-ECU

connector C-26 terminal No.32 and earth.

OK: 0.5

− 1.5 V

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Go to Step 5.

STEP 3. Connector check: C-26 4WD-ECU
connector.

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the defective connector.

STEP 4. M.U.T.-II/III data list
Item 18: Pressure sensor (Refer to data list reference
table

P.22A-142

).

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Cope with Intermittent

Malfunction

P.00-5

).

NO :

Replace the 4WD-ECU.

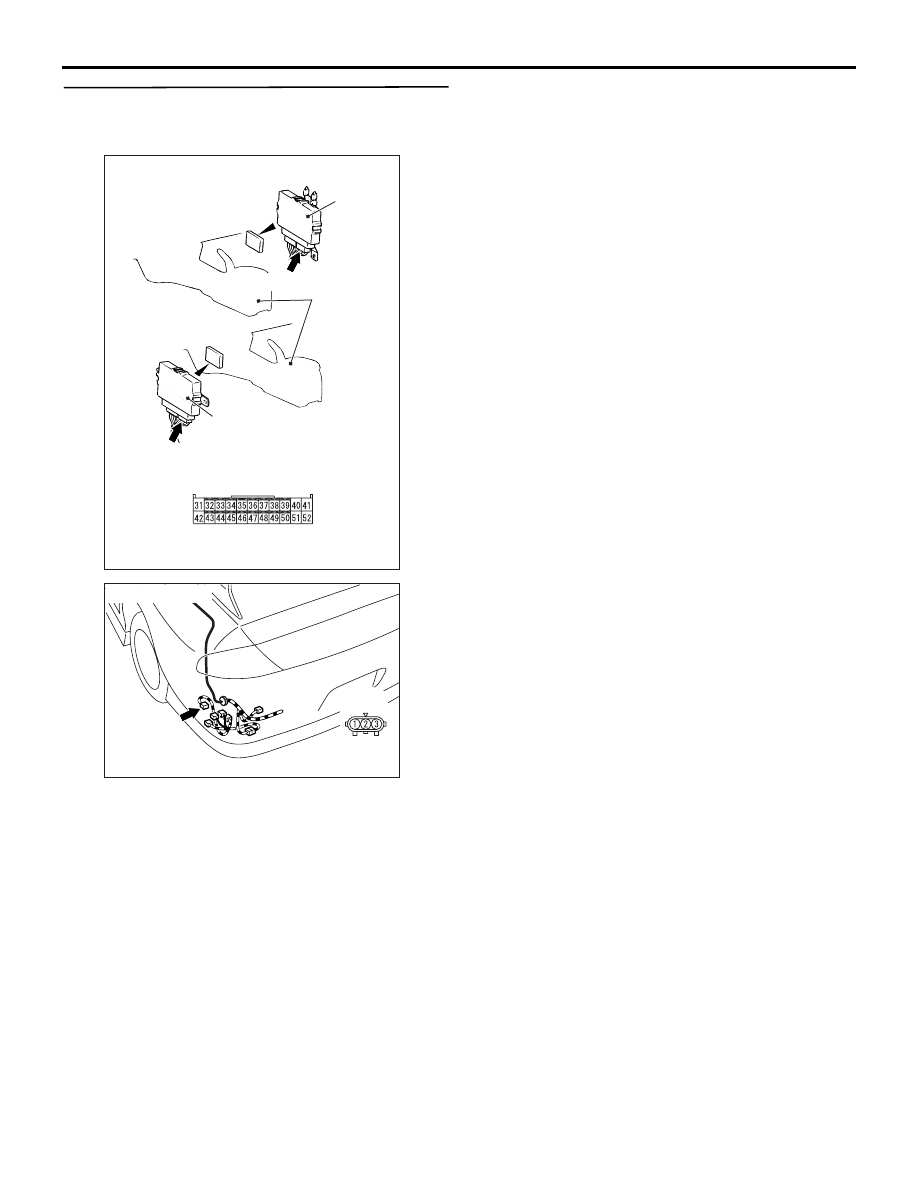

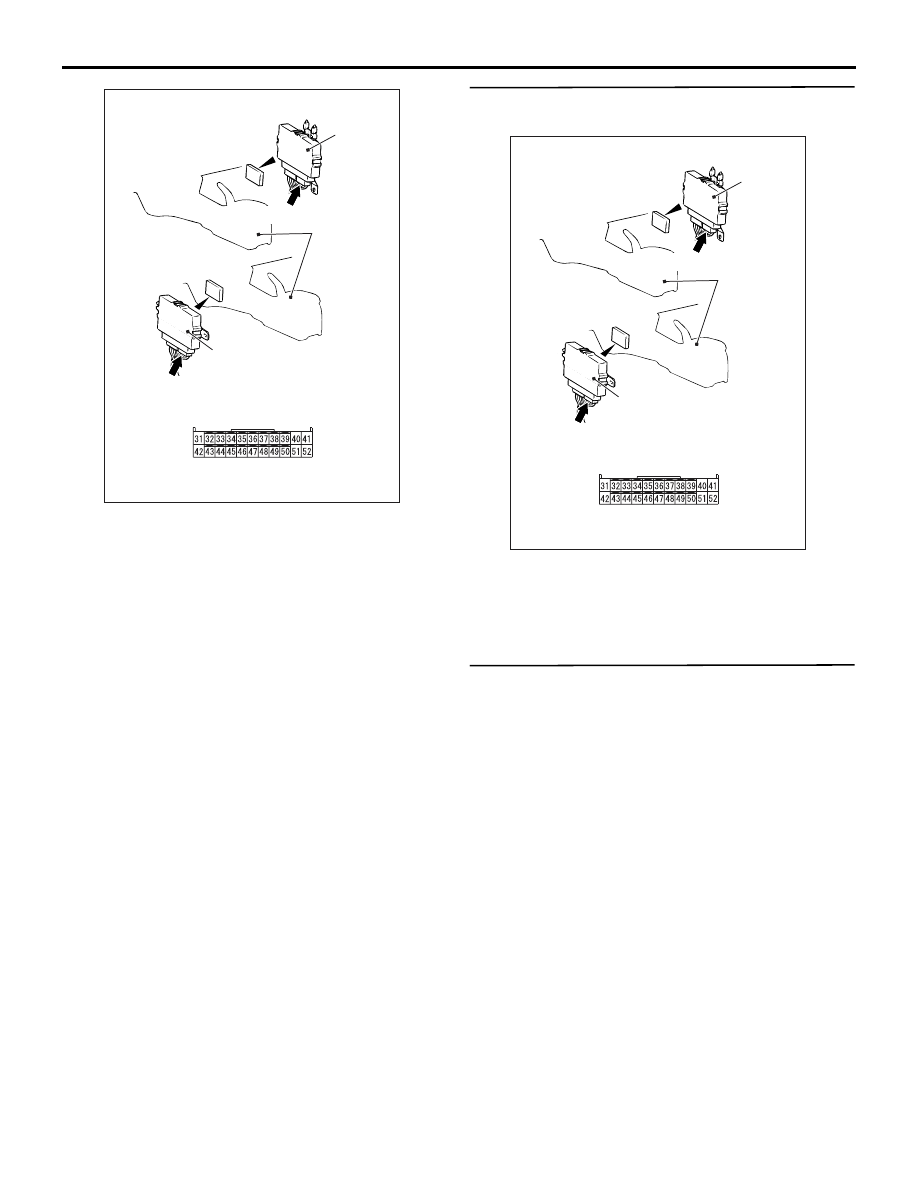

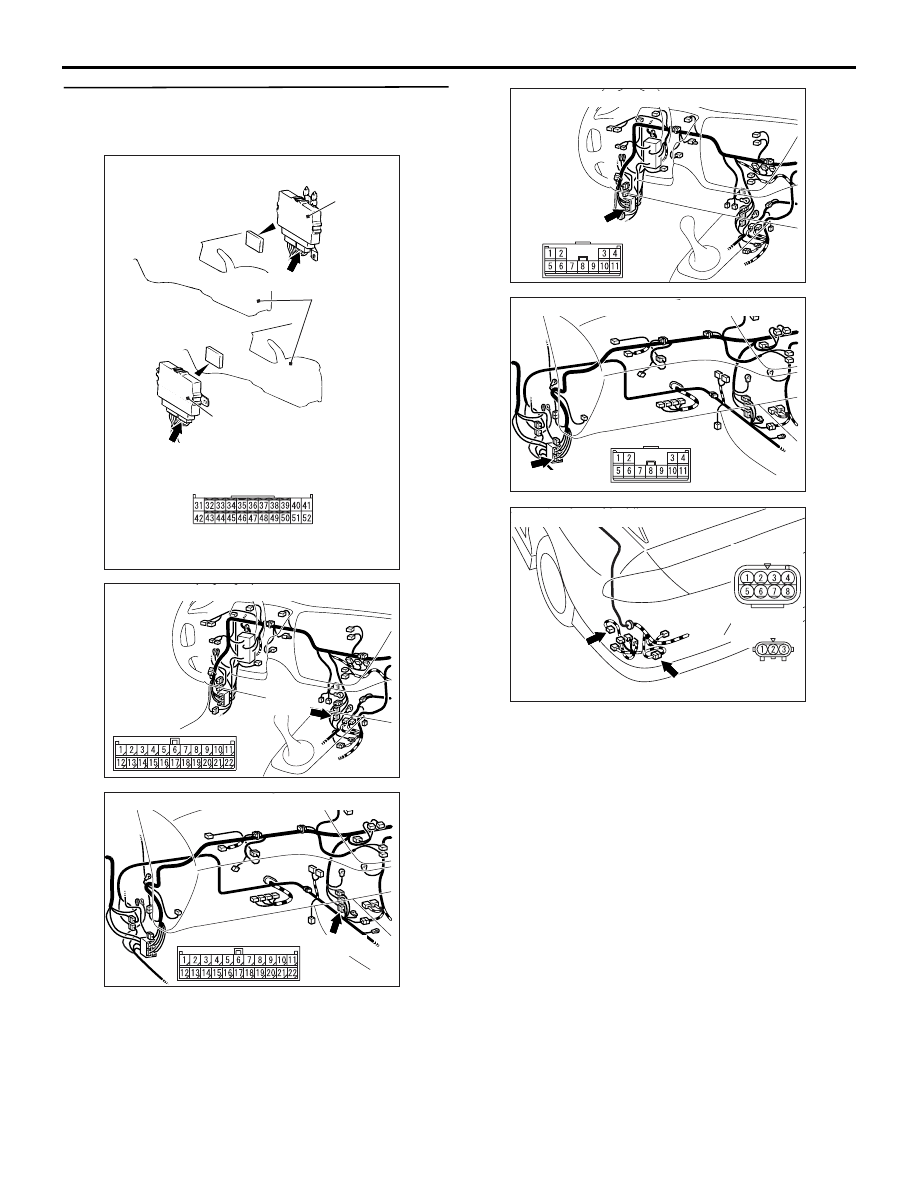

AC311002

4WD-ECU

Harness side

C-26 (Y)

AC

Connector: C-26

4WD-ECU

C-26 (Y)

Rear console
assembly

<LH drive vehicles>

<RH drive vehicles>

AC311002

4WD-ECU

Harness side

C-26 (Y)

AC

Connector: C-26

4WD-ECU

C-26 (Y)

Rear console
assembly

<LH drive vehicles>

<RH drive vehicles>

TROUBLESHOOTING <ACD>

MANUAL TRANSMISSION (FF)

22A-44

STEP 5. Connectors check: C-26 4WD-ECU
connector, C-122, C-134, F-21 intermediate
connector, F-26 pressure sensor connector.

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

AC311002

4WD-ECU

Harness side

C-26 (Y)

AC

Connector: C-26

4WD-ECU

C-26 (Y)

Rear console
assembly

<LH drive vehicles>

<RH drive vehicles>

AC311015AC

Connector: C-122 <LH drive vehicles>

C-122

AC311016AE

Connector: C-122 <RH drive vehicles>

C-122 (L)

AC311015AG

Connector: C-134 <LH drive vehicles>

C-134 (B)

AC311016AD

Connector: C-134 <RH drive vehicles>

C-134 (GR)

AC311042

F-21 (B)

AB

Connector: F-21, F-26

F-26 (B)

Sensor side

F-21

F-26

TROUBLESHOOTING <ACD>

MANUAL TRANSMISSION (FF)

22A-45

STEP 6. Check the harness between 4WD-ECU
connector C-26 (terminal No.43, 32) and pressure
sensor connector F-26 (terminal No.1, 2).

Check the power supply line, output line for short or
open circuit.

Q: Is the check result normal?

YES :

Replace the pressure sensor.

NO :

Repair the wiring harness.

AC311002

4WD-ECU

Harness side

C-26 (Y)

AC

Connector: C-26

4WD-ECU

C-26 (Y)

Rear console
assembly

<LH drive vehicles>

<RH drive vehicles>

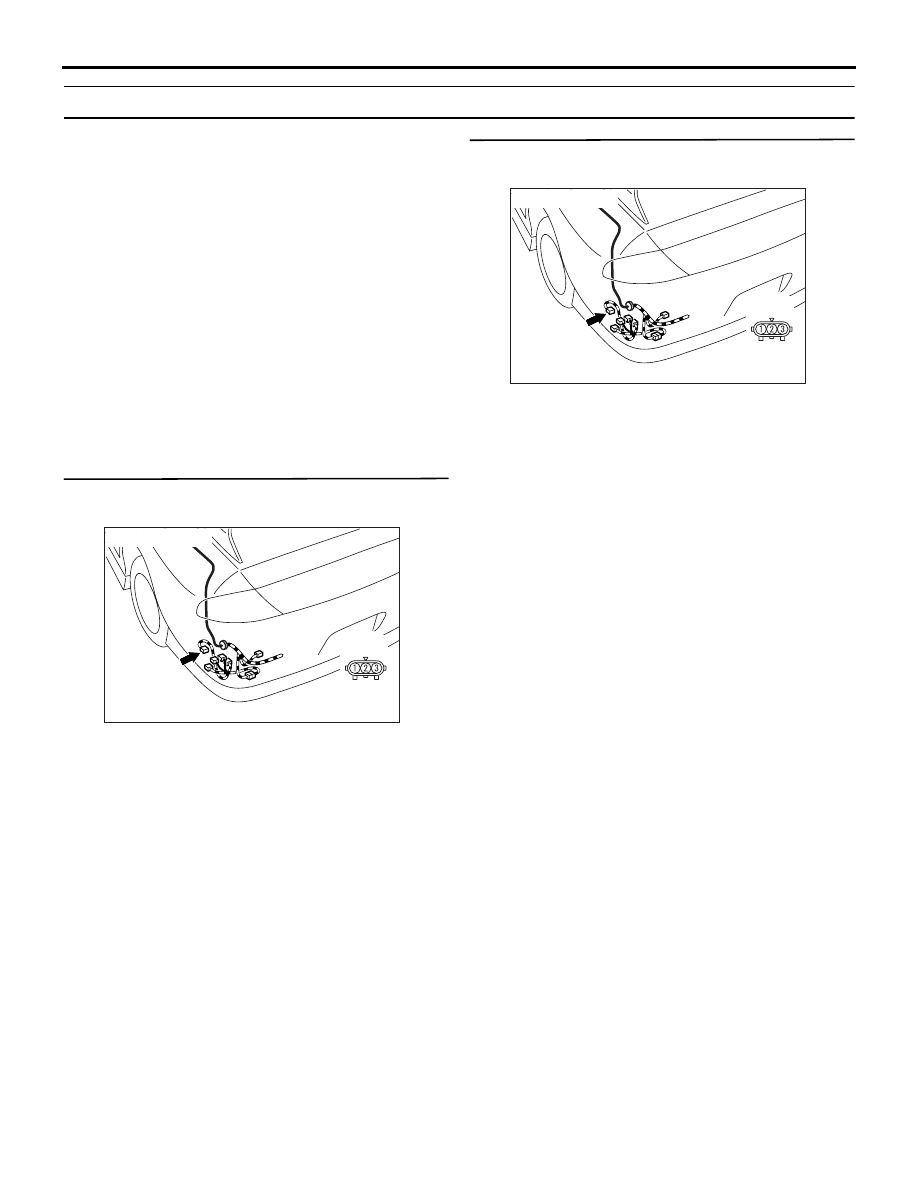

AC311042

AC

Connector: F-26

F-26 (B)

Sensor side

F-26

TROUBLESHOOTING <ACD>

MANUAL TRANSMISSION (FF)

22A-46

Code No.46 Pressure sensor system (open earth)

PRESSURE SENSOR SYSTEM CIRCUIT

Refer to

P.22A-41

.

OPERATION

Refer to

P.22A-41

.

DIAGNOSIS CODE SET CONDITIONS

Code No.46 is set when the output signal from the
pressure sensor is above 2.0 V.

PROBABLE CAUSES

• Malfunction of the pressure sensor

• Damaged harness wires and connectors

• Malfunction of the 4WD-ECU

DIAGNOSIS

STEP 1. Measure the voltage at pressure sensor
connector F-26.

Disconnect the pressure sensor connector, and
measure the resistance between terminal 3 and body
earth at the harness side.

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Go to Step 3.

STEP 2. Connector check: F-26 pressure sensor
connector.

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Replace the pressure sensor.

NO :

Repair the defective connector.

AC311042

AC

Connector: F-26

F-26 (B)

Sensor side

F-26

AC311042

AC

Connector: F-26

F-26 (B)

Sensor side

F-26
