FENDER

BODY

42-5

FENDER

SPECIAL TOOL

M1421000600256

Tool

Number

Name

Use

MB990784

MB990784

Ornament remover

Side turn-signal lamp removal

•

Washer hose (Refer to GROUP 51,
Windshield Wiper and Washer

P.51-23

).

9. Hood support rod
10. Hood heat protector panel
11. Hood heat protector

Hood and hood hinge removal steps

12. Hood outlet garnish
13. Hood hinge bolt (Hood side)
14. Hood
15. Shim
16. Hood hinge
17. Hood weather strip

Hood and hood hinge removal steps

FENDER

BODY

42-6

FENDER

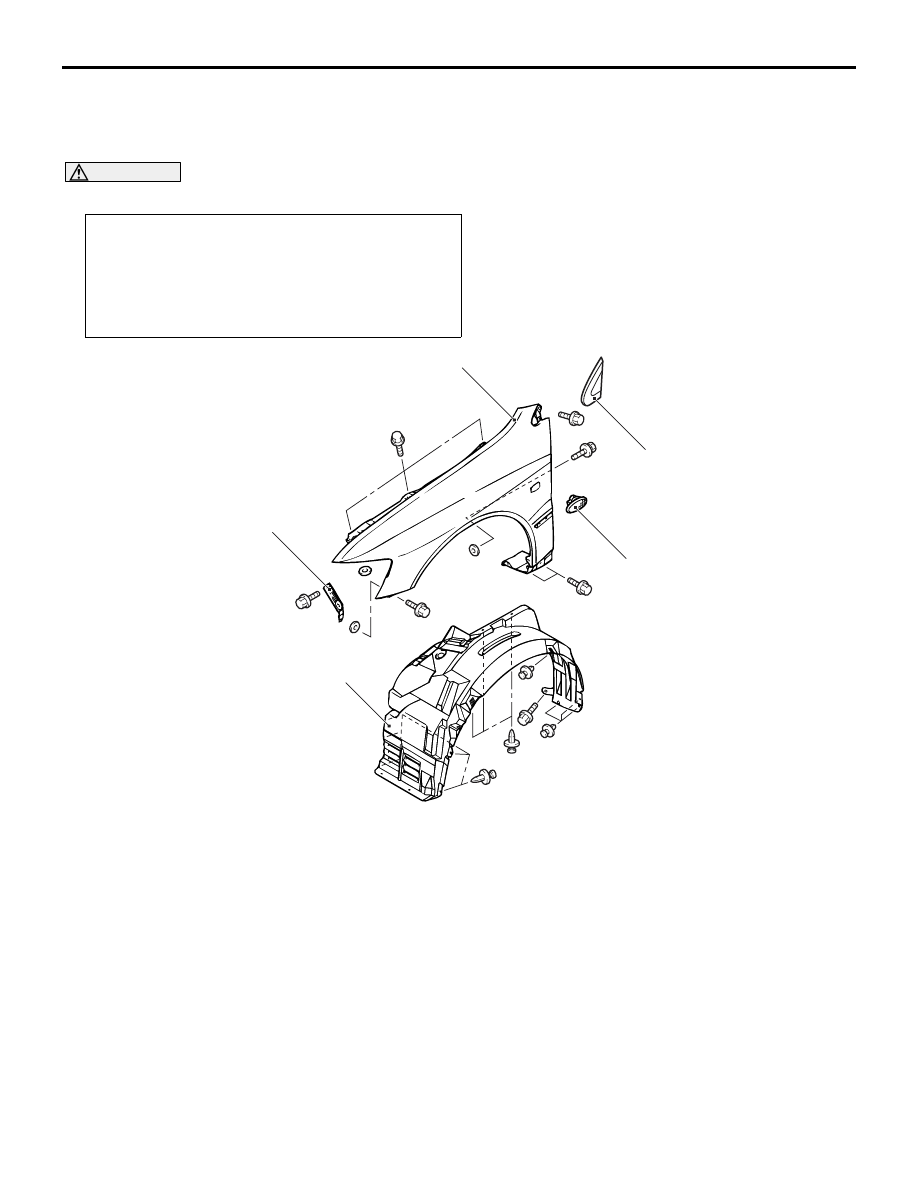

REMOVAL AND INSTALLATION

M1421001900409

CAUTION

Use the special fasteners to secure the fender. They have special coating for anti-corrosion.

Pre-removal and Post-installation Operation
• Front Bumper Assembly Removal and Installation (Refer

to GROUP 51, Front Bumper Assembly

P.51-2

).

• Front Deck Garnish Removal and Installation (Refer to

GROUP 51, Windshield Wiper and Washer

P.51-20

).

• Side Air Dam Removal and Installation (Refer to GROUP

51, Side Air Dam

P.51-8

).

AC211637

1

5

2

3

4

AB

Removal steps
1. Splash shield

<<

A

>> >>

A

<< 2. Side turn-signal lamp

3. Delta garnish (Refer to GROUP 51,

Garnish and Moulding

P.51-10

).

4. Fender
5. Front fender bracket

Removal steps (Continued)

FENDER

BODY

42-7

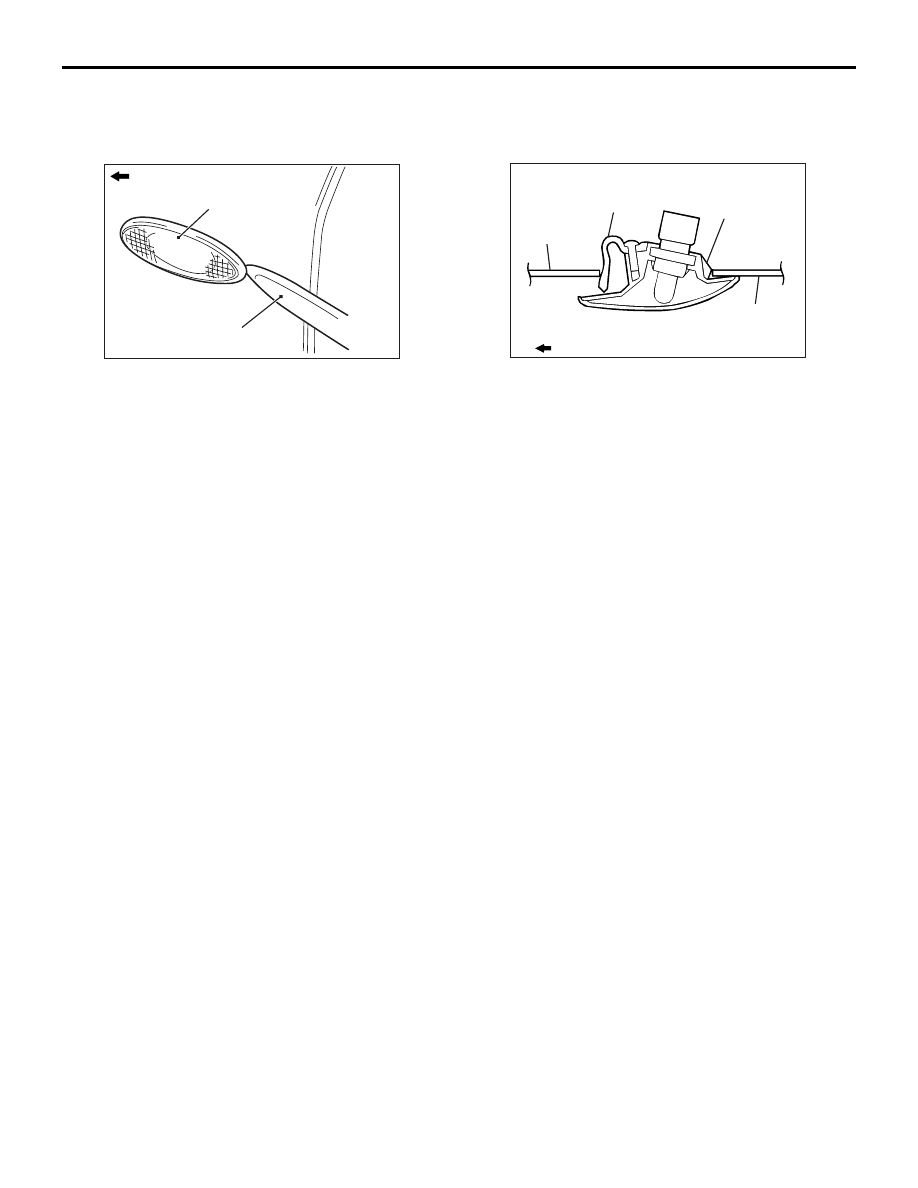

REMOVAL SERVICE POINT
<<A>> SIDE TURN-SIGNAL LAMP
REMOVAL

AC005980

AC005980

Front of vehicle

Side turn-signal lamp

MB990784

AD

Use special tool ornament remover (MB990784) to
prize out the tab from the fender, and remove the
side turn-signal lamp.

INSTALLATION SERVICE POINT
>>A<< SIDE TURN-SIGNAL LAMP
INSTALLATION

AC005719

Fender

Hook

Claw

Fender

: Front of vehicle

AB

Engage the claw with the fender, and install the side
turn-signal lamp.

FUEL FILLER LID

BODY

42-8

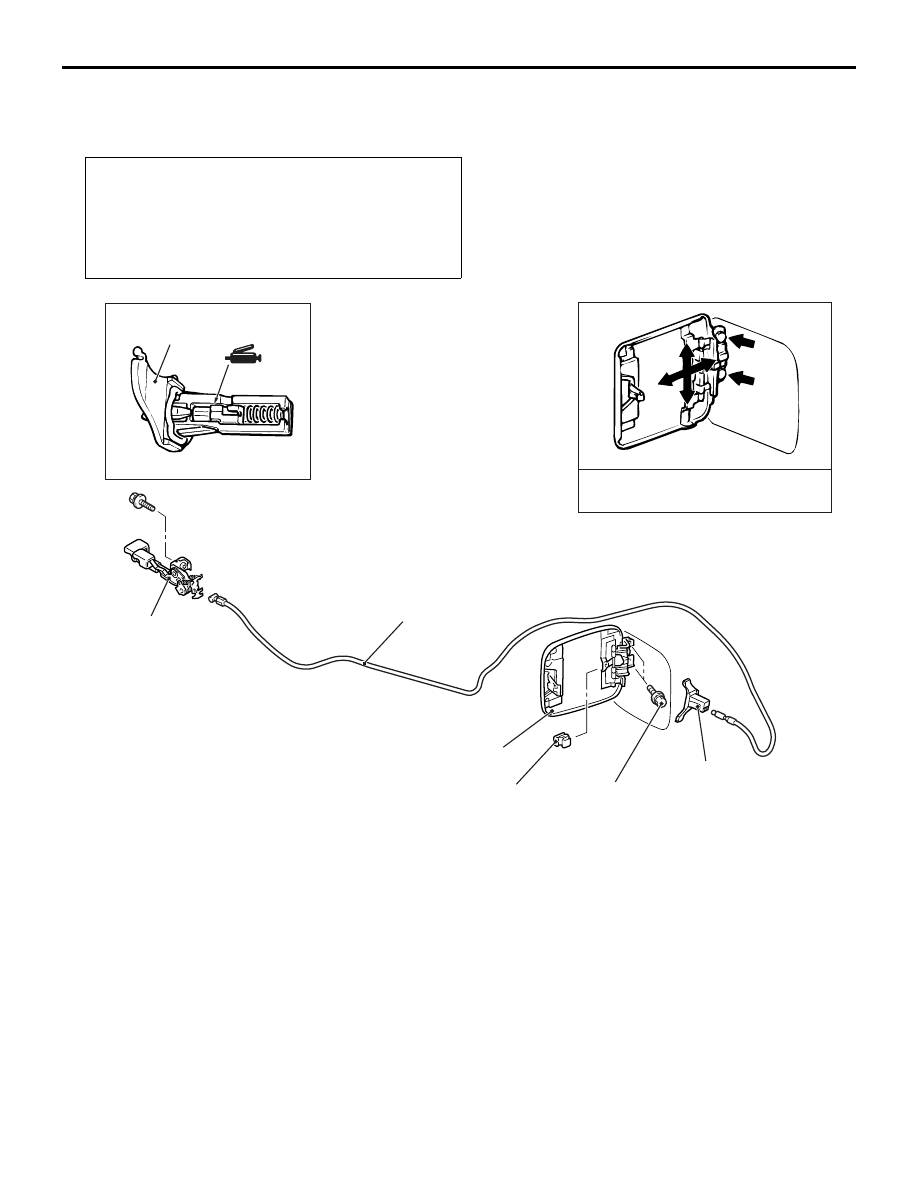

FUEL FILLER LID

REMOVAL AND INSTALLATION

M1421002500277

Pre-removal and Post-installation Operation
• Rear Seat Removal and Installation (Refer to GROUP

52A, Rear Seat

P.52A-20

.)

• Front Scuff Plate (Driver's Seat Side), Rear Scuff Plate

(Driver's Side), Centre Pillar Lower Trim (Driver's Side),

Quarter Trim (Driver's Side) Removal and Installation

(Refer to GROUP 52A, Trims

P.52A-10

.)

18M0109

W0570AQ

AC005996

AC005973

3

5

4

3

2

1

5.0 ± 1.0 N·m

AC

Fuel filler lid height and clearance
adjustment

Removal steps

1.

Fuel filler lid panel assembly

2.

Clip

3.

Fuel filler lid hook assembly

4.

Fuel filler lid lock release cable

5.

Fuel filler lid lock release handle

Removal steps (Continued)
