Mitsubishi Lancer Evolution IX. Manual - part 272

AC000518AC

AC101478

AB

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-25

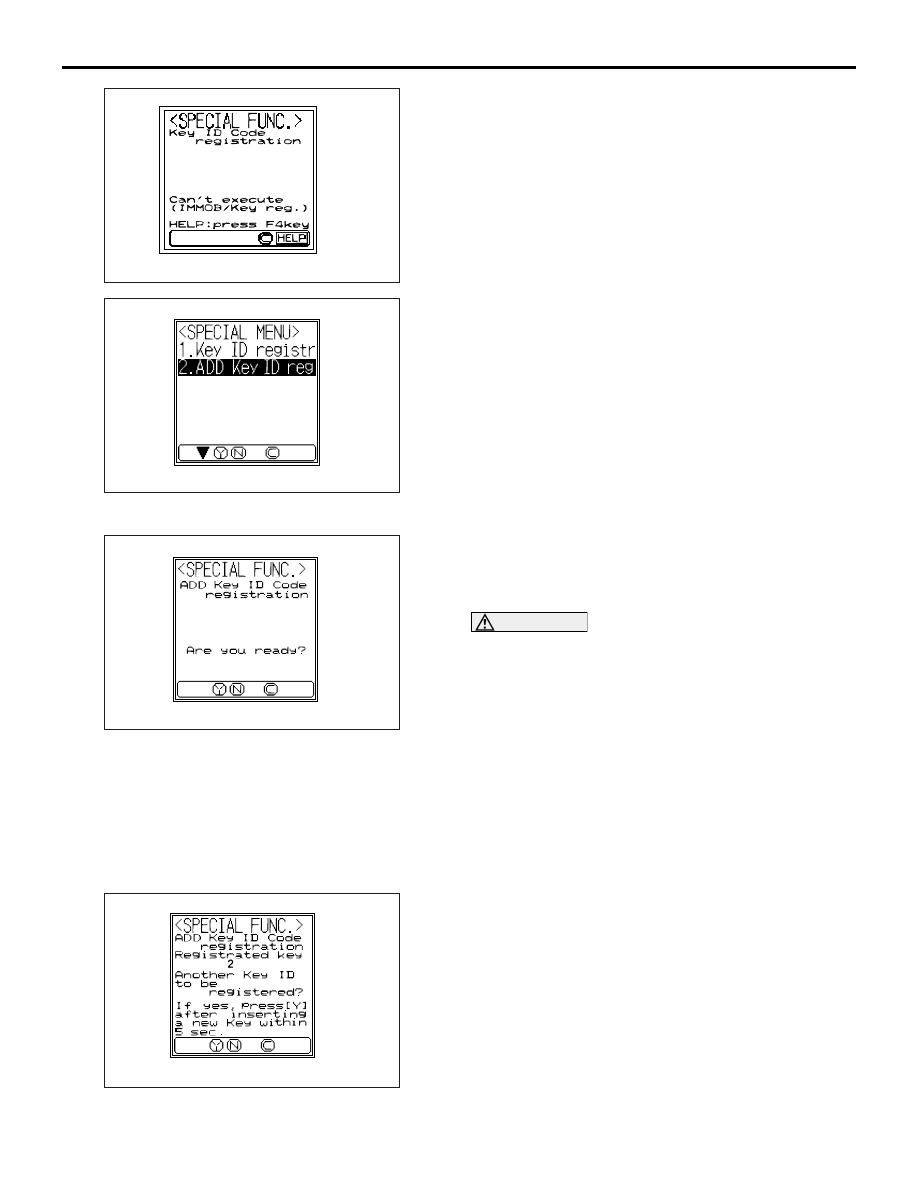

6. Select "Add key ID reg", press "YES".

AC101477

AB

7. Press the "YES" key to start key ID registration.
8. This will be displayed when the add key ID

registration is successful. If an error occurs during
key ID registration, the message "Can't execute"
will be displayed. If the key has already been
registered, "Key ID has been registered" will be
displayed.

AC101476

AB

9. The number of keys currently registered will be

displayed. To register an additional key, replace
the ignition key with the next key to be registered
within five seconds and then press the "YES" key.
Key ID registration screen will be displayed, then
register another key.
NOTE: A maximum of eight different keys can be
registered.

If key ID registration is complete, press the "NO" key.
10.This completes the registration operation. Turn

the ignition switch "LOCK" (OFF) and leave it off
for approximately ten seconds.

11.Check that the engine can be started with each of

the ignition keys.

12.Check that the immobilizer system diagnosis

code and MPI system diagnosis code did not set.

13.Turn the ignition switch to "LOCK" (OFF) position.
14.Disconnect M.U.T.-II.

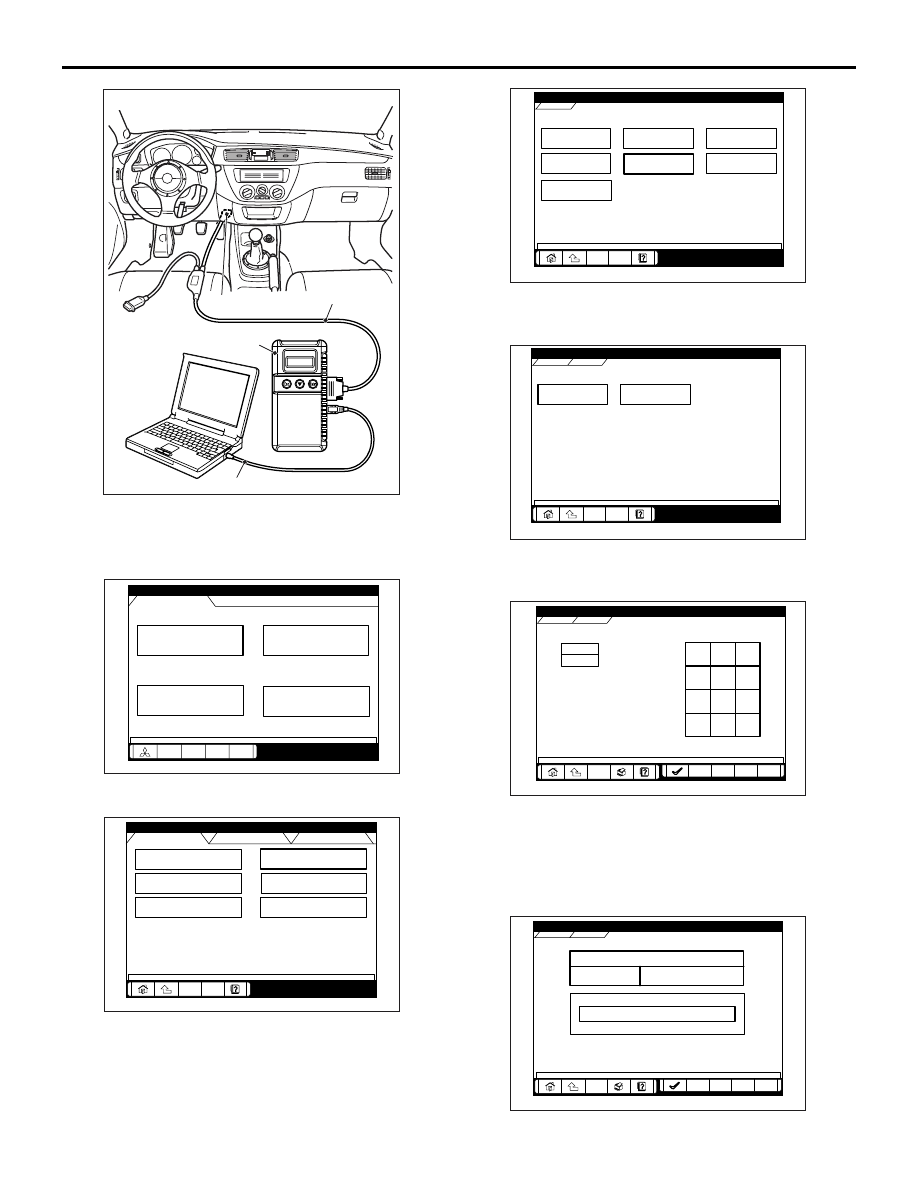

KEY ID (ENCRYPTED CODE) REGISTRA-
TION <M.U.T.-III>

All ignition keys can be registered with M.U.T.-III.
Additional ignition keys can be registered with
M.U.T.-III.

Registration with the M.U.T.-III

CAUTION

To prevent damage to M.U.T.-III, always turn the
ignition switch to "LOCK" (OFF) position before
connecting or disconnecting M.U.T.-III.
NOTE:

.

•

Before registration, check that no diagnosis code
is set. If a diagnosis code is set, resolve the prob-
lem beforehand.

•

Using the key ID register function will cause all
key IDs that have been previously registered in
the immobilizer-ECU to be erased. All keys need
to be registered. Those which have been regis-
tered before should be on hand before using this
function.

•

If registering more than one key, do not discon-
nect M.U.T.-III halfway through the registration
process.

•

After registering key IDs, check that the engine
can be started using all of the keys that have
been registered. If the engine will not start, refer
to Immobilizer System Diagnosis

P.54A-6

.

AC210056

MB991911

16-PIN

MB991827

MB991824

AF

<Using the M.U.T.-III>

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-26

1. Connect the M.U.T.-III to the diagnosis connector

(16-pin).

2. Turn the ignition switch to "ON" position.

System select

Special function

CAN bus diagnosis

Function Select Menu

Menu

AC209666

Maintenance

AD

3. Select "System select" from the start-up screen.

MPI/GDI/DIESEL

ELC-A/T/CVT

IMMOBILIZER

SS4II

TCL/STARLTY CONTROL

AUTO CRUISE

CHASSIS

BODY

System Select Menu

POWER TRAIN

AC305175

4. Choose "IMMOBILIZER" from the "POWER

TRAIN" tab.

Check Chart For

 Problem Sy

Data List

Special

Function

Self-diagnosis

Simulated Vehicle

Speed Out

Resistor

Voltmeter

POWERTRAIN

IMMOBILIZER

IMMOBILIZER

AC305176

5. Choose "Special Function" from "IMMOBILIZER"

screen.

Key ID registration

Additional Key

Registration

POWERTRAIN

Special Function

IMMOBILIZER

Special Function

AC305177

6. Choose "Key registration" from "Special Function"

screen.

POWERTRAIN

IMMOBILIZER

Special Function

7

8

9

4

5

6

1

2

3

0

Back

Back

Space

Space

Clear

Clear

Key registration

AC207300

AD

7. Enter the vehicle’s password (secret code) on the

"Key registration" screen, and then click the check
mark icon. Follow the prompts on the screen to
insert key(s) into the ignition switch to begin key
registration.

POWERTRAIN

IMMOBILIZER

Special Function

IMMOBILIZER-ECU registration

Progress

In-Complete

Key registration

AC207302

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-27

8. If the key ID was registered successfully,

"Progress" indication will turn active (gray). Then
the registration process completes. If the key ID
failed to be registered, "In-Complete" indication
will turn active (gray).

9. The number of keys currently registered will be

displayed. To register an additional key, replace
the ignition key with the next key to be registered
within five seconds. Key ID registration screen will
be displayed, then register another key.
NOTE: A maximum of eight different keys can be
registered.

10.This completes the registration operation. Turn

the ignition switch "LOCK" (OFF) and leave it off
for approximately ten seconds.

11.Check that the engine can be started with each of

the ignition keys.

12.Check that the immobilizer system diagnosis

code and MPI system diagnosis code did not set.

13.If not diagnosis code is shown, terminate the

M.U.T.-III.

14.Turn the ignition switch to "LOCK" (OFF) position.
15.Disconnect M.U.T.-III.

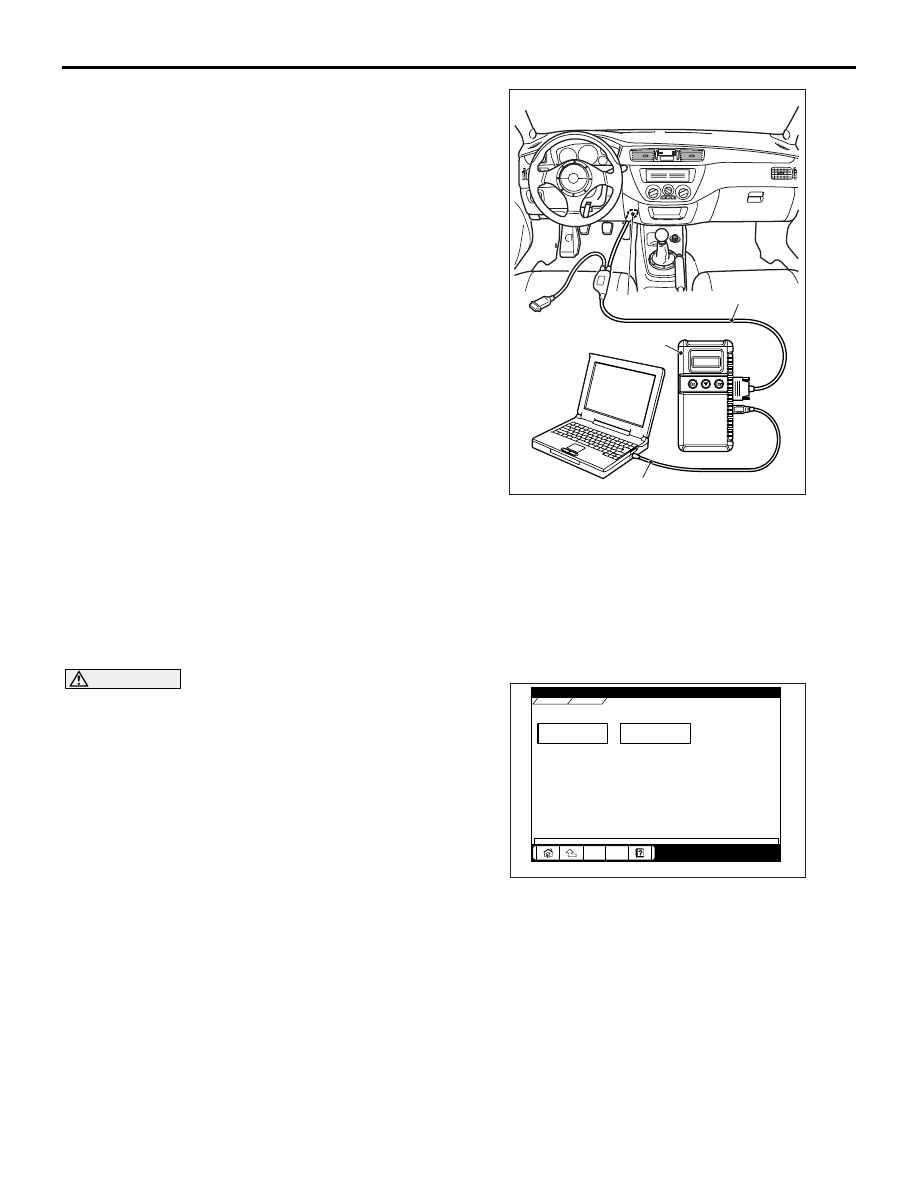

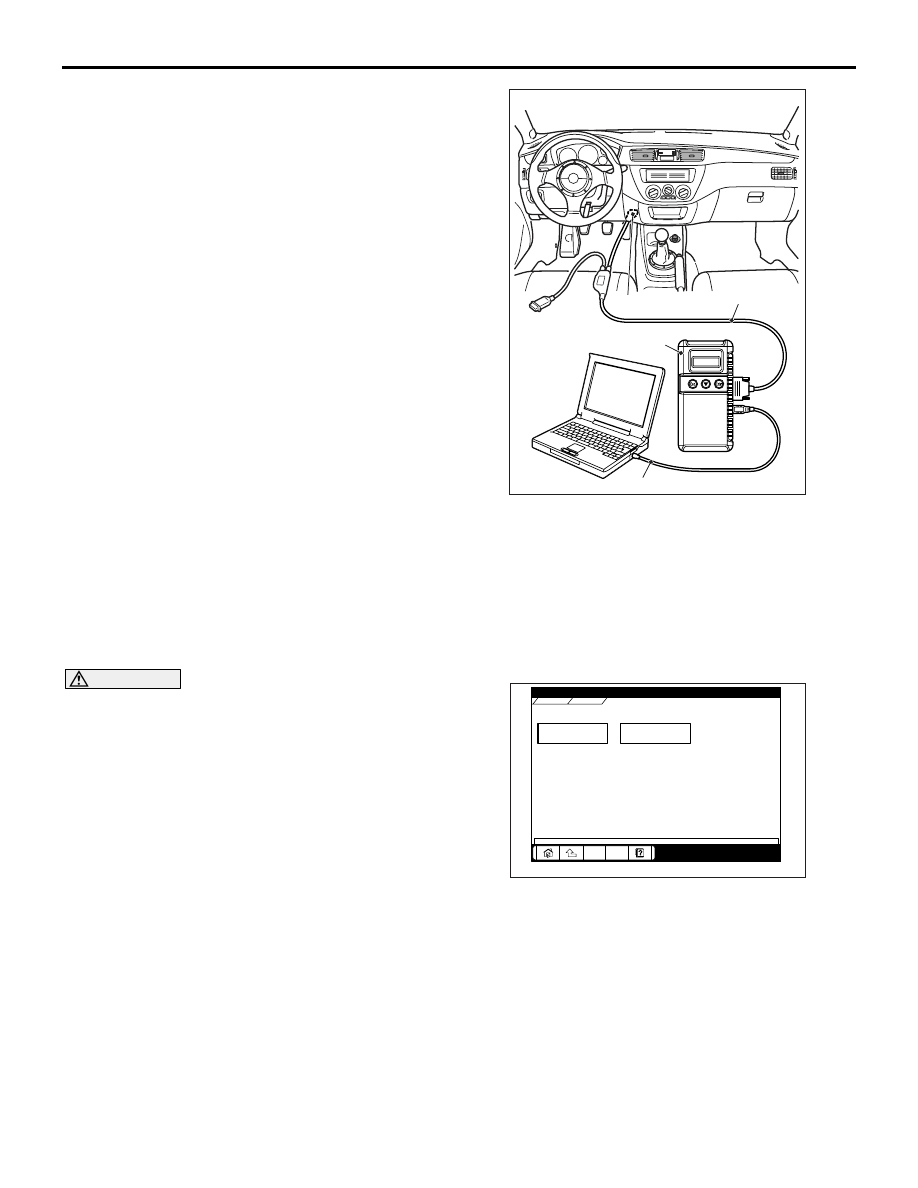

Registration of additional keys with the
M.U.T.-III

Additional key(s) can be registered with the M.U.T.-III
while keeping all existing key data.

CAUTION

To prevent damage to M.U.T.-III, always turn the
ignition switch to "LOCK" (OFF) position before
connecting or disconnecting M.U.T.-III.
NOTE: To register additional keys with the M.U.T.-III,
no registered keys must be lost.

AC210056

MB991911

16-PIN

MB991827

MB991824

AF

<Using the M.U.T.-III>

1. Connect M.U.T.-III to the 16-pin diagnosis

connector.

2. Turn the ignition switch to "ON" position.
NOTE: Before registration, check that no diagnosis
code is set. If a diagnosis code is set, resolve the
problem beforehand.
3. Carry out steps 3 to 6 of the sub-section

"Registration with M.U.T.-III."

Key ID registration

Additional Key

Registration

POWERTRAIN

Special Function

IMMOBILIZER

Special Function

AC305177

4. Choose "Transponder ID addition" from "Special

Function" screen.

POWERTRAIN

IMMOBILIZER

Password

Special Function

7

8

9

4

5

6

1

2

3

0

Back

Back

Space

Space

Clear

Clear

Trasponder ID addition

AC207301

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-28

5. Enter the vehicles password (secret code) on the

"Transponder ID addition" screen, and then click
the check mark icon.

AC207301

AC209775

POWERTRAIN

IMMOBILIZER

Key ID register

The number of registered key

The number of registered key

3

Progre

Special Function

Trasponder ID addition

About Additional Transponder
ID SET

If register another key ID, press the

If register another key ID, press the
OK button after inserting a new key

OK button after inserting a new key
within 5 sec and turning on IG-SW

within 5 sec and turning on IG-SW.

6. If an additional registration is made successfully,

the screen will ask if another key is registered or
not. If the third ignition key is registered, remove
the key, which has been registered. Then insert
the third key within five seconds, and then turn it
to the ON position.

7. Register the additional ignition key according to

step 6 above. The number of the registered
ignition keys are shown on "The number of
registered key" screen.
NOTE: A maximum of eight different keys can be
registered.

8. This completes the registration operation. Turn

the ignition switch "LOCK" (OFF) and leave it off
for approximately ten seconds.

9. Check that the engine can be started with each of

the ignition keys.

10.Check that the immobilizer system diagnosis

code and MPI system diagnosis code did not set.

11.If not diagnosis code is shown, terminate the

M.U.T.-III.

12.Turn the ignition switch to "LOCK" (OFF) position.
13.Disconnect M.U.T.-III.
