SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-119

NOTE:

Prior to the wiring harness inspection, check interme-
diate connectors C-17 <LH drive vehicles>, C-110
<RH drive vehicles>, D-04, and repair if necessary.

• Check the communication lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 14.

NO :

Repair the wiring harness.

Step 14. Retest the system.
After the rear power window sub switch (RH) is
replaced, check that the rear right door power win-
dow can be operated by the power window sub
switch.
(1) Replace the rear power window sub switch (RH).
(2) Check that the rear right power window works by

means of the power window main switch.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the power window main switch.

Step 15. Connector check: E-05 power window
main switch connector

Q: Is the check result normal?

YES :

Go to Step 16.

NO :

Repair the connector.

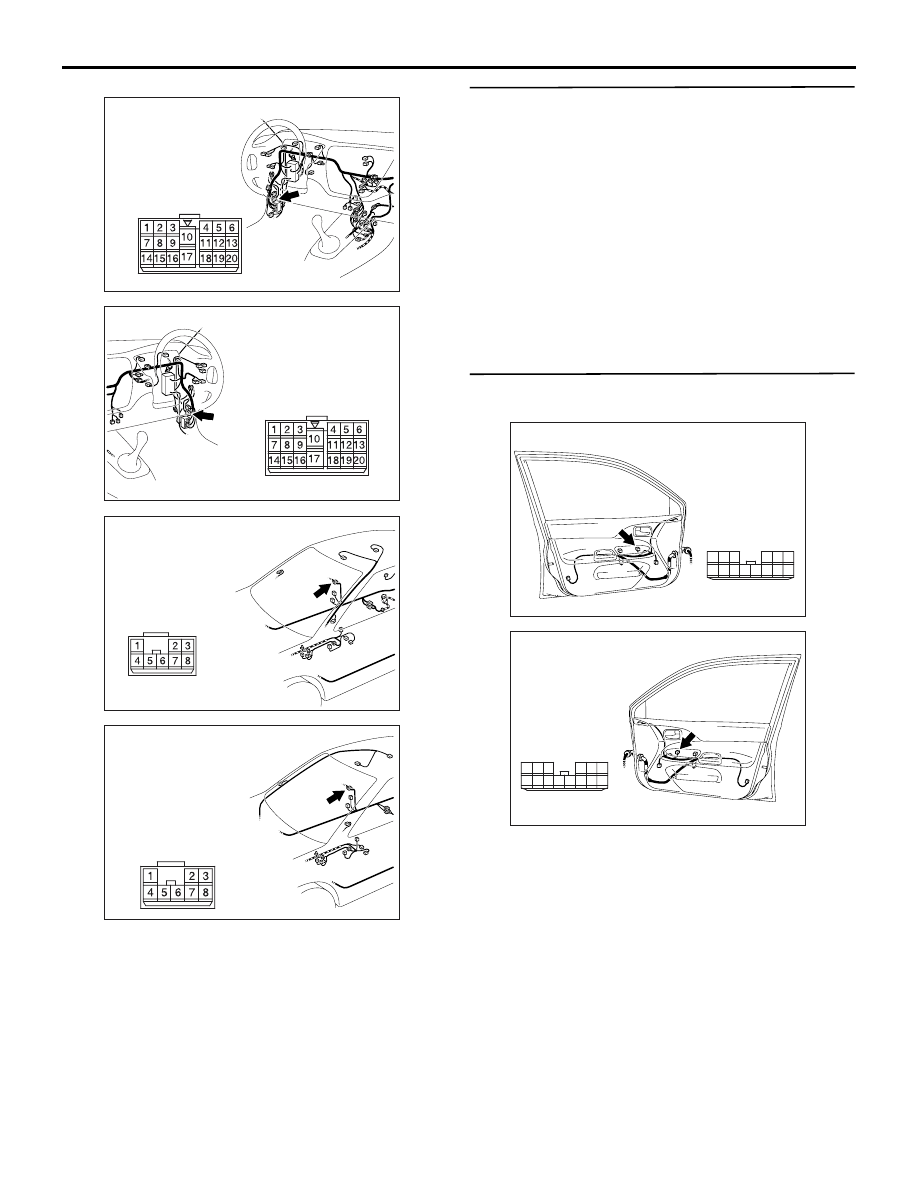

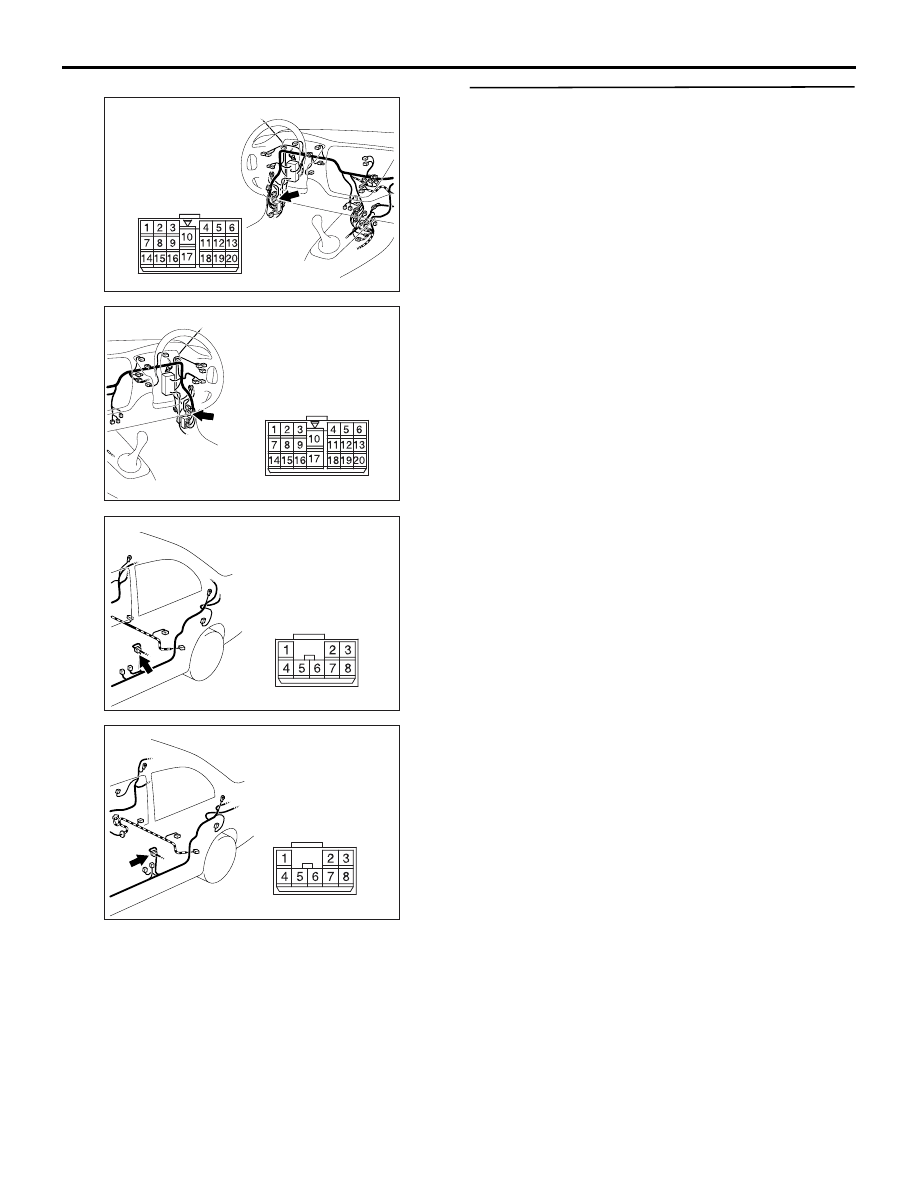

AC310446

Connector: C-17 <LHD>

AE

AC310456

Connector: C-110 <RHD>

AH

AC310463

Connector: D-04 <LHD>

AB

AC310471

Connector: D-04 <RHD>

AC

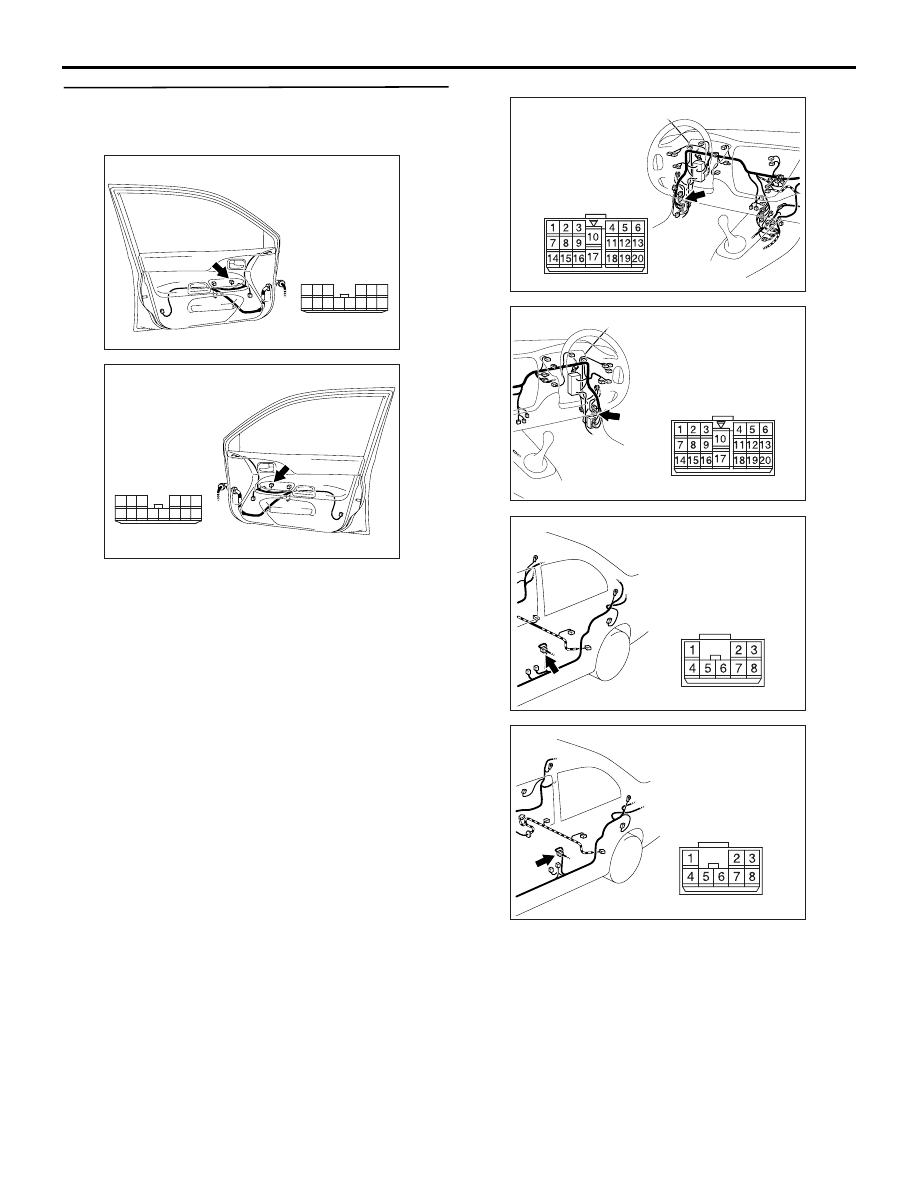

AC310484

Connector: E-05 <LHD>

AD

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (LH)

AC310493

Connector: E-05 <RHD>

AG

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (RH)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-120

Step 16. Check the wiring harness from E-05
power window main switch connector terminal
No.11 to the inserted probe.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connectors C-17 <LH drive vehicles>, C-110
<RH drive vehicles>, D-15, and repair if necessary.

• Check the communication lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 19.

NO :

Repair the wiring harness.

AC310484

Connector: E-05 <LHD>

AD

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (LH)

AC310493

Connector: E-05 <RHD>

AG

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (RH)

AC310446

Connector: C-17 <LHD>

AE

AC310456

Connector: C-110 <RHD>

AH

AC310465

AC

Connector: D-15 <LHD>

AC310473

AD

Connector: D-15 <RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-121

Step 17. Connector check: E-08 rear power
window sub switch (LH) connector

Q: Is the check result normal?

YES :

Go to Step 18.

NO :

Repair the connector.

Step 18. Check the wiring harness from E-08 rear
power window sub switch (LH) connector
terminal No.6 to the inserted probe.

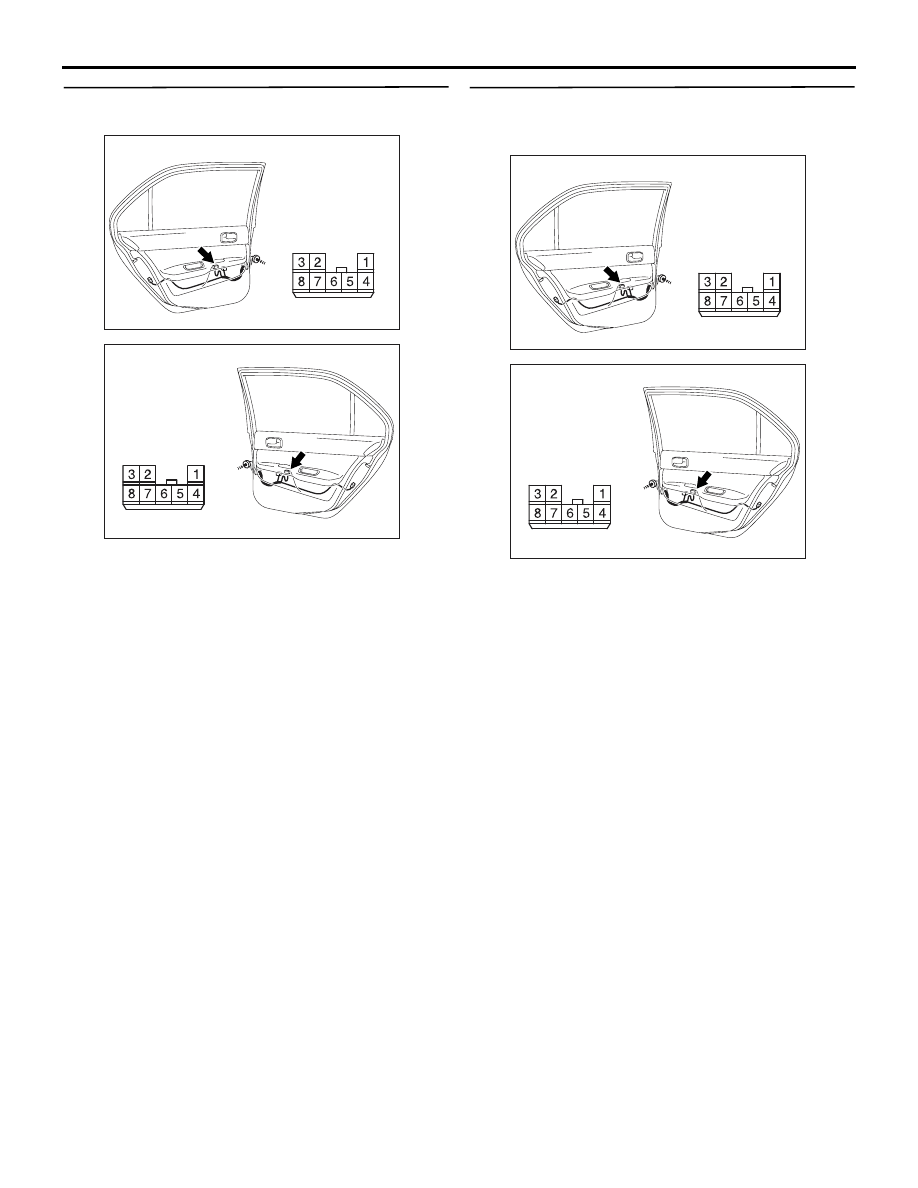

AC310486

Connector: E-08

AD

Harness side

Rear door (LH)

AC310495

Connector: E-08 <RHD>

AG

Harness side

AC310486

Connector: E-08

AD

Harness side

Rear door (LH)

AC310495

Connector: E-08 <RHD>

AG

Harness side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-122

NOTE:

Prior to the wiring harness inspection, check interme-
diate connectors C-17 <LH drive vehicles>, C-110
<RH drive vehicles>, D-15, and repair if necessary.

• Check the communication lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 19.

NO :

Repair the wiring harness.

Step 19. Retest the system.
After the rear power window sub switch (LH) is
replaced, check that the rear left door power window
can be operated by the power window sub switch.
(1) Replace the rear power window sub switch (LH).
(2) Check that the rear left power window works by

means of the power window main switch.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the power window main switch.

AC310446

Connector: C-17 <LHD>

AE

AC310456

Connector: C-110 <RHD>

AH

AC310465

AC

Connector: D-15 <LHD>

AC310473

AD

Connector: D-15 <RHD>
