SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-115

NOTE:

Prior to the wiring harness inspection, check interme-
diate connectors C-17, C-110, and repair if neces-
sary.

• Check the communication lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the wiring harness.

Step 7. Connector check: E-14 front power
window sub switch (LH) connector

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the connector.

Step 8. Check the wiring harness from E-14 front
power window sub switch (LH) connector
terminal No.6 to the inserted probe.

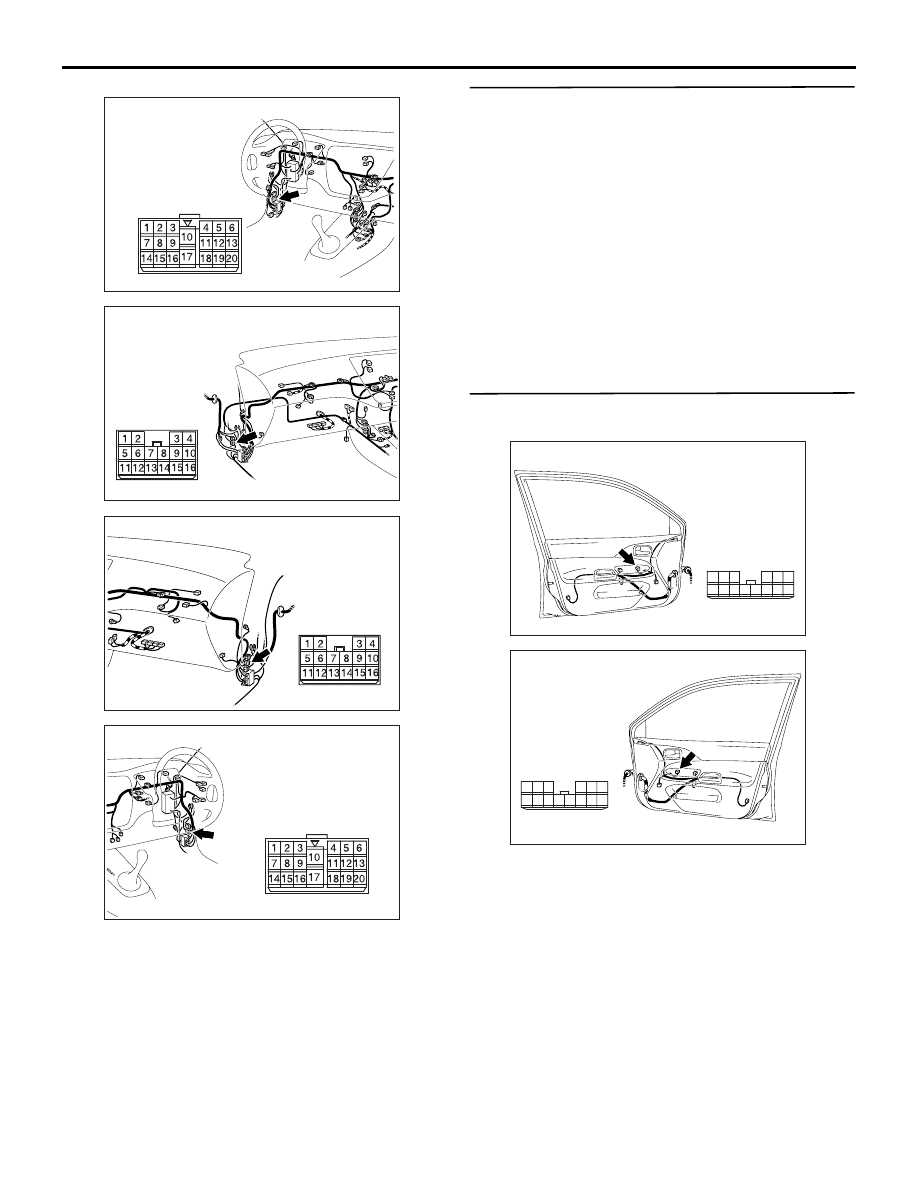

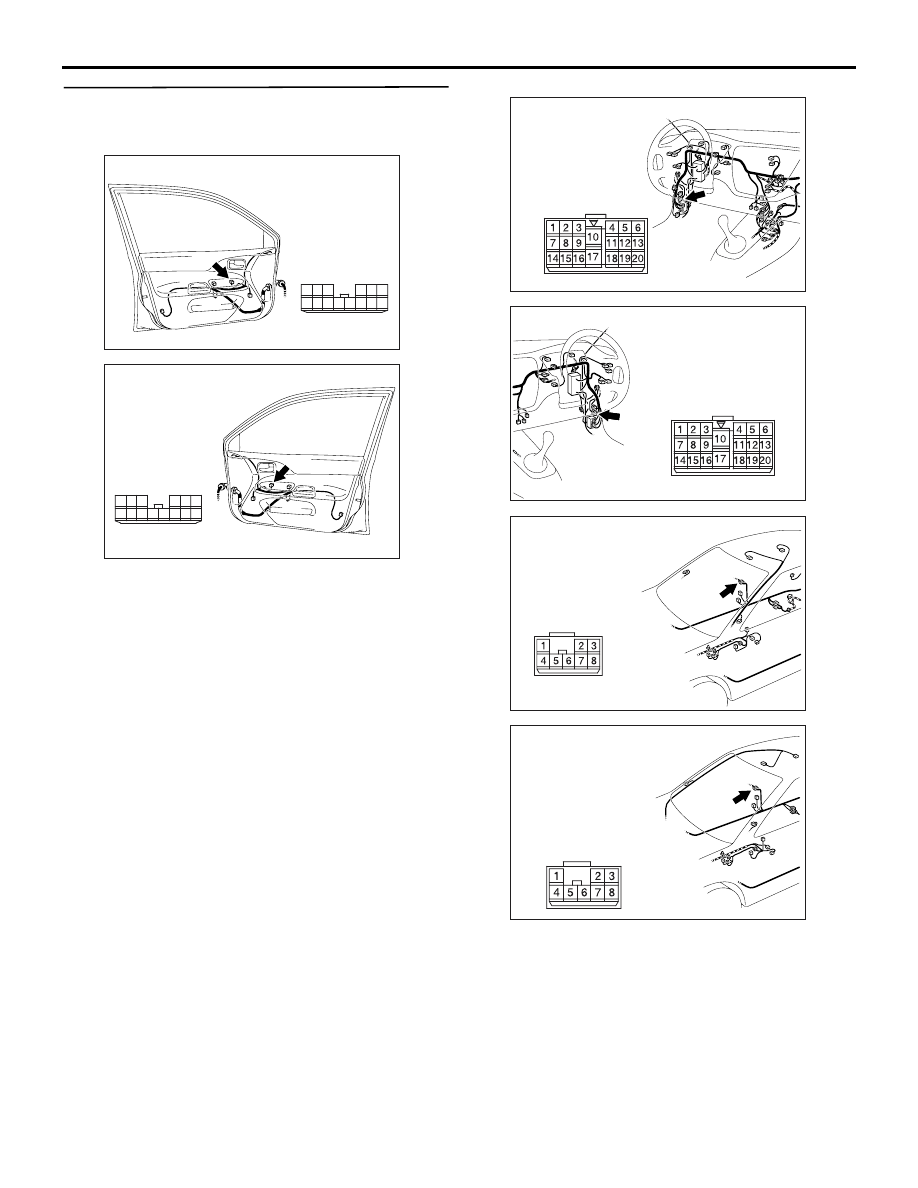

AC310446

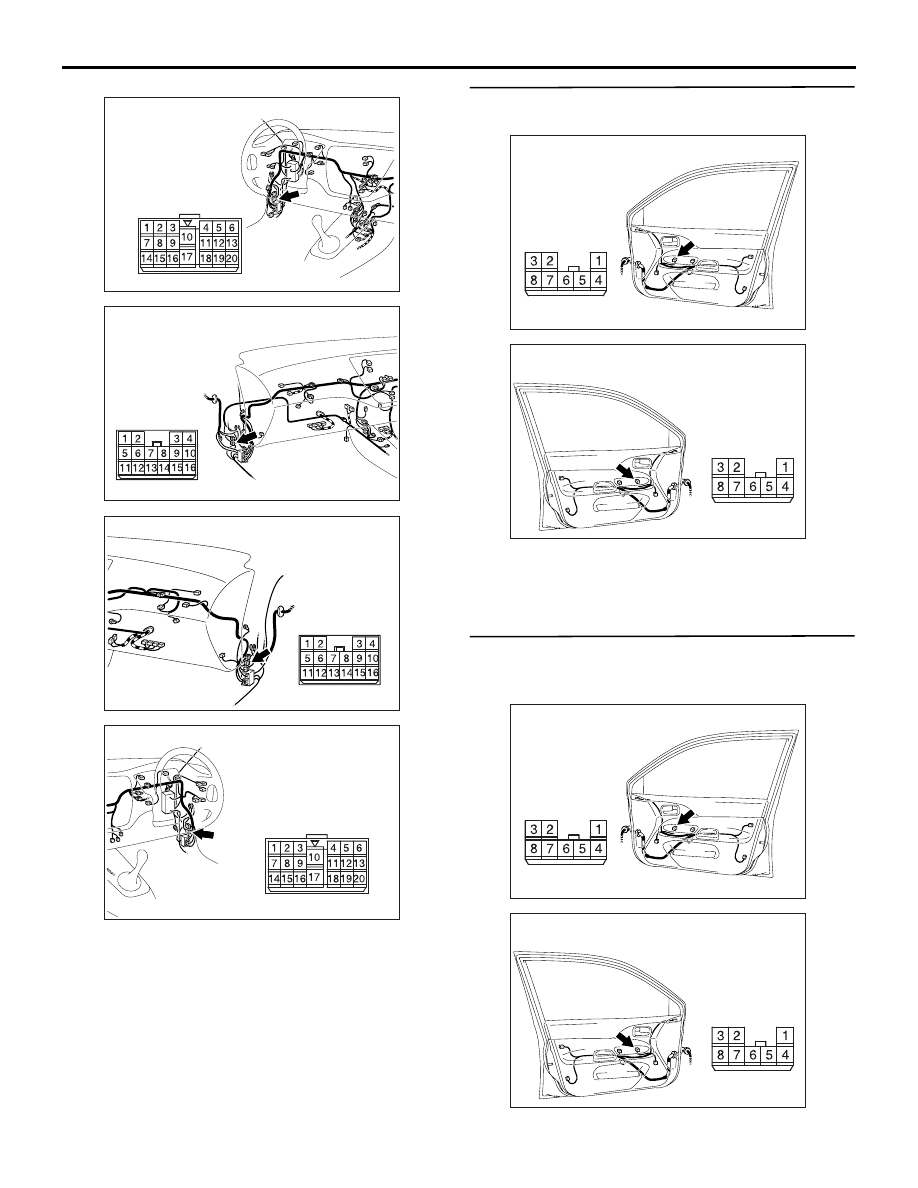

Connector: C-17 <LHD>

AE

AC310454

Connector: C-17 <RHD>

AH

AC310452

Connector: C-110 <LHD>

AC

AC310456

Connector: C-110 <RHD>

AH

AC310488

Connector: E-14 <LHD>

Harness side

AD

Front door (RH)

AC310498

Connector: E-14 <RHD>

Harness side

AC

Front door (LH)

AC310488

Connector: E-14 <LHD>

Harness side

AD

Front door (RH)

AC310498

Connector: E-14 <RHD>

Harness side

AC

Front door (LH)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-116

NOTE:

Prior to the wiring harness inspection, check interme-
diate connectors C-17, C-110, and repair if neces-
sary.

• Check the communication lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the wiring harness.

Step 9. Retest the system.
After the front power window sub switch (LH) is
replaced, check that the front passenger's door
power window can be operated by the power window
sub switch.
(1) Replace the front power window sub switch (LH).
(2) Check that the front passenger's power window

works by means of the power window main
switch.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the power window main switch.

Step 10. Connector check: E-05 power window
main switch connector

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Repair the connector.

AC310446

Connector: C-17 <LHD>

AE

AC310454

Connector: C-17 <RHD>

AH

AC310452

Connector: C-110 <LHD>

AC

AC310456

Connector: C-110 <RHD>

AH

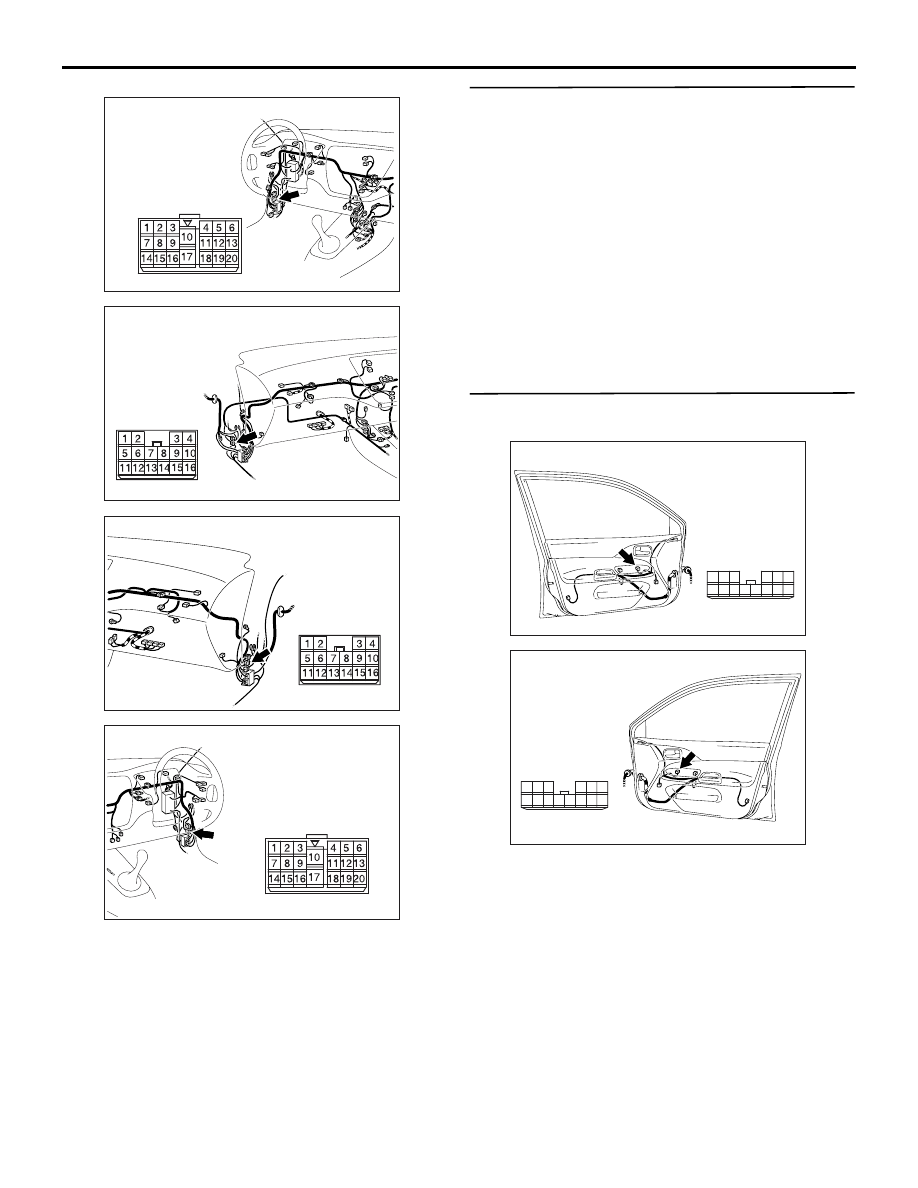

AC310484

Connector: E-05 <LHD>

AD

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (LH)

AC310493

Connector: E-05 <RHD>

AG

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (RH)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-117

Step 11. Check the wiring harness from E-05
power window main switch connector terminal
No.11 to the inserted probe.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connectors C-17 <LH drive vehicles>, C-110
<RH drive vehicles>, D-04, and repair if necessary.

• Check the communication lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 14.

NO :

Repair the wiring harness.

AC310484

Connector: E-05 <LHD>

AD

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (LH)

AC310493

Connector: E-05 <RHD>

AG

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (RH)

AC310446

Connector: C-17 <LHD>

AE

AC310456

Connector: C-110 <RHD>

AH

AC310463

Connector: D-04 <LHD>

AB

AC310471

Connector: D-04 <RHD>

AC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-118

Step 12. Connector check: E-17 rear power
window sub switch (RH) connector

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Repair the connector.

Step 13. Check the wiring harness from E-17 rear
power window sub switch (RH) connector
terminal No.6 to the inserted probe.

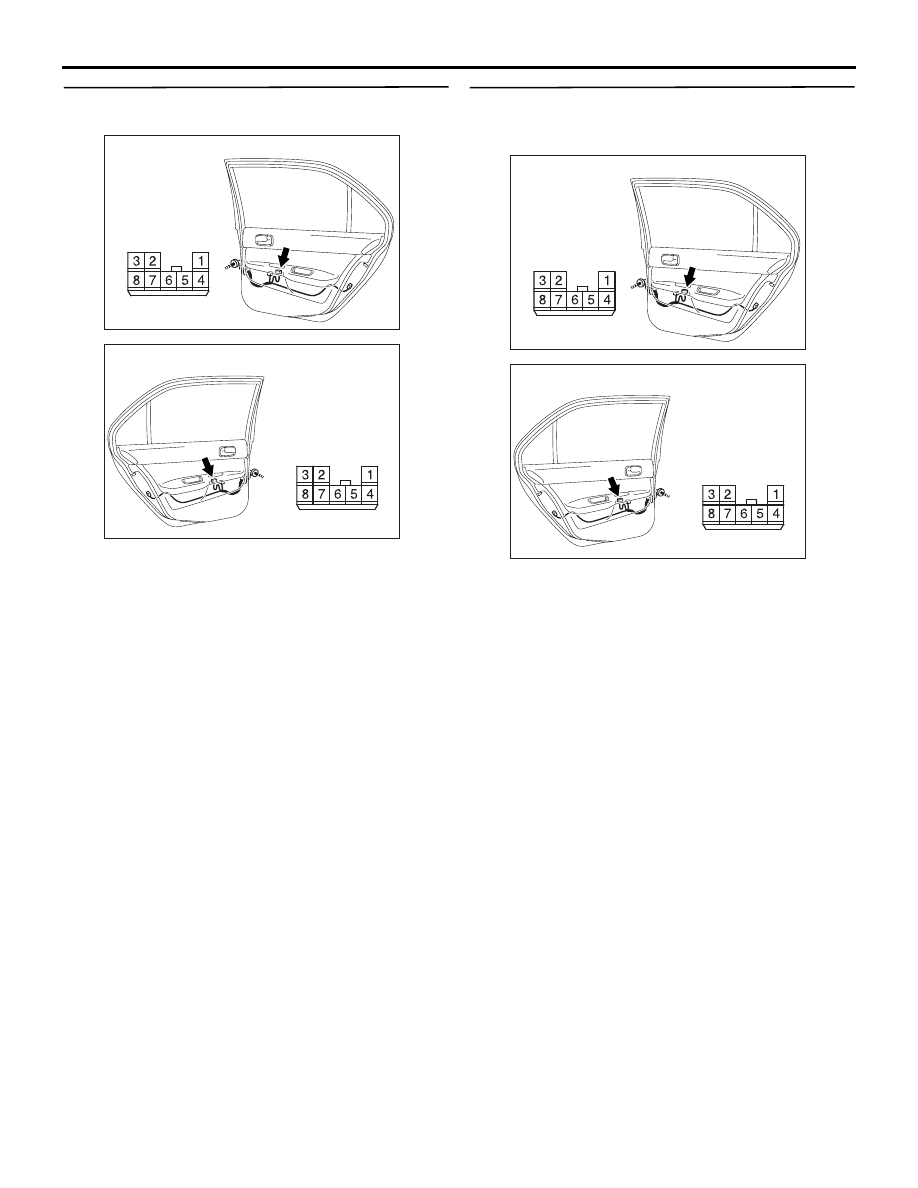

AC310491

Connector: E-17

AC

Harness side

Rear door (RH)

AC310500

Connector: E-17 <RHD>

AC

Harness side

AC310491

Connector: E-17

AC

Harness side

Rear door (RH)

AC310500

Connector: E-17 <RHD>

AC

Harness side
