SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-179

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector F-12 <licence plate lamp> and repair
if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

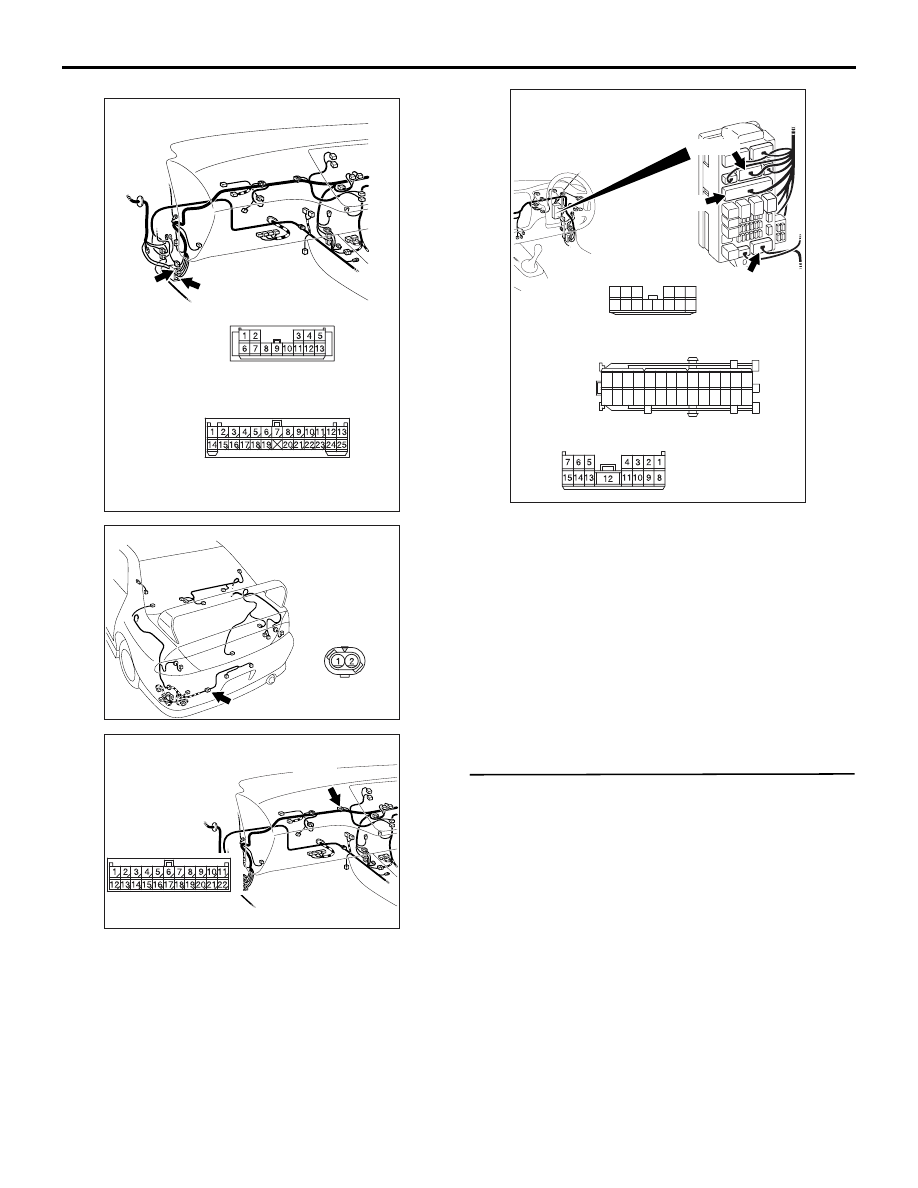

Step 5. Connector check: A-10X front-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

AC310469

AG

Connector: F-12 <RHD>

F-12 (GR)

AC310572AB

Connector: A-10X

Relay box side

10

11

5

9 8 7 6

4 3

1

2

Battery

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-180

Step 6. Check the wiring harness from F-14 <tail

lamp LH> or F-08 <tail lamp RH> rear

combination lamp connector terminal No.3, A-31

<position lamp LH> or A-39 <position lamp RH>

headlamp assembly connector terminal No.3,

F-11 <licence plate lamp LH> or F-10 <licence

plate lamp RH> licence plate lamp connector

terminal No.2, C-02 <tail lamp indicator>

combination meter connector terminal No.38 to

A-10X front-ECU connector terminal No.8.

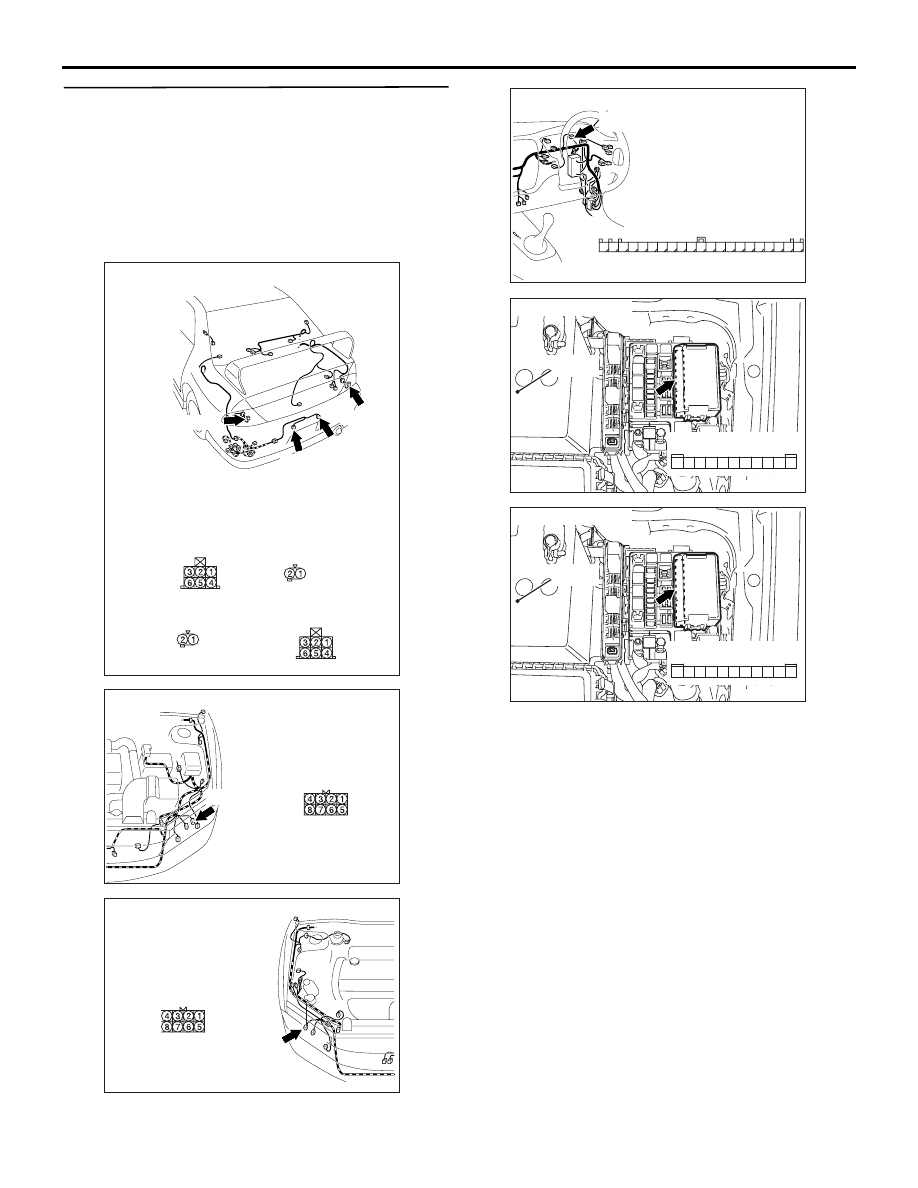

AC310470

Connectors: F-08, F-10, F-11, F-14

<RHD>

AD

F-08(B)

F-10(GR)

F-11(GR)

F-14(B)

Harness side

F-08

Harness side

F-11

Harness side

F-10

Harness side

F-14

AC310475

Connectors: A-31

AB

A-31(B)

Harness side

A-31

<RHD>

AC310433

Connectors: A-39

AD

A-39(B)

Harness side

A-39

<RHD>

AC310456

Connector: C-02
<RHD>

AK

Harness side

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

C-02 (L)

AC310572AB

Connector: A-10X

Relay box side

10

11

5

9 8 7 6

4 3

1

2

Battery

AC310572AB

Connector: A-10X

Relay box side

10

11

5

9 8 7 6

4 3

1

2

Battery

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-181

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-129 <tail lamp, licence plate lamp
or tail lamp indicator>, C-127 <tail lamp LH or licence
plate lamp> or F-12 <licence plate lamp>, joint con-
nector C-05 <tail lamp RH, or tail lamp indicator>,
junction block connector C-210 <tail lamp RH, or tail
lamp indicator>, C-214 <tail lamp indicator> or C-217
<tail lamp RH> and repair if necessary.

• Check the output lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

Step 7. Retest the system.
Check that the tail lamps, the position lamps and the
licence plate lamps illuminate normally.

Q: Is the check result normal?

The all lamps illuminate normally :

The trouble can

be an intermittent malfunction (Refer to
GROUP 00

− How to Cope with Intermittent

Malfunction

P.00-5

).

When the tail lamps do not illuminate :

Replace

the rear combination lamp socket assembly.

When the position lamps do not illuminate :

Replace the position lamp socket.

When the licence plate lamps do not illuminate :

Replace the licence plate lamp socket.

When the tail lamp indicator do not illuminate :

Replace the combination meter assembly.

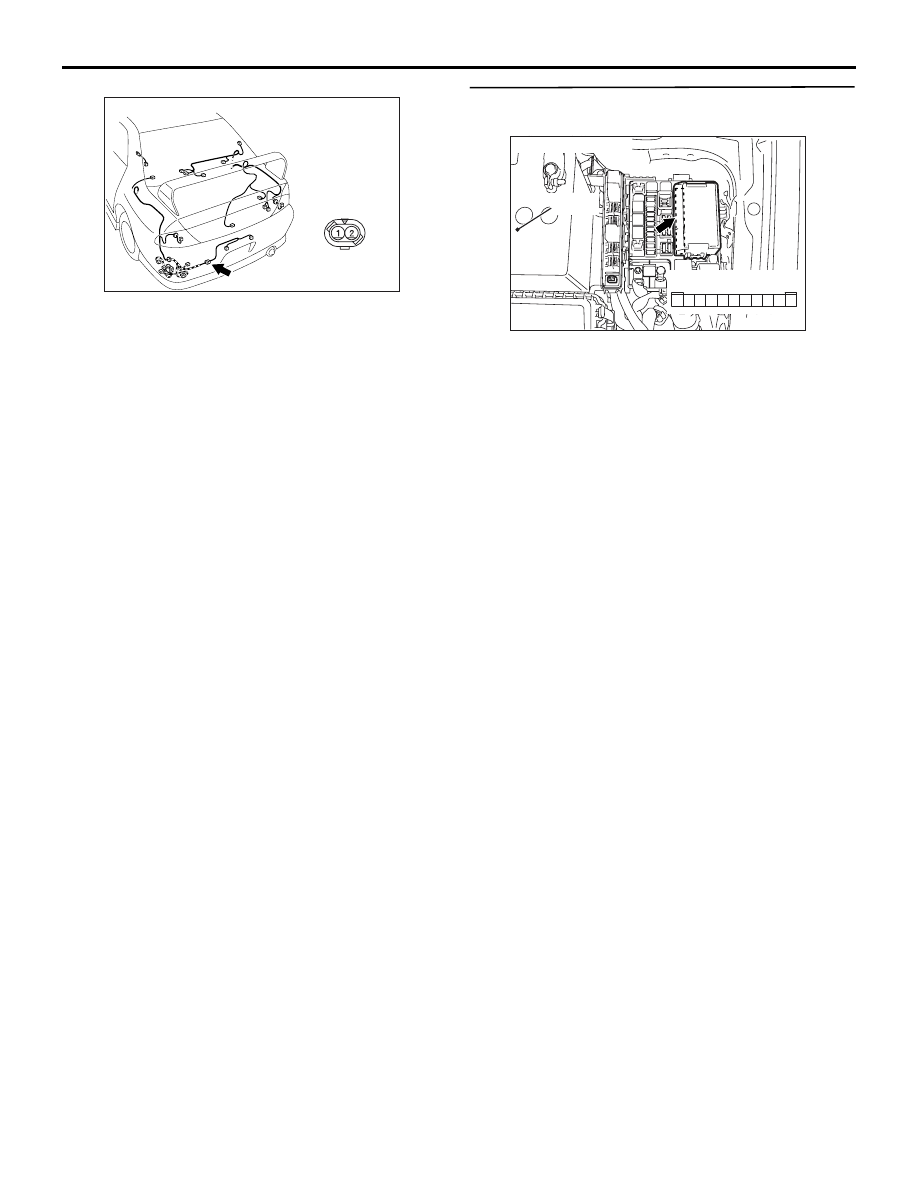

AC310455

C-127

C-129

Connectors: C-127, C-129

AE

C-129

<RHD>

C-127

AC310469

AG

Connector: F-12 <RHD>

F-12 (GR)

AC310454

Connectors: C-05

AZ

<RHD>

C-05

C-05

AC310459

C-214
Harness side

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

Connectors: C-210, C-214, C-217

AE

C-214

Junction block (front view)

<RHD>

C-210

C-210
Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

C-217

C-217

Harness side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-182

INSPECTION PROCEDURE H-7: The headlamp(s) do not illuminate. <including high-beam indicator>

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

If any of the headlamps or the high-beam indicator
does not illuminate, the wiring harness connector(s),
the bulb or the fuse may be defective or burned out.

POSSIBLE CAUSES

• Malfunction of the headlamp bulbs

• Malfunction of the high-beam indicator bulb

• Damaged harness wires and connectors

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

HEADLAMP
(HI: RH)

HEADLAMP
(HI: LH)

HEADLAMP
ASSEMBLY
(LH) (LO)

HEADLAMP
ASSEMBLY
(RH) (LO)

COMBINATION
METER

RELAY
BOX

FRONT-ECU

HEADLAMP
RELAY: HI

HEADLAMP
RELAY: LO

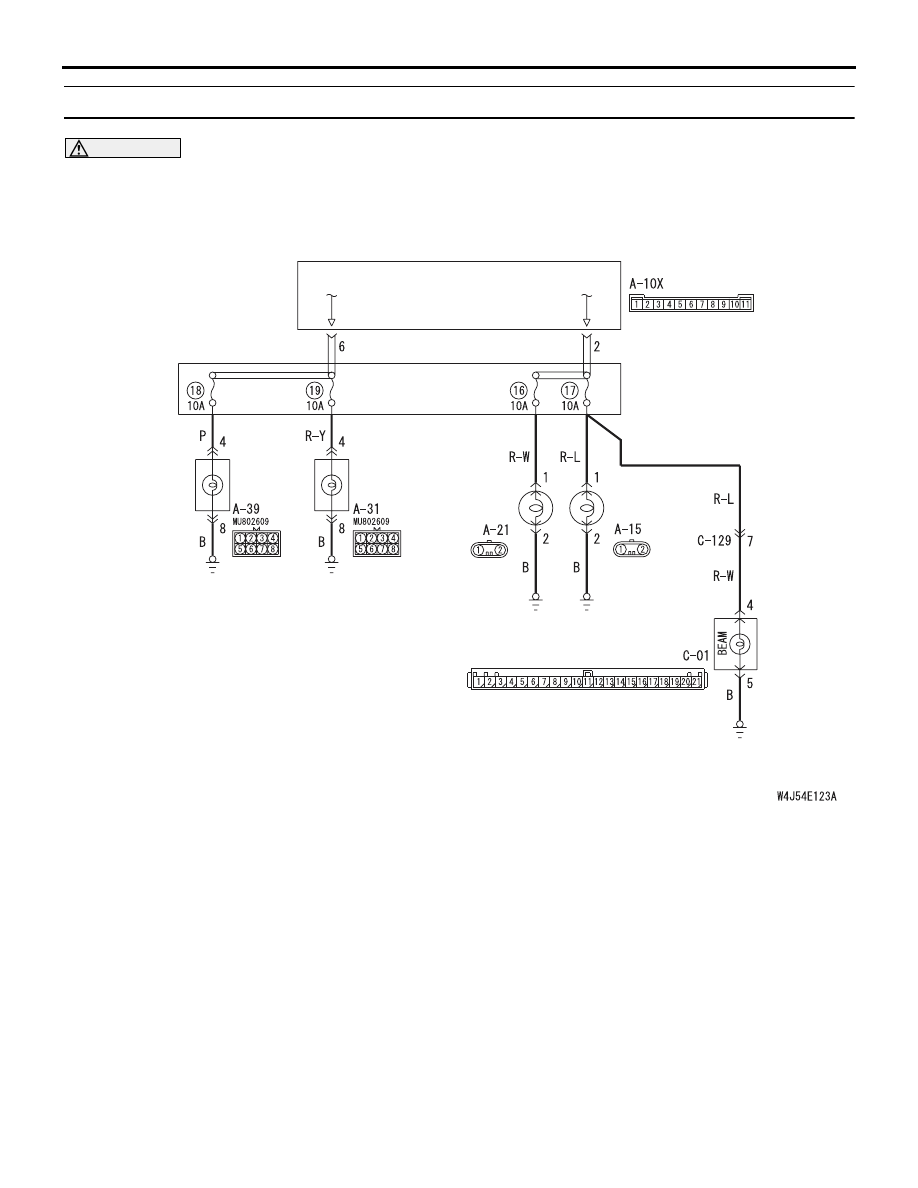

Headlamps Circuit
