SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-103

INSPECTION PROCEDURE D-4: Front and/or rear passenger's power window(s) do not work by
means of the power window main switch.

FRONT
 (RH)

REAR
 (RH)

LOCK
SWITCH

REAR
 (LH)

POWER WINDOW
MAIN SWITCH

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

CPU

CPU

POWER WINDOW
SUB SWITCH

POWER WINDOW
SUB SWITCH

(REAR: RH)

CPU

CPU

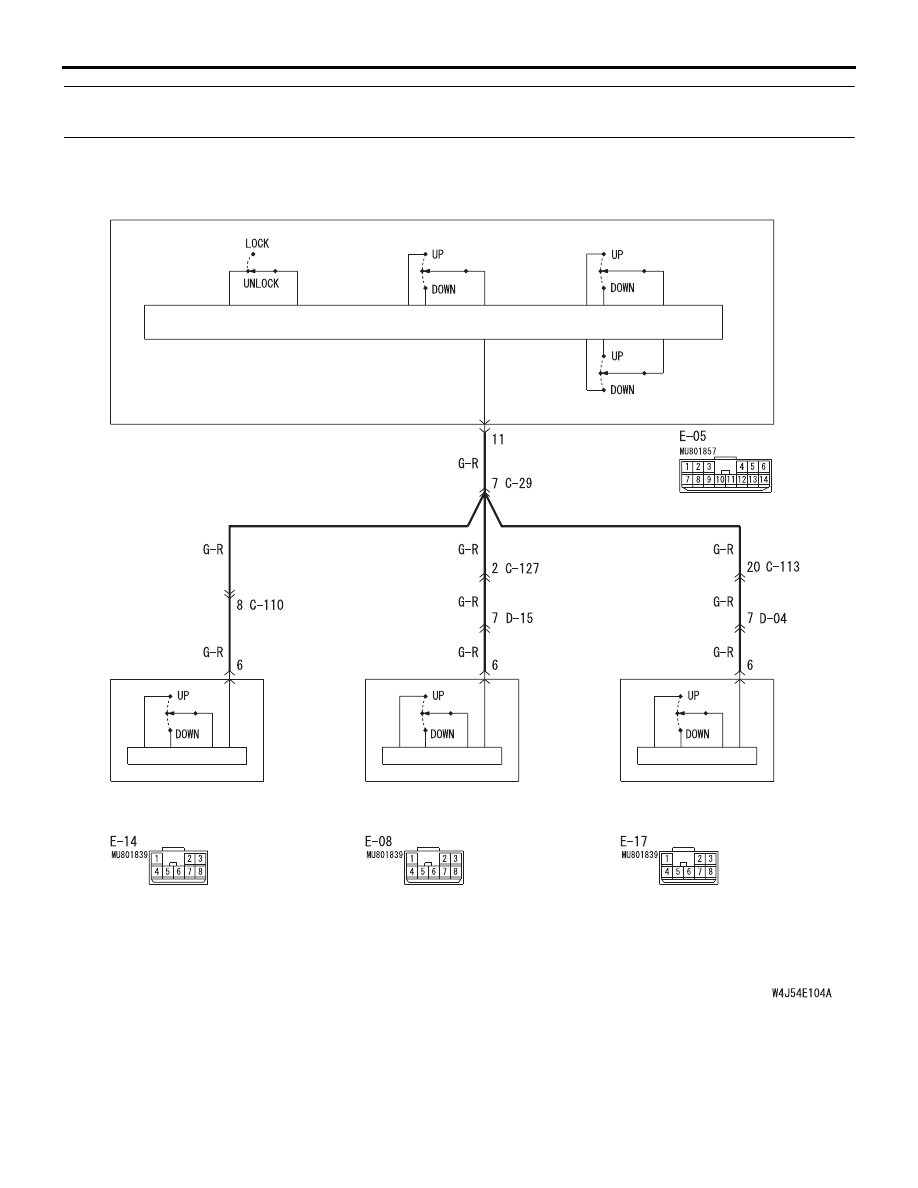

Power Window Circuit <LHD>

(FRONT)

(REAR: LH)

POWER WINDOW
SUB SWITCH

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-104

COMMENTS ON TROUBLE SYMPTOM

If the passenger's and/or rear power window does
not work by means of the power window main switch,
the power window main switch or the respective
power window sub switch(es) may be defective.

POSSIBLE CAUSES

• Malfunction of the power window main switch

• Malfunction of the front power window sub

switch, rear power window sub switch (RH) or
rear power window sub switch (LH)

• Damaged harness wires and connectors

FRONT
 (LH)

REAR
(RH)

LOCK
SWITCH

CPU

REAR
(LH)

POWER WINDOW
MAIN SWITCH

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

CPU

CPU

CPU

POWER WINDOW
SUB SWITCH

POWER WINDOW
SUB SWITCH

POWER WINDOW
SUB SWITCH

(FRONT)

(REAR: LH)

(REAR: RH)

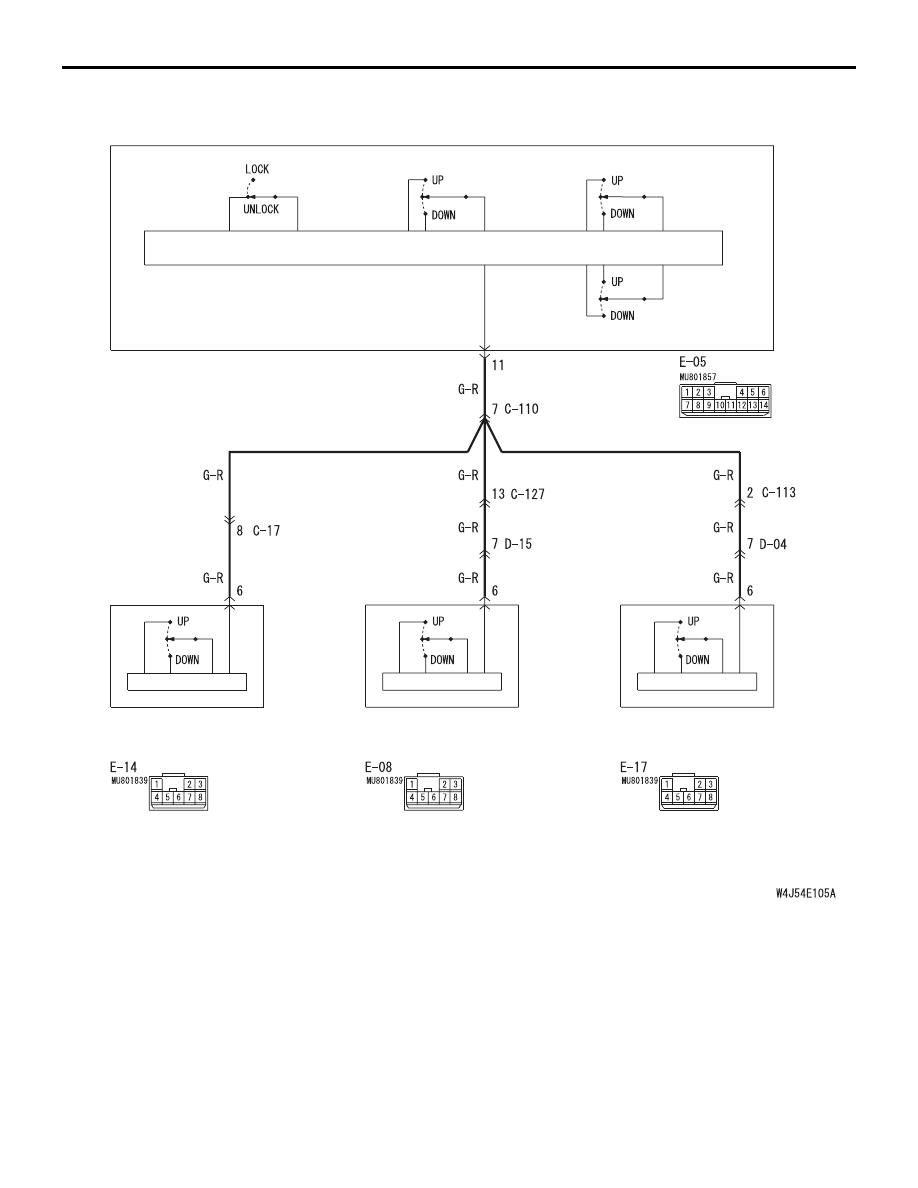

Power Window Circuit <RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-105

DIAGNOSIS PROCEDURE

Step 1. Check the power window main switch.
Check that the driver's power window works by
means of the power window main switch.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to inspection procedure D-2 "Driver's
power window does not work by means of
the power window main switch <LH drive
vehicles>

P.54B-81

 ." Refer to inspection

procedure D-2 "Driver's power window does
not work by means of the power window
main switch <RH drive vehicles>

P.54B-83

 ."

Step 2. Check the power window sub switch.
Check that each power window works by means of
the respective power window sub switch when the
power window lock switch is turned off.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to inspection procedure D-3 "Relevant
power window(s) do not work by means of
the front and rear passenger's power
window sub switches

P.54B-85

."

Step 3. Determine a trouble spot.

Q: Which power window does not work when the

power window main switch is operated?
Front passenger's door <LH drive vehicles> :

Go

to Step 4.

Front passenger's door <RH drive vehicles> :

Go

to Step 7.

Rear right door :

Go to Step 10.

Rear left door :

Go to Step 13.

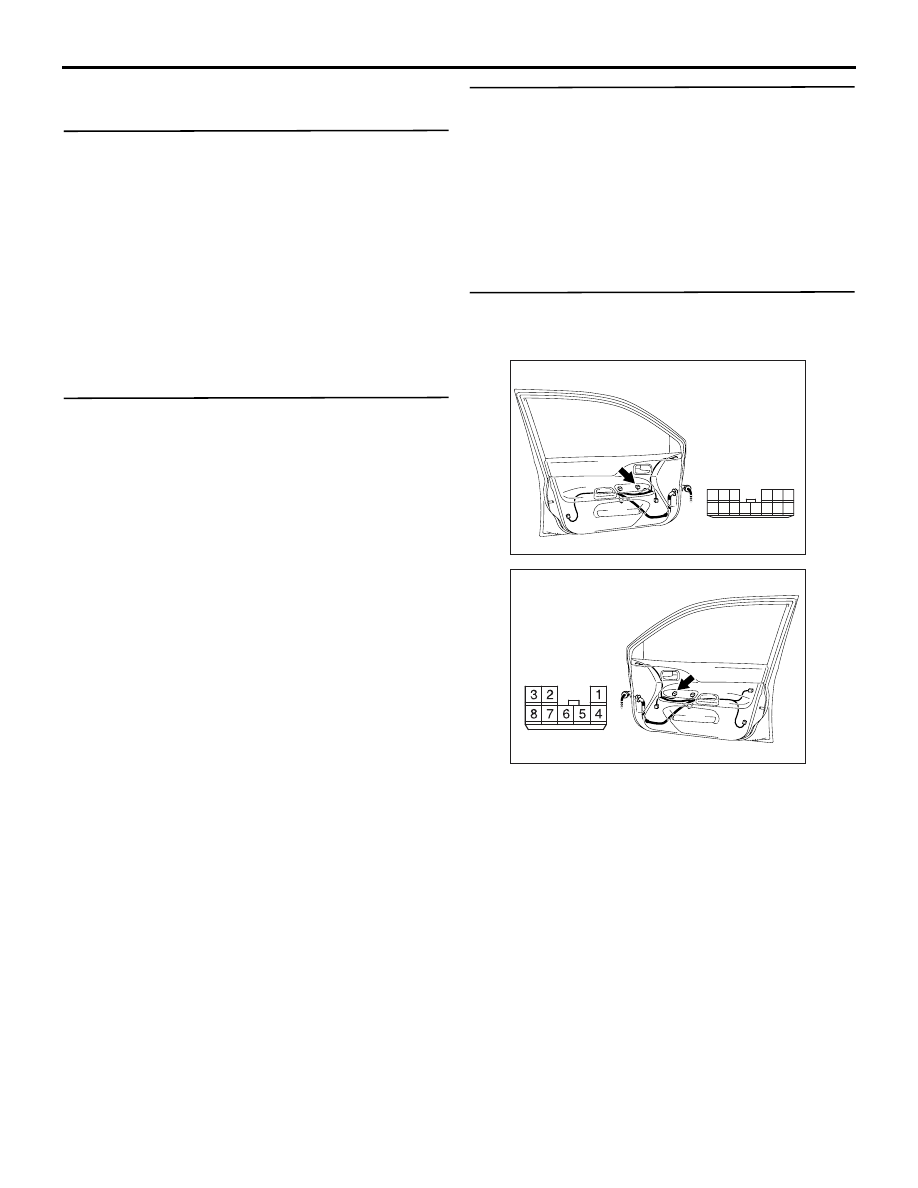

Step 4. Connector check: E-05 power window
main switch connector and E-14 front power
window sub switch connector

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the connector.

AC310484

Connector: E-05 <LHD>

AD

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (LH)

AC310488

Connector: E-14 <LHD>

Harness side

AD

Front door (RH)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-106

Step 5. Check the wiring harness between E-05
power window main switch connector terminal
No.11 and E-14 front power window sub switch
connector terminal No.6.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connectors C-17, C-110, and repair if neces-
sary.

• Check the communication lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

Step 6. Retest the system.
After the front power window sub switch is replaced,
check that the front passenger's door power window
can be operated by the power window sub switch.
(1) Replace the front power window sub switch.
(2) Check that the front passenger's power window

works by means of the power window main
switch.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the power window main switch.

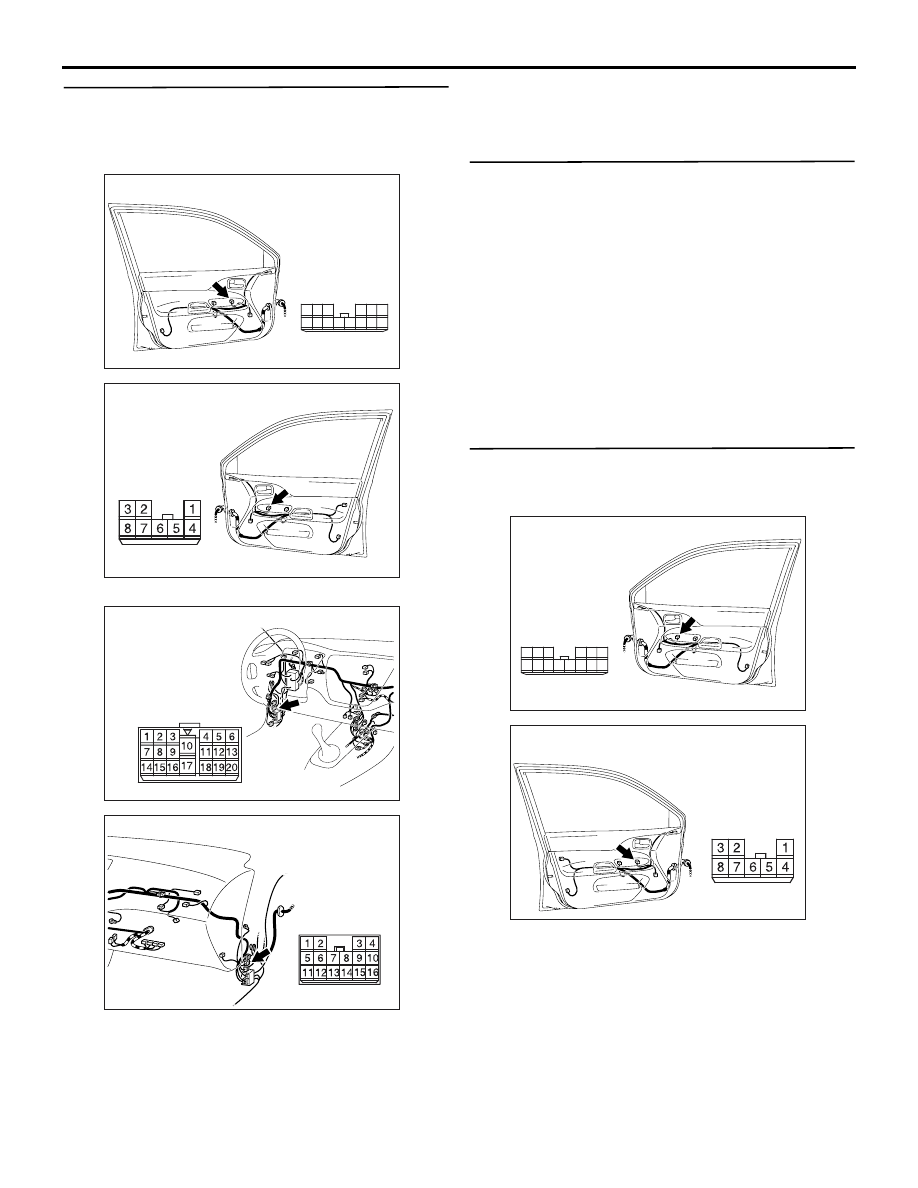

Step 7. Connector check: E-05 power window
main switch connector and E-14 front power
window sub switch connector

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the connector.

AC310484

Connector: E-05 <LHD>

AD

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (LH)

AC310488

Connector: E-14 <LHD>

Harness side

AD

Front door (RH)

AC310446

Connector: C-17 <LHD>

AE

AC310452

Connector: C-110 <LHD>

AC

AC310493

Connector: E-05 <RHD>

AG

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (RH)

AC310498

Connector: E-14 <RHD>

Harness side

AC

Front door (LH)
