Mitsubishi Lancer Evolution IX. Manual - part 59

ACD AND AYC

CIRCUIT DIAGRAMS

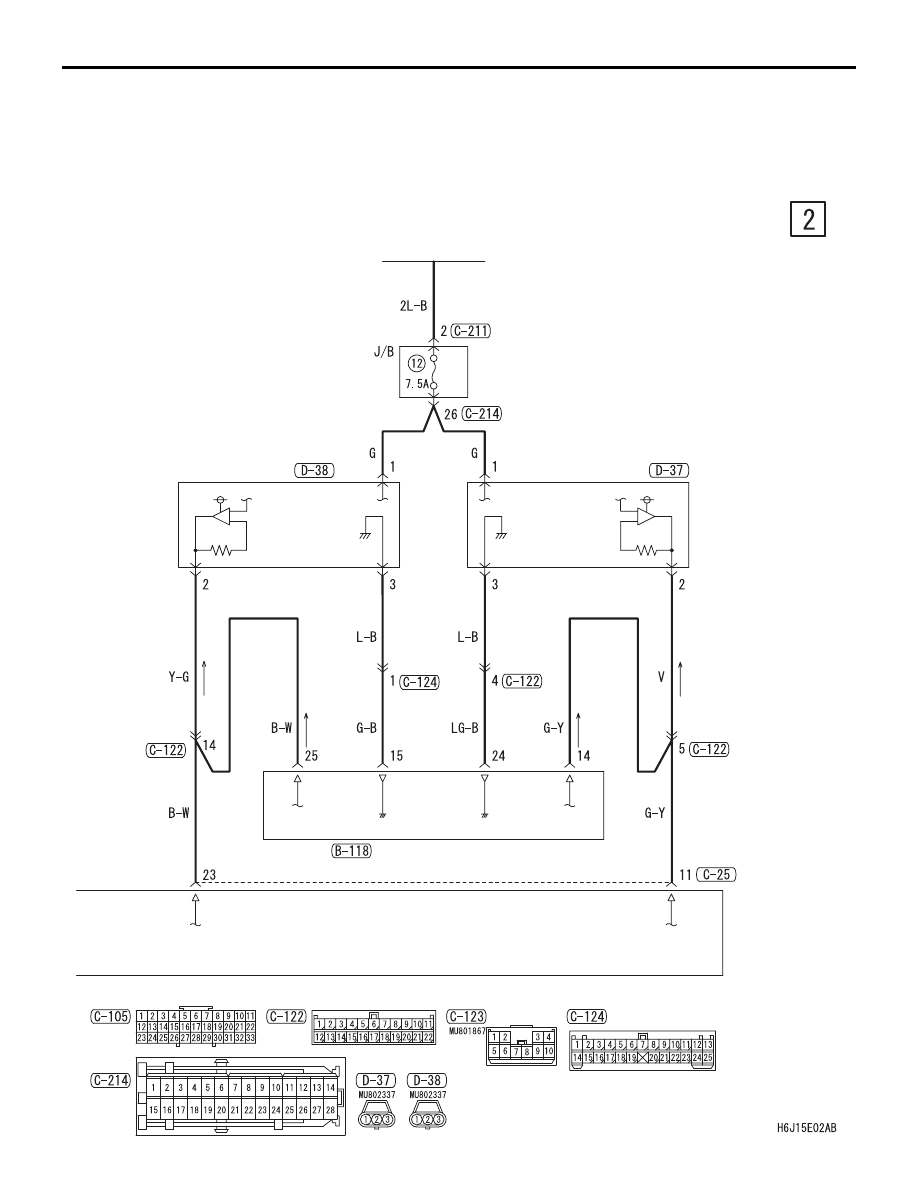

90-215

IGNITION
SWITCH (IG2)

G-SENSOR
(LONGITUDINAL)

G-SENSOR
(LATERAL)

ABS-ECU

ACD AND AYC

CIRCUIT DIAGRAMS

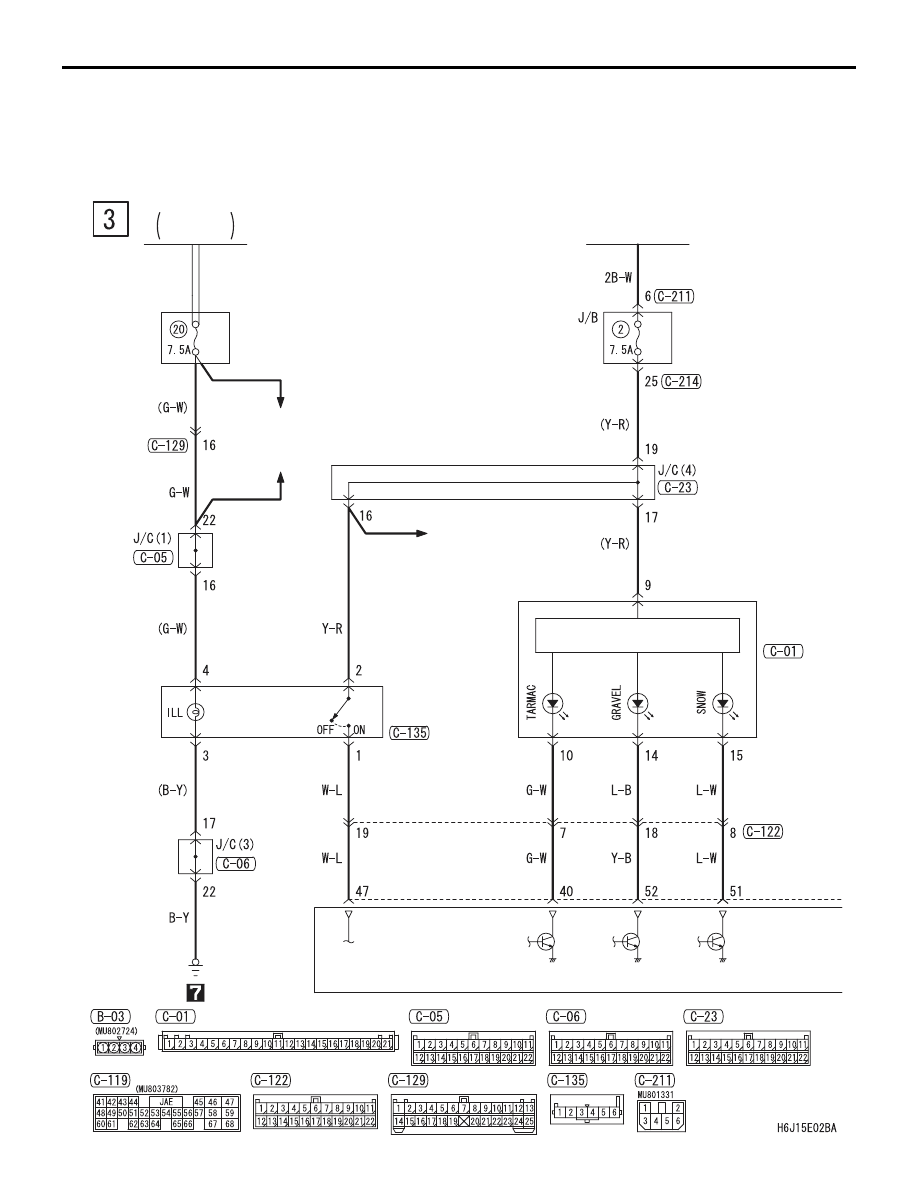

90-216

ACD AND AYC <LH drive vehicles> (CONTINUED)

IGNITION
SWITCH (IG1)

4WD-ECU

FRONT-ECU

TAIL LAMP
RELAY

RELAY
BOX

ACD MODE
CHANGEOVER
SWITCH

DRIVE CIRCUIT

COMBINA-
TION
METER

TAIL LAMP, POSITION
 LAMP, LICENCE PLATE
 LAMP AND LIGHTING
 MONITOR BUZZER

ENGINE OIL LEVEL
WARNING LAMP

ACD AND AYC

CIRCUIT DIAGRAMS

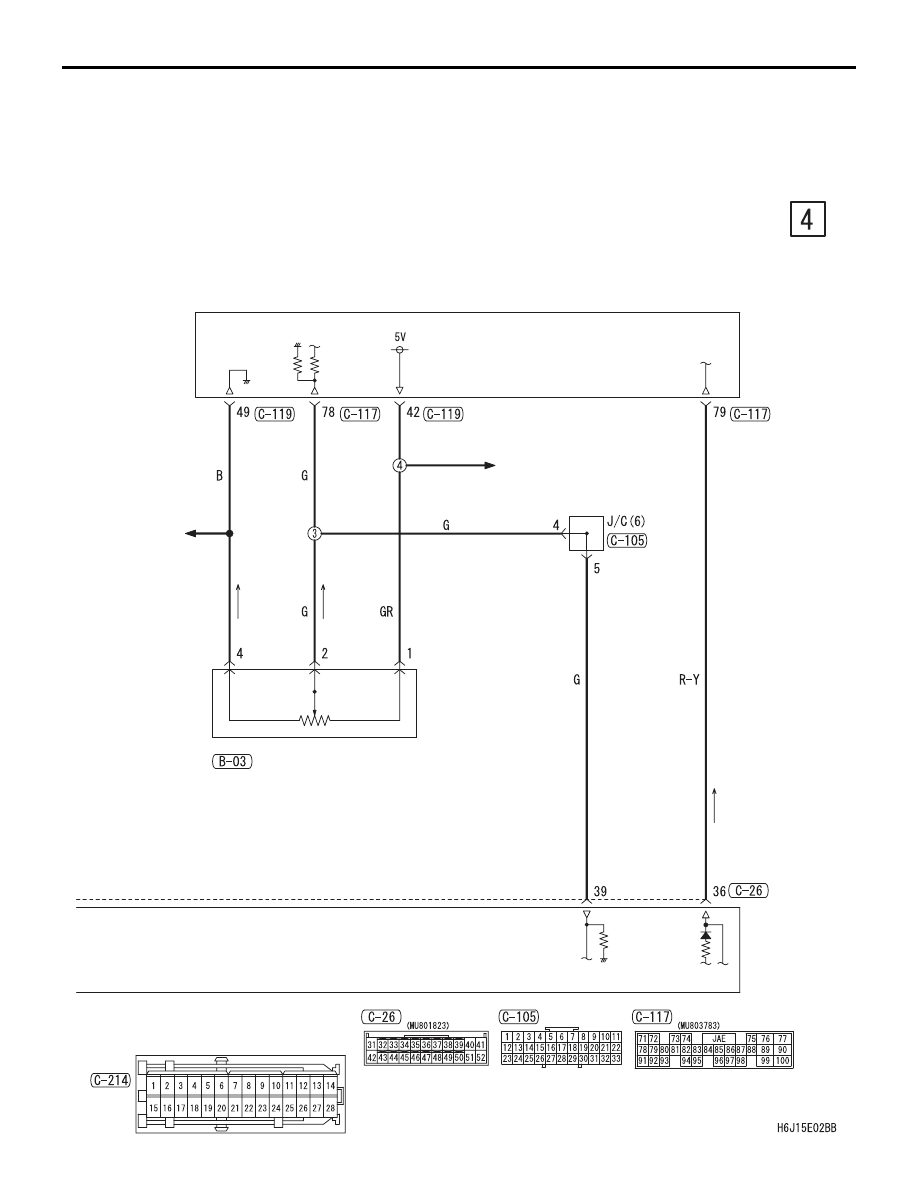

90-217

ACD AND AYC <LH drive vehicles> (CONTINUED)

ENGINE-
ECU

THROTTLE POSITION SENSOR

ENGINE CONTROL
SYSTEM

·ENGINE CONTROL
 SYSTEM
·TRANSMISSION
 OIL TEMPERATURE
 WARNING LAMP

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue    W : White
Y : Yellow     SB : Sky blue     BR : Brown    O : Orange
GR : Grey     R : Red     P : Pink     V : Violet    PU : Purple

ACD AND AYC

CIRCUIT DIAGRAMS

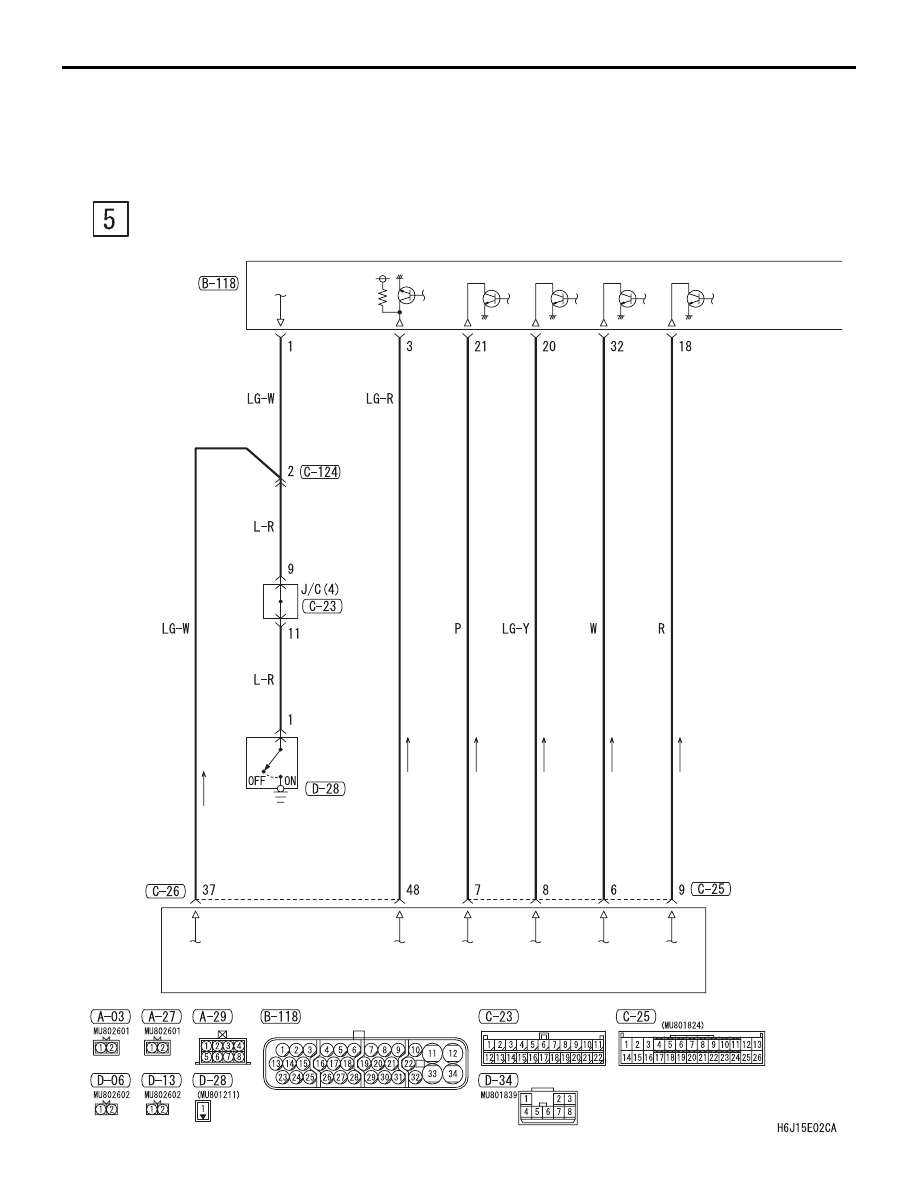

90-218

ACD AND AYC <LH drive vehicles> (CONTINUED)

ABS-ECU

PARKING
BRAKE
SWITCH

4WD-ECU
