CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-143

SIDE
TURN-SIGNAL
LAMP (RH)

HEADLAMP
ASSEMBLY
(TURN : RH)

COMBINATION
METER

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue    W : White
Y : Yellow     SB : Sky blue     BR : Brown    O : Orange
GR : Grey     R : Red     P : Pink     V : Violet    PU : Purple

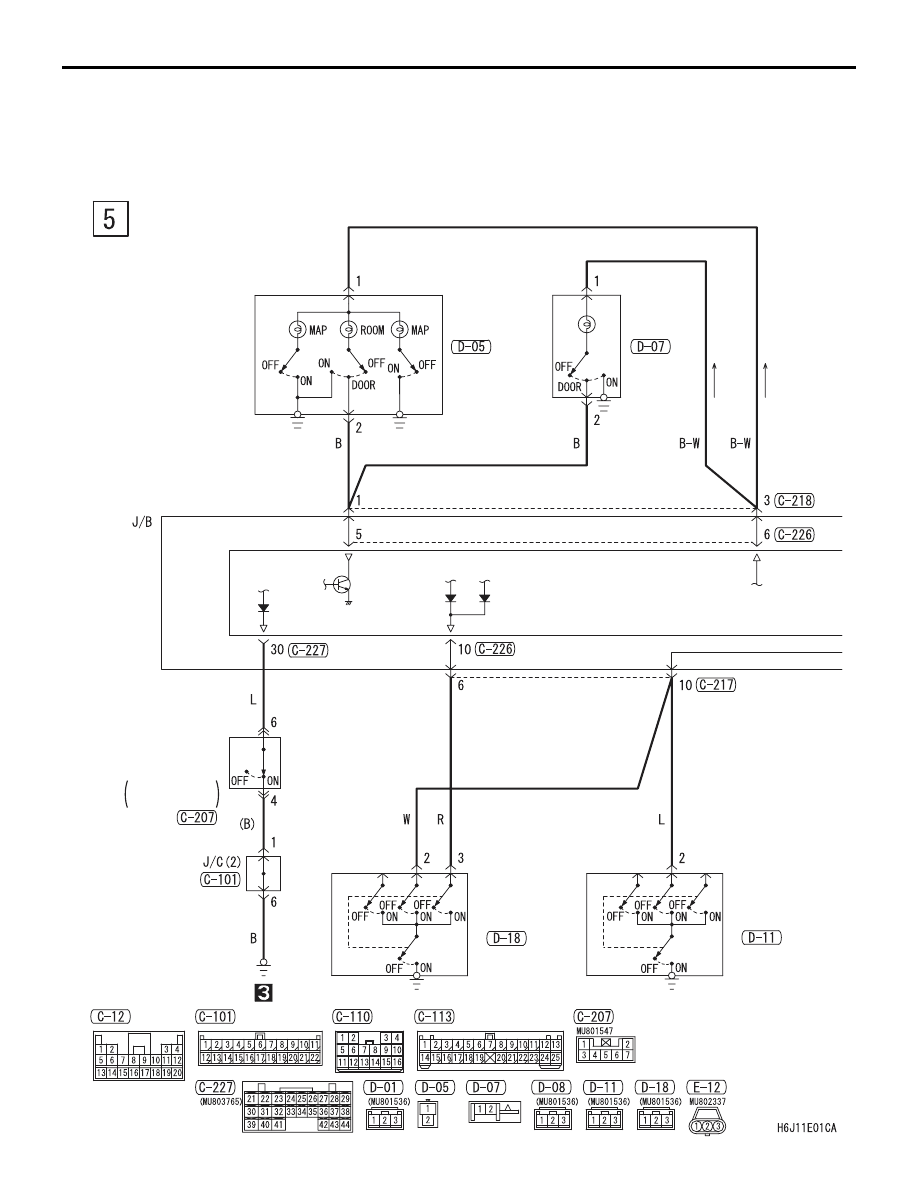

CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-144

CENTRAL DOOR LOCKING SYSTEM <LH drive vehicles> (CONTINUED)

FRONT
ROOM
LAMP

REAR
ROOM
LAMP

ETACS-
ECU

KEY
REMINDER
SWITCH

WHEN KEY
IS REMOVED

FRONT
DOOR
SWITCH
(LH)

REAR
DOOR
SWITCH
(LH)

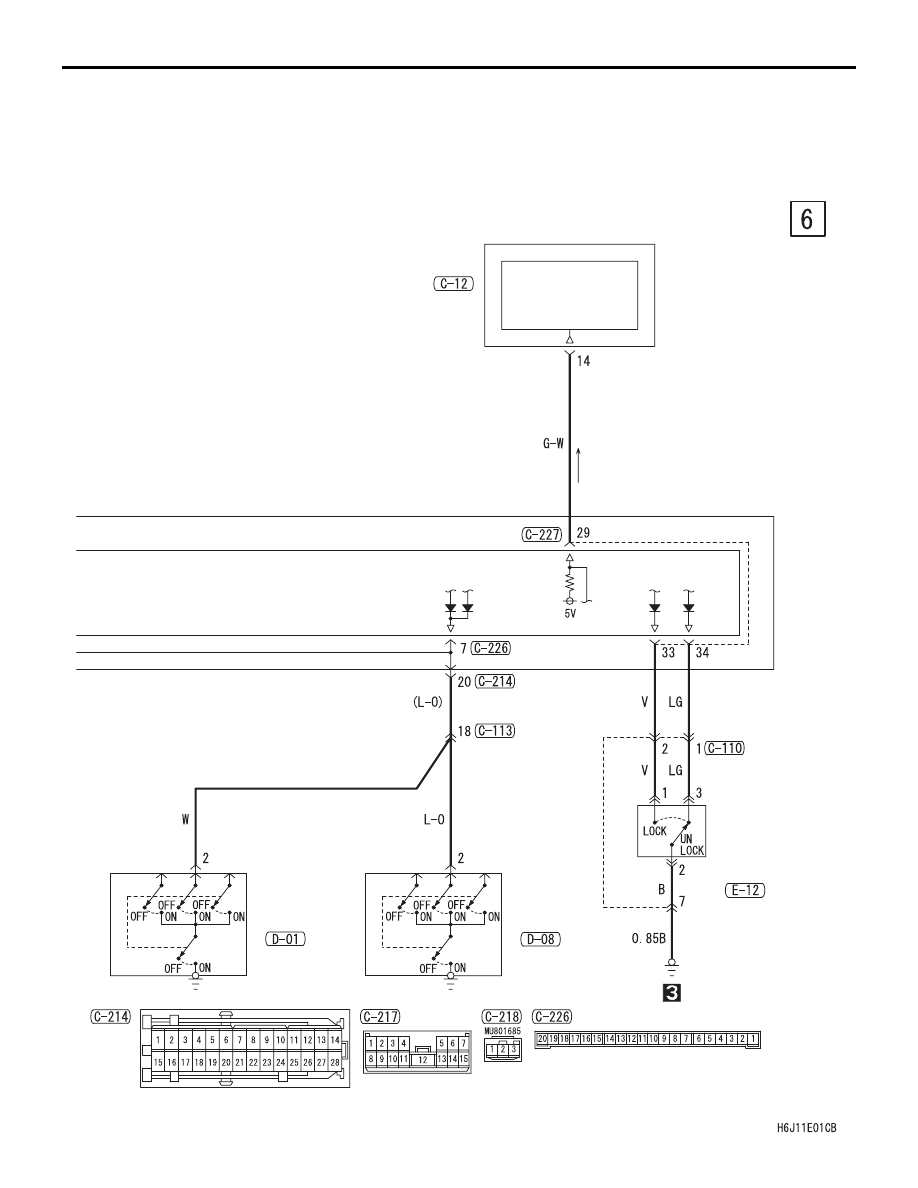

CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-145

FRONT
DOOR
SWITCH
(RH)

REAR
DOOR
SWITCH
(RH)

DOOR
LOCK KEY
CYLINDER
SWITCH
(RH)

J/B SIDE

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue    W : White
Y : Yellow     SB : Sky blue     BR : Brown    O : Orange
GR : Grey     R : Red     P : Pink     V : Violet    PU : Purple

SRS-
ECU

CRASH DETECTION
DOOR UNLOCK
SIGNAL PROCESS
CIRCUIT

CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-146

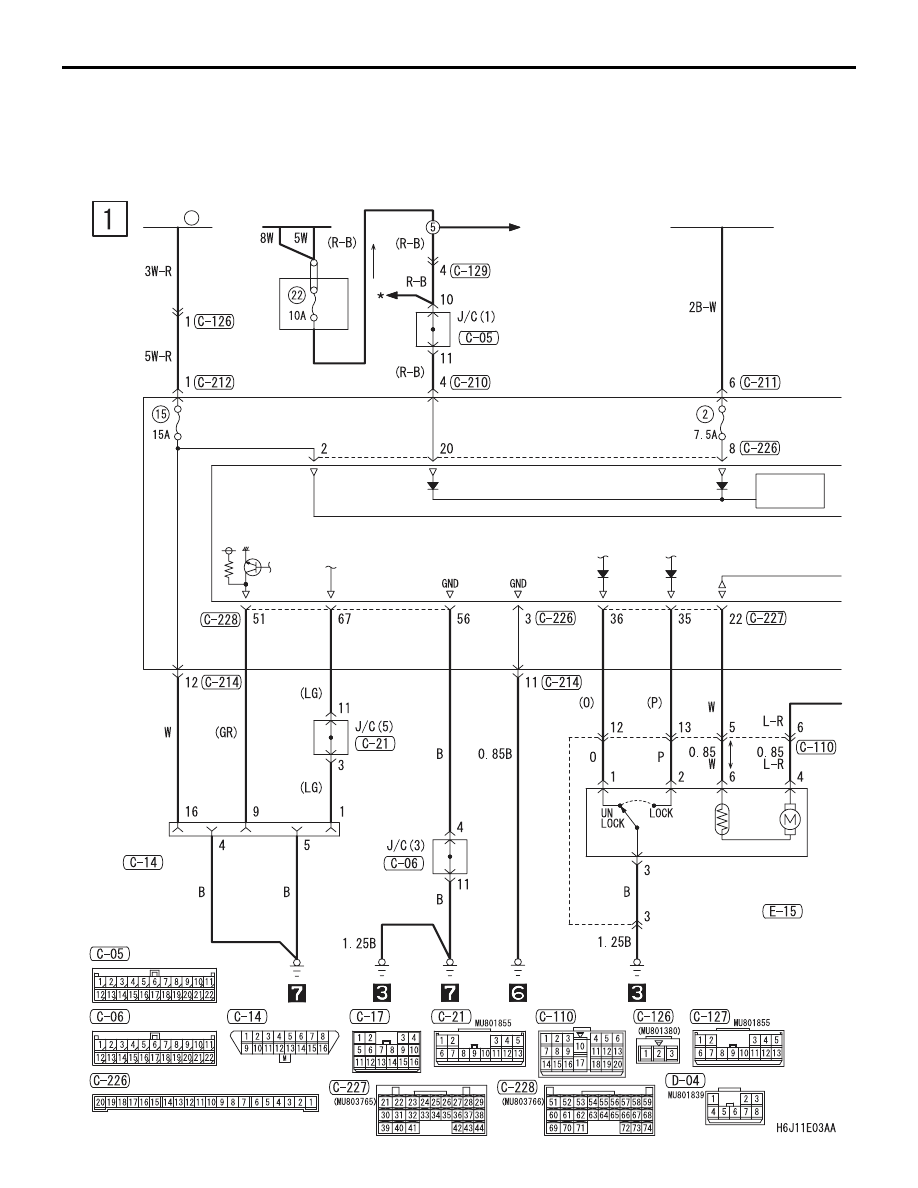

CENTRAL DOOR LOCKING SYSTEM



<RH drive vehicles>

M1901004702878

FUSIBLE
LINK

1

BATTERY

IGNITION
SWITCH (IG1)

POWER

SOURCE

DIAGNOSIS
CONNECTOR

DOOR LOCK
ACTUATOR
(FRONT : RH)

RELAY
BOX

FRONT SIDE

J/B SIDE

·HEADLAMP
·HEADLAMP
 LEVELLING SYSTEM
·REAR FOG LAMP
·TAIL LAMP, POSITION LAMP,
 LICENCE PLATE LAMP
 AND LIGHTING
 MONITOR BUZZER
·TURN-SIGNAL LAMP
 AND HAZARD
 WARNING LAMP
·WINDSHIELD WIPER
 AND WASHER
