Mitsubishi Lancer Evolution IX. Manual - part 35

METER AND GAUGE

CIRCUIT DIAGRAMS

90-119

NOTES

BRAKE WARNING LAMP, OIL PRESSURE WARNING LAMP AND FUEL WARNING LAMP

CIRCUIT DIAGRAMS

90-120

BRAKE WARNING LAMP, OIL PRESSURE WARNING LAMP

AND FUEL WARNING LAMP

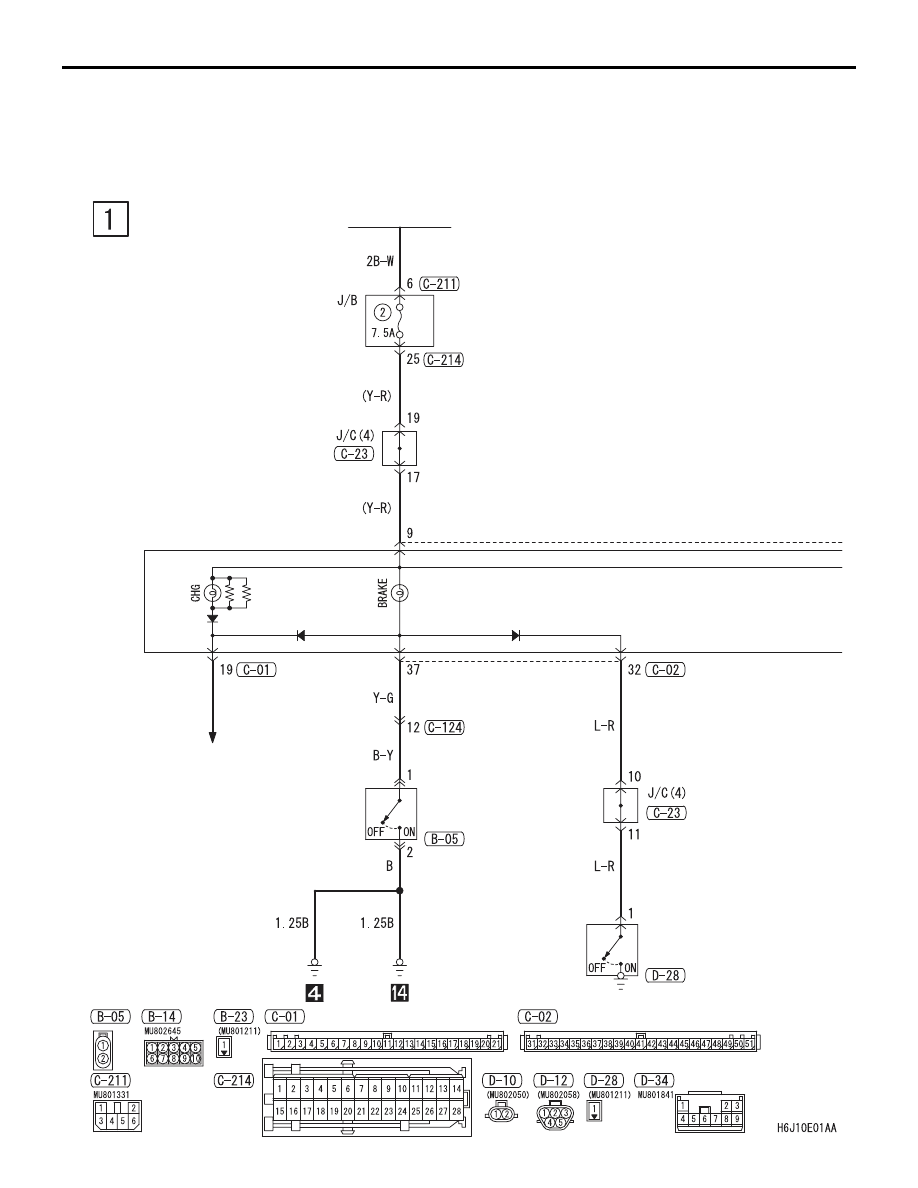

BRAKE WARNING LAMP, OIL PRESSURE WARNING LAMP AND FUEL WARNING

LAMP <LH drive vehicles>

M1901011801164

IGNITION
SWITCH (IG1)

COMBINATION METER

BRAKE FLUID
LEVEL
SWITCH

PARKING
BRAKE
SWITCH

·CHARGING SYSTEM
·ENGINE OIL LEVEL
 WARNING LAMP

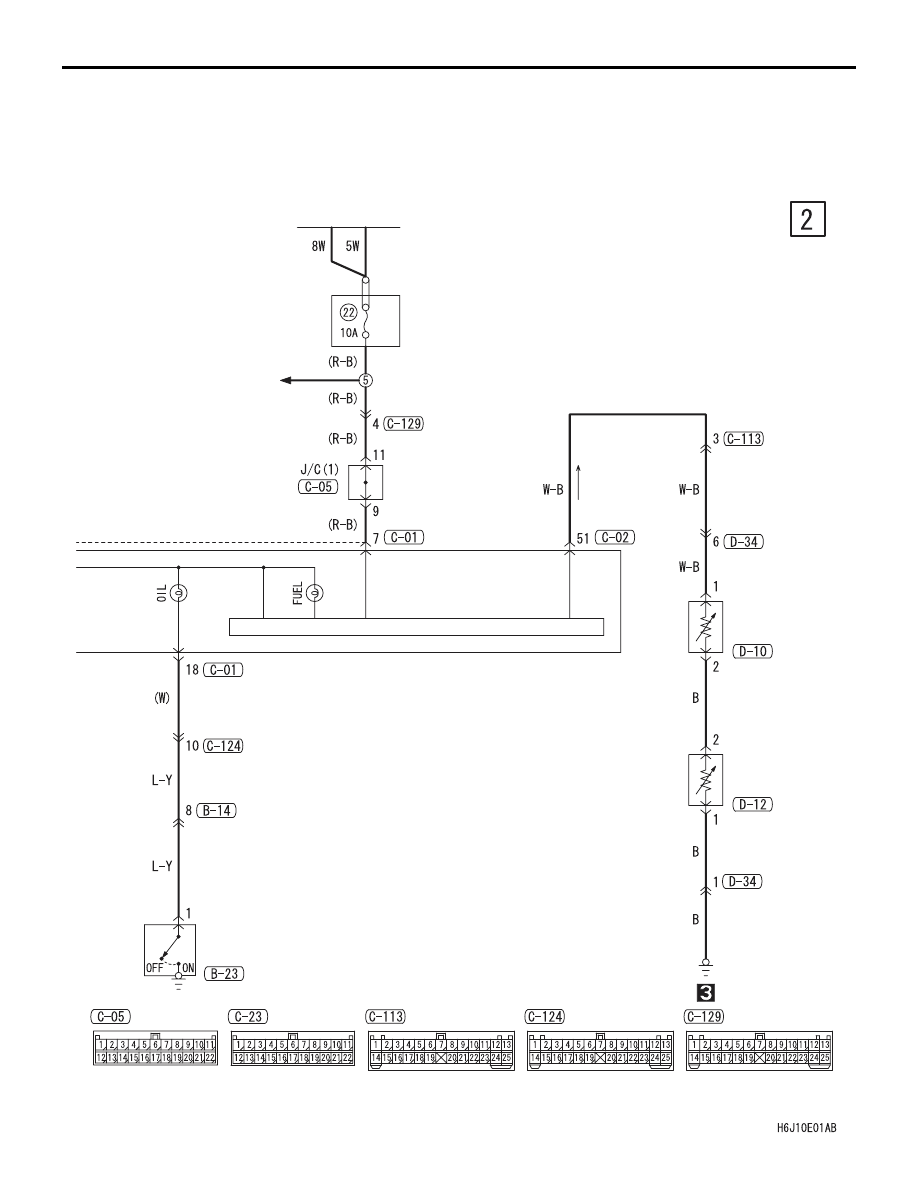

BRAKE WARNING LAMP, OIL PRESSURE WARNING LAMP AND FUEL WARNING LAMP

CIRCUIT DIAGRAMS

90-121

BATTERY

CONTROL CIRCUIT

OIL
PRESSURE
SWITCH

FUEL
GAUGE
UNIT (SUB)

FUEL PUMP
AND GAUGE
UNIT (MAIN)

·HEADLAMP
·HEADLAMP LEVELLING
 SYSTEM
·REAR FOG LAMP
·TAIL LAMP, POSITION LAMP,
 LICENCE PLATE LAMP
 AND LIGHTING MONITOR
 BUZZER
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP
·WINDSHIELD WIPER AND
 WASHER

RELAY
BOX

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

BRAKE WARNING LAMP, OIL PRESSURE WARNING LAMP AND FUEL WARNING LAMP

CIRCUIT DIAGRAMS

90-122

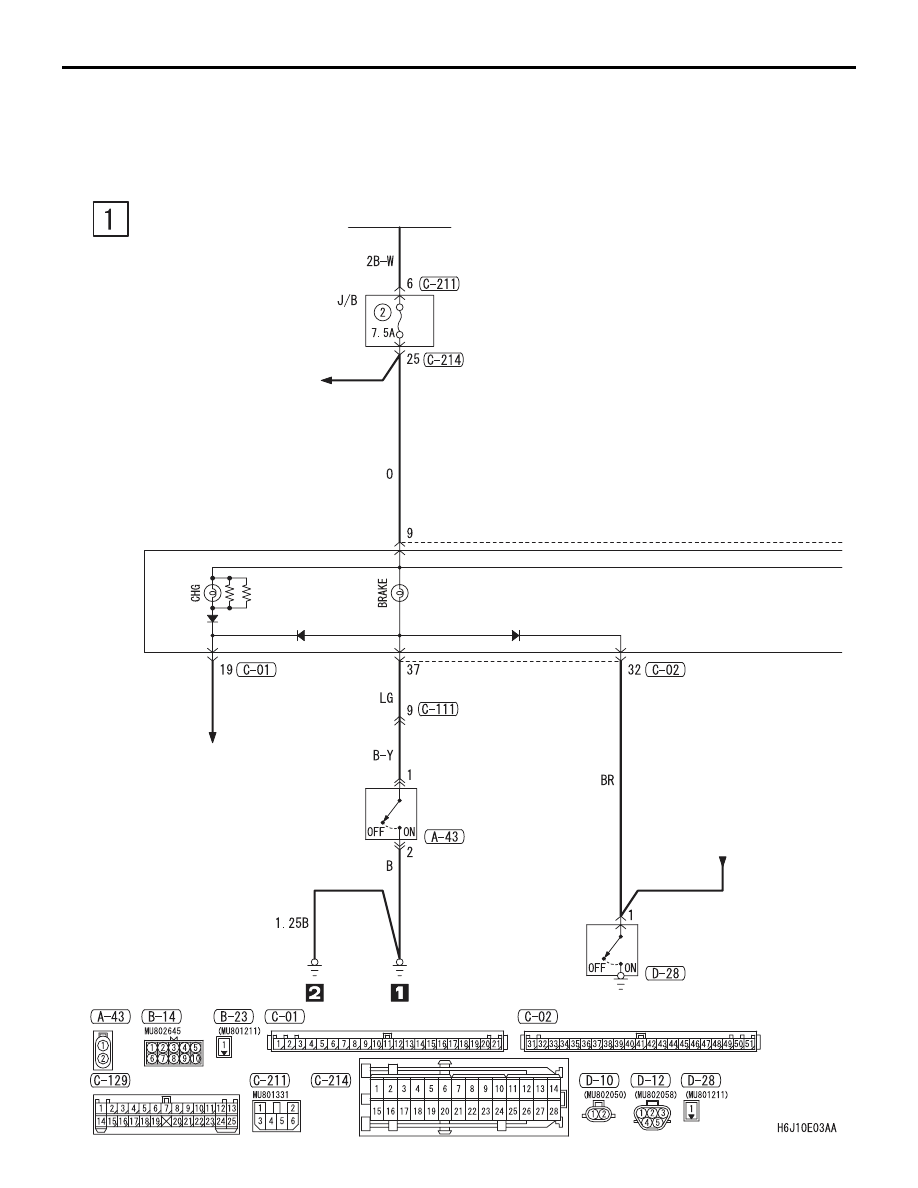

BRAKE WARNING LAMP, OIL PRESSURE WARNING LAMP AND FUEL WARNING
LAMP <RH drive vehicles>

M1901011801175

IGNITION
SWITCH (IG1)

COMBINATION METER

BRAKE FLUID
LEVEL
SWITCH

PARKING
BRAKE
SWITCH

·CHARGING SYSTEM
·ENGINE OIL LEVEL
 WARNING LAMP

·ENGINE CONTROL
 SYSTEM
·ENGINE OIL LEVEL
 WARNING LAMP
·HEADLAMP
·METER AND GAUGE
·REAR FOG LAMP
·TAIL LAMP, POSITION
 LAMP, LICENCE PLATE
 LAMP AND LIGHTING
 MONITOR BUZZER
·TURN-SIGNAL LAMP
 AND HAZARD
 WARNING LAMP
·WINDSHIELD WIPER
 AND WASHER

·ACD AND AYC
·ANTI-SKID BRAKING
 SYSTEM (ABS)
