POWER DISTRIBUTION SYSTEM

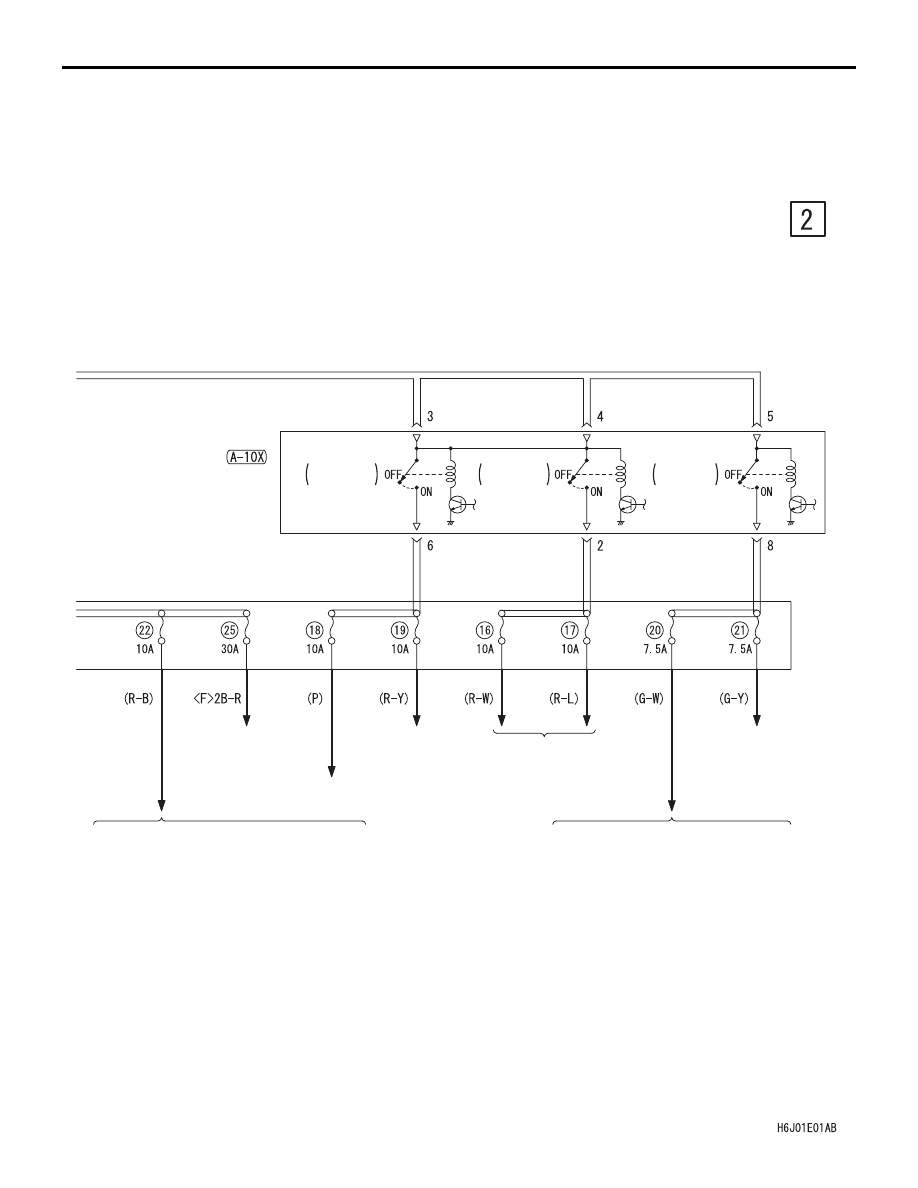

CIRCUIT DIAGRAMS

90-31

HEADLAMP
RELAY : LO

HEADLAMP
RELAY : HI

TAIL LAMP
RELAY

FRONT-ECU

·AUTOMATIC AIR
 CONDITIONER
·COOLING SYSTEM

HEADLAMP

·HEADLAMP
·HEADLAMP
 LEVELLING
 SYSTEM

HEADLAMP

TAIL LAMP, POSITION
LAMP, LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER

·ACD AND AYC
·AUDIO SYSTEM
 SPARE CONNECTOR
·AUTOMATIC AIR
 CONDITIONER
·CIGARETTE LIGHTER
·CLOCK
·HEADLAMP LEVELLING
 SYSTEM
·METER AND GAUGE
·REAR FOG LAMP

·REAR WINDOW
 DEFOGGER AND
 DOOR MIRROR HEATER
·TAIL LAMP, POSITION
 LAMP, LICENCE PLATE
 LAMP AND LIGHTING
 MONITOR BUZZER
·TURN-SIGNAL LAMP
 AND HAZARD
 WARNING LAMP

·ACD AND AYC
·AUDIO SYSTEM
 SPARE CONNECTOR
·AUTOMATIC AIR
 CINDITIONER
·BRAKE WARNING LAMP,
 OIL PRESSURE
 WARNING LAMP
 AND FUEL WARNING
 LAMP
·CENTRAL DOOR
 LOCKING SYSTEM
·CLOCK
·HEADLAMP
·HEADLAMP LEVELLING
 SYSTEM
·METER AND GAUGE
·POWER WINDOWS

·REAR FOG LAMP
·ROOM LAMP, LUGGAGE
 COMPARTMENT LAMP,
 IGNITION KEY
 CYLINDER
 ILLUMINATION LAMP
 AND DOOR AJAR
 WARNING LAMP
·TAIL LAMP, POSITION
 LAMP, LICENCE PLATE
 LAMP AND LIGHTING
 MONITOR BUZZER
·TURN-SIGNAL LAMP
 AND HAZARD WARNING
 LAMP
·WINDSHIELD WIPER
 AND WASHER

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

POWER DISTRIBUTION SYSTEM

CIRCUIT DIAGRAMS

90-32

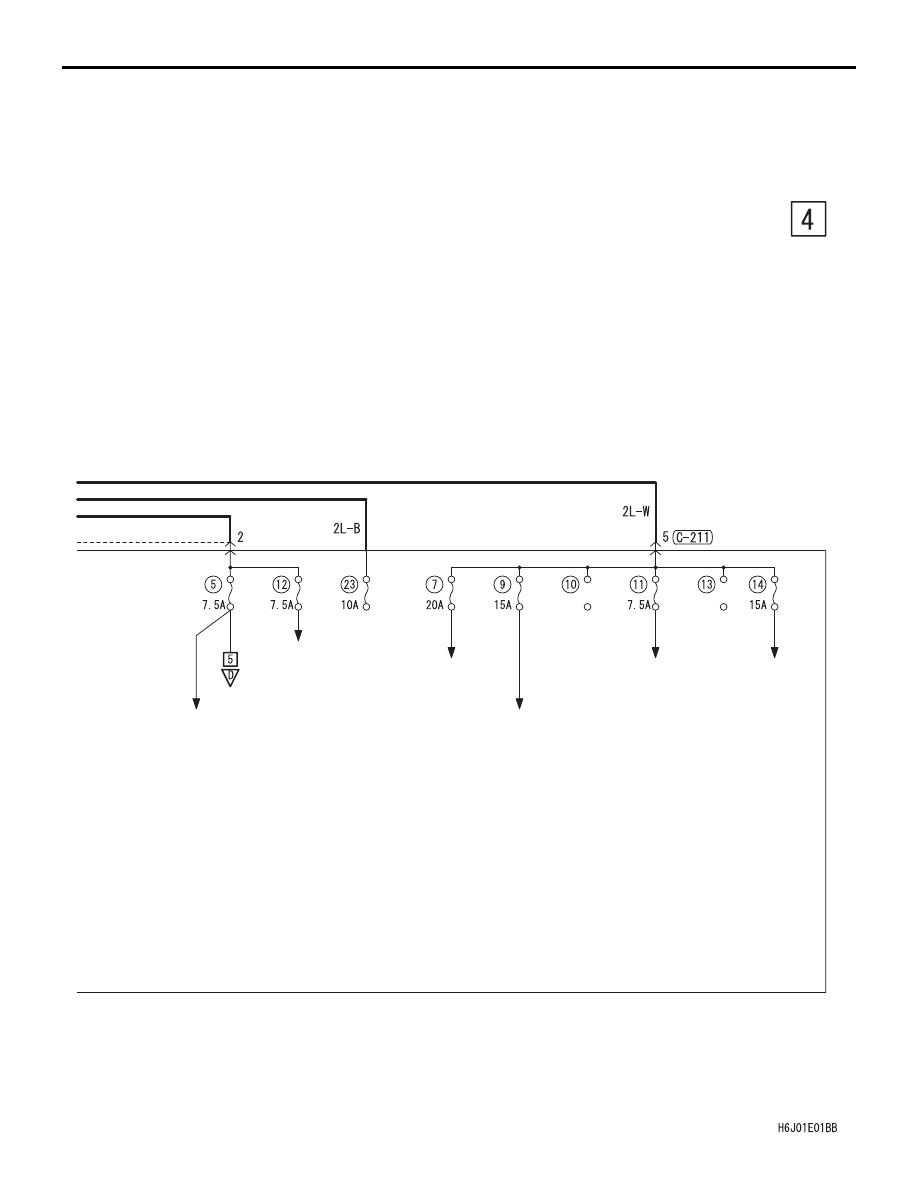

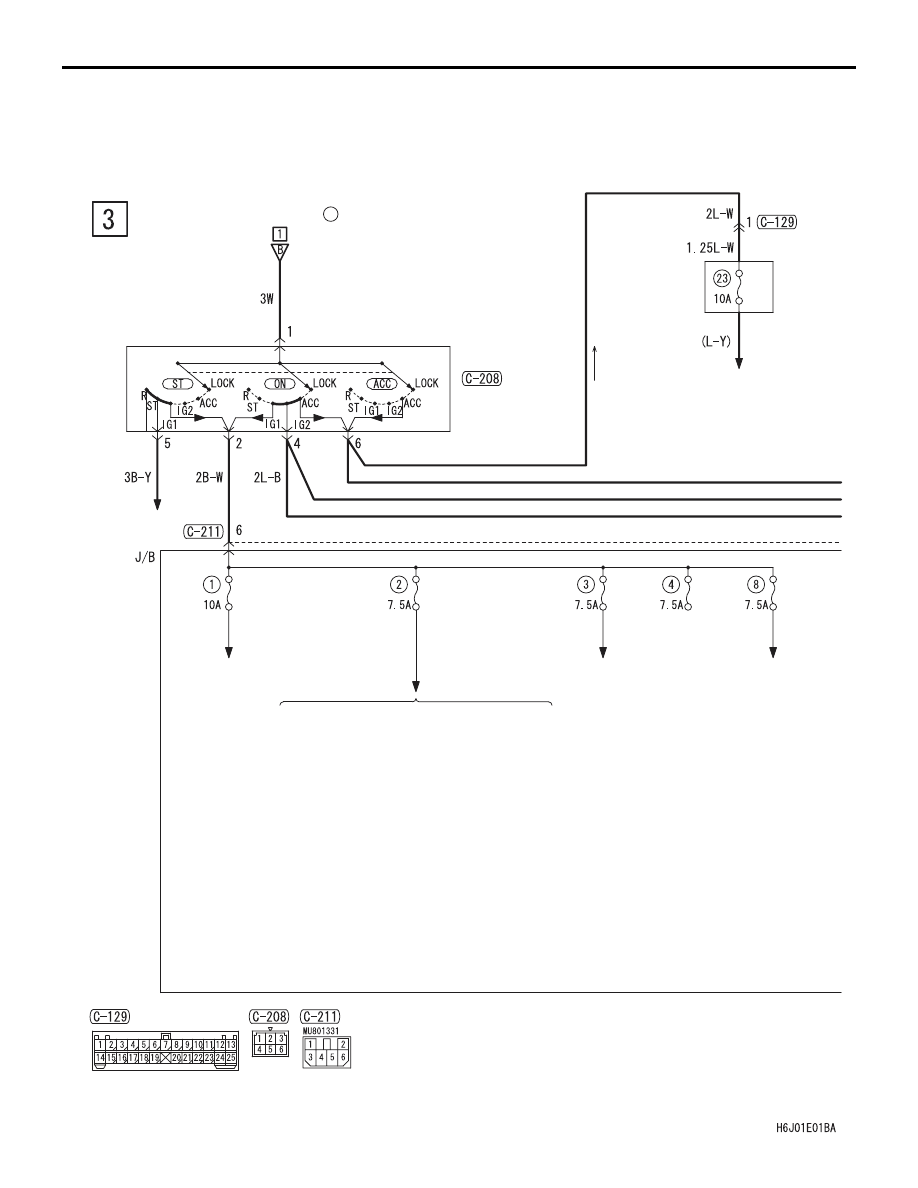

POWER DISTRIBUTION SYSTEM <RH drive vehicles> (CONTINUED)

FUSIBLE LINK

4

IGNITION
SWITCH

RELAY
BOX

·ACD AND AYC
·ANTI-SKID BRAKING
 SYSTEM (ABS)
·BRAKE WARNING LAMP,
 OIL PRESSURE
 WARNING LAMP AND
 FUEL WARNING LAMP
·CENTRAL DOOR
 LOCKING SYSTEM
·CHARGING SYSTEM
·ENGINE CONTROL
 SYSTEM
·ENGINE OIL LEVEL
 WARNING LAMP

·TAIL LAMP, POSITION LAMP,
 LICENCE PLATE LAMP AND
 LIGHTING MONITOR BUZZER
·TRANSMISSION OIL
 TEMPERATURE WARNING
 LAMP
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP
·WINDSHIELD WIPER AND
 WASHER

·AUDIO SYSTEM SPARE
 CONNECTOR
·CLOCK
·ROOM LAMP, LUGGAGE
 COMPARTMENT LAMP,
 IGNITION KEY CYLINDER
 ILLUMINATION LAMP AND
DOOR AJAR WARNING LAMP

ENGINE CONTROL
SYSTEM

·BACK-UP LAMP
·SUPPLEMENTAL
 RESTRAINT
 SYSTEM (SRS)

IGNITION SYSTEM

STARTING SYSTEM

·ROOM LAMP, LUGGAGE
 COMPARTMENT LAMP,
 IGNITION KEY CYLINDER
 ILLUMINATION LAMP AND
 DOOR AJAR WARNING LAMP

·HEADLAMP
·METER AND GAUGE
·POWER WINDOWS
·REAR FOG LAMP

·SUPPLEMENTAL RESTRAINT
 SYSTEM (SRS)

POWER DISTRIBUTION SYSTEM

CIRCUIT DIAGRAMS

90-33

·ROOM LAMP,
 LUGGAGE
 COMPARTMENT
 LAMP, IGNITION
 KEY CYLINDER
 ILLUMINATION
 LAMP AND DOOR
 AJAR WARNING
 LAMP
·WINDSHIELD
 WIPER AND
 WASHER

REMOTE
CONTROLLED
MIRROR

CIGARETTE
LIGHTER

WINDSHIELD
WIPER AND
WASHER

·ACD AND AYC
·ANTI-SKID
 BRAKING
 SYSTEM (ABS)

·ACD AND AYC
·ANTI-SKID BRAKING
 SYSTEM (ABS)
·AUTOMATIC AIR
 CONDITIONER
·COOLING SYSTEM
·HEADLAMP
·HEADLAMP LEVELLING
 SYSTEM
·REAR FOG LAMP
·TAIL LAMP, POSITION LAMP,
 LICENCE PLATE LAMP
 AND LIGHTING MONITOR
 BUZZER
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP
·WINDSHIELD WIPER AND
 WASHER

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

POWER DISTRIBUTION SYSTEM

CIRCUIT DIAGRAMS

90-34

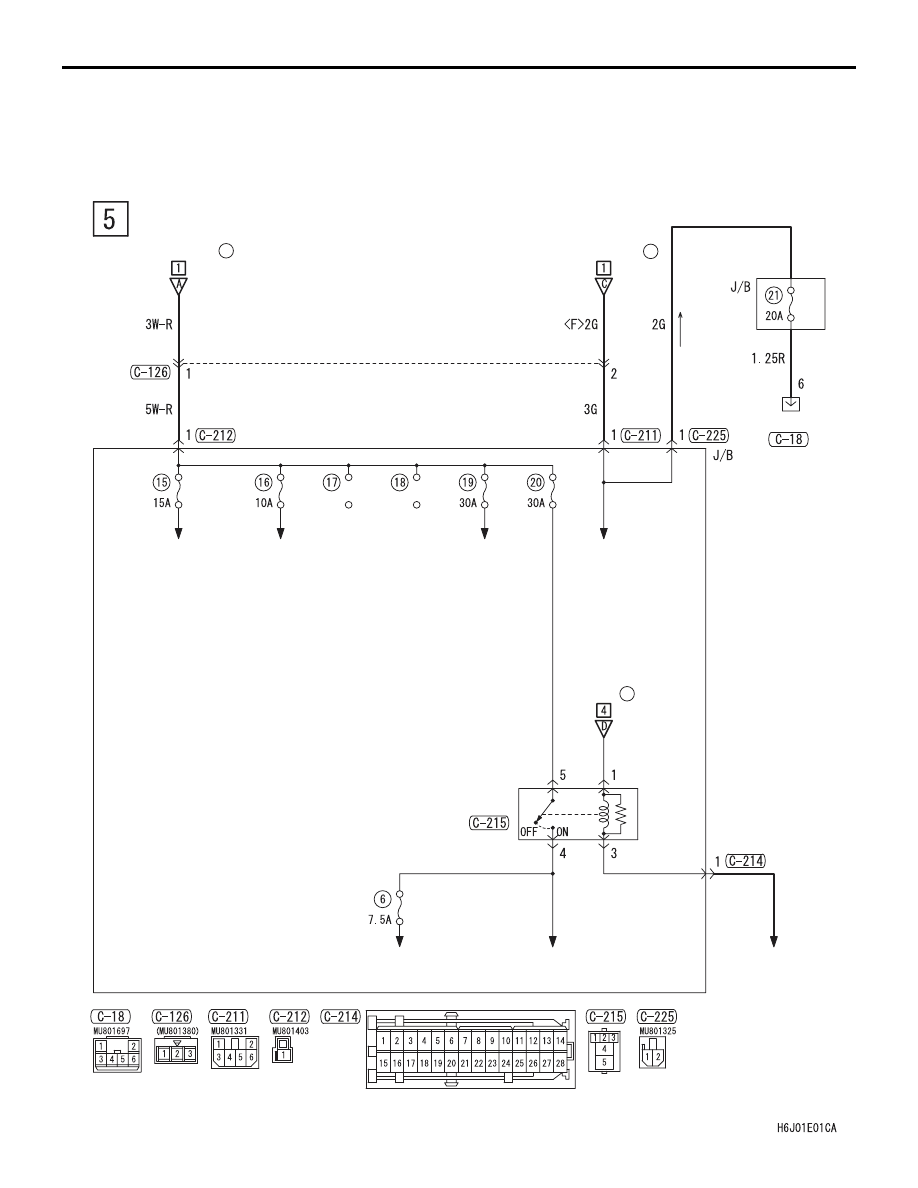

POWER DISTRIBUTION SYSTEM <RH drive vehicles> (CONTINUED)

FUSIBLE LINK

1

FUSIBLE LINK

NO
CONNECTION

5

J/B

(FUSE     )

DEFOGGER
RELAY

5

·ACD AND AYC
·ANTI-SKID BRAKING
 SYSTEM (ABS)
·AUTOMATIC AIR
 CONDITIONER
·CENTRAL DOOR
 LOCKING SYSTEM
·ENGINE CONTROL
 SYSTEM
·HEADLAMP
·IMMOBILIZER SYSTEM
·METER AND GAUGE
·POWER WINDOWS
·REAR FOG LAMP
·ROOM LAMP,
 LUGGAGE COMPARTMENT
 LAMP, IGNITION KEY
 CYLINDER ILLUMINATION
 LAMP AND DOOR AJAR
 WARNING LAMP
·SUPPLEMENTAL RESTRAINT
 SYSTEM (SRS)
·TAIL LAMP, POSITION LAMP,
 LICENCE PLATE LAMP
 AND LIGHTING
 MONITOR BUZZER
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP
·WINDSHIELD WIPER
 AND WASHER

REAR
FOG LAMP

AUTOMATIC
AIR
CONDITIONER

POWER
WINDOWS

REAR WINDOW
DEFOGGER
AND DOOR
MIRROR HEATER

REAR WINDOW
DEFOGGER
AND DOOR
MIRROR HEATER

REAR WINDOW
DEFOGGER
AND DOOR
MIRROR HEATER

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple
