Mitsubishi Lancer Evolution 8. Manual - part 149

SWS – ON VEHICLE SERVICING

54B-119

• Interior light automatic cut-off function

This function automatically switches off the interior lights after a specified time
delay if they have been left on with the ignition switch in the LOCK (OFF)
position.

• Security alarm

Switches the security alarm function on and off.

• Adjustment during electric window key off timer

This function allows electric windows other than the driver’s window to be
operated during operation of the electric window timer.

• Initialise all functions (return to initial settings)

This function returns all the adjusted functions to their original factory settings.

Item
No.

MUT item
display

Item

MUT adjustment display

Details of adjustment

Function ON (A)

Function ON: The tail lights
are automatically switched off,
if turned on when the ignition
switch is at the LOCK (OFF)
position.

Function ON (D)

Function ON: The tail lights
are not automatically switched
off, if turned on when the
ignition switch is at the LOCK
(OFF) position. (Initial setting)

HD auto cut-off

Head light
automatic cut-off
function

Function OFF

Function ON

Function ON (initial setting)

Speed
sensitive wiper

Vehicle speed
sensitive wiper
function

Function OFF

Speed sensitive
function ON

Vehicle speed sensitive
deployment (initial setting)

IG operated function
ON

Linked to ignition

Keyless operated
function ON

Linked to keyless entry

Door mirror

Motorised
retractable door
mirror: automatic
return function

Function OFF

No function

Lock operated

Sounds at each lock operation

Lock operated twice

Sounds when lock is operated
twice consecutively (within 1
second)

Keyless (horn)

Keyless entry
horn answer
back

Function OFF

Normal

Operates according to keyless
entry horn answerback
adjustment function setting

Keyless (horn)
night time

Keyless entry
horn
answerback:
night time
disabling

Night time operation
disabled

Operates according to keyless
entry horn answerback
adjustment function setting,
but horn sound disabled
during night time

Light up on lock, unlock

Function ON for both lock and
unlock (initial setting)

Light up on lock only

Function ON for lock only

Light up on unlock only

Function ON for unlock only

Keyless
(hazard)

Keyless entry
system: hazard
answer back
function

Function OFF

SWS – ON VEHICLE SERVICING

54B-120

Item
No.

MUT item
display

Item

MUT adjustment display

Details of adjustment

Open and close

Both close and open
operations (open operation for
windows only)

Close only

Close operation only (initial
setting)

Keyless (P/W)

Multi-mode
keyless entry
system: Electric
window and
sunroof operation

Function OFF

Horn and hazard

Function ON: Horn & Hazard

Hazard only

Function ON: Hazard only

Security alarm

Function OFF

Function OFF (initial setting)

Function ON

Turn indicator
buzzer

Turn indicator
light operating
sound function

Function OFF

Function OFF (initial setting)

60 s60 s
30 s30 s
15 s15 s
7.5 s7.5 s

Interior light
response time

Interior light
delayed switch
off time

NO delayed switch off

0 s (no delay operation)

Timer function OFF

30 s

30 s (initial setting)

3 min.

Key off timer
period

Electric window
& sunroof timer
function period

10 min.

Normal operation

Accepts normal operation
during timer period (initial
setting)

P/W key off
timer

Operational
adjustment
during electric
window key off
timer

Main S/W operation
prohibited

Prohibits operation of electric
windows (except driver’s) from
electric window main switch,
during timer period

30 s

30 s (initial setting)

60 s1 min.
120 s2 min.

Keyless timer
lock T

Timer lock time
after keyless
entry unlock

180 s3 min.
Function ON

Function ON (initial setting)

Door ajar
buzzer

Door ajar
warning function

Function OFF

8 s

8 s: No continuous operation
(initial setting)

4 s (continuous ON)

8 s (continuous ON)

16 s (continuous ON)

Rear wiper INT
period

Rear wiper
intermittent
period

Continuous operation

Continuous operation (no
intermittent operation)

3 min.

Automatic cut-off ON: 3 min.

30 min.

Automatic cut-off ON: 30 min.
(initial setting)

60 min.

Automatic cut-off ON: 60 min.

Interior light
auto cut-off

Interior light
automatic cut-off
function

Function OFF

Automatic cut-off OFF

All seat operation ON

Operation possible from all
seats when locked (initial
setting)

P/W lock mode

Electric window
lock driver
operation

Only driver’s seat
operation

Operation prohibited from
seats other than driver’s,
when locked

SWS – ON VEHICLE SERVICING

54B-121

Note

1. *1 optional: Can only be adjusted when the smart entry system is fitted. After

fitting the smart entry system, a list of adjustable functions will be displayed
when the entry system is operated for the first time. If all the functions are
initialised, then the adjusted items will be deleted, but by activating the smart
entry system, the list of adjusted functions will be displayed again.

2. *2 This adjustment item restricts the operation of the electric window timer

function, and is used when performing Inspection procedure D-8 “Electric
window comes down automatically”.

Initialising all functions (Returning to initial settings)
This function allows all of the adjusted functions to be returned to the original
factory settings.

RJSY301024-352

4G6 ENGINE – GENERAL, SEALANTS, SPECIAL TOOLS

11A-1

SECTION 11A

ENGINE

CONTENTS

4G6 ENGINE

General

The servicing information specified below accompanies changes to the 4G63-MPI-T/C engine installed on the new Lancer

Evolution VIII. Other servicing information remains the same.

• The crank angle sensor and O2 sensor connector have been changed
• The timing belt front cover is now split into 2

Sealants

Note

( ) are original products

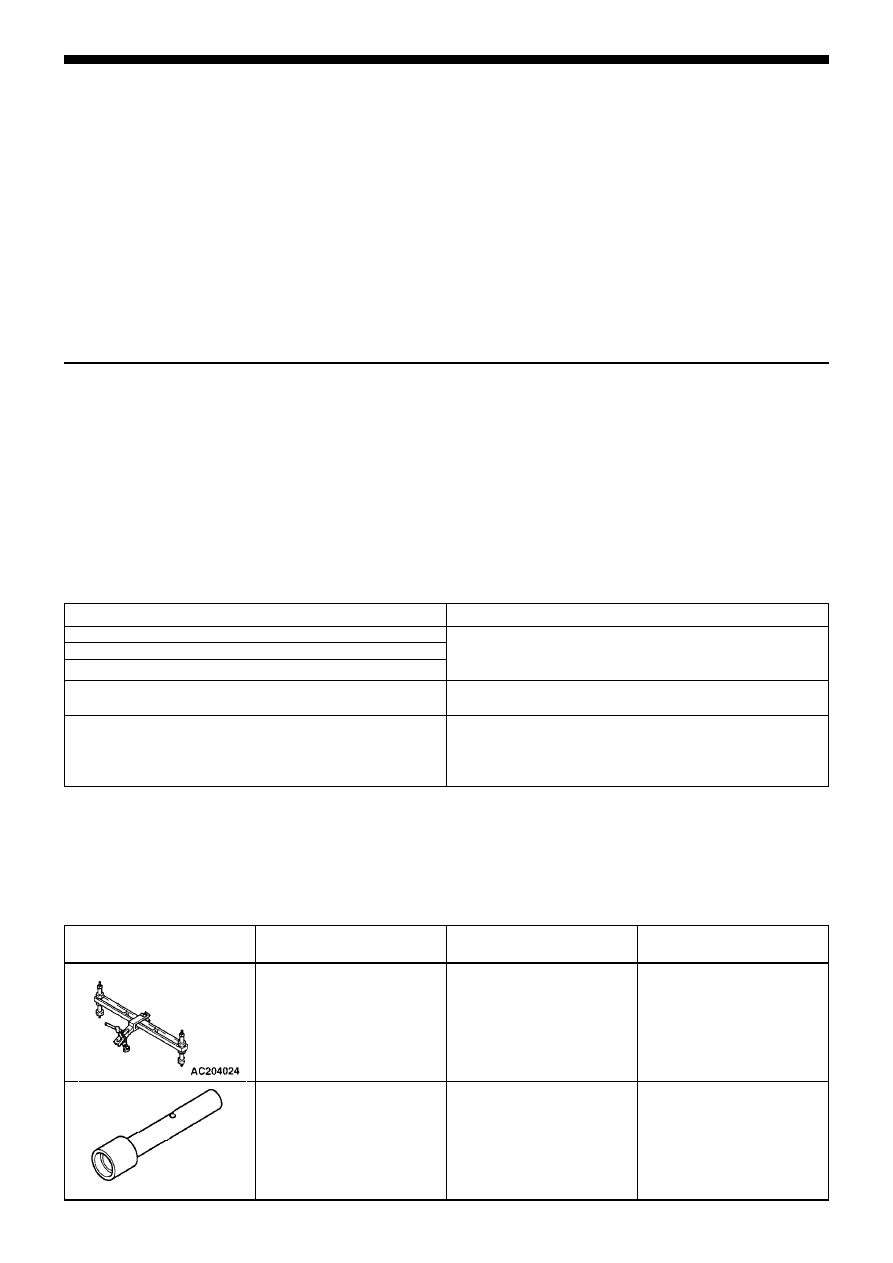

Special Tools

Tool

Number

Name

Function

MD998772

Valve spring compressor

Valve spring compression

MD998737

Valve stem seal installer

Valve seal stem installation

General .......................................................1
Sealants .....................................................1
Special Tools .............................................1
Engine adjustment ....................................2

1. Checking compression pressure .....................2

Camshaft, valve stem seals .....................2
Timing belt, timing belt B ........................11

Location

Name

Rocker cover
Rocker cover gasket
Cylinder head

Semi-dry sealant: Three Bond 1207D (MZ100168) (contains
150g)

Camshaft end seal

Semi-dry sealant: Three Bond 1211 (MZ100057) (contains
100g)

Camshaft position sensor support

Semi-dry sealant: Three Bond 1207F (MZ100191) (contains
150g)
