TRANSAXLE
TSB Revision
AUTOMATIC TRANSAXLE OVERHAUL
23B-11
TRA N SA XLE

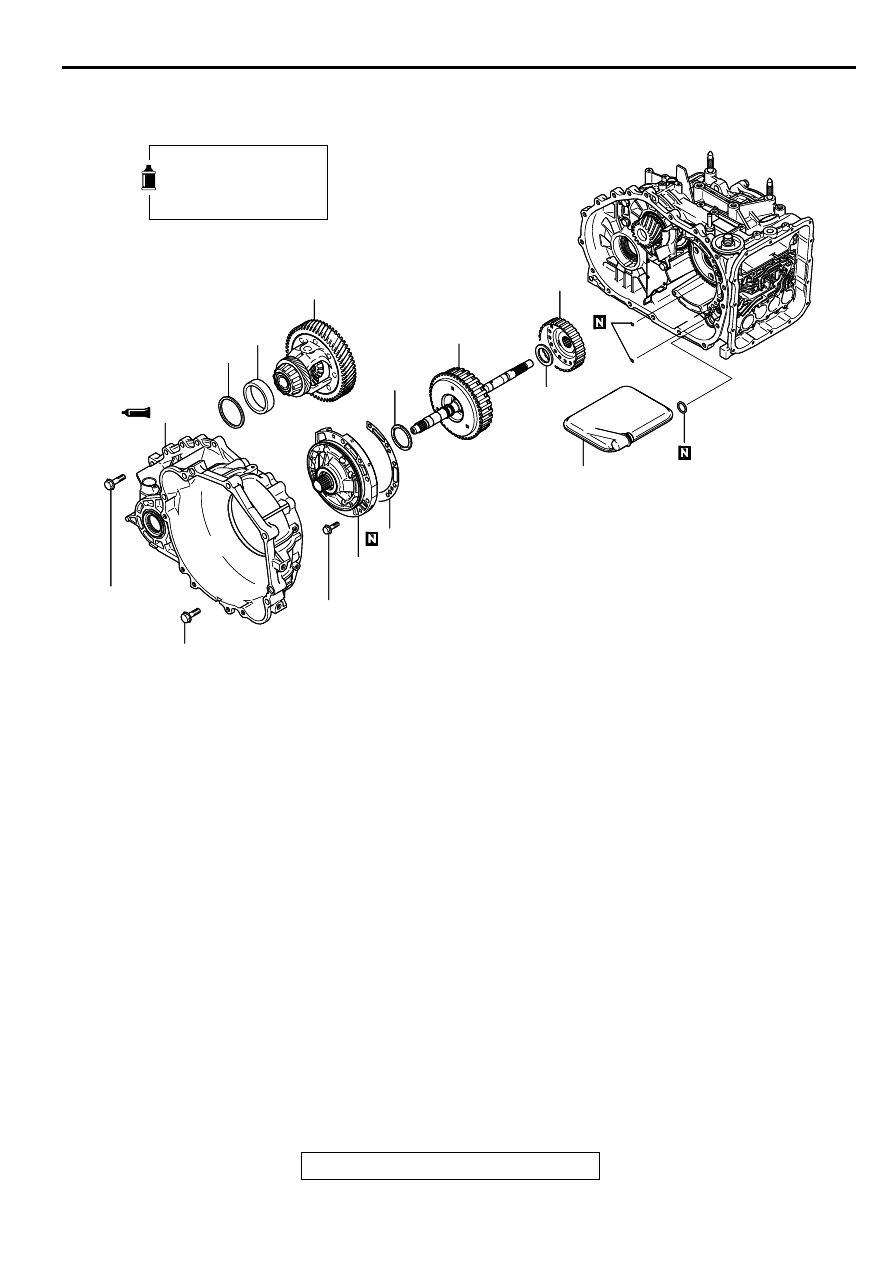

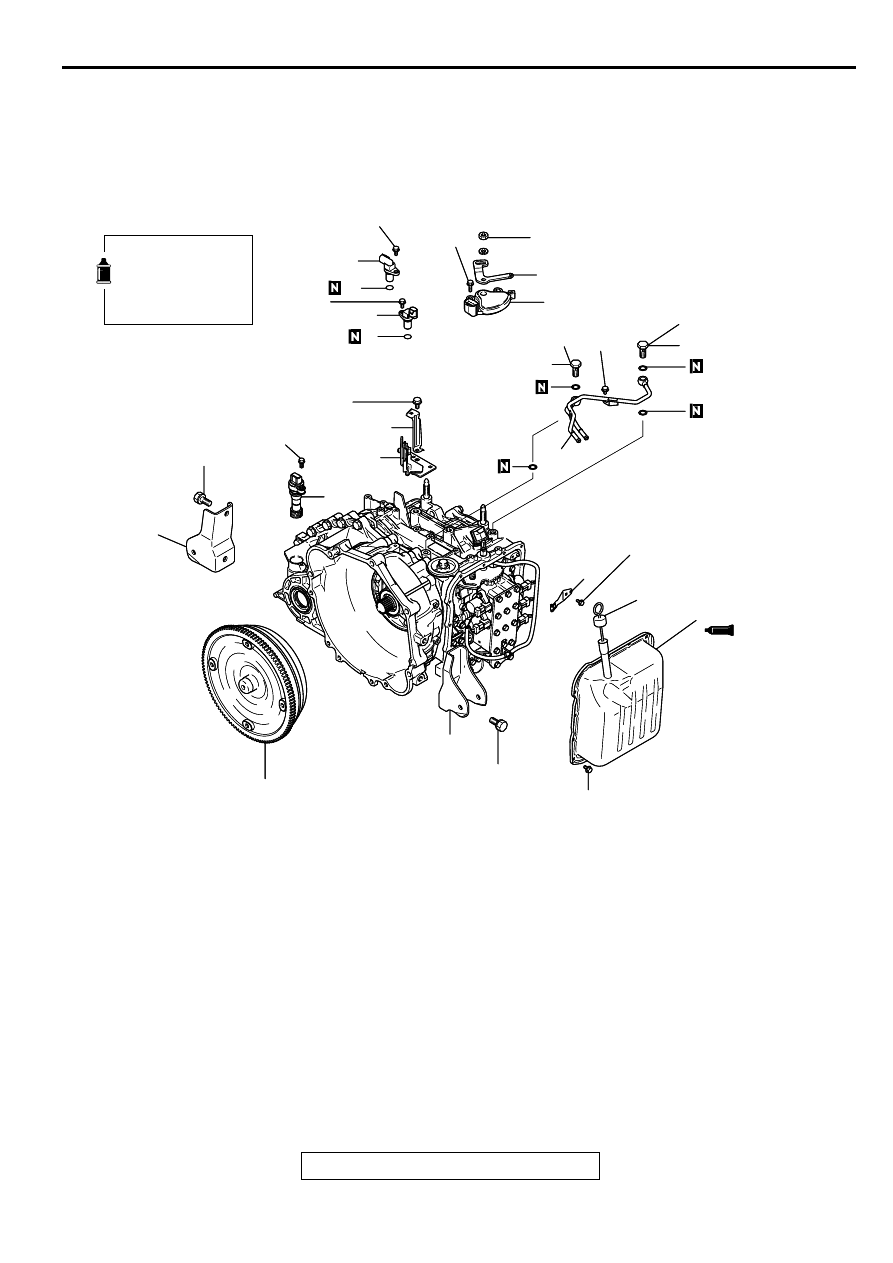

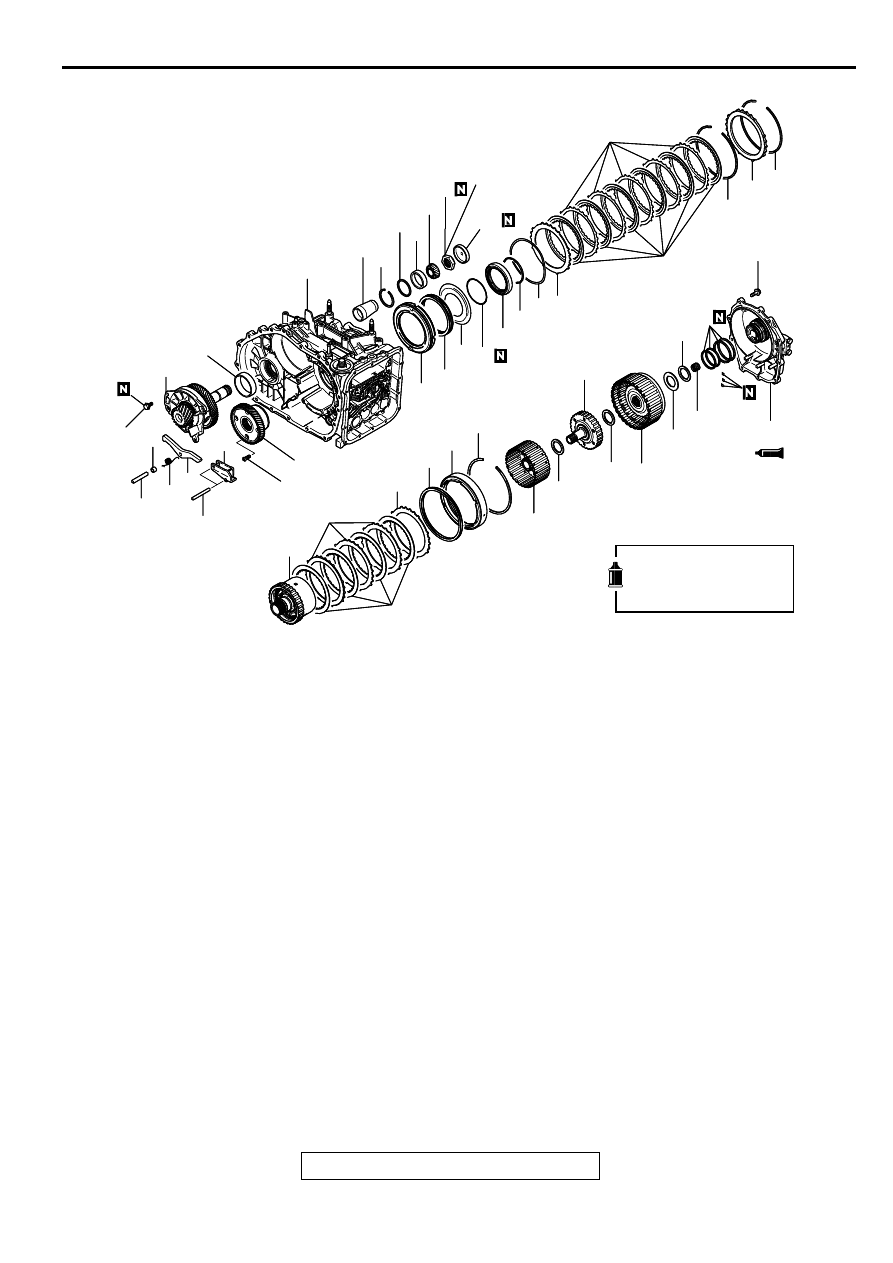

DISASSEMBLY AND ASSEMBLY
M1233001000023
<F4A42>
Required Special Tools:
MB990607: Torque Wrench Socket
MB990930: Installer Adapter
MB990931: Installer Adapter
MB990935: Installer Adapter <F4A42>
MB990936: Installer Adapter <F4A42>
MB990938: Handle
MB991625: Special Socket (41)
MB991631: Clearance Dummy Plate <F4A42>
MB991632: Clearance Dummy Plate <F4A51>
MD998333: Oil Pump Remover
MD998338: Spring Compressor <F4A51>

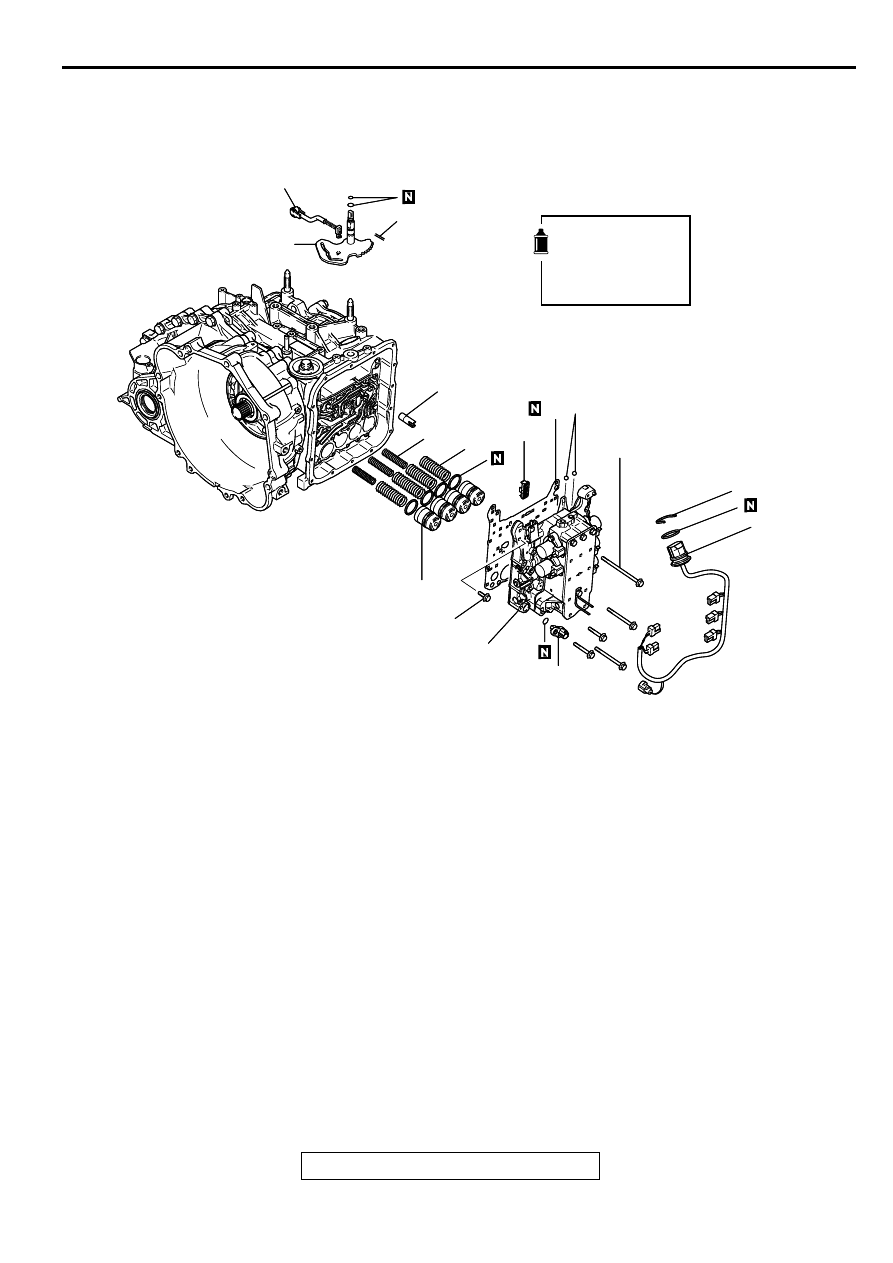

AKX01132
AKX01132
11
12
13
10
8
6
6
11 ± 1 N·m
95 ± 9 in-lb
22 ± 3 N·m
16 ± 52 ft-lb
11 ± 1 N·m
95 ± 9 in-lb
11 ± 1 N·m
95 ± 9 in-lb
30 ± 3 N·m
22 ± 2 ft-lb
11 ± 1 N·m
95 ± 9 in-lb
APPLY AUTOMATIC
TRANSMISSION
FLUID TO ALL
MOVING PARTS
BEFORE INSTALLA-
TION.
30 ± 3 N·m
22 ± 2 ft-lb
23 ± 3 N·m
17 ± 2 ft-lb
5 ± 1 N·m
43 ± 9 ft-lb
3
4
14
69 ± 10 N·m
51 ± 7 ft-lb
69 ± 10 N·m
51 ± 7 ft-lb
2
2
1
6 ± 1 N·m
52 ± 9 in-lb
16
5
15
7
AB
9
11 ± 1 N·m
95 ± 9 in-lb
1.
TORQUE CONVERTER
2.
ROLL STOPPER BRACKET
3.
HARNESS BRACKET
4.
CONTROL CABLE SUPPORT BRACKET
5.
OIL DIPSTICK
6.
EYE BOLT
7.
OIL COOLER FEED TUBE
8.
INPUT SHAFT SPEED SENSOR
9.
O-RING
10. OUTPUT SHAFT SPEED SENSOR
11. O-RING
12. MANUAL CONTROL LEVER
13. PARK/NEUTRAL POSITION SWITCH
14. SPEEDOMETER GEAR
15. VALVE BODY COVER
16. MANUAL CONTROL SHAFT DETENTE
