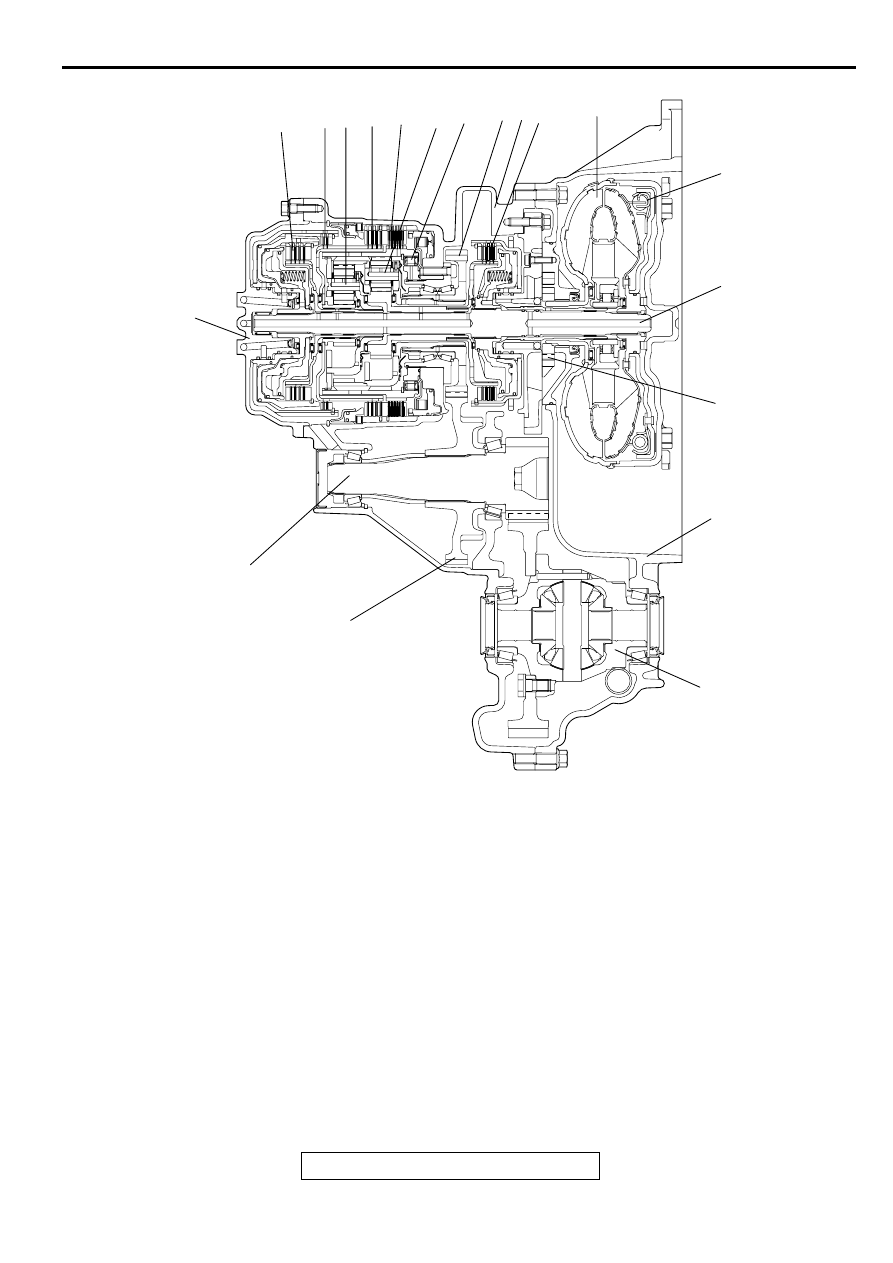

GENERAL DESCRIPTION

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-3

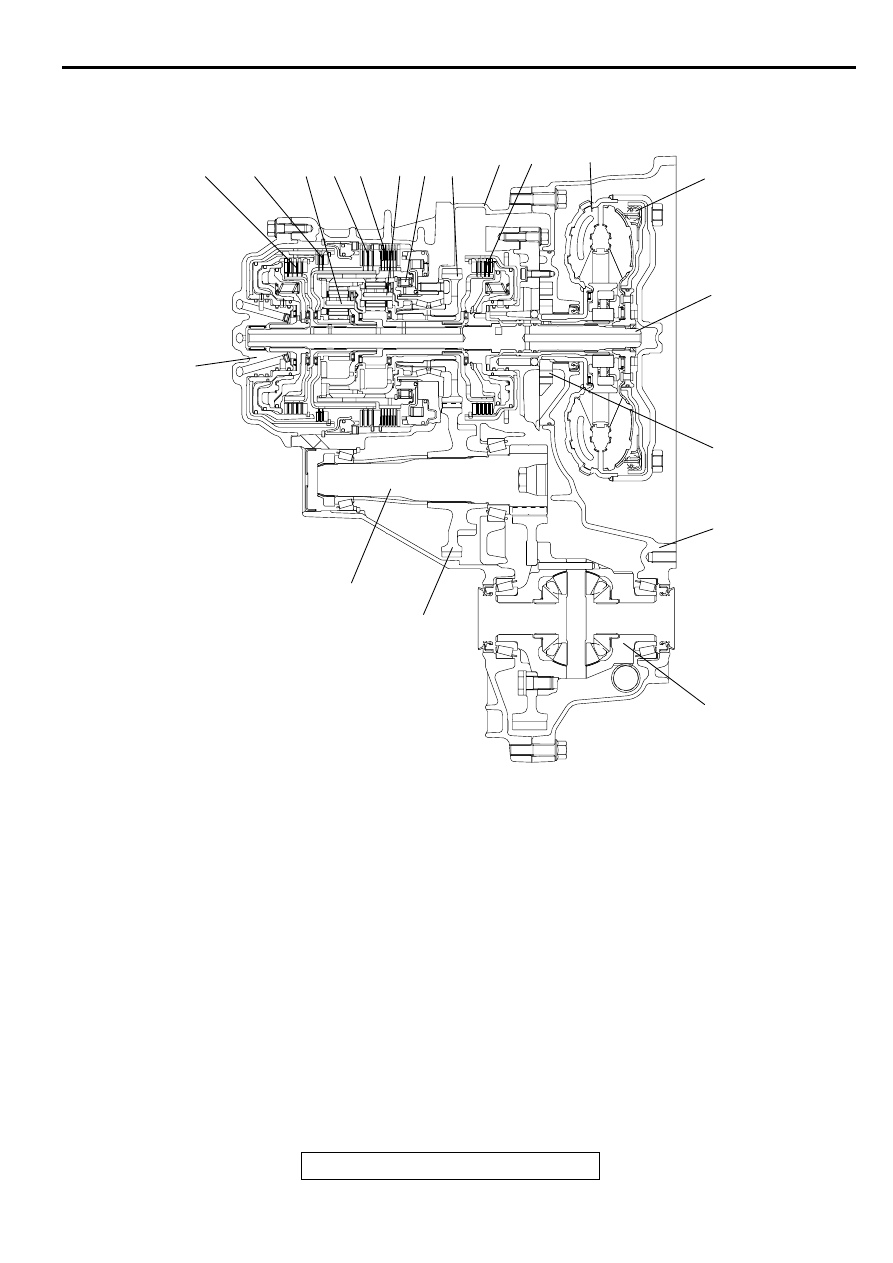

SECTIONAL VIEW

<F4A42>

<F4A51>

AKX01131

1

2

3

4

5

6

7

19

11

12

18

14

15

17

13

AB

16

9

10

8

1.

REVERSE CLUTCH

2.

OVERDRIVE PLANETARY CARRIER

3.

SECOND BRAKE

4.

LOW-REVERSE BRAKE

5.

OUTPUT PLANETARY CARRIER

6.

ONE-WAY CLUTCH

7.

TRANSFER DRIVE GEAR

8.

TRANSAXLE CASE

9.

UNDERDRIVE CLUTCH

10. TORQUE CONVERTER

11. TORQUE CONVERTER CLUTCH
12. INPUT SHAFT
13. OIL PUMP
14. CONVERTER HOUSING
15. DIFFERENTIAL
16. TRANSFER DRIVEN GEAR
17. OUTPUT SHAFT
18. REAR COVER
19. OVERDRIVE CLUTCH

GENERAL DESCRIPTION

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-4

AKX01109

7

8

10

1

2 3 4

5

6

9

19

18

11

12

13

14

15

16

17

AB

1.

REVERSE CLUTCH

2.

OVERDRIVE PLANETARY CARRIER

3.

SECOND BRAKE

4.

LOW-REVERSE BRAKE

5.

OUTPUT PLANETARY CARRIER

6.

ONE-WAY CLUTCH

7.

TRANSFER DRIVE GEAR

8.

TRANSAXLE CASE

9.

UNDERDRIVE CLUTCH

10. TORQUE CONVERTER

11. TORQUE CONVERTER CLUTCH
12. INPUT SHAFT
13. OIL PUMP
14. CONVERTER HOUSING
15. DIFFERENTIAL
16. TRANSFER DRIVEN GEAR
17. OUTPUT SHAFT
18. REAR COVER
19. OVERDRIVE CLUTCH

GENERAL DESCRIPTION

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-5

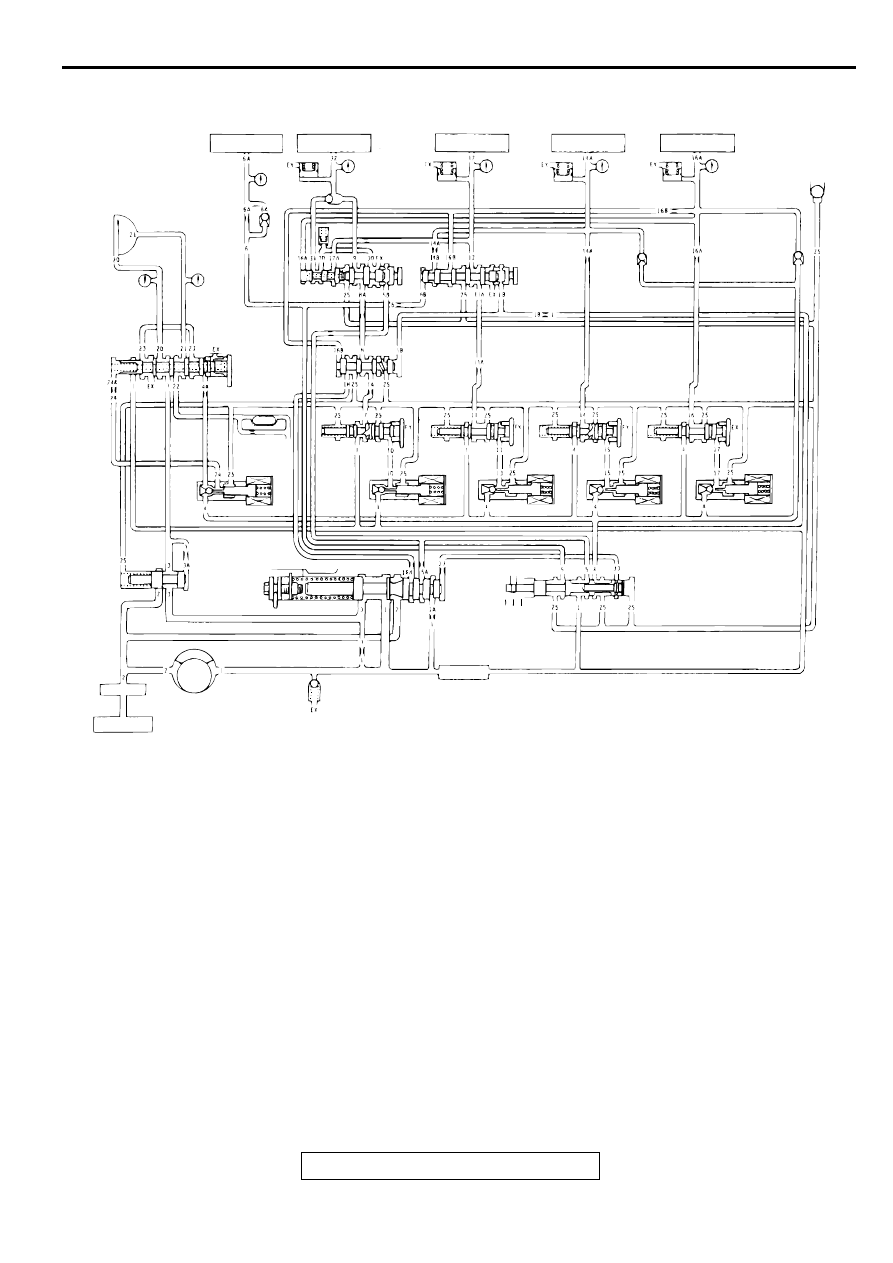

HYDRAULIC CIRCUIT

AKX00963

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

RND

P3

2
L

27

30

28

29

31

AB

1.

REVERSE CLUTCH

2.

LOW-REVERSE BRAKE

3.

SECOND BRAKE

4.

UNDERDRIVE CLUTCH

5.

OVERDRIVE CLUTCH

6.

LOW-REVERSE ACCUMULATOR

7.

SECOND ACCUMULATOR

8.

UNDERDRIVE ACCUMULATOR

9.

OVERDRIVE ACCUMULATOR

10. TORQUE CONVERTER CLUTCH
11. FAIL-SAFE VALVE A
12. FAIL-SAFE VALVE B
13. TORQUE CONVERTER CLUTCH

CONTROL VALVE

14. SWITCHING VALVE
15. LOW-REVERSE PRESSURE CONTROL

VALVE

16. SECOND PRESSURE CONTROL VALVE

17. UNDERDRIVE PRESSURE CONTROL

VALVE

18. OVERDRIVE PRESSURE CONTROL

VALVE

19. TORQUE CONVERTER CLUTCH

CONTROL SOLENOID VALVE

20. LOW-REVERSE SOLENOID VALVE
21. SECOND SOLENOID VALVE
22. UNDERDRIVE SOLENOID VALVE
23. OVERDRIVE SOLENOID VALVE
24. TORQUE CONVERTER PRESSURE

CONTROL VALVE

25. REGULATOR VALVE
26. MANUAL VALVE
27. OIL FILTER
28. OIL PAN
29. OIL PUMP
30. RELIEF VALVE
31. OIL STRAINER

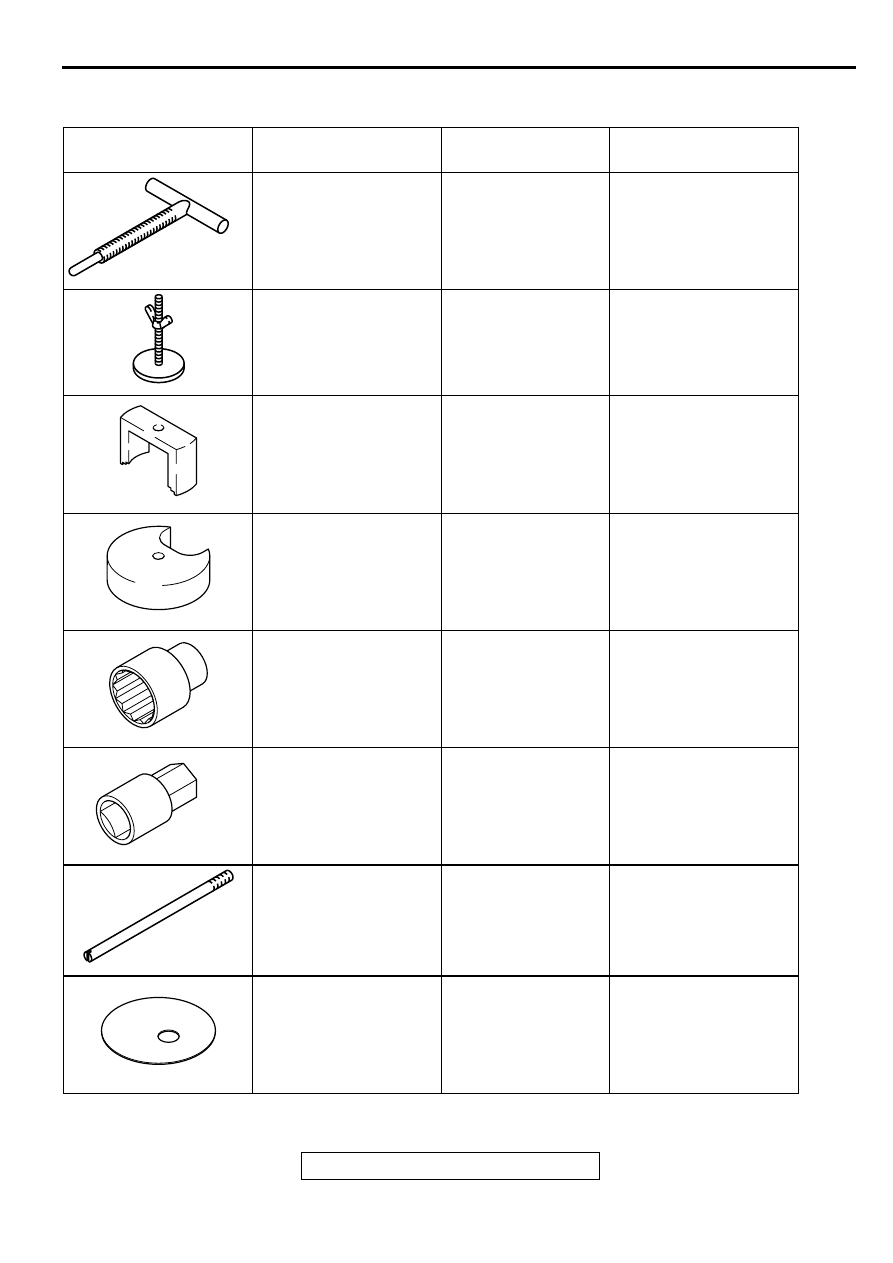

SPECIAL TOOLS

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-6

SPECIA L TO O LS

M1233000600033

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MD998333 Oil pump
remover

MD998333-01

Removal of oil pump

MD998924 Spring
compressor retainer

MD998924-01

Use with spring
compressor

MD998903 Spring
compressor

MD998903

Removal and installation
of one-way clutch inner
race snap ring <F4A42>

MD998338 Spring
compressor

MD998338

Removal and installation
of one-way clutch inner
race snap ring <F4A51>

MB991625 Socket (41)

MB991625-01 or
General service tool

Removal and installation
of transfer drive gear
jam nut <F4A42>

MB990607 Torque
wrench socket

MB990607-01

Removal and installation
of output shaft nut

MD998412 Guide

MD998412

Installation of oil pump
and transfer drive gear

MB991631 Clearance
dummy plate

MB991631-01

Measurement of
reaction plate low-
reverse brake and
second brake end plays
<F4A42>
