CHARGING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-13

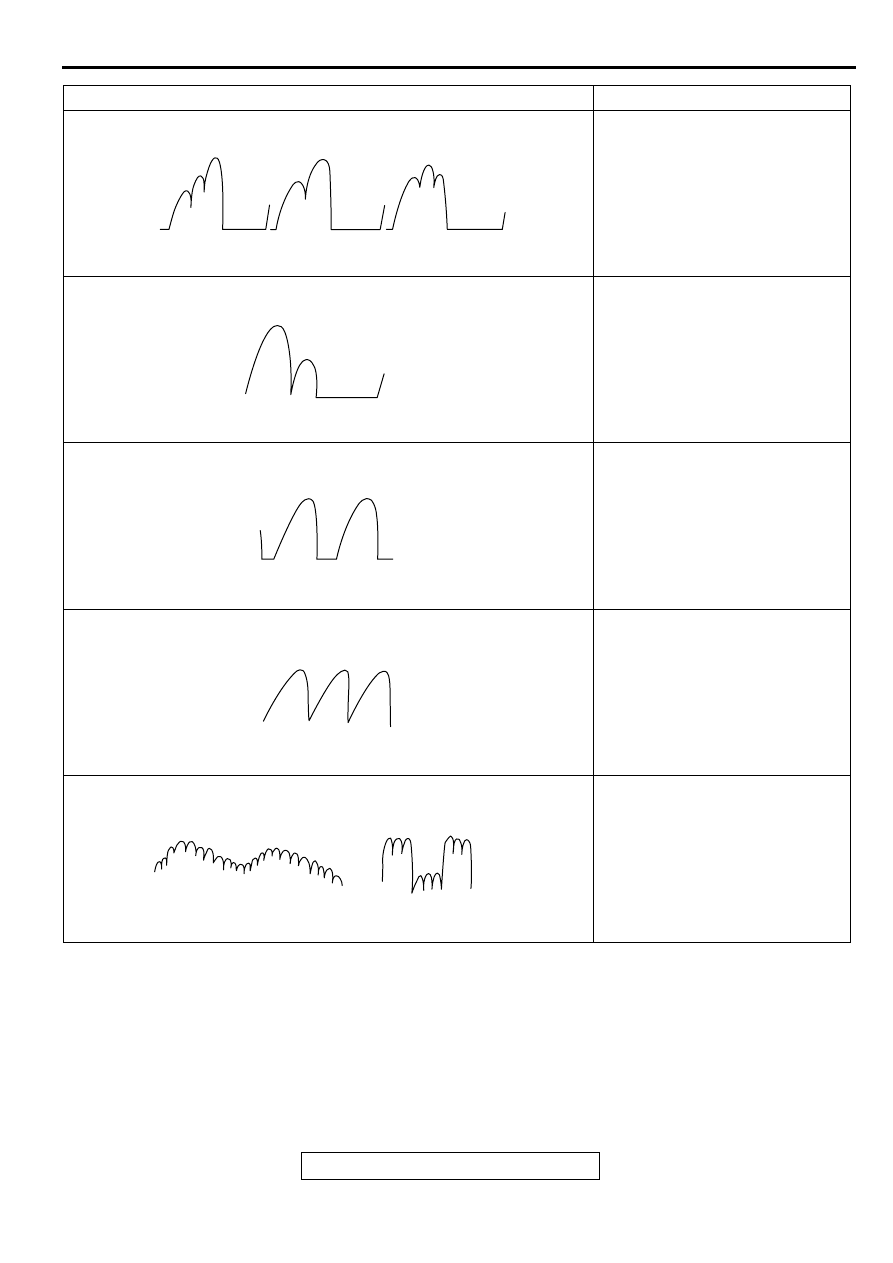

ABNORMAL WAVEFORMS

PROBABLE CAUSE

Example1

Open circuit in diode

Example2

Short-circuit in diode

Example3

Open circuit in stator coil

Example4

Short-circuit in stator coil

Example5Open circuit in supplementary

diode

AKX00191

AKX00192

AKX00193

AKX00194

AKX00195

CHARGING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-14

GENERATOR ASSEMBLY

REMOVAL AND INSTALLATION

M1161001400076

Pre-removal Operation

•

Under Cover Removal

•

Engine Mount Bracket Removal (Refer to GROUP 32,
Engine Mount

P.32-5

.)

Post-installation Operation

•

Engine Mount Bracket Installation (Refer to GROUP 32

P.32-5

.)

•

Drive Belt Tension Adjustment (Refer to GROUP 00,
Maintenance Service

−

 Drive Belts

P.00-40

.)

•

Under Cover Installation

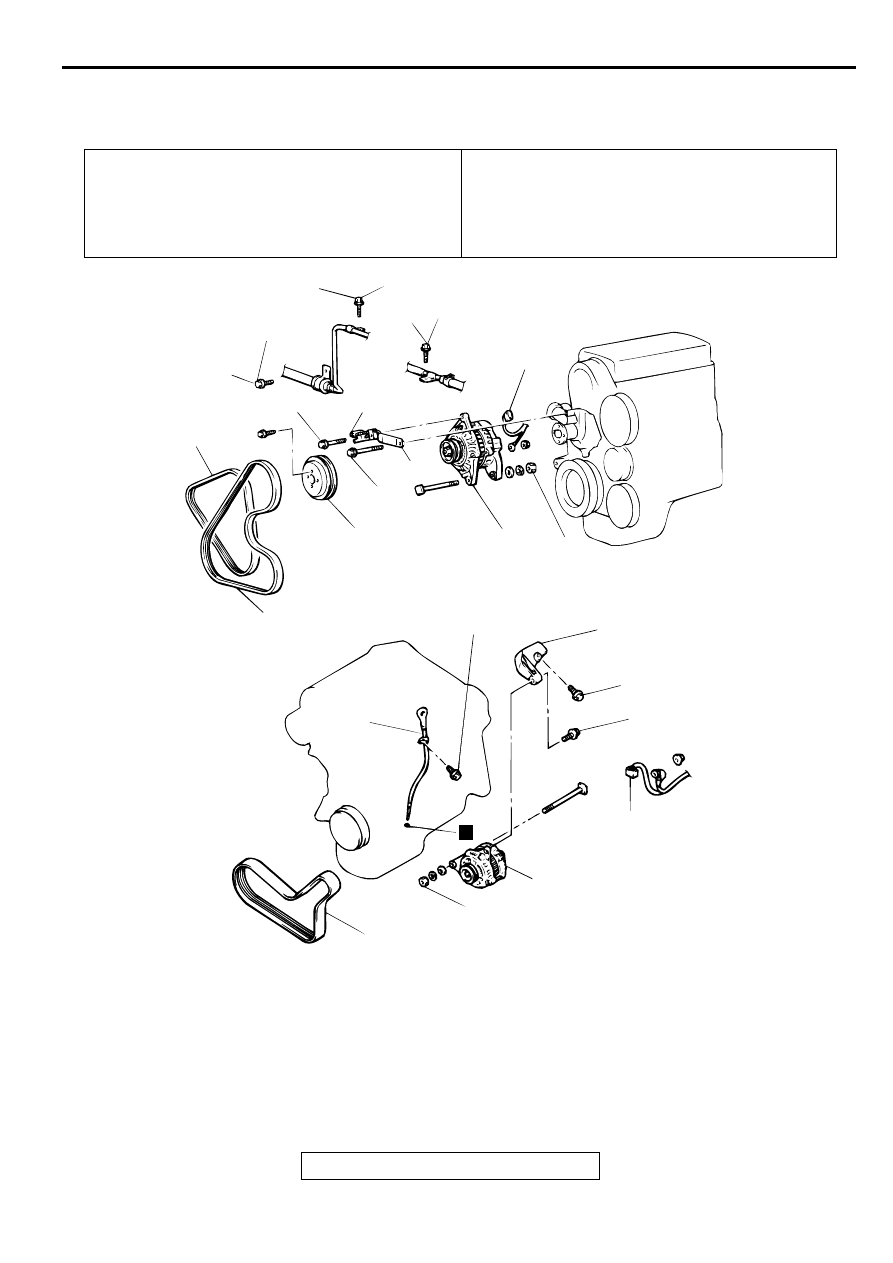

AC000285

1

2

1

4

3

6

8

9

12 ± 2 N·m
100 ± 22 in-lb

12 ± 2 N·m
100 ± 22 in-lb

12 ± 2 N·m
100 ± 22 in-lb

4.9 ± 1.0 N·m
44 ± 8 in-lb

23 ± 2 N·m
16 ± 2 ft-lb

23 ± 2 N·m
16 ± 2 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

49 ± 10 N·m
36 ± 7 ft-lb

21 ± 4 N·m
16 ± 3 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

14 ± 1 N·m
117 ± 13 in-lb

4

5

7

9

10

N

<2.4L ENGINE>

<3.0L ENGINE>

7

AB

REMOVAL STEPS

1.

OIL PRESSURE HOSE AND
TUBE ASSEMBLY CLAMP
BOLTS <2.4L ENGINE>

2.

OIL RETURN TUBE ASSEMBLY
CLAMP BOLT <2.4L ENGINE>

<<A>>

3.

DRIVE BELT (POWER
STEERING, A/C) <2.4L ENGINE>

4.

DRIVE BELT (GENERATOR)

5.

OIL LEVEL GAUGE UNIT

6.

WATER PUMP PULLEY <2.4L
ENGINE>

7.

GENERATOR CONNECTOR

8.

GENERATOR BRACE <2.4L
ENGINE>

REMOVAL STEPS (Continued)

CHARGING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-15

REMOVAL SERVICE POINT

<<A>> DRIVE BELT (POWER STEERING, A/C) REMOVAL

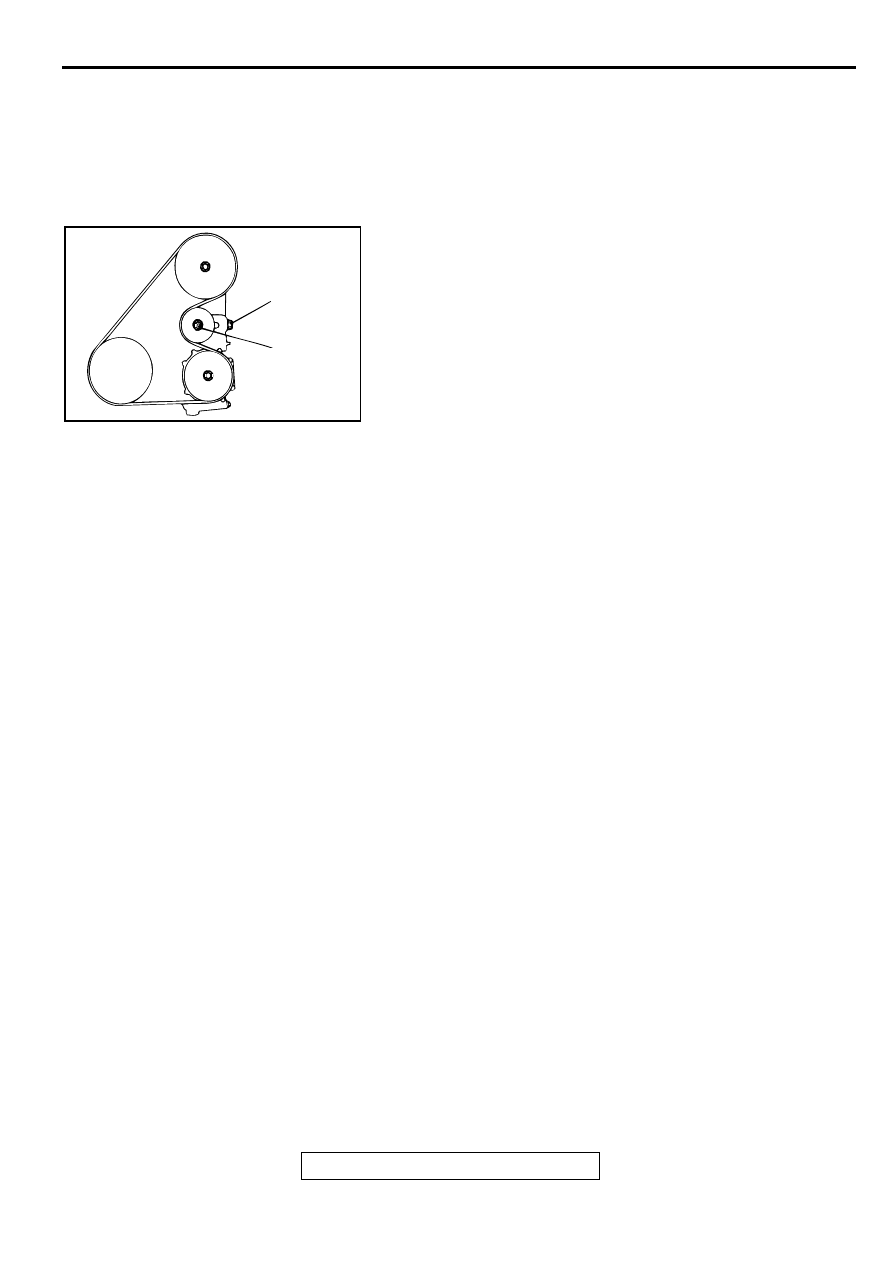

1. Loosen nut "A" for holding the tension pulley.

2. Loosen bolt "B" for adjustments.

3. Remove the drive belt.

9.

GENERATOR

10. GENERATOR BRACE <3.0L

ENGINE>

REMOVAL STEPS (Continued)

AC000286 AB

A

B

CHARGING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-16

DISASSEMBLY AND ASSEMBLY

M1161001600025

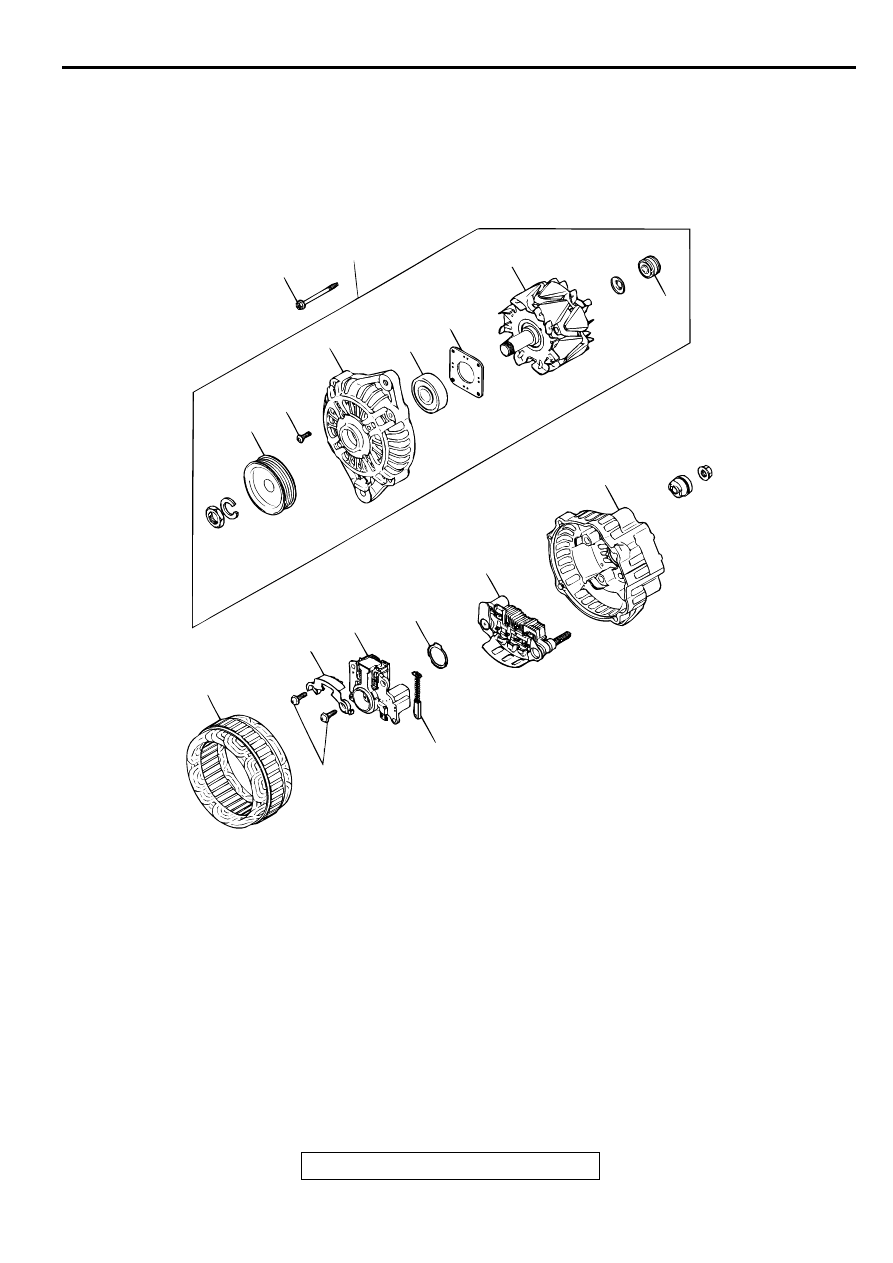

AKX00354

1

2

7

6

5

3

4

8

9

10

12

13

14

11

AB

4.4 ±1.0  N·m
39 ± 9 in-lb

3.7 ± 0.7 N·m
33 ± 6 in-lb

3.7 ± 0.7 N·m
33 ± 6 in-lb

DISASSEMBLY STEPS

<<A>>

1.

FRONT BRACKET ASSEMBLY

<<B>>

2.

GENERATOR PULLEY

>>B<<

3.

ROTOR ASSEMBLY

4.

REAR BEARING

5.

BEARING RETAINER

6.

FRONT BEARING

7.

FRONT BRACKET

<<C>>

8.

STATOR

9.

PLATE

>>A<<

10.

REGULATOR ASSEMBLY

11.

BRUSH

12.

SLINGER

13.

RECTIFIER

14.

REAR BRACKET

DISASSEMBLY STEPS
