Mitsubishi Eclipse. Technical Information Manual (1994) - part 33





POWER TRAIN

 Manual Transaxle

Power Train Component

INPUT SHAFT
The front of the shaft is supported by a roller bearing

the shaft is supported by a sealed ball bearing in

in the front transaxle case housing. The rear of

the rear case.

Rear sealed
ball bearing

I

Input

shaft

0475-056

POWER TRAIN

 - Manual Transaxle

2-19

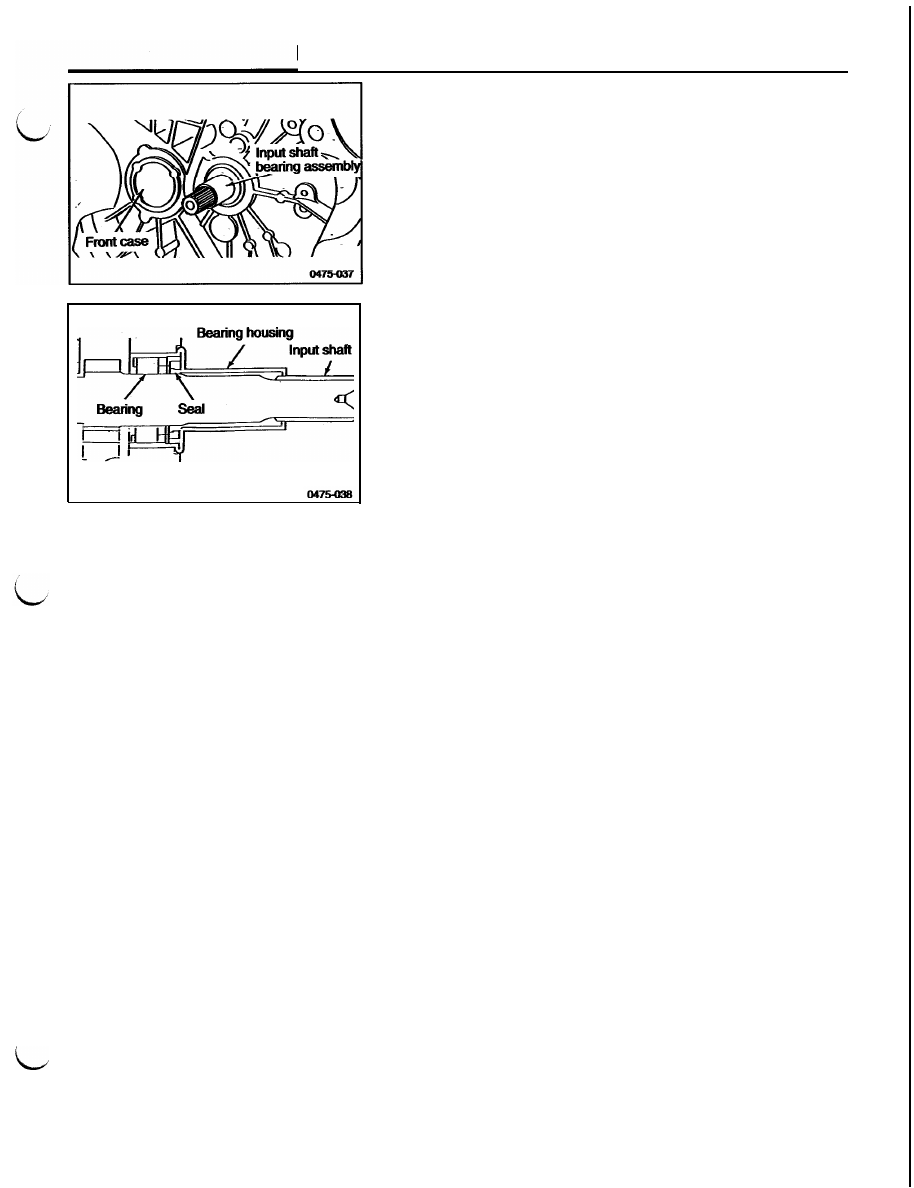

Input Shaft Bearing Assembly

An input shaft bearing assembly is pressed into the front case
of the transaxle. The assembly consists of the bearing housing,

bearing, and seal. The seal prevents transmission fluid leakage
into the clutch disc area. Individual components are not  service-

able, if any of the components fail the entire assembly must
be replaced. The clutch release bearing rides on the smooth
round surface of the retainer during clutch operation. Grease
is not required on the retainer where the release bearing rides.

2-20

POWER TRAIN

- Manual Transaxle

Input Shaft Assembly
The input shaft transmits engine torque to the trans-
axle. The assembly consists of the input shaft, 3-4

fifth speed gears, snap rings, caged needle bearings
and thrust washers.

and 5-R synchronizer assemblies, third, fourth and

3-4 sleeve

5th speed gear

1 st gear

Reverse gear

2nd



5-R sleeve

3rd speed gear

4th speed gear

POWER TRAIN

 Manual Transaxle

First, second and reverse gears are machined on

shaft gears. The speed gears all have clutch teeth

the shaft. Third, fourth and fifth speed gears ride

and cones, which are used to equalize shaft speeds

on caged needle bearings that rotate on the shaft

during shifts. The clutch teeth engage with the syn-

journals. All of the forward gears are helical-type

chronizer sleeves and the cones engage with the

gears, and are in constant mesh with the output

stop rings during a shift.

1. Input shaft

12. Thrust washer

2. Third gear bearing

13. Fifth gear bearing

3. Third speed gear

14. Fifth speed gear

4. Third stop ring

15. Fifth stop ring

5. 3-4 synchronizer

16. 5-R synchronizer

6. 3-4 synchronizer snap ring

17. 5-R synchronizer snap ring

7. Fourth stop ring

18. Reverse stop ring

8. Fourth gear bearing

19. Reverse brake bearing race

9. Fourth speed gear

20. Reverse brake bearing

10. Retaining ring

21. Reverse brake friction cone

11. Anti-spin pin

22. Thrust washer
