POWER TRAIN

 Manual Transaxle

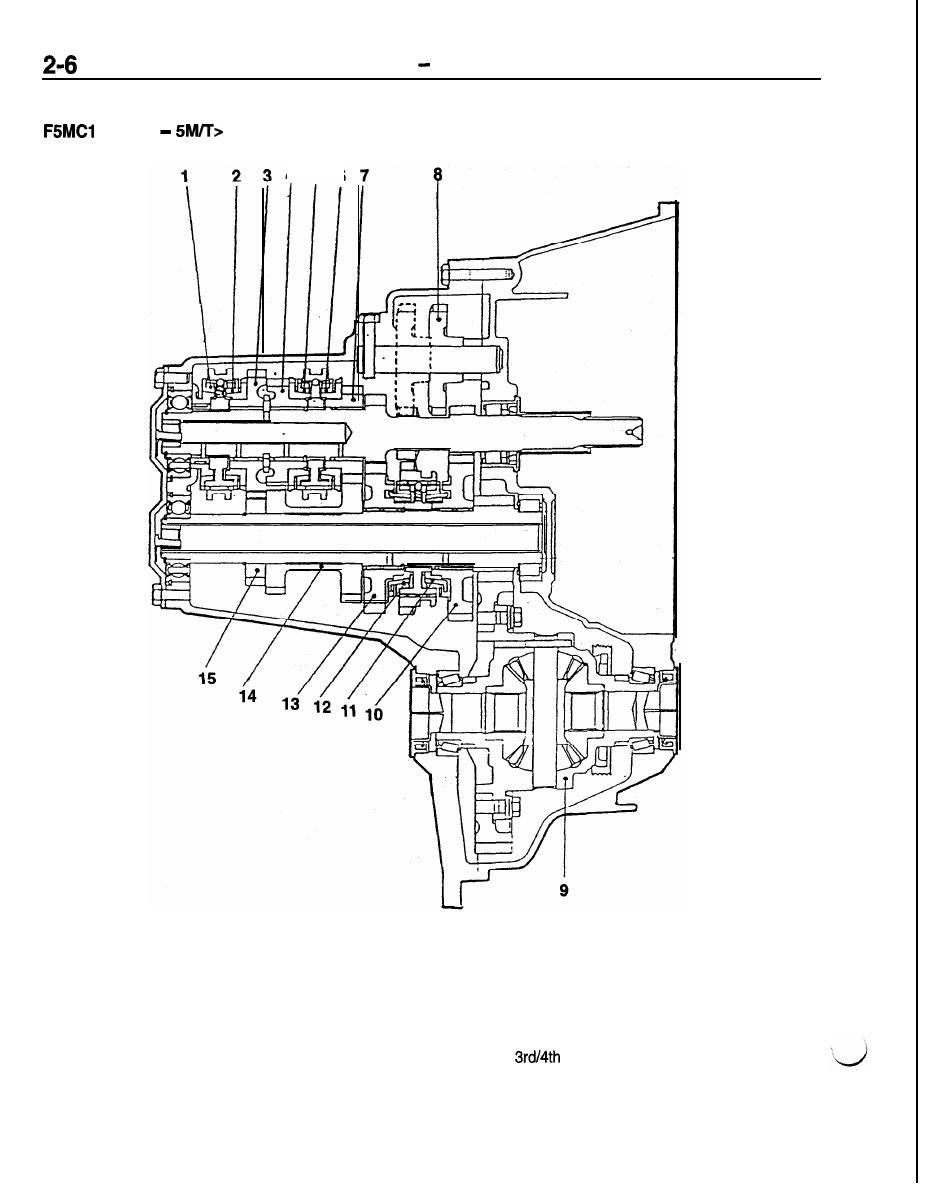

SECTIONAL VIEW

 <FWD

4 5 6

1. Reverse brake
2. 5th synchronizer

3.

5th speed gear

4.

4th speed gear

5. 4th synchronizer
6. 3rd synchronizer

7.

3rd speed gear

8. Reverse idler gear

9. Differential

10. 1 st speed gear
11. 1 st synchronizer
12. 2nd synchronizer
13. 2nd speed gear

14.

 gear

15. 5th gear

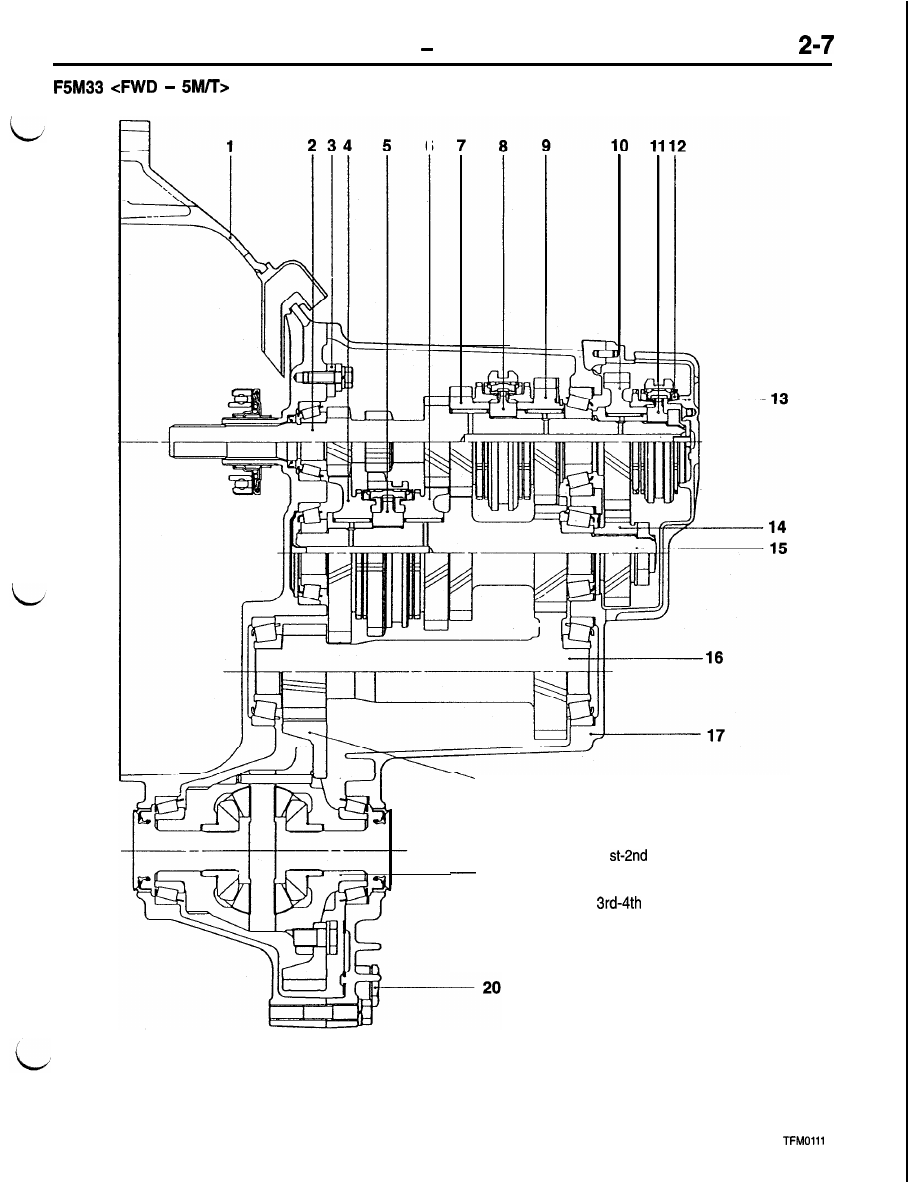

POWER TRAIN   Manual Transaxle





6

18

1. Clutch housing

2. Input shaft
3. Bearing retainer
4. 1 st speed gear
5. 1

 synchronizer

19

6. 2nd speed gear
7. 3rd speed gear
8.

 synchronizer

9. 4th speed gear

10. 5th speed gear
11. 5th synchronizer
12. Reverse brake
13. Rear cover
14. 5th intermediate gear
15. Intermediate gear
16. Output shaft
17. Transaxle case
18. Differential drive gear

19. Differential

20. Drain plug

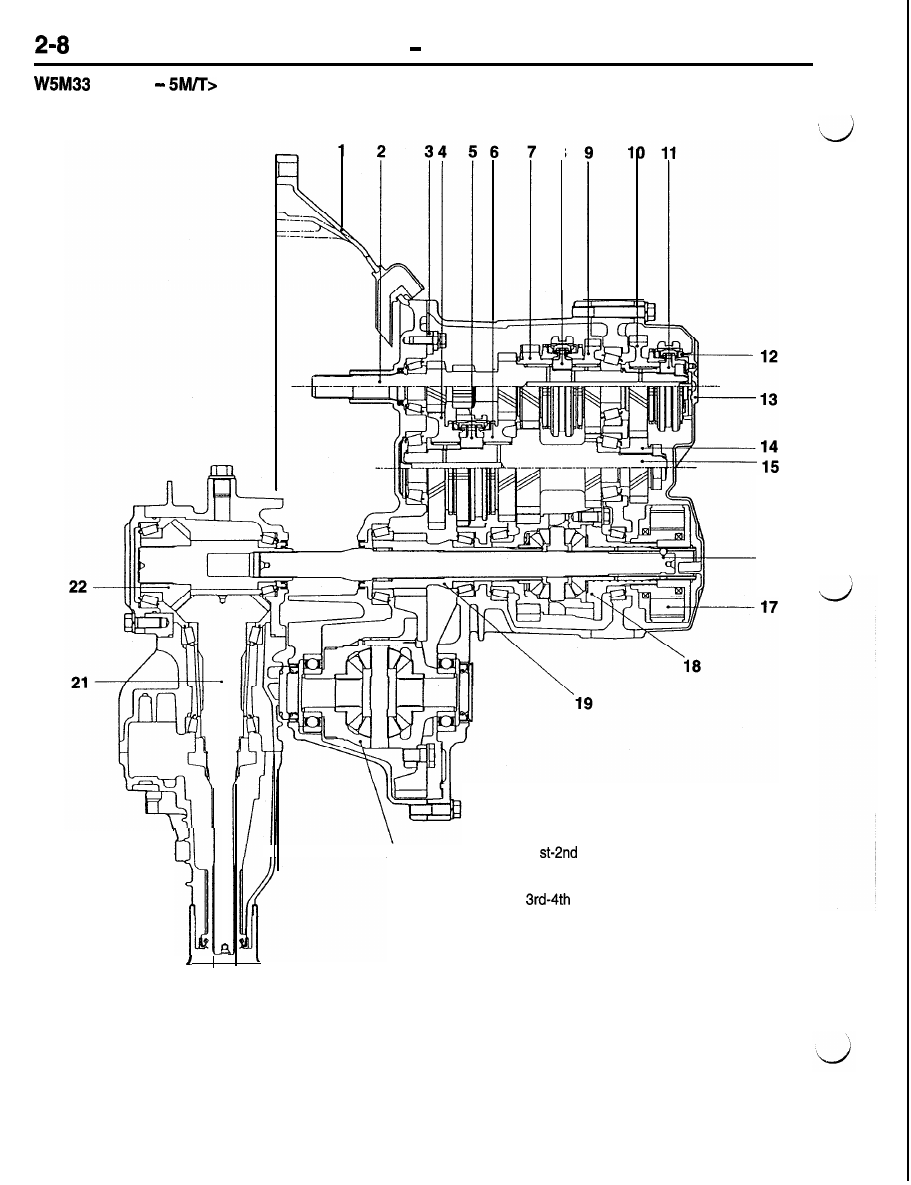

 <AWD

POWER TRAIN

 Manual Transaxle

8

20

1. Clutch housing

2. Input shaft
3. Bearing retainer
4. 1st speed gear
5. 1

 synchronizer

6. 2nd speed gear
7. 3rd speed gear
8.

 synchronizer

9. 4th speed gear

10. 5th speed gear
11. 5th synchronizer
12. Reverse brake
13. Rear cover
14. 5th intermediate gear
15. Intermediate gear
16. Center shaft
17. Viscous coupling
18. Center differential
19. Front output shaft

20. Front differential
21. Driven bevel gear
22. Drive bevel gear

16

POWER TRAIN

 Manual Transaxle

CONSTRUCTION AND OPERATION

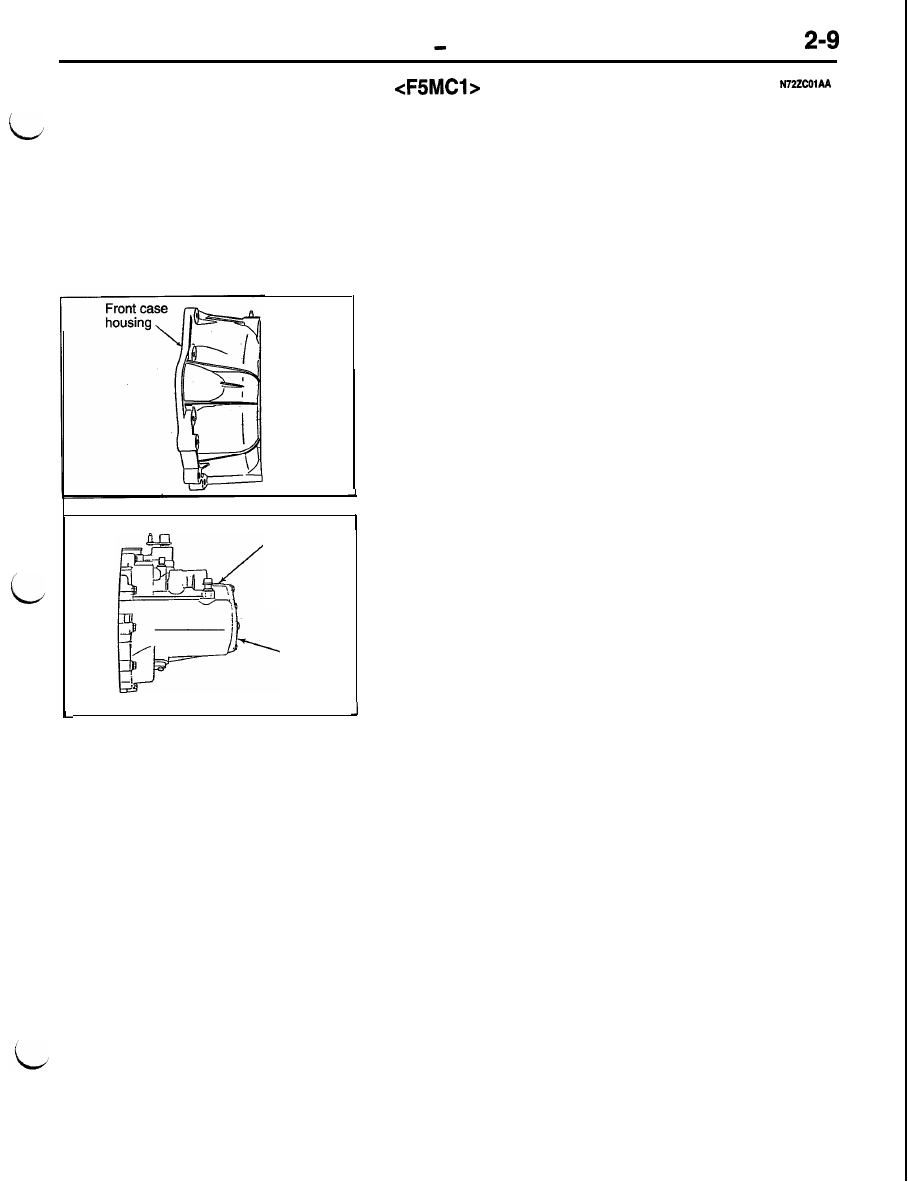

Transaxle Case

The transaxle case assembly consists of front case

case housing and rear case housing are made of

housing, rear case housing and rear cover. Front

cast aluminum.

0475-021

Rear case
housing

Rear cover

0475-022

FRONT CASE HOUSING

The clutch housing and front case are a one-piece aluminum

casting for reduced weight. The clutch housing encloses the

mechanical clutch assembly.

REAR CASE HOUSING

The rear case housing encloses the rear of the transaxle, and

is made of cast aluminum.
