TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-165

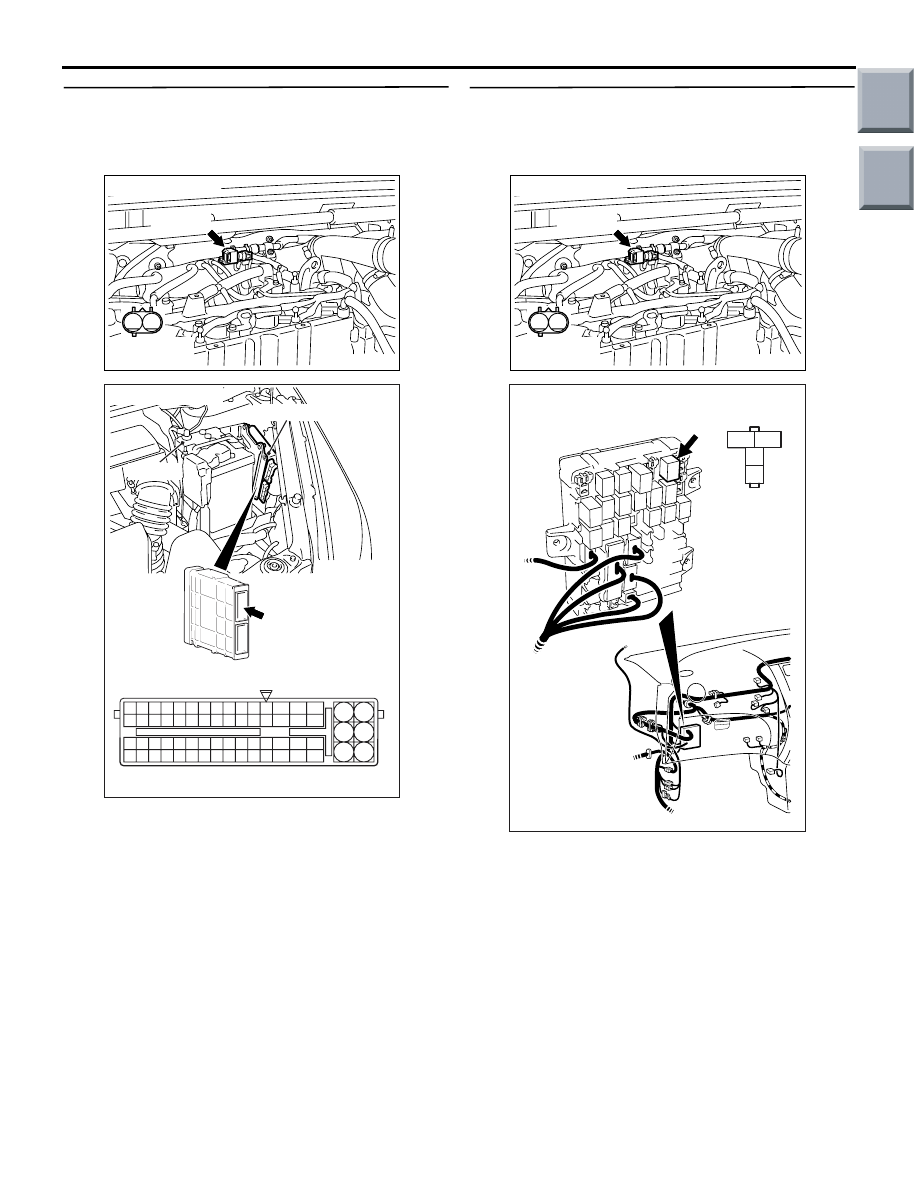

STEP 9. Check harness between A-108 (terminal
No. 1) purge control solenoid valve connector
and A-114 (terminal No. 38) engine-ECU
connector.

• Check output line for damage.

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Repair.

STEP 10. Check harness between A-108 (terminal
No. 2) purge control solenoid valve connector
and B-106 (terminal No. 4) engine control relay
connector.

NOTE: Before checking harness, check intermediate
connectors A-17 and B-112, and repair if necessary.

• Check power supply line for damage.

Q: Is the check result normal?

YES :

Go to Step 11 .

NO :

Repair.

AK402119

1

2

AC

Connector: A-108

Harness side
connector

A-108(B)

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

AK402119

1

2

AC

Connector: A-108

Harness side
connector

A-108(B)

3

2

1

4

AK402084

J/B side
connector

B-106

Connector: B-106
J/B (front side)

AC

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-166

STEP 11. M.U.T.-III actuator test

• Item 08: Purge control solenoid valve

OK: Operating sound can be heard and the
valve vibrates.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunctions

P.00-13

).

NO :

Replace engine-ECU.

Code No. P0500: Vehicle Speed Signal System

FUNCTION

• The vehicle speed signal is input to engine-ECU

from ASC-ECU through CAN communication.

TROUBLE JUDGMENT

Check Condition

• 2 seconds later from when ignition switch is in

ON position or after engine starts.

Judgement Criterion

• Engine speed is more than 2,500 r/min and is

less than 4,500 r/min.

• Under the high load operation

• For 4 seconds, vehicle speed information

received by CAN doesn't change.

Or

• For 4 seconds, vehicle speed information

received by CAN is abnormal.

PROBABLE CAUSES

• Failed ABS-ECU <Vehicle without ASC>

• Failed ABS/ASC-ECU <Vehicle with ASC>

• Failed CAN

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III diagnosis code

Q: Is diagnosis code related with CAN communication

displayed?
YES :

Inspection chart for diagnosis code (Refer

to

P.13B-18

).

NO :

Go to Step 2 .

STEP 2. M.U.T.-III other system diagnosis code

• Confirm whether the diagnosis codes are output

from ASC-ECU.

Q:  Is the diagnosis code output?

YES :

Perform the troubleshooting of ASC, (Refer

to GROUP 35C

− Troubleshooting −

Diagnosis Code Chart

P.35C-6

).

NO :

Replace engine-ECU.

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-167

Code No. P0513: Immobilizer Malfunction

OPERATION

• The signals are sent and received between

engine-ECU (terminal No. 120) and immobi-
lizer-ECU (terminal No. 3).

FUNCTION

• Engine-ECU sends or receives the control sig-

nals to or from immobilizer-ECU to certify the
ignition key.

NOTE:

.

•

If the registered ignition keys are close each
other when starting the engine, radio interfer-
ence may cause this code to be displayed.

•

This code may be displayed when registering
the key encrypted code.

TROUBLE JUDGMENT

Check Condition

• Ignition switch is in "ON" position.

Judgment Criterion

• When the communication error between

engine-ECU and the immobilizer-ECU continues
for 4 seconds or more.

PROBABLE CAUSES

• Open/short circuit in immobilizer system circuit or

loose connector contact

• Failed immobilizer-ECU

• Failed engine-ECU

AK503589

R

92 93 94 95969798

77 78 79 808182838485868788899091

99

100

107 108 109 110 111112113114115116117118119120121

122 123 124 125126127128129130131132133134135136

101102103104105106

71 72

73 74

75 76

1 2 3 4 5 6 7 8

AD

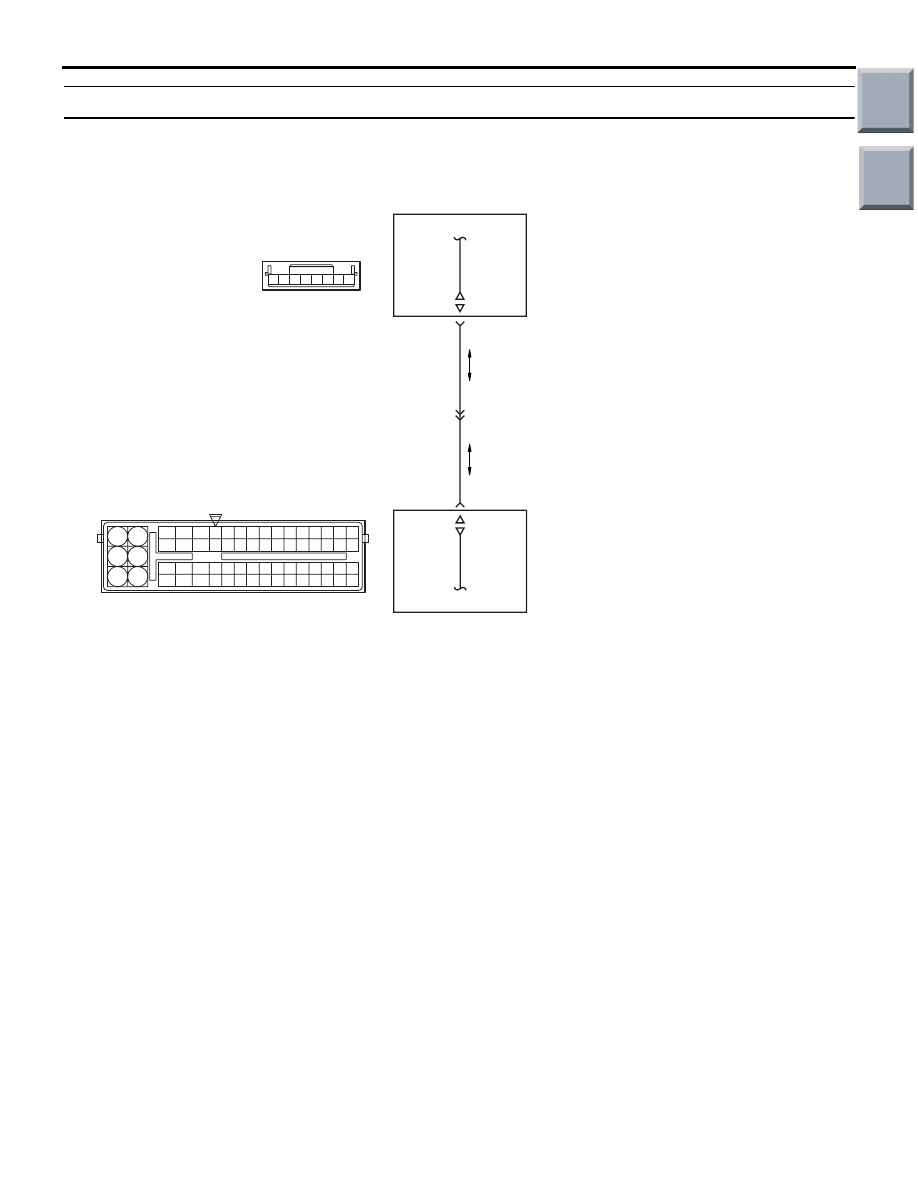

Immobilizer-ECU Circuit

B-49

A-08

Engin-ECU

Immobilizer-ECU

Wire clolour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Gray
R: Red  P: Pink  V: Violet  P: Purple

120

10

B-40

BR

BR

3

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-168

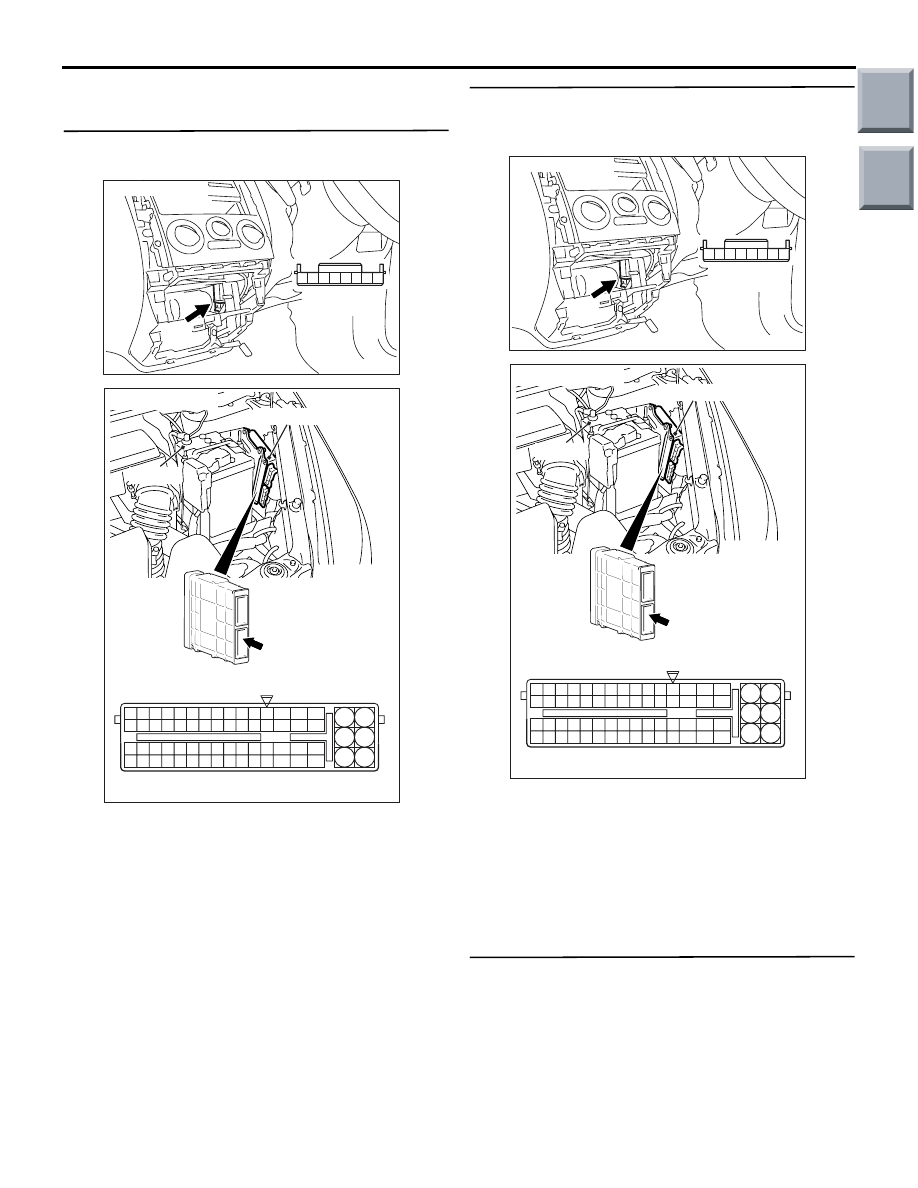

DIAGNOSIS PROCEDURE

STEP 1. Connector check: B-49 immobilizer-ECU
connector and A-08 engine-ECU connector.

Q: Is the check result normal?

YES :

Go to Step 2 .

NO :

Repair or replace.

STEP 2. Check harness between B-49 (terminal
No. 3) immobilizer-ECU connector and A-08
(terminal No. 120) engine-ECU connector.

NOTE: Before checking harness, check intermediate
connector B-40, and repair if necessary.

• Check output line for open/short circuit and dam-

age.

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair.

STEP 3. Check the trouble symptoms.

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunctions

P.00-13

).

AK503591

8 7 6 5 4 3 2 1

B-49

AB

Connectr: B-49

Harness side

connector

AK402725

77

78

79

80

81

82

83

84

92

93

94

95

96

97

98

99

85

86

87

88

89

90

91

100

101

102

103

104

105

106

115

116

117

118

119

120

121

107

108

109

110

111

112

113

114

130

131

132

133

134

135

136

122

123

124

125

126

127

128

129

72 71

74 73

76 75

R

AI

A-08

Connector:

A-08

A-08 Special tool power plant ECU check
harness

Engine-ECU

Battery

AK503591

8 7 6 5 4 3 2 1

B-49

AB

Connectr: B-49

Harness side

connector

AK402725

77

78

79

80

81

82

83

84

92

93

94

95

96

97

98

99

85

86

87

88

89

90

91

100

101

102

103

104

105

106

115

116

117

118

119

120

121

107

108

109

110

111

112

113

114

130

131

132

133

134

135

136

122

123

124

125

126

127

128

129

72 71

74 73

76 75

R

AI

A-08

Connector:

A-08

A-08 Special tool power plant ECU check
harness

Engine-ECU

Battery
