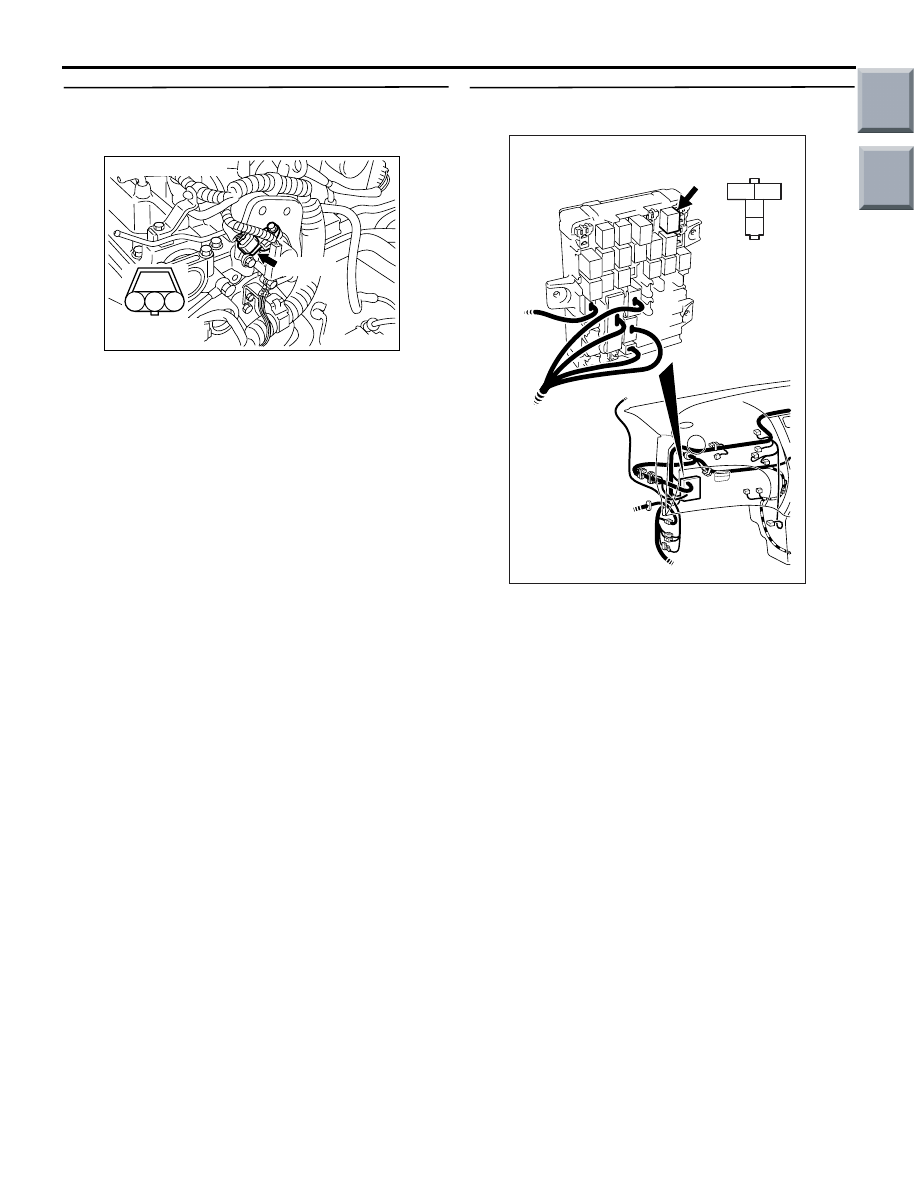

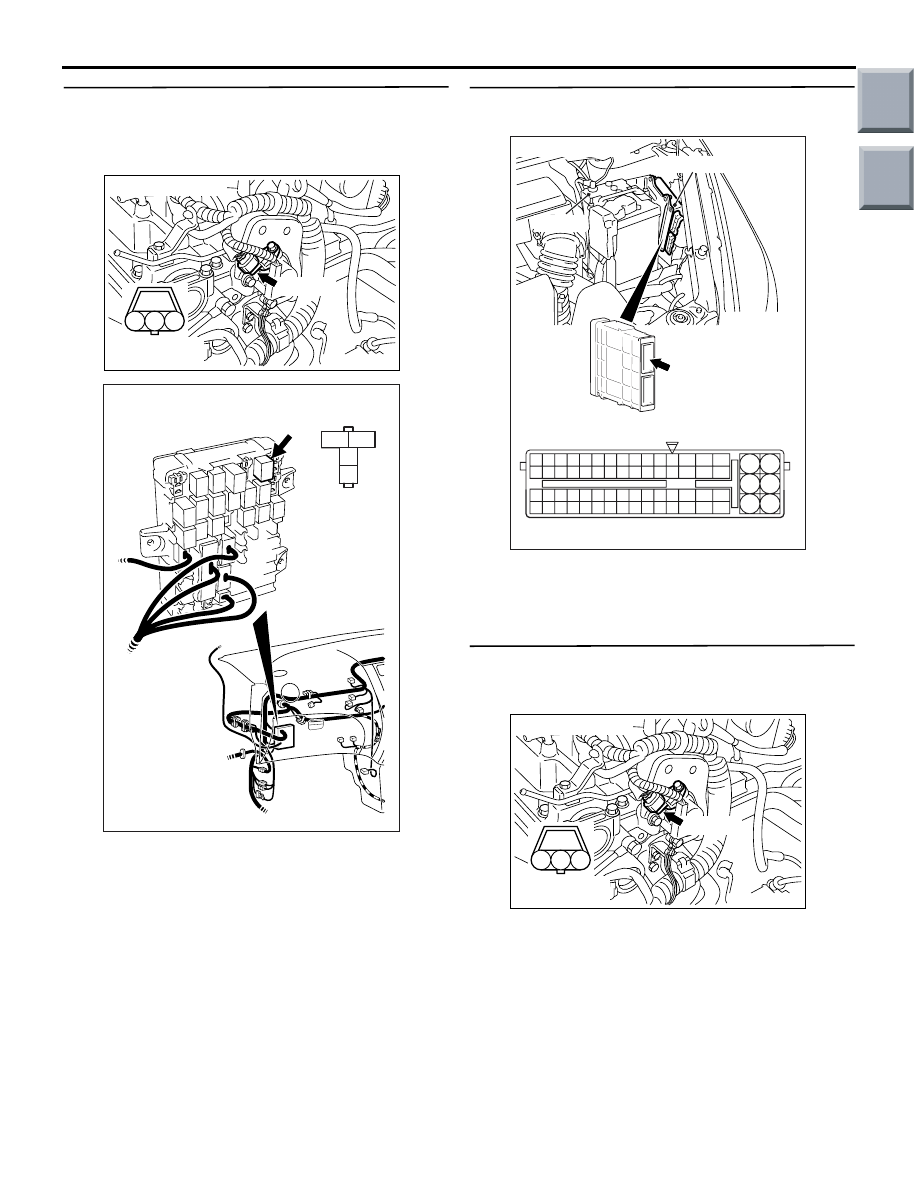

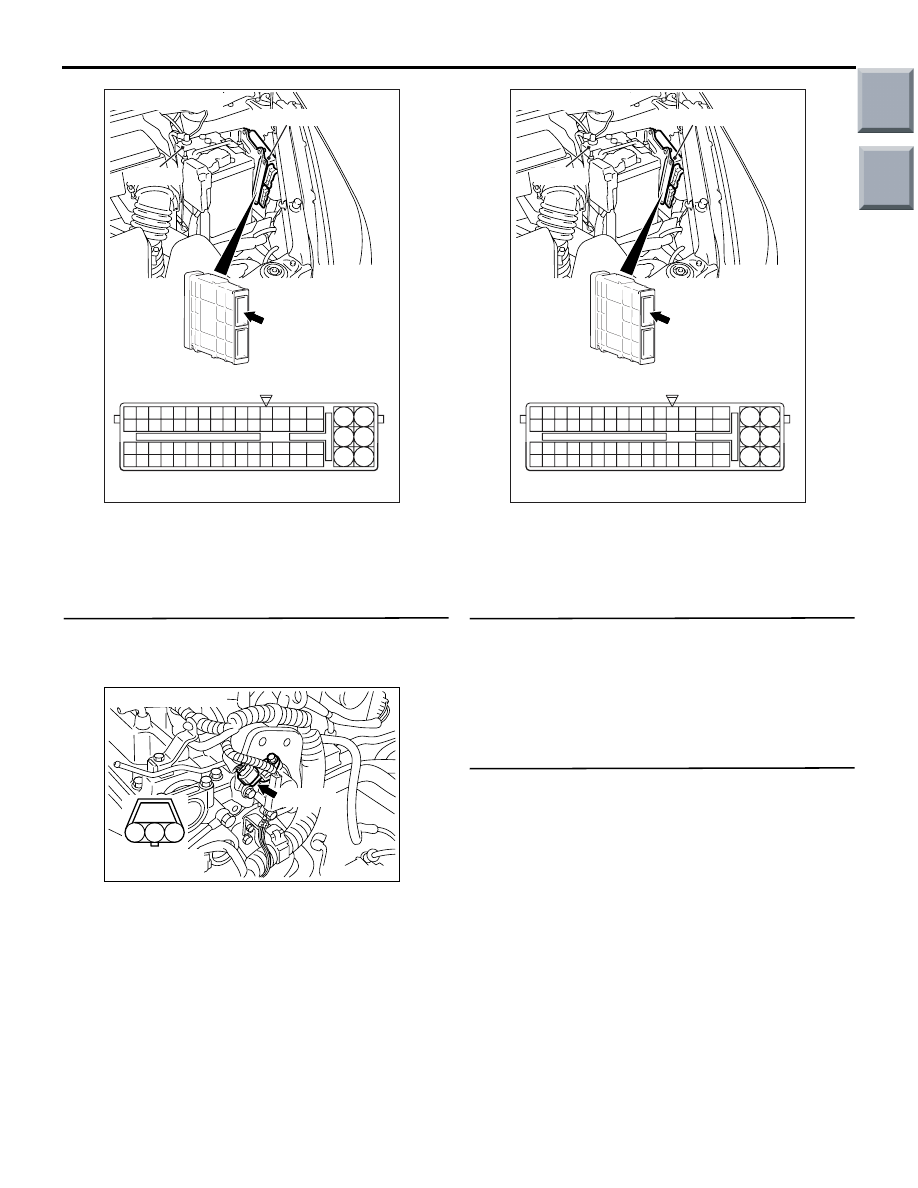

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-157

STEP 13. Perform output waveform check at
A-110 camshaft position sensor connector (using
an oscilloscope).

• Use the special tool test harness (MB991709) to

connect the connector, and measure at the
pick-up harness.

• Engine: Idling

• Transmission: Neutral

• Voltage between terminal No. 2 and earth.

OK: Waveforms should be displayed on
Inspection procedure using an oscilloscope
(Refer to

P.13B-352

), its maximum value

should be 4.8 V or more, and its minimum
valve should be 0.6 V or less with no noise in
waveform.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Go to Step 14.

STEP 14. Connector check: B-106 engine control
relay connector

Q: Is the check result normal?

YES :

Go to Step 15.

NO :

Repair or replace.

AK402097

1

2

3

AC

Connector: A-110

Harness side
connector

A-110(B)

3

2

1

4

AK402084

J/B side
connector

B-106

Connector: B-106
J/B (front side)

AC

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-158

STEP 15. Check harness between A-110 (terminal
No. 3) camshaft position sensor connector and
B-106 (terminal No. 4) engine control relay
connector.

• Check power supply line for damage.

Q: Is the check result normal?

YES :

Go to Step 16.

NO :

Repair.

STEP 16. Connector check: A-114 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 17.

NO :

Repair or replace.

STEP 17. Check harness between A-110 (terminal
No. 2) camshaft position sensor connector and
A-114 (terminal No. 12) engine-ECU connector.

AK402097

1

2

3

AC

Connector: A-110

Harness side
connector

A-110(B)

3

2

1

4

AK402084

J/B side
connector

B-106

Connector: B-106
J/B (front side)

AC

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

AK402097

1

2

3

AC

Connector: A-110

Harness side
connector

A-110(B)

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-159

• Check output line for damage.

Q: Is the check result normal?

YES :

Go to Step 18.

NO :

Repair.

STEP 18. Check harness between A-110 (terminal
No. 1) camshaft position sensor connector and
A-114 (terminal No. 27) engine-ECU connector.

• Check earthing line for damage.

Q: Is the check result normal?

YES :

Go to Step 19.

NO :

Repair.

STEP 19. Check camshaft position sensing
cylinder.

Q: Is the check result normal?

YES :

Go to Step 20.

NO :

Replace the camshaft position sensing
cylinder.

STEP 20. M.U.T.-III diagnosis code

• Reconfirmation of diagnosis code.

Q: Is the diagnosis code output?

YES :

Replace camshaft position sensor.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunctions

P.00-13

).

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

AK402097

1

2

3

AC

Connector: A-110

Harness side
connector

A-110(B)

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-160

Code No. P0421: Warm Up Catalyst Malfunction

FUNCTION

• The signal from the oxygen sensor (rear) differs

from the oxygen sensor (front). That is because
the catalytic converter purifies exhaust gas.
When the catalytic converter has deteriorated,
the signal from the oxygen sensor (front)
becomes similar to the oxygen sensor (rear).

• The engine-ECU compares the output of the front

and rear oxygen sensor signals.

TROUBLE JUDGMENT

Check Conditions

• The accelerator pedal is depressed.

• Engine speed is 3,000 r/min or lower.

• Air flow sensor output is 6 g/s or higher.

• 3 seconds or more elapsed after the abovemen-

tioned conditions were satisfied.

• Within the range of air-fuel ratio feed back opera-

tion

• Short-term fuel trim is more than -25% and is less

than 15%

• Vehicle speed is 1.5 km/h or higher.

• For 10 seconds per cycle, the engine-ECU moni-

tors 7 cycles of this condition during the drive
cycle.

• The cumulative air flow sensor output is more

than a prescribed value.

Judgement Criterion

• The oxygen sensor (rear) signal frequency

divided by oxygen sensor (front) signal frequency
is 0.8 or more.

PROBABLE CAUSE

• Catalytic converter deteriorated

• Failed oxygen sensor (front)

• Failed oxygen sensor (rear)

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. Check for leakage of exhaust emission
from exhaust manifold.

Q: Is the check result normal?

YES :

Go to Step 2 .

NO :

Repair.

STEP 2. M.U.T.-II/III data list

• Refer to data list reference table

P.13B-335

.

a. Item 11: Oxygen sensor (front)
b. Item 59: Oxygen sensor (rear)

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Perform the diagnosis code classified check
procedure for the sensor that has shown an
abnormal data valve (Refer to Inspection
Chart for diagnosis codes

P.13B-18

).

STEP 3. M.U.T.-II/III data list

• Refer to data list reference table

P.13B-335

.

a. Item 11: Oxygen sensor (front)

OK: 0

− 0.4 and 0.6 − 1.0 volt should alternate

15 times or more within 10 seconds (engine
speed at 2,000 r/min).

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Replace the oxygen sensor (front).

STEP 4. Replace the oxygen sensor (rear).

• After replacing the oxygen sensor (rear),

re-check the trouble symptoms.

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Check end.

STEP 5. Replace the catalytic converter.

• After replacing the catalytic converter, re-check

the trouble symptoms.

Q: Is the check result normal?

YES :

Replacing engine-ECU.

NO :

Check end.
