FRONT SEAT ASSEMBLY

INTERIOR

52A-20

FRONT SEAT ASSEMBLY

REMOVAL AND INSTALLATION <Except
RECARO seat>

M1522001301013

CAUTION

For the removal of the front seat assembly on vehicles with the side-air bags, refer to GROUP 52B,
Service Precautions

P.52B-5

 and Side and Curtain Air Bag Module

P.52B-152

.

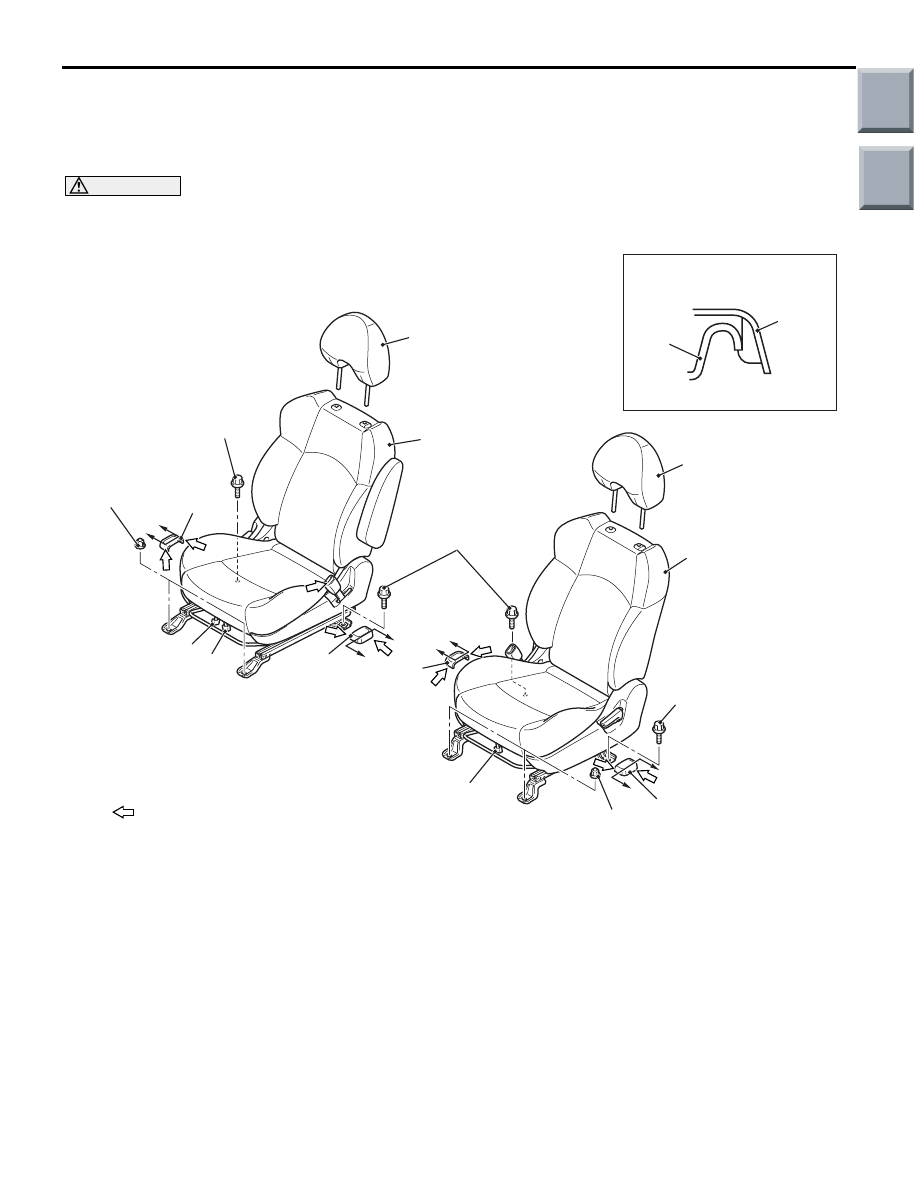

AC510323

2

5

Section A – A

1

5

2

3

4

1

5

2

4

2

A

A

A

A

A

A

A

A

30 ± 5 N·m

30 ± 5 N·m

44 ± 10 N·m

44 ± 10 N·m

44 ± 10 N·m

AB

NOTE
          : Claw positions

2

1.

Headrestraint
Removal steps

2.

Rear anchor cover

3.

Seat belt switch connector (driver’s
side)

4.

Side-air bag module (squib)
connector <Vehicles with side and
curtain air bag module>

>>

A

<<

5.

Front seat assembly

Removal steps (Continued)

Main

Index

Group

TOC

FRONT SEAT ASSEMBLY

INTERIOR

52A-21

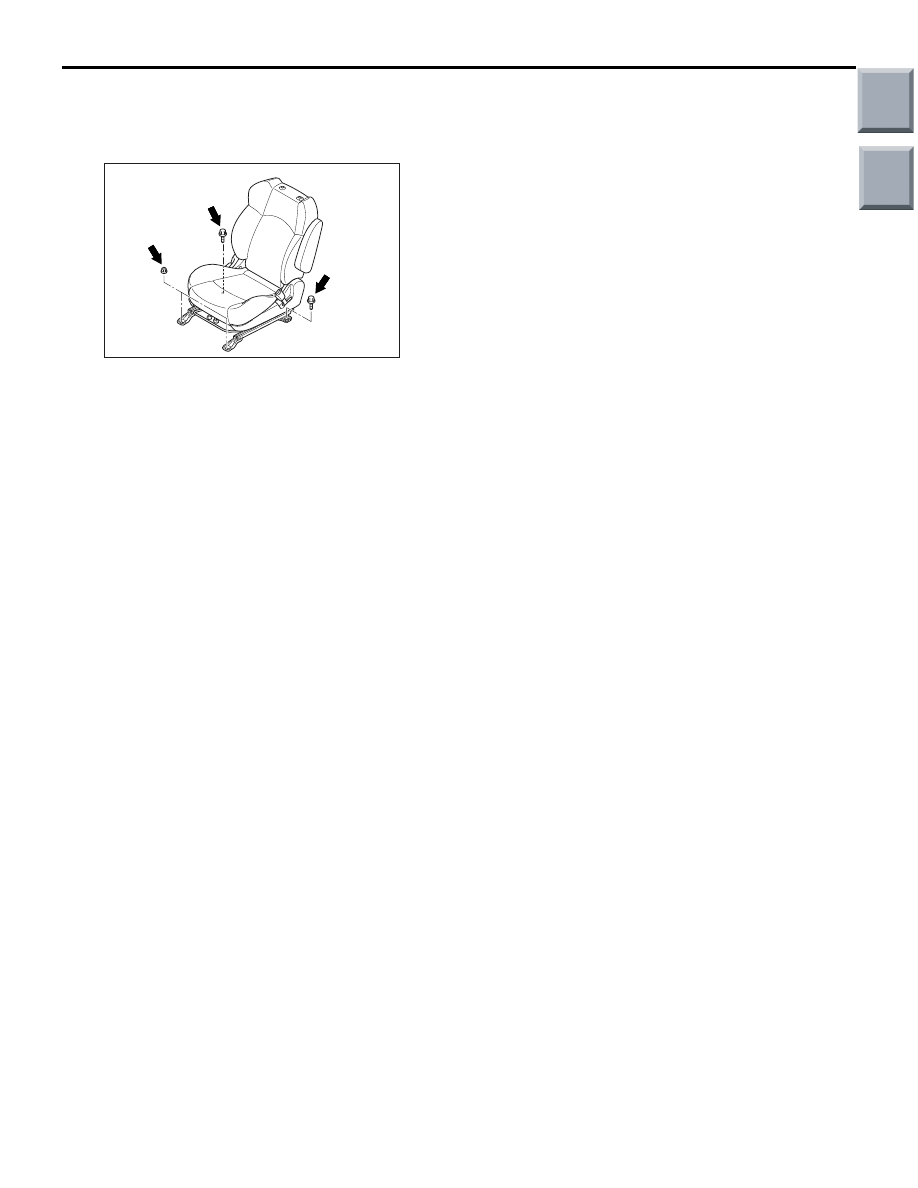

INSTALLATION SERVICE POINT
>>A<< FRONT SEAT ASSEMBLY INSTAL-
LATION

AC510324 AB

1. Confirm that the seat slide is locked. Then

temporarily tighten all the nuts and bolts with no
load applied to the front seat cushion.

2. Tighten all the nuts and bolts to the specified

torque.

Tightening torque:

Bolt: 44

± 10 N⋅m

Nut: 30

± 5 N⋅m

Main

Index

Group

TOC

FRONT SEAT ASSEMBLY

INTERIOR

52A-22

REMOVAL AND INSTALLATION
<RECARO seat>

M1522001301024

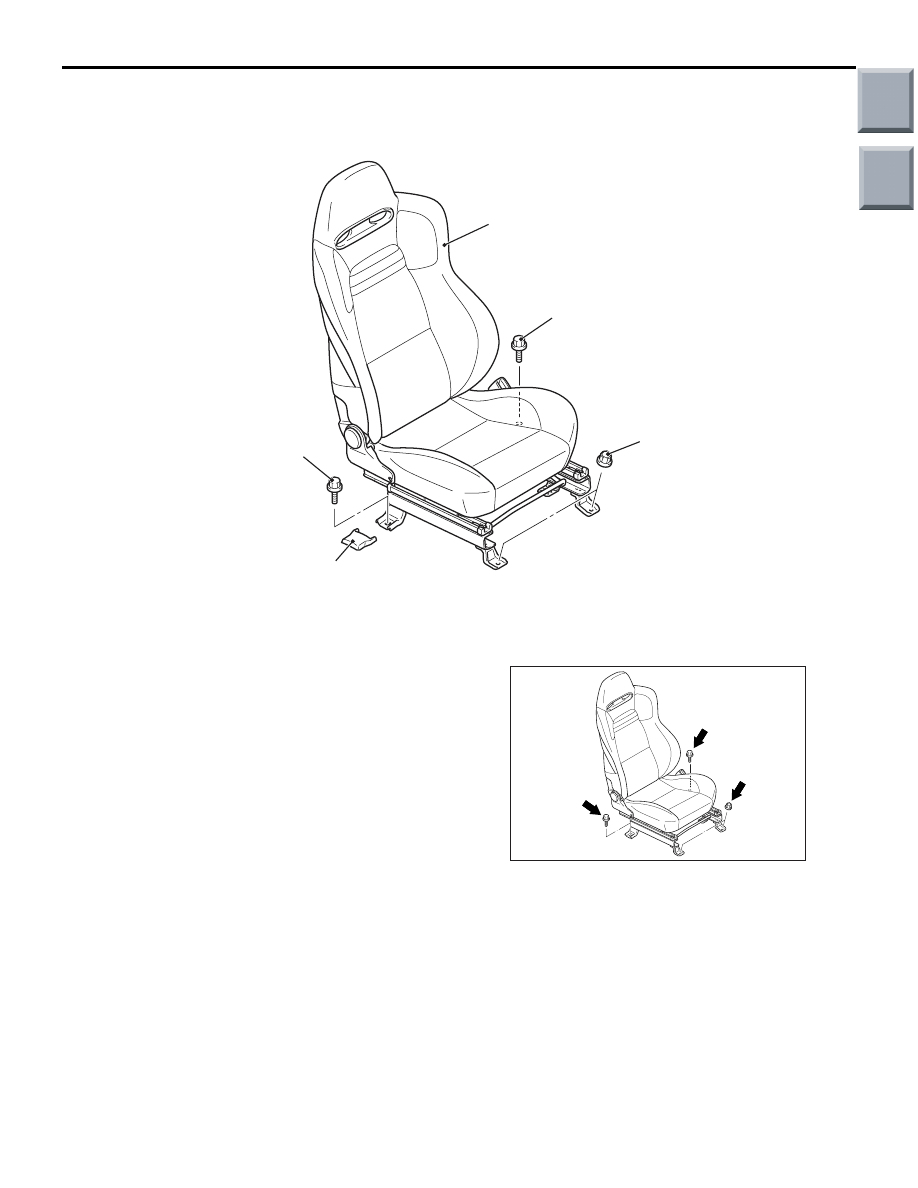

AC600697

1

2

AC

44 ± 10 N·m

30 ± 5 N·m

44 ± 10 N·m

Removal steps

1. Front seat anchor cover

>>

A

<<

2. Front seat assembly

INSTALLATION SERVICE POINT
>>A<< FRONT SEAT ASSEMBLY INSTAL-
LATION

AC600873AC

1. Confirm that the seat slide is locked. Then

temporarily tighten all the nuts and bolts with no
load applied to the front seat cushion.

2. Tighten all the nuts and bolts to the specified

torque.

Tightening torque:

Bolt: 44

± 10 N⋅m

Nut: 30

± 5 N⋅m

Main

Index

Group

TOC

FRONT SEAT ASSEMBLY

INTERIOR

52A-23

DISASSEMBLY AND REASSEMBLY
<Except RECARO seat>

M1522001501084

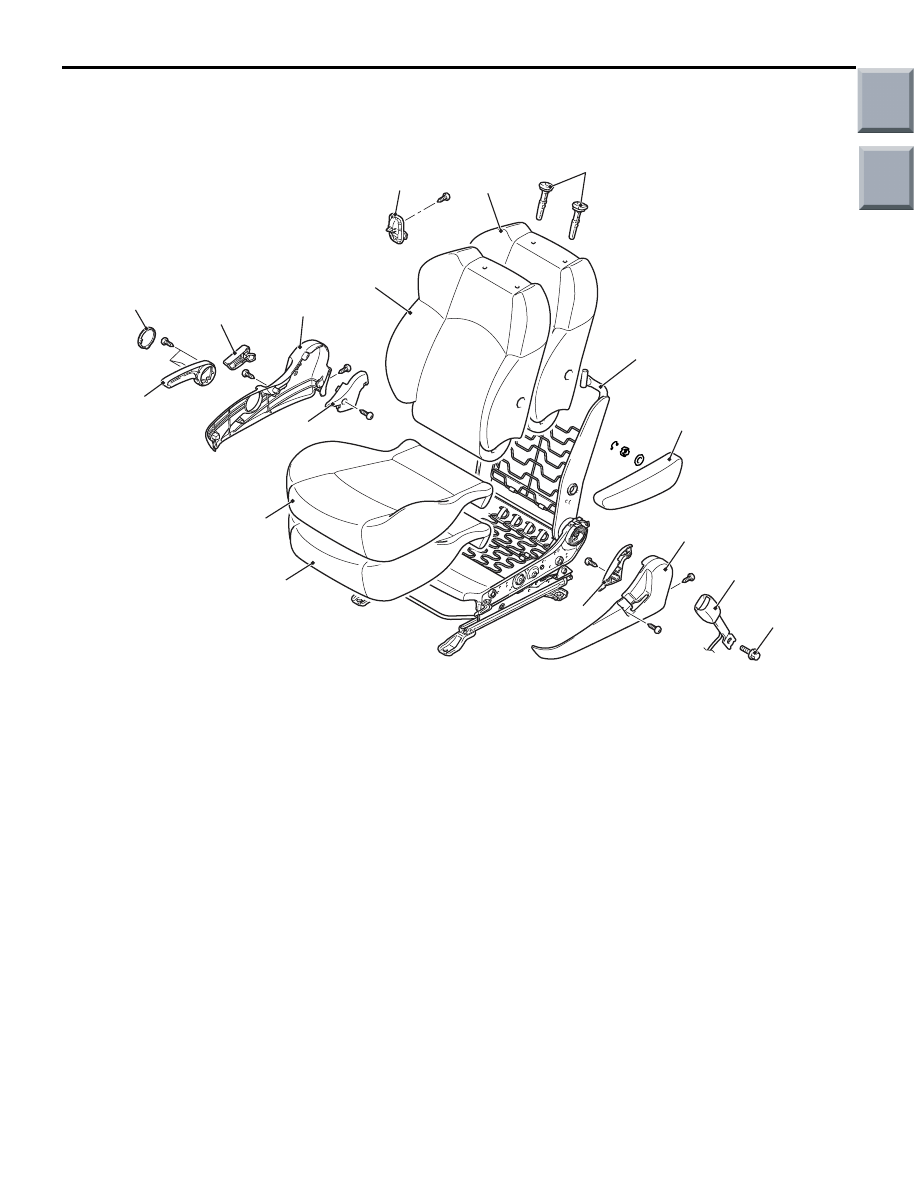

AC602119

14

7

6

15

12

9

1

2

3

4

14

11

44 ± 10 N·m

AB

5

8

10

13

Disassembly steps

1.

Height adjuster lever cap

2.

Height adjuster lever

3.

Reclining adjuster lever

4.

Side shield cover outer

5.

Hook

6.

Armrest <Driver’s side>

7.

Inner seat belt

8.

Hinge cover

9.

Cushion cover <VRX> or cushion
cover and pad assembly <LS>

10. Cushion pad <VRX>

<<

A

>>

11. Headrestraint guide
12. Seatback cover <VRX> or seatback

cover and pad assembly <LS>

13. Seatback pad <VRX>
14. Side shield cover inner

<<

B

>>

15. Frame assembly

Disassembly steps (Continued)

Main
