HEADLINING

INTERIOR

52A-16

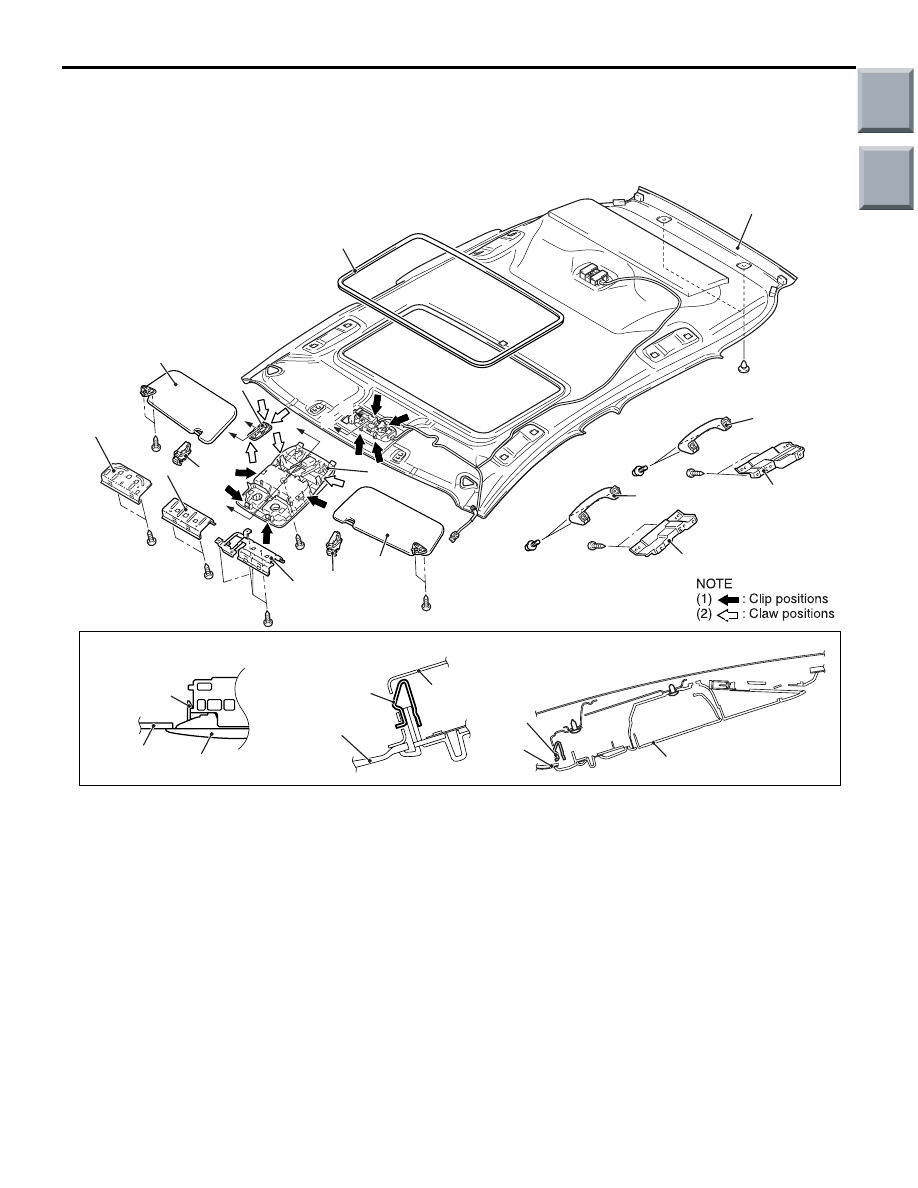

HEADLINING

REMOVAL AND INSTALLATION

M1521001400724

AC402991

 Section A – A

 Section B – B

1

1

2

2

3

3

4

5

7

8

8

A

A

B

B

4

9

6

AD

10, 11

 Section C – C

C

C

10

11

7

7

5

7

Clip

Clip

Claw

Removal steps

1.

Roof inside assist grip

2.

Sunvisor

<<

A

>>

3.

Sunvisor holder

4.

Sunroof switch cover <Vehicles
with sunroof >

<<

B

>>

5.

Overhead console assembly
<Vehicles with overhead console>

6.

Sunroof opening trim <Vehicles
with sunroof>

<<

C

>>

7.

Headlining assembly

8.

Assist grip bracket

9.

Overhead console bracket
<Vehicles with overhead console>

10. Map lamp bracket <Vehicles

without sunroof>

11. Map lamp bracket <Vehicles with

sunroof>

Removal steps (Continued)

Main

Index

Group

TOC

HEADLINING

INTERIOR

52A-17

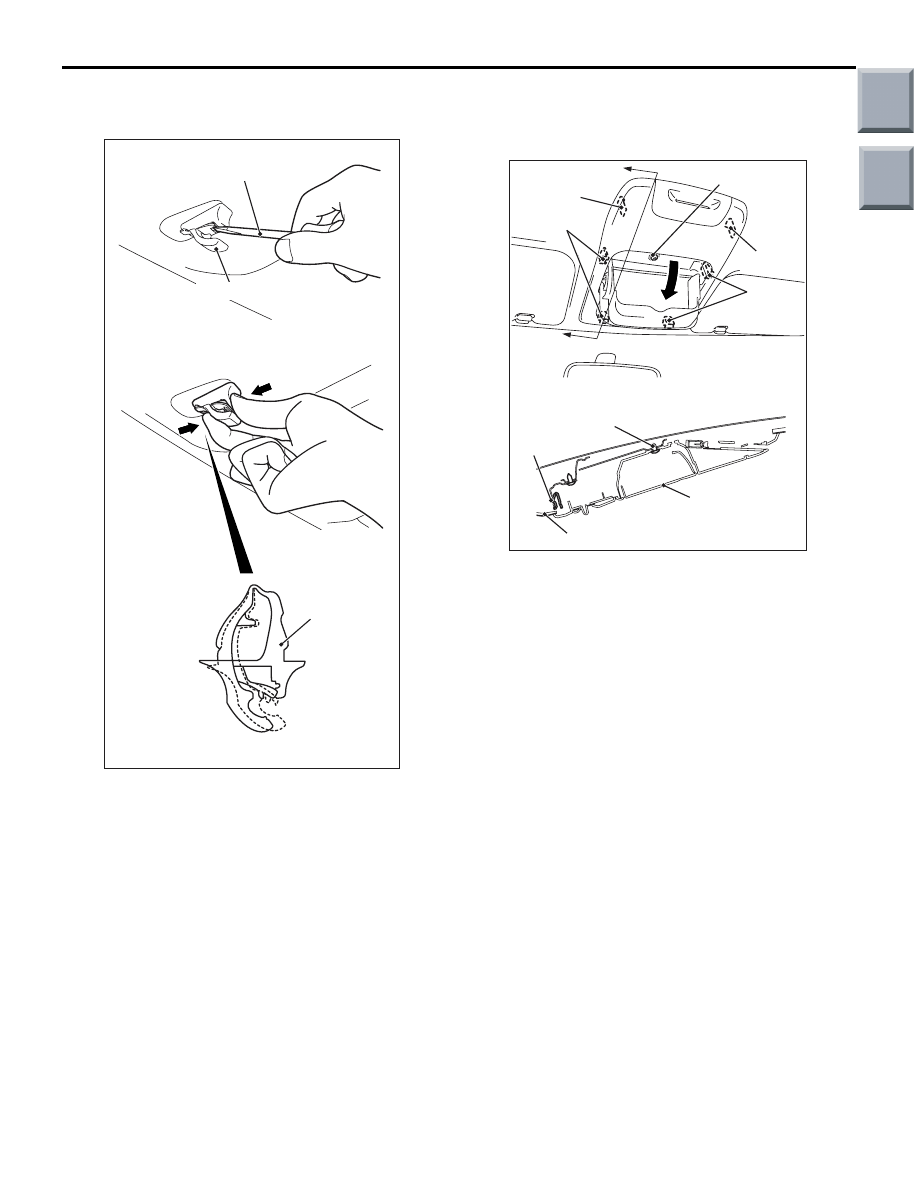

REMOVAL SERVICE POINTS
<<A>> SUNVISOR HOLDER REMOVAL

AC208653

Flat-tipped screwdriver

Sunvisor holder

AD

Sunvisor holder

Use a flat-tipped screwdriver to disengage the tab of
the sunvisor holder, and remove it using moderate
pressure from the forefinger and thumb.

<<B>> OVERHEAD CONSOLE
ASSEMBLY REMOVAL

AC403107AC

A

A

Clip

Claw

Section A – A

Clip

Claw

Clip

Tapping screw

Tapping screw

Overhead console
assembly

Headlining assembly

1. Open the sunglasses holder, and remove the

tapping screw.

2. Shift downward the overhead console assembly

while pressing toward the vehicle rear, and
disengage the overhead console assembly and
overhead console bracket.

3. Unlatch the clips and claws shown in the

illustration from the roof panel, and remove the
overhead console assembly.

Main

Index

Group

TOC

HEADLINING

INTERIOR

52A-18

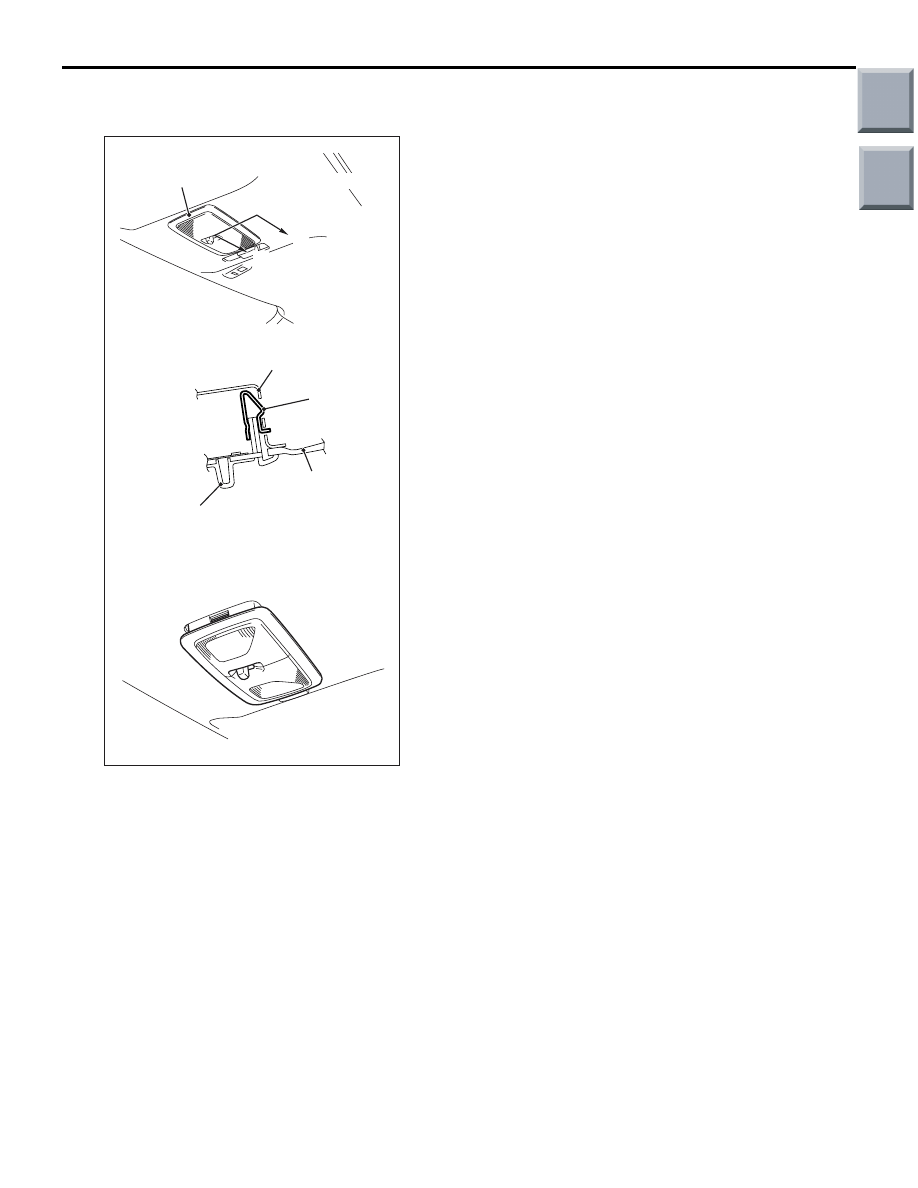

<<C>> HEADLINING ASSEMBLY
REMOVAL

AC208639

Front room lamp
assembly

Clip

Front room lamp
assembly

Headlining assembly

Map lamp bracket

A

A

 Section A – A

AB

Map lamp bracket unclipped

For the vehicles without overhead console, press the
front room lamp assembly toward the vehicle front to
disengage the map lamp bracket and front room
lamp assembly clip. Remove the headlining assem-
bly, with the room lamp assembled to the headlining,
from the vehicle.

Main

Index

Group

TOC

INSIDE REAR VIEW MIRROR

INTERIOR

52A-19

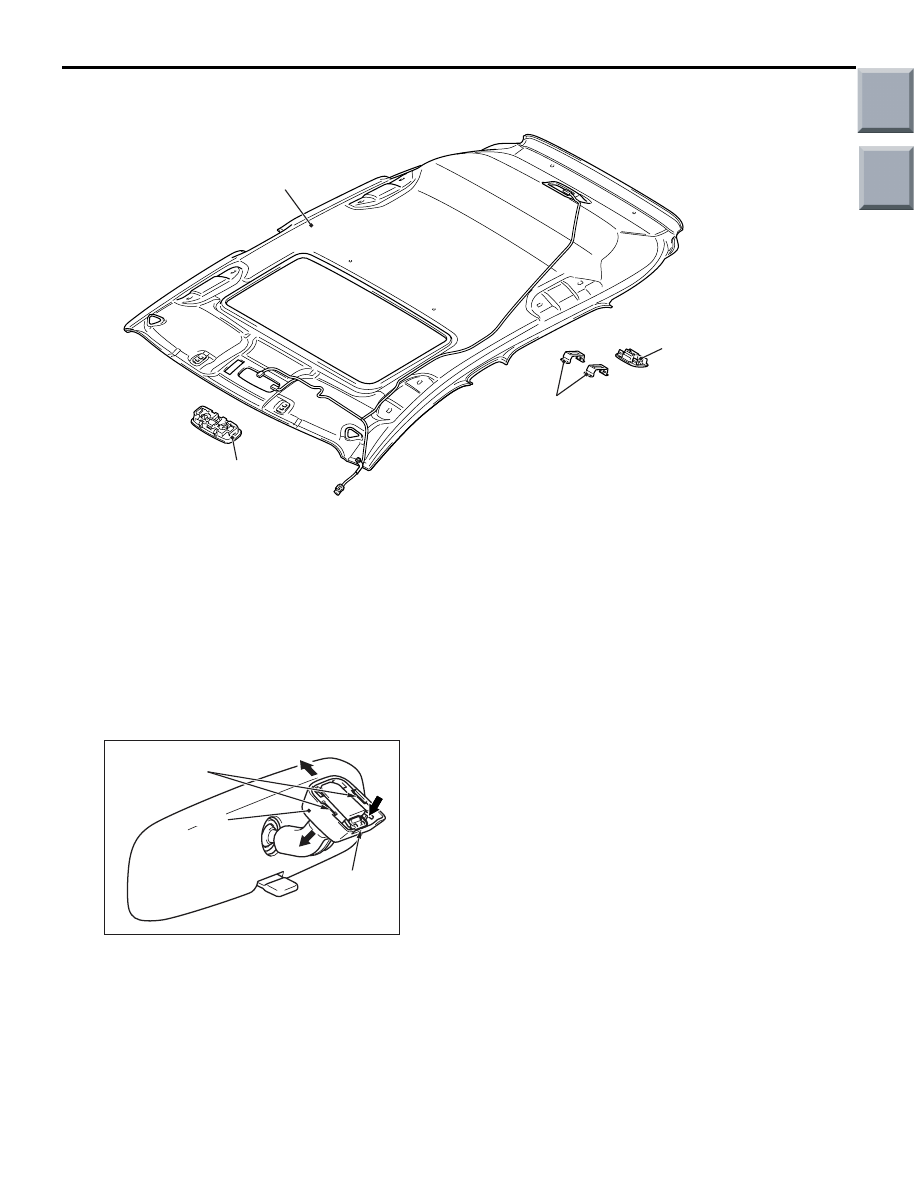

DISASSEMBLY AND REASSEMBLY

M1521009100125

AC509882AB

1

2

3

4

Disassembly steps

1.

Front room lamp assembly

2.

Rear room lamp clip

3.

Rear room lamp assembly

4.

Headlining

INSIDE REAR VIEW MIRROR

M1521002600301

REMOVAL SERVICE POINT

AC209066

Claw B

Claw A

Cover

1

2

3

AD

1. Disengage the claw A and lower the cover toward

arrow 1 direction.

2. Push the claw B toward arrow 2 direction to

unlock, and pull out the mirror toward arrow 3
direction.

Disassembly steps (Continued)
