SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-172

Step 5. Function diagnosis by using the SWS
monitor
Check the SWS communication signal, which are
related to the right turn-signal lamps.

<Selected item> TURN SIGNAL - TURN-SIG. RH

• Turn-signal lamp switch: RH

• Ignition switch: ON

OK:Normal conditions are displayed for all
the items.

Q: Are the check result normal?

Normal conditions are displayed for all the items. :

Go to Step 6.

Normal condition is not displayed for item 10 or 11.
:

Refer to inspection procedure N-4 "Column
switch (lighting and turn-signal lamp switch)
signal is not received

P.54C-208

."

Normal condition is not displayed for item No.30. :

Refer to inspection procedure N-2 "The
ignition switch (IG1) signal is not received

P.54C-203

."

Step 6. Function diagnosis by using the SWS
monitor
Check the SWS communication signal, which are
related to the left turn-signal lamps.

<Selected item> TURN SIGNAL - TURN-SIG. LH

• Turn-signal lamp switch: LH

• Ignition switch: ON

OK: Normal conditions are displayed for all
the items.

Q: Are the check result normal?

Normal conditions are displayed for all the items. :

Go to Step 7.

Normal condition is not displayed for item 10 or 11.
:

Refer to inspection procedure N-4 "Column
switch (lighting and turn-signal lamp switch)
signal is not received

P.54C-208

."

Normal condition is not displayed for item No.30. :

Refer to inspection procedure N-2 "The
ignition switch (IG1) signal is not received

P.54C-203

."

Step 7. Retest the system.
Check that the turn-signal lamps illuminate.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Replace the ETACS-ECU.

Item No.

Item name

Normal
condition

Item 10

TURN SIG.RH

ON

Item 11

TURN SIG.LH

OFF

Item 30

IG SW(IG1)

ON

Item No.

Item name

Normal
condition

Item 10

TURN SIG.RH

OFF

Item 11

TURN SIG.LH

ON

Item 30

IG SW (IG1)

ON

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-173

INSPECTION PROCEDURE L-2: The hazard warning lamps do not illuminate.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

If the hazard warning lamps do not illuminate, the
hazard warning lamp input signal circuit or the
ETACS-ECU may be defective.

POSSIBLE CAUSES

• Malfunction of the hazard warning lamp switch

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Check that the turn-signal lamps operate.
Check that the turn-signal lamps illuminate normally.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to inspection procedure L-1 "The
turn-signal lamps do not illuminate

P.54C-170

."

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

ETACS-ECU

HAZARD
WARNING
LAMP SWITCH

TURN-SIGNAL
LAMP RELAY: LH

TURN-SIGNAL
LAMP RELAY: RH

INPUT SIGNAL

· FRONT COMBINATION
  LAMP (TURN: LH)

· SIDE TURN-SIGNAL
  LAMP (LH)

· REAR COMBINATION
  LAMP (TURN: LH)

· FRONT COMBINATION
  LAMP (TURN: RH)

· SIDE TURN-SIGNAL
  LAMP (RH)

· REAR COMBINATION
  LAMP (TURN: RH)

FUSIBLE
LINK

1

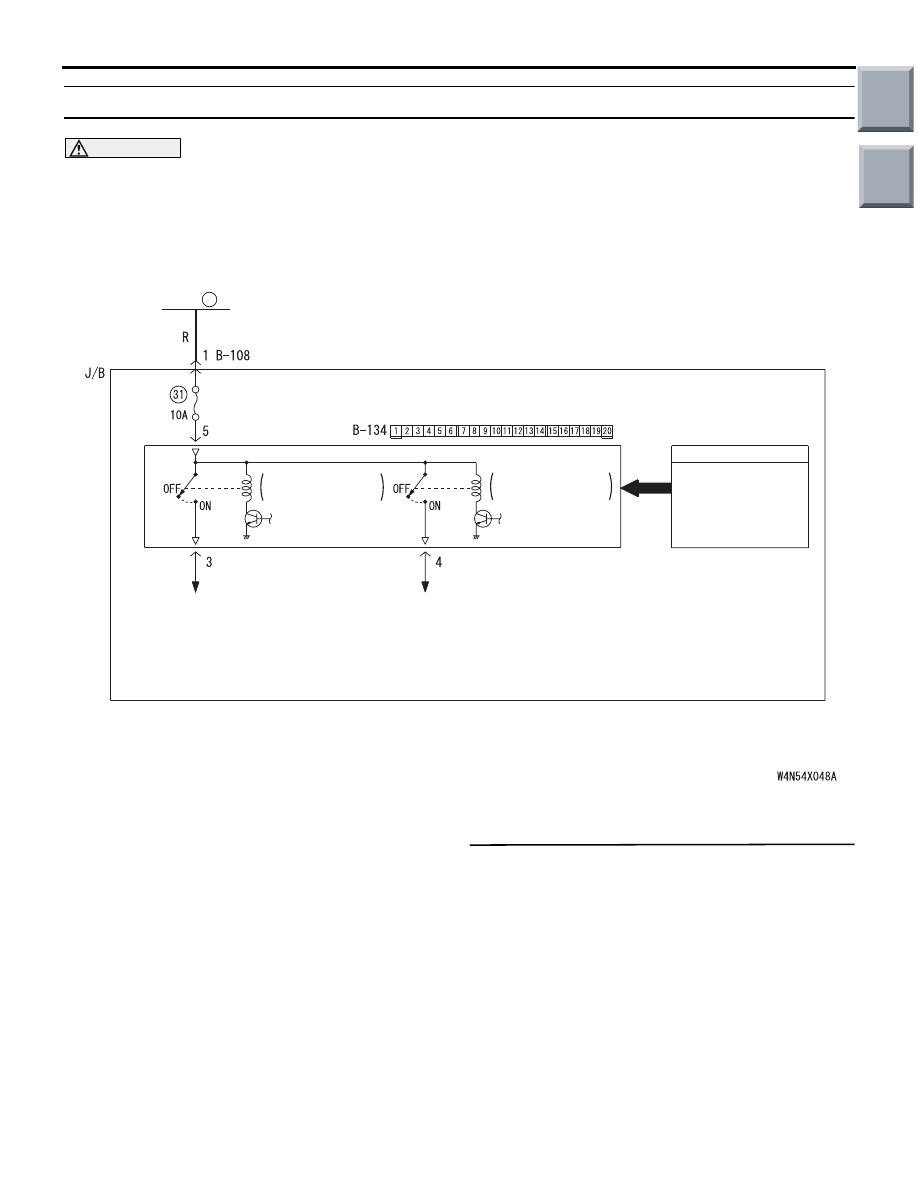

Hazard Warning Lamp Circuit

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-174

Step 2. ETACS switch data by using the SWS
monitor
Check the ETACS-ECU signals which are related to
the hazard warning lamp.

• Hazard warning lamp switch: ON

OK: Normal condition is displayed.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to inspection procedure N-9 "The
hazard warning lamp switch signal is not
received

P.54C-219

."

Step 3. Retest the system.
Check that the hazard warning lamps illuminate.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Replace the ETACS-ECU.

Item No.

Item name

Normal
condition

Item 04

HAZARD LMP SW

ON (only
when
switch is
operated)

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-175

INSPECTION PROCEDURE L-3: Any of the turn-signal lamps does not illuminate.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

ETACS-ECU

REAR
COMBINATION
LAMP
(TURN: RH)

FRONT
COMBINATION
LAMP
(TURN: RH)

SIDE TURN
SIGNAL LAMP
(RH)

J/B SIDE

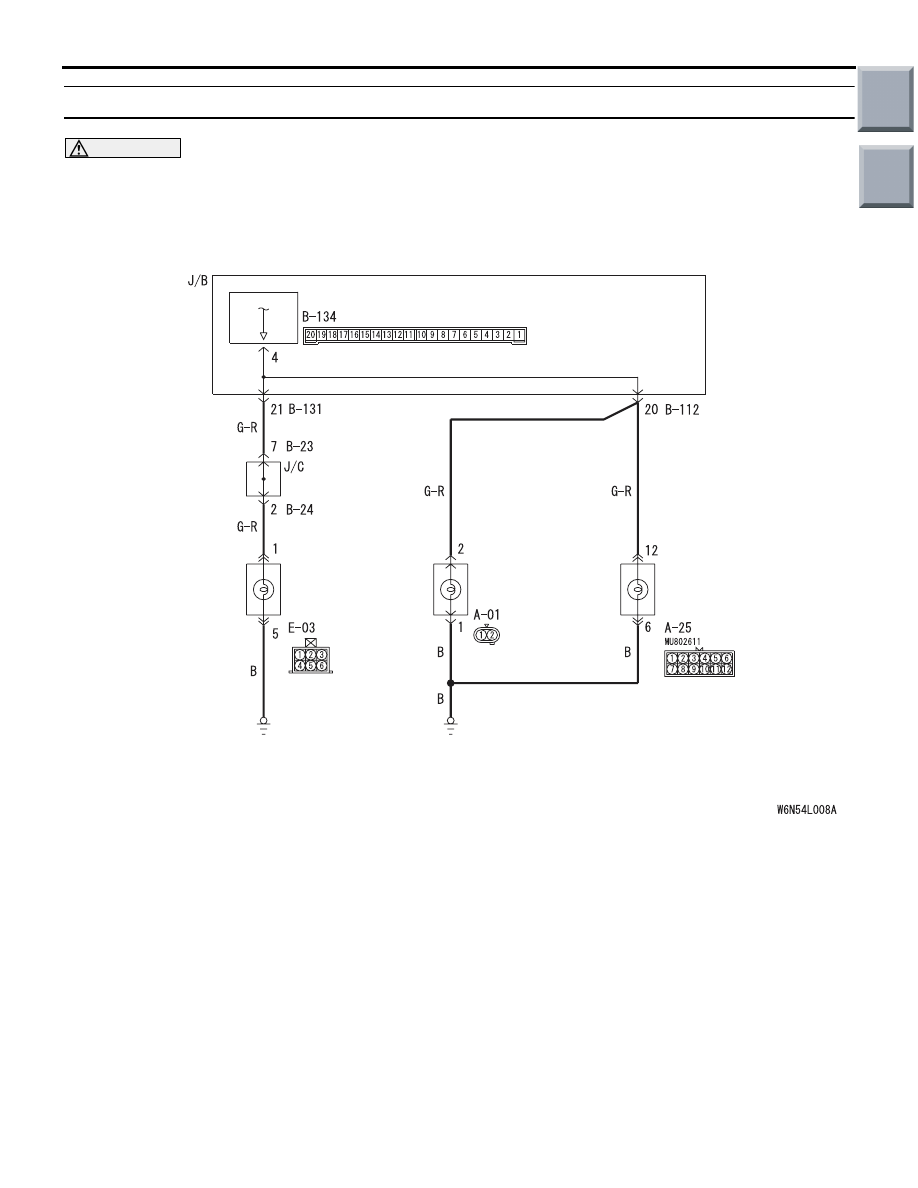

Turn-Signal Lamps Circuit (RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple
