SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-120

Step 2. ECU check by using the SWS monitor.
Check that the power supply and earth lines to the
column switch (column-ECU), the ETACS-ECU and
the SWS communication lines are normal.

• Turn the ignition switch to the ACC position.

ECU TO BE CHECKED

• Column ECU

• ETACS-ECU

OK: "OK" are displayed for all the items

Q: Are the check results normal?

"OK" are displayed for all the items :

Go to Step 3.

"NG" is displayed on the "COLUMN ECU" menu. :

Refer to Inspection Procedure A-2
"Communication with the column switch
(column-ECU) is not possible

P.54C-37

."

"NG" is displayed on the "ETACS ECU" menu. :

Refer to Inspection Procedure A-3
"Communication with the ETACS-ECU is
not possible

P.54C-41

."

Step 3. Function diagnosis by using the SWS
monitor
Check the SWS communication signal, which are
related to the rear washer function.

<Selected item> REAR WIPER-REAR WASHER

• Ignition switch: ACC

• Rear washer switch: ON

OK: Normal condition is displayed.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Refer to inspection procedure N-5 "Column
switch (windshield wiper/washer and rear
wiper washer switch) signal is not received

P.54C-210

."

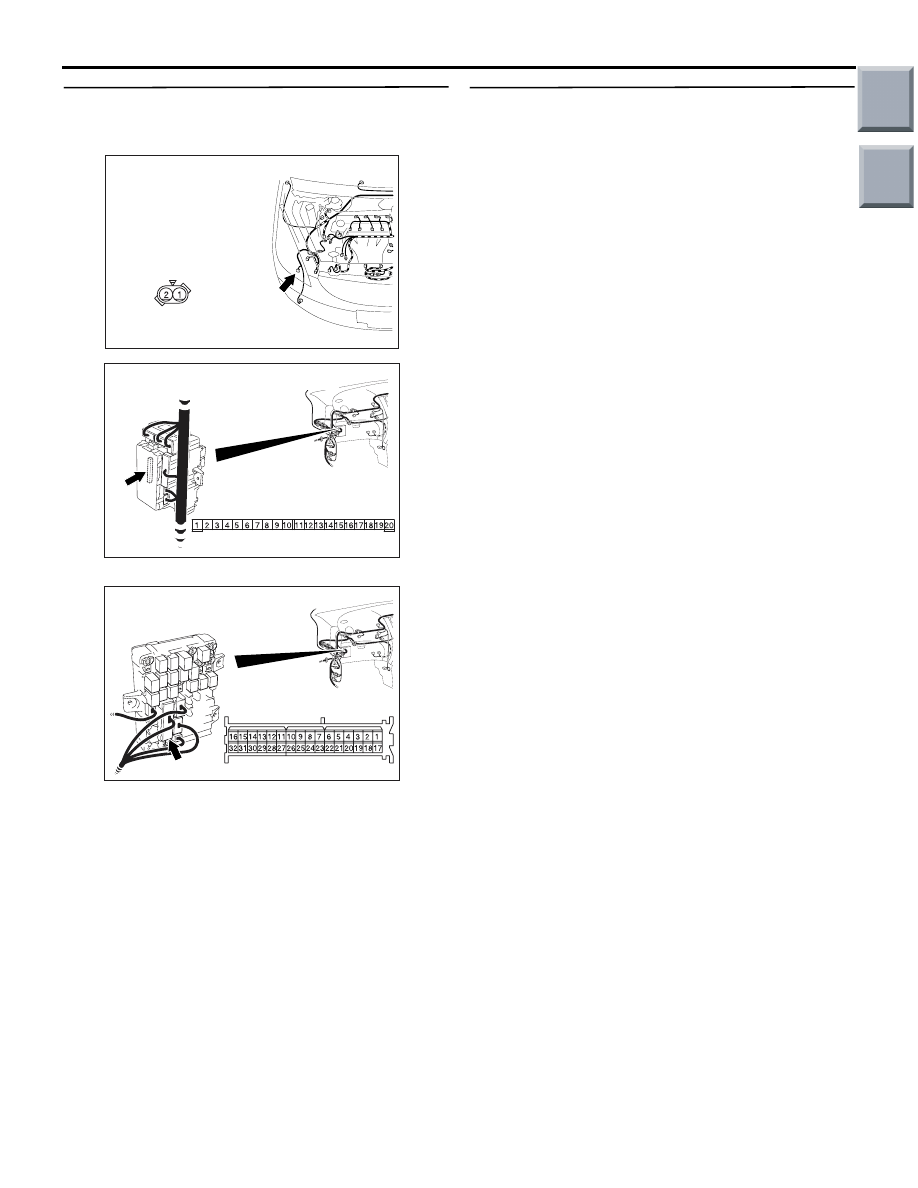

Step 4. Connector check: A-35 washer motor
connector and B-134 ETACS-ECU connector.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the connector.

Step 5. Check the washer motor.
Refer to GROUP 51

− Rear wiper and washer

P.51-36

.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Replace the washer motor.

Item No.

Item name

Normal
condition

Item 14

REAR WASH. SW

ON

AC509176

Connector: A-35

Harness side

AB

AC313872 AH

Connector: B-134

Harness side

Junction block (Rear view)

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-121

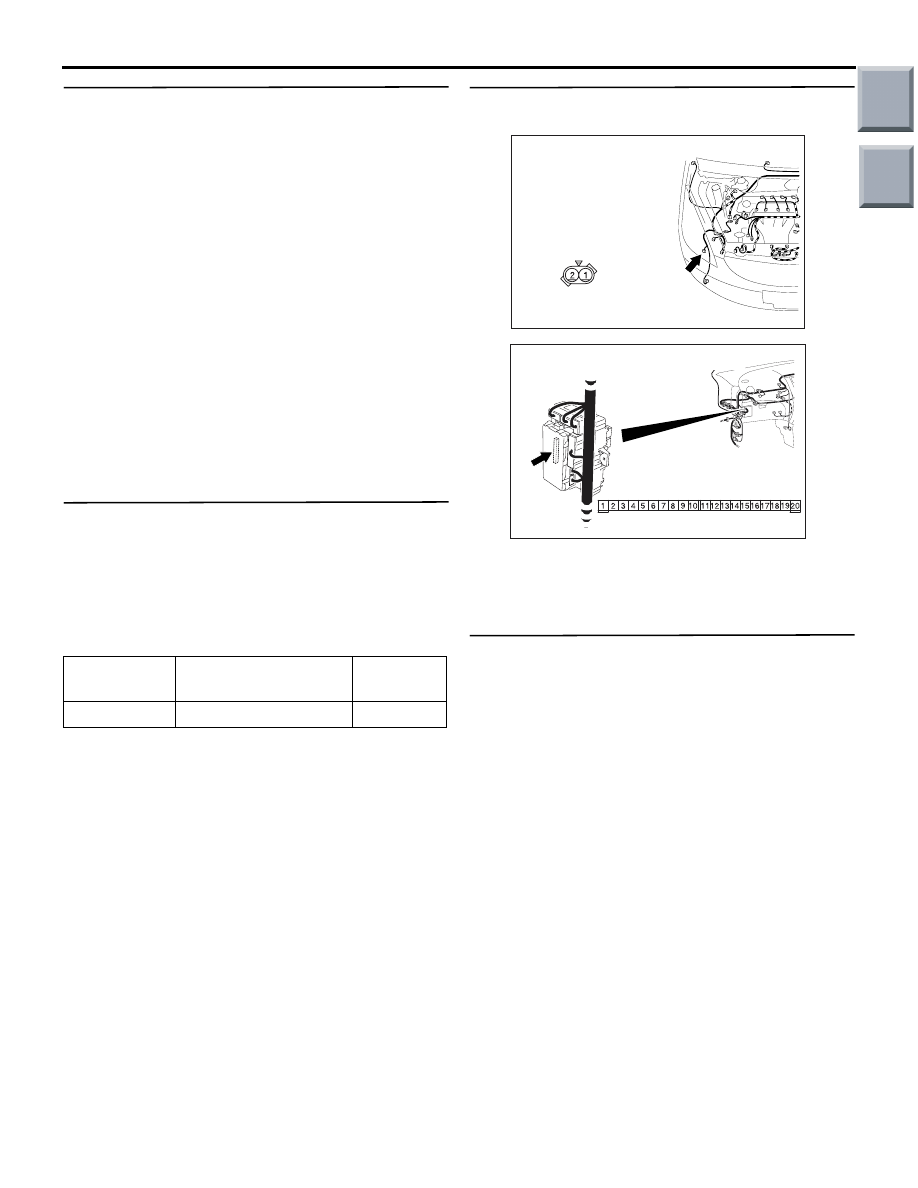

Step 6. Check the wiring harness between B-134
ETACS-ECU connector terminal Nos.12, 9 to A-35
washer motor connector terminal No.1, 2.

NOTE:

Prior to the wiring harness inspection, check junction
block connector B-112, and repair if necessary.

• Check the output signal line.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

Step 7. Retest the system.
Check that the rear washer works normally.

Q: Is the check result satisfactory?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Replace the ETACS-ECU.

AC509176

Connector: A-35

Harness side

AB

AC313872 AH

Connector: B-134

Harness side

Junction block (Rear view)

AC313870

Connector: B-112

BE

Junction block (Front view)

Harness side

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-122

ELECTRIC RETRACTABLE REMOTE
CONTROLLED DOOR MIRROR

INSPECTION PROCEDURE H-1: Electric retractable remote controlled door mirror does not work at
all.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

If the system does not work, the input circuit from the
ignition switch (ACC) or the remote controlled mirror
switch (folding and unfolding), the door mirror
assembly or the ETACS-ECU may be defective.

POSSIBLE CAUSES

• Malfunction of the remote controlled mirror switch

• Malfunction of the ignition switch (ACC)

• Malfunction of door mirror assembly

• Malfunction of ETACS-ECU

• Damaged harness wires and connectors

ETACS-ECU

FUSIBLE
LINK

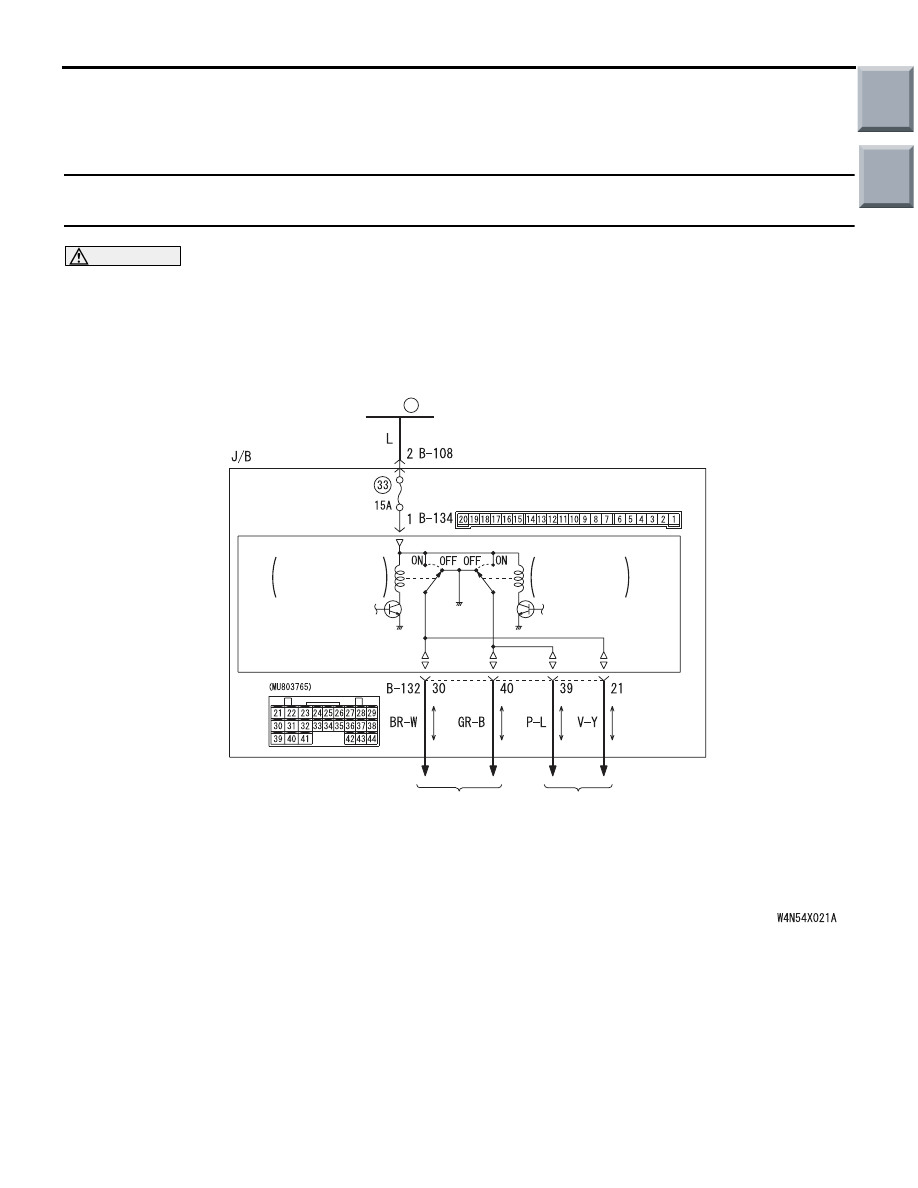

Door Mirror Relay Circuit

6

DOOR MIRROR
ASSEMBLY (LH)

DOOR MIRROR
ASSEMBLY (RH)

DOOR
MIRROR
UNFOLD RELAY

DOOR
MIRROR
FOLD RELAY

J/B SIDE

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-123

DIAGNOSIS PROCEDURE

Step 1. ECU check on the SWS monitor.
Check that the power supply and earth lines to the
ETACS-ECU and the SWS communication lines are
normal.

• Ignition switch: ACC

ECU TO BE CHECKED

• ETACS ECU

OK: "OK" is displayed on the "ETACS ECU"
menu.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to Inspection Procedure A-3
"Communication with the ETACS-ECU is
not possible

P.54C-41

."

Step 2. SWS monitor data list.
Check the SWS communication signal, which are
related to the electric retractable remote controlled
mirror.

<Selected item> ETACS ECU

• Ignition switch: ACC

OK: Normal condition is displayed.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to inspection procedure N-1 "The
ignition switch (ACC) signal is not received

P.54C-201

."

Step 3. ETACS switch data by using the SWS
monitor
Check the ETACS-ECU signal, which is related to
the electric retractable remote controlled mirror.

• Remote controlled mirror switch (folding/unfold-

ing switch): ON

OK: Normal condition is displayed

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Refer to inspection procedure N-8 "Signal is
not received from the remote controlled
mirror switch (folding/unfolding switch)

P.54C-216

."

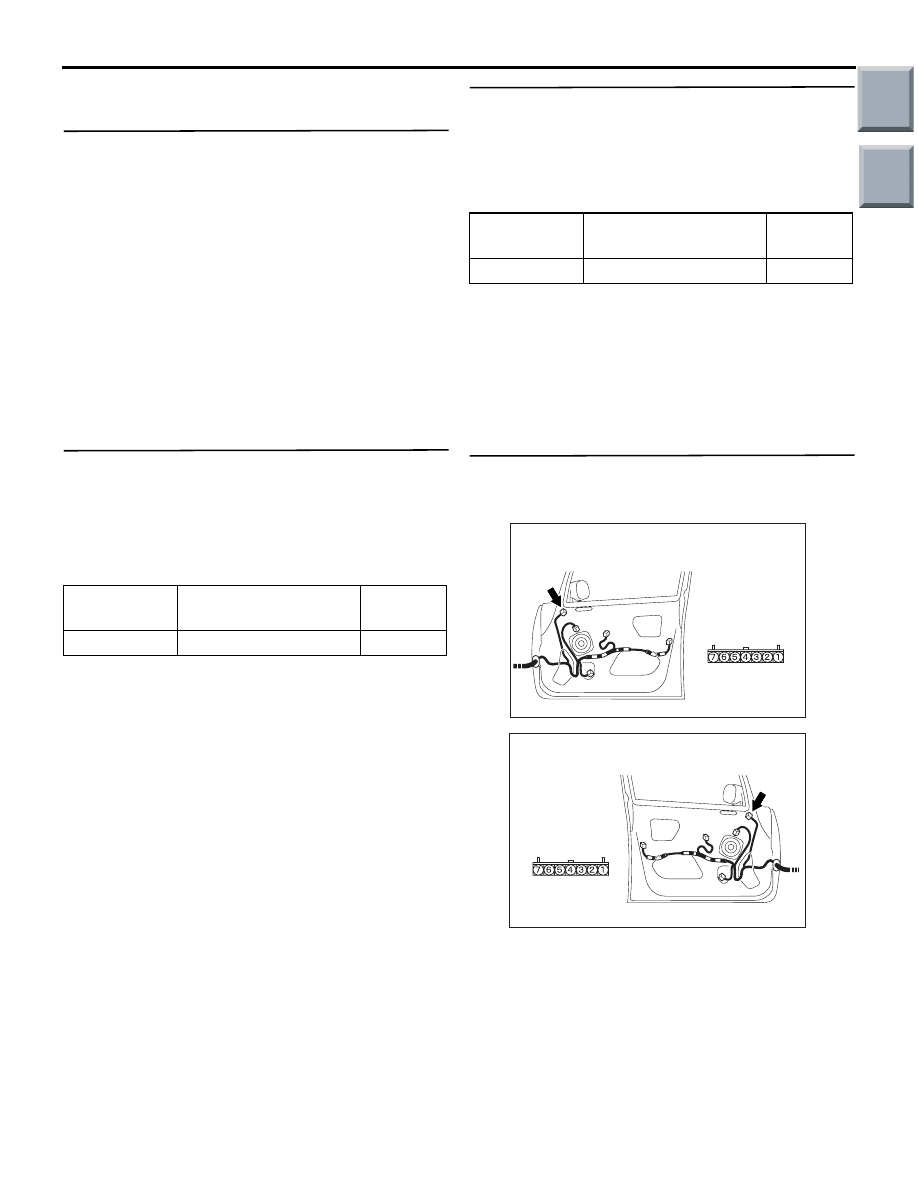

Step 4. Connector check: D-01 door mirror
