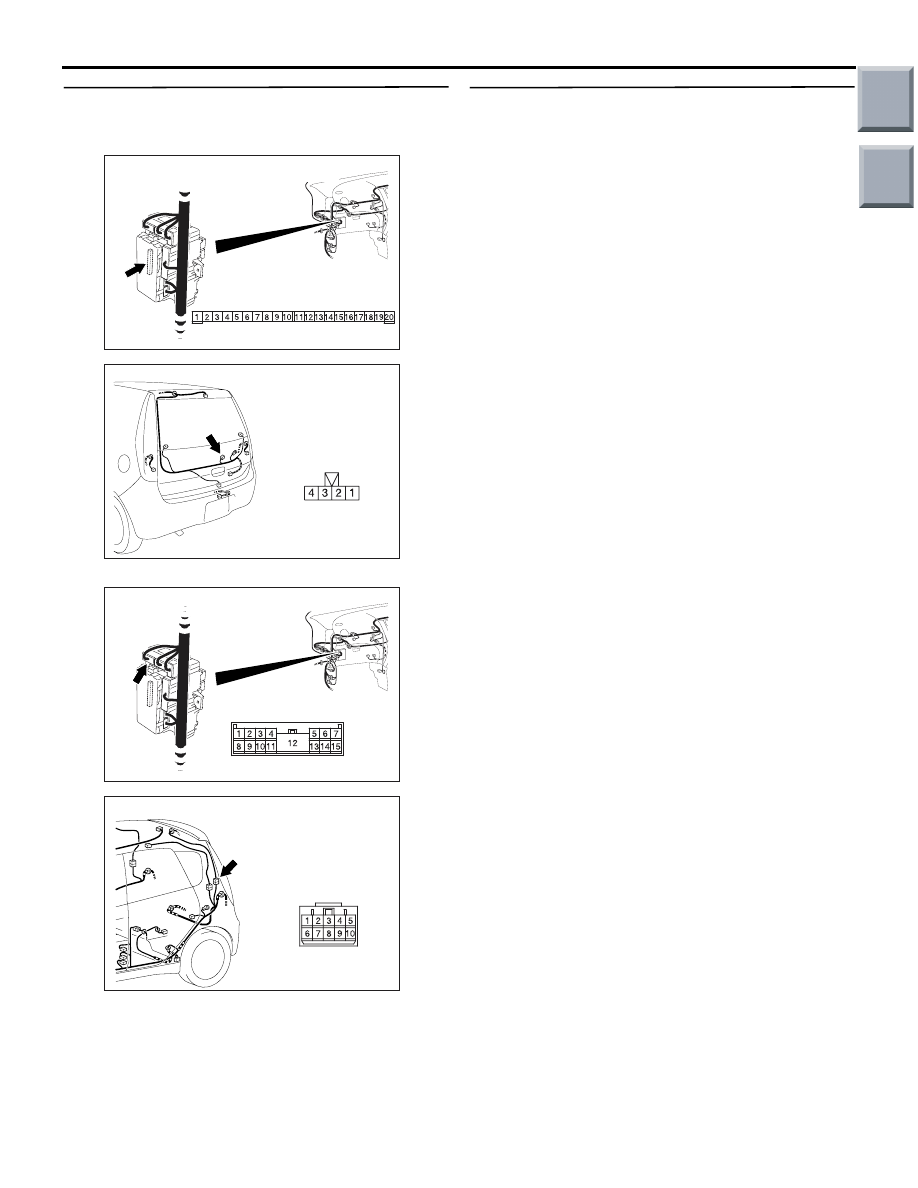

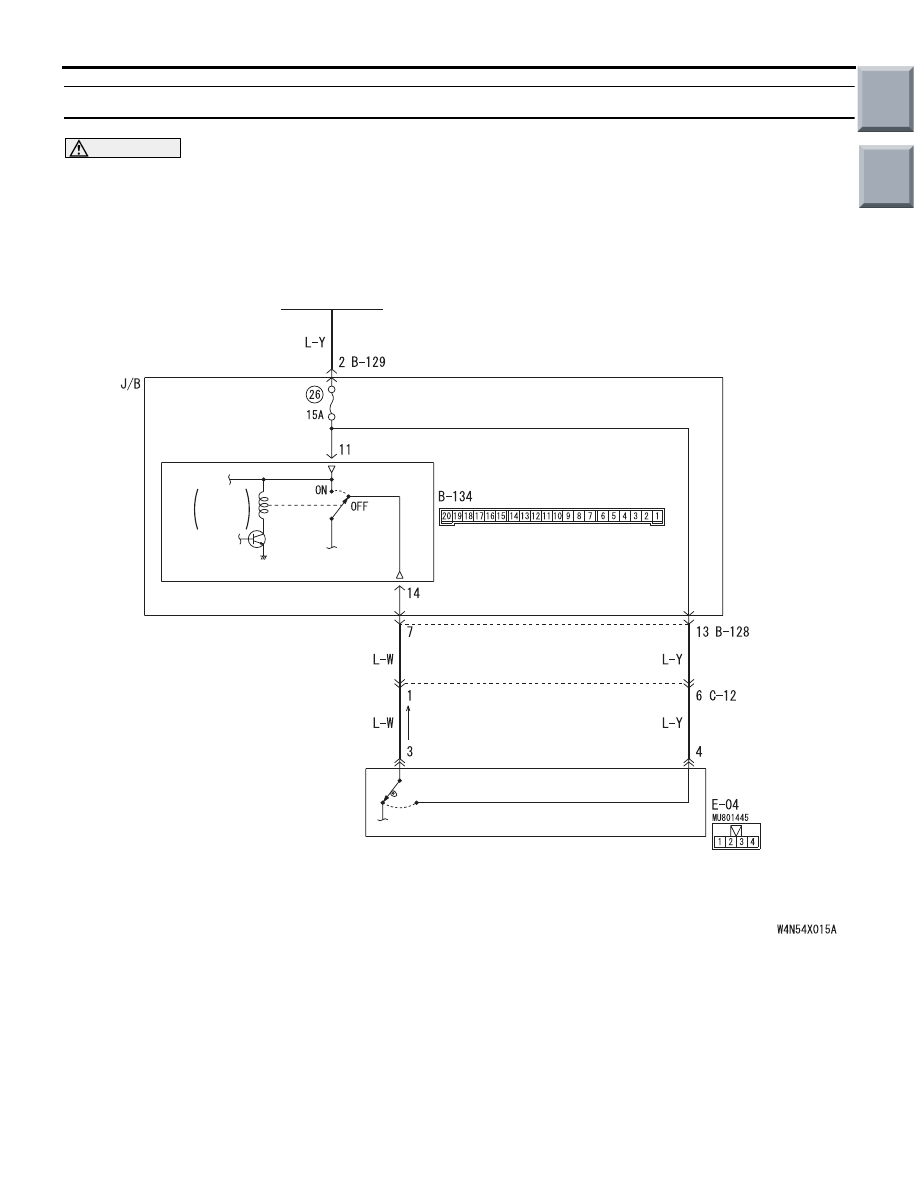

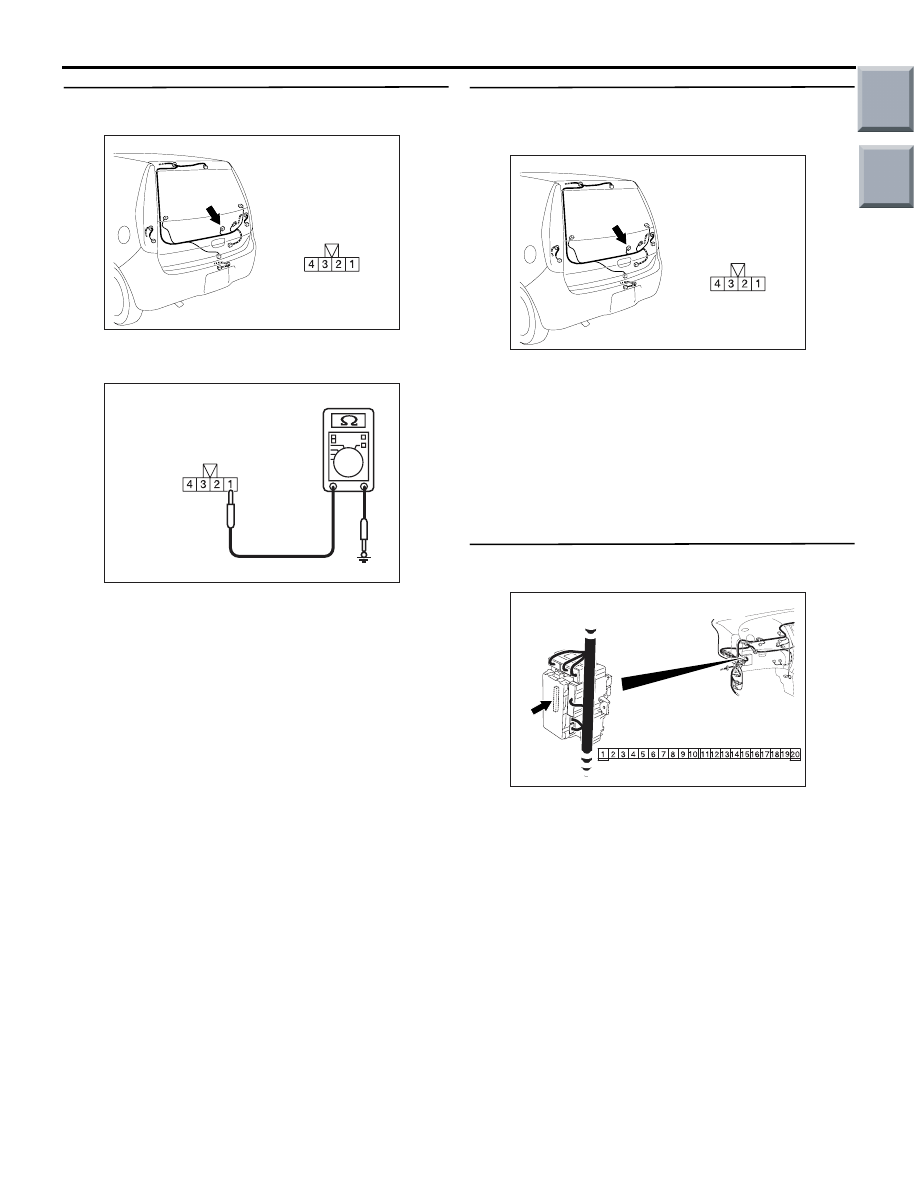

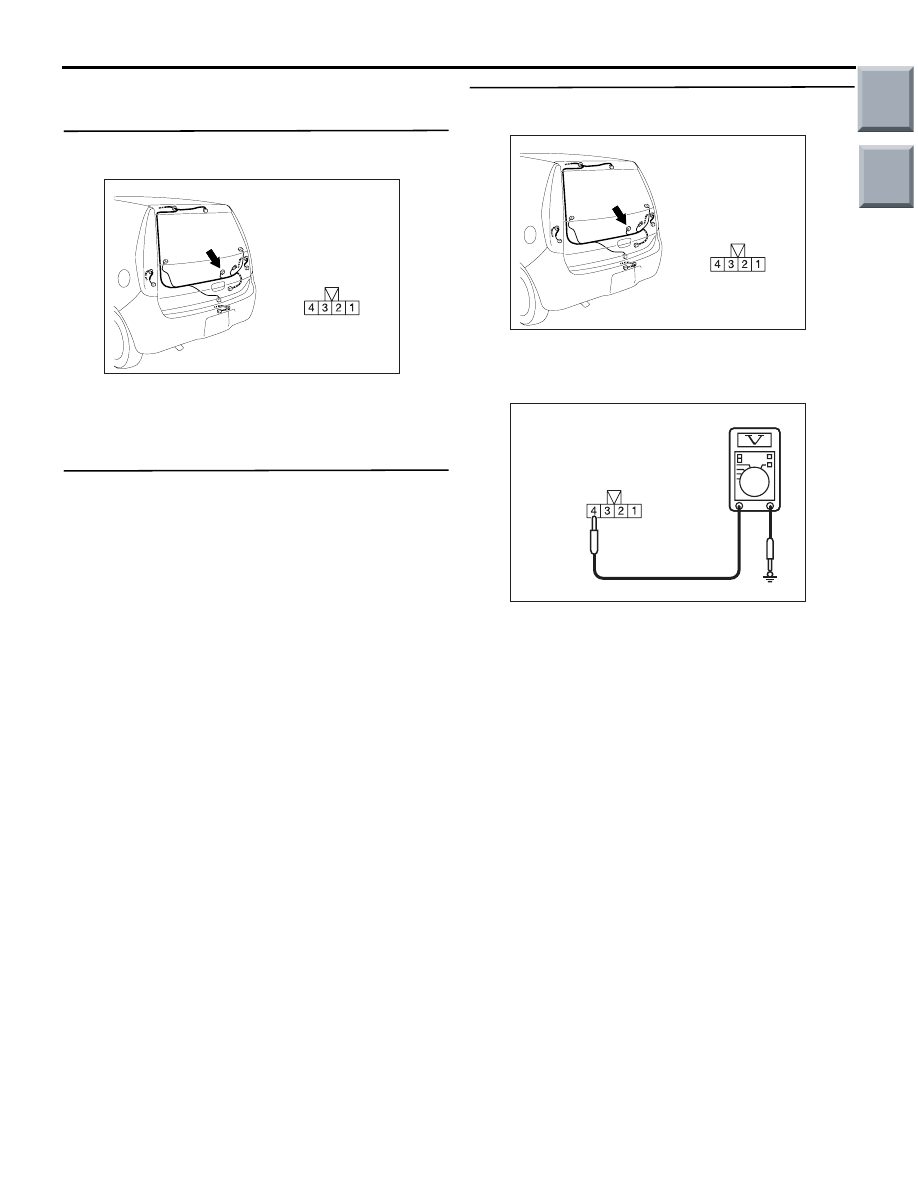

SYMPTOM PROCEDURES SMART WIRING SYSTEM (SWS) USING SWS MONITOR 54C-112 Step 5. Resistance measurement at the E-04 rear (1) Disconnect the connector, and measure at the wiring harness side. (2) Resistance between E-04 rear wiper motor connector terminal No.1 and body earth OK: Continuity exists (2 Ω or less) Q: Is the check result normal? YES : Go to Step 7. NO : Go to Step 6. Step 6. Check the wiring harness between E-04 • Check the earth line for open or short circuit. Q: Is the check result normal? YES : The trouble can be an intermittent malfunction (Refer to GROUP 00 − How to use Troubleshooting/inspection Service − How to Cope with Intermittent ). NO : Repair the wiring harness. Step 7. Connector check: B-134 ETACS-ECU Q: Is the check result normal? YES : Go to Step 8. NO : Repair the connector. AC401046 Connector: E-04 AC Harness side AC313972 Connector E-04 AN AC401046 Connector: E-04 AC Harness side AC313872 AH Connector: B-134 Harness side Junction block (Rear view) Main Index Group TOC |
