SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-40

Step 6. Check the wiring harness between B-135
column switch connector No.4 to body earth.

NOTE:

Prior to the wiring harness inspection, check joint
connector B-25, and repair if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the wiring harness.

Step 7. Connector check: B-133 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the defective connector.

Step 8. Check the wiring harness from B-133
ETACS-ECU connector terminal Nos. 54, 60 and
63 to B-135 column switch connector terminal
Nos. 3, 10 and 2.

• Check the communication lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the wiring harness.

Step 9. ECU check by using the SWS monitor

• Ignition switch: OFF

ECU TO BE CHECKED

• COLUMN ECU

OK: "OK" is displayed on the "COLUMN
ECU" menu.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Replace the column switch.

Step 10. Retest the system.
Check that the ETACS-ECU communicates with the
column switch.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Replace the ETACS-ECU.

AC401044AC

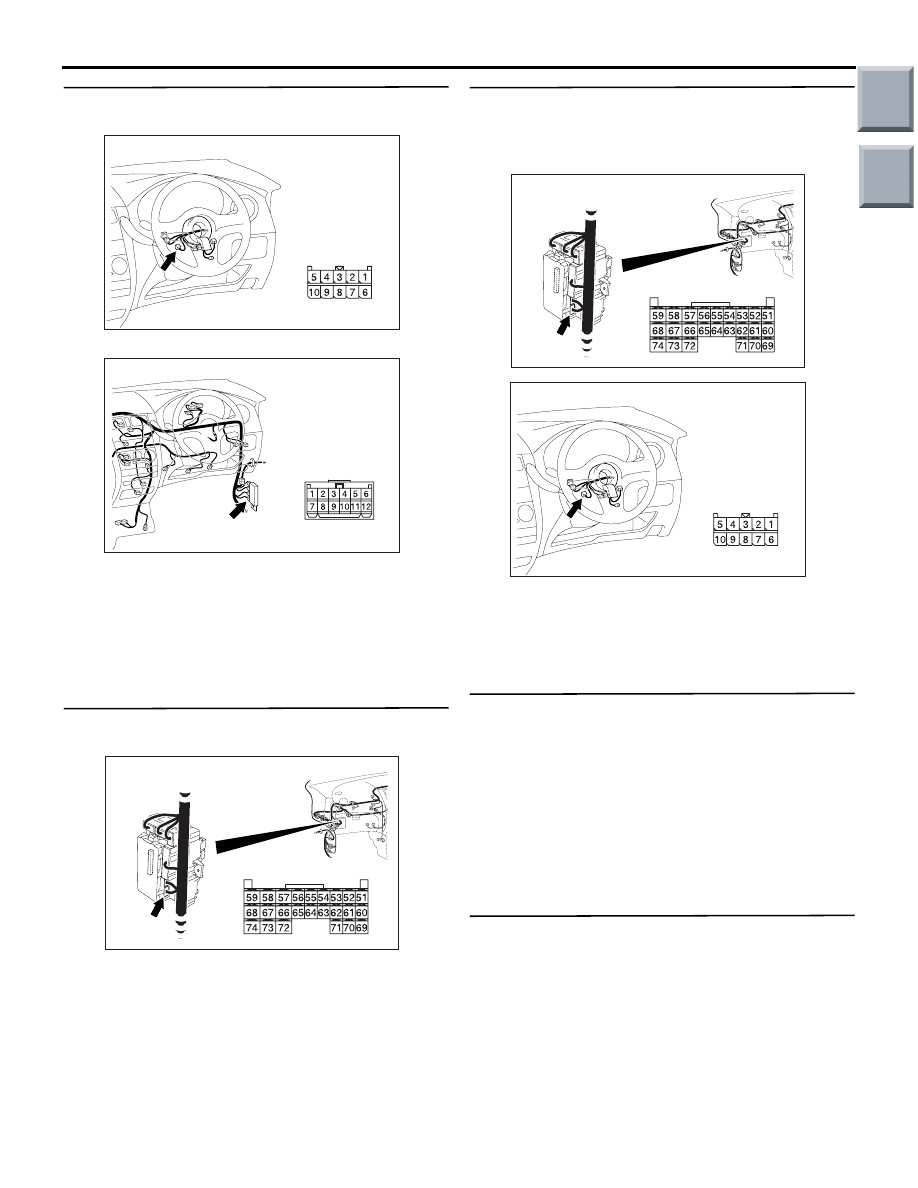

Connector: B-135

Harness side

AC401055

Connector: B-25

AG

AC313826AC

B-133 (GR)

Connector: B-133

Harness side

Junction block (Rear view)

AC313826AC

B-133 (GR)

Connector: B-133

Harness side

Junction block (Rear view)

AC401044AC

Connector: B-135

Harness side

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-41

INSPECTION PROCEDURE A-3: Communication with the ETACS-ECU is not possible.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

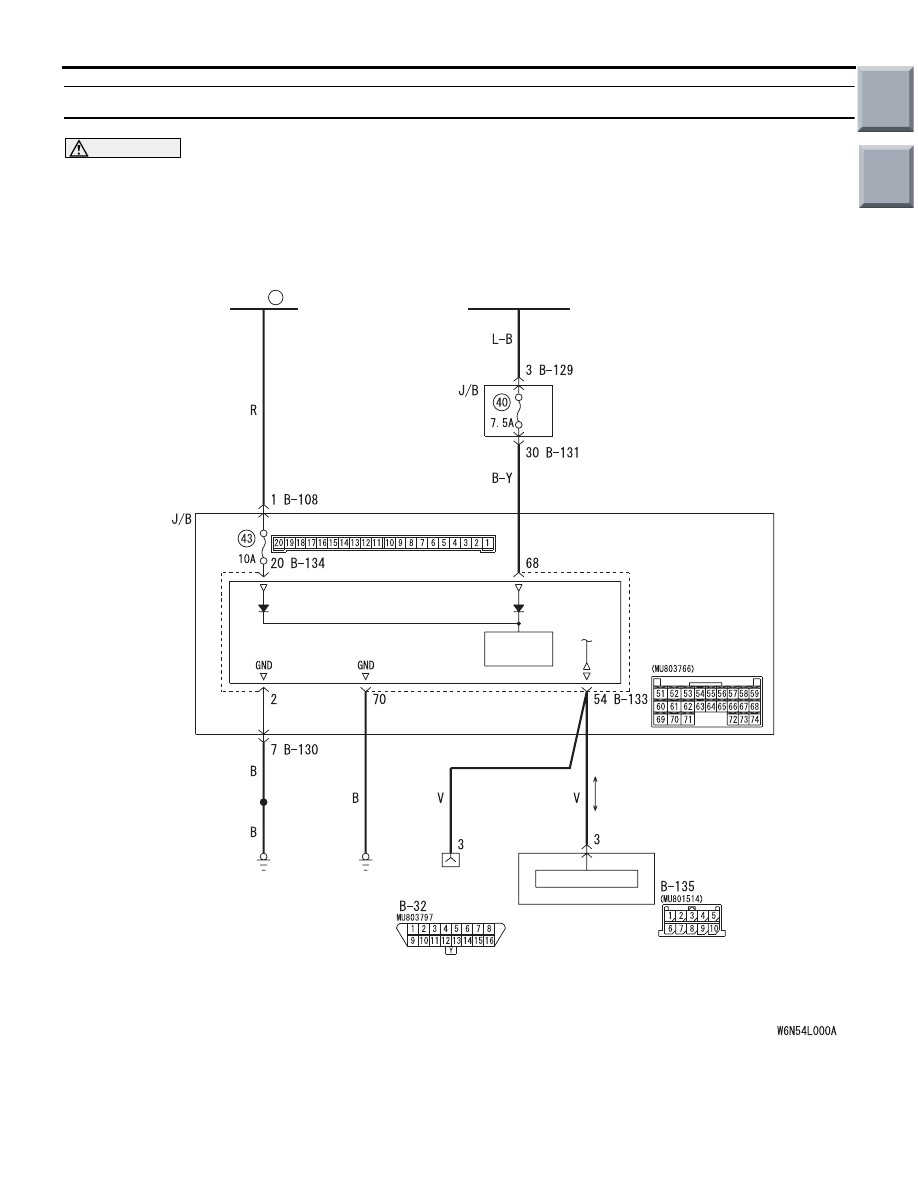

ETACS-ECU Power Supply and SWS Communication Circuit

FUSIBLE
LINK

IGNITION
SWITCH (IG1)

POWER
SOURCE

ETACS-
ECU

COLUMN-ECU

COLUMN
SWITCH

DIAGNOSIS
CONNECTOR

FRONT SIDE

1

J/B SIDE

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-42

COMMENTS ON TROUBLE SYMPTOM

It is suspected that the power supply circuit to the
ETACS-ECU is defective, or the wiring harness
between the SWS monitor and the ETACS-ECU or
their connector(s) is damaged. If the battery power
supply circuit to the ECU (terminal No.20 of the
ETACS-ECU) is damaged, also check the power
supply circuit from the ignition switch (IG1) (terminal
No.8 of the ETACS-ECU), and repair if necessary. If
the earth circuit to the ECU (terminal No.2 of the
ETACS-ECU) is defective, also check the earth cir-
cuit to the sensor (terminal No.70 of the
ETACS-ECU), and repair if necessary.

TROUBLESHOOTING HINTS

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Connector check: B-134 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

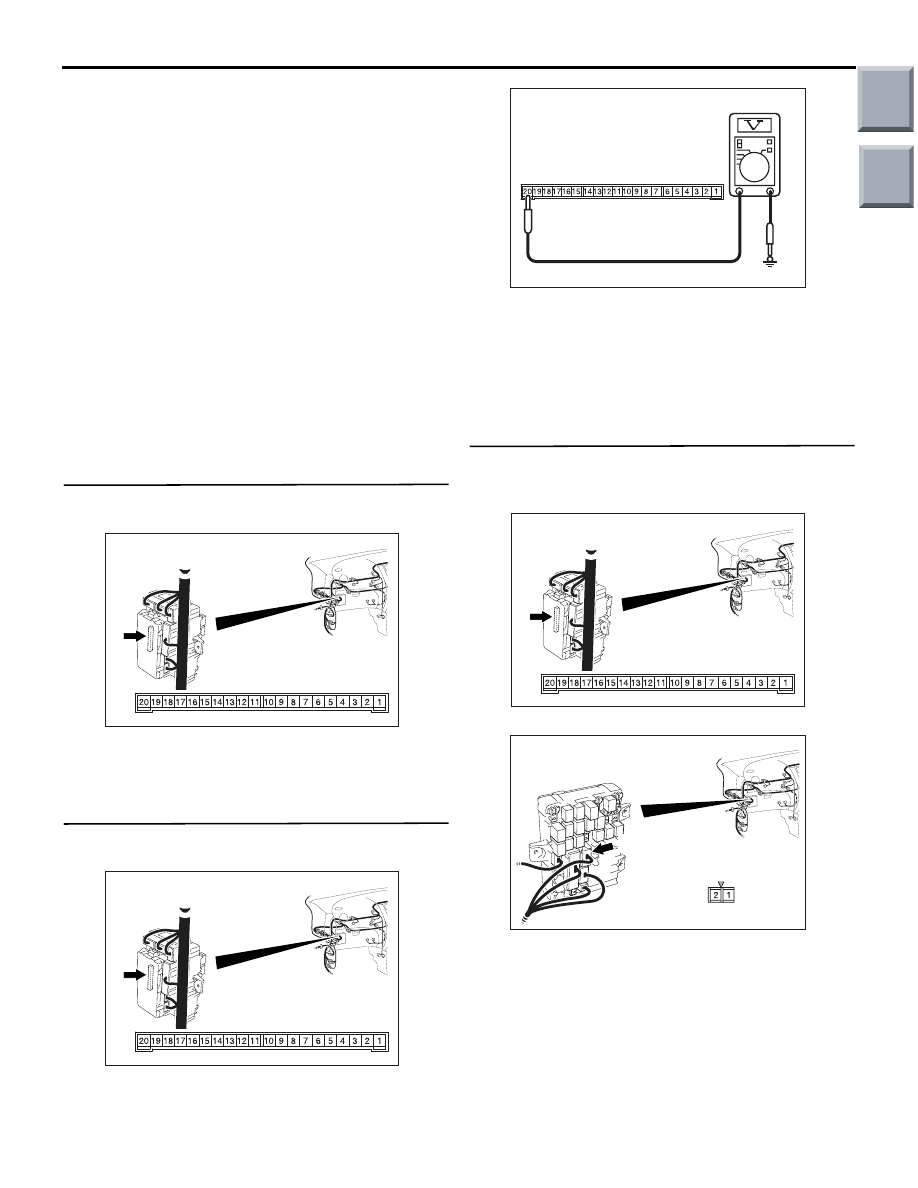

Step 2. Voltage measurement at the B-134
ETACS-ECU connector.

(1) Remove the ETACS-ECU, and measure at the

junction block side.

(2) Voltage between B-134 ETACS-ECU connector

terminal No.20 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Go to Step 3.

Step 3. Check the wiring harness between B-134
ETACS-ECU connector terminal No.20 to fusible
link (1).

NOTE:

Prior to the wiring harness inspection, check junction
block connector B-108, and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the wiring harness.

AC313826

Connector: B-134

AG

Junction block side

Junction block (Rear view)

AC313826

Connector: B-134

AG

Junction block side

Junction block (Rear view)

AC310507FC

Connector B-134
(Junction block side)

AC313826

Connector: B-134

AG

Junction block side

Junction block (Rear view)

AC313870

Connector: B-108

BD

Junction block (Front view)

B-108(B)

Harness side

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-43

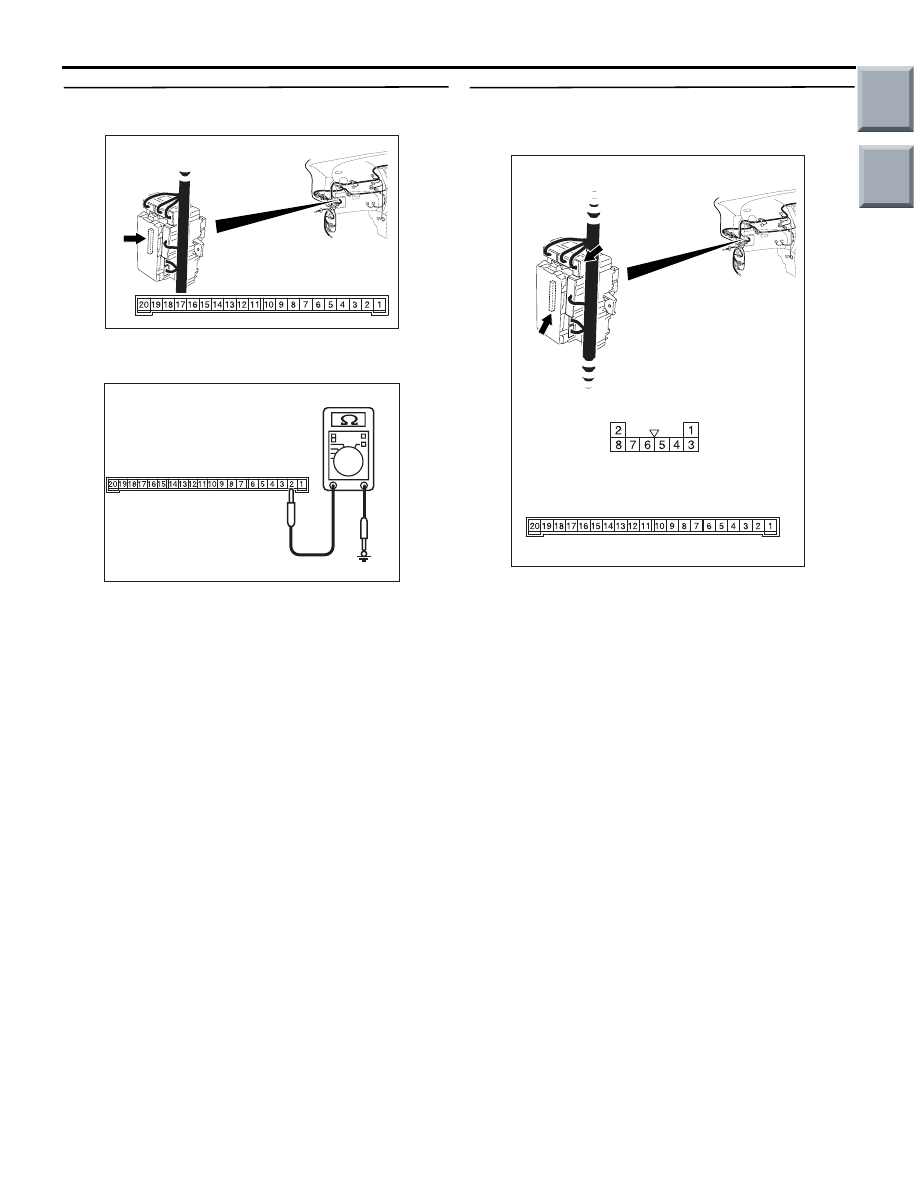

Step 4. Resistance measurement at the B-134
