GENERAL INFORMATION

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-8

REAR WIPER LINKED WITH WASHER FUNCTION (THE INITIAL CONDITION: WITH
FUNCTION)

• When the rear washer switch on the column

switch is turned ON with the ignition switch ACC
or ON, ETACS-ECU turns ON the rear washer
relay. When the rear washer switch signal from
the column switch remains ON for 0.3 seconds or
more, ETACS-ECU turns ON the rear wiper relay
to operate the rear wiper continuously. When the
rear washer switch is turned OFF, the
ETACS-ECU turns OFF the rear wiper relay 3
seconds later. Then the rear wiper stops at the
auto stop position.

• Even turning ON the rear washer switch during

rear wiper operation causes the rear wiper relay
to switch the operation to continuous operation,
and then the rear wiper resumes intermittent
operation at intervals of eight seconds, 7.4 sec-
onds after the completion of the continuous oper-
ation.

NOTE: Using a customisation function, a driver can
enable or disable the rear wiper linked with washer
function. For more information about the customisa-
tion feature.

ELECTRIC RETRACTABLE REMOTE CONTROLLED MIRROR
ELECTRIC RETRACTABLE REMOTE CONTROLLED MIRROR TIMER FUNCTION

When the unfolding/folding switch on the fold switch
remote controlled mirror switch is turned ON with the
ignition switch at the ACC or ON position, the door
mirror unfold relay or fold relay is turned on for 16
seconds to unfold or fold the door mirrors. Even after
the ignition switch is turned OFF, the door mirrors
can operate for 30 seconds.

If the unfolding/folding switch on the remote control-
led mirror switch is turned ON while one of the door
mirror unfold relay or door mirror fold relay is in oper-
ation, the other relay for the opposite motion is
turned ON after 0.1 second.

AC207003AB

OFF

t : 0.3 second
T1 : 3 seconds
T2 : 7.4 seconds
T3 : 8 seconds
T4 : 0.6 second

Rear wiper switch
in off position

Rear wiper switch in on position

Rear washer switch

Rear washer relay

Rear wiper relay

AC309810

Ignition switch (ACC)

t: 0.1 second
T1: 30 seconds
T2: 16 seconds

OFF

Door mirror unfold relay

Door mirror fold relay

Remote controlled mirror switch
(folding/unfolding switch)

Main

Index

Group

TOC

GENERAL INFORMATION

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-9

NOTE: Whether the door mirrors are at the unfolding
or folding position is determined according to the
memory of the door mirror fold relay operated previ-
ously. For this reason, if the door mirrors are manu-
ally retracted, they may not move when the
unfolding/folding switch on the fold switch remote
controlled mirror switch is pressed next time.

AUTOMATIC UNFOLDING FUNCTION

Vehicle speed-dependent automatic unfolding func-

tion

When the vehicle speed reaches 30 km/h, with the

ignition switch ON and the mirrors retracted,
ETACS-ECU turns on the retraction mirror relay
(unfolding) for 16 seconds to return the door mir-
rors. However, the door mirrors do not return to
their normal positions automatically if the ignition
switch is turned from OFF to ON, and then the
unfolding/folding switch on the remote controlled
mirror switch is operated.

NOTE: Whether the door mirrors are at the unfolding
or folding position is determined according to the
memory of the retraction mirror relay operated previ-
ously. For this reason, if the mirrors are manually
retracted, they may not move when the unfold-
ing/folding switch is pressed next time.

FLASHER TIMER FUNCTION
TURN-SIGNAL LAMP (INITIAL SETTING:
TURN SIGNAL LAMP CAN BE OPERATED
WHEN THE IGNITION SWITCH IS IN THE
ON POSITION)

When the turn-signal lamp switch is ON (LH or RH)
with the ignition switch is ON, the turn-signal lamp
output (flash signal) is turned ON.
If the lamp bulb of the front or rear turn-signal lamp
has burned out, the flashing speed becomes faster to
alert the driver that the lamp bulb has burned out.
NOTE: Using a customisation function, this function
becomes available even when the ignition switch is
in the ACC position. For more information about the
customisation feature.

AC207002AB

OFF

Ignition switch

30 km/h

0 km/h

Unfolding

Folding

Vehicle speed

Remote controlled mirror switch
(folding/unfolding switch)

Door mirror position

Door mirror unfold relay

Door mirror fold relay

T : 16 seconds

AC101508

OFF

Ignition
switch (IG)

Turn-signal lamp
switch RH

Turn-signal lamp
switch LH

Turn-signal lamp
output RH

Turn-signal lamp
output LH

Main

Index

Group

TOC

GENERAL INFORMATION

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-10

HAZARD LAMP

When the hazard lamp switch input signal turning
from OFF to ON is detected, the flashing states turns
over by the signal (When the hazard lamp is not
blinking, it blinks. If it is blinking, it turns off).
NOTE:

1. The push-return switch is adopted for the hazard

lamp switch.

2. Even if the lamp bulb has burned out, the flashing

speed of the hazard lamp is not changed.

TURN-SIGNAL LAMP INDICATOR

The ETACS-ECU sends the turn signal lamp indica-
tor ON signal to the combination meter through CAN
communication in synchronization with the turn sig-
nal lamp operation. The combination meter receives
the transmitted signal and turns ON or OFF the
turn-signal lamp indicator.

HEADLAMP
HIGH-BEAM INDICATOR

The ETACS-ECU sends the high beam indicator ON
signal to the combination meter through CAN com-
munication in synchronization with the high beam
headlamp operation. The combination meter
receives the transmitted signal and turns ON or OFF
the high beam indicator.

FOG LAMP
FOG LAMP CONTROL

When the fog lamp switch is turned to ON with the
tail lamp or the headlamp lit (the tail lamp switch or
the headlamp switch is ON), the fog lamp relay turns
ON, and the fog lamps turn on.
If the tail lamp or the headlamp is turned off with the
lighting switch OFF while the fog lamps lit, the fog
lamps turn off the same time to prevent unattended
operation.

FOG LAMP INDICATOR

The ETACS-ECU sends the fog lamp indicator ON
signal to the combination meter through CAN com-
munication in synchronization with the fog lamp
operation. The combination meter receives the trans-
mitted signal and turns ON or OFF the fog lamp indi-
cator.

AC101509

OFF

Hazard lamp
switch

Turn signal
lamp output
RH

Turn signal
lamp output
LH

AC401793 AB

OFF

(Extinguished) OFF

(Illuminated) ON

(Extinguished) OFF

(Illuminated) ON

Tail lamp

Headlamp

OFF

Fog lamp switch

Lighting switch

Headlamp

Tail lamp

(Extinguished) OFF

(Illuminated) ON

Fog lamp output

Main

Index

Group

TOC

GENERAL INFORMATION

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-11

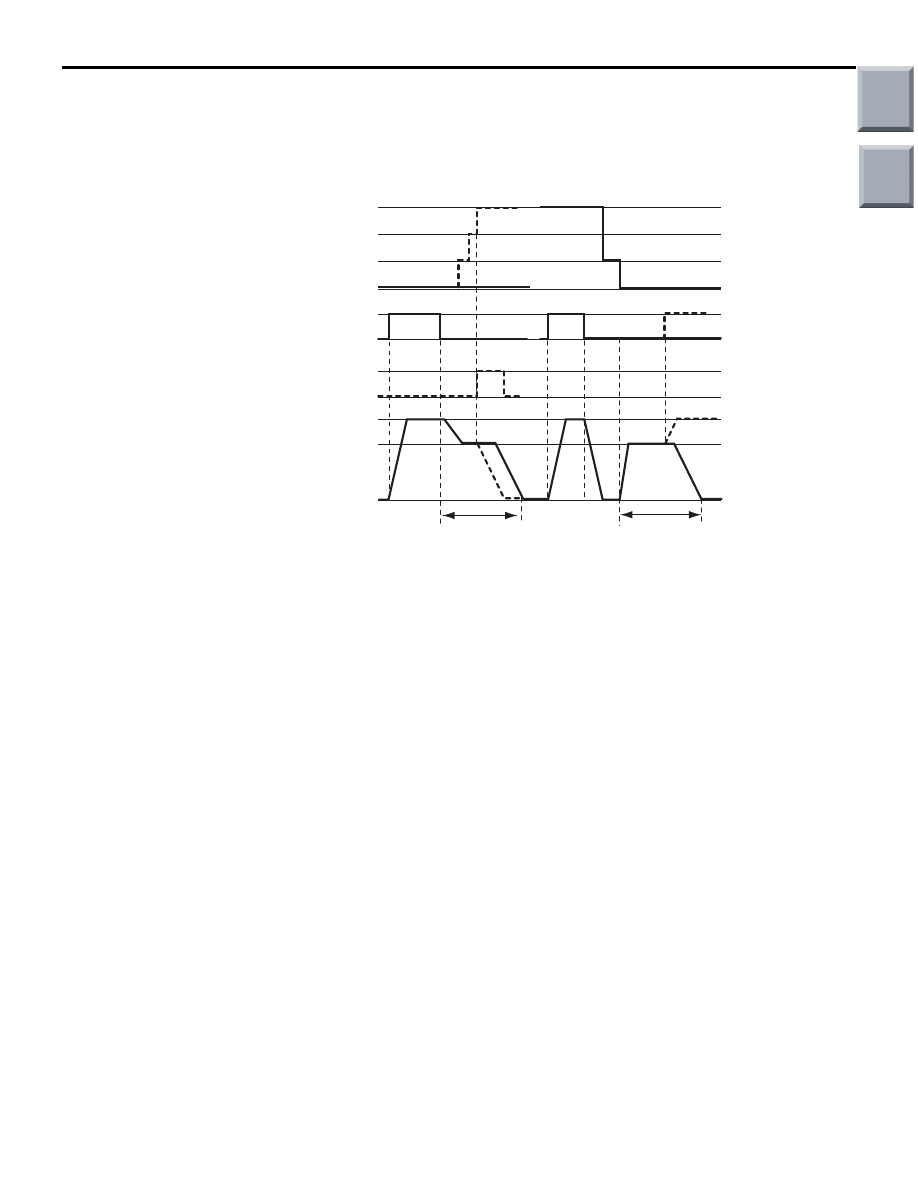

INTERIOR LAMP
INTERIOR LAMP DIMMER CONTROL
FUNCTION (THE INITIAL CONDITION: 15
SECONDS)

When the interior lamp switch is on the door position,
ETACS-ECU controls the interior lamp lamps as fol-
lows.

1. When the ignition switch is OFF:

By opening any door or tailgate, the lamp turns ON

(100%), and dims (60%) when the door or tail-
gate is closed, then and turns off after 15 sec-
onds.

However, when the ignition switch is turned ON or

the door lock is operated, the lamps turn off at
that time.

2. When the ignition switch is ON:

By opening any door or tailgate, the lamp (100%)

turns ON and OFF when the door or tail gate is
closed.

3. When all doors and the tailgate are closed, and

the ignition key is removed:

By removing the ignition key with all doors and the

tailgate closed, the lamp turns ON 60%, and
turns off after 15 seconds.

By inserting the ignition key again or operating the

door lock with the lamp lit, the lamps turns off.

NOTE: For the vehicles with the keyless entry sys-
tem, the delayed lamp-off time and the operation
times of the keyless entry interior lamp answer back
can be changed by the customise function.

AC310305

15 seconds

(All closed) OFF

(Any one open) ON

OFF

Key removed

ACC

100 %

0 %

60 %

Door switch

(Unlock) OFF

(Lock) ON

Driver's door
lock actuator switch
(lock switch)

Interior lamp brightness

Ignition switch

15 seconds

Main

Index

Group

TOC
