GENERAL INFORMATION

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-4

KEYLESS ENTRY SYSTEM
MULTI-MODE KEYLESS ENTRY SYSTEM

The door mirrors can be operated by the keyless
entry transmitter operation.

KEYLESS ENTRY HAZARD
ANSWERBACK FUNCTION (INITIAL
SETTING: LOCK, FLASH ONCE,
UNLOCK, FLASH TWICE)

The hazard answer back function that allows check-
ing the lock/unlock state of the door easily even in
the daytime is installed. When the lock signal from
the keyless entry transmitter is received into
ETACS-ECU, all doors (including the tailgate) are
LOCK, and the turn signal lamp blinks once. When
the unlock signal is received, all doors (including the
tailgate) are UNLOCK, and the turn-signal lamp
blinks twice.
NOTE: The answer back blink time can be adjusted
by the customise function.

KEYLESS ENTRY ROOM LAMP ANSWERBACK FUNCTION (INITIAL SETTING: LOCK
FLASH ONCE, UNLOCK ILLUMINATES FOR 15 SECONDS)

When the ETACS-ECU receives the lock signal from
the keyless entry transmitter, all doors (including tail-
gate) is locked and the interior lamp flashes once in
synchronization with the hazard lamp operation.
When the ETACS-ECU receives the unlock signal,
all doors (including tailgate) is unlocked. The interior

lamp fades in, keeps on, and fades out in 15 seconds
after the door unlock relay is operated. (15 seconds
including fading period)
NOTE: The answerback blink time can be adjusted
by the customize function.

AC209072AG

OFF

LOCK

UNLOCK

Illuminate

Extinguish

Keyless entry
transmitter

Lock relay output

Unlock relay output

Hazard lamp

AC314090

OFF

Illuminate

Extinguish

Lock relay output

OFF

Door unlock switch output

OFF

Door lock switch output

Unlock relay output

Hazard lamp

Illuminate

Extinguish

Interior lamp

a: 0.6 second
b: 1.2 seconds
c: 15 seconds

Main

Index

Group

TOC

GENERAL INFORMATION

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-5

WINDSHIELD WIPER AND WASHER
INTERMITTENT CONTROL <VEHICLE
SPEED-DEPENDENT VARIABLE TYPE>
(THE INITIAL CONDITION: WITH FUNC-
TION)

The ETACS-ECU calculates the windshield intermit-

tent wiper interval T1 from the windshield inter-
mittent wiper volume and vehicle speed signal
(sent from the combination meter to the
ETACS-ECU via CAN communication).

NOTE: The vehicle speed-sensitive function can be

adjusted by the customise function.

When ETACS-ECU receives the windshield intermit-

tent wiper switch ON signal from the column
switch while the ignition switch is in the ACC or
ON position, it turns the windshield wiper relay
ON to operate the windshield wiper at low speed.

3. When the windshield wiper comes to the stop

position, the windshield wiper auto stop signal
turns OFF. Then the windshield wiper relay will
turn OFF, and the windshield wiper stops operat-
ing.

4. When the intermittent time T1 has elapsed after

the windshield wiper relay was turned OFF,
ETACS-ECU turns ON the windshield wiper relay
again and repeats the above procedure.

MIST WIPER CONTROL

When the windshield mist wiper switch of the column
switch is turned ON with the ignition switch in the
ACC or ON position, ETACS-ECU turns ON the
windshield wiper drive signal. At the same time, the
wiper speed switch relay turns to ON (HIGH). When
the windshield mist wiper switch is ON, the wind-
shield wiper operates at the high speed.

AC314042AB

FAST

SLOW

Variable intermittent wiper
control switch position

Intermittent time
T1 (seconds)

Change in intermittent time by variable
intermittent wiper control volume
(when vehicles is stationary)

AC314043

Intermittent
time T1
(seconds)

Vehicle speed (km/h)

When at SLOW position

Change in intermittent time according
to vehicle speed

100

4.6

1.6

2.0

When at FAST position

AC101493AF

OFF

Windshield
wiper auto-
stop signal

Windshield
wiper relay

AC207004 AB

OFF

ON (HIGH)

Windshield mist
wiper switch

Windshield wiper
auto-stop signal

Windshield wiper
relay

Windshield wiper
speed switching
relay

OFF (LOW)

Main

Index

Group

TOC

GENERAL INFORMATION

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-6

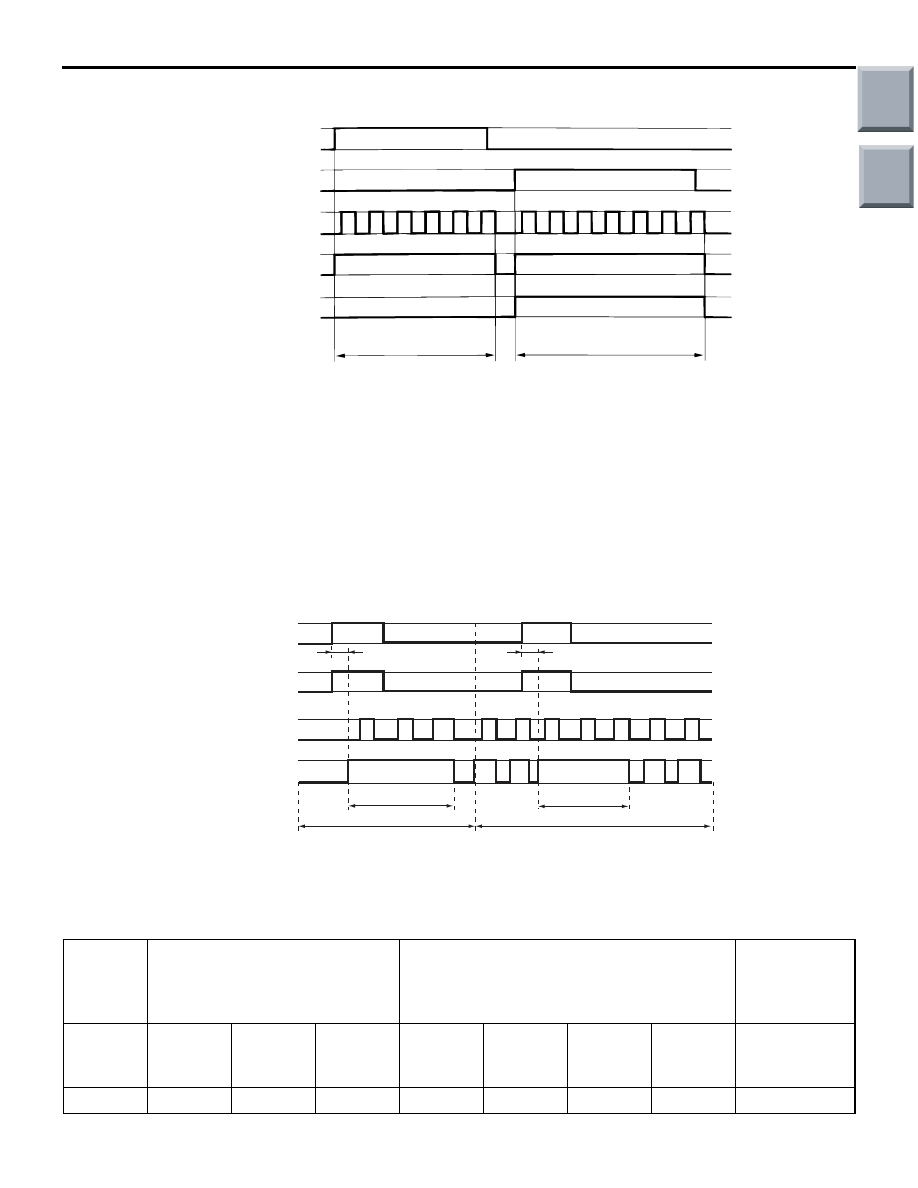

LOW SPEED WIPER AND HIGH SPEED WIPER CONTROL

When the windshield low speed wiper switch of the
column switch is turned ON while the ignition switch
is ACC or ON, the column switch turns ON the wind-
shield wiper drive signal. Also, the wiper speed
switching relay turns to OFF (LO), and the windshield
wiper operates at the low speed.

When the windshield high speed wiper switch is
turned ON, the windshield wiper drive signal turns
ON. Also, the wiper speed switching relay turns ON
(HI), and the windshield wiper operates at the high
speed.

WINDSHIELD WIPER LINKED WITH WASHER FUNCTION (INITIAL CONDITION: WITH
THE WINDSHIELD WIPER LINKED WITH WASHER FUNCTION)

AC005437AB

OFF

(HI) ON

Windshield low speed
wiper switch

Windshield high speed
wiper switch

Windshield wiper auto-stop
signal

OFF

Windshield wiper
drive signal

Windshield wiper speed
switching relay

(LO) OFF

Low speed operations

High speed operations

AC309988AC

OFF

Windshield wiper
auto stop signal

Windshield washer relay

Windshield washer switch

Windshield wiper relay

Wiper switch in
off position

Wiper switch in intermittent
operation position

t: 0.2 or 0.3 second
T: Intermittent wiper intermittent time

Wiper
switch

OFF position

Intermittent operation position

Low-speed or
high-speed
operation
position

Washer
switch ON
time (t)

0.3
second or
less

0.3 to 0.5
second

0.5
second or
more

0.2
seconds
or less

0.2 to 0.4
second

0.4 to 0.6
second

0.6
second or
more

−

0 second 2 seconds 3 seconds 0 second 1 second 2 seconds 3 seconds 3 seconds

Main

Index

Group

TOC

GENERAL INFORMATION

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-7

When the windshield washer switch in the column
switch is turned ON with the ignition switch in the
ACC or ON position, the ETACS-ECU turns ON the
windshield washer relay.
When the windshield washer switch is kept ON for
0.3 seconds, the windshield wiper drive signal (the
wiper drive signal output time varies depending on
the conditions. For details, refer to the tables) is
turned ON, and the windshield wiper is operated at
high speed. Three seconds after turning OFF the
windshield washer switch, the windshield wiper turns
OFF.
Even when the windshield washer switch is turned
ON while the windshield wiper is operating intermit-
tently, the intermittent action is kept after the linked
operation is finished.

If the ignition switch is set to the ACC position while
the windshield washer switch is being turned ON, the
windshield washer relay becomes ON, but the wind-
shield wiper does not start the linked operation.
When the windshield washer switch is turned OFF
and then ON again, the windshield wiper makes the
linked operation.
NOTE:

•

Using a customisation function, the driver can
enable or disable the windshield wiper linked with
washer function. For more information about the
customisation feature.

•

When the windshield wiper linked with washer
function is disabled by the customisation feature,
the windshield wiper does not operate in synchro-
nization with the windshield washer. However,
the windshield washer can be activated. It is use-
ful to melt down the ices of the frozen windshield.

REAR WIPER AND WASHER
REAR WIPER CONTROL [THE INITIAL CONDITION: 8 SECONDS (WITHOUT SUCCES-
SIVE OPERATIONS)]

1. When the rear wiper switch on the column switch

is turned ON with the ignition switch at the ACC
or ON position, ETACS-ECU turns ON the rear
wiper drive signal for 3 seconds (approximately 2
operations) and performs the intermittent action
at 8-second intervals.

When the selector lever is moved to R position dur-

ing the rear wiper operation, the inhibitor switch R
position turns ON one second after that,
ETACS-ECU sends the rear wiper drive signal for
3 seconds (approximately 2 operations), and
operates the intermittent action in 8 seconds
interval. <CVT>

2. By the special operation of the rear wiper switch

on the column switch (successive 2-time opera-
tions), the rear wiper operates continuously
regardless of the set intermittent time.

NOTE: The rear wiper intermittent time can be
adjusted or cancelled for continuous operation by the
customise function.

AC207474AB

OFF

T2: 7.4 seconds

Rear wiper drive signal

Rear wiper switch

Inhibitor switch "R" position

T1: 3.0 seconds

t: 1.0 second

T3: 8.0 seconds
T4: 0.6 second
