Mitsubishi 380. Manual - part 914





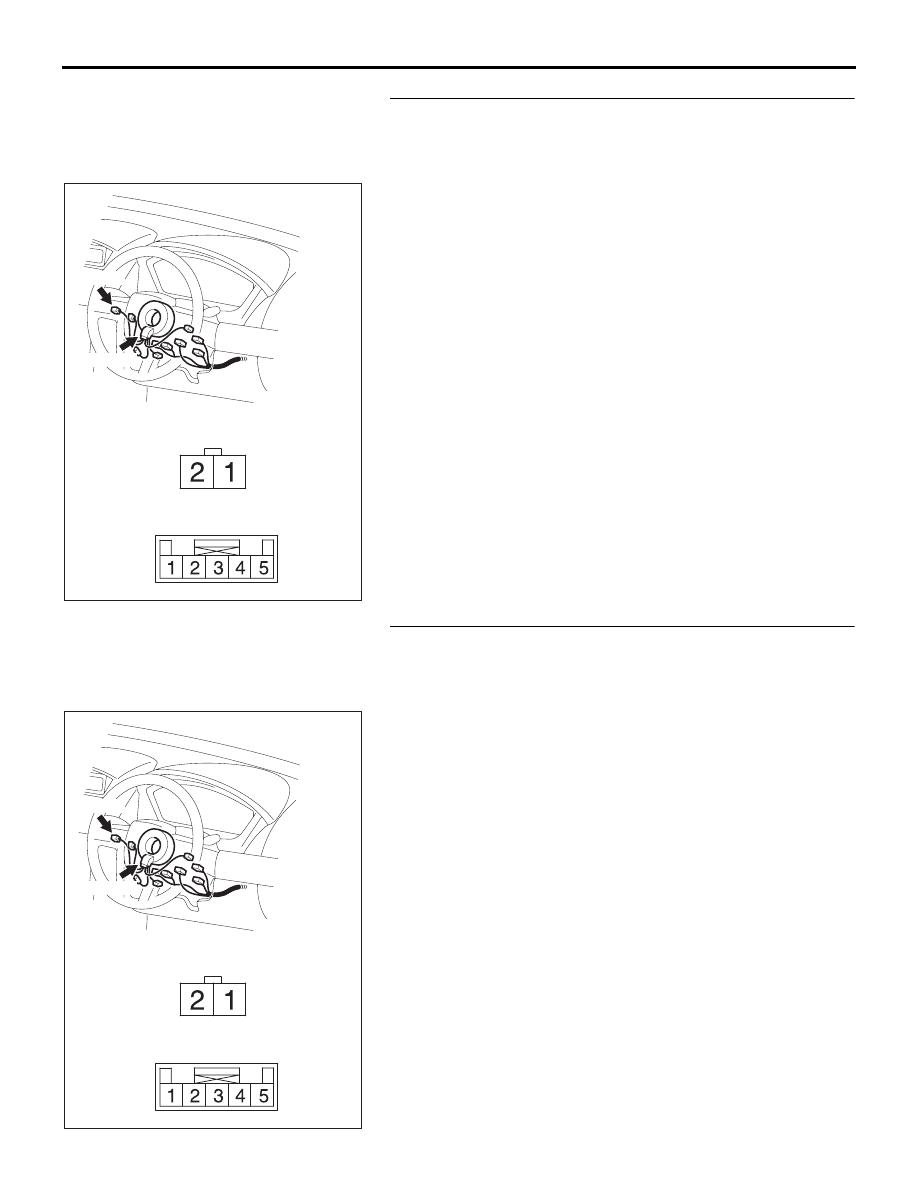

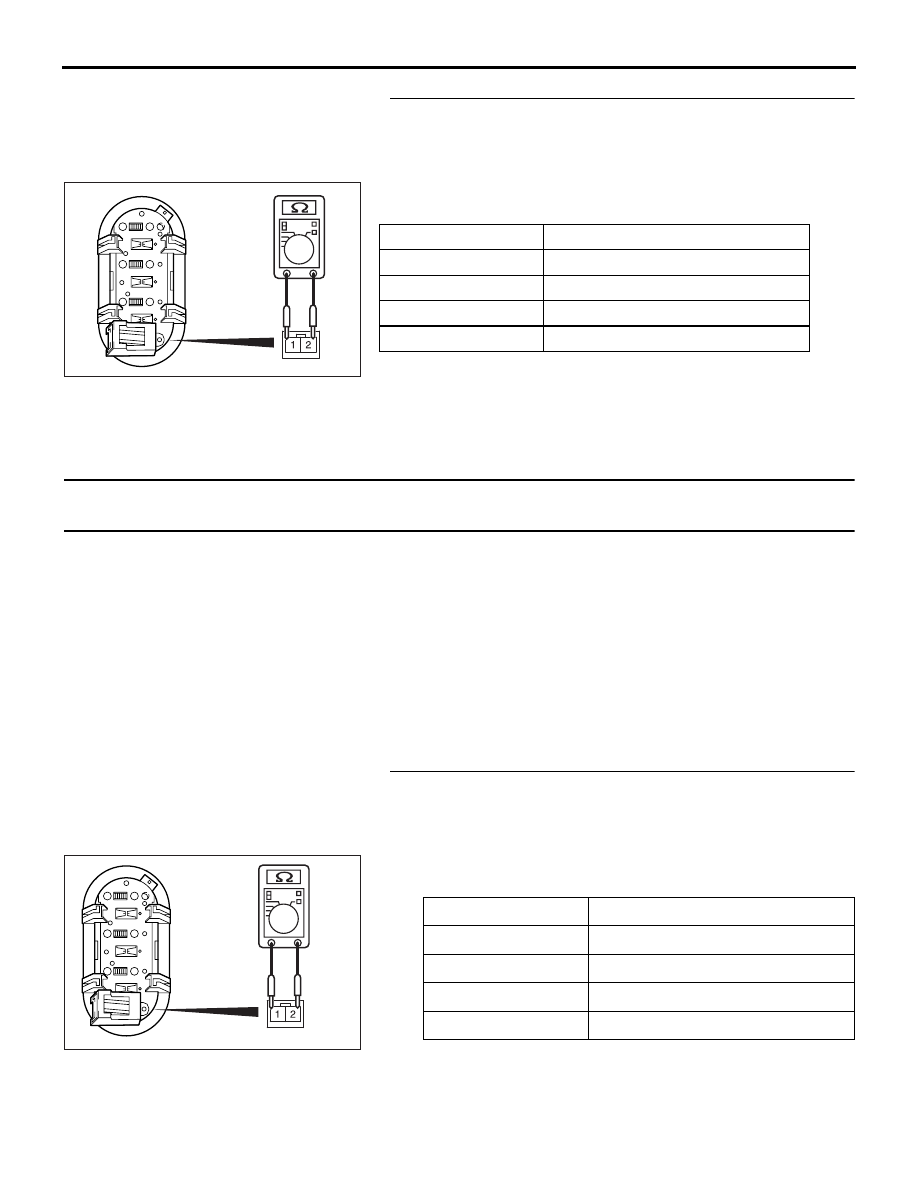

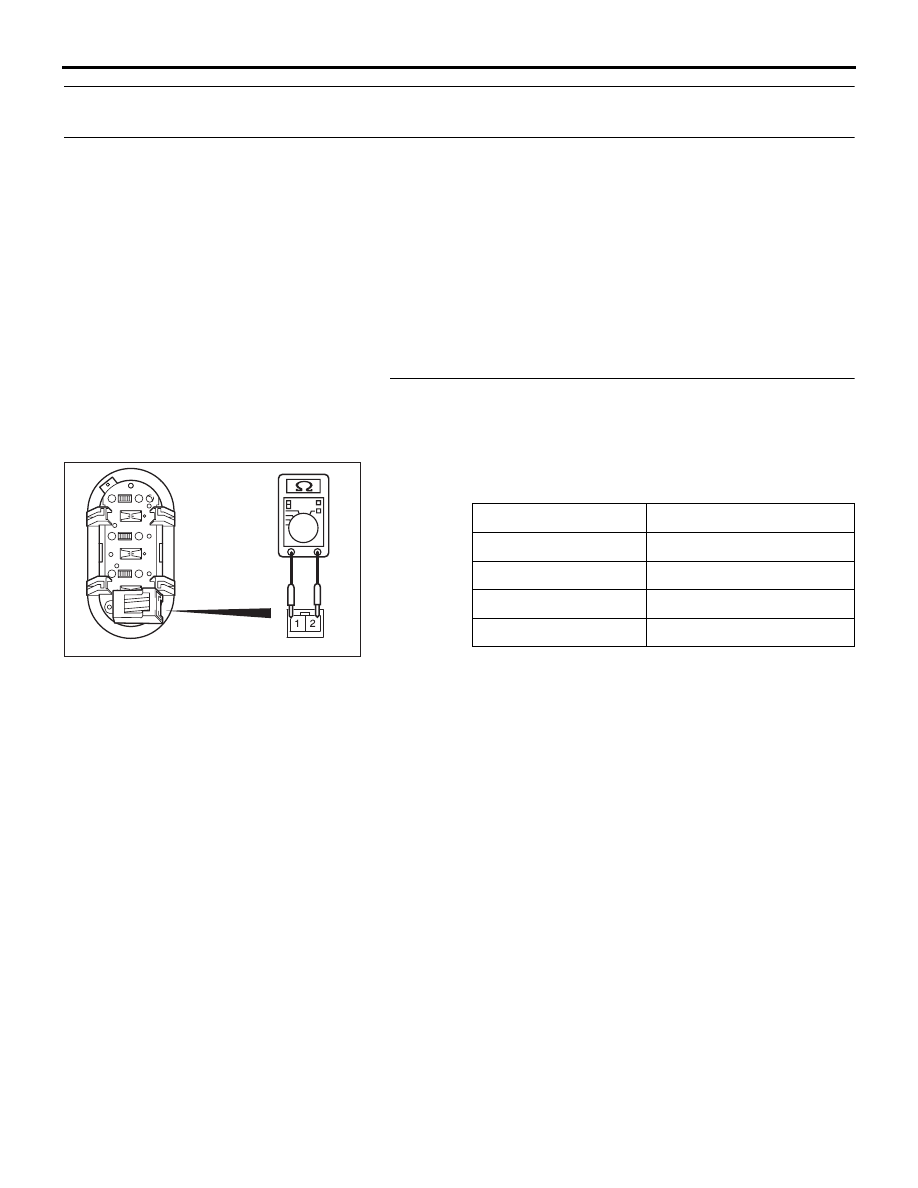

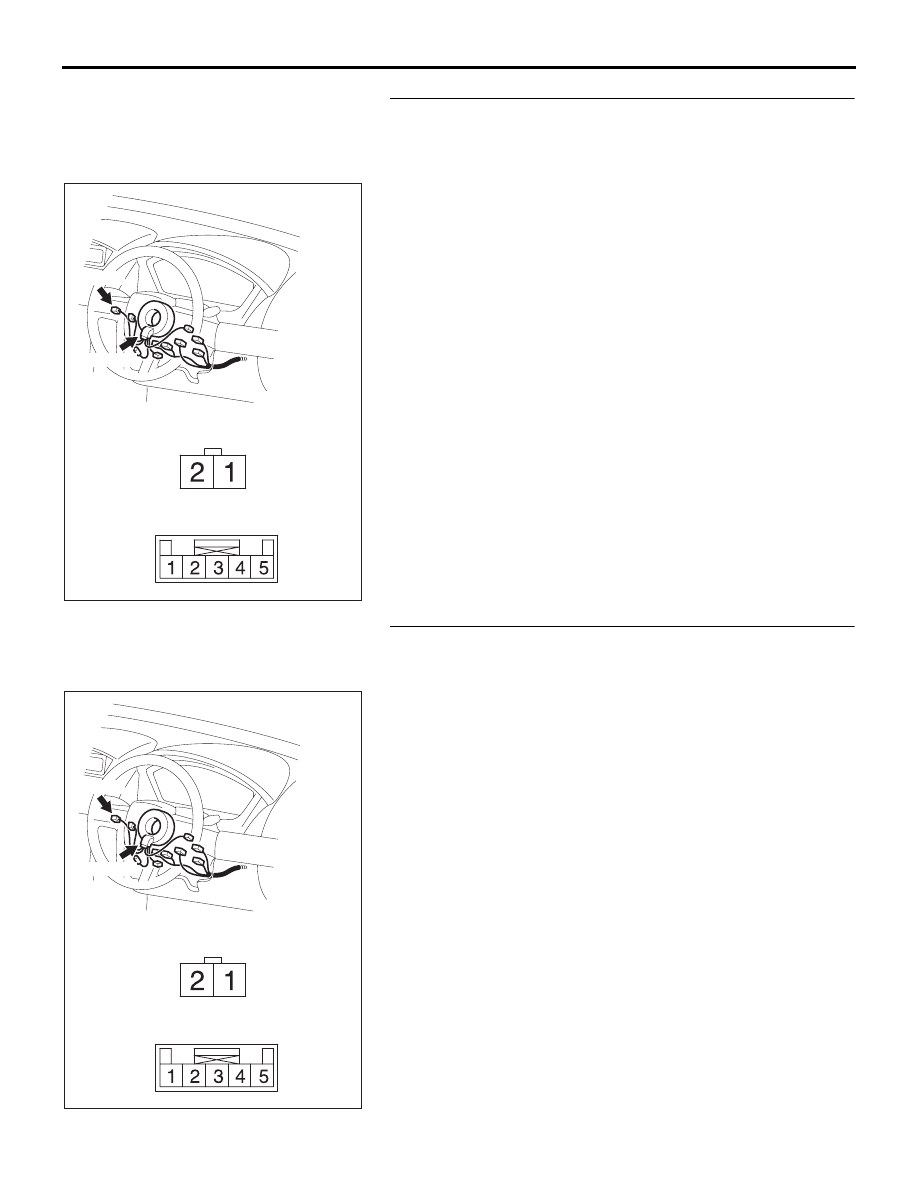

RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

54A-190

STEP 9. Check the clock spring connector C-303 and
remote controlled radio switch (RH) connector C-301 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are clock spring connector C-303 and remote controlled

radio switch (RH) connector C-301 in good condition?
YES : Go to step 10.
NO :  Repair or replace the component(s). Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. The

remote controlled radio switch should work normally.

STEP 10. Check the wiring harness between clock spring
connector C-303 (terminals 4 and 5) and remote controlled
radio switch (RH) connector C-301 (terminals 1 and 2).
Q: Is the wiring harness between clock spring connector

C-303 (terminals 4 and 5) and remote controlled radio
switch (RH) connector C-301 (terminals 1 and 2) in good
condition?
YES : Go to Step 11.
NO :  Repair the wiring harness. The remote controlled

radio switch should work normally.

16DB534A

CONNECTORS: C-301, C-303

C-301 (B)

C-303 (GR)

C-301

C-303

HARNESS SIDE

16DB534A

CONNECTORS: C-301, C-303

C-301 (B)

C-303 (GR)

C-301

C-303

HARNESS SIDE

RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

54A-191

STEP 11. Measure the resistance at remote controlled
radio switch (RH).
(1) Remove the airbag module assembly (Refer to GROUP

52B, Air Bag Module(s) and Clock Spring

P.52B-237

).

(2) Measure the resistance by operating the remote controlled

radio switch (RH) in each position.

Q: Are the resistance at the right remote controlled radio

switch normal?
YES : Replace the radio, CD player and CD changer.
NO :  Replace the remote controlled radio switch (RH).

INSPECTION PROCEDURE 3: The system does not recognize the remote controlled radio switch (RH)
only.

.

CIRCUIT OPERATION

Refer to Inspection Procedure 2

P.54A-183

.

.

TECHNICAL DESCRIPTION (COMMENT)

Refer to Inspection Procedure 2

P.54A-183

.

.

TROUBLESHOOTING HINTS

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80

Refer to Inspection Procedure 2

P.54A-183

.

DIAGNOSIS

Required Special Tool:

• MB991223: Harness set

STEP 1. Measure the resistance at remote controlled radio
switch (RH).
(1) Remove the airbag module assembly (Refer to GROUP

52B, Air Bag Module(s) and Clock Spring

P.52B-237

).

(2) Measure the resistance by operating the remote controlled

radio switch (RH) in each position.

Q: Are the resistance at the right remote controlled radio

switch normal?
YES : Go to Step 2.
NO :  Replace the remote controlled radio switch (RH).

SWITCH POSITION

MEASUREMENT VALUE

No push

Approximately 24.0 k

Ω

Upper

Approximately 6.8 k

Ω

Center

Less than 2 ohms

Lower

Approximately 15.0 k

Ω

AC211680AB

SWITCH POSITION

MEASUREMENT VALUE

No push

Approximately 24.0 k

Ω

Upper

Approximately 6.8 k

Ω

Center

Less than 2 ohms

Lower

Approximately 15.0 k

Ω

AC211691AB

RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

54A-192

STEP 2. Check the remote controlled radio switch (RH)
connector C-301 and clock spring connector C-303 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is remote controlled radio switch (RH) connector C-301

and clock spring connector C-303 in good condition?
YES : Go to Step 3.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. The remote controlled

radio switch (RH) should work normally.

STEP 3. Check the wiring harness between remote
controlled radio switch (RH) connector C-301 (terminals1
and 2) and clock spring connector C-303 (terminals 4 and
5).
Q: Are the wiring harness between remote controlled radio

switch (RH) connector C-301 (terminals 1 and 2) and
clock spring connector C-303 (terminals 4 and 5) in
good condition?
YES : The procedure is complete.
NO :  Repair the wiring harness. The remote controlled

radio switch (RH) should work normally.

16DB534A

CONNECTORS: C-301, C-303

C-301 (B)

C-303 (GR)

C-301

C-303

HARNESS SIDE

16DB534A

CONNECTORS: C-301, C-303

C-301 (B)

C-303 (GR)

C-301

C-303

HARNESS SIDE

RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

54A-193

INSPECTION PROCEDURE 4: The system does not recognize the remote controlled radio switch (LH)
only.

.

CIRCUIT OPERATION

Refer to Inspection Procedure 2

P.54A-183

.

.

TECHNICAL DESCRIPTION (COMMENT)

Refer to Inspection Procedure 2

P.54A-183

.

.

TROUBLESHOOTING HINTS

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80

Refer to Inspection Procedure 2

P.54A-183

.

DIAGNOSIS

Required Special Tool:

• MB991223: Harness set

STEP 1. Measure the resistance at remote controlled radio
switch (LH).
(1) Remove the airbag module assembly (Refer to GROUP

52B, Air Bag Module(s) and Clock Spring

P.52B-237

).

(2) Measure the resistance by operating the remote controlled

radio switch (LH) in each position.

Q: Is the resistance at the left remote controlled radio

switch normal?
YES : Go to Step 2.
NO :  Replace the remote controlled radio switch (LH).

SWITCH POSITION

MEASUREMENT VALUE

No push

Open circuit

Upper

Approximately 1.2 k

Ω

Center

Approximately 470

Ω

Lower

Approximately 3.3 k

Ω

AC211693AB
