RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

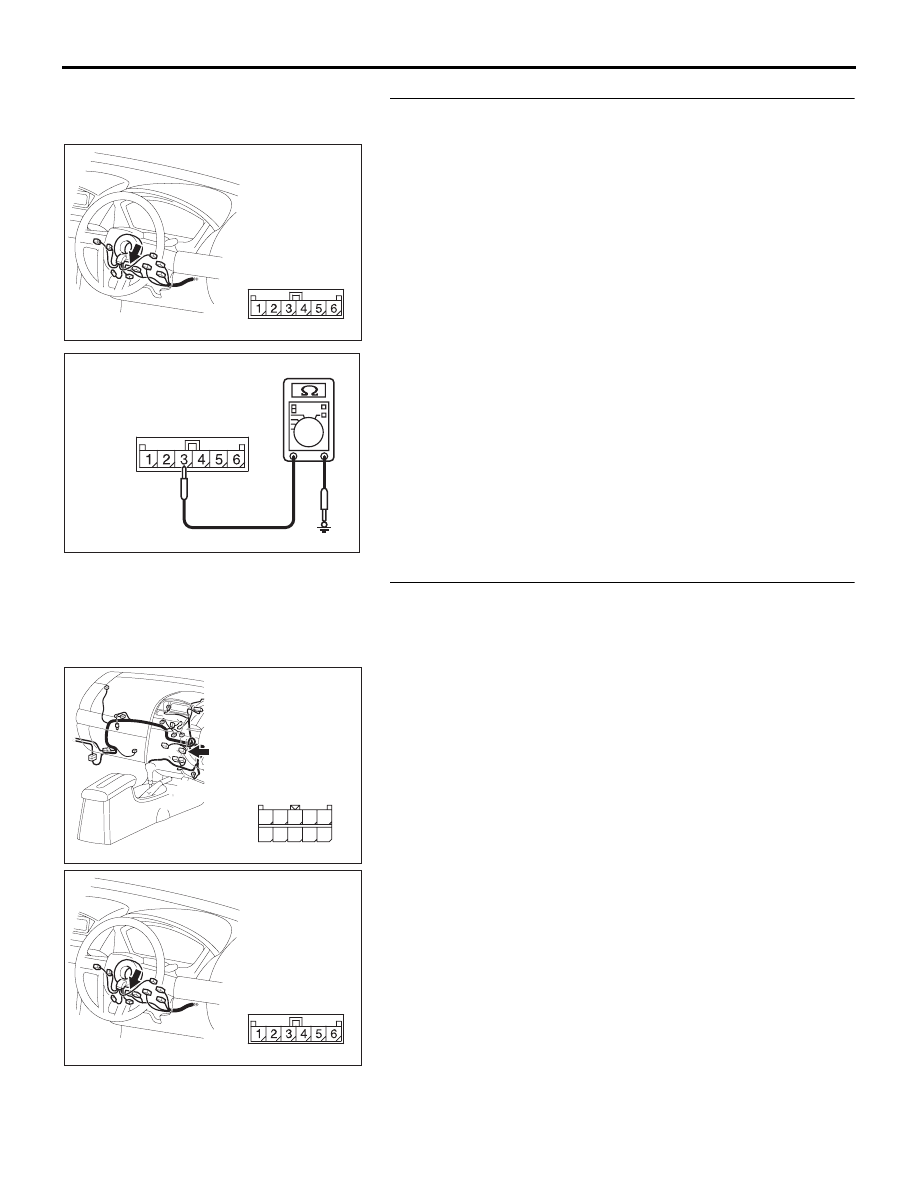

54A-186

STEP 4. Measure the resistance at remote controlled radio
switch ground circuit to the clock spring connector C-306.
(1) Disconnect the clock spring connector C-306.

(2) Measure resistance between terminal 3 and ground.

• The measured value should be 2 ohm or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 7.
NO :  Go to Step 5.

STEP 5. Check radio, CD player and CD changer connector
C-117 and clock spring connector C-306 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Are radio, CD player and CD changer connector C-117

and clock spring connector C-306 in good condition?
YES : Go to Step 6.
NO :  Repair or replace the component(s). Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. The

remote controlled radio switch should work normally.

16DB532A

CONNECTOR: C-306

AC209364

CONNECTOR C-306

JT

16DB530A

HARNESS SIDE

CONNECTOR: C-117

21

22

23

24

25

26

27

28

29

30

16DB532A

CONNECTOR: C-306

RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

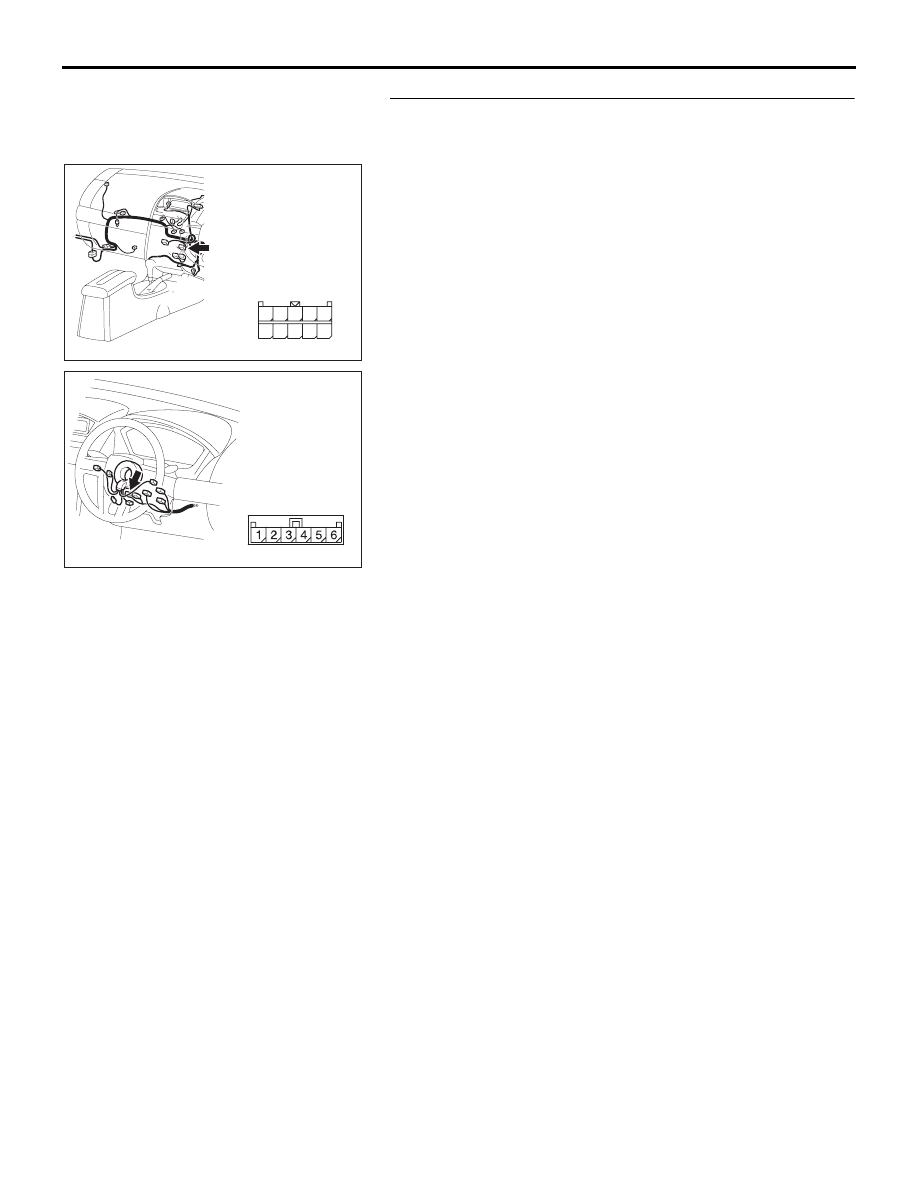

54A-187

STEP 6. Check the wiring harness between radio, CD
player and CD changer connector C-117 (terminal 25) and
clock spring connector C-306 (terminal 3).
Q: Is the wiring harness between radio, CD player and CD

changer connector C-117 (terminal 25) and clock spring
connector C-306 (terminal 3) in good condition?
YES : Go to Step 7.
NO :  Repair the wiring harness. The remote controlled

radio switch should work normally.

16DB530A

HARNESS SIDE

CONNECTOR: C-117

21

22

23

24

25

26

27

28

29

30

16DB532A

CONNECTOR: C-306

RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

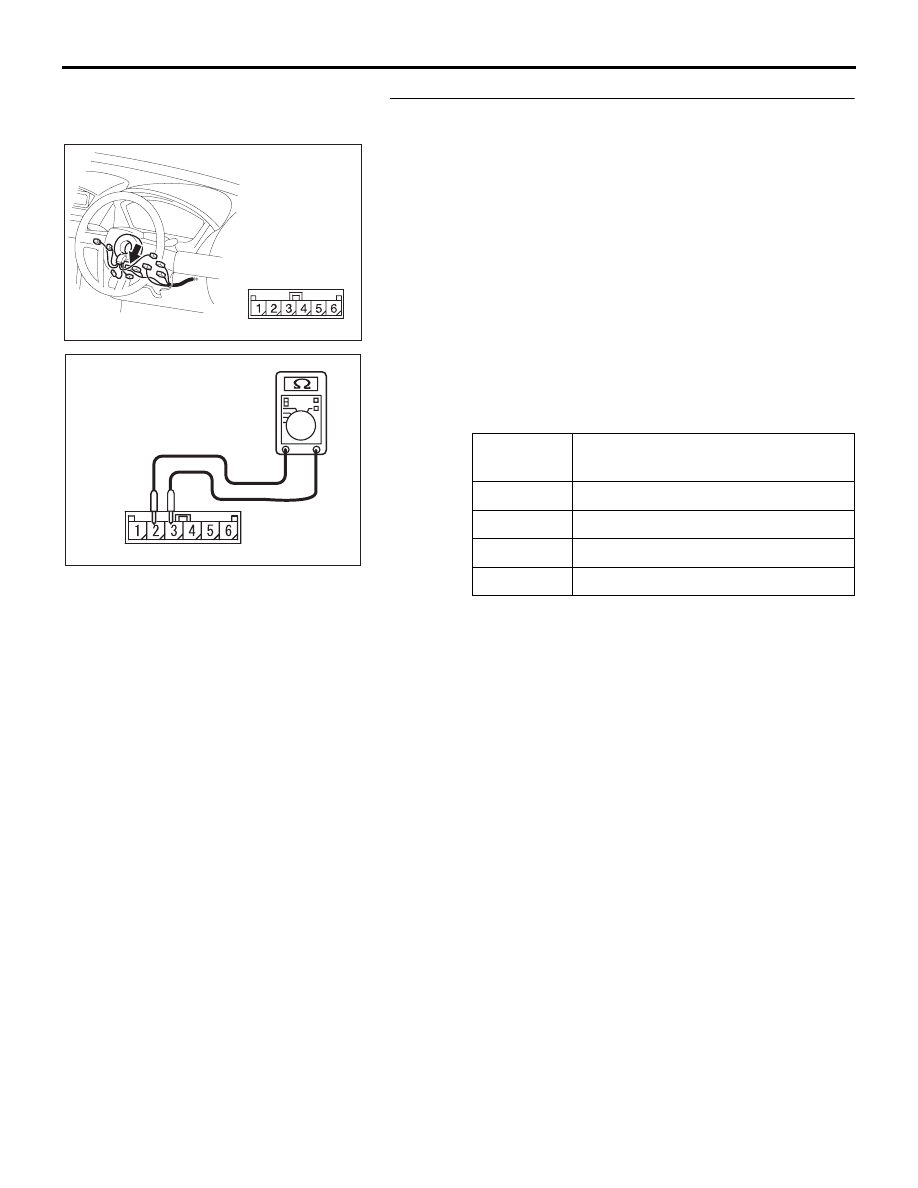

54A-188

STEP 7. Measure the resistance between the clock spring
connector C-306 terminals.
(1) Disconnect the clock spring connector C-306.

(2) Measure the resistance between clock spring connector

C-306 (clock spring side) terminals 2 and 3. Operate the
right and left remote controlled radio switches, and check
that the table below is satisfied.

NOTE: When checking the right remote controlled radio
switch, do not operate the left remote controlled radio
switch.

Q: Is the resistance between terminals 2 and 3 normal?

YES : This malfunction is intermittent. Refer to GROUP 00,

How to Use Troubleshooting/Inspection Service
Points-How to Cope with Intermittent Malfunction

P.00-14

.

NO :  Go to Step 8.

SWITCH
POSITION

MEASUREMENT VALUE (RH SIDE
SWITCH)

No push

Approximately 24.0 k

Ω

Upper

Approximately 5.3 k

Ω

Center

Less than 2 ohms

Lower

Approximately 9.2 k

Ω

16DB532A

CONNECTOR: C-306

AC210080

CONNECTOR C-306

AC

RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

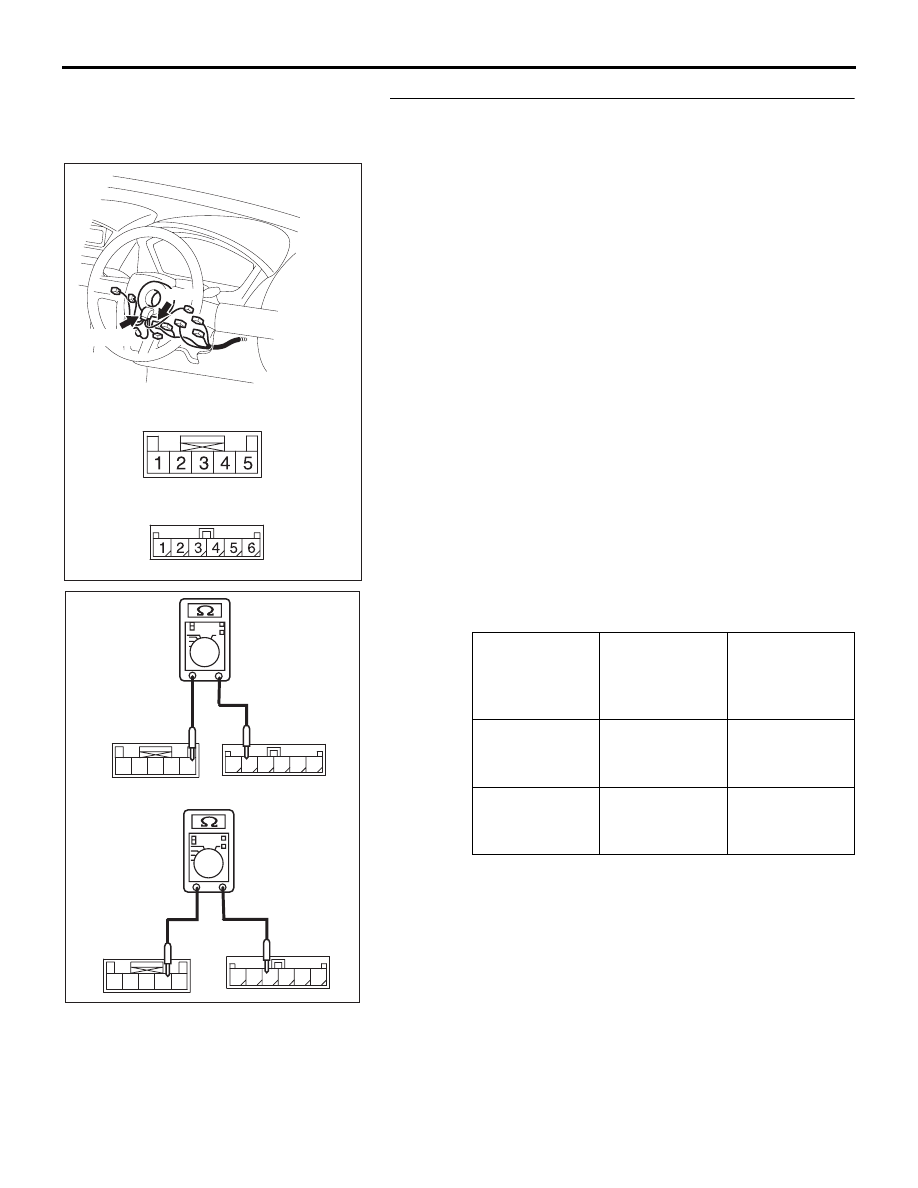

54A-189

STEP 8. Measure the resistance at clock spring terminal.
(1) Remove the clock spring (Refer to GROUP 52B, Air Bag

Module(s) and Clock Spring

P.52B-237

).

(2) Measure the resistance at clock spring connectors C-303

and C-306.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 9.
NO :  Replace the clock spring.

CIRCUIT TO
BE
MEASURED

CONNECTOR
(TERMINAL)
TO BE
CHECKED

SPECIFIED
CONDITION

Power supply
circuit

C-303 (terminal
5)

− C-306

(terminal 2)

Less than 2
ohms

Ground circuit

C-303 (terminal
4)

− C-306

(terminal 3)

less than 2
ohms

16DB533A

CONNECTORS: C-303, C-306

C-306

C-303 (GR)

C-303

C-306

1 2 3

5

4

6

4

1 2 3

5

AC211682

1 2 3

5

4

6

4

1 2 3

5

C-303

C-306

C-303

C-306

AB

POWER SUPPLY
CIRCUIT CHECK

GROUND CIRCUIT
CHECK
