Mitsubishi 380. Manual - part 906





FOG LAMP

CHASSIS ELECTRICAL

54A-158

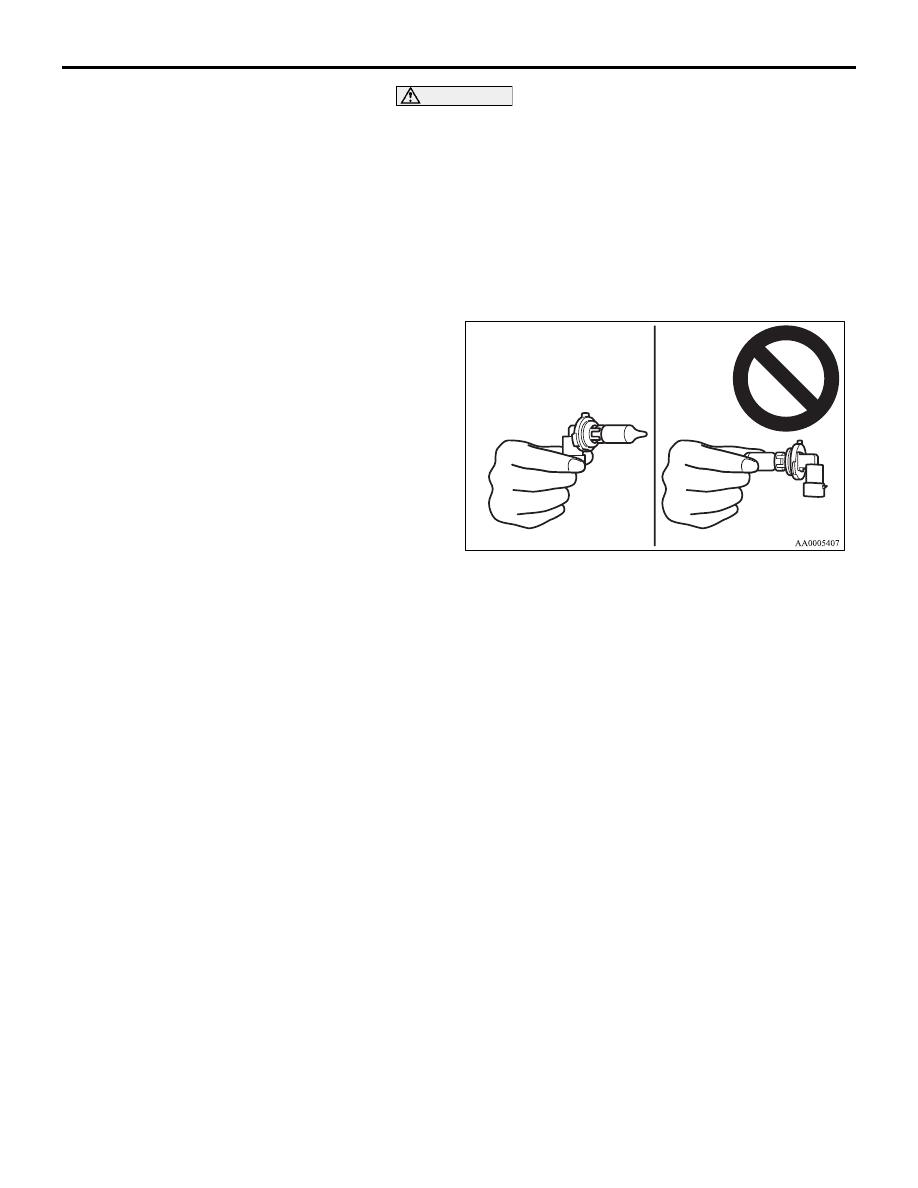

CAUTION

• Handle halogen lamp with care. The gas inside halogen

lamp bulb is highly pressurised, so dropping, knock-
ing, or scratching a halogen lamp bulb can cause it to
shatter.

•  Never hold the halogen lamp bulb with a bare hand,

dirty glove, etc. The oil from your hand  could cause the
bulb to break the next time the headlamps are operated.
If the glass surface is dirty, it must be cleaned with
alcohol, paint thinner, etc., and refit it after drying it
thoroughly.

FOG LAMP

CHASSIS ELECTRICAL

54A-159

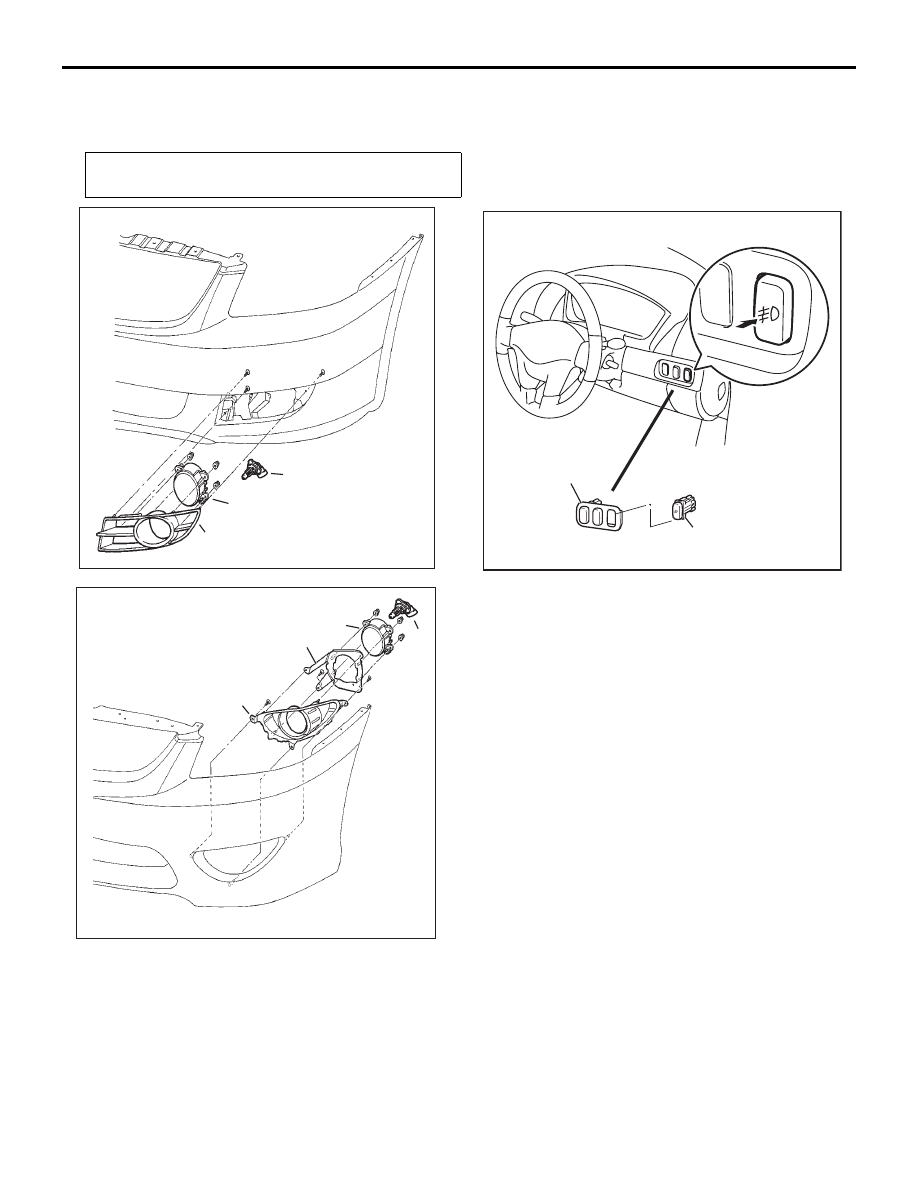

FOG LAMP

REMOVAL AND INSTALLATION

M1542001500492

Post-installation operation
Fog light aiming (Refer to

P.54A-155

).

380 LS,  380LX

16DB580A

1

2

4

380VRX, 380GT

16DB581A

1

2

4

3

FOG LAMP REMOVAL STEPS

FRONT BUMPER UNDER COVER
(REFER TO GROUP 51, FRONT
BUMPER ASSEMBLY

P.51-2

.)

1.

FOG  LAMP ASSEMBLY

2.

BULB

3

FOG LAMP ASSSEMBLY BRACKET

4

FOG LAMP COVER/BEZEL

FOG LAMP SWITCH REMOVAL
STEPS

5.

SWITCH PANEL ASSEMBLY

6.

FOG  LAMP SWITCH

6

5

FOG LAMP
SWITCH

16DB582A

FOG LAMP

CHASSIS ELECTRICAL

54A-160

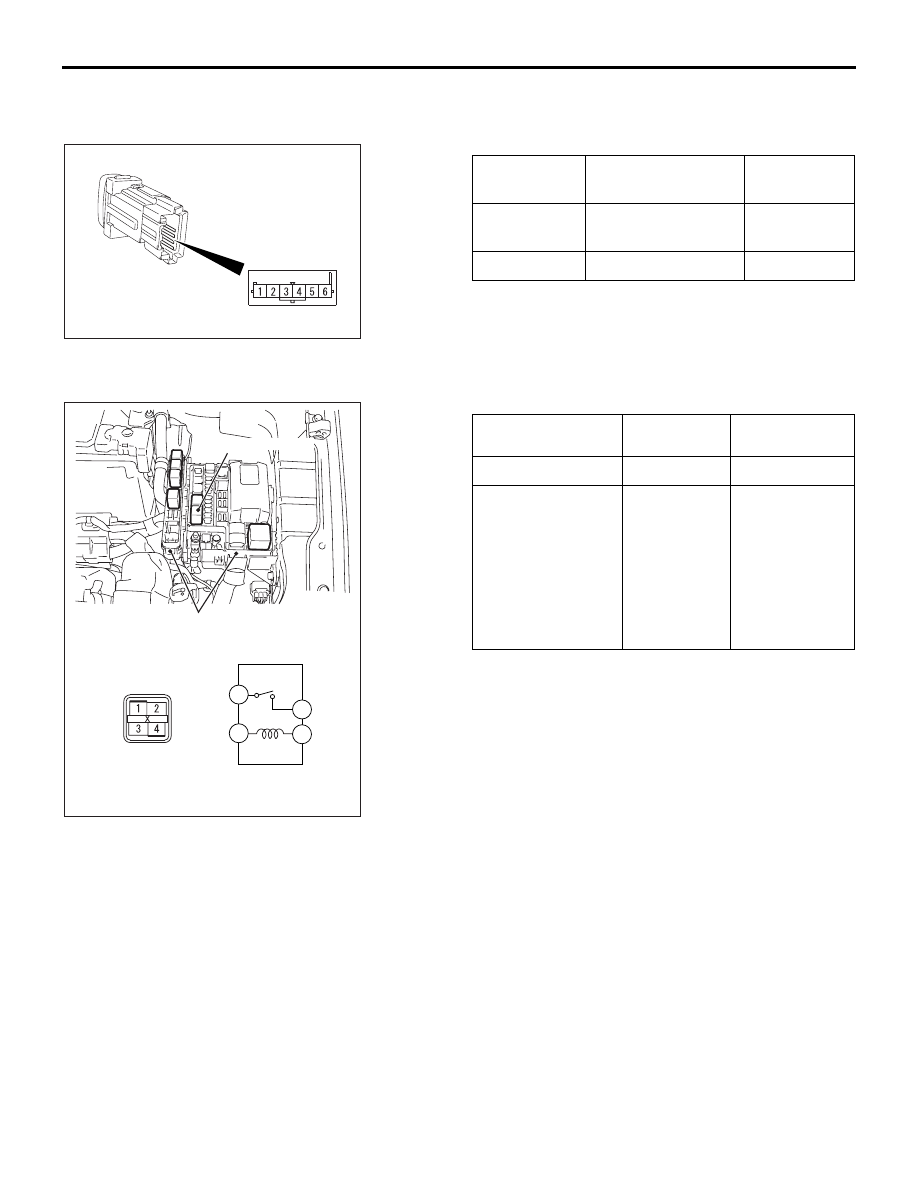

INSPECTION

M1543019502485

FOG LAMP SWITCH CONTINUITY CHECK

FOG LAMP RELAY CHECK

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

Pressed

1-2

Less than 2
ohms

Released

1-2

Open circuit

AC307001AB

BATTERY VOLTAGE

TESTER
CONNECTION

SPECIFIED
CONDITION

Not supplied

1-4

Open circuit

• Connect

terminal 2 to the
positive battery
terminal

• Connect

terminal 3 to the
negative battery
terminal

1-4

Less than 2
ohms

1

4

3

2

AC307687AB

FOG LIGHT RELAY

RELAY BOX

REAR COMBINATION LAMP

CHASSIS ELECTRICAL

54A-161

REAR COMBINATION LAMP

DIAGNOSIS

M1542000701377

The taillights and turn-signal lights are controlled by
the Simplified Wiring System (SWS). For trouble-
shooting, refer to GROUP 54B, SWS Diagnosis

P.54B-57

.

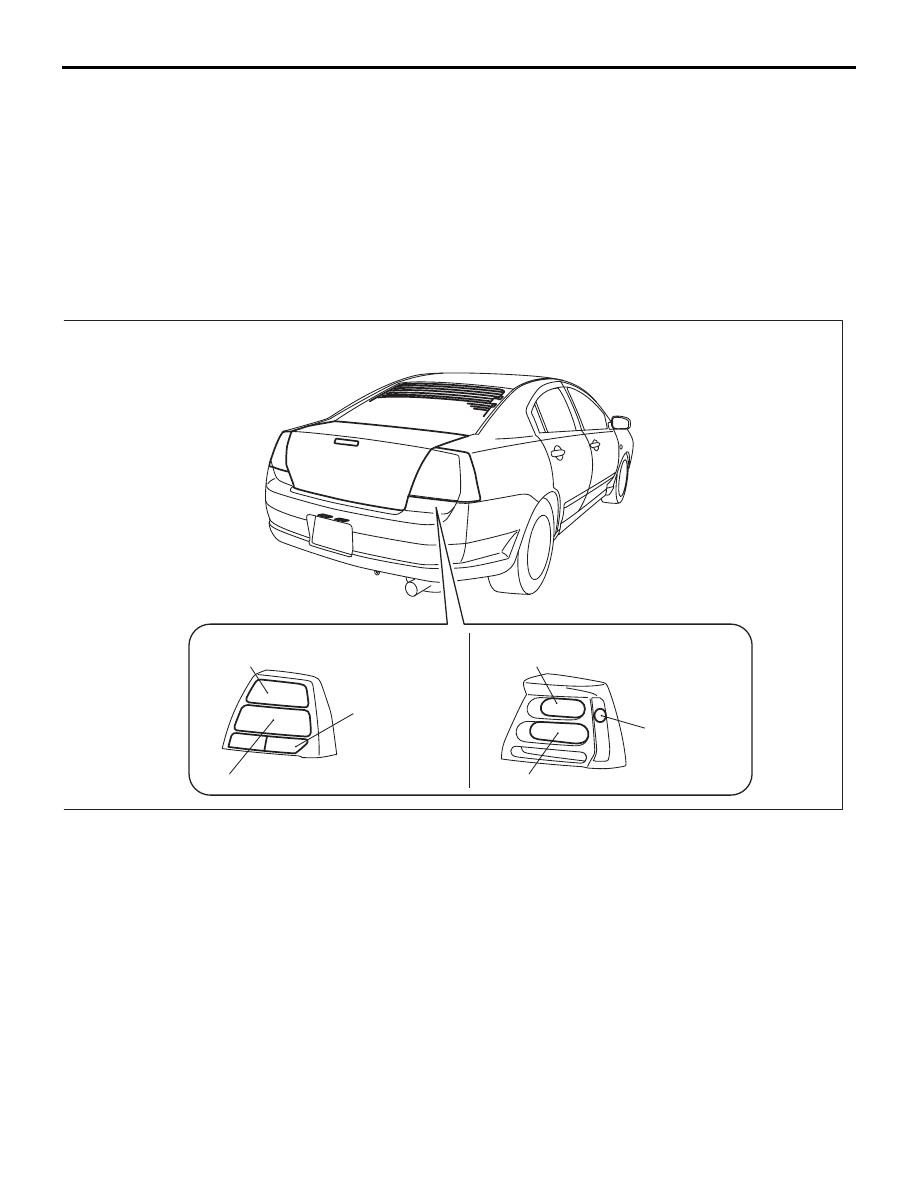

REAR COMBINATION LAMP

REMOVAL AND INSTALLATION

M1542003900463

16DB528A

Stop and tail lamps

Reversing lamps

Reversing lamps

Stop and tail lamps

Except for vehicles with rear spoiler

Vehicles with rear spoiler

Rear turn-signal lamps

Rear turn-signal lamps
