COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-94

CAUTION

To prevent damage to diagnostic tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting diagnostic tool
MB991958.

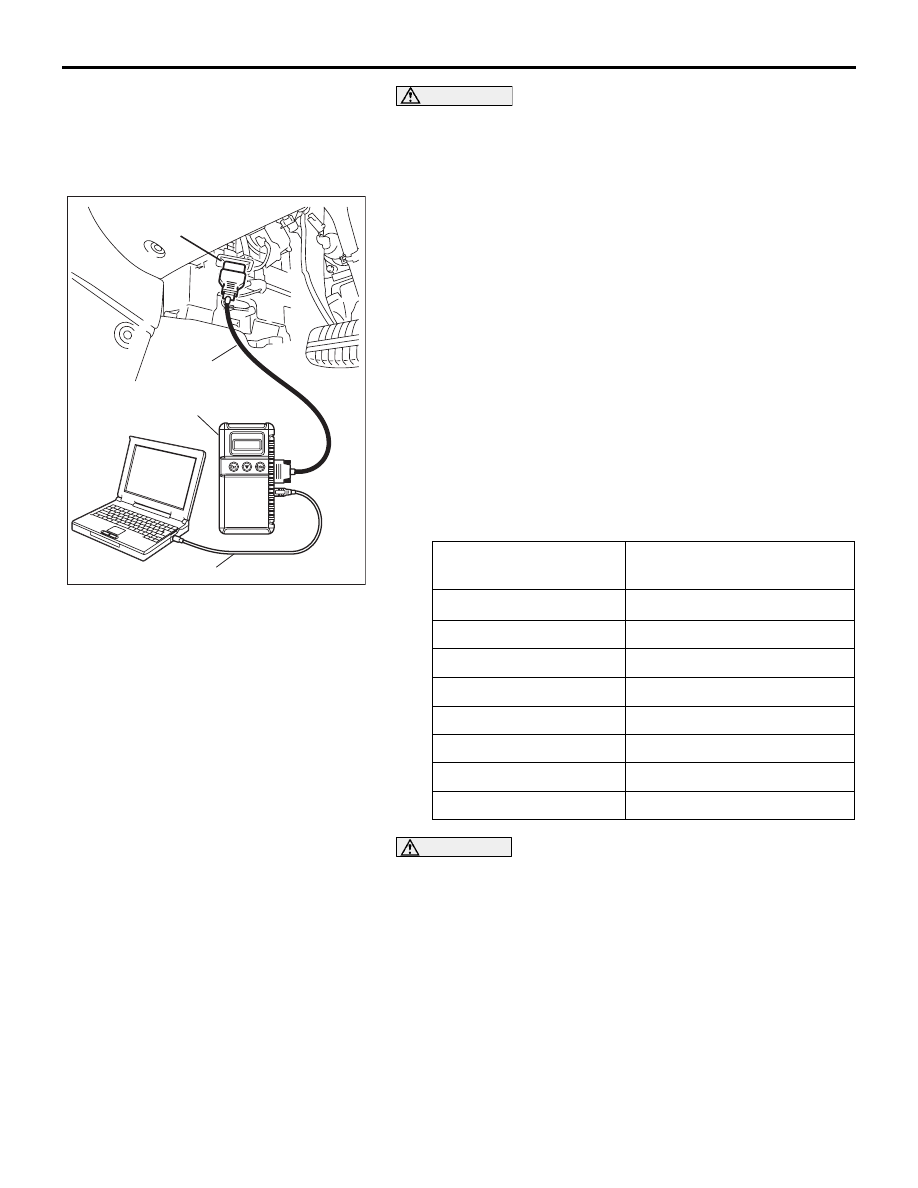

1. Connect diagnostic tool MB991958 to the data link

connector.

2. A/T select lever: "P" position or Manual gearshift in

"NEUTRAL"with handbrake "ON".

3. Turn the ignition switch to "ON" position.

4. Start the engine.

5. Run the engine.

6. Select MPI system data list and take a reading of the engine

speed.

Item 22: CKP SENSOR

7. Compare the engine speed shown in the diagnostic tool with

that shown on the tachometer. The engine speeds shown on
the tachometer should correspond to the table below.

NOTE: The following standard value assumes that battery
voltage is 13.5 volts.

Standard value :

WARNING

The pointer must not move over full-scale. Maximum
full-scale reading shall be 7,600 rpm.

Engine speed (r/min)

Tolerance of tachometer
r/min (room temperature)

0

± 1°

1,000

1,000

± 100

2,000

2,000

± 100

3,000

3,000

± 100

4,000

4,000

± 100

5,000

5,000

± 100

6,000

6,000

± 100

7,600

7,000

± 100

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-95

FUEL LEVEL SENSOR CHECK

M1543001300037

1. Remove the rear seat cusion assembly. (Refer to GROUP

52A, Rear Seat Assembly

P.52A-55

.)

2. Remove hole cover and remove the fuel pump module and

fuel level sensor (sub).

Tightening torque: 1.5

± 0.5 Nm (14 ± 0.5 in-Ib)

FUEL LEVEL SENSOR RESISTANCE

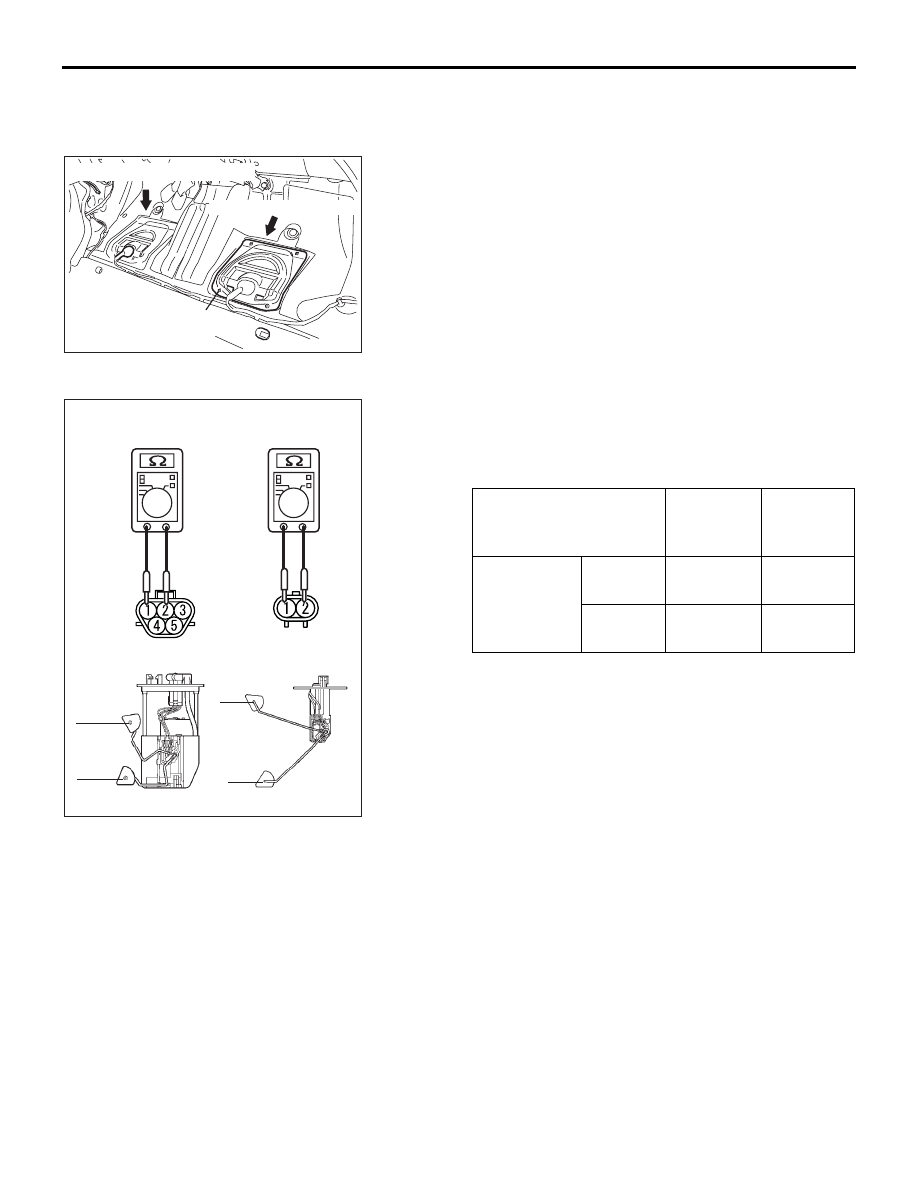

1. Check the resistances between  fuel level sensor main

terminals 1 and 2 as well as sub terminals 1 and 2 of the fuel
pump module, respectively.

Standard value:

2. Check that resistance value changes smoothly when the

float moves slowly between points.

3. If all checks are correct, go to fuel unit height check. If any

check is not correct, replace the fuel pump module or fuel
level sensor (sub).

16DB410A

WIRING COVER

1.5 ± 0.5 N·m
14 ± 4 in-lb

FUEL PUMP MODULE

FUEL LEVEL SENSOR (SUB)

Items

Fuel level
sensor
(main)

fuel level
sensor
(sub)

Resistance

Ω Point "F"

(highest)

6.5

± 1

6.5

± 1

Point "E"
(lowest)

45.1

± 1

74.9

± 1

16DB412A

FUEL LEVEL SENSOR

(MAIN)

FUEL LEVEL SENSOR

(SUB)

F

E

E

F

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-96

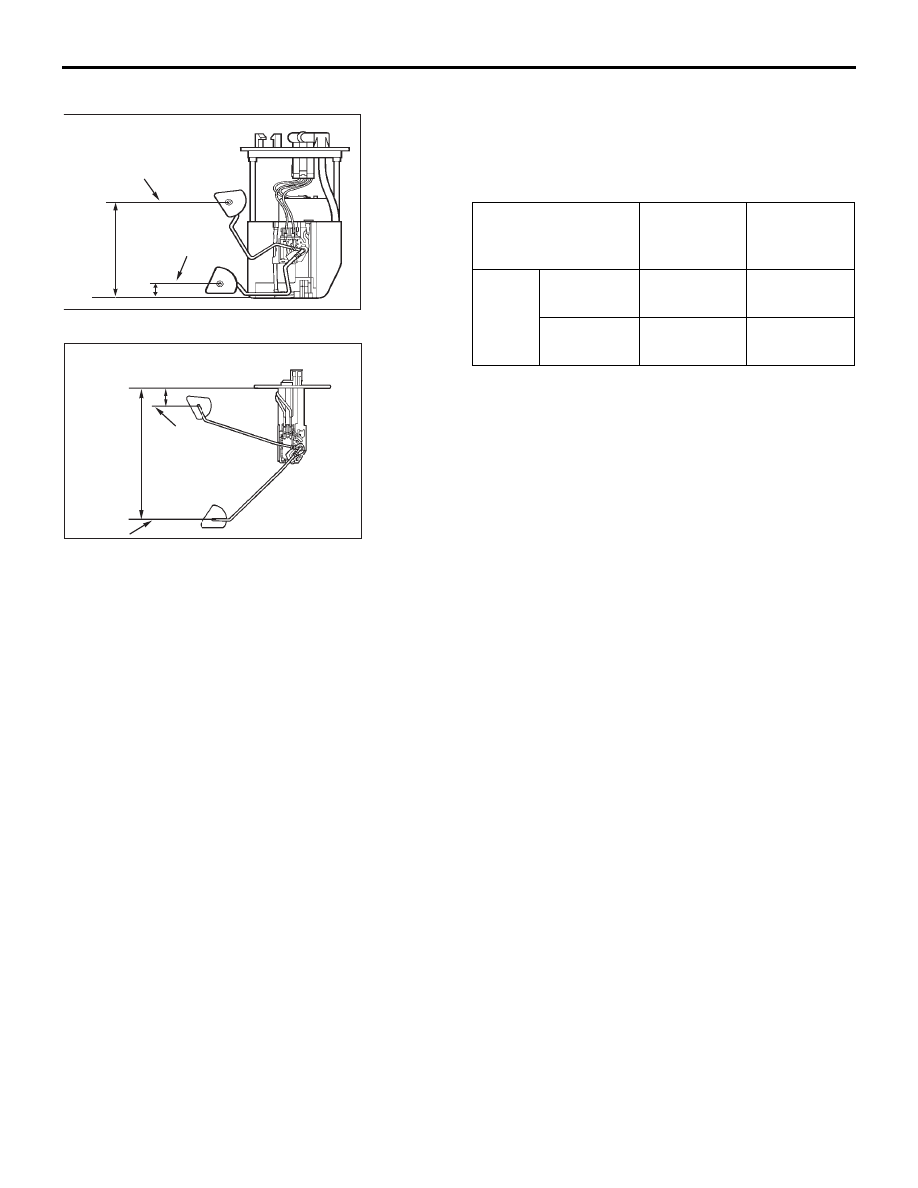

FUEL LEVEL SENSOR FLOAT HEIGHT

1. Move the float and measure height A at point "F" (highest)

and B at point "E" (lowest).

Standard value:

2. If any check is not correct, replace the fuel pump module or

fuel level sensor (sub).

Items

Fuel level
sensor
(main)

Fuel level
sensor (sub)

Height
mm

 A at point
"F"

132.8

± 3.0

24.9

± 3.0

 B at point
"E"

36

± 3.0

172.7

± 3.0

AC207587

16DB413A

FUEL LEVEL SENSOR (MAIN)

POINT "F"

POINT "E"

A

B

16DB414A

A

B

FUEL LEVEL SENSOR (SUB)

POINT "F"

POINT "E"

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-97

TRIP COMPUTER

 GENERAL DESCRIPTION

BABBAIDI

The unit will display vehicle date in the "ON" position.
The unit will scroll through the system showing cur-
rent data and will revert to the previously selected
mode.
Some of the combination meter indications are
based on information from ECUs via CAN bus com-
munication. If there is any failure in the meters con-
nected via the CAN bus communication, diagnose
the CAN bus communication system. The following
instruments, indicator lights and warning lights in the
combination meter are controlled by ECUs via CAN
bus communication.

The meter combination does not include a buzzer,
but it sends a request to sound buzzer on ETACS via
the CAN system.

ITEM

Instruments, indicator lamps, and warning lamps

ECU sending data via
CAN communication

Meter

Tachometer

Engine ECU and Auto
Transmission ECU

Speedometer

Engine coolant temperature gauge

Odometer

Trip Computer

Indicator
lamp

High-beam

ETACS-ECU

Turn-signal

Front fog

Door ajar

A/T shift position

 A/T-ECU

Auto cruise

Engine-ECU

TCL

ABS/TCL-ECU <vehicles
without ASC>

TCL OFF

TCL/ASC

TCL/ASC-ECU <vehicles
with ASC>

TCL OFF

Warning
lamp

Check Engine warning lamp

Engine ECU

ABS

ABS-ECU

SRS

SRS-ECU
