GENERAL DESCRIPTION

POWER PLANT MOUNT

32-2

GENERAL DESCRIPTION

M1321000100373

• The engine front mounting bracket is a

dome-shaped fluid-filled mount for improved
responsiveness during acceleration and more
stable vehicle performance against road distur-
bances.

• The liquid-filled transaxle mounting body side

bracket improves riding comfort by its refined
insulator.

• A roll stopper bracket in the upper area limits

engine rolling. Furthermore, large diameter insu-
lator reduces idle vibration.

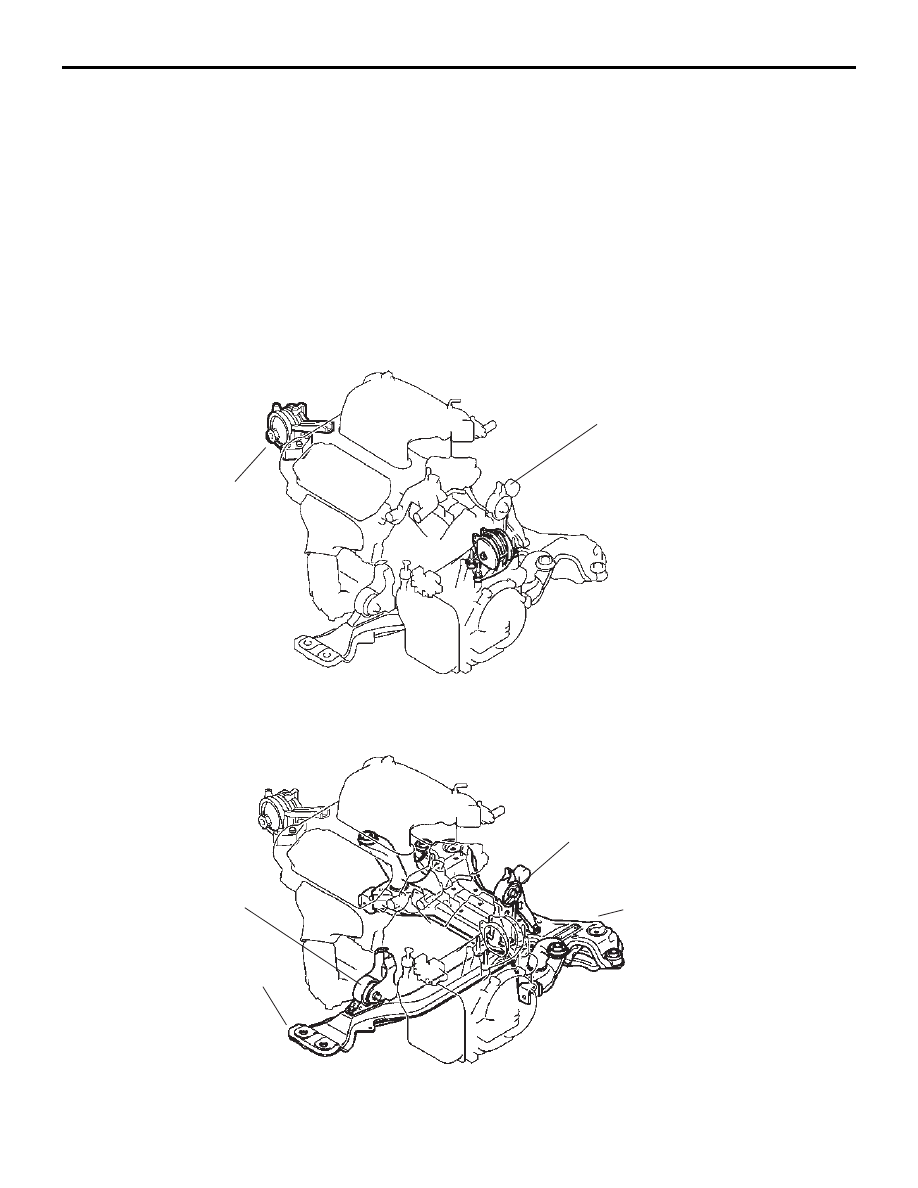

CONSTRUCTION DIAGRAM

ENGINE FRONT

MOUNTING

BRACKET

TRANSAXLE MOUNTING

BODY SIDE BRACKET

ENGINE FRONT

ROLL STOPPER

BRACKET

CENTERMEMBER

ENGINE REAR

ROLL STOPPER

BRACKET

FRONT AXLE NO.1

CROSSMEMBER

21DB021A

SPECIAL TOOL

POWER PLANT MOUNT

32-3

SPECIAL TOOL

M1321000600390

TOOL

TOOL NUMBER
AND NAME

SUPERSESSION

APPLICATION

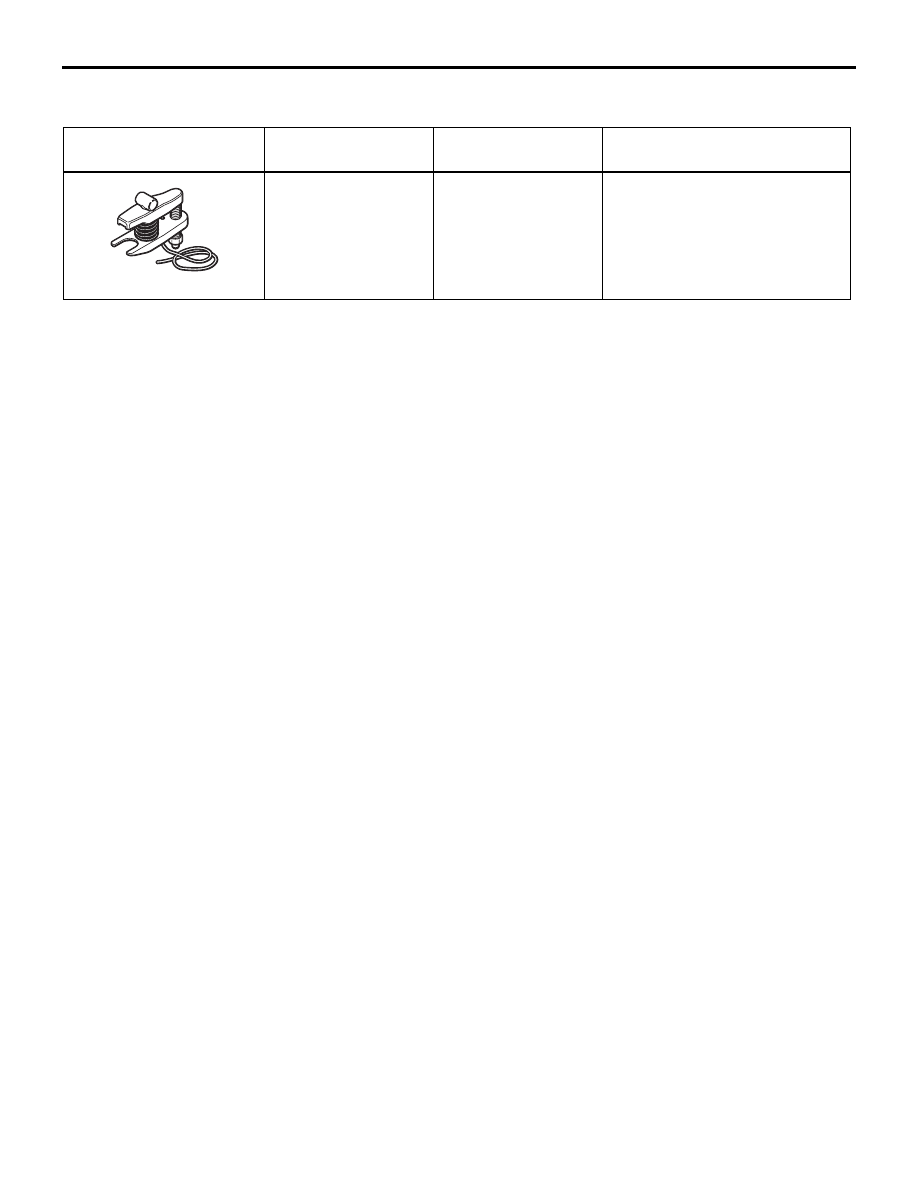

MB991897
Ball joint remover

MB991113-01,
MB990635-01 or
General service tool

Knuckle and tie rod end ball joint
disconnection

NOTE: Steering linkage puller
(MB990635 or MB991113)is also
used to disconnect the knuckle
and tie rod end ball joint.

AC106827

ENGINE MOUNTING

POWER PLANT MOUNT

32-4

ENGINE MOUNTING

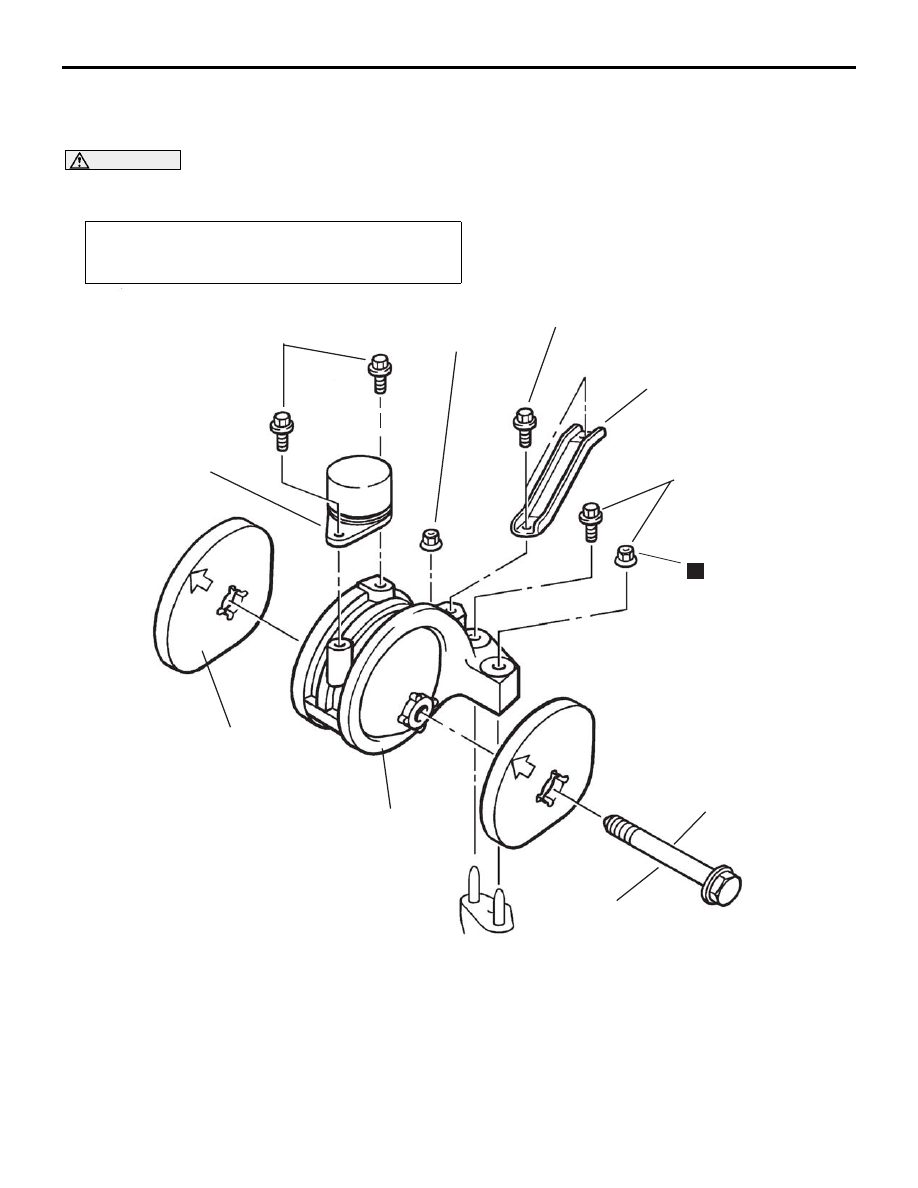

REMOVAL AND INSTALLATION

M1321001100462

CAUTION

*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle
horizontally and loading the full weight of the engine on the vehicle body.

Pre-removal Operation
Raise the engine and transaxle assembly until its weight is
not applied to the insulator, and support it securely.

21DB014A

2

3

108 ± 10 N·m*

80 ± 9 ft-lb*

N

36 ± 6 N·m

27 ± 4 ft-lb

108 ± 10 N·m*

80 ± 9 ft-lb*

4

5

6

7

5 ± 1 N·m

3 ± 0.5 ft-lb

108 ± 10 N·m*

80 ± 9 ft-lb*

REMOVAL STEPS

2.

ENGINE MOUNTING STAY

3.

MOUNTING BOLT

4.

SELF LOCKING NUTS

5.

ENGINE MOUNT BRACKET

6.

ENGINE MOUNT STOPPER

7.

DYNAMIC DAMPER

REMOVAL STEPS (Continued)

TRANSAXLE MOUNTING

POWER PLANT MOUNT

32-5

TRANSAXLE MOUNTING

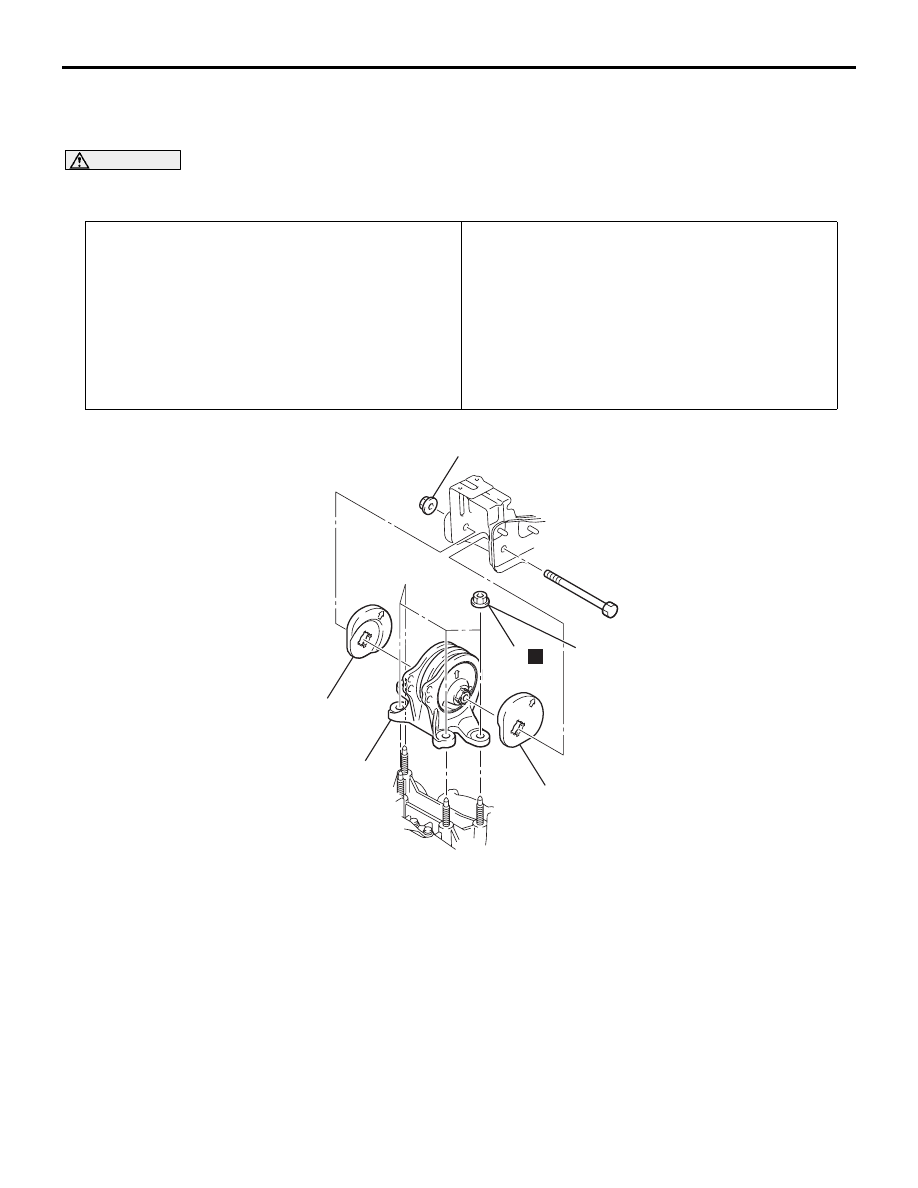

REMOVAL AND INSTALLATION

M1321001400452

CAUTION

*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle
horizontally and loading the full weight of the engine on the vehicle body.

Pre-removal Operation
• Engine Control Unit (ECU) , Refer to GROUP 13B,

Engine Control Unit (ECU)

13A-675

).

• Air Cleaner Removal (Refer to GROUP 15, Air Cleaner

P.15-4

).

• Battery and Battery Tray Removal

• Centremember Removal (Refer to

P.32-7

).

• Engine Rear Roll Stopper Bracket Removal (Refer to

P.32-7

).

• Raise the engine and transaxle assembly until its weight

is not applied to the insulator, and support it securely.

Post-installation Operation
• Engine Rear Roll Stopper Bracket Installation (Refer to

P.32-7

).

• Centremember Installation (Refer to

P.32-7

).

• Battery and Battery Tray Installation
• Air Cleaner Installation (Refer to GROUP 15, Air Cleaner

P.15-4

).

• Engine Control Unit (ECU) Installation, Refer to GROUP

13B, Engine Control Unit (ECU)

13A-675

).

21DB022A

1

2

3

83 ± 12 N·m*

61 ± 9 ft-lb*

83 ± 12N·m*

61 ± 5  ft-lb*

N

3

REMOVAL STEPS

1.

SELF-LOCKING NUTS

2.

TRANSAXLE MOUNTING BODY
SIDE BRACKET

>>A<<

3.

TRANSAXLE MOUNTING
STOPPER

REMOVAL STEPS (Continued)
