IGNITION SYSTEM

ENGINE ELECTRICAL

16-34

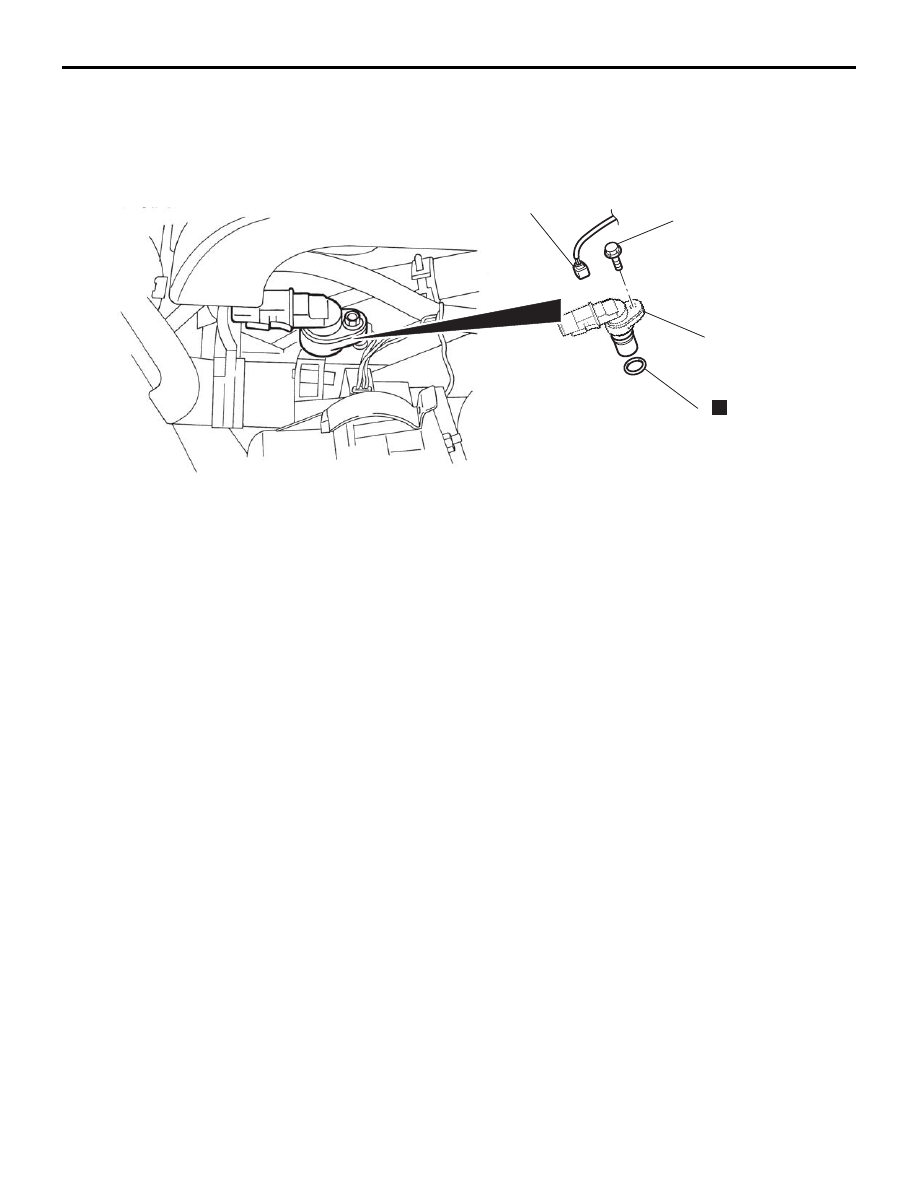

CAMSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION

M1163003400476

06DB032A

11 ± 1 N·m

98 ± 8 in-lb

1

2

3

N

REMOVAL STEPS

1.

CAMSHAFT POSITION SENSOR
CONNECTOR

2.

CAMSHAFT POSITION SENSOR

3.

O-RING

REMOVAL STEPS (Continued)

IGNITION SYSTEM

ENGINE ELECTRICAL

16-35

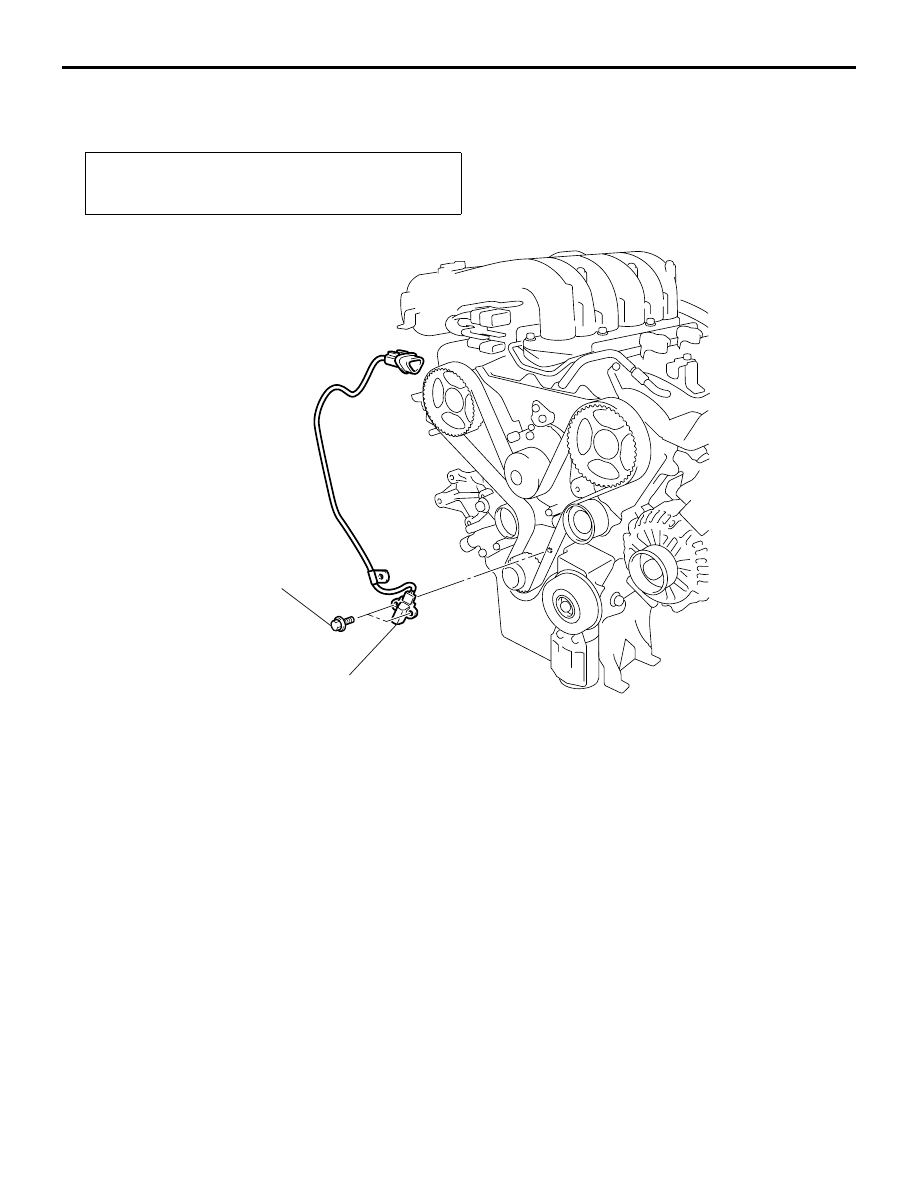

CRANKSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION

M1163003500473

Pre-removal and Post-installation Operation
Timing Belt Lower Cover Removal and Installation (Refer to
GROUP 11C, Timing Belt

11A-46

).

AC306927

CRANKSHAFT POSITION SENSOR

AB

9.0 ± 1.0 N·m
80 ± 9 in-lb

IGNITION SYSTEM

ENGINE ELECTRICAL

16-36

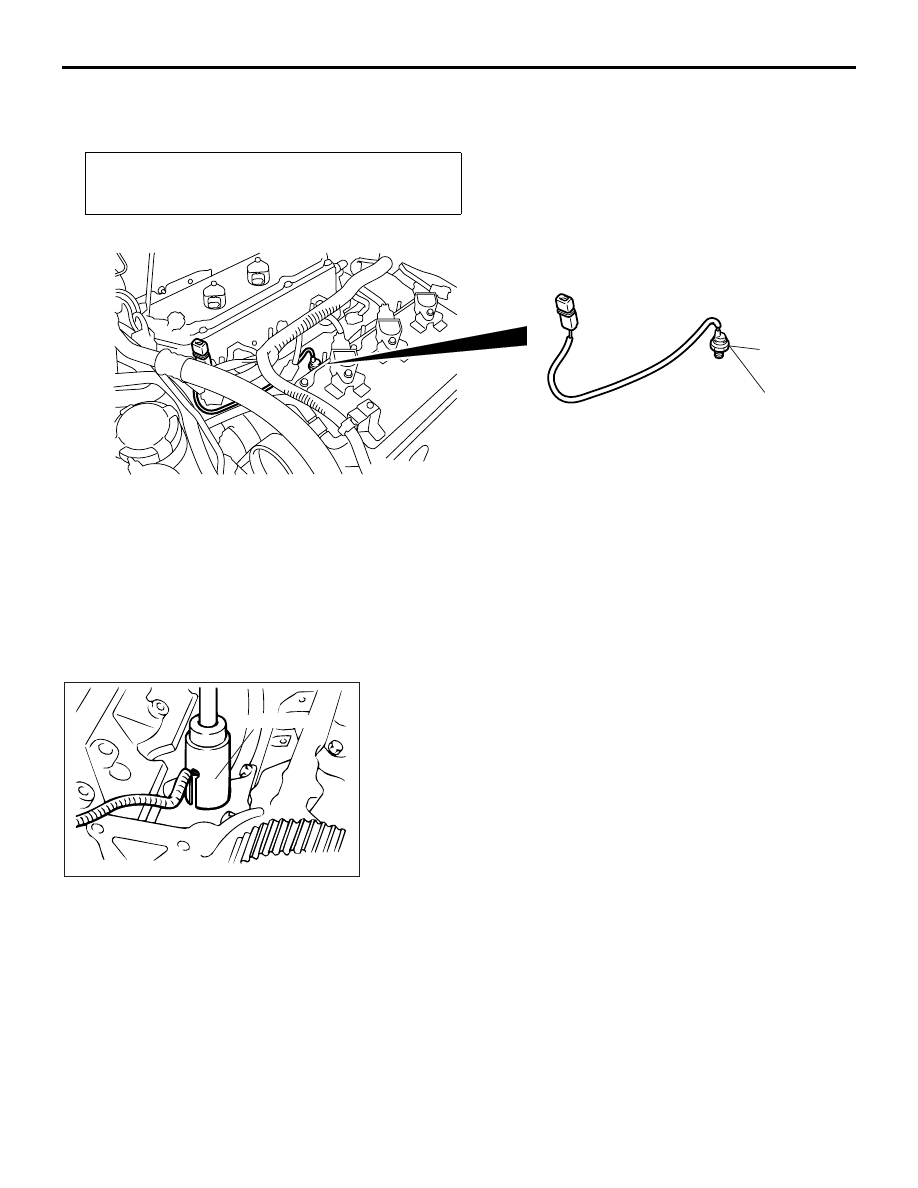

KNOCK SENSOR

REMOVAL AND INSTALLATION

M1163002800589

Required Special Tool:

MD998773: Knock Sensor Wrench

REMOVAL SERVICE POINT

.

<<A>> KNOCK SENSOR REMOVAL

Use special tool MD998773 to remove the knock sensor.

Pre-removal and Post-installation Operation
Intake Manifold Removal and Installation (Refer to GROUP
15, Intake Manifold

P.15-7

).

AC307548

23 ± 2 N·m
17 ± 1 ft-lb

AB

1

REMOVAL

<<A>>

>>A<<

1.

KNOCK SENSOR

ACX02082AB

MD998773

IGNITION SYSTEM

ENGINE ELECTRICAL

16-37

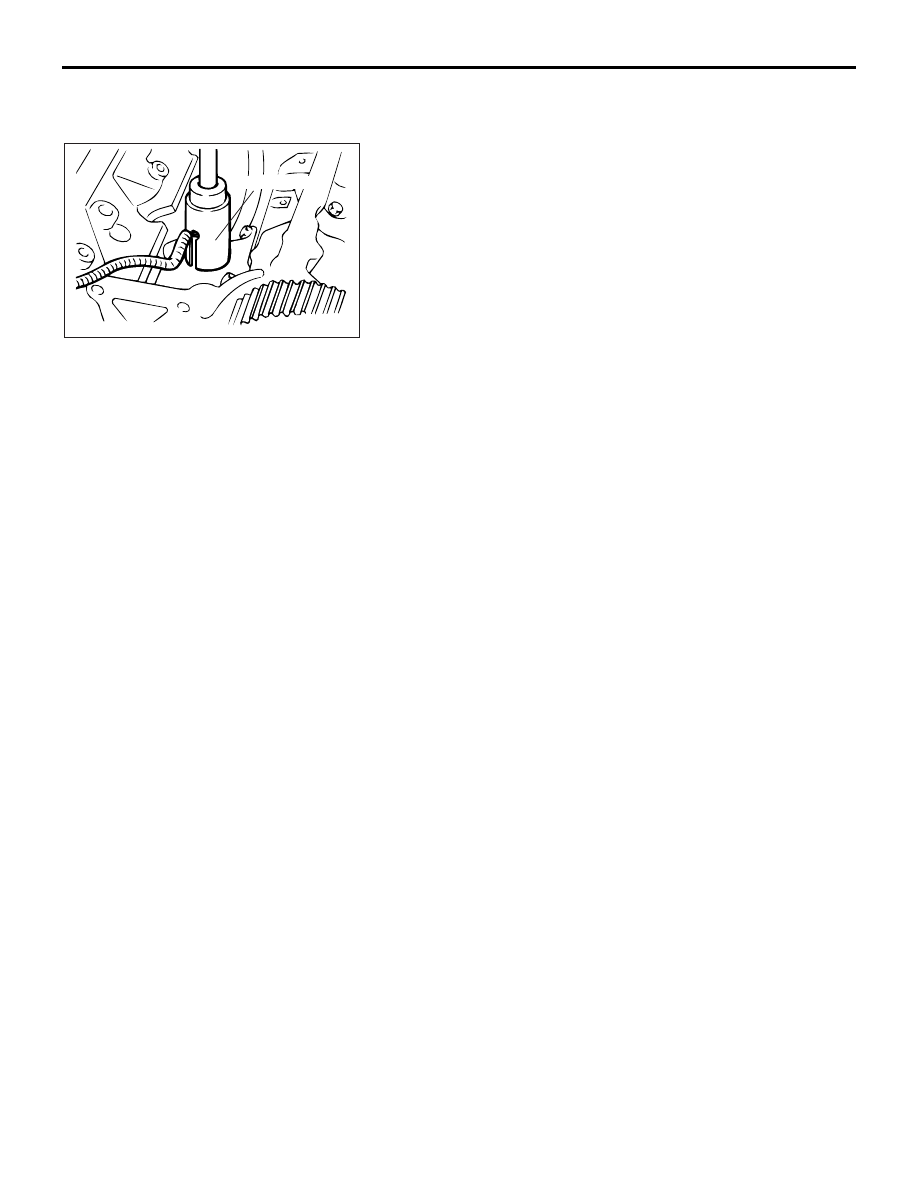

INSTALLATION SERVICE POINT

.

>>A<< KNOCK SENSOR INSTALLATION

Use special tool MD998773 to install the knock sensor.

ACX02082AB

MD998773
