CHARGING SYSTEM

ENGINE ELECTRICAL

16-6

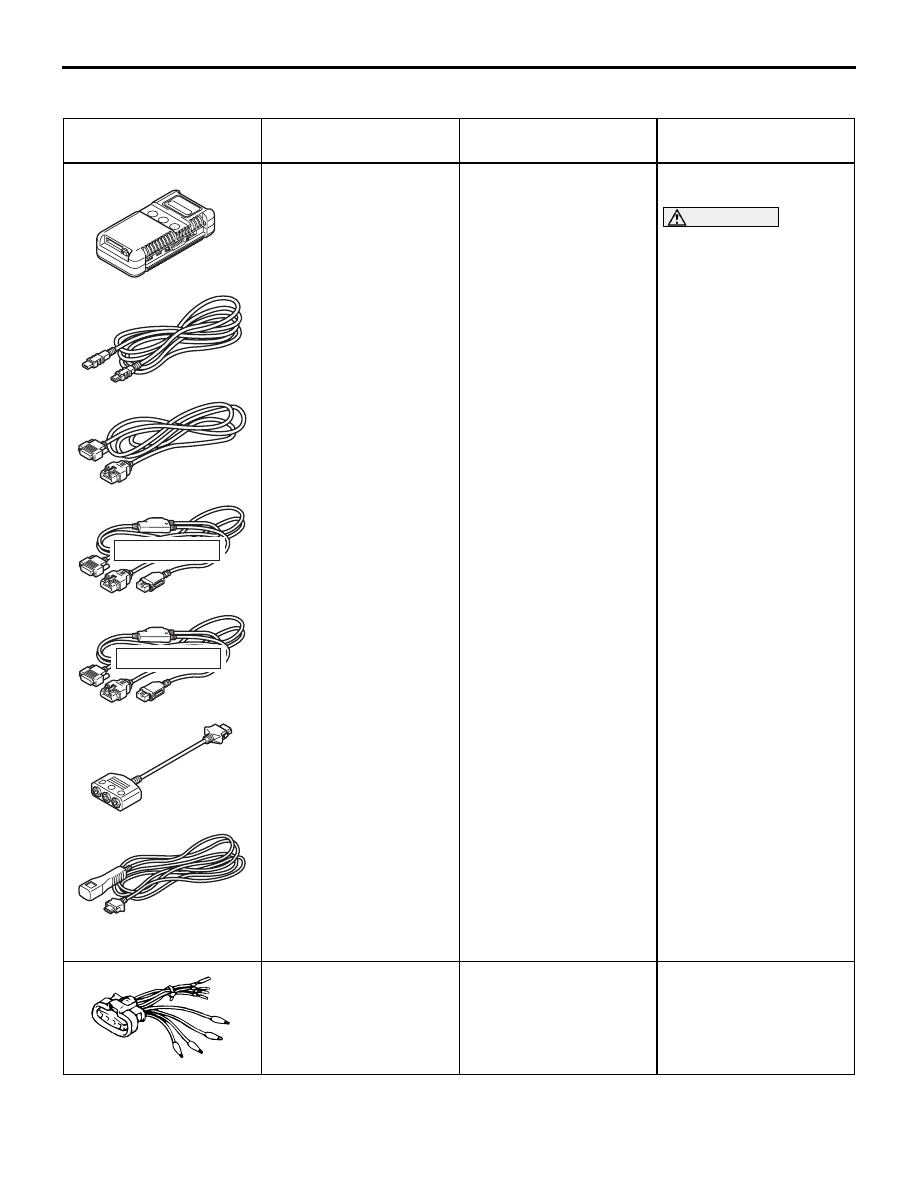

SPECIAL TOOL

M1161000600486

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

Diagnostic tool (MUT-III)

A: MB991824

Vehicle
communication
interface (V.C.I.)

B: MB991827

MUT-III USB cable

C: MB991910

MUT-III main harness
A (Vehicles with CAN
communication
system)

D: MB991911

MUT-III main harness
B (Vehicles without
CAN communication
system)

E: MB991914

MUT-III main harness
C (for Daimler Chrysler
models only)

F: MB991825

MUT-III measurement
adapter

G: MB991826

MUT-III trigger
harness

MB991824-KIT

NOTE: G: MB991826
MUT-III Trigger Harness
is not necessary when
pushing V.C.I. ENTER
key.

Checking of engine
speed

CAUTION

For vehicles with CAN
communication, use
MUT-III main harness A
to send simulated
vehicle speed. If you
connect MUT-III main
harness B instead, the
CAN communication
does not function
correctly.

MB998467
Alternator harness
connector

MIT530
Micrd 530 charging
system tester.

Checking of alternator
("S" terminal voltage)

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

A

B

C

D

E

F

G

DO NOT USE

CHARGING SYSTEM

ENGINE ELECTRICAL

16-7

ON-VEHICLE SERVICE

ALTERNATOR OUTPUT WIRE VOLTAGE DROP TEST

M1161000900669

Required Special Tool:
: Diagnostic Tool (MUT-III)

• MB991824: V.C.I.

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

This test determines whether the wiring from the
alternator "B" terminal to the positive battery terminal
(including the fusible link) is in good condition or not:

WARNING

Battery posts, terminals and related acces-
sories contain lead and lead compounds.
WASH HANDS AFTER HANDLING.

1. Always be sure to check the following before the

test.

• Alternator installation
• Alternator drive belt tension (Refer to GROUP 00,

General

− Maintenance Service − Drive Belts

(For Alternator, Power Steering Pump and Air
Conditioning) (Check)

P.00-39

.)

• Fusible link

• Abnormal noise from the alternator while the

engine is running.

2. Turn the ignition switch to the "LOCK" (OFF)

position.

3. Disconnect the negative battery cable.

4. Connect a clamp-type DC test ammeter with a

range of 0

− 100 A to the alternator "B" terminal

output wire.

NOTE: The way of disconnecting the alternator
output wire and of connecting the ammeter is pos-
sibly not found the problem that the output current
is dropping due to the insufficient connection
between terminal "B" and the output wire.

5. Connect a digital-type voltmeter between the

alternator "B" terminal and the positive battery
terminal. (Connect the positive lead of the
voltmeter to the "B" terminal, and then connect the
negative lead of the voltmeter to the positive
battery cable.)

6. Reconnect the negative battery cable.

7. Connect an engine tachometer or diagnostic tool.

8. Leave the hood open.

9. Start the engine.

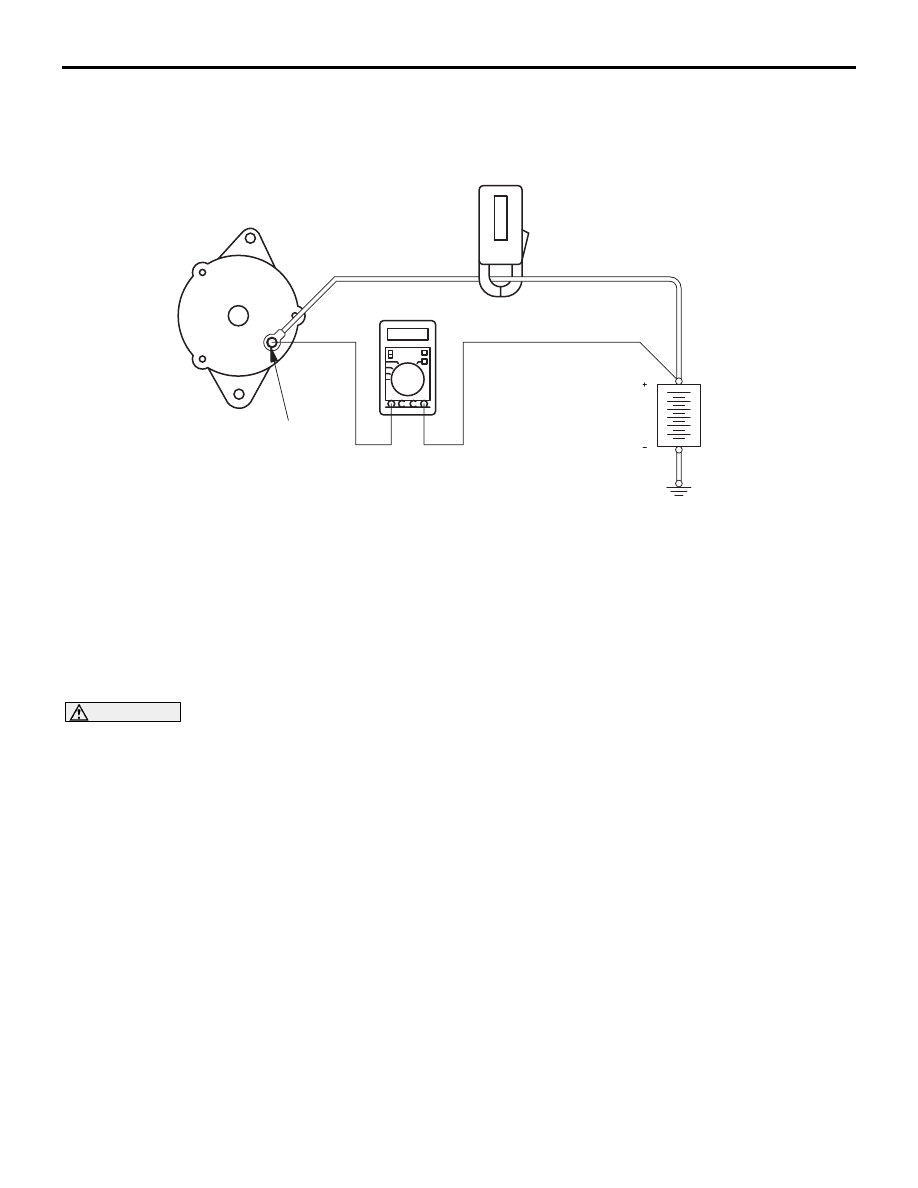

06DB027A

ALTERNATOR

AMMETER

(CLAMP-TYPE)

VOLTMETER

(DIGITAL-TYPE)

"B" TERMINAL

BATTERY

CHARGING SYSTEM

ENGINE ELECTRICAL

16-8

10.With the engine running at 2,500 r/min, turn the

headlights and other lights on and off to adjust the
alternator load so that the value displayed on the
ammeter is slightly above 30 A.

Read the voltmeter. Voltage reading at or below
limit value means voltage drop between alternator
and battery is OK.

Limit value: maximum 0.3 V

NOTE: When the alternator output is high and the
value displayed on the ammeter does not
decrease to 30 A, set the value to 40 A. Read the
value displayed on the voltmeter at this time.
In this case the limit value becomes maximum 0.4
V.
Adjust the engine speed by gradually decreasing
it until the value displayed on the ammeter is 30
A. Take a reading of the value displayed on the
voltmeter at this time.

11.If the value displayed on the voltmeter is above

the limit value, there is probably a malfunction in
the alternator output wire. Check the wiring
between the alternator "B" terminal and the
positive battery terminal (including fusible link).

If a terminal is not sufficiently tight or if the
harness has become discolored due to
overheating, repair and then test again.

12.After the test, run the engine at idle.

13.Turn off all lights and turn the ignition switch to the

"LOCK" (OFF) position.

14.Disconnect the engine tachometer or diagnostic

tool.

15.Disconnect the negative battery cable.

16.Disconnect the ammeter and voltmeter.

17.Connect the negative battery cable.

18.Run the engine for 10 minutes at an idle.

OUTPUT CURRENT TEST

M1161001000670

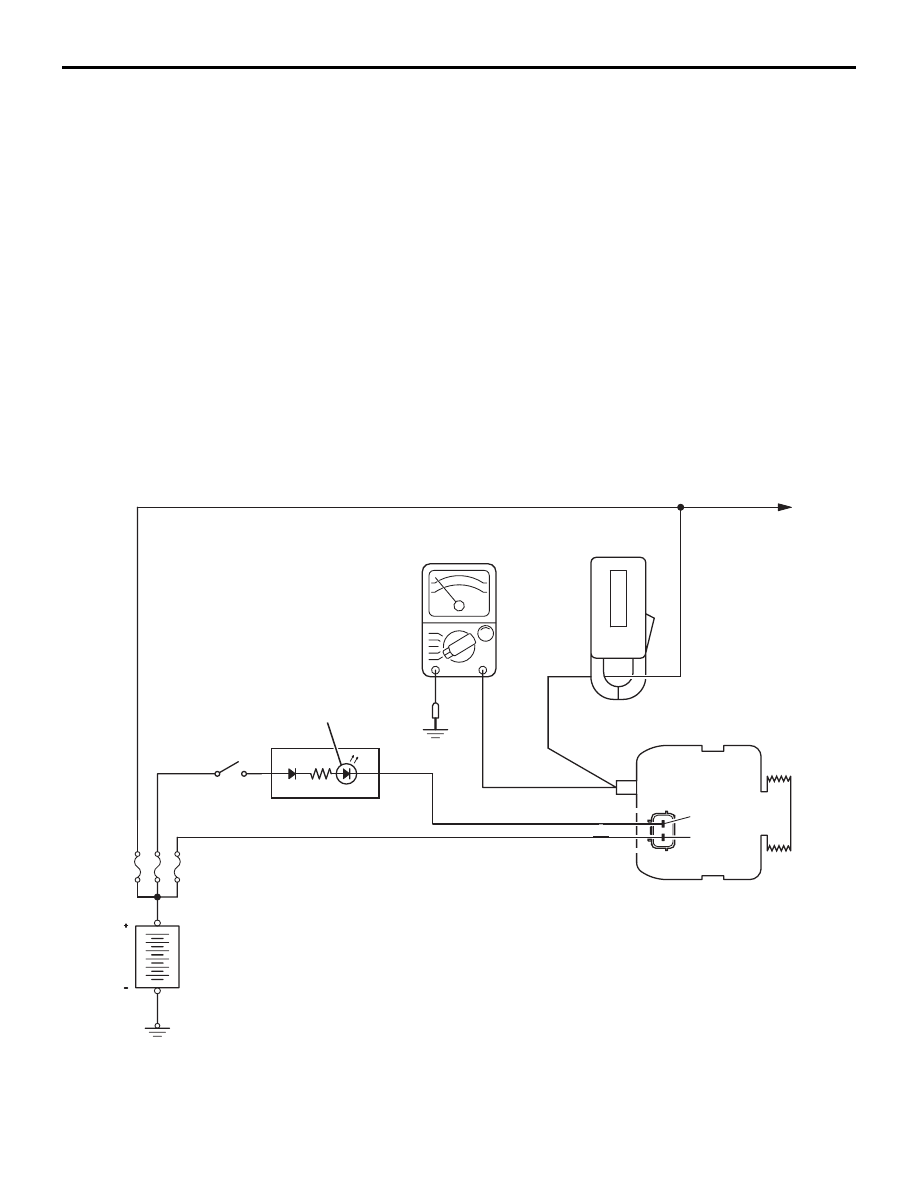

06DB026A

ALTERNATOR

AMMETER

(CLAMP-TYPE)

VOLTMETER

IGNITION

SWITCH

LOAD

B

L

S

ALTERNATOR

MALFUNCTION

LIGHT

COMBINATION METER

BATTERY

+

–

CHARGING SYSTEM

ENGINE ELECTRICAL

16-9

Required Special Tool:
: Diagnostic Tool (MUT-III)

• MB991824: V.C.I.

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

This test determines whether the alternator outputs
normal current. For best results, use a charging sys-
tem tester. If not available, follow the steps below.

WARNING

Battery posts, terminals and related acces-
sories contain lead and lead compounds.
WASH HANDS AFTER HANDLING.

1. Before the test, always be sure to check the

following.

• Alternator installation

• Battery (Refer to GROUP 54A, Chassis Electrical

− Battery − On-vehicle Service − Battery Check

P.54A-5

.)

NOTE: The battery to be used should be slightly
discharged. The load in a fully-charged battery
will be insufficient and the test may not be able to
be carried out correctly.

• Alternator drive belt tension (Refer to GROUP 00,

General

− Maintenance Service − Drive Belts

(For Alternator, Power Steering Pump and Air
Conditioning) (Check)

P.00-39

.)

• Fusible link

• Abnormal noise from the alternator while the

engine is running.

2. Turn the ignition switch to the "LOCK" (OFF)

position.

3. Disconnect the negative battery cable.

WARNING

Never use clips to connect the wire. Loose
connections (for example, using clips) will
lead to a serious accident because of high
current.

4. Connect a clamp-type DC test ammeter with a

range of 0

− 120 A to the alternator "B" terminal

output wire.

5. Connect a voltmeter with a range of 0

− 20 V

between the alternator "B" terminal and ground.
(Connect the positive lead of the voltmeter to the
"B" terminal, and then connect the negative lead
of the voltmeter to ground.)

6. Connect the negative battery cable.

7. Connect an engine tachometer or diagnostic tool.

8. Leave the hood open.

9. Check to be sure that the reading on the voltmeter

is equal to the battery positive voltage.

NOTE: If the voltage is 0 V, the cause is probably
an open circuit in the wire or fusible link between
the alternator "B" terminal and the battery positive
terminal or malfunctioning voltmeter.

10.After turning on the headlights, start the engine.

NOTE: Because the current from the battery will
soon drop after the engine is started, step 11
should be carried out as quickly as possible in
order to obtain the maximum current output value.

11.Immediately after setting the headlights to high

beam and turning the heater blower switch to the
highest position, increase the engine speed to
2,500 r/min and read the maximum current output
value displayed on the ammeter.

Limit value: 70 % of nominal current output

NOTE: For the nominal current output, refer to the
Alternator Specifications.

NOTE: The current output value will depend on
the electrical load and the temperature of the
alternator body.

NOTE: If the electrical load is small while testing,
the specified level of current may not be output
even though the alternator is normal. In such
cases, increase the electrical load by leaving the
headlights turned on for some time to discharge
the battery or by using the lighting system in
another vehicle, and then test again.

NOTE: The specified level of current also may not
be output if the temperature of the alternator body
or the ambient temperature is too high. In such
cases, cool the alternator and then test again.

12.The reading on the ammeter should be above the

limit value. If the reading is below the limit value
and the alternator output wire is normal, remove
the alternator from the engine and check the
alternator.

13.Run the engine at idle speed after the test.

14.Turn the ignition switch to the "LOCK" (OFF)

position.

15.Disconnect the engine tachometer or diagnostic

tool.

16.Disconnect the negative battery cable.

17.Disconnect the ammeter and voltmeter .

18.Connect the negative battery cable.

19.Run the engine for 10 minutes at an idle.
