SENSORS

HEATER, AIR CONDITIONING AND VENTILATION

55-160

SENSORS

REMOVAL AND INSTALLATION

M1554001900088

Required Special Tools:

•  : Diagnostic Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface

(V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

25DB138A

3

1

2

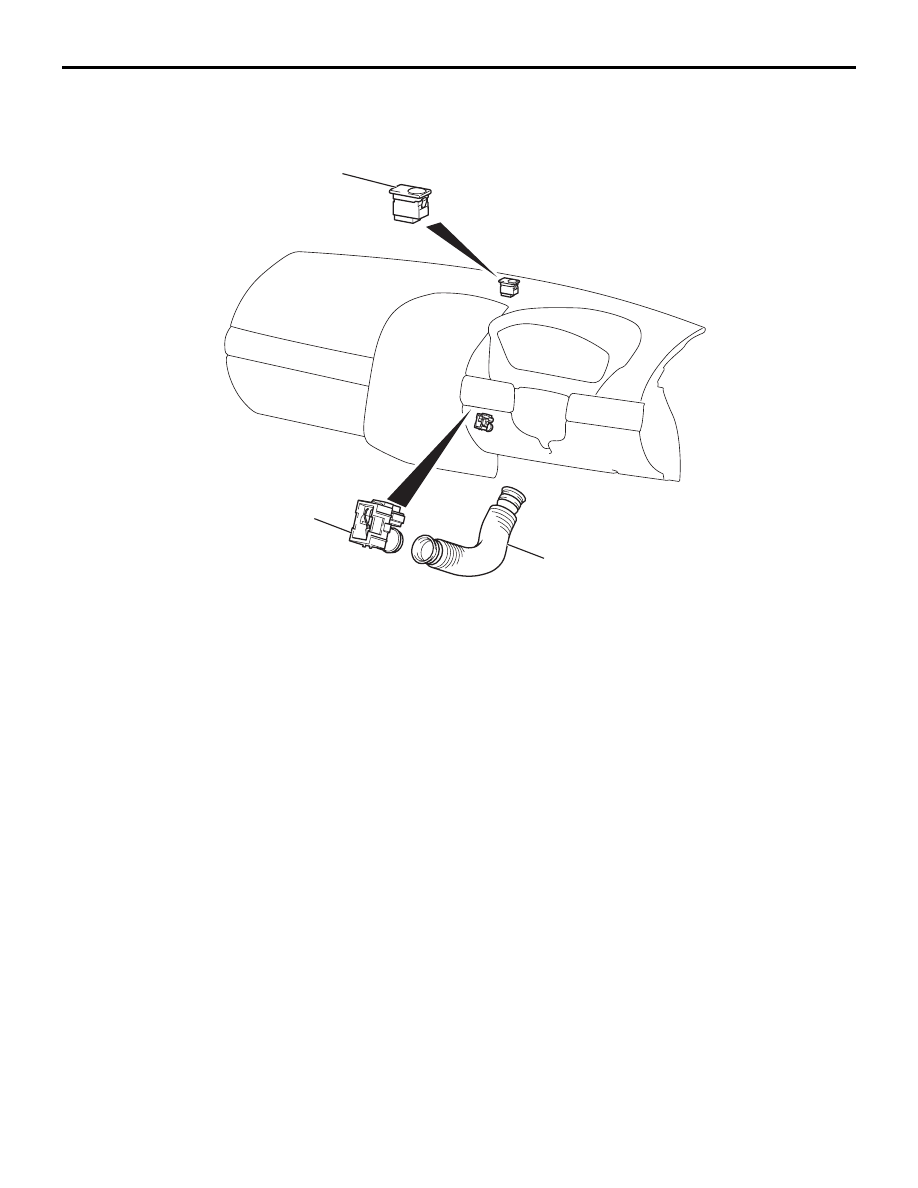

INTERIOR TEMPERATURE
SENSOR REMOVAL STEPS

•

LOWER PANEL (REFER TO
GROUP 52A, INSTRUMENT
PANEL

P.52A-4

).

1.

INTERIOR TEMPERATURE
SENSOR

2.

ASPIRATOR HOSE

PHOTO SENSOR REMOVAL
STEPS

3.

PHOTO SENSOR

SENSORS

HEATER, AIR CONDITIONING AND VENTILATION

55-161

INSPECTION

M1554002000130

.

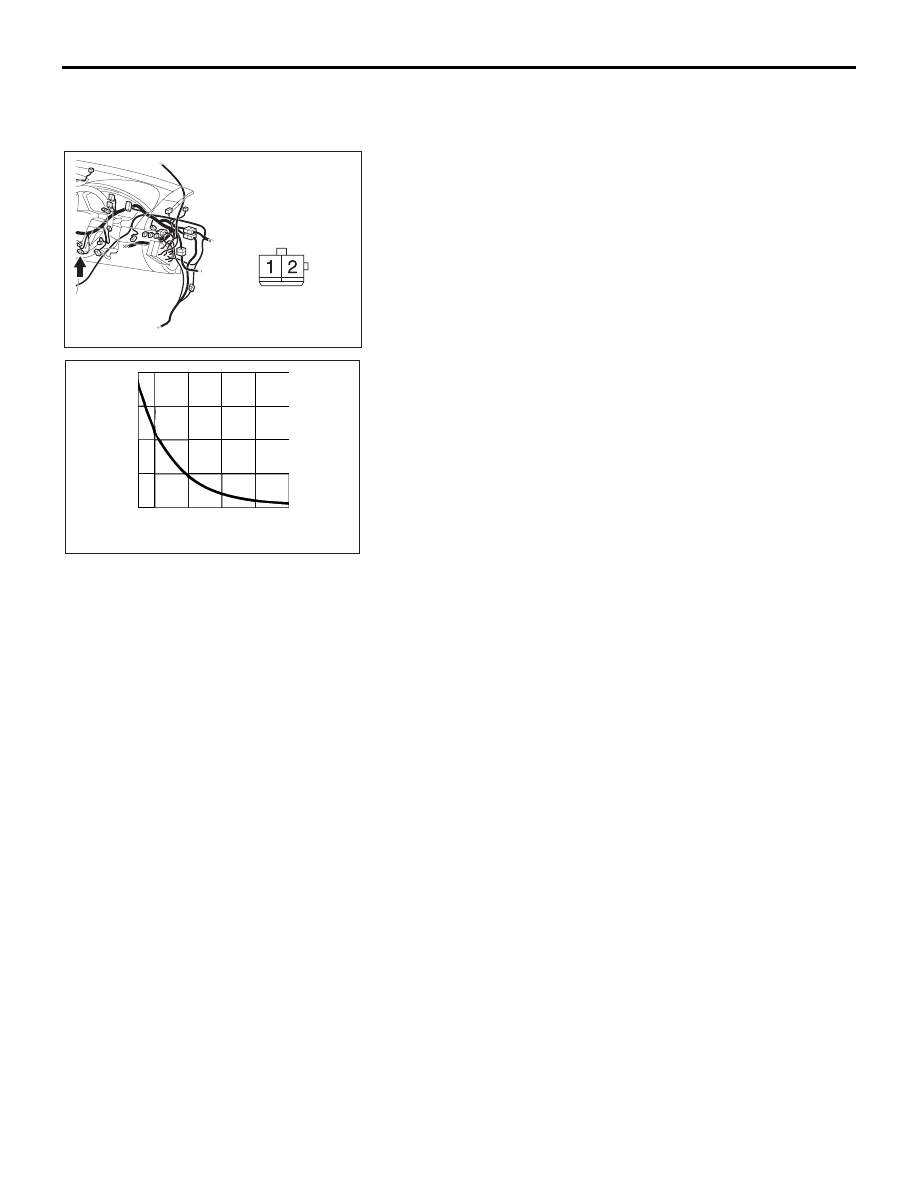

INTERIOR TEMPERATURE SENSOR CHECK

When the resistance between the sensor terminals is mea-
sured under two or more temperature conditions, the resis-
tance should approximately satisfy the illustrated values.

NOTE:

The temperature conditions when checking should not

exceed the range shown in the diagram.

.

PHOTO SENSOR CHECK

1. Connect diagnostic tool , and check the data list of the

photo sensor. (Refer to

P.55-133

)

2. Check that the displayed value changes when you cover

the photo sensor with your hands.

25DB071A

CONNECTOR: C-123

HARNESS SIDE

AC103488 AC

RESISTANCE

   (kΩ)

TEMPERATURE ˚C (˚F)

20

15

10

5

0

0

20

40

60

80

-10

(32) (68) (104) (140) (176)

(14)

AMBIENT TEMPERATURE SENSOR

HEATER, AIR CONDITIONING AND VENTILATION

55-162

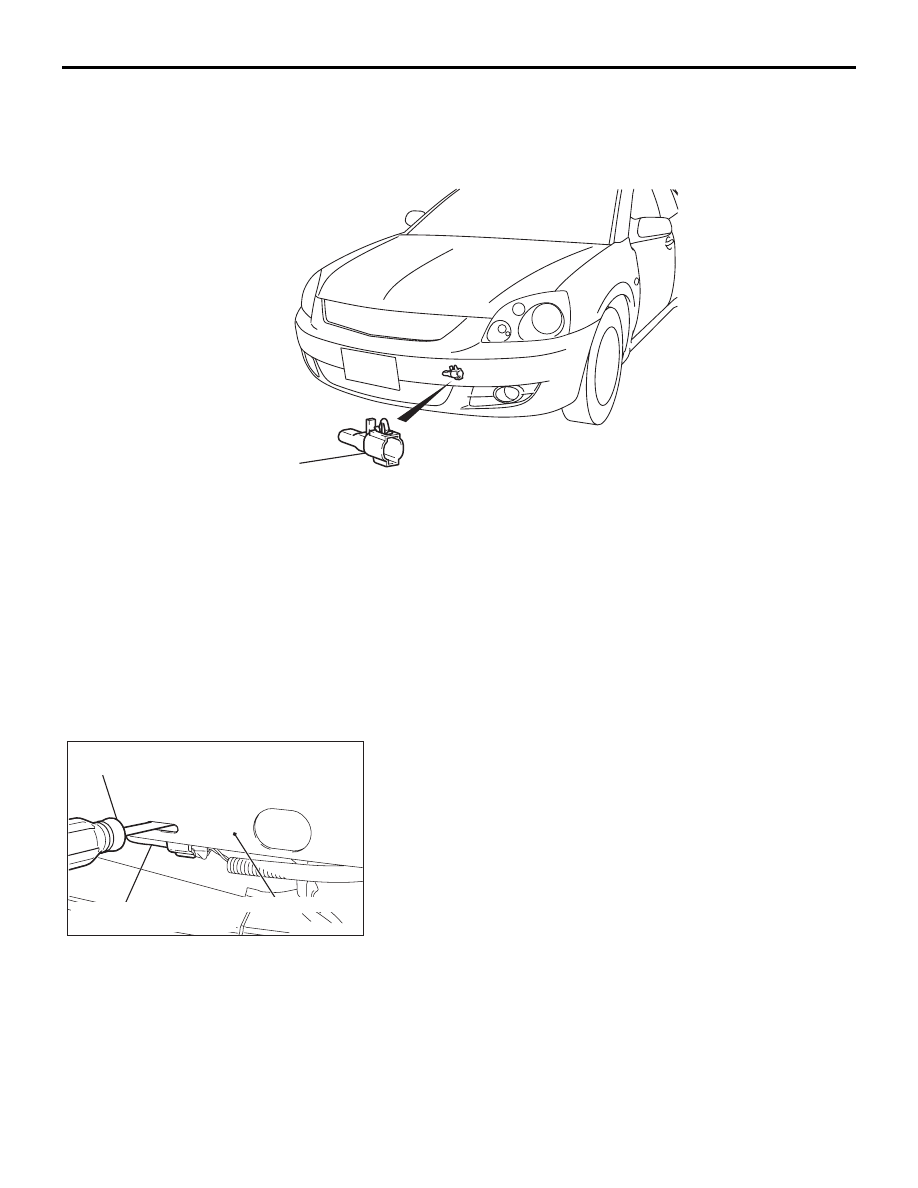

AMBIENT TEMPERATURE SENSOR

 REMOVAL AND INSTALLATION

M1554003400108

REMOVAL SERVICE POINT

.

<<A>> AMBIENT AIR TEMPERATURE SENSOR
REMOVAL

Insert a screwdriver into the mounting hole of the front bumper
core to release the clip, and remove the ambient temperature
sensor.

25DB158A

1

REMOVAL STEP

•

FRONT BUMPER ASSEMBLY
AND FRONT BUMPER CORE
(REFER TO GROUP 51, FRONT
BUMPER ASSEMBLY

P.51-2

).

<<A>>

1.

AMBIENT AIR TEMPERATURE
SENSOR

AC307252

AMBIENT AIR
TEMPERATURE SENSOR

AB

SCREWDRIVER

FRONT BUMPER CORE

AMBIENT TEMPERATURE SENSOR

HEATER, AIR CONDITIONING AND VENTILATION

55-163

INSPECTION

M1551006300349

.

AMBIENT AIR TEMPERATURE SENSOR CHECK

CAUTION

The ambient air temperature sensor should be checked
without removing it from bumper. If the sensor is removed,
damage will occur to clip rendering it unserviceable.
Measure the resistance between the sensor terminals under at
least two temperatures. The resistance values should meet the
values shown.

NOTE: The temperature should be within the shown range.

AC209942AB

REGISTANCE
kΩ

10

20

30

40

0

0

20

(32) (68)

TEMPERATURE ˚C (˚F)

40

(104)

60

(140)

-20

(-4)

-30

(-22)
