GENERAL INFORMATION
POWER STEERING
37-2
GENERAL INFORMATION
M1372000100445

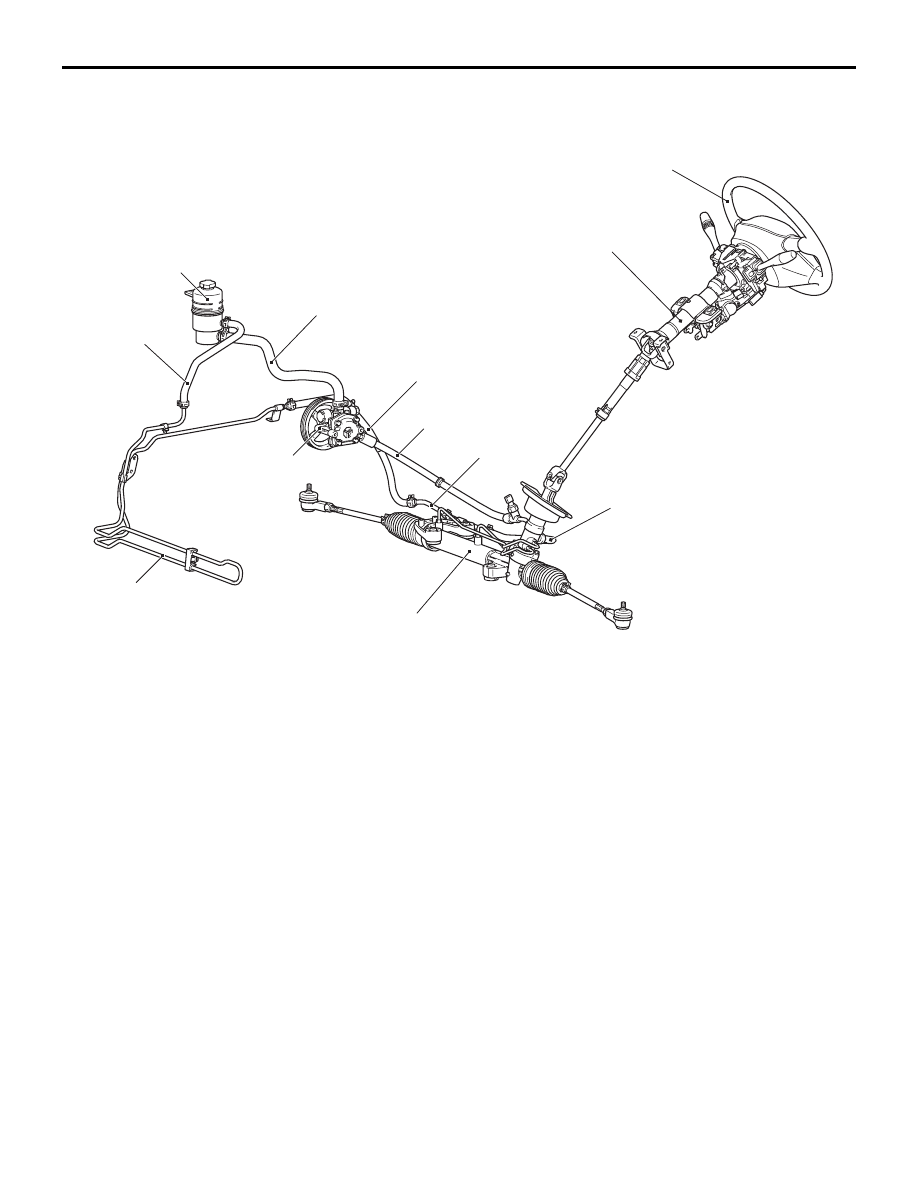

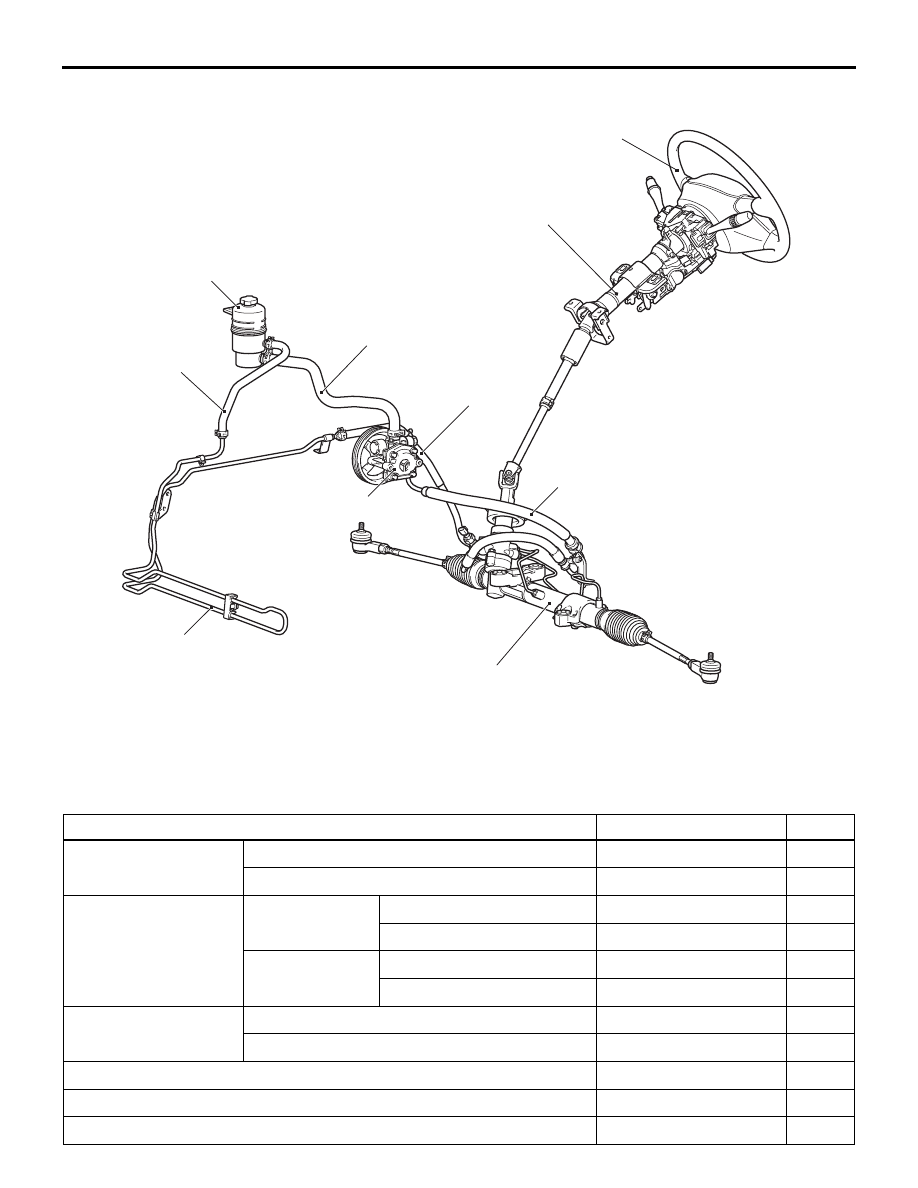

A hydraulic power steering system has been adopted
to all models.
FEATURES
• An elastic mounting structure for the steering
gear has improved steering stability significantly.
• The hydraulic characteristics and the friction
characteristics of the steering gear have been
optimized to improve steering ability and to
reduce shimmy sensitivity.
• The oil pump is of a non-return control valve, and
improves steering feeling.
• The pressure hoses are of a high-expansion ratio
type and reduce vibration and noise.
• The oil pressure sensor allows the system to
perform idle-up control linearly and without delay
as the power steering fluid pressure deviates.
• On vehicles with 16-inch wheels, a class-top
minimum steering radius (5.5 m) has been
established due to larger wheel steering angle
(The steering radius for 17-inch wheels is 5.8 m).
SPECIFICATIONS
Item
Vehicles with
16-inch wheels
Vehicles with
17-inch wheels
Steering wheel
Type
4-spoke type
Outside diameter mm
380
Maximum number of turns
3.4
3.1
Steering column
Column mechanism
Shock absorbing mechanism and tilt
steering mechanism
Power steering type
Integral type
Oil pump
Type
Vane pump
Basic delivery rate cm
3
/rev.
9.6
Relief pressure MPa
9.8
Reservoir type
Separate type (plastic)
Hydraulic sensor
Equipped
Steering gear
Type
Rack and pinion
Stroke ratio (Rack
stroke/Steering wheel
maximum turning number)
44.1
Rack stroke mm
152
144
