ENGINE AND TRANSMISSION

CONFIGURATION DIAGRAMS

80-7

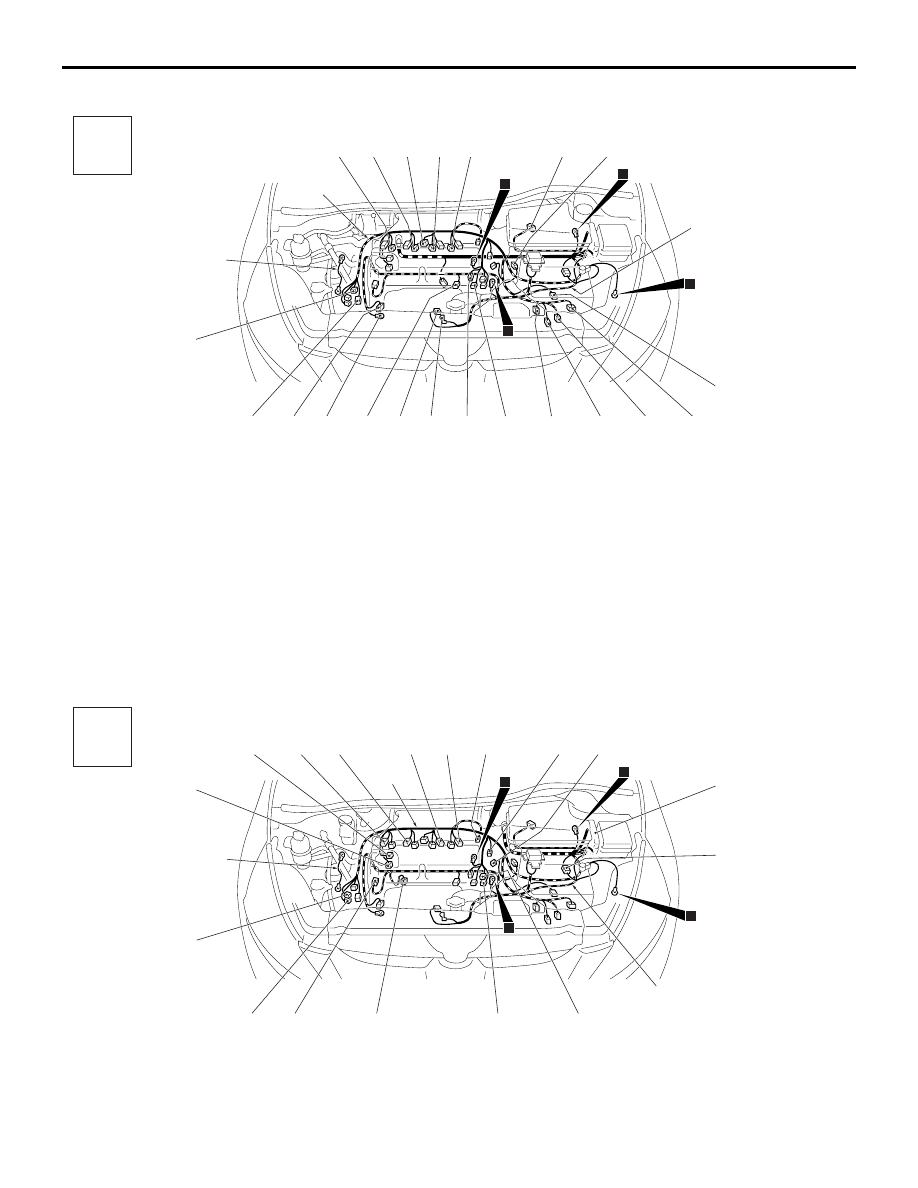

ENGINE AND TRANSMISSION <LHD> (CONTINUED)

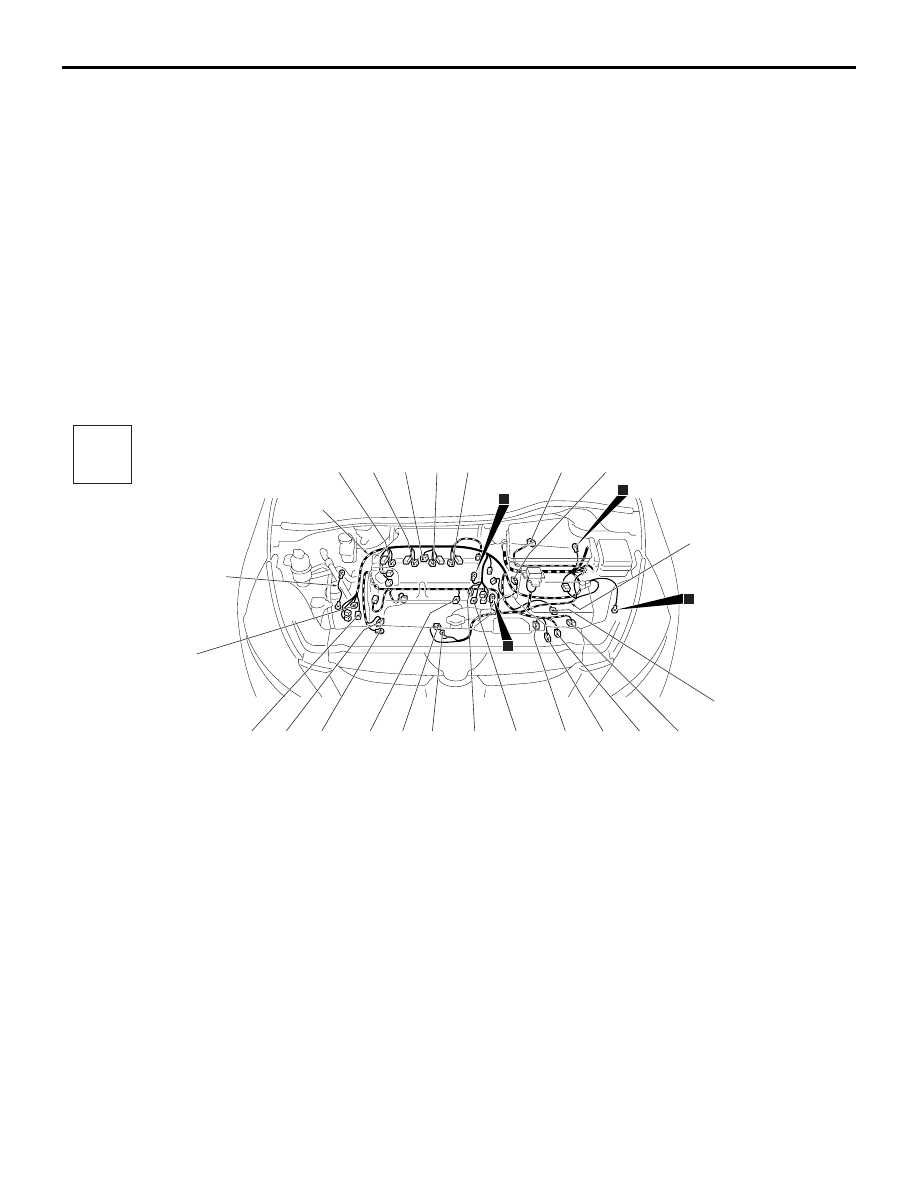

ENGINE AND TRANSMISSION <RHD>

M1801000400946

AC310306

Connector
symbol

-101
thru
-121

B

AC

B-119

B-101

B-121

B-115

B-118

B-120

B-102

B-104

B-105

Control wiring
harness

Earth cable

B-116

B-103

B-117

3

9

10

12

B-106

B-107

B-108

B-114

B-113

Battery wiring
harness

Connector colour code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

B-110

B-109

B-111

B-112

B-101 (2-GR)

Injector 1

B-102 (2-GR)

Injector 2

B-103 (6-GR)

Exhaust gas recirculation valve

B-104 (2-GR)

Injector 3

B-105 (2-GR)

Injector 4

B-106 (4-GR)

Air flow sensor

B-107 (3-B)

Vehicle speed sensor <M/T>

B-108 (3-GR)

Output shaft speed sensor <A/T>

B-109 (10-GR) A/T control solenoid valve assembly
B-110 (2-B)

Back-up lamp switch <M/T>

B-111 (10-B)

Inhibitor switch <A/T>

B-112 (3-B)

Input shaft speed sensor <A/T>

B-113 (1-B)

Capacitor

B-114 (3-B)

Camshaft position sensor

B-115 (1)

Starter

B-116 (1-B)

Starter

B-117 (1-B)

Engine oil pressure switch

B-118 (1)

Alternator

B-119 (4-GR)

Alternator

B-120 (1-B)

A/C compressor assembly

B-121 (3-GR)

Crank angle sensor

AC310309

Connector
symbol

-01
thru
-24

B

AB

B-01

B-24

B-02

B-23

B-20

B-21

B-22

B-03

B-04

B-05

Control wiring
harness

Earth cable

B-06

3

9

10

12

B-07

B-08

B-12X B-14X
B-15X B-16X

B-17

B-18

B-19

Battery wiring
harness

Connector colour code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

B-01

(2-B)

Purge control solenoid valve

B-02

(3-GR)

Ignition coil 1

B-03

(3-GR)

Ignition coil 2

B-04

(3-GR)

Ignition coil 3

B-05

(3-GR)

Ignition coil 4

B-06

(6-B)

Electronic-controlled throttle valve

B-07

(2-B)

Engine oil control valve

B-08

(2-B)

Engine coolant temperature sensor

B-12X (4)

Throttle valve control servo relay

ENGINE AND TRANSMISSION

CONFIGURATION DIAGRAMS

80-8

ENGINE AND TRANSMISSION <RHD> (CONTINUED)

B-14X (4)

A/T control relay

B-15X (4)

Engine control relay

B-16X (4)

A/C compressor relay

B-17

(8-B)

Control wiring harness and battery
wiring harness combination

B-18

(4-B)

Cylinder 2, 3 heated oxygen sensor
(Rear)

B-19

(4-GR)

Cylinder 2, 3 heated oxygen sensor
(Front)

B-20

(3-B)

Power steering fluid pressure sensor

B-21

(2-B)

Engine oil pan oil level sensor

B-22

(4-GR)

Cylinder 1, 4 heated oxygen sensor
(Front)

B-23

(4-B)

Cylinder 1, 4 heated oxygen sensor
(Rear)

B-24

(2-GR)

Detonation sensor

AC310309

Connector
symbol

-101
thru
-121

B

B-119

B-101

B-121

B-115

B-118

B-120

B-102

B-104

B-105

Control wiring
harness

Earth cable

B-116

B-103

B-117

AC

3

9

10

12

B-106

B-107

B-108

B-114

B-113

Battery wiring
harness

Connector colour code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

B-110

B-109

B-111

B-112

B-101 (2-GR)

Injector 1

B-102 (2-GR)

Injector 2

B-103 (6-GR)

Exhaust gas recirculation valve

B-104 (2-GR)

Injector 3

B-105 (2-GR)

Injector 4

B-106 (4-GR)

Air flow sensor

B-107 (3-B)

Vehicle speed sensor <M/T>

B-108 (3-GR)

Output shaft speed sensor <A/T>

B-109 (10-GR) A/T control solenoid valve assembly
B-110 (2-B)

Back-up lamp switch <M/T>

B-111 (10-B)

Inhibitor switch <A/T>

B-112 (3-B)

Input shaft speed sensor <A/T>

B-113 (1-B)

Capacitor

B-114 (3-B)

Camshaft position sensor

B-115 (1)

Starter

B-116 (1-B)

Starter

B-117 (1-B)

Engine oil pressure switch

B-118 (1)

Alternator

B-119 (4-GR)

Alternator

B-120 (1-B)

A/C compressor assembly

B-121 (3-GR)

Crank angle sensor

DASH PANEL

CONFIGURATION DIAGRAMS

80-9

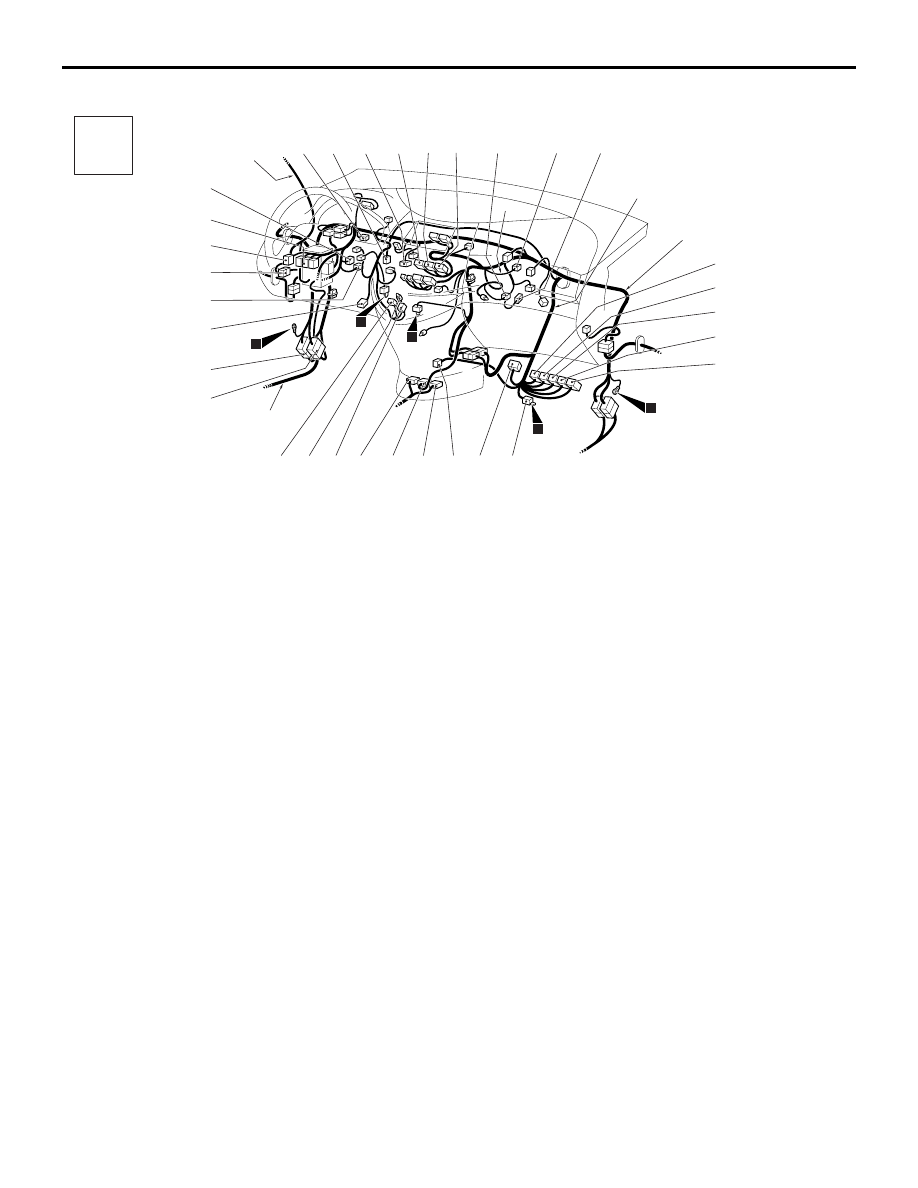

DASH PANEL

DASH PANEL <LHD>

M1801000600887

AC310236

Connector
symbol

-01
thru
-39

C

13

14

15

C-23

C-22

C-20

C-19

C-21

C-24

C-03

C-04

C-06

C-07

C-05

C-02

C-31

C-30

C-28

C-01

C-29

C-32

C-26

C-27

C-25

Roof wiring
harness

Floor wiring
harness

AB

C-16

C-15

C-17

C-10

C-11

C-12

C-09

C-13

C-08

C-14

C-18

Control wiring
harness

Y

Instrument panel
wiring harness

4

5

Connector colour code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

C-39

C-37

C-38

C-01

(33)

J/C (6)

C-02

(40)

Combination meter

C-03

(5)

Photo sensor

C-04

(7-GR)

Mode selection damper control motor
and potentiometer

C-05

(2)

Air thermo sensor

C-06

(16-B)

Centre display

C-07

(20-B)

Centre display

C-08

(2)

Glove box lamp

C-09

(22-GR) J/C (CAN 2)

C-10

(3)

Outside/ inside air selection damper
control motor

C-11

(7)

Front air mixing damper control motor
and potentiometer

C-12

(4)

Front power transistor

C-13

(2)

Front blower motor

C-14

(32)

Instrument panel wiring harness and
front door wiring harness (RH)
combination

C-15

(38)

Instrument panel wiring harness and
floor wiring harness combination

C-16

(43)

Instrument panel wiring harness and
floor wiring harness combination

C-17

(18)

Instrument panel wiring harness and
control wiring harness combination

C-18

(10)

Instrument panel wiring harness and
control wiring harness combination

C-19

(6-GR)

Rear fan switch

C-20

(14)

Radio and CD player

C-21

(2)

Ashtray illumination lamp

C-22

(14)

Radio and CD player

C-23

(1-B)

Radio and CD player

C-24

(1)

Glass antenna amp

C-25

(3)

Passenger’s air bag off indicator lamp

C-26

(2)

Interior temperature sensor

C-27

(32)

Instrument panel wiring harness and
front door wiring harness (LH)
combination

C-28

(6-B)

TCL off switch

C-29

(6-GR)

Headlamp leveling switch

C-30

(6)

PTC heater switch

C-31

(33)

J/C (5)

C-32

(33)

J/C (7)

C-37

(10)

Jumper connector

C-38

(10)

Spare connector (For navigation
system)

C-39

(4)

Spare connector (For trailer)

DASH PANEL

CONFIGURATION DIAGRAMS

80-10

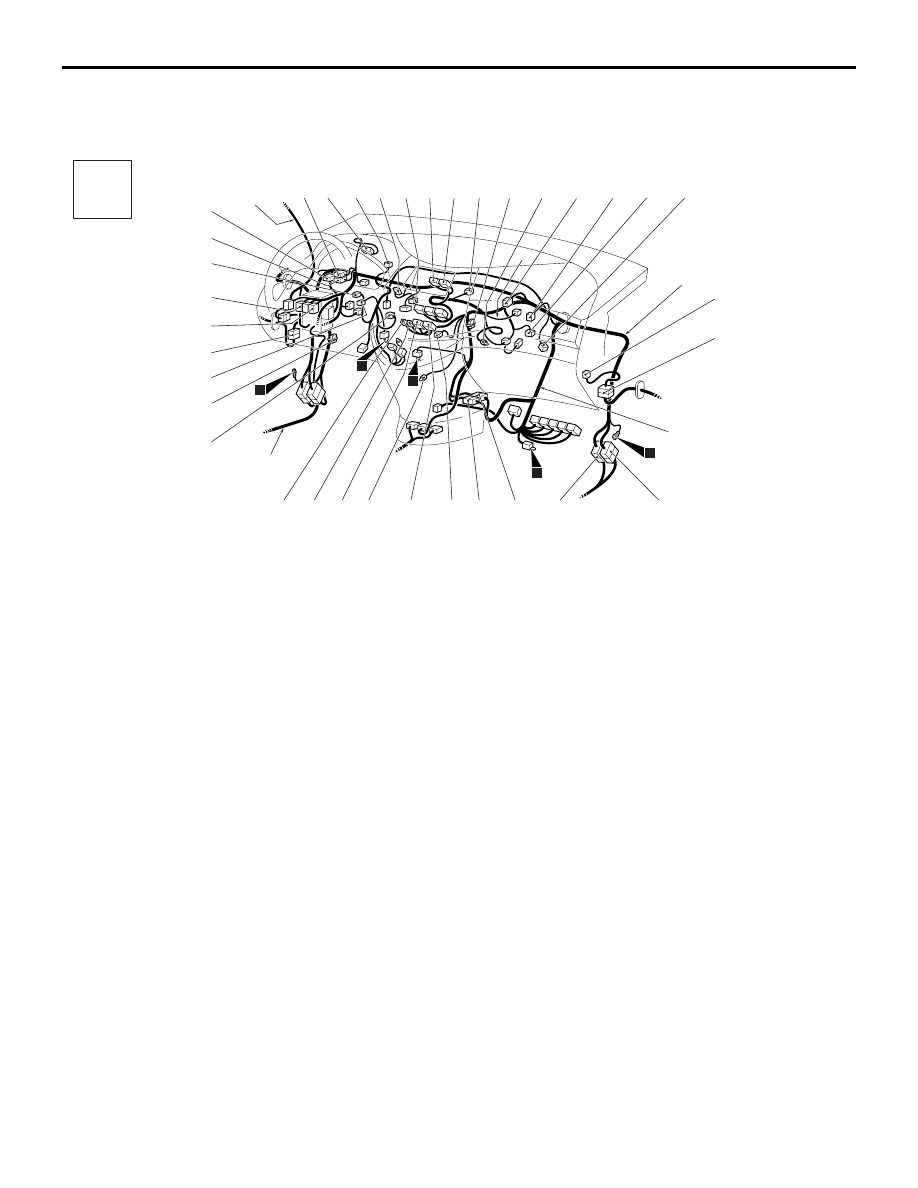

DASH PANEL <LHD> (CONTINUED)

AC310236

Connector
symbol

-101
thru
-131

C

13

14

15

C-121

C-120

C-118

C-117

C-119

C-122

C-103

C-104

C-106

C-105

C-102

C-128

C-127

C-101

C-130

C-131

C-126

C-125

C-124

Roof wiring
harness

Floor wiring
harness

C-129

C-123

AC

C-113

C-112

C-115

C-109

C-108

C-110

C-107

C-111

C-116

Control wiring
harness

Y

Instrument panel
wiring harness

4

5

Connector colour code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

C-114

C-101 (2)

Jumper connector <Vehicles with
DRL> or No connection <Vehicles
without DRL>

C-102 (6-B)

Accelerator pedal position sensor

C-103 (4)

PTC heater

C-104 (22)

A/C-ECU

C-105 (16)

A/C-ECU

C-106 (26)

A/C-ECU

C-107 (4)

Passenger’s air bag cut off switch

C-108 (4-Y)

Air bag module (squib) <Passenger’s
side>

C-109 (6)

Engine oil level relay

C-110 (27-GR) Engine-ECU <M/T> or

Engine-A/T-ECU <A/T>

C-111 (28-GR) Engine-ECU <M/T> or

Engine-A/T-ECU <A/T>

C-112 (29-GR) Engine-ECU <M/T> or

Engine-A/T-ECU <A/T>

C-113 (30-GR) Engine-ECU <M/T> or

Engine-A/T-ECU <A/T>

C-114 (26-GR) Engine-ECU <M/T> or

Engine-A/T-ECU <A/T>

C-115 (11)

Earth

C-116 (33)

J/C (4)

C-117 (6)

G and yaw rate sensor

C-118 (20-Y)

SRS-ECU

C-119 (28-Y)

SRS-ECU

C-120 (20-Y)

SRS-ECU

C-121 (6)

Shift switch assembly

C-122 (2)

A/T selector lever position illumination
lamp

C-123 (4)

Hazard warning lamp switch

C-124 (43)

Instrument panel wiring harness and
front wiring harness combination

C-125 (38)

Instrument panel wiring harness and
front wiring harness combination

C-126 (16-B)

Diagnosis connector

C-127 (4)

Stop lamp switch

C-128 (25)

Instrument panel wiring harness and
roof wiring harness combination

C-129 (11)

Remote controlled mirror switch

C-130 (6)

Fog lamp switch

C-131 (2)

Clutch switch <Auto-cruise (M/T) >
