OVERALL CONFIGURATION DIAGRAM

CONFIGURATION DIAGRAMS

80-3

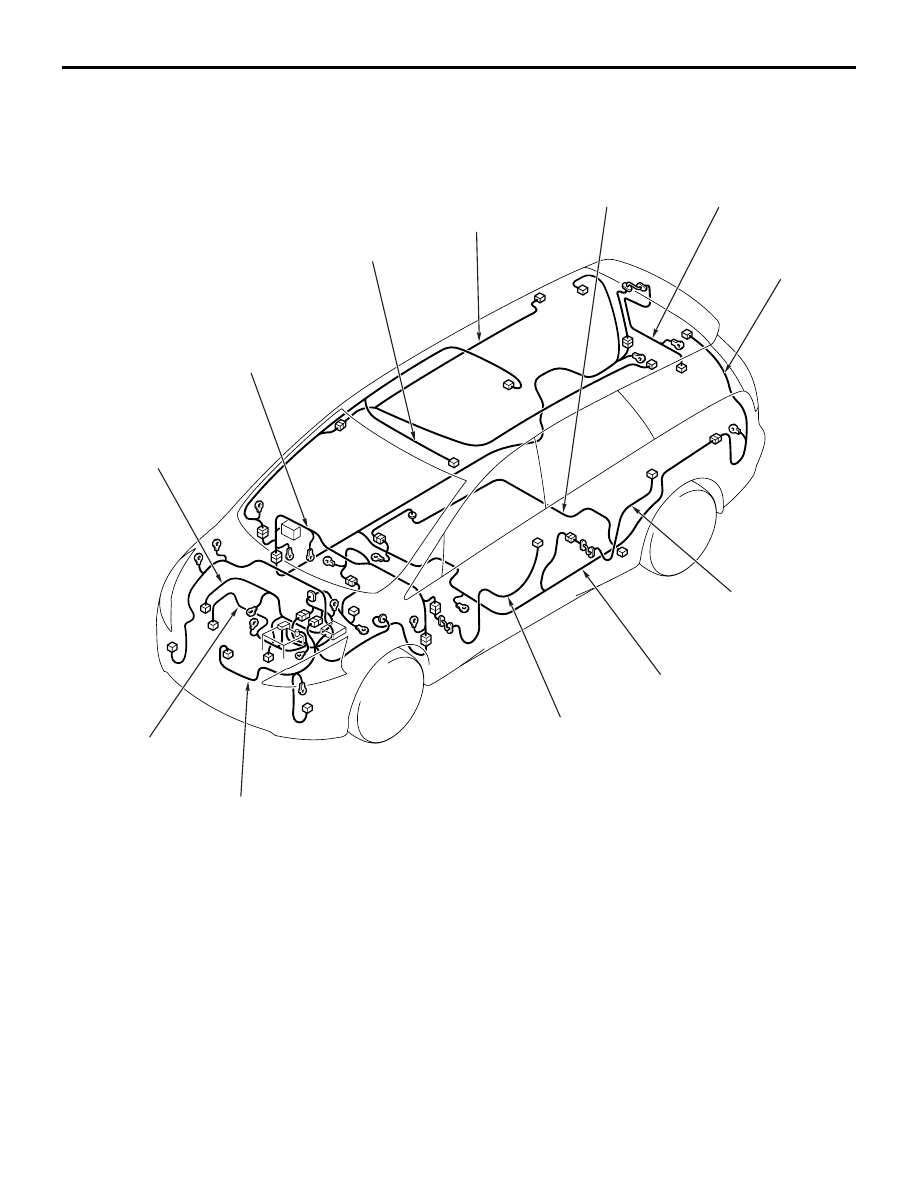

OVERALL WIRING DIAGRAM <RHD>

M1801000100707

NOTE:

.

1. This illustration shows only major wiring harnesses.
2. *: also equipped at the right side.

AC310352

AB

*

Control wiring
harness

Instrument panel
wiring harness

Roof wiring
harness

Floor wiring
harness

Battery wiring
harness

Front wiring
harness

Front door
wiring harness

Rear floor
wiring harness

Fuel wiring
harness

Rear door
wiring harness

*

Tailgate wiring
harness

Room lamp
wiring harness

ENGINE COMPARTMENT

CONFIGURATION DIAGRAMS

80-4

ENGINE COMPARTMENT

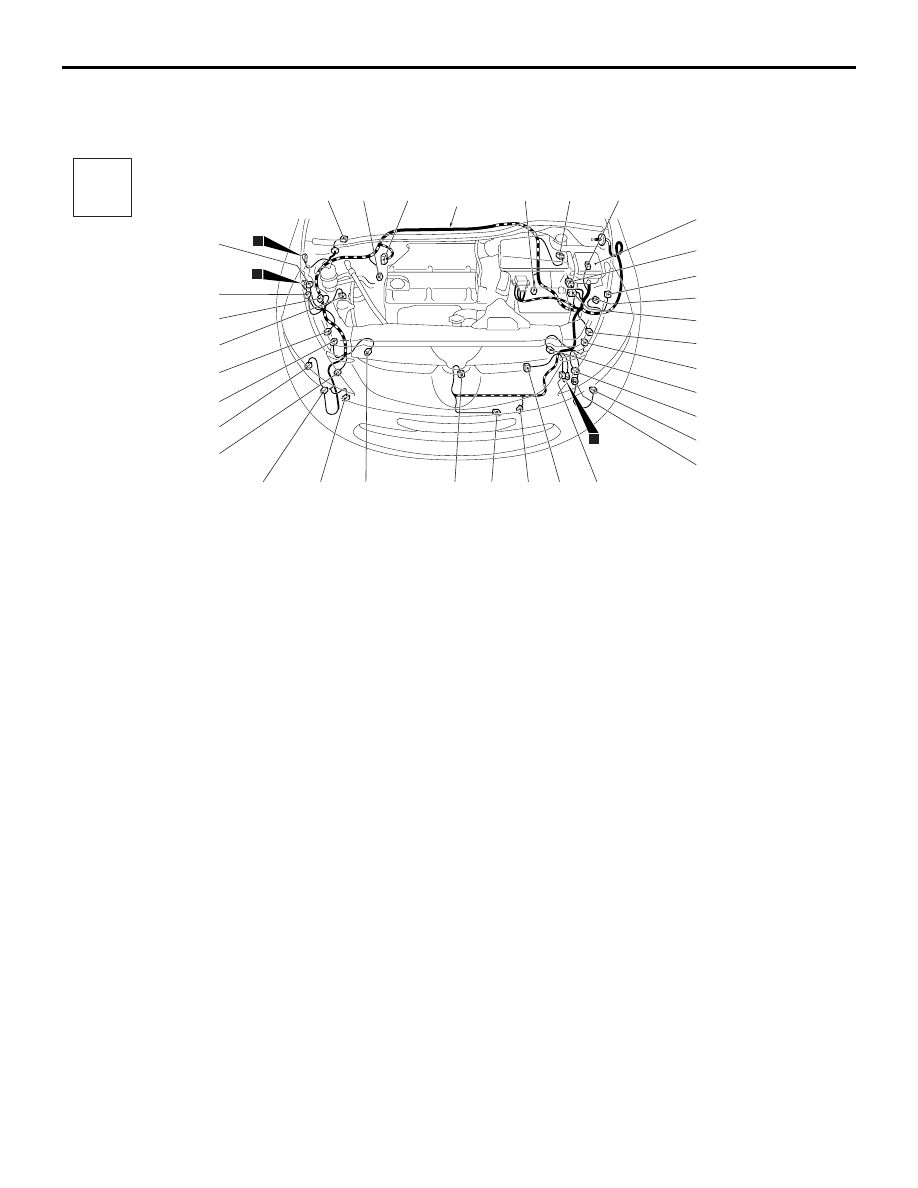

ENGINE COMPARTMENT <LHD>

M1801000301113

AC310245

Connector
symbol

A

AB

A-40

2

1

A-38

A-39

A-01

A-02

A-03
A-04

A-37

A-35

A-36

A-34

A-32

A-33

A-31

A-30

Connector colour code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

A-07

A-18

A-17

A-05

A-06

A-08X A-09X
A-13X A-14X
A-15X

A-16

A-19

A-21

A-20

A-22

A-23

A-24

A-26

A-25

A-28

A-27

A-29

11

Front wiring
harness

A-41

A-01

(5-GR)

Windshield wiper motor

A-02

(2-GR)

Wheel speed sensor (Front: RH)

A-03

(26)

ABS-ECU <Vehicles without ASC>

A-04

(47)

ASC-ECU <Vehicles with ASC>

A-05

(2-GR)

Wheel speed sensor (Front: LH)

A-06

(2-GR)

Brake fluid level indicator switch

A-07

(6)

J/C (CAN 1)

A-08X (4)

Front fog lamp relay

A-09X (4)

Horn relay

A-13X (4)

Fan control relay

A-14X (11)

Front-ECU

A-15X (11)

Front-ECU

A-16

(12-B)

Front wiring harness and control
wiring harness combination

A-17

(2-GR)

Position lamp (LH)

A-18

(2-B)

Headlamp (LO: LH)

A-19

(4-B)

Front wiring harness and battery
wiring harness combination

A-20

(3-GR)

Headlamp leveling unit (LH)

A-21

(2-GR)

Headlamp (HI: LH)

A-22

(2-Y)

Front impact sensor (LH)

A-23

(2-B)

Front turn-signal lamp (LH)

A-24

(2-B)

Front fog lamp (LH)

A-25

(6-GR)

Earth

A-26

(3-GR)

Fan controller

A-27

(1-B)

Horn (LO)

A-28

(2-B)

Ambient temperature sensor

A-29

(1-B)

Horn (HI)

A-30

(2-Y)

Front impact sensor (RH)

A-31

(2-GR)

Headlamp washer motor

A-32

(2-B)

Front fog lamp (RH)

A-33

(2-B)

Front turn-signal lamp (RH)

A-34

(2-GR)

Washer motor

A-35

(2-GR)

Headlamp (HI: RH)

A-36

(3-GR)

Headlamp leveling unit (RH)

A-37

(3-B)

A/C pressure sensor

A-38

(2-B)

Headlamp (LO: RH)

A-39

(2-GR)

Position lamp (RH)

A-40

(6-GR)

Earth

A-41

(4-B)

Spare connector (For trailer)

ENGINE COMPARTMENT

CONFIGURATION DIAGRAMS

80-5

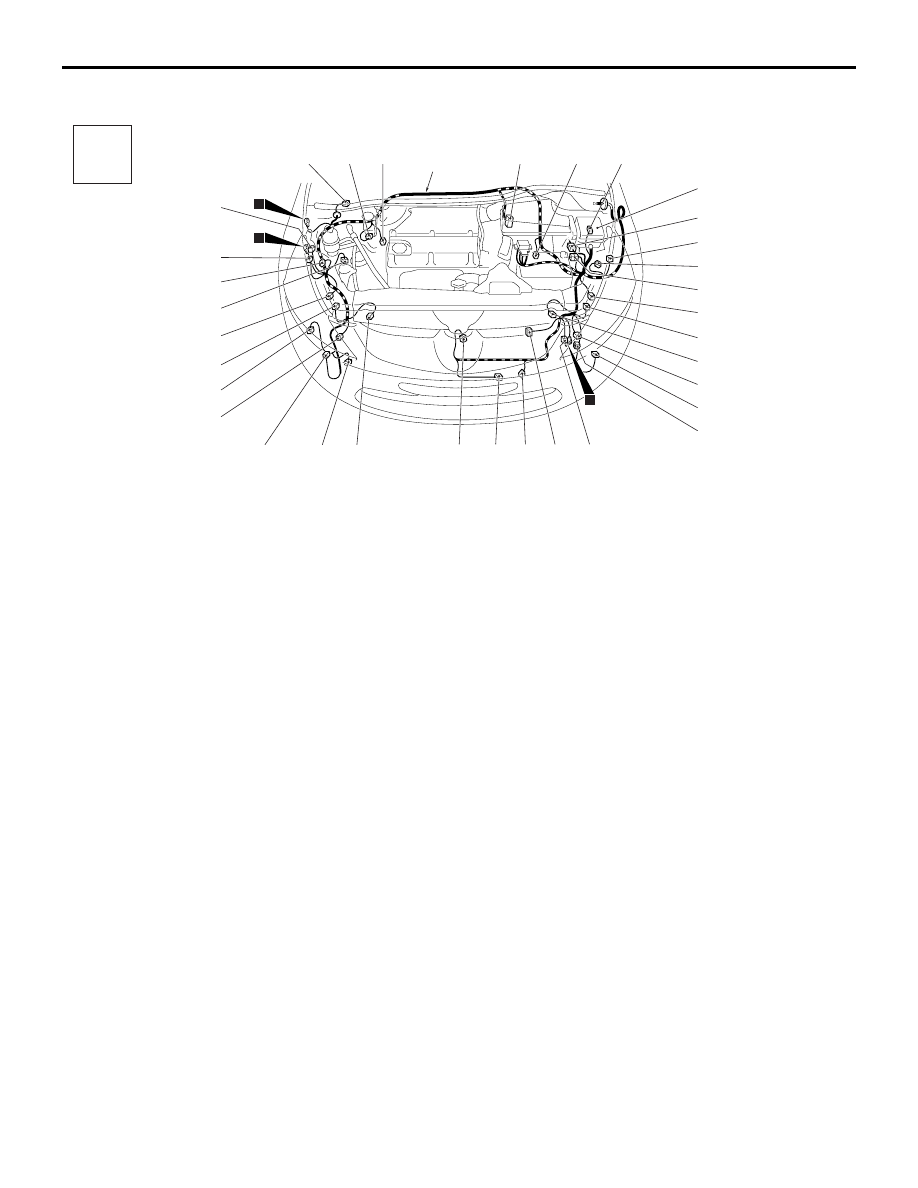

ENGINE COMPARTMENT <RHD>

M1801000301124

AC310248

Connector
symbol

A

AB

A-40

2

1

A-38

A-39

A-01

A-02

A-06

A-37

A-35

A-36

A-34

A-32

A-33

A-31

A-30

Connector colour code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

A-07

A-18

A-17

A-03
A-04

A-05

A-08X A-09X
A-13X A-14X
A-15X

A-16

A-19

A-21

A-20

A-22

A-23

A-24

A-26

A-25

A-28

A-27

A-29

11

Front wiring
harness

A-41

A-01

(5-GR)

Windshield wiper motor

A-02

(2-GR)

Wheel speed sensor (Front: RH)

A-03

(26)

ABS-ECU <Vehicles without ASC>

A-04

(47)

ASC-ECU <Vehicles with ASC>

A-05

(2-GR)

Wheel speed sensor (Front: LH)

A-06

(2-GR)

Brake fluid level indicator switch

A-07

(6)

J/C (CAN 1)

A-08X (4)

Front fog lamp relay

A-09X (4)

Horn relay

A-13X (4)

Fan control relay

A-14X (11)

Front-ECU

A-15X (11)

Front-ECU

A-16

(12-B)

Front wiring harness and control
wiring harness combination

A-17

(2-GR)

Position lamp (LH)

A-18

(2-B)

Headlamp (LO: LH)

A-19

(4-B)

Front wiring harness and battery
wiring harness combination

A-20

(3-GR)

Headlamp leveling unit (LH)

A-21

(2-GR)

Headlamp (HI: LH)

A-22

(2-Y)

Front impact sensor (LH)

A-23

(2-B)

Front turn-signal lamp (LH)

A-24

(2-B)

Front fog lamp (LH)

A-25

(6-GR)

Earth

A-26

(3-GR)

Fan controller

A-27

(1-B)

Horn (LO)

A-28

(2-B)

Ambient temperature sensor

A-29

(1-B)

Horn (HI)

A-30

(2-Y)

Front impact sensor (RH)

A-31

(2-GR)

Headlamp washer motor

A-32

(2-B)

Front fog lamp (RH)

A-33

(2-B)

Front turn-signal lamp (RH)

A-34

(2-GR)

Washer motor

A-35

(2-GR)

Headlamp (HI: RH)

A-36

(3-GR)

Headlamp leveling unit (RH)

A-37

(3-B)

A/C pressure sensor

A-38

(2-B)

Headlamp (LO: RH)

A-39

(2-GR)

Position lamp (RH)

A-40

(6-GR)

Earth

A-41

(4-B)

Spare connector (For trailer)

ENGINE AND TRANSMISSION

CONFIGURATION DIAGRAMS

80-6

ENGINE AND TRANSMISSION

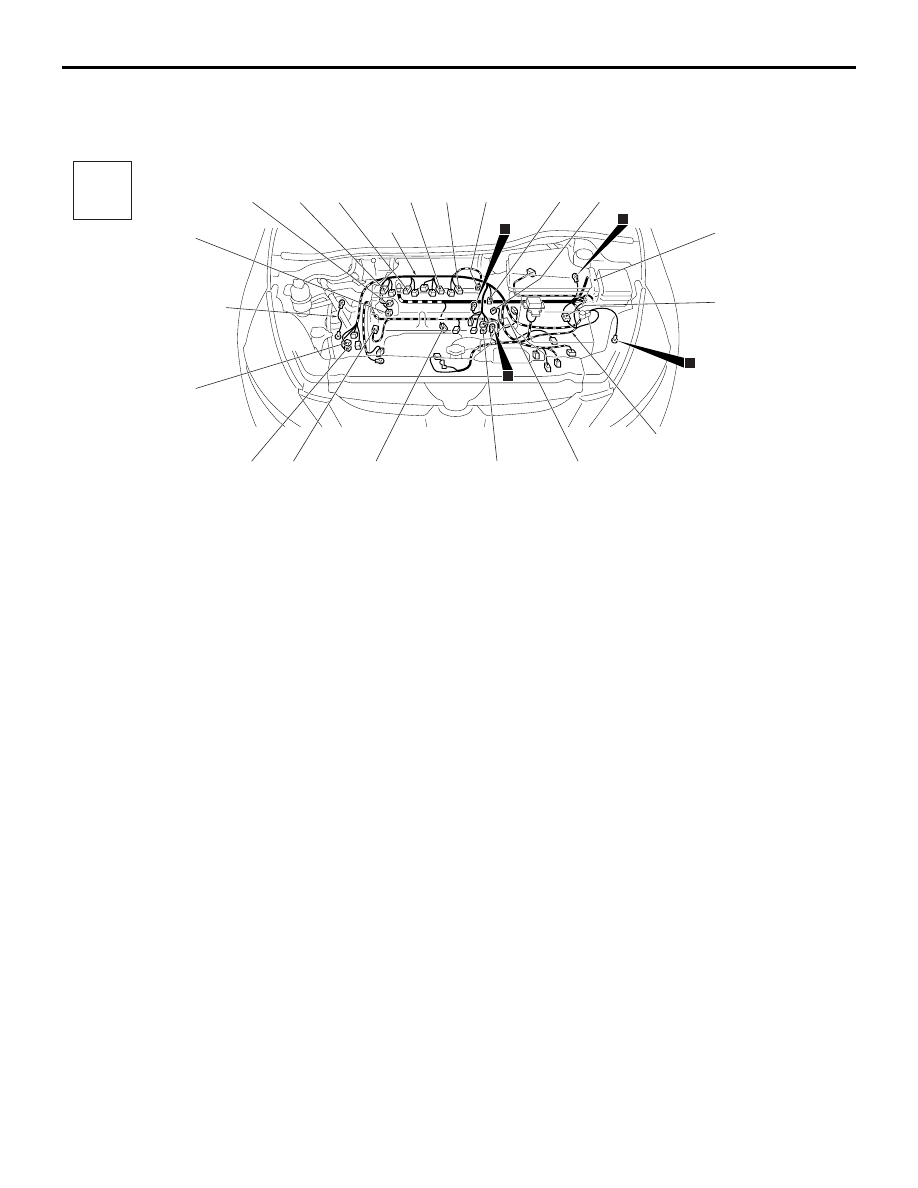

ENGINE AND TRANSMISSION <LHD>

M1801000400935

AC310306

Connector
symbol

-01
thru
-24

B

AB

B-01

B-24

B-02

B-23

B-20

B-21

B-22

B-03

B-04

B-05

Control wiring
harness

Earth cable

B-06

3

9

10

12

B-07

B-08

B-12X B-14X
B-15X B-16X

B-17

B-18

B-19

Battery wiring
harness

Connector colour code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

B-01

(2-B)

Purge control solenoid valve

B-02

(3-GR)

Ignition coil 1

B-03

(3-GR)

Ignition coil 2

B-04

(3-GR)

Ignition coil 3

B-05

(3-GR)

Ignition coil 4

B-06

(6-B)

Electronic-controlled throttle valve

B-07

(2-B)

Engine oil control valve

B-08

(2-B)

Engine coolant temperature sensor

B-12X (4)

Throttle valve control servo relay

B-14X (4)

A/T control relay

B-15X (4)

Engine control relay

B-16X (4)

A/C compressor relay

B-17

(8-B)

Control wiring harness and battery
wiring harness combination

B-18

(4-B)

Cylinder 2, 3 heated oxygen sensor
(Rear)

B-19

(4-GR)

Cylinder 2, 3 heated oxygen sensor
(Front)

B-20

(3-B)

Power steering fluid pressure sensor

B-21

(2-B)

Engine oil pan oil level sensor

B-22

(4-GR)

Cylinder 1, 4 heated oxygen sensor
(Front)

B-23

(4-B)

Cylinder 1, 4 heated oxygen sensor
(Rear)

B-24

(2-GR)

Detonation sensor
