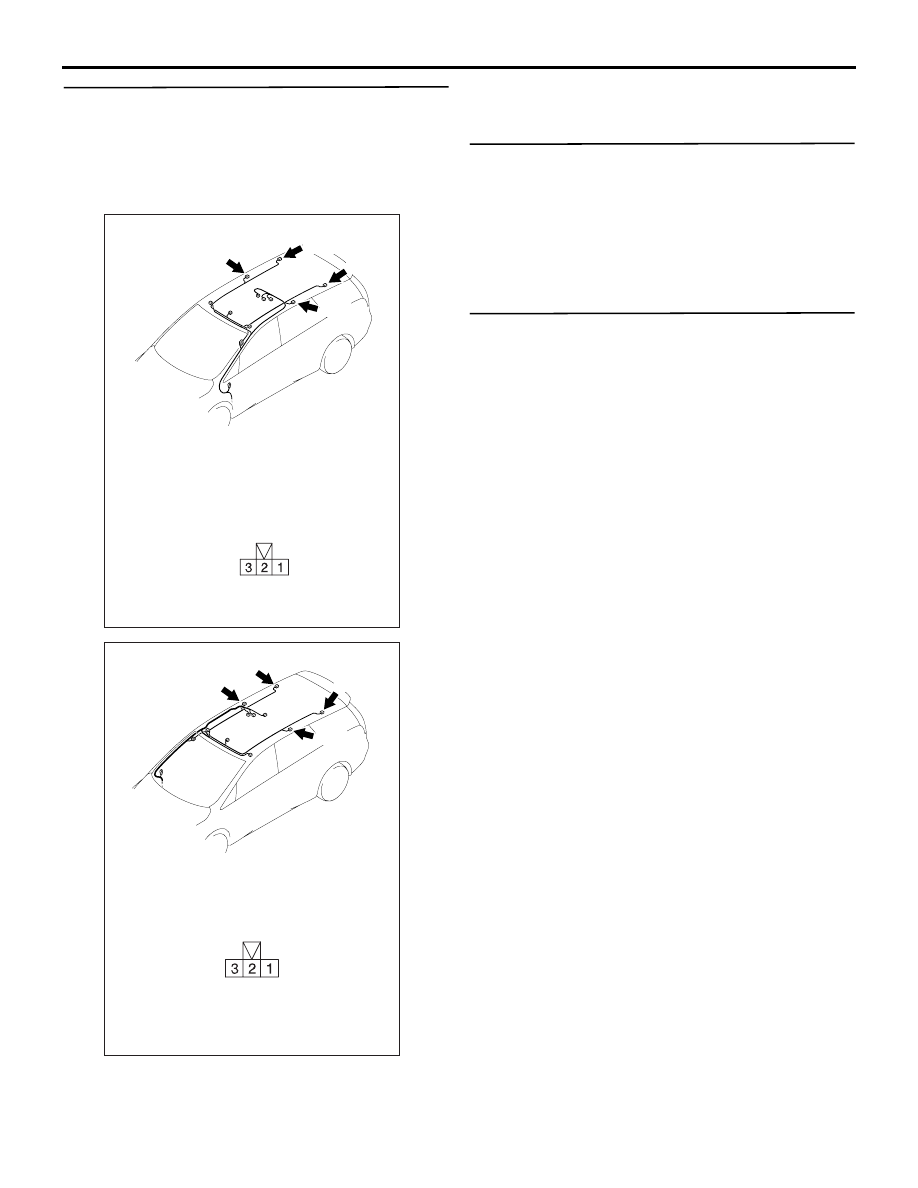

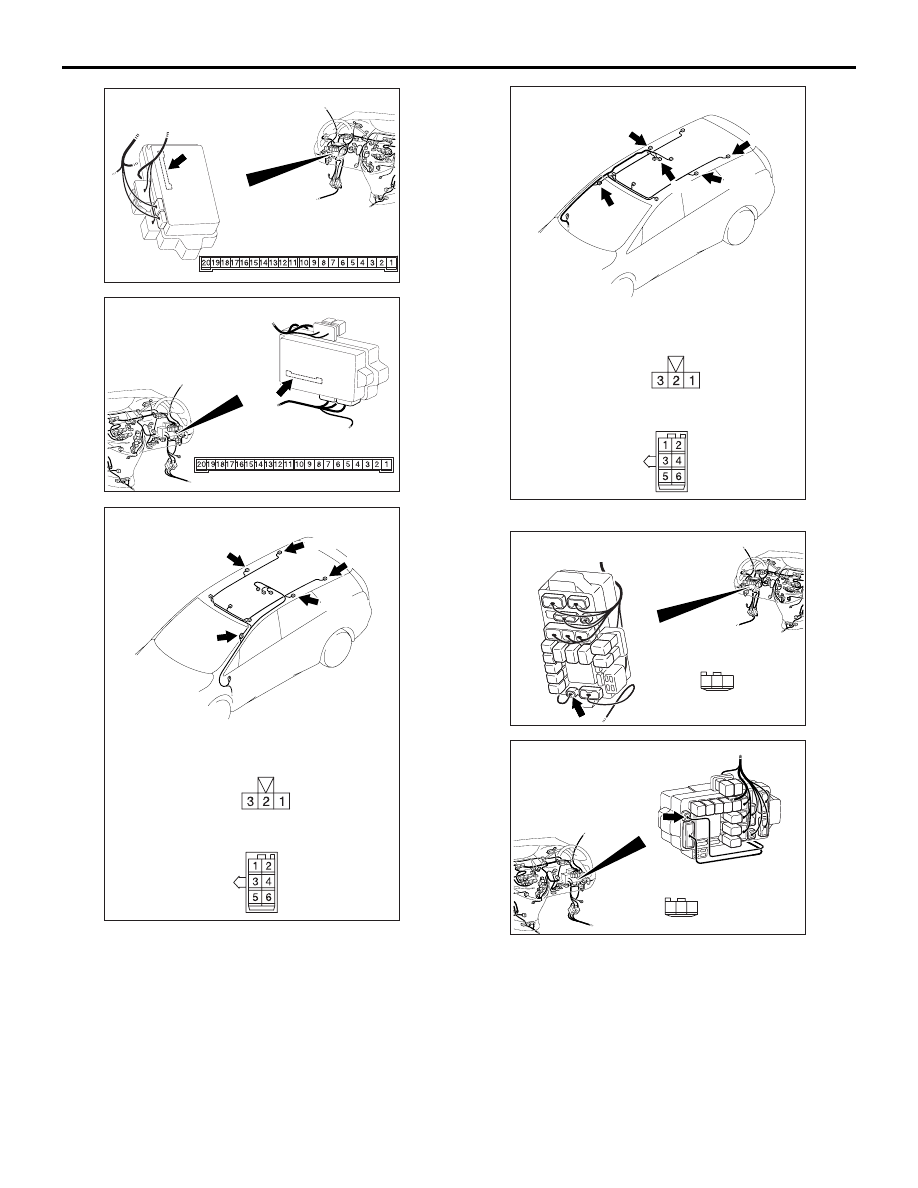

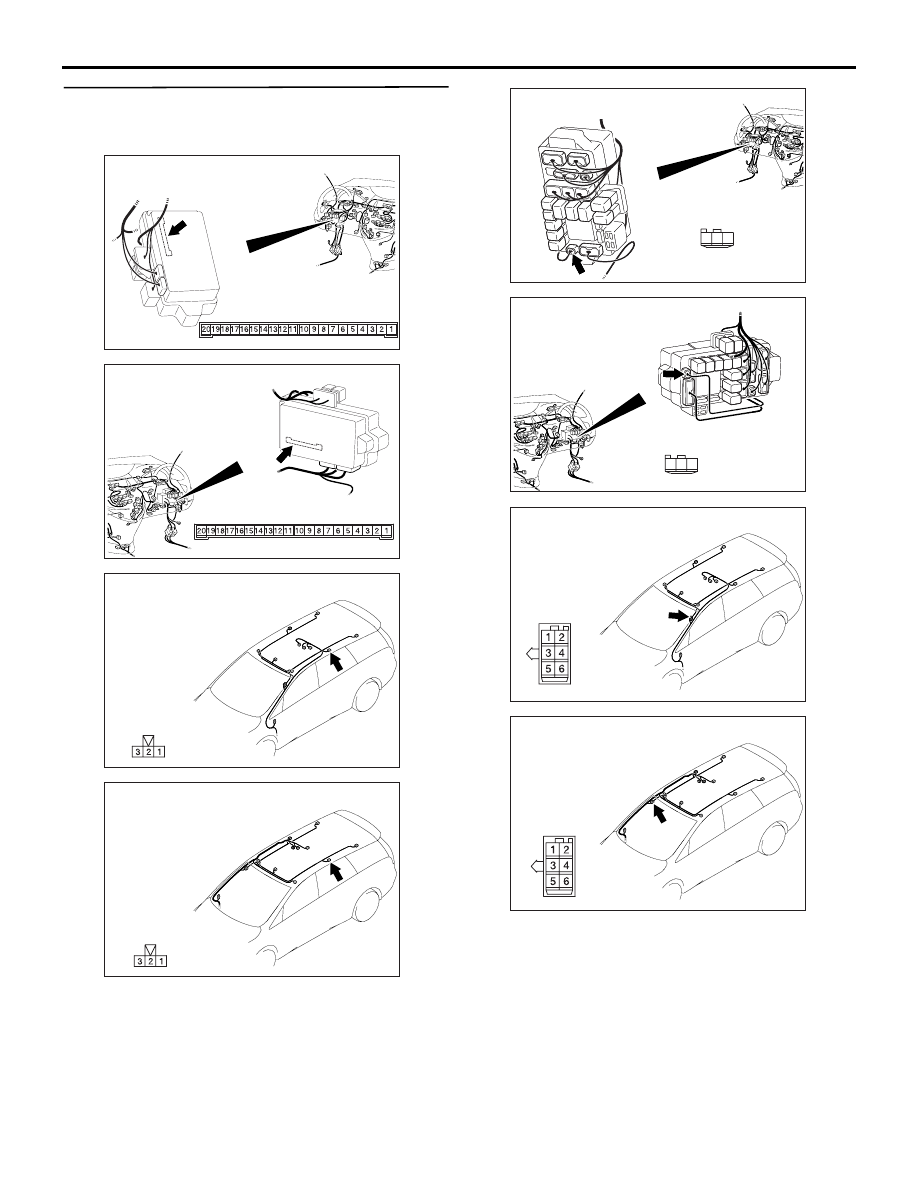

SYMPTOM PROCEDURES SMART WIRING SYSTEM (SWS) USING SWS MONITOR 54C-418 Step 7. Check the wiring harness from C-219 NOTE: Prior to the wiring harness inspection, check • Check the earth wires for open circuit. Q: Is the check result normal? YES : Replace the rear personal lamp. NO : Repair the wiring harness. AC310626 Connector: C-219 Junction block (Rear view) <LHD> AB Junction block side AC310620 Connector: C-219 Junction block <RHD> AB Junction block side AC310651 AC310651 AG Connector: E-09 <LHD> Harness side AC310655 AC310655 AH Connector: E-09 <RHD> Harness side AC310623 AC310623 Connector: C-211 AQ <LHD> Junction block (Front view) Harness side 3 1 2 AC310618 AC310618 Connector: C-211 <RHD> AS Harness side Junction block (Front view) 3 1 2 AC310651 AC310651 AH Connector: E-11 <LHD> AC310655 AC310655 AI Connector: E-11 <RHD> |
