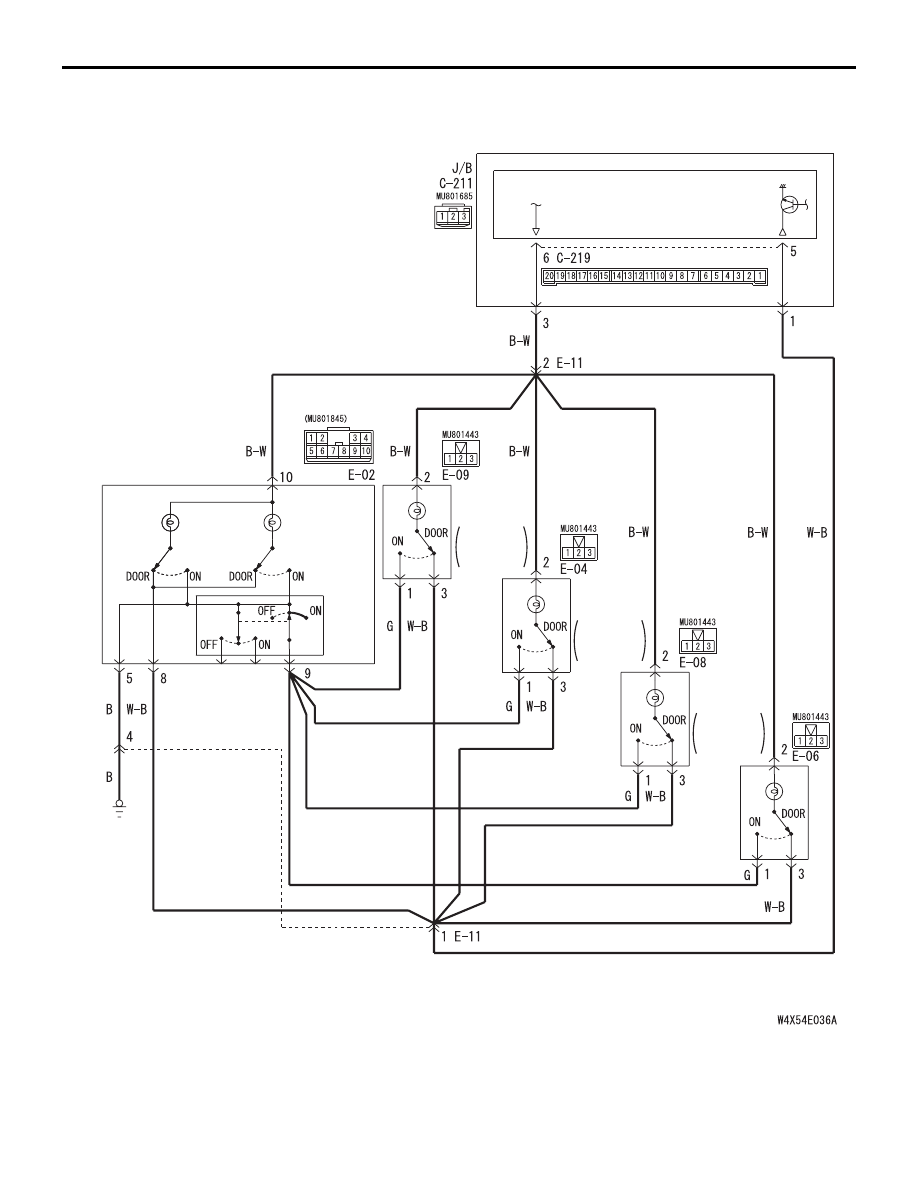

SYMPTOM PROCEDURES SMART WIRING SYSTEM (SWS) USING SWS MONITOR 54C-414 COMMENTS ON TROUBLE SYMPTOM If the rear personal lamps do not illuminate or POSSIBLE CAUSES • Malfunction of the interior lamp switches • Malfunction of the room lamp bulbs • Malfunction of the rear personal lamp bulbs • Damaged harness wires and connectors ETACS-ECU J/B SIDE ROOM LAMP INTERIOR REAR FOR REAR FOR REAR FOR REAR PERSONAL LAMP Wire colour code Room Lamp and Rear Personal Lamp Circuit |
