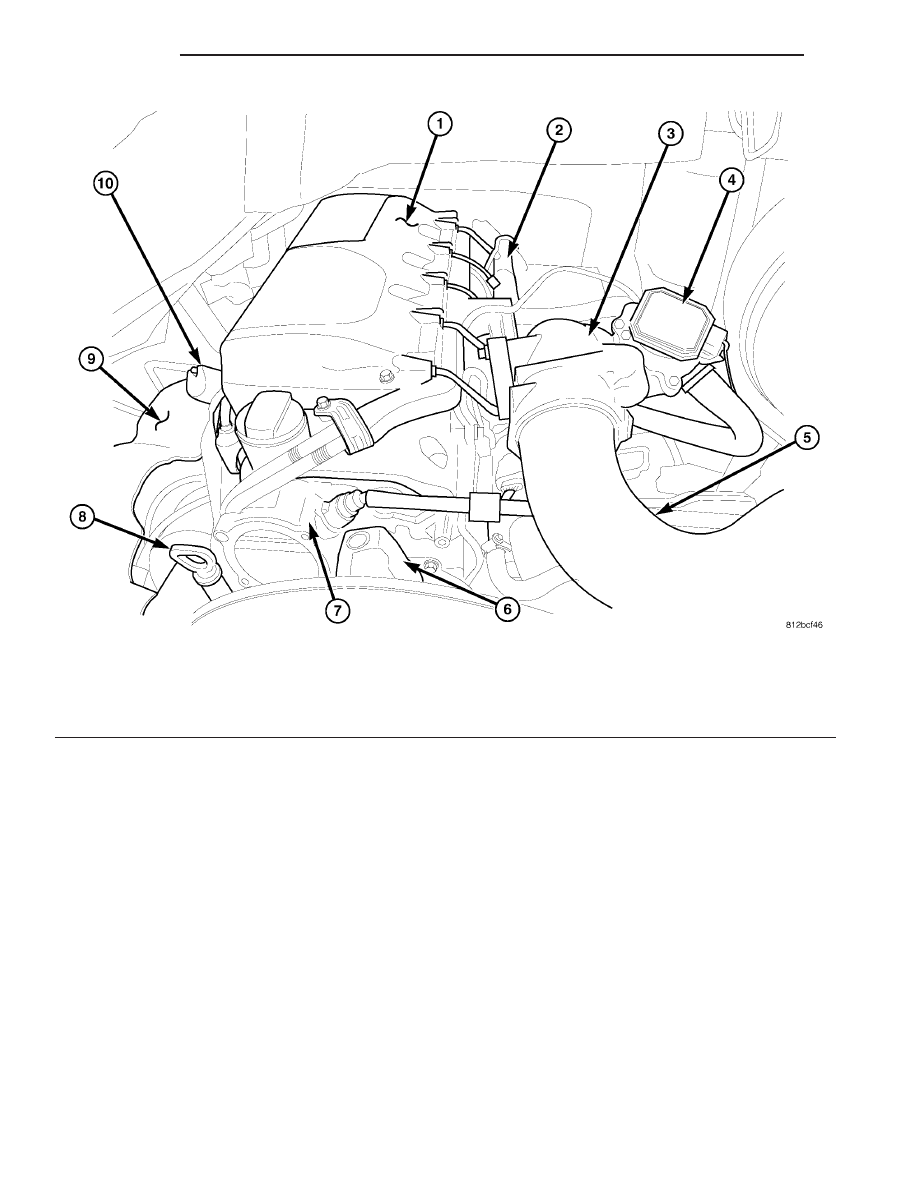

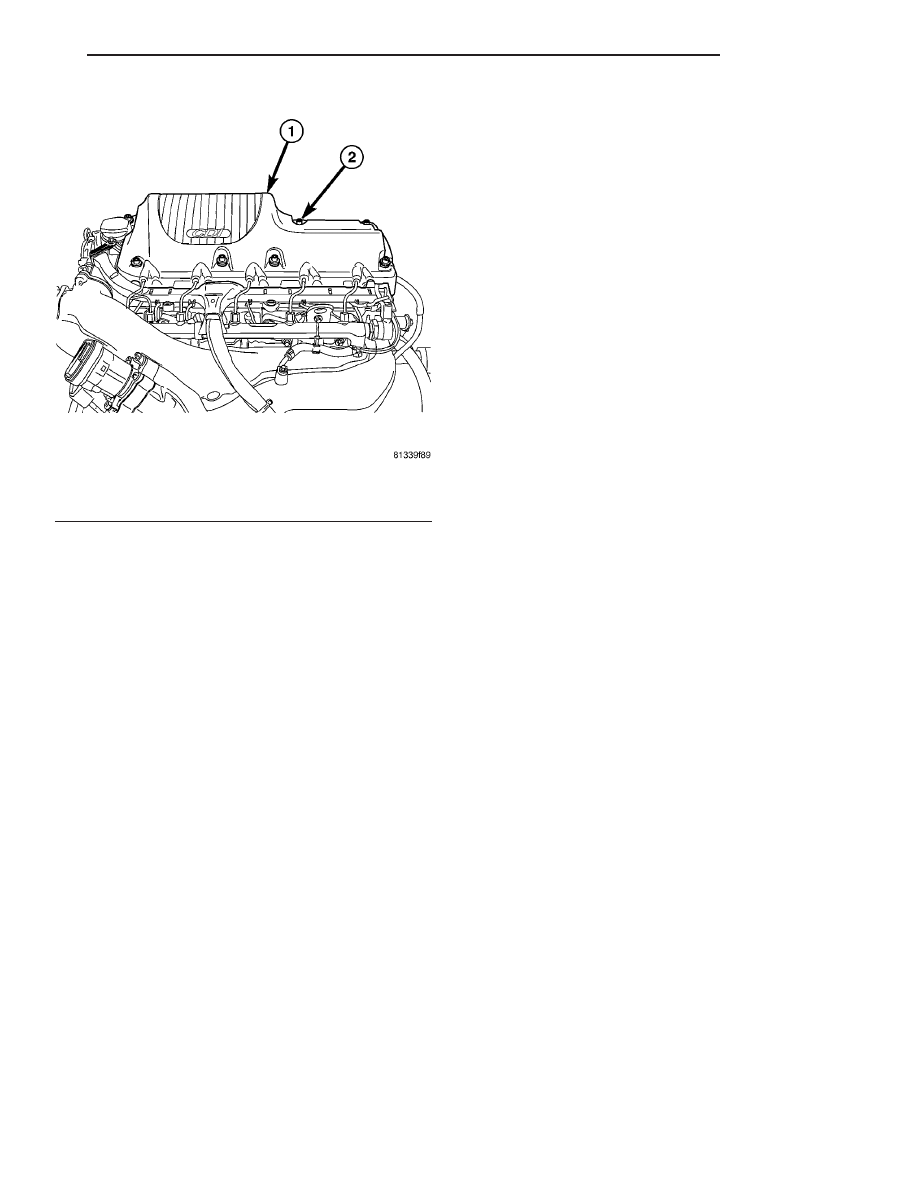

DESCRIPTION SPECIFICATION Engine 2.7L CDI Engine Description 5 Cylinder In-Line En- gine With 4-Valve Tech- nology Air Intake Turbo-Charged Engine with Charge Air Cooling Fuel Injection System 2 nd. Generation Com- mon Rail Direct Injection (CDI) Fuel Diesel Firing Order 1-2-4-5-3 Rated Output 154 HP at 3800 RPM Torque 243 ft. lbs. at 1600-2400 RPM Maximum Speed 4800 RPM Compression Ratio 18:1 Bore/Stroke 3.46/3.48 Eff. Displacement 2688 cm3 STANDARD PROCEDURE STANDARD PROCEDURE - COMPRESSION (1) Warm up engine to operating temperature (approx. 80 °C, 176°F). (2) Shut off engine. REMOVAL). (4) Remove glow plugs (Refer to 8 - ELECTRICAL/ IGNITION CONTROL/GLOW PLUG - REMOVAL). (5) Crank engine several times with the starter to eliminate combustion residues in the cylinders. (6) Insert compression tester adapter #8927 (Refer to 9 - ENGINE - SPECIAL TOOLS) with check valve (7) Connect compression tester hose adapter #9295 to compression gauge and test compression pressure (8) Carry out test procedure at the remaining cyl- inders in the same way. (9) Compare pressure readings obtained with the specified pressures. If the pressure reading is below (10) Remove compression tester and adapter from cylinder head. (11) Install glow plugs (Refer to 8 - ELECTRICAL/ IGNITION CONTROL/GLOW PLUG - INSTALLA- (12) Install engine cover (Refer to 9 - ENGINE - INSTALLATION). COMPRESSION SPECIFICATIONS Maximum Compression 29-35 bar (420-507 psi) Minimum Compression 18bar (261 psi) Permissible Difference ± 3bar (± 44 psi) STANDARD PROCEDURE - CYLINDER LEAK (1) Warm engine to operating temperature. WARNING: DO NOT OPEN COOLING SYSTEM UNLESS COOLANT TEMPERATURE IS BELOW 90C OF SCALDING WITH HOT COOLANT WHICH SPLASHES OUT. RISK OF POISONING FROM SWALLOWING COOLANT. OPEN CAP SLOWLY AND RELEASE PRESSURE. STORE COOL- GLOVES, CLOTHING AND EYE PROTECTION. NOTE: Turn cap carefully as far as first detent, (2) Open cooling system cap at coolant recover pressure container. (3) Remove engine cover (Refer to 9 - ENGINE - REMOVAL). (4) Unscrew oil filler cap. IGNITION CONTROL/GLOW PLUG - REMOVAL). NOTE: Crank engine at crankshaft in direction of (6) Position cylinder to be tested to ignition Top Dead Center (DTC). NOTE: Calibrate cylinder leak down tester and (7) Connect cylinder leak down tester and follow INSPECTING Instruction. INSPECTING NOTE: If crankshaft rotates, install retaining lock for (1) Pressurize cylinder with compressed air and read off pressure loss at cylinder leak tester. If exces- VA ENGINE 9 - 3 |
