windows to be raised and lowered electrically by
actuating a switch on each door panel. A master
switch on the drivers door allows the driver to raise
or lower each door window. The power window sys-
tem operates only when the ignition switch is in the
RUN or ACCESSORY position.

OPERATION

WINDOW SWITCH

The power window switches control the battery

and ground feeds to the power window motors. The
passenger door power window switches receive their
battery and ground feeds through the circuitry of the
drivers window switch.

WINDOW MOTOR

Window motors use permanent type magnets. The

B+ and ground applied at the motor terminal pins
will cause the motor to rotate in one direction.
Reversing current through the motor terminals will
cause the motor to rotate in the opposite direction.

Refer to the appropriate wiring information. The

wiring information includes wiring diagrams, proper
wire and connector repair procedures, details of wire
harness routing and retention, connector pin-out
information and location views for the various wire
harness connectors, splices and grounds.

WINDOW MOTOR

REMOVAL

The window motor is serviced with the window

regulator.

POWER WINDOW SWITCH

DIAGNOSIS AND TESTING - POWER WINDOW
SWITCH

Test the power window switch continuity. Refer to

the Power Window Switch Continuity chart to deter-
mine if the continuity is correct in the Off, Up and
Down switch positions (Fig. 1).

POWER WINDOW SWITCH CONTINUITY

CHART

SWITCH POSITION

CONTINUITY BETWEEN

PIN 1 AND 3

PIN 2 AND 4

DOWN

PIN 1 AND 4

PIN 2 AND 5

NEUTRAL (OFF)

PIN 1AND 3

PIN 2 AND 5

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove door handle cover.

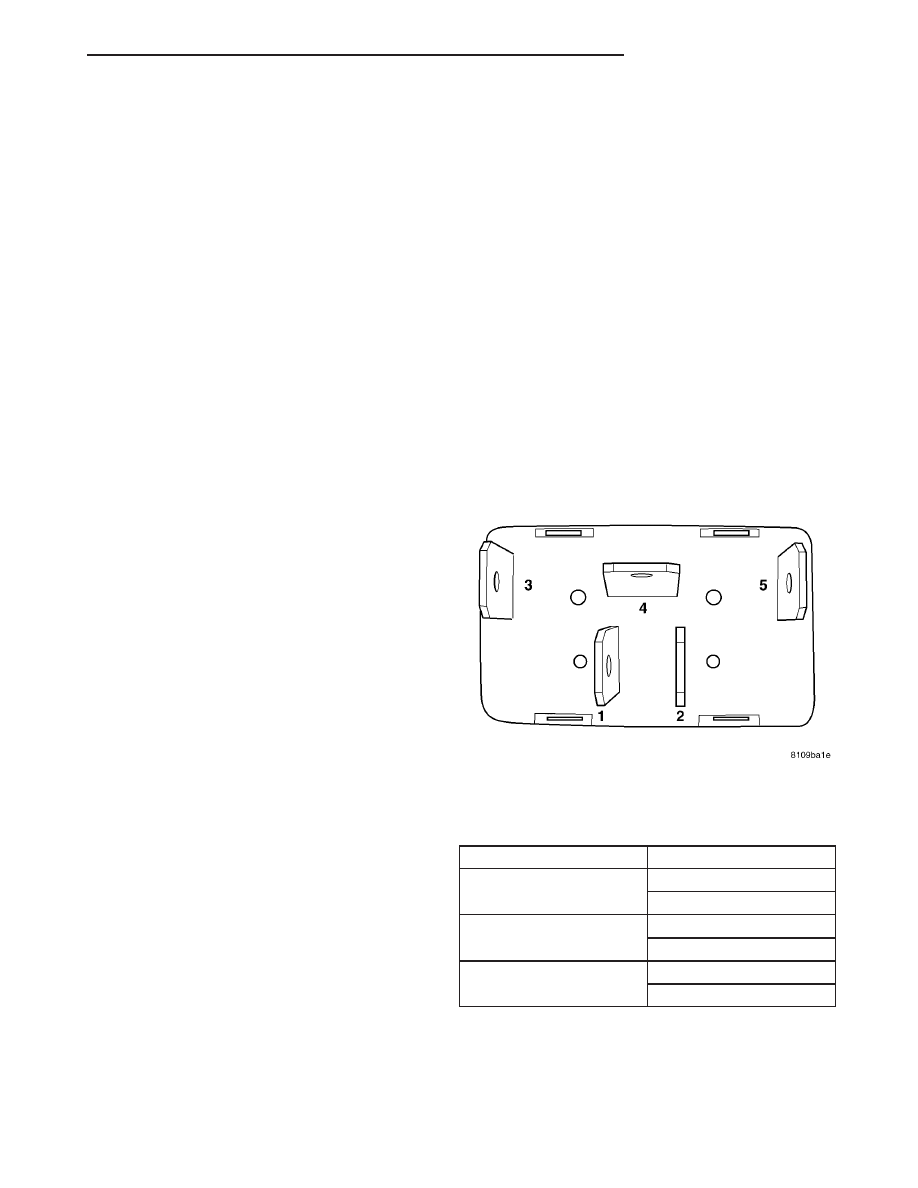

Fig. 1 POWER WINDOW SWITCH

POWER WINDOWS

8N - 5

(3) Remove power window switch trim from door

trim panel.

(4) disconnect

wire

harness

connectors

from

switches.

(5) Remove power window switch from trim.

INSTALLATION

(1) Install switch to trim.
(2) Connect wire harness connectors to switches.
(3) Install power window switch trim to door trim

panel.

(4) Install door handle cover.
(5) Connect battery negative cable.

8N - 6

POWER WINDOWS

RESTRAINTS

TABLE OF CONTENTS

page

RESTRAINTS

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 2

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

WARNINGS - RESTRAINT SYSTEM

. . . . . . . . . . 5

DIAGNOSIS AND TESTING - SUPPLEMENTAL

RESTRAINT SYSTEM

. . . . . . . . . . . . . . . . . . . 5

STANDARD PROCEDURE

STANDARD PROCEDURE - HANDLING

NON-DEPLOYED SUPPLEMENTAL
RESTRAINTS . . . . . . . . . . . . . . . . . . . . . . . . . 6

STANDARD PROCEDURE - SERVICE

AFTER A SUPPLEMENTAL RESTRAINT
DEPLOYMENT . . . . . . . . . . . . . . . . . . . . . . . . . 6

STANDARD PROCEDURE - VERIFICATION

TEST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

AIRBAG CONTROL MODULE

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 8

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 11

CLOCKSPRING

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 12

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 13

STANDARD PROCEDURE - CLOCKSPRING

CENTERING

. . . . . . . . . . . . . . . . . . . . . . . . . 13

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 15

DRIVER AIRBAG

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 16

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 17

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 19

FRONT SEAT BELT & RETRACTOR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 22

FRONT SEAT BELT BUCKLE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 23

PASSENGER AIRBAG

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 24

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 24

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 27

PASSENGER AIRBAG BRACKET

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 28

REAR SEAT BELT & RETRACTOR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 30

REAR SEAT BELT BUCKLE

REMOVAL

REMOVAL - INBOARD

. . . . . . . . . . . . . . . . . . 30

REMOVAL - OUTBOARD

. . . . . . . . . . . . . . . . 31

INSTALLATION

INSTALLATION - INBOARD

. . . . . . . . . . . . . . 31

INSTALLATION - OUTBOARD

. . . . . . . . . . . . 31

SEAT BELT SWITCH

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 31

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 32

SEAT BELT TENSIONER

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 32

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 33

SEAT BELT TURNING LOOP ADJUSTER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 35

SIDE CURTAIN AIRBAG

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 35

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 36

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 38

SIDE IMPACT SENSOR

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 39

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 39

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 40

RESTRAINTS

8O - 1

RESTRAINTS

DESCRIPTION

An occupant restraint system is standard factory-

installed safety equipment on this model. Available
occupant restraints for this model include both active
and passive types. Active restraints are those which
require the vehicle occupants to take some action to
employ, such as fastening a seat belt; while passive
restraints require no action by the vehicle occupants
to be employed (Fig. 1).

ACTIVE RESTRAINTS

The active restraints for this model include:
• Front Seat Belts - Both outboard front seating

positions are equipped with three-point seat belt sys-
tems employing a lower B-pillar mounted inertia
latch-type retractors, height-adjustable upper B-pil-
lar mounted turning loops, travelling lower seat belt
anchors secured to the outboard seat tracks, and

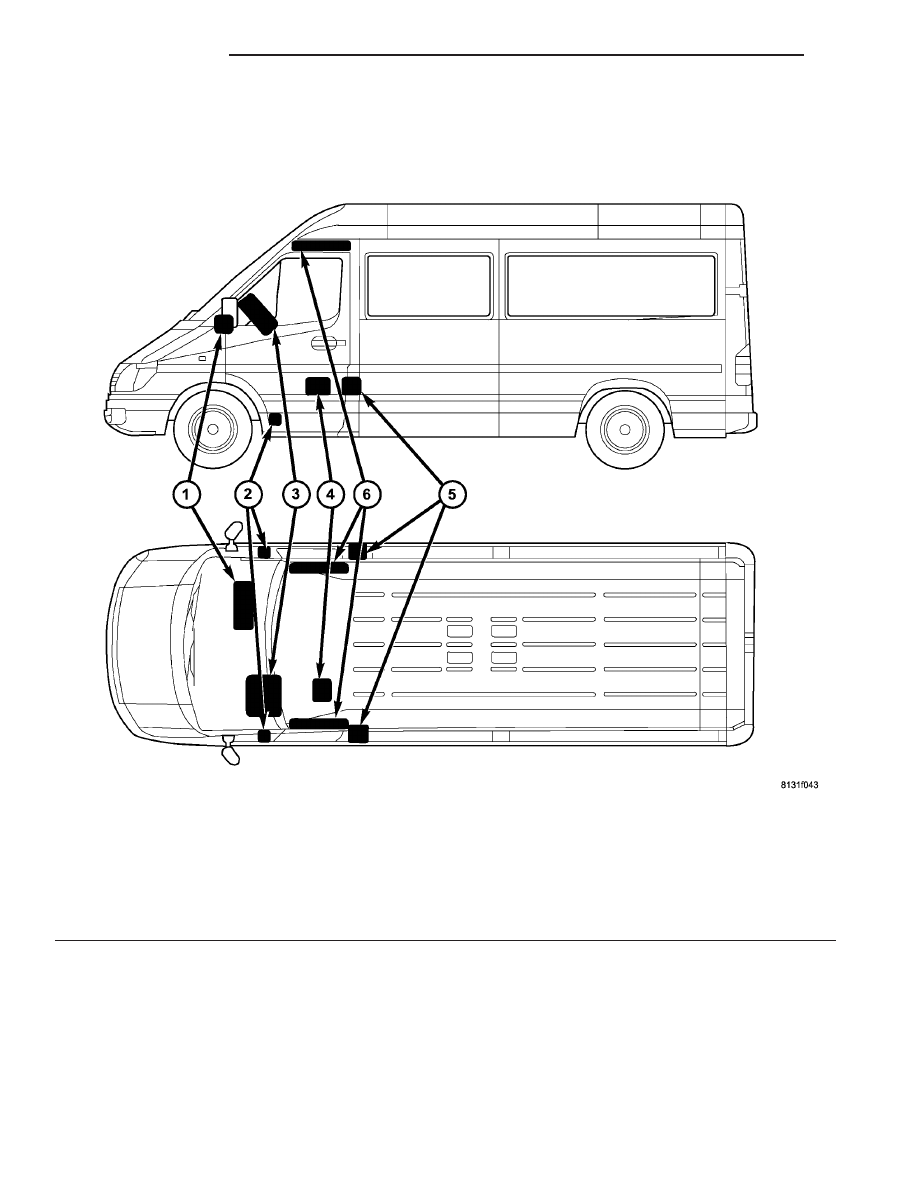

Fig. 1 Supplemental Restraint System
