(3) Pull the dome/reading lamp unit from its

mounting location far enough to access and discon-
nect the vehicle wire harness from the lamp connec-
tor receptacle.

(4) Remove the dome/reading lamp unit from its

mounting location.

INSTALLATION

(1) Position the dome/reading lamp unit to its

mounting location.

(2) Reconnect the vehicle wire harness connector

to the dome/reading lamp connector receptacle (Fig.
6).

(3) Position the edge of the dome/reading lamp

housing opposite from the retainer clip into the
mounting hole.

(4) Push firmly and evenly on the notched edge of

the dome/reading lamp housing until the retainer
clip latches into place.

(5) Reconnect the battery negative cable.

DOME LAMP / INTRUSION
SENSOR BULB

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the dome lamp/intrusion sensor unit

from its mounting location, but do not disconnect the
vehicle wire harness from the lamp connector recep-
tacle. (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING
- INTERIOR/DOME LAMP/INTRUSION SENSOR
UNIT - REMOVAL).

(3) Grasp the lamp housing in one hand and rotate

the bulb holder and bulb unit counterclockwise about
30 degrees on the circuit board (Fig. 7).

(4) Pull the bulb holder and bulb unit straight out

from the mounting hole in the circuit board.

INSTALLATION

(1) Grasp the dome lamp/intrusion sensor unit

housing in one hand and align the bulb holder and
bulb unit with the bulb mounting hole in the circuit
board with the other hand (Fig. 7).

(2) Insert the bulb holder and bulb unit straight

into the circuit board bulb mounting hole until it is
firmly seated.

(3) Rotate the bulb holder and bulb unit clockwise

about 30 degrees on the circuit board.

(4) Reinstall the dome lamp/intrusion sensor unit

into its mounting location. (Refer to 8 - ELECTRI-
CAL/LAMPS/LIGHTING - INTERIOR/DOME LAMP/
INTRUSION SENSOR UNIT - INSTALLATION).

(5) Reconnect the battery negative cable.

DOME LAMP / INTRUSION
SENSOR

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Insert the tip of a small flat-bladed screwdriver

into the notch on one edge of the dome lamp/intru-
sion sensor unit housing to depress the retainer clip
and pull that edge of the lamp away from its mount-
ing location (Fig. 8).

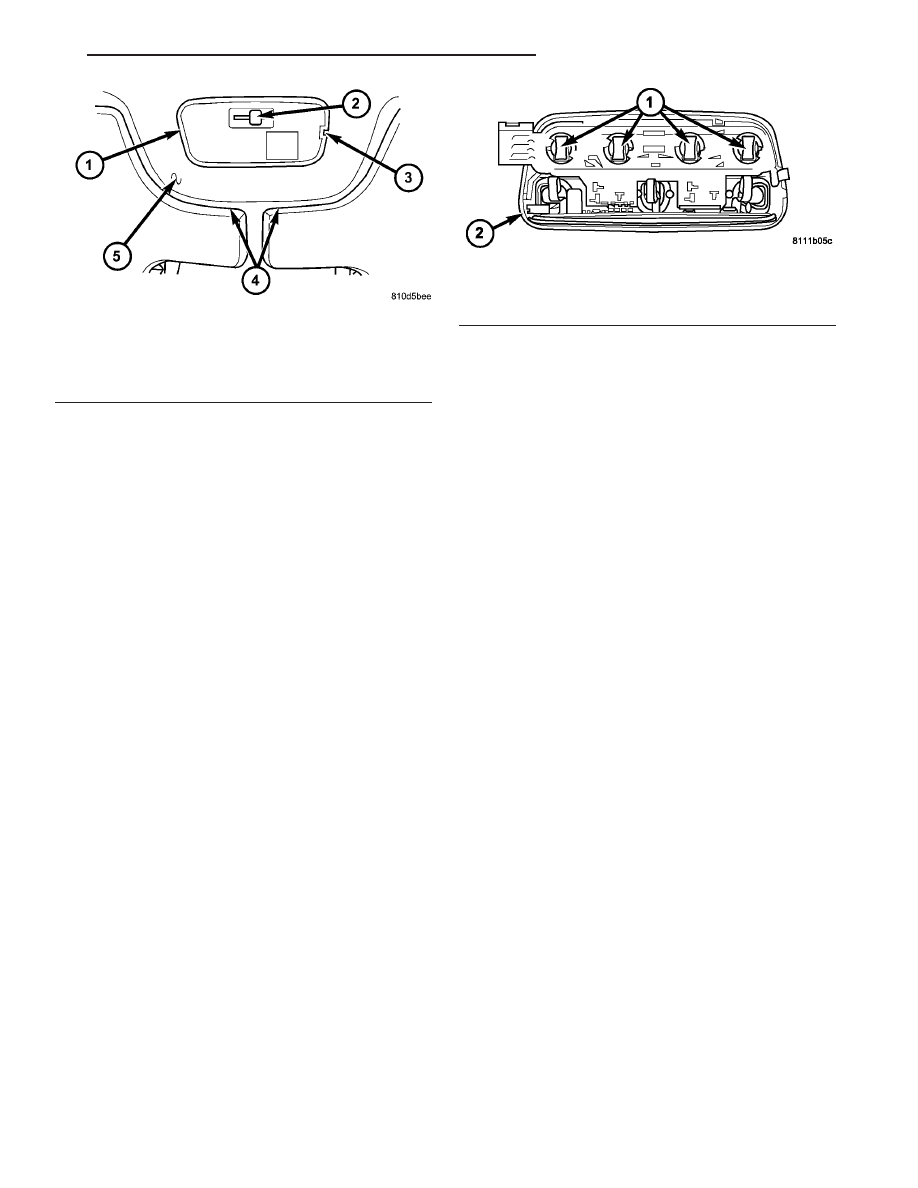

Fig. 6 Dome/Reading Lamp Unit Remove/Install

1 - LAMP HOUSING
2 - SWITCH BUTTON
3 - NOTCH
4 - SUN VISOR (2)
5 - HEADLINER

Fig. 7 Dome Lamp/Intrusion Sensor Bulb Remove/

Install

1 - BULB HOLDER/BULB (4)
2 - LAMP HOUSING

LAMPS/LIGHTING - INTERIOR

8L - 33

(3) Pull the dome lamp/intrusion sensor unit from

its mounting location far enough to access and dis-
connect the vehicle wire harness from the lamp con-
nector receptacle.

(4) Remove the dome lamp/intrusion sensor unit

from its mounting location.

INSTALLATION

(1) Position the dome lamp/intrusion sensor unit to

its mounting location (Fig. 8).

(2) Reconnect the vehicle wire harness connector

to the dome lamp/intrusion sensor unit connector
receptacle.

(3) Position the edge of the dome lamp/intrusion

sensor unit housing opposite from the retainer clip
into the mounting hole.

(4) Push firmly and evenly on the notched edge of

the dome lamp/intrusion sensor unit housing until
the retainer clip latches into place.

(5) Reconnect the battery negative cable.

DOOR JAMB SWITCH

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Open the door and remove the screw that

secures the door jamb switch to the hinge pillar of
the door opening (Fig. 9).

(3) Pull the door jamb switch away from the

mounting hole in the pillar far enough to access and
disconnect the vehicle wire harness connector from
the back of the switch.

INSTALLATION

(1) Position the door jamb switch close enough to

the mounting hole in the hinge pillar of the door
opening to reconnect the vehicle wire harness connec-
tor to the back of the switch.

(2) Position the door jamb switch into the mount-

ing hole in the hinge pillar (Fig. 9).

(3) Install and tighten the screw that secures the

door jamb switch to the hinge pillar.

(4) Reconnect the battery negative cable.

ENTRY / EXIT LAMP BULB

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the entry/exit lamp unit from its

mounting location. (Refer to 8 - ELECTRICAL/
LAMPS/LIGHTING

INTERIOR/ENTRY/EXIT

LAMP UNIT - REMOVAL).

(3) Grasp the lamp housing firmly in one hand,

then rotate the bulb holder counterclockwise and pull
it straight out from the housing with the other hand
(Fig. 10).

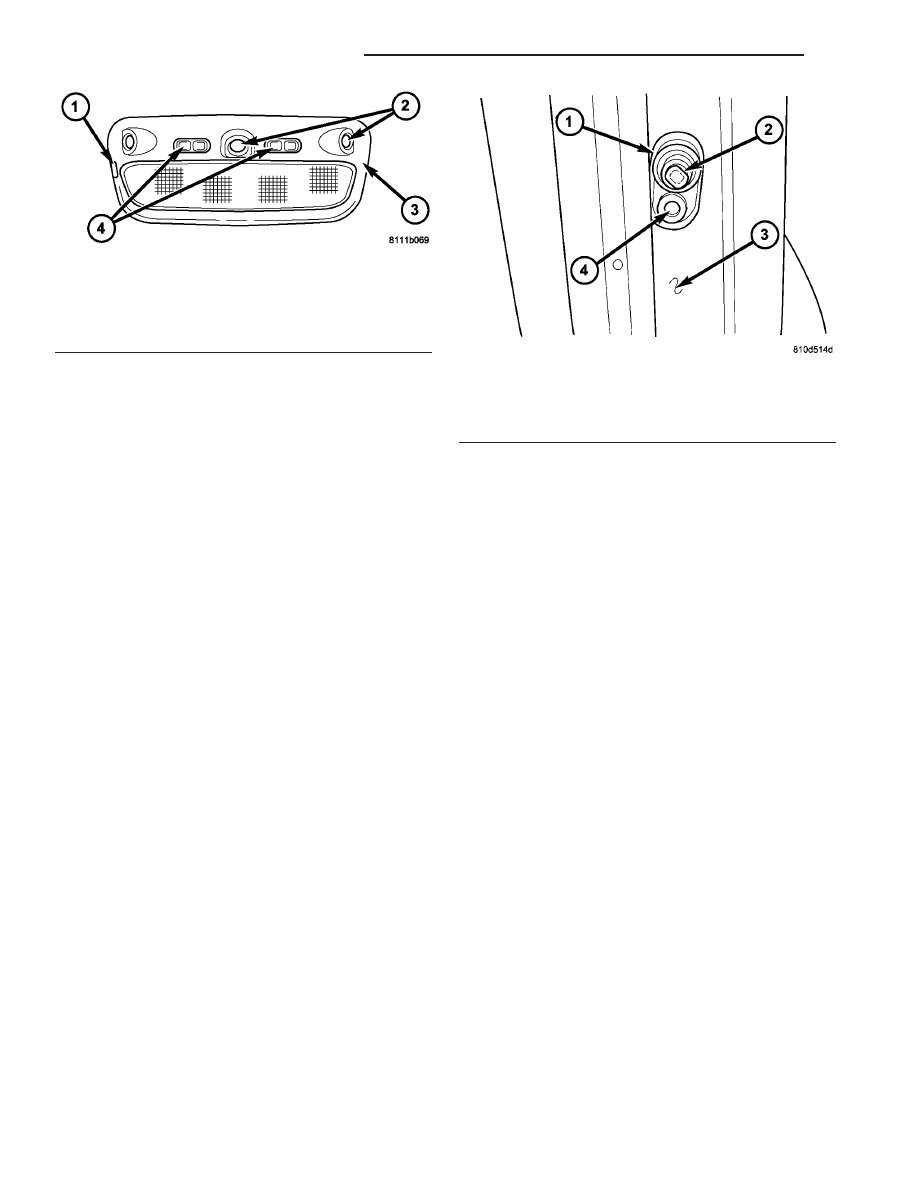

Fig. 8 Dome Lamp/Intrusion Sensor Unit Remove/

Install

1 - NOTCH
2 - SENSOR (3)
3 - HOUSING
4 - SWITCH (2)

Fig. 9 Door Jamb Switch Remove/Install

1 - DOOR JAMB SWITCH
2 - PLUNGER
3 - PILLAR
4 - SCREW

8L - 34

LAMPS/LIGHTING - INTERIOR

(4) Remove the bulb from the bulb holder.

INSTALLATION

(1) Insert the bulb into the entry/exit lamp bulb

holder (Fig. 10).

(2) Grasp the entry/exit lamp housing firmly in

one hand, then insert the bulb holder into the hous-
ing and rotate it clockwise to lock it in place with the
other hand.

(3) Reinstall the entry/exit lamp unit into its

mounting location. (Refer to 8 - ELECTRICAL/
LAMPS/LIGHTING

INTERIOR/ENTRY/EXIT

LAMP UNIT - INSTALLATION).

(4) Reconnect the battery negative cable.

ENTRY / EXIT LAMP UNIT

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Insert the tip of a small flat-bladed screwdriver

into the notch on one edge of the entry/exit lamp
housing to depress the retainer clip and pull that
edge of the lamp away from its mounting location
(Fig. 11).

(3) Pull the entry/exit lamp unit from its mounting

location far enough to access and disconnect the vehi-
cle wire harness from the lamp connector receptacle.

(4) Remove the entry/exit lamp unit from its

mounting location.

INSTALLATION

(1) Position the entry/exit lamp unit to its mount-

ing location.

(2) Reconnect the vehicle wire harness connector

to the entry/exit lamp connector receptacle (Fig. 11).

(3) Position the edge of the entry/exit lamp hous-

ing opposite from the retainer clip into the mounting
hole.

(4) Push firmly and evenly on the notched edge of

the entry/exit lamp housing until the retainer clip
latches into place.

(5) Reconnect the battery negative cable.

TIME DELAY RELAY

REMOVAL

WARNING: To avoid personal injury or death, on
vehicles equipped with airbags, disable the supple-
mental

restraint

system

before

attempting

any

steering wheel, steering column, airbag, seat belt
tensioner, or instrument panel component diagno-
sis or service. Disconnect and isolate the battery
negative (ground) cable, then wait two minutes for
the system capacitor to discharge before perform-
ing further diagnosis or service. This is the only
sure way to disable the supplemental restraint sys-
tem. Failure to take the proper precautions could
result in accidental airbag deployment.

(1) Disconnect and isolate the battery negative

cable.

(2) Move the driver side front seat to its most for-

ward position for easiest access to the seat riser
cover panel.

(3) Remove the two screws that secure the cover

panel to the top of the seat riser under the driver
side front seat (Fig. 12).

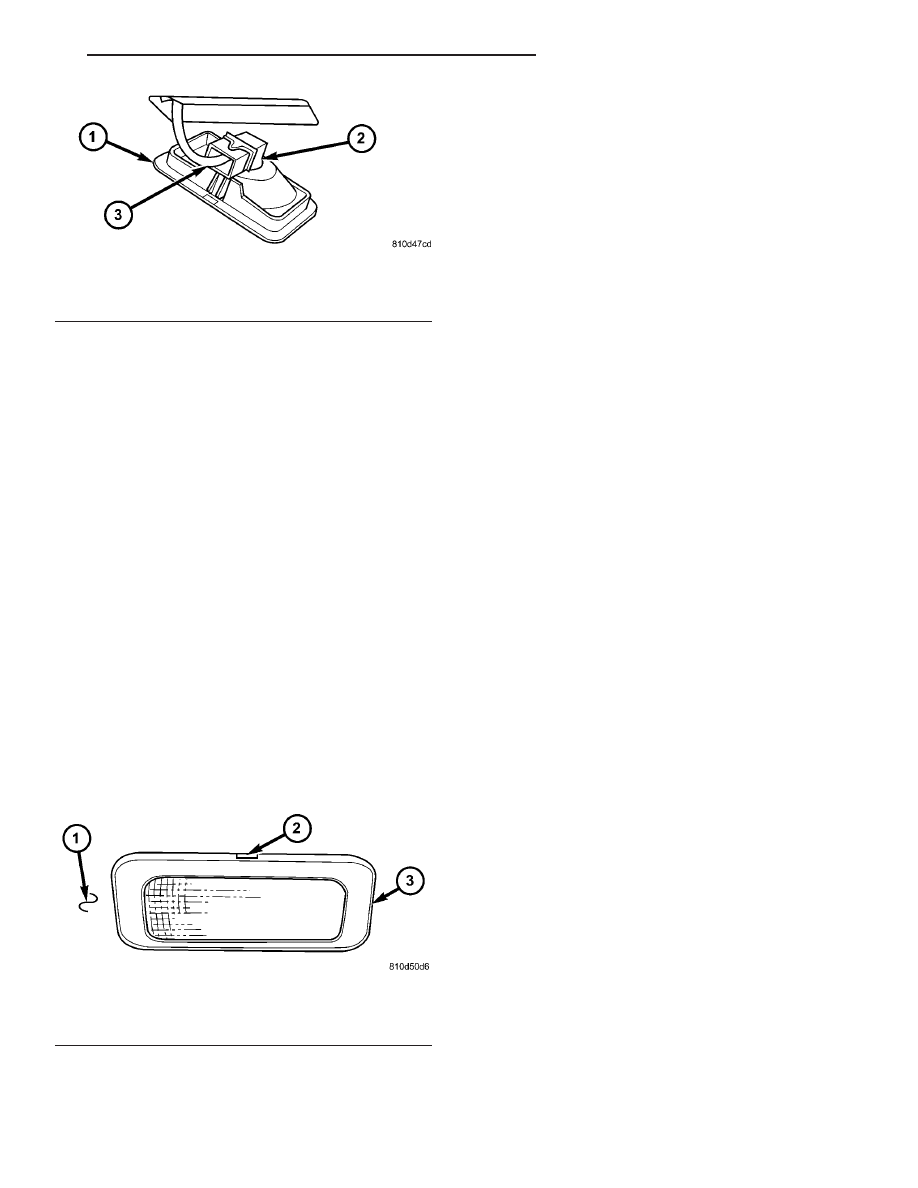

Fig. 10 Entry/Exit Lamp Bulb Remove/Install

1 - LAMP HOUSING
2 - BULB HOLDER
3 - CONNECTOR

Fig. 11 Entry/Exit Lamp Unit Remove/Install

1 - STEP WELL SCUFF PAD
2 - NOTCH
3 - ENTRY/EXIT LAMP UNIT

LAMPS/LIGHTING - INTERIOR

8L - 35

(4) Remove the cover panel from the top of the

driver side seat riser.

(5) Remove the time delay relay from its vehicle

wire harness connector by grasping it firmly and
pulling it straight out from the connector within the
driver side seat riser.

INSTALLATION

WARNING: To avoid personal injury or death, on
vehicles equipped with airbags, disable the supple-
mental

restraint

system

before

attempting

any

(1) Position the time delay relay to its vehicle wire

harness connector within the driver side seat riser.

(2) Align the time delay relay terminals with the

terminal cavities in the vehicle wire harness connec-
tor.

(3) Push firmly and evenly on the top of the time

delay relay until the terminals are fully seated in the
terminal cavities in the vehicle wire harness connec-
tor.

(4) Position the cover panel onto the top of the

driver side seat riser (Fig. 12).

(5) Install and tighten the two screws that secure

the cover panel to the top of the seat riser under the
driver side front seat. Tighten the screws to 2 N·m
(18 in. lbs.).

(6) Move the driver side front seat back to its driv-

ing position.

(7) Reconnect the battery negative cable.

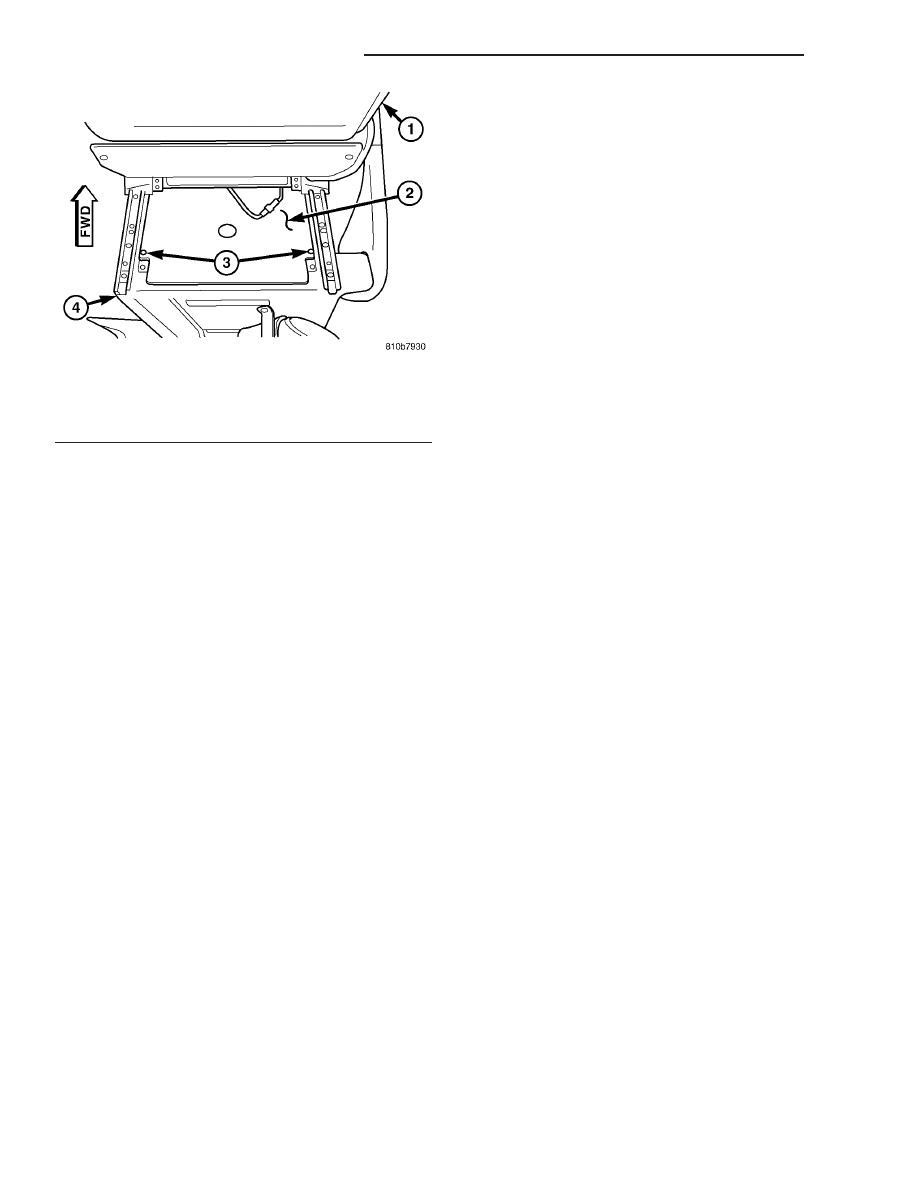

Fig. 12 Seat Riser Cover

1 - DRIVER SEAT BACK
2 - COVER PANEL
3 - SCREW (2)
4 - SEAT RISER

8L - 36

LAMPS/LIGHTING - INTERIOR
