Mercedes-Benz Sprinter / Dodge Sprinter. Manual - part 71

FUSES (PDC)

FUSE

NO.

AMPS

FUSED CIRCUIT

FUNCTION

1

200A

4RD

FUSED B(+)

2

70A

10RD

FUSED B(+)

3

125A

8RD

FUSED B(+)

4

80A

8RD

FUSED B(+)

5

125A

8RD

FUSED B(+)

6

100A

8RD

FUSED B(+)

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

281

CONNECTOR PINOUTS

RADIO C1 - BLACK

CAV

CIRCUIT

FUNCTION

A1

20BL/RD/WT

VEHICLE SPEED SENSOR OUTPUT

A2

20YL

K-TCM/RADIO

A3

18DG/YL/BK

CTEL MUTE

A4

16RD/YL

FUSED B(+)

A5

16BK

RADIO ANTENNA

A6

16GY/DG/RD

LAMP DRIVER

A7

16BK/RD

FUSED IGNITION SWITCH OUTPUT (ACC-RUN-START)

A8

16BR

GROUND

B1

16BR/GY

SPEAKER-RIGHT REAR

B2

16WT/GY

SPEAKER-RIGHT REAR

B3

18BR/RD

SPEAKER-RIGHT FRONT (+)

B4

18BK

SPEAKER-RIGHT FRONT (-)

B5

18BR/DG

SPEAKER-LEFT FRONT (+)

B6

18BR

SPEAKER-LEFT FRONT (-)

B7

16BR/BL

SPEAKER-LEFT REAR

B8

16WT/BL

SPEAKER-LEFT REAR

RADIO C2

CAV

CIRCUIT

FUNCTION

1

16BK

RADIO ANTENNA W/SHIELD

2

16BK

SHIELD

RECIRCULATED AIR SOLENOID VALVE

CAV

CIRCUIT

FUNCTION

1

16RD

RECIRCULATED AIR SOLENOID VALVE CONTROL

2

16BK

GROUND

REFRIGERANT PRESSURE SENSOR

CAV

CIRCUIT

FUNCTION

1

18BR/BL

SENSOR GROUND

2

20BR/RD

REFRIGERANT PRESSURE SENSOR FEEDBACK

3

20RD/BL

5 VOLT SUPPLY

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

282

CONNECTOR PINOUTS

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

283

CONNECTOR PINOUTS

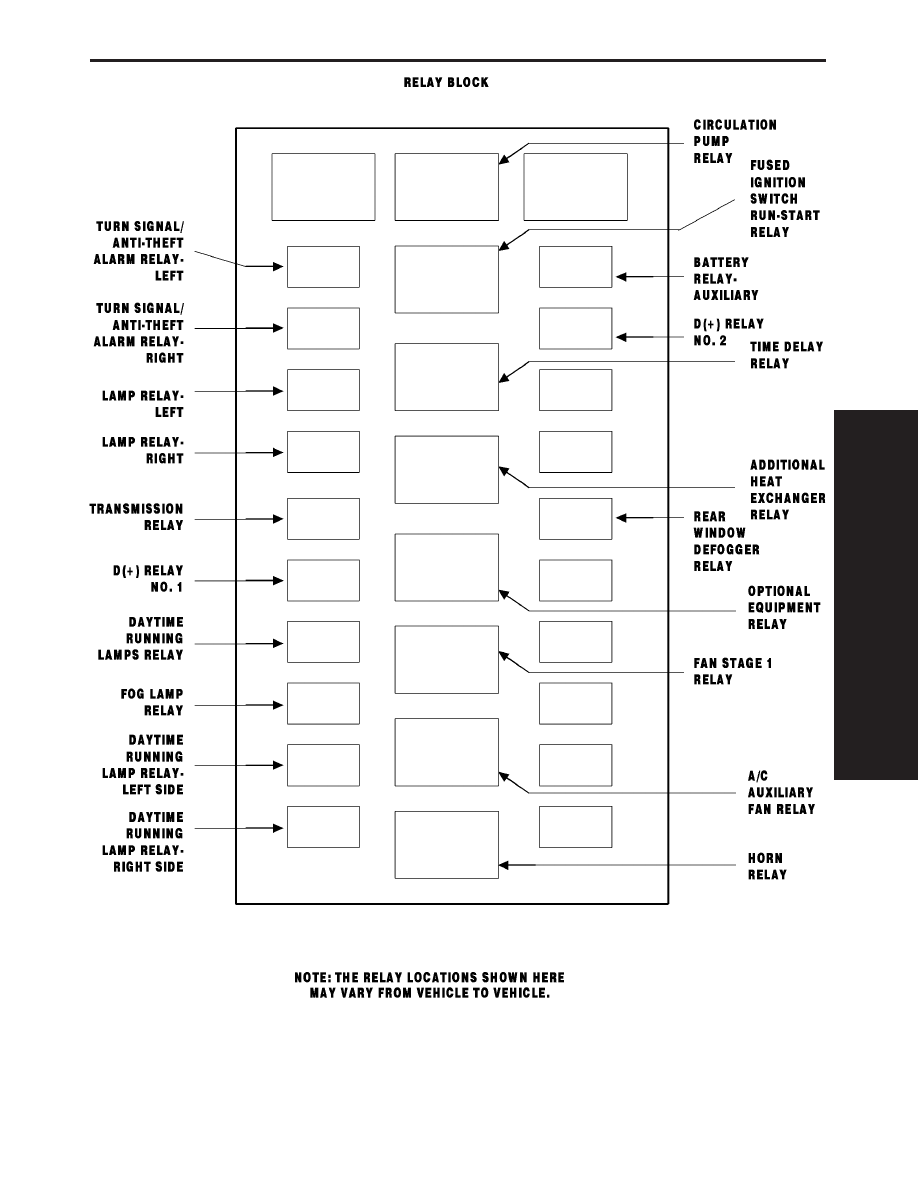

A/C AUXILIARY FAN RELAY (RELAY BLOCK)

CAV

CIRCUIT

FUNCTION

30

14BL/YL

FUSED B(+)

85

18BR

GROUND

86

18BK/RD

A/C AUXILIARY FAN RELAY CONTROL

87

14DG/BK

A/C AUXILIARY FAN RELAY OUTPUT

87A

-

-

CIRCULATION PUMP RELAY-CABIN HEATER MODULE (RELAY BLOCK)

CAV

CIRCUIT

FUNCTION

30

18DG/BK

CIRCULATION PUMP RELAY OUTPUT

85

16BR

GROUND

86

16BL/YL

CIRCULATION PUMP RELAY HIGH SIDE CONTROL

87

16RD/BL

FUSED B(+)

87A

16BK/YL

FUSED IGNITION SWITCH OUTPUT (RUN-START)

D+ RELAY NO. 2 (RELAY BLOCK)

CAV

CIRCUIT

FUNCTION

30

14RD

FUSED B(+)

85

16RD/BK

FUSED D(+) RELAY NO. 1 OUTPUT

86

16BR

GROUND

87

14BL/YL

D(+) RELAY NO. 2 OUTPUT

87A

-

-

FAN STAGE 1 RELAY (RELAY BLOCK)

CAV

CIRCUIT

FUNCTION

30

14BK/VT

FAN STAGE 1 RELAY OUTPUT

85

16BR

GROUND

86

16BL/YL

FAN STAGE 1 RELAY HIGH SIDE CONTROL

87

16RD/WT

FUSED B(+)

87A

-

-

OPTIONAL EQUIPMENT RELAY (RELAY BLOCK)

CAV

CIRCUIT

FUNCTION

30

10RD

FUSED B(+)

85

16BR

GROUND

86

16BK/YL

FUSED IGNITION SWITCH OUTPUT (RUN-START)

87

10BK

OPTIONAL EQUIPMENT RELAY OUTPUT

87A

-

-

REMOTE KEYLESS ENTRY ANTENNA

CAV

CIRCUIT

FUNCTION

1

20BR

RKE ANTENNA

3

-

GROUND

SEAT BELT SWITCH

CAV

CIRCUIT

FUNCTION

1

16BR

GROUND

2

20YL/RD

SEAT BELT SWITCH SIGNAL

3

-

-

4

-

-

5

-

-

6

-

-

7

-

-

8

-

-

9

-

-

10

-

-

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

284

CONNECTOR PINOUTS
