Mercedes-Benz ML320. Manual - part 8

Fig. 19: SRS & ETR Diagnosis (13 Of 16)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA

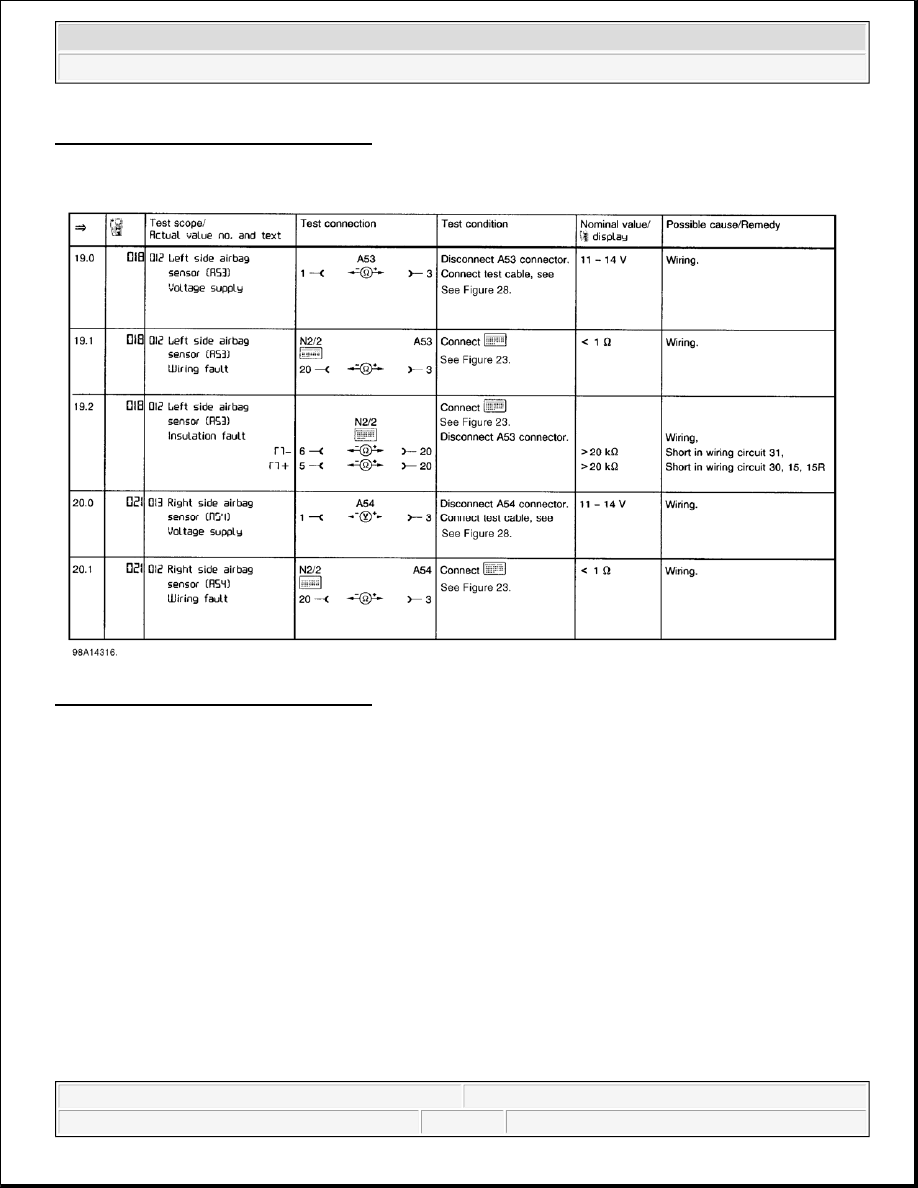

Fig. 20: SRS & ETR Diagnosis (14 Of 16)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA



1998 Mercedes-Benz ML320

AIR BAG RESTRAINT SYSTEM 1998 AIR BAG RESTRAINT SYSTEMS Mercedes-Benz



me

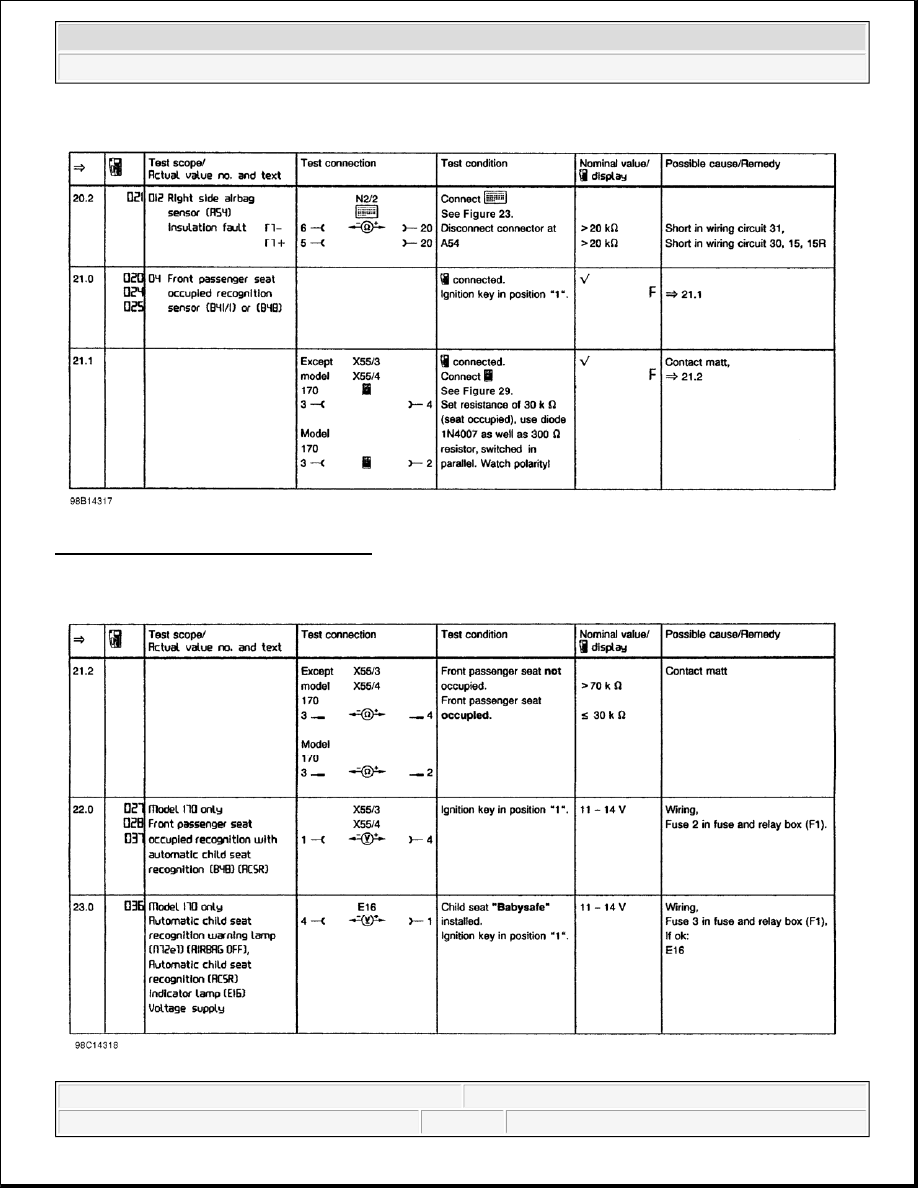

Fig. 21: SRS & ETR Diagnosis (15 Of 16)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA



1998 Mercedes-Benz ML320

AIR BAG RESTRAINT SYSTEM 1998 AIR BAG RESTRAINT SYSTEMS Mercedes-Benz



me



Fig. 22: SRS & ETR Diagnosis (16 Of 16)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA

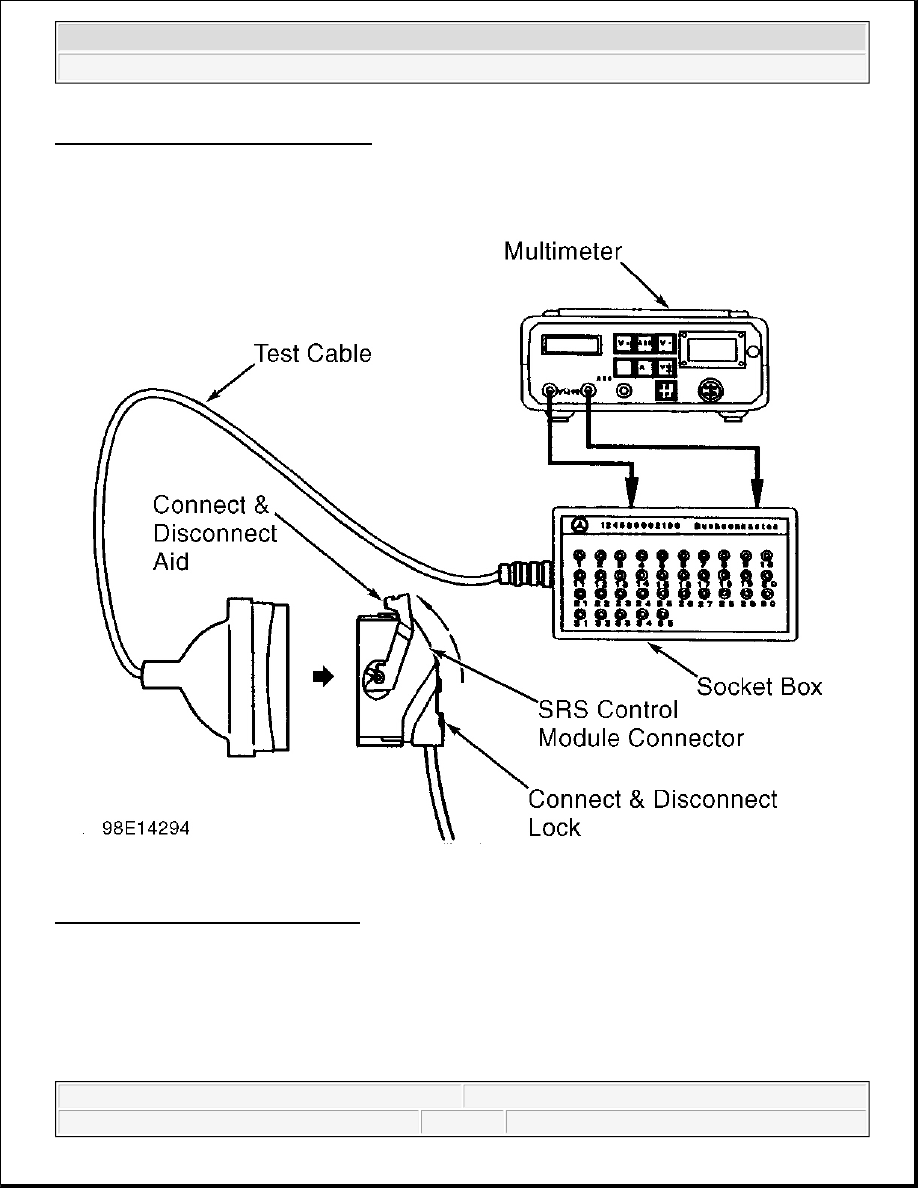

Fig. 23: Connecting Socket Box (1 Of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA



1998 Mercedes-Benz ML320

AIR BAG RESTRAINT SYSTEM 1998 AIR BAG RESTRAINT SYSTEMS Mercedes-Benz



me

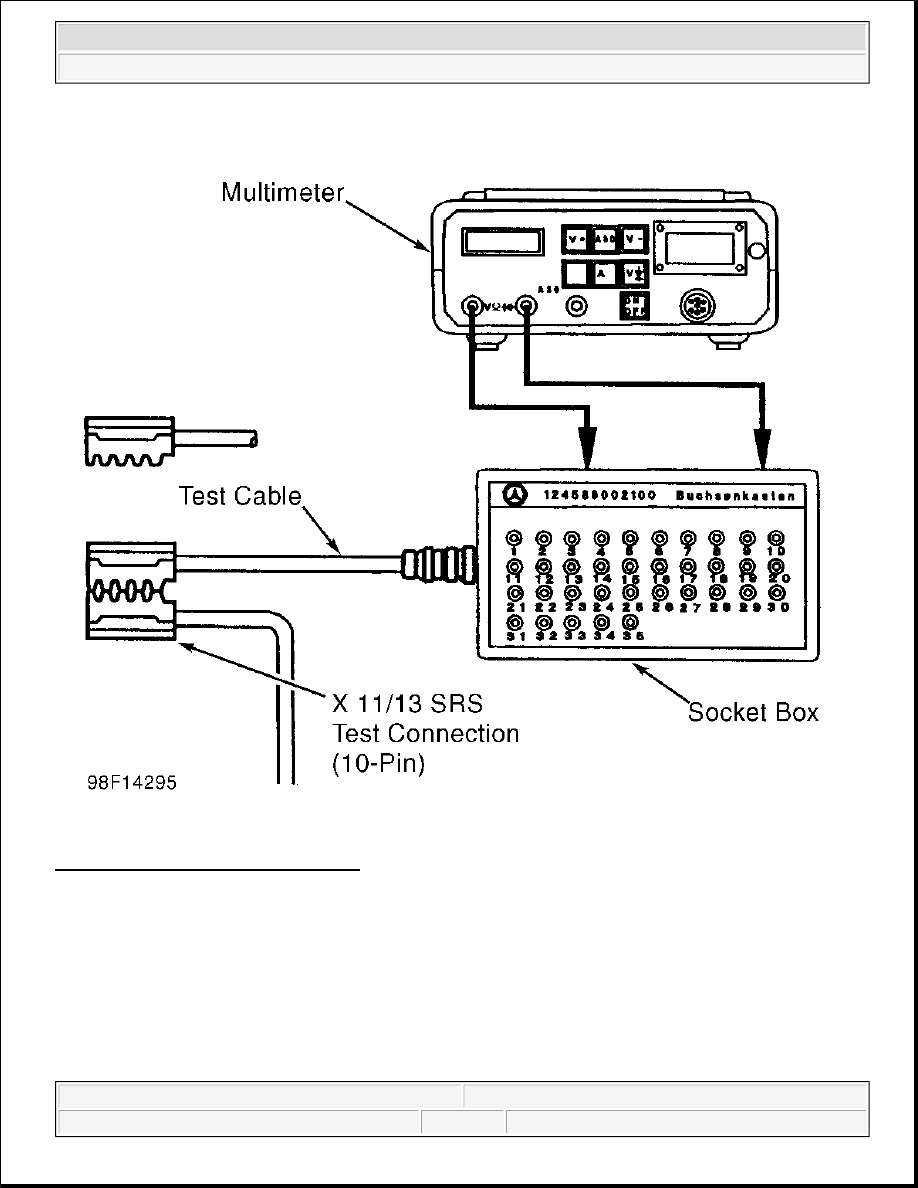

Fig. 24: Connecting Socket Box (2 Of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA



1998 Mercedes-Benz ML320

AIR BAG RESTRAINT SYSTEM 1998 AIR BAG RESTRAINT SYSTEMS Mercedes-Benz



me
