Mercedes-Benz ML320. Manual - part 6

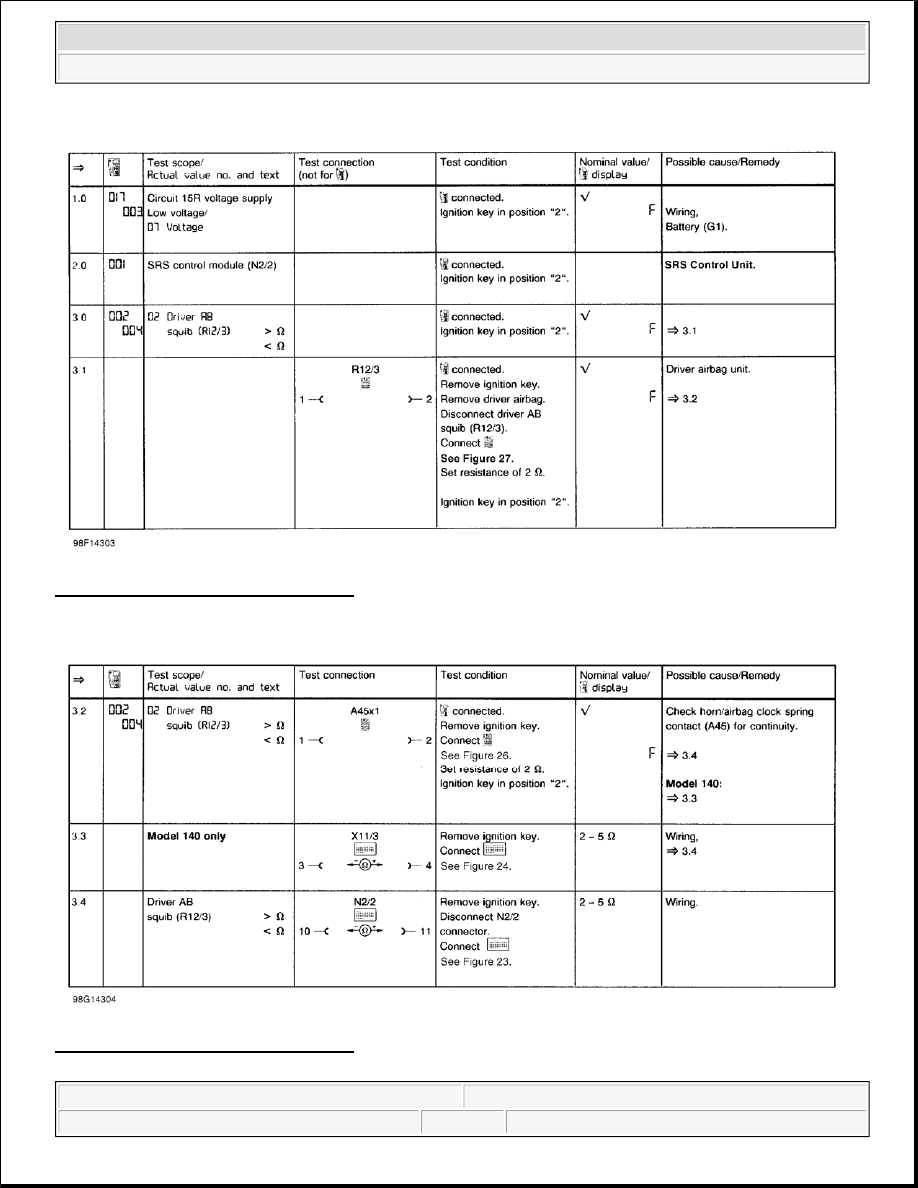

Fig. 7: SRS & ETR Diagnosis (1 Of 16)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig. 8: SRS & ETR Diagnosis (2 Of 16)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA



1998 Mercedes-Benz ML320

AIR BAG RESTRAINT SYSTEM 1998 AIR BAG RESTRAINT SYSTEMS Mercedes-Benz



me

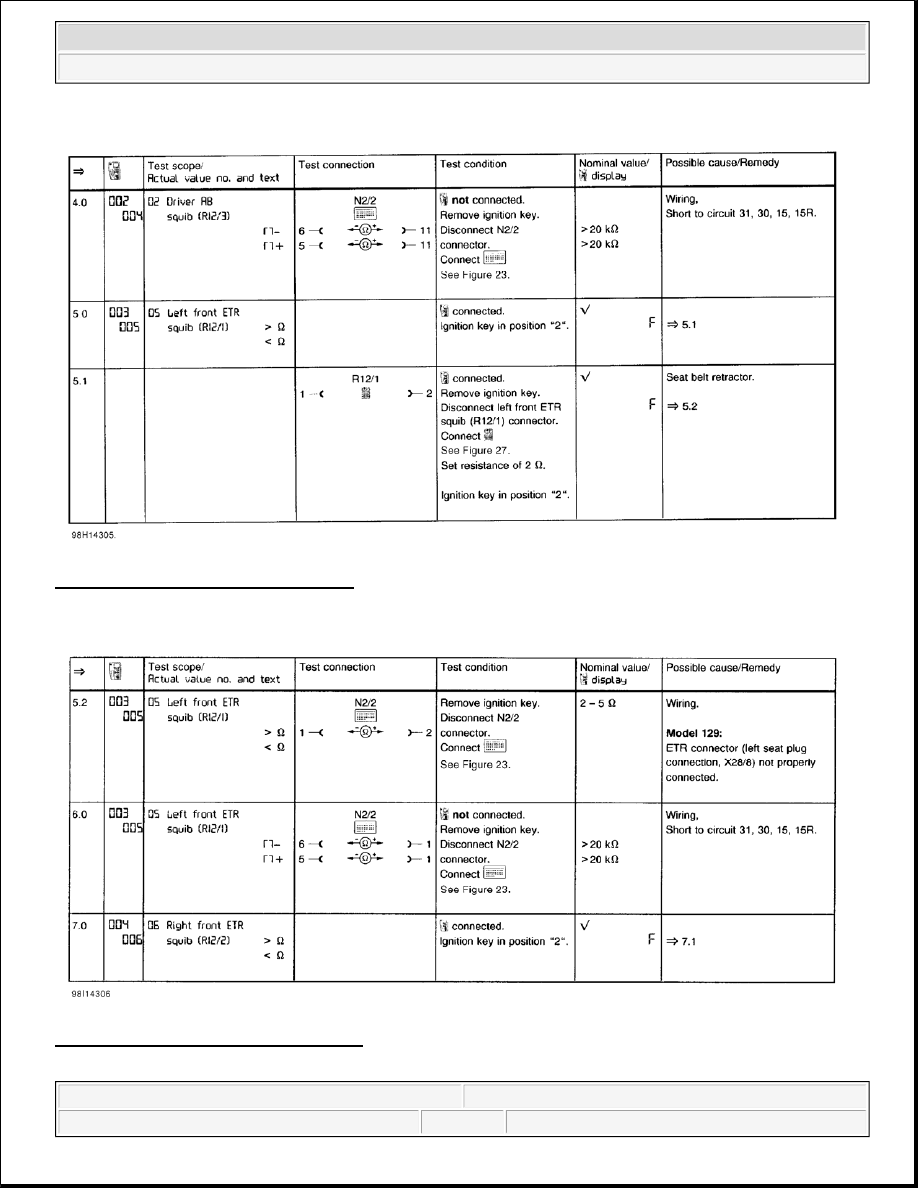

Fig. 9: SRS & ETR Diagnosis (3 Of 16)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig. 10: SRS & ETR Diagnosis (4 Of 16)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA



1998 Mercedes-Benz ML320

AIR BAG RESTRAINT SYSTEM 1998 AIR BAG RESTRAINT SYSTEMS Mercedes-Benz



me

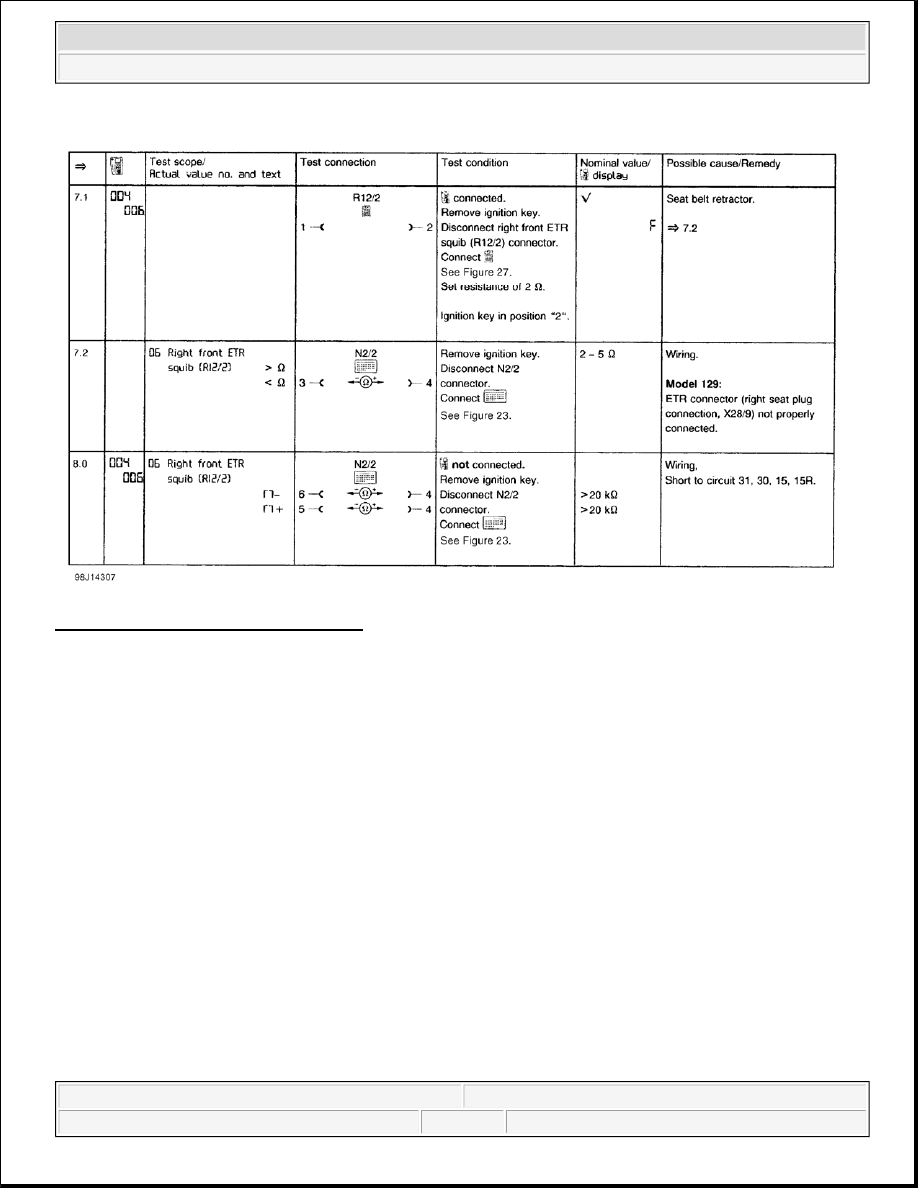

Fig. 11: SRS & ETR Diagnosis (5 Of 16)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA



1998 Mercedes-Benz ML320

AIR BAG RESTRAINT SYSTEM 1998 AIR BAG RESTRAINT SYSTEMS Mercedes-Benz



me

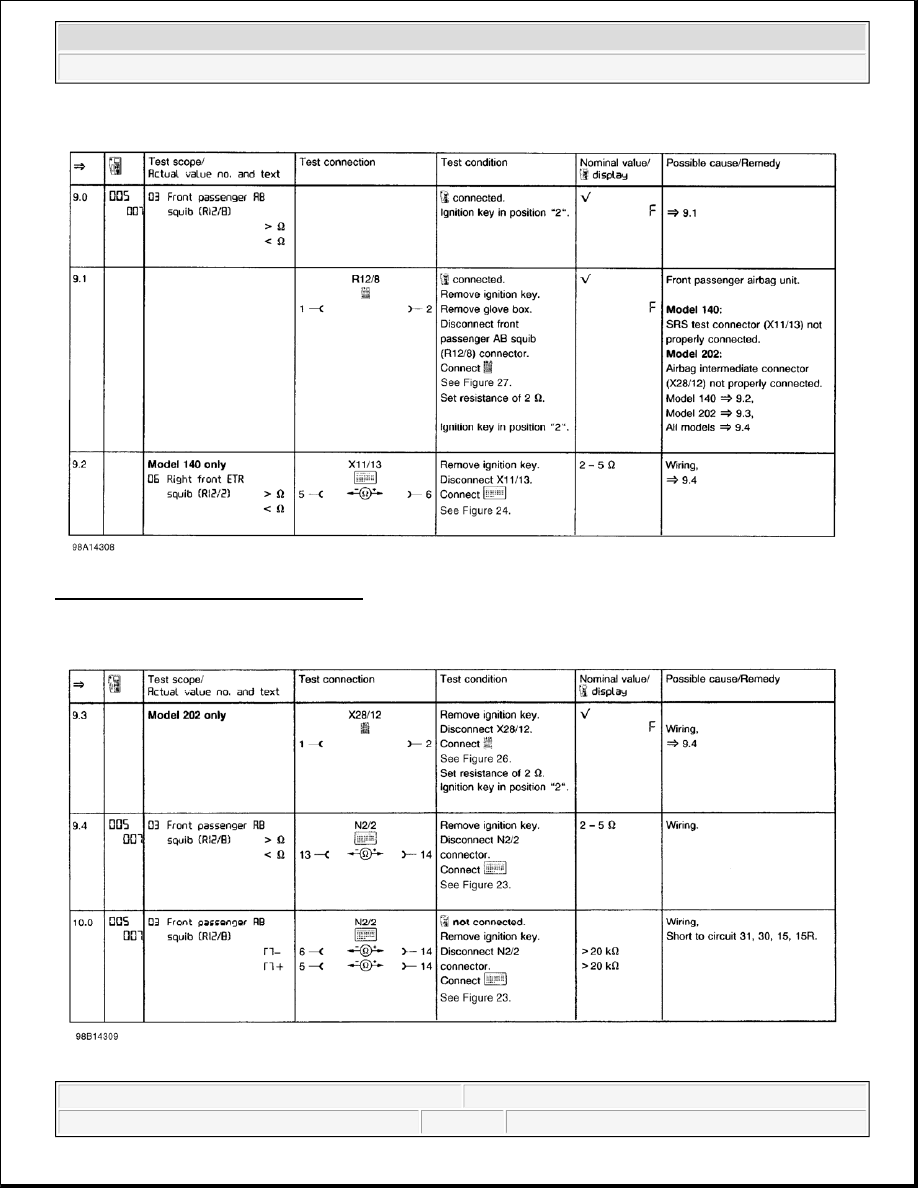

Fig. 12: SRS & ETR Diagnosis (6 Of 16)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA



1998 Mercedes-Benz ML320

AIR BAG RESTRAINT SYSTEM 1998 AIR BAG RESTRAINT SYSTEMS Mercedes-Benz



me
