Mazda CX-5 (2023 year). Manual in english - page 11





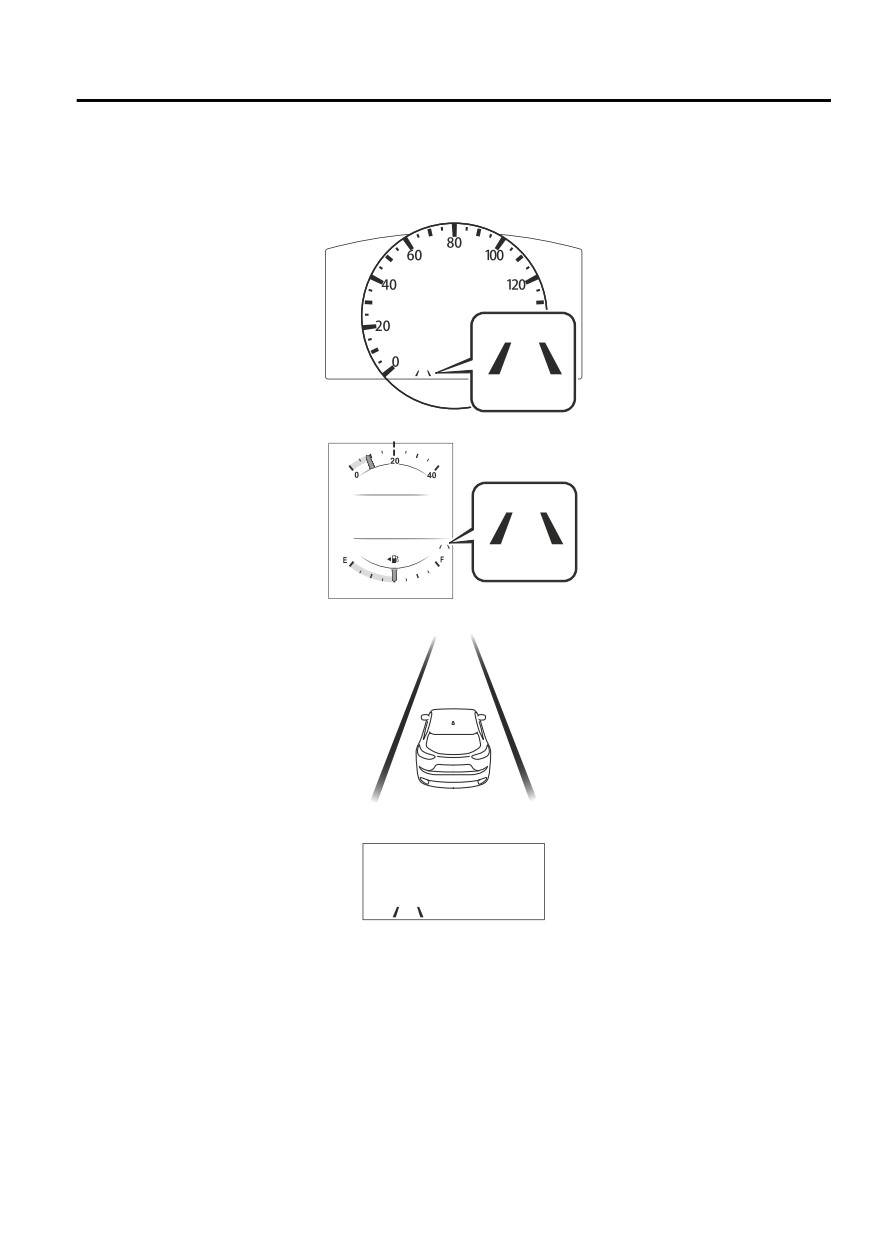

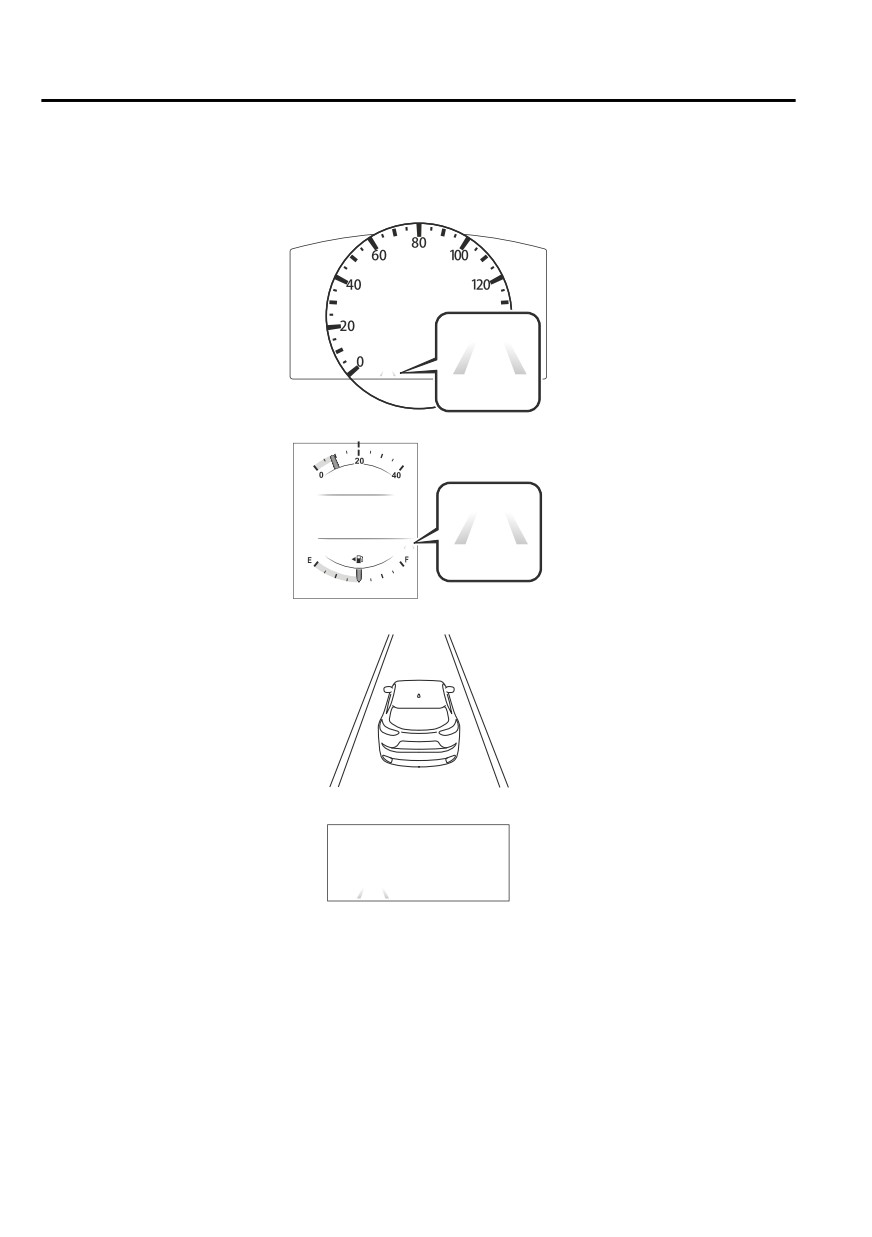

When Driving
i-ACTIVSENSE
(Stand-by status)
Multi-information display (Basic display)
Instrument Cluster (Type A)
Instrument Cluster (Type B)
Multi-information display (i-ACTIVSENSE display)
Active driving display*
4-182
*Some models.
When Driving
i-ACTIVSENSE
(Operational status)
Multi-information display (Basic display)
Instrument Cluster (Type A)
Instrument Cluster (Type B)
Multi-information display (i-ACTIVSENSE display)
Active driving display*
NOTE
When only one side of the white (yellow) lines is detected, only the detected vehicle lane line
indicated on the multi-information display and the active driving display changes to white.
Auto cancel
In the following cases, the LAS & LDWS is automatically canceled, the LAS & LDWS
warning indication (amber) turns on, and an alert is displayed. When the LAS & LDWS
become operational, the system turns back on automatically.
*Some models.
4-183
When Driving
i-ACTIVSENSE
The temperature inside the camera is high or low.
The windshield around the camera is foggy.
The windshield around the camera is blocked by an obstruction, causing poor forward
visibility.
Auto cancel of warning/steering assist
When the following operations are performed, the LAS & LDWS operation is canceled
automatically. The LAS & LDWS resumes automatically after the operation.
The steering wheel is operated abruptly.
The brake pedal is operated.
The accelerator pedal is operated.
(Mazda Connect (Type A) only)
(To cancel the automatic sensitivity cancel function, deselect “Cancel sensitivity” in the
personalization features setting.)
The turn signal lever is operated.
The vehicle crosses a lane line.
NOTE
After the operation, the LAS & LDWS operation may not operate for a period of 5
seconds at the most until the lane lines are detected.
Under the following conditions, the LAS & LDWS cancels the warning/steering assist
automatically.
The TCS OFF switch is pressed to cancel the TCS.
The Off-Road Traction Assist switch is pressed to turn on the Off-Road Traction Assist.
When Off-road mode is selected using Mazda intelligent Drive Select (Mi-Drive).
Steering wheel operation assist OFF (non-operational)
The steering wheel operation assist for the LAS & LDWS can be turned off. However, when
driving the vehicle while the TJA function is in use, the steering wheel operation assist turns
on automatically.
When the steering wheel operation assist has been turned off, only the lane departure
warning is operational.
Refer to the Settings section in the Mazda Connect Owner's Manual.
System operation
Drive the vehicle in the center of the driving lane while the LAS & LDWS OFF indicator
light in the instrument cluster is turned off.
The system becomes operational when all of the following conditions are met.
The engine is running.
4-184
When Driving
i-ACTIVSENSE
The vehicle speed is about 64 km/h (40 mph) or faster.
The system detects white (yellow) lane lines on both the right and left sides or on either
side.
The vehicle is driven on a straight road or road with gentle curves.
The steering assist function of the TJA is not operating.
The LAS & LDWS goes on stand-by status in the following cases:
The vehicle speed is less than about 56 km/h (35 mph).
The system cannot detect white (yellow) lane lines.
The vehicle is making a sharp curve.
The vehicle is making a curve at an inappropriate speed.
The steering assist function of the TJA operated.
NOTE
The LAS & LDWS remains on stand-by until it detects white (yellow) lines on both the left
and right sides, or on either side.
When the system detects a white (yellow) lane line on one side only, the system will not
activate warnings for the lane line on the side that is not being detected.
(Mazda Connect (Type A) only)
The distance and warning sensitivity (likelihood of a warning) which the system uses to
determine the possibility of a lane departure can be changed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
Vehicle lane line display
When the LAS & LDWS becomes operational while on standby, the vehicle lane lines are
displayed in the multi-information display. The system changes to operational status display
when the system detects a white (yellow) line on either the left or right.

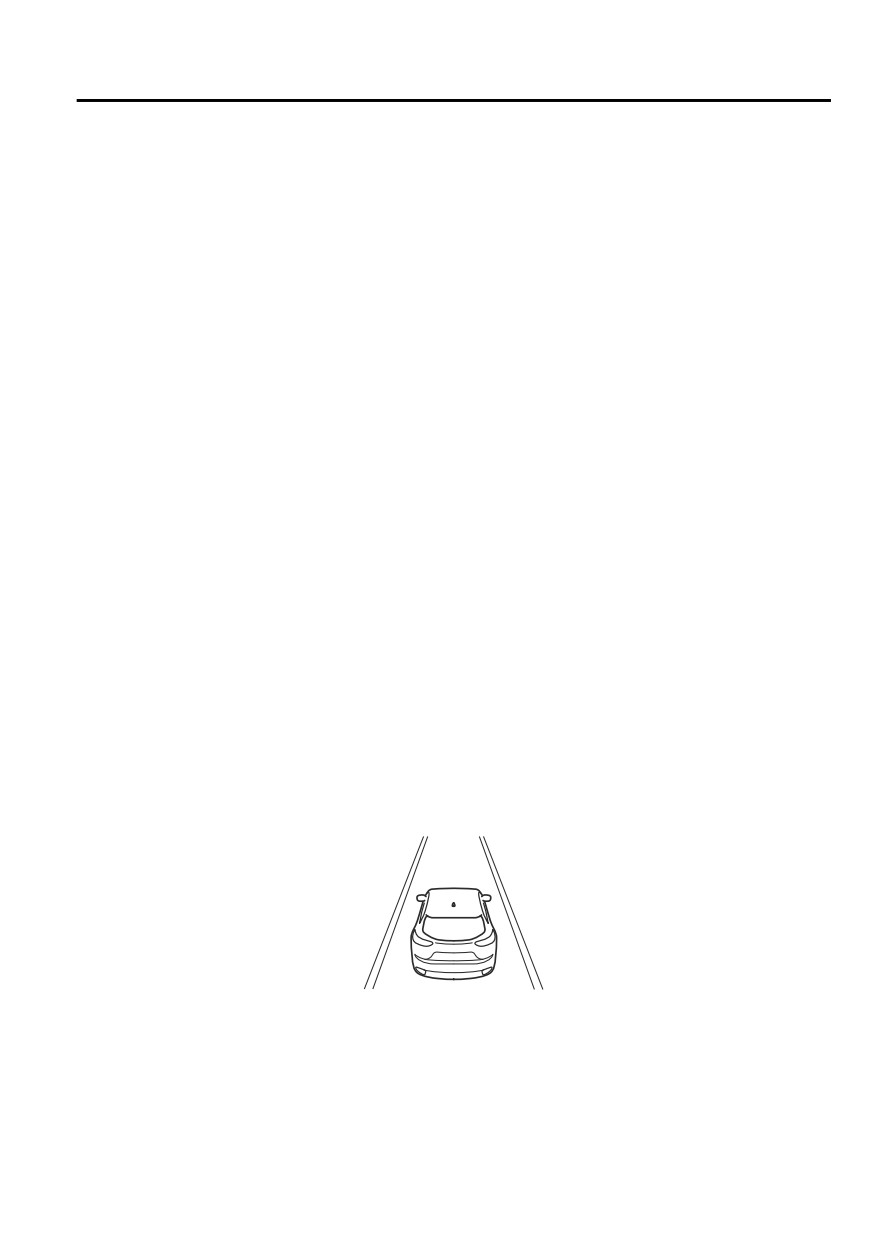

(Stand-by status)
4-185
When Driving
i-ACTIVSENSE

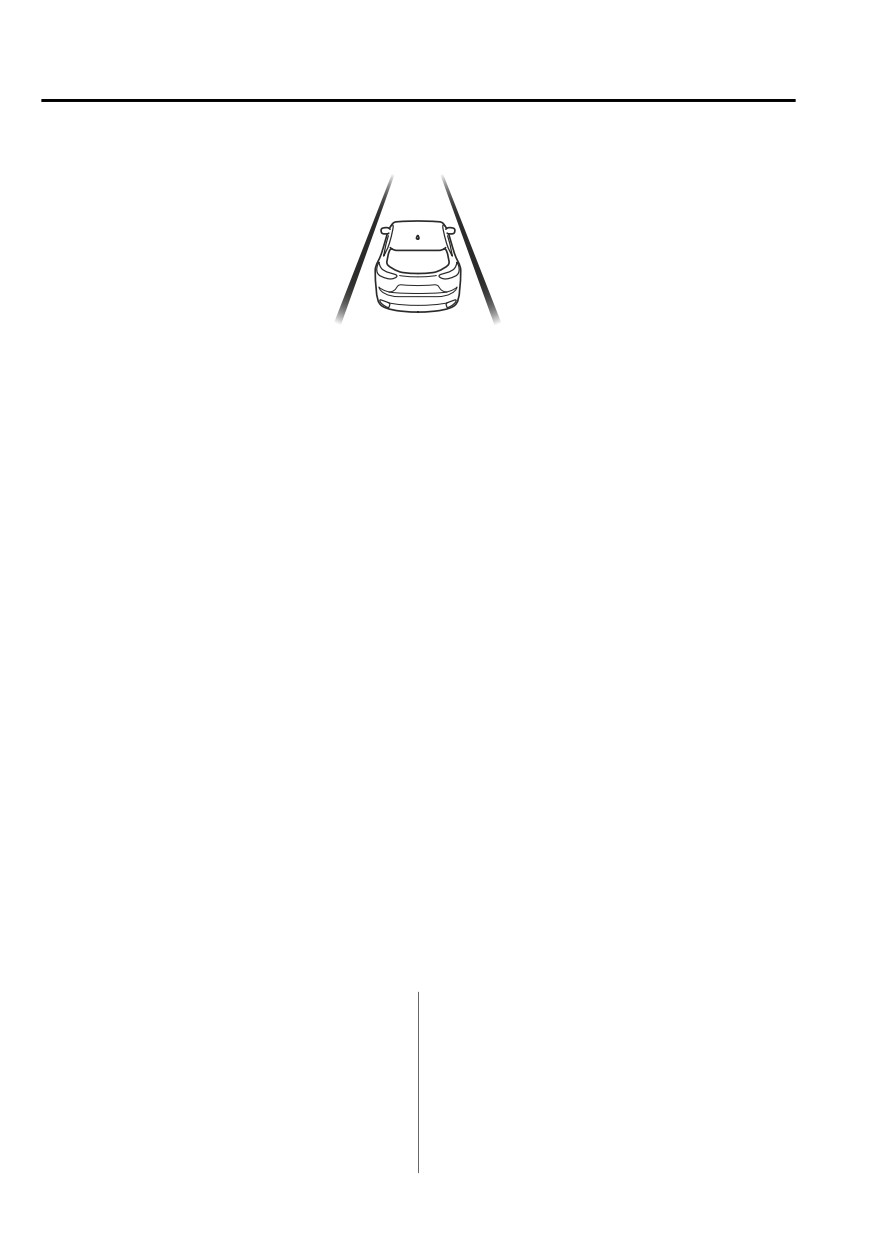

(Operational status)
NOTE
When only one side of the white (yellow) lines is detected, only the detected vehicle lane line
indicated on the multi-information display changes to white.
Auto cancel
In the following cases, the LAS & LDWS is automatically canceled, the LAS & LDWS
warning indication (amber) turns on, and an alert is displayed. When the LAS & LDWS
become operational, the system turns back on automatically.
The temperature inside the camera is high or low.
The windshield around the camera is foggy.
The windshield around the camera is blocked by an obstruction, causing poor forward
visibility.
Auto cancel of warnings
When the following operations are performed, the LAS & LDWS determines that the driver
intends to make a lane change and the system operation is canceled automatically. The LAS
& LDWS resumes automatically after the operation.
The steering wheel is operated abruptly.
The brake pedal is depressed.
The accelerator pedal is depressed.
(Mazda Connect (Type A) only)
(To cancel the automatic sensitivity cancel function, deselect “Warning sensitivity” in the
personalization features setting.)
The turn signal lever is operated.
The vehicle crosses a lane line.

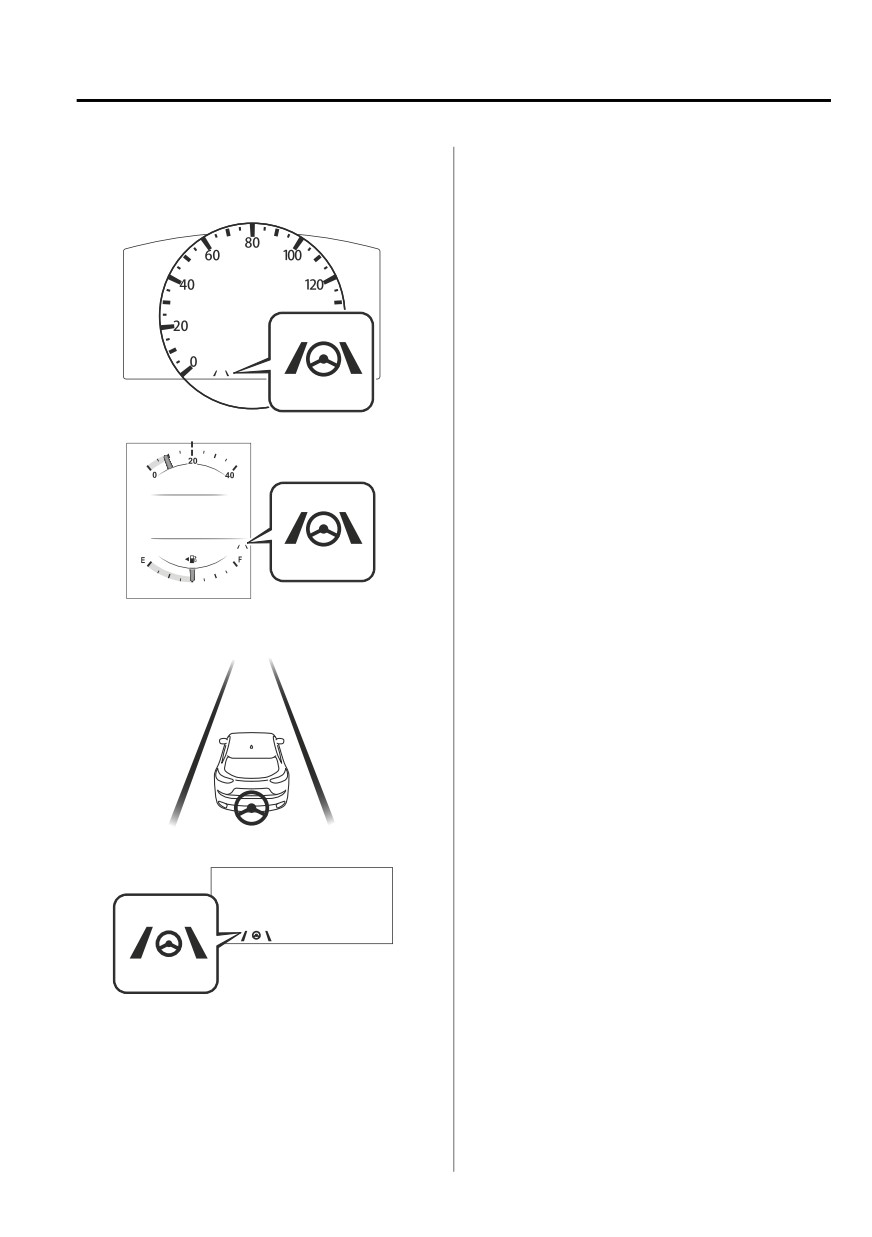

Steering Wheel Operation Assist
The system notifies the driver that it
provided steering wheel operation
When the system determines that the
assistance on the multi-information
vehicle might be deviating from its lane,
display and the active driving display.
the steering wheel operation assist
operates.
4-186
When Driving
i-ACTIVSENSE
Multi-information display (Basic
display)
Instrument Cluster (Type A)
Instrument Cluster (Type B)
Multi-information display
(i-ACTIVSENSE display)
Active driving display*
NOTE
When the driver operates the steering
wheel while the steering wheel
operation assist is operating, the
steering wheel operation assistance is
canceled.
*Some models.
4-187
When Driving
i-ACTIVSENSE

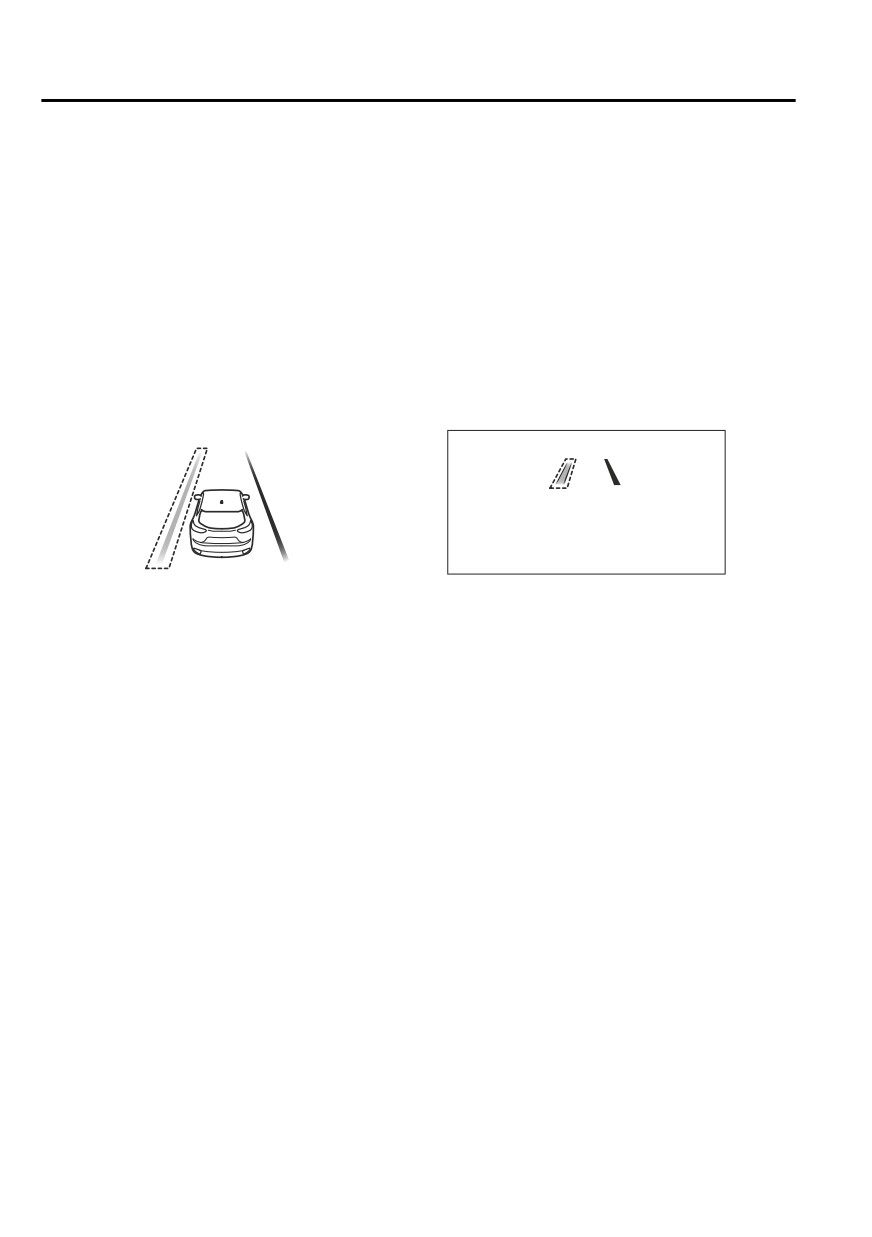

Lane Departure Warning
If the system determines that the vehicle may deviate from its lane, the lane departure
warning is activated and the direction in which the system determines that the vehicle may
deviate is indicated in the multi-information display and the active driving display.
For vehicles equipped with the multi-information display, the direction which the system
determined that the vehicle may be deviating from its lane is indicated in the
multi-information display.
For vehicles equipped with the active driving display, the color of the lane line in the
direction which the system determined that the vehicle may be deviating from its lane
changes from white to amber and the vehicle lane line flashes.
Multi-information Display
Active Driving Display
NOTE
If you have set the lane departure warning sound to the beep sound/rumble sound (Mazda
Connect (Type A) only)*1 setting, the warning sound may not be heard depending on the
surrounding noise conditions.
If you have set the lane departure warning system to the steering wheel vibrations setting,
the vibration may not be felt depending on the road surface conditions.
When the setting for the steering operation assist is changed to operational, the warnings
can be set to activate/not activate. (If the setting for the steering operation assist is
changed to non-operational, the warnings cannot be set to non-operational.)
Refer to the Settings section in the Mazda Connect Owner's Manual.
The LAS & LDWS can be changed to the following settings regardless of whether the
steering operation assist has been set to operational/non-operational. Always check the
setting status when driving the vehicle and make setting changes if necessary.
Refer to the Settings section in the Mazda Connect Owner's Manual.
Steering wheel vibration: Strong/weak
Warning sound volume
Types of warnings (steering wheel vibration/beep sound/rumble sound (Mazda Connect
(Type A) only)*1)
*1

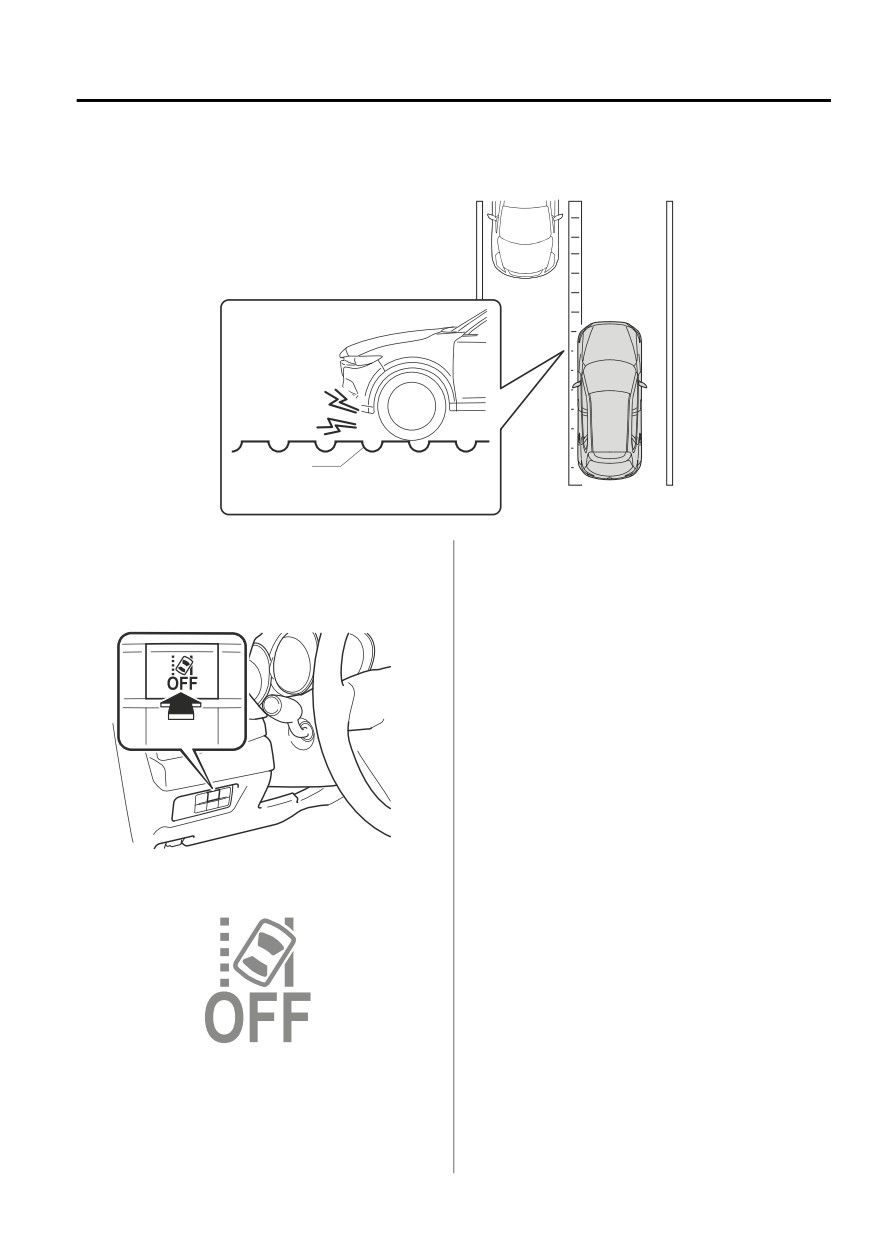

A rumble strip is a series of grooves in the road pavement surface positioned at specific
intervals, and when the vehicle passes over it a vibration and rumble sound is produced
which alerts the driver that the vehicle is departing from the lane.
4-188
When Driving
i-ACTIVSENSE
The rumble sound is a reproduction of the sound which occurs when a vehicle passes
over a rumble strip.
Rumble
Groove
System Canceling
NOTE
When driving the vehicle while the TJA
When the LAS & LDWS is turned off,
press the LAS & LDWS OFF switch.
function is in use, the LAS & LDWS
turns on automatically.
In the following cases, the LAS & LDWS
is canceled automatically and the LAS
& LDWS OFF indicator light turns on.
Have your vehicle inspected at an
Authorized Mazda Dealer.
There is a malfunction in the power
steering.
There is a malfunction in the TCS.
The LAS & LDWS OFF indicator light
There is a malfunction in the Forward
turns on.
Sensing Camera (FSC).
When the ignition is switched OFF, the
system status before it was turned off is
maintained. For example, if the ignition
is switched OFF with the lane-keep
system operable, the system will be
operable when the ignition is switched
ON the next time.
When the LAS & LDWS is turned off, the
vehicle lane line indication in the
4-189
When Driving
i-ACTIVSENSE
multi-information display and the active
driving display turn off.
4-190
When Driving
i-ACTIVSENSE

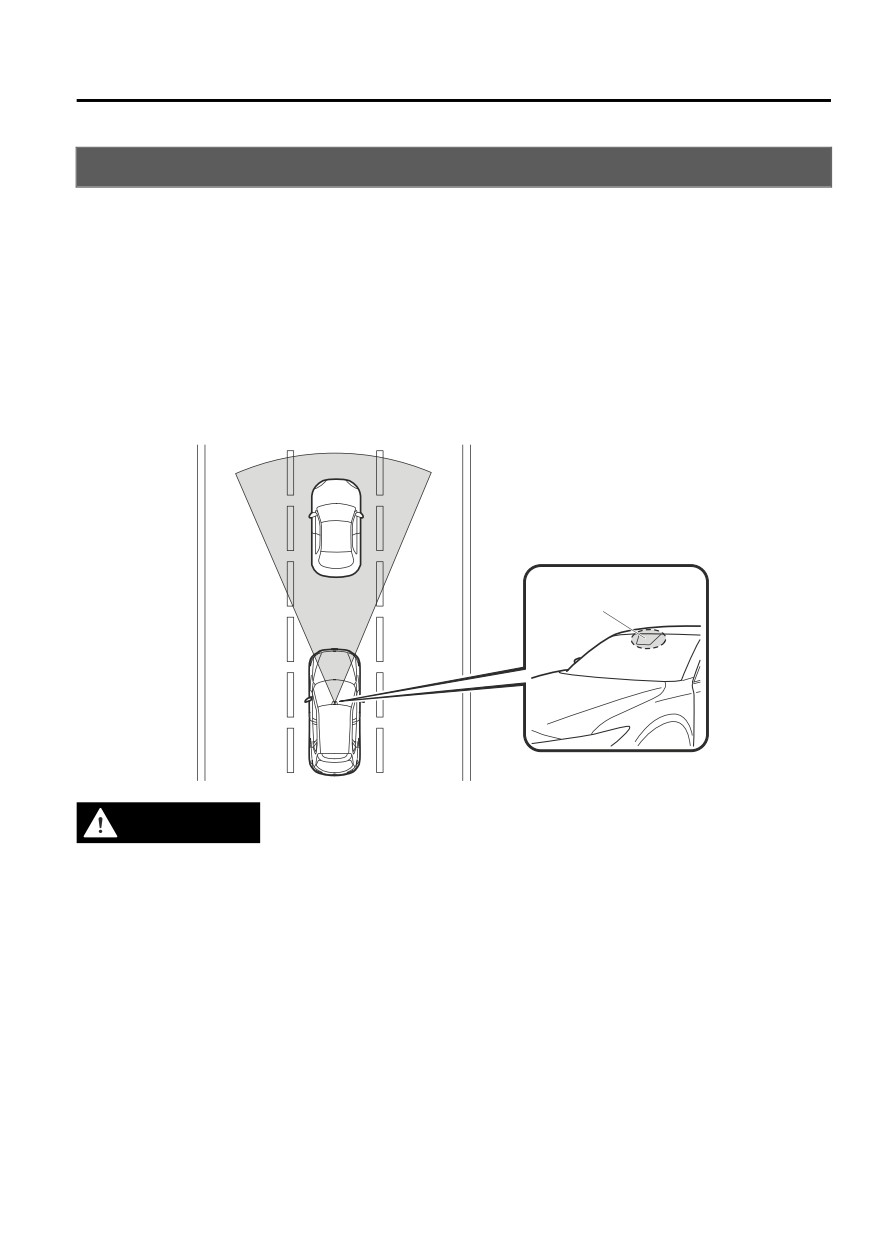

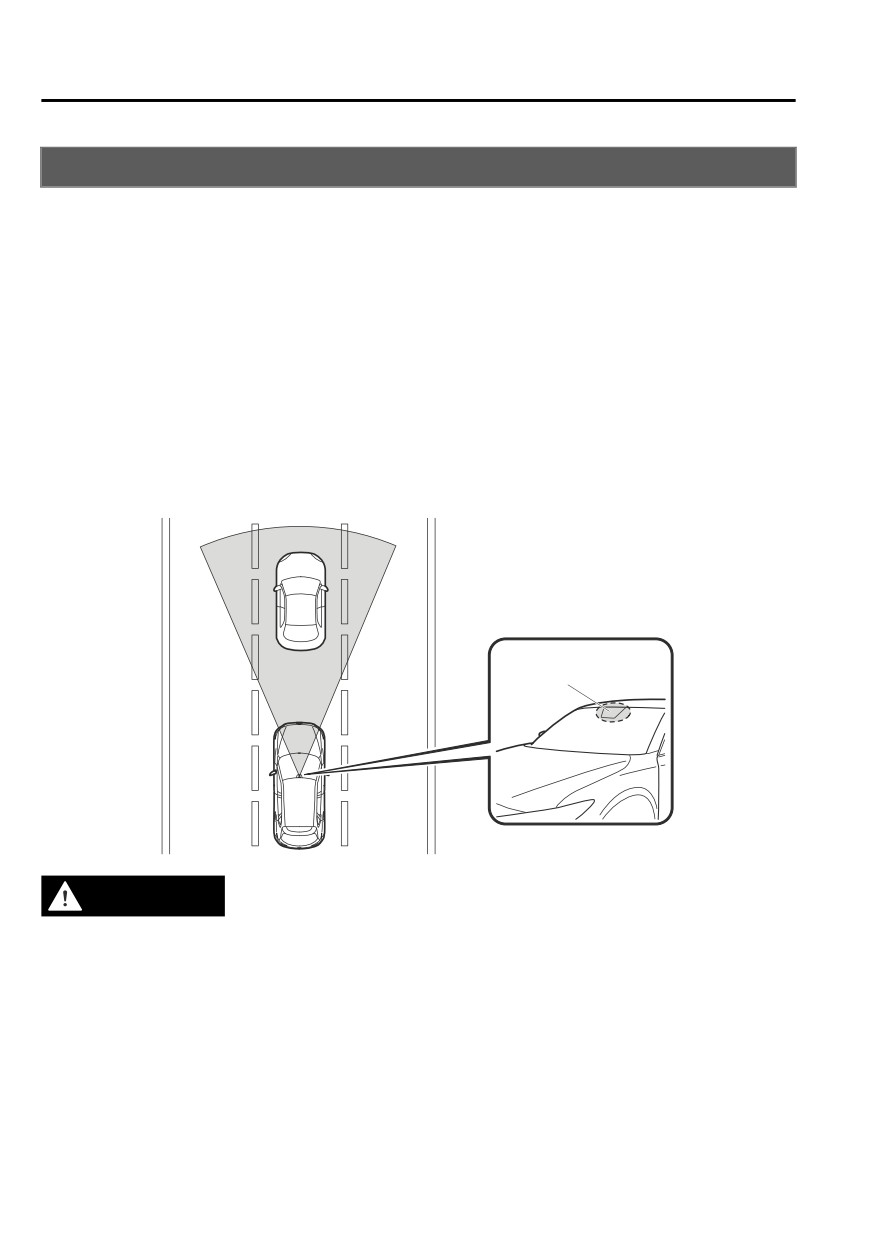

Advanced Smart City Brake Support (Advanced SCBS)*
The Advanced SCBS alerts the driver of a possible collision using the display and a warning
sound when the Forward Sensing Camera (FSC) detects a vehicle ahead or pedestrian and
determines that a collision with the object is unavoidable while the vehicle is driven at a
vehicle speed of about 4 to 80 km/h (2 to 50 mph) if the object is a vehicle ahead and about
10 to 80 km/h (6.2 to 50 mph) if the object is a pedestrian. In addition, the system reduces
damage in the event of a collision by operating the brake control (Advanced SCBS brake)
when the system determines that a collision is unavoidable. In addition, when the driver
depresses the brake pedal, the brakes are applied firmly and quickly to assist. (Brake Assist
(Advanced SCBS brake assist))
Forward Sensing
Camera (FSC)
WARNING
Do not rely completely on the Advanced SCBS system:
¾ The Advanced SCBS system is only designed to reduce damage in the event of a collision.
Over reliance on the system leading to the accelerator pedal or brake pedal being
mistakenly operated could result in an accident.
¾ The Advanced SCBS system operates in response to a vehicle ahead or a pedestrian. The
system does not operate in response to obstructions such as a wall, 2-wheeled vehicles, or
animals.
*Some models.
4-191
When Driving
i-ACTIVSENSE
CAUTION
In the following cases, turn the system off to prevent a mis-operation:
¾ The vehicle is being towed or when towing another vehicle.
¾ The vehicle is on a chassis roller.
¾ When driving on rough roads such as in areas of dense grass or off-road.
Refer to Stopping the Advanced Smart City Brake Support (Advanced SCBS) System Operation
on page 4-193 on how to turn off the Advanced SCBS system.
NOTE
The Advanced SCBS system will operate under the following conditions.
The engine is running.
The Smart City Brake Support (SCBS) warning indication (amber) does not illuminate.
(Object is vehicle ahead)
The vehicle speed is between about 4 to 80 km/h (2 to 50 mph).
(Object is a pedestrian)
The vehicle speed is between about 10 to 80 km/h (6.2 to 50 mph).
The Advanced SCBS system is not turned off.
Under the following conditions, the Advanced SCBS system may not operate normally:
The Advanced SCBS system will not operate if the driver is deliberately performing
driving operations (accelerator pedal and steering wheel).
If there is the possibility of partial contact with a vehicle ahead.
The vehicle is driven on a slippery road surface such as wet roads or icy or snow-bound
roads.
The braking performance is adversely affected due to cold temperatures or wet brakes.
The vehicle is driven at the same speed as the vehicle ahead.
The accelerator pedal is depressed.
The brake pedal is depressed.
The steering wheel is being operated.
The selector lever is being operated.
In the following cases, the Advanced SCBS may operate.
Objects on the road at the entrance to a curve.
Vehicles passing in the opposite lane while making a curve.
When passing through a toll gate.
When passing through low gates, narrow gates, car washing machines, or tunnels.
If you suddenly come close to a vehicle ahead.
2-wheeled vehicles, animals, or standing trees.
4-192
When Driving
i-ACTIVSENSE
During the SBS brake control, the brake pedal may move rearward or become stiff. The
brakes are operating, but continue to depress the brake pedal.

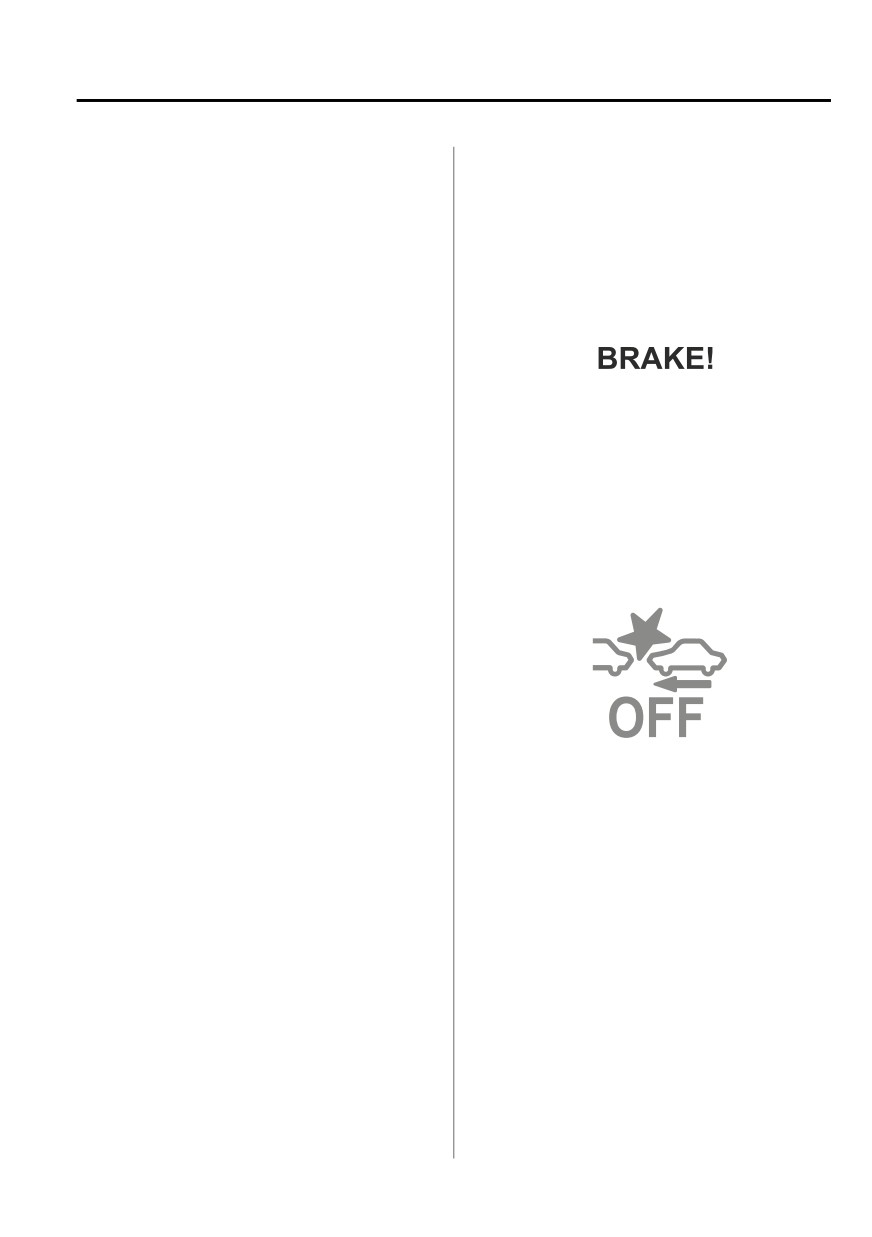

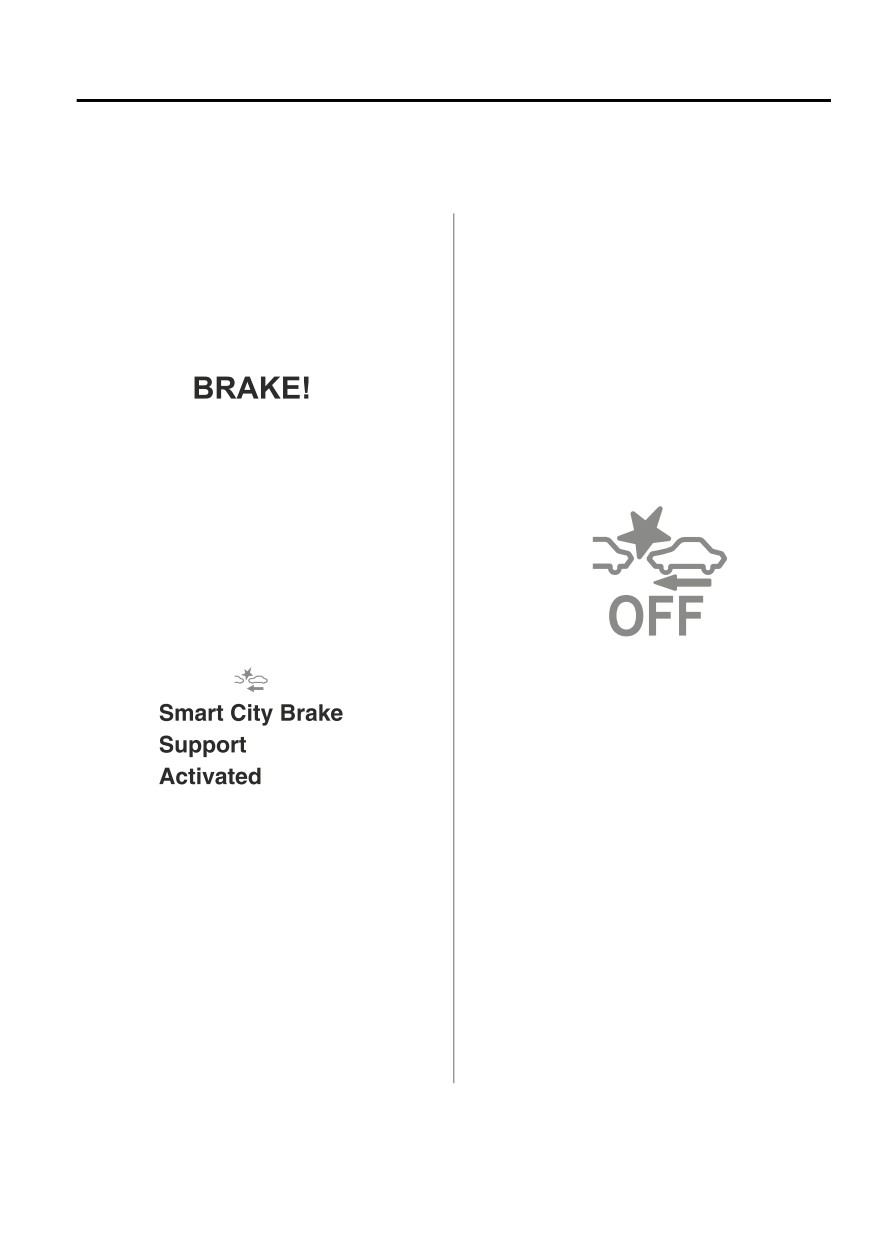

Collision Warning
Stopping the Advanced Smart City
Brake Support (Advanced SCBS)
If there is the possibility of a collision with
System Operation
a vehicle ahead, the beep sounds
continuously and a warning is indicated in
The Advanced SCBS system can be
the multi-information display and the
temporarily deactivated.
active driving display.
Refer to the Settings section in the Mazda
Connect Owner's Manual.
When the Advanced SCBS system is
NOTE
turned off, the Smart City Brake Support
The operation distance and volume of the
(SCBS) OFF indicator light turns on.
collision warning can be changed. Refer
to the Settings section in the Mazda
Connect Owner's Manual.
Automatic Brake Operation Display
The automatic brake operation display is
indicated on the multi-information display
after the Advanced SCBS is operated.
When the engine is restarted, the system
becomes operational.
NOTE
When the Advanced SCBS system is set to
inoperable, the Smart City Brake Support
[Reverse] (SCBS R) system and the Smart
NOTE
Brake Support (SBS) are also set to
The collision warning beep sounds
inoperable.
intermittently while the Advanced SCBS
brake or brake assist (Advanced SCBS
brake assist) is operating.
If the vehicle is stopped by the Advanced
SCBS operation and the brake pedal is
not depressed, the warning beep sounds
1 time after about 2 seconds and the
Advanced SCBS brake is automatically
released.
4-193
When Driving
i-ACTIVSENSE
Smart City Brake Support [Forward] (SCBS F)*
The SCBS F system alerts the driver of a possible collision using an indication in the
display and a warning sound when the Forward Sensing Camera (FSC) detects a vehicle
ahead and determines that a collision with a vehicle ahead is unavoidable while the vehicle
is being driven at a vehicle speed of about 4 to 80 km/h (2 to 50 mph). In addition, the
system reduces damage in the event of a collision by operating the brake control (Smart City
Brake Support (SCBS) brake) when the system determines that a collision is unavoidable
while the vehicle is being driven at a vehicle speed of about 4 to 30 km/h (2 to 18 mph). It
may also be possible to avoid a collision if the relative speed between your vehicle and the
vehicle in front of you is less than about 20 km/h (12 mph). In addition, when the driver
depresses the brake pedal while the system is in the operation range at about 4 to 30 km/h (2
to 18 mph), the brakes are applied firmly and quickly to assist. (Brake Assist (Smart City
Brake Support (SCBS) brake assist))
Forward Sensing
Camera (FSC)
WARNING
Do not rely completely on the SCBS F system:
¾ The SCBS F system is only designed to reduce damage in the event of a collision. Over
reliance on the system leading to the accelerator pedal or brake pedal being mistakenly
operated could result in an accident.
¾ The SCBS F is a system which operates in response to a vehicle ahead. The system may not
be able to detect or react to 2-wheeled vehicles or pedestrians.
4-194
*Some models.
When Driving
i-ACTIVSENSE
CAUTION
In the following cases, turn the system off to prevent a mis-operation:
¾ The vehicle is being towed or when towing another vehicle.
¾ The vehicle is on a chassis roller.
¾ When driving on rough roads such as in areas of dense grass or off-road.
Refer to Stopping the Smart City Brake Support [Forward] (SCBS F) system Operation on page
4-196 on how to turn off the SCBS F system.
NOTE
The SCBS F system will operate under the following conditions.
The engine is running.
The Smart Brake Support/Smart City Brake Support (SBS/SCBS) system warning
indication/warning light (amber) does not illuminate.
(Rear-end collision warning)
The vehicle speed is about 4 to 80 km/h (2 to 50 mph).
(Brake control (Smart City Brake Support (SCBS) brake))
The vehicle speed is about 4 to 30 km/h (2 to 18 mph).
The SCBS F system is not turned off.
Under the following conditions, the SCBS F system may not operate normally:
The SCBS F system will not operate if the driver is deliberately performing driving
operations (accelerator pedal and steering wheel).
If there is the possibility of partial contact with a vehicle ahead.
The vehicle is driven on a slippery road surface such as wet roads or icy or snow-bound
roads.
The braking performance is adversely affected due to cold temperatures or wet brakes.
The vehicle is driven at the same speed as the vehicle ahead.
The accelerator pedal is depressed.
The brake pedal is depressed.
The steering wheel is being operated.
The selector lever is being operated.
In the following cases, the Forward Sensing Camera (FSC) determines that there is a
vehicle ahead and the SCBS F may operate.
Objects on the road at the entrance to a curve.
Vehicles passing in the opposite lane while making a curve.
Metal objects, bumps, or protruding objects on the road.
When passing through a toll gate.
When passing through low gates, narrow gates, car washing machines, or tunnels.
4-195
When Driving
i-ACTIVSENSE
If you suddenly come close to a vehicle ahead.
2-wheeled vehicles, pedestrians, animals or standing trees.
Vehicle is driven with some of the tires having significant wear.
During the SBS brake control, the brake pedal may move rearward or become stiff. The
brakes are operating, but continue to depress the brake pedal.

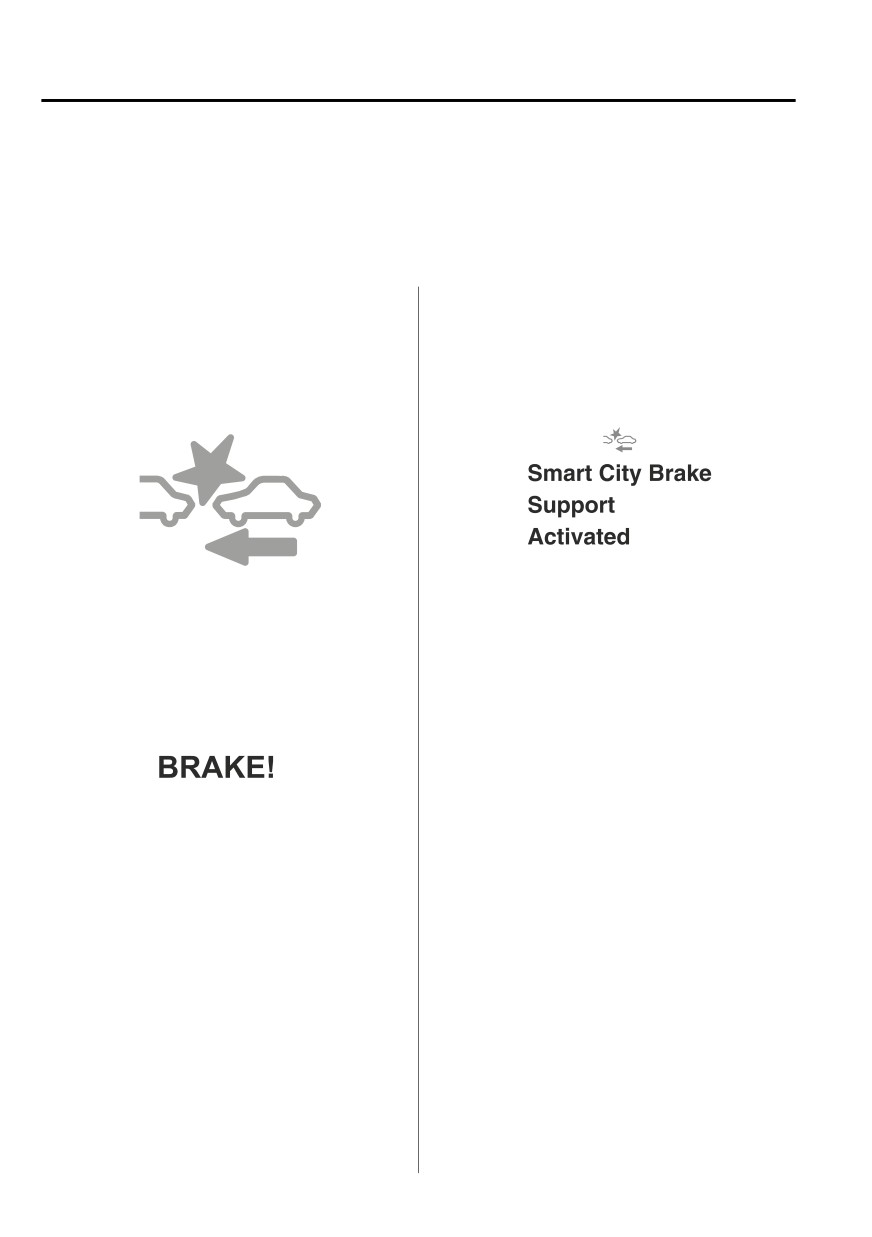

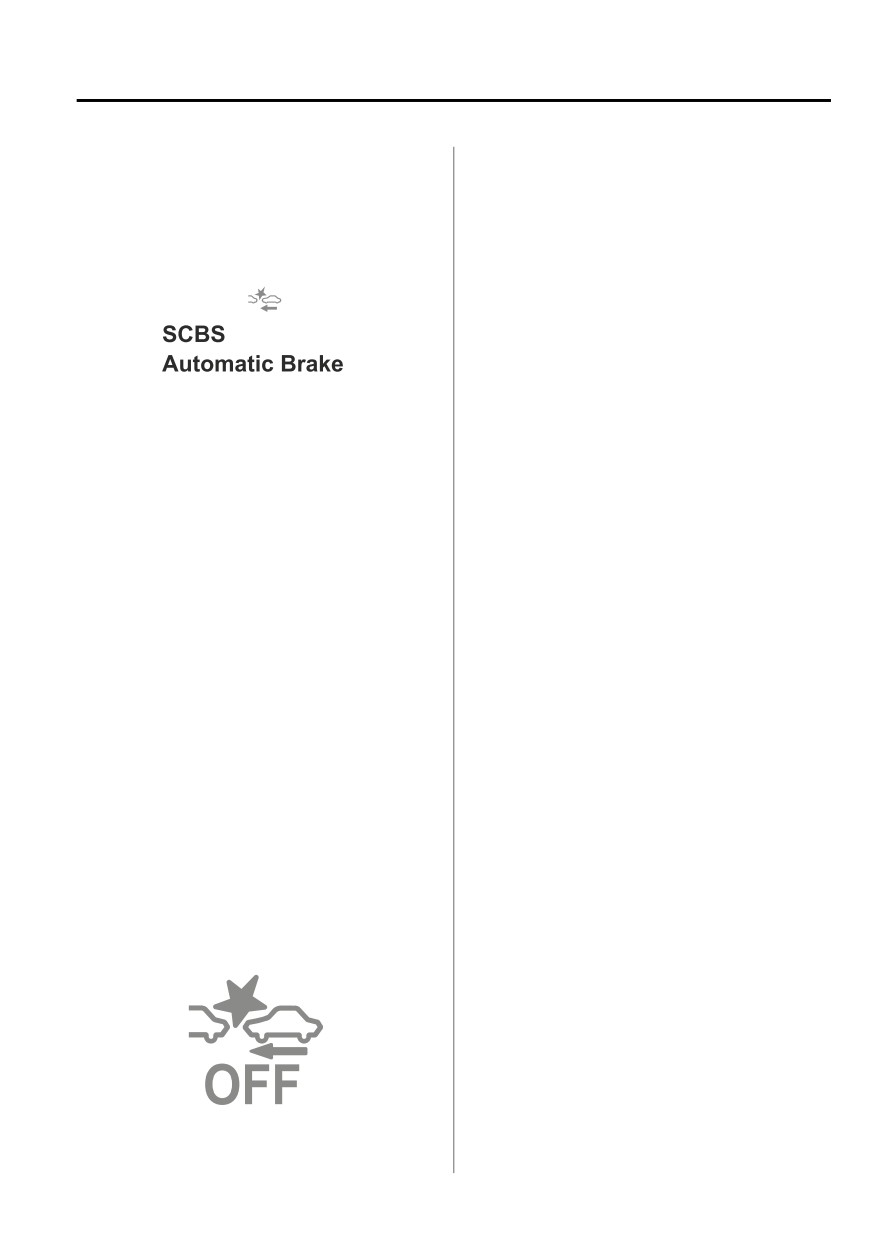

Smart City Brake Support (SCBS)
Automatic Brake Operation
Indicator Light (Red)*
Display*
If the Smart City Brake Support (SCBS) is
The automatic brake operation display is
operating, the indicator light (red) flashes.
indicated on the multi-information display
after the SCBS F is operated.
NOTE
Collision Warning*
The collision warning beep sounds
intermittently while the SCBS F brake or
If there is the possibility of a collision with
brake assist (SCBS F brake assist) is
a vehicle ahead, the beep sounds
operating.
continuously and a warning is indicated in
If the vehicle is stopped by the SCBS F
the multi-information display and the
operation and the brake pedal is not
active driving display.
depressed, the warning beep sounds 1
time after about 2 seconds and the SCBS
NOTE
F brake is automatically released.
The operation distance and volume of the
Stopping the Smart City Brake
collision warning can be changed. Refer
Support (SCBS) System Operation
to the Settings section in the Mazda
Connect Owner's Manual.
The SCBS F system can be temporarily
deactivated.
Refer to the Settings section in the Mazda
Connect Owner's Manual.
4-196
*Some models.
When Driving
i-ACTIVSENSE

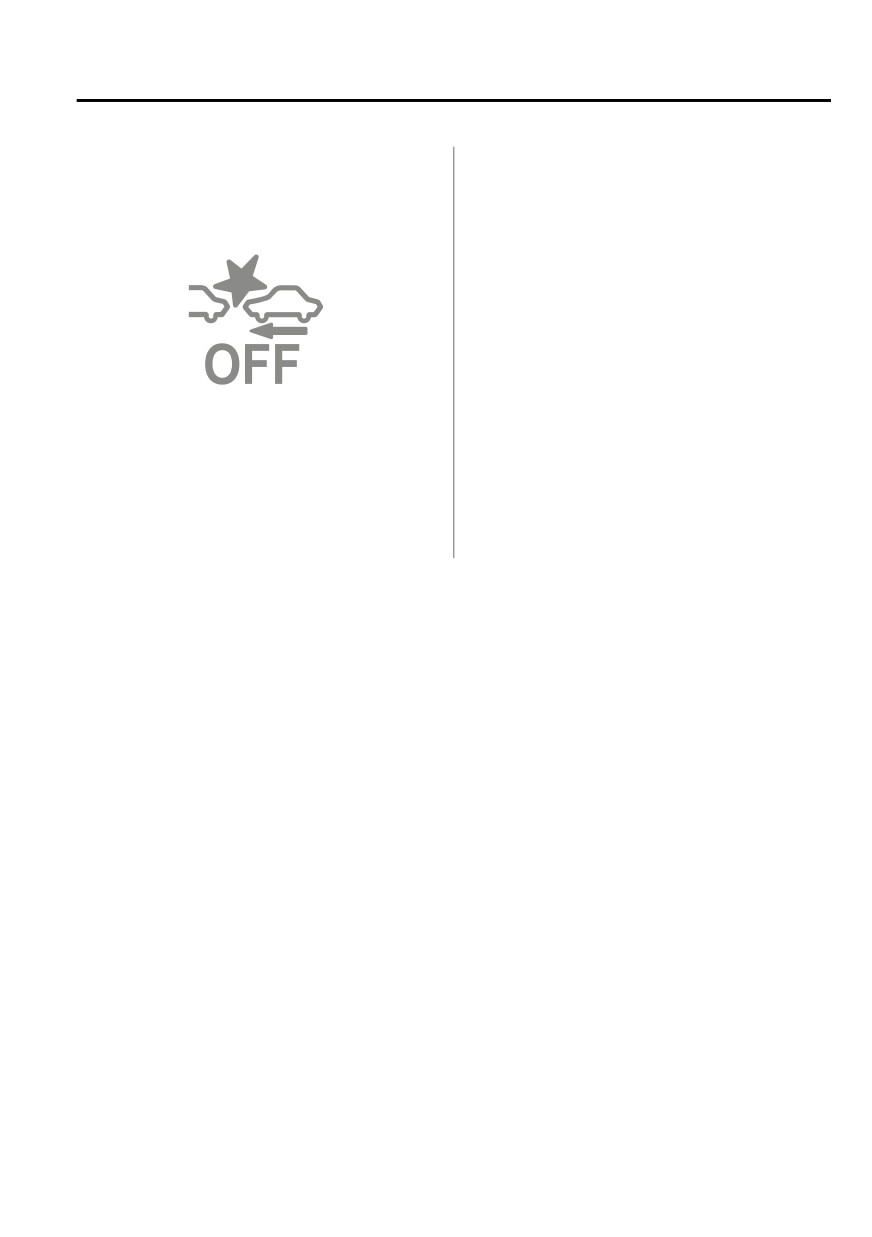

When the SCBS F system is turned off, the
Smart City Brake Support (SCBS) OFF
indicator light turns on.
When the engine is restarted, the system
becomes operational.
NOTE
When the SCBS F system is set to
inoperable, the Smart Brake Support
(SBS) are also set to inoperable.
4-197
When Driving
i-ACTIVSENSE

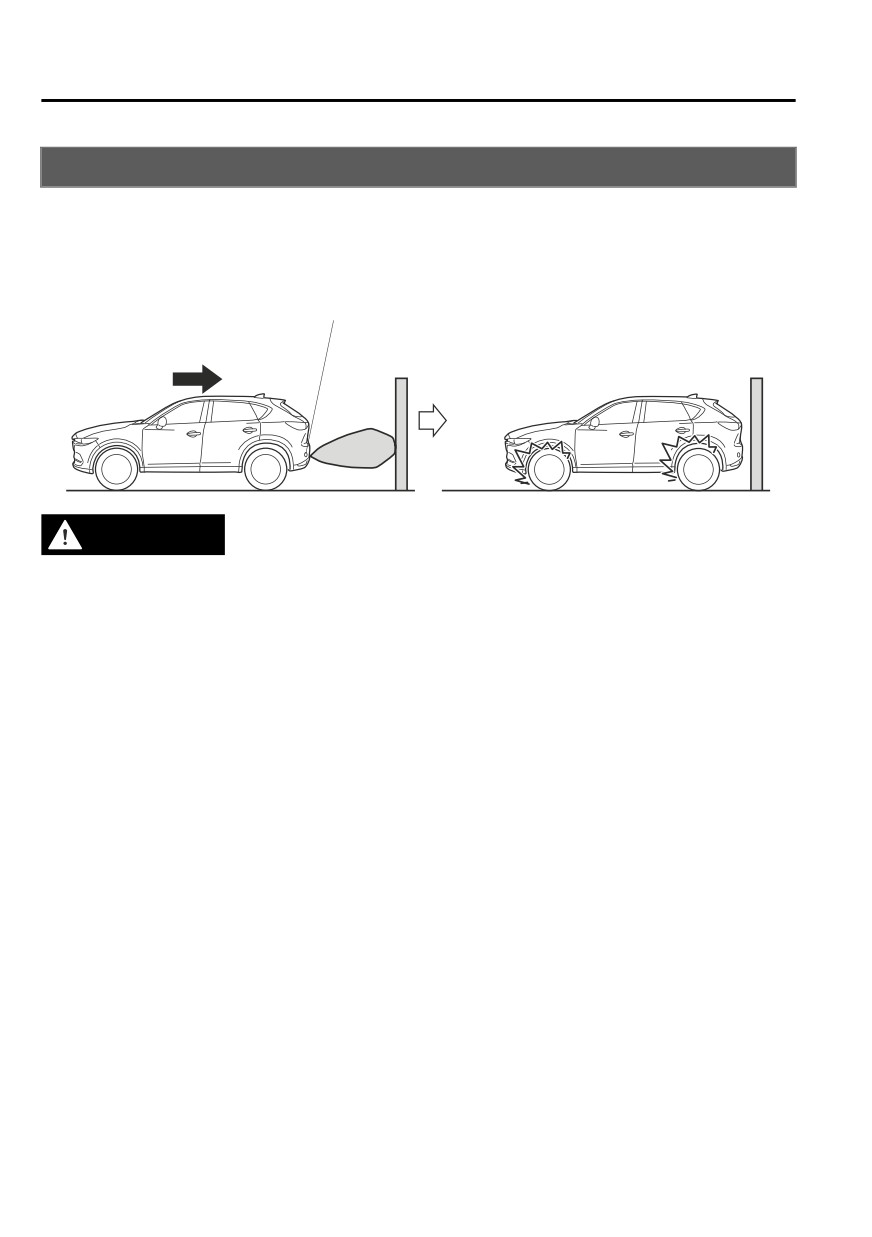

Smart City Brake Support [Reverse] (SCBS R)*
The SCBS R is a system which is designed to reduce damage in the event of a collision by
operating the brake control (SCBS brake) when the system’s ultrasonic sensors detect an
obstruction at the rear of the vehicle while driving at a speed of about 2 to 8 km/h (2 to 4
mph) and the system determines that a collision is unavoidable.
Ultrasonic sensor (rear)
Reverse
WARNING
Do not rely completely on the SCBS R system:
¾ The SCBS R system is only designed to reduce damage in the event of a collision. Over
reliance on the system leading to the accelerator pedal or brake pedal being mistakenly
operated could result in an accident.
¾ To assure the correct operation of the SCBS R, heed the following cautions.
¾ Do not apply a sticker to an ultrasonic sensor (rear) (including transparent stickers).
Otherwise, the ultrasonic sensor (rear) may not be able to detect vehicles or obstructions
which could result in an accident.
¾ Do not disassemble an ultrasonic sensor (rear).
¾ If cracks or damage caused by flying gravel or debris is visible around an ultrasonic
sensor (rear), stop using the SCBS R system immediately and have your vehicle inspected
by an Authorized Mazda Dealer. If the vehicle continues to be driven with cracks or
scratch marks left around an ultrasonic sensor, the system may operate unnecessarily
and cause an unexpected accident.
Refer to Stopping the Smart City Brake Support [Reverse] (SCBS R) System Operation on
page 4-201.
¾ Consult an Authorized Mazda Dealer for rear bumper replacement.
Do not modify the suspension:
If the vehicle height or inclination is changed, the SCBS R system may not operate correctly
because it cannot detect obstructions correctly.
4-198
*Some models.
When Driving
i-ACTIVSENSE
Do not apply a strong force to an ultrasonic sensor (rear):
When washing the vehicle, do not spray highly pressurized water against an ultrasonic sensor
(rear), or rub it strongly. In addition, do not hit the rear bumper forcefully when loading and
unloading cargo Otherwise, the sensors may not detect obstructions correctly which could
cause the SCBS R system to not operate normally, or it could operate unnecessarily.
CAUTION
¾ When driving off-road in areas where there is grass or foliage, it is recommended that the
SCBS R system be turned off.
¾ Always use tires of the specified size and the same manufacturer, brand, and tread pattern
on all 4 wheels. In addition, do not use tires with significantly different wear patterns on the
same vehicle. Otherwise, the SCBS R system may not operate normally.
¾ If ice or snow is stuck on the ultrasonic sensors (rear) they may not be able to detect
obstructions correctly depending on the conditions. In such cases, the system may not be
able to perform controls correctly. Always drive carefully and pay attention to the rear of
the vehicle.
NOTE
The vehicle posture changes depending on the accelerator pedal, brake pedal and
steering wheel operations, which could make it difficult for the system to recognize an
obstruction, or it could facilitate unnecessary detection. In such cases, the SCBS R may or
may not operate.
The SCBS R system will operate under the following conditions.
The engine is running.
The selector lever is in the R (reverse) position.
“Reverse Smart City Brake Support Malfunction” is not displayed in the
multi-information display.
The vehicle speed is between about 2 to 8 km/h (2 to 4 mph).
The SCBS R is not turned off.
The DSC is not malfunctioning.
The SCBS R operates using ultrasonic sensors (rear) which detect obstructions at the rear
by emitting ultrasonic waves and then receiving the returning waves reflected off the
obstructions.
In the following cases, the ultrasonic sensors (rear) cannot detect obstructions and the
SCBS R may not operate.
The height of the obstruction is low such as low walls or trucks with low loading
platforms.
The height of the obstruction is high such as trucks with high loading platforms.
4-199
When Driving
i-ACTIVSENSE
The obstruction is small.
The obstruction is thin such as a signpost.
The obstruction is positioned away from the center of the vehicle.
The surface of the obstruction is not pointed vertically relative to the vehicle.
The obstruction is soft such as a hanging curtain or snow stuck to a vehicle.
The obstruction is shaped irregularly.
The obstruction is extremely close.
In the following cases, the ultrasonic sensors (rear) cannot detect obstructions correctly
and the SCBS R may not operate.
Something is stuck on the bumper near an ultrasonic sensor (rear).
The steering wheel is turned sharply, or the brake or accelerator pedal is operated.
There is another obstruction near one obstruction.
During inclement weather such as rain, fog and snow.
High or low humidity.
High or low temperatures
Strong winds.
The path of travel is not flat.
Heavy luggage is loaded in the luggage compartment or on the rear seat.
Objects such as a wireless antenna, fog light, or illuminated license plate is installed
near an ultrasonic sensor (rear).
The orientation of an ultrasonic sensor (rear) has deviated for reasons such as a
collision.
The vehicle is affected by other sound waves such as the horn, engine noise, ultrasonic
sensor of another vehicle.
In the following cases, an ultrasonic sensor (rear) may detect something as a target
obstruction which could cause the SCBS R system to operate.
Driving on a steep slope.
Wheel blocks.
Hanging curtains, gate poles such as at toll gates and railroad crossing.
When traveling near objects such as foliage, barriers, vehicles, walls, and fences along
a road.
When driving off-road in areas where there is grass and forage.
When passing through low gates, narrow gates, car washing machines, and tunnels.
A towing bar is installed or a trailer is connected.
During the SBS brake control, the brake pedal may move rearward or become stiff. The
brakes are operating, but continue to depress the brake pedal.
When the system operates, the user is notified by the multi-information display.
The Smart City Brake Support (SCBS) warning indication (amber) turns on when the
system has a malfunction.
Refer to Taking Action on page 7-31.
4-200
When Driving
i-ACTIVSENSE
Automatic Brake Operation Display
NOTE
When the SCBS R system is set to
“SCBS Automatic Brake” is indicated in
inoperable, Advanced Smart City Brake
the multi-information display after the
Support (Advanced SCBS) and the Smart
Smart City Brake Support (SCBS) brakes
Brake Support (SBS) are also set to
is operated.
inoperable.
NOTE
The collision warning beep sounds
intermittently while the Smart City
Brake Support (SCBS) brake is
operating.
If the vehicle is stopped by the Smart
City Brake Support (SCBS) operation
and the brake pedal is not depressed, the
warning beep sounds one time after
about 2 seconds and the Smart City
Brake Support (SCBS) brake is
automatically released.
Stopping the Smart City Brake
Support [Reverse] (SCBS R) System
Operation
The SCBS R system can be temporarily
deactivated.
Refer to the Settings section in the Mazda
Connect Owner's Manual.
When the SCBS R system is turned off,
the Smart City Brake Support (SCBS)
OFF indicator light turns on.
When the engine is restarted, the system
becomes operational.
4-201
When Driving
i-ACTIVSENSE
Smart Brake Support
CAUTION
(SBS)*
In the following cases, turn the system off
The SBS system alerts the driver of a
to prevent a mis-operation:
possible collision using a display and
¾ The vehicle is being towed or when
warning sound if the radar sensor (front)
towing another vehicle.
and the Forward Sensing Camera (FSC)
¾ The vehicle is on a chassis roller.
determine that there is the possibility of a
¾ When driving on rough roads such as in
collision with a vehicle ahead while the
areas of dense grass or off-road.
vehicle is being driven at about 15 km/h or
faster (10 mph or faster). Furthermore, if
NOTE
the radar sensor (front) and the Forward
The SBS system operates when all of the
Sensing Camera (FSC) determines that a
following conditions are met:
collision is unavoidable, the automatic
brake control is performed to reduce
The ignition is switched ON.
damage in the event of a collision.
The SBS system is on.
In addition, when the driver depresses the
The vehicle speed is about 15 km/h or
brake pedal, the brakes are applied firmly
faster (10 mph or faster).
and quickly to assist. (Brake Assist (SBS
The relative speed between your
brake assist))
vehicle and the vehicle ahead is about
15 km/h or faster (10 mph or faster).
WARNING
The Dynamic Stability Control (DSC)
is not operating.
Do not rely completely on the SBS system
The SBS system may not operate under
and always drive carefully:
the following conditions:
The SBS is designed to reduce damage in
If the vehicle is accelerated rapidly
the event of a collision, not avoid an
and it comes close to a vehicle ahead.
accident. The ability to detect an
The vehicle is driven at the same
obstruction is limited depending on the
speed as the vehicle ahead.
obstruction, weather conditions, or traffic
The accelerator pedal is depressed.
conditions. Therefore, if the accelerator
The brake pedal is depressed.
pedal or brake pedal is mistakenly
The steering wheel is being operated.
operated it could result in an accident.
The selector lever is being operated.
Always verify the safety of the surrounding
The turn signal is being used.
area and depress the brake pedal or
When the vehicle ahead is not
accelerator pedal while keeping a safer
equipped with taillights or the
distance from vehicles ahead or on-coming
taillights are turned off.
vehicles.
4-202
*Some models.
When Driving
i-ACTIVSENSE
When warnings and messages, such
Refer to Taking Action on page 7-31.
as a dirty windshield, related to the
Collision Warning
Forward Sensing Camera (FSC) are
being displayed in the
If there is the possibility of a collision with
multi-information display.
a vehicle ahead, the beep sounds
Although the objects which activate the
continuously and a warning is indicated in
system are four-wheeled vehicles, the
the multi-information display and the
radar sensor (front) could detect the
active driving display.
following objects, determine them to be
an obstruction, and operate the SBS
system.
Stopping The Smart Brake Support
(SBS) System Operation
Objects on the road at the entrance to
a curve (including guardrails and
The SBS system can be temporarily
snow banks).
deactivated.
A vehicle appears in the opposite lane
Refer to the Settings section in the Mazda
while cornering or rounding a curve.
Connect Owner's Manual.
When crossing a narrow bridge.
When the SBS system is turned off, the
When passing under a low gate or
SBS OFF indicator light turns on.
through a tunnel or narrow gate.
When entering an underground
parking area.
Metal objects, bumps, or protruding
objects on the road.
If you suddenly come close to a
vehicle ahead.
When the engine is restarted, the system
When driving in areas where there is
becomes operational.
high grass or forage.
Two-wheeled vehicles such as
NOTE
motorbikes or bicycles.
If the SBS system operation is turned off,
Pedestrians or non-metallic objects
the Smart City Brake Support (SCBS)
such as standing trees.
system operation is turned off
During the SBS brake control, the brake
simultaneously.
pedal may move rearward or become
stiff. The brakes are operating, but
continue to depress the brake pedal.
When the system operates, the user is
notified by the multi-information
display.
The SBS warning indication (amber)
turns on when the system has a
malfunction.
4-203
When Driving
i-ACTIVSENSE
360° View Monitor (Mazda Connect (Type A))*
The 360° View Monitor consists of the following functions which assist the driver in
checking the area surrounding the vehicle using various indications in the center display and
a warning sound while the vehicle is being driven at low speeds or while parking.

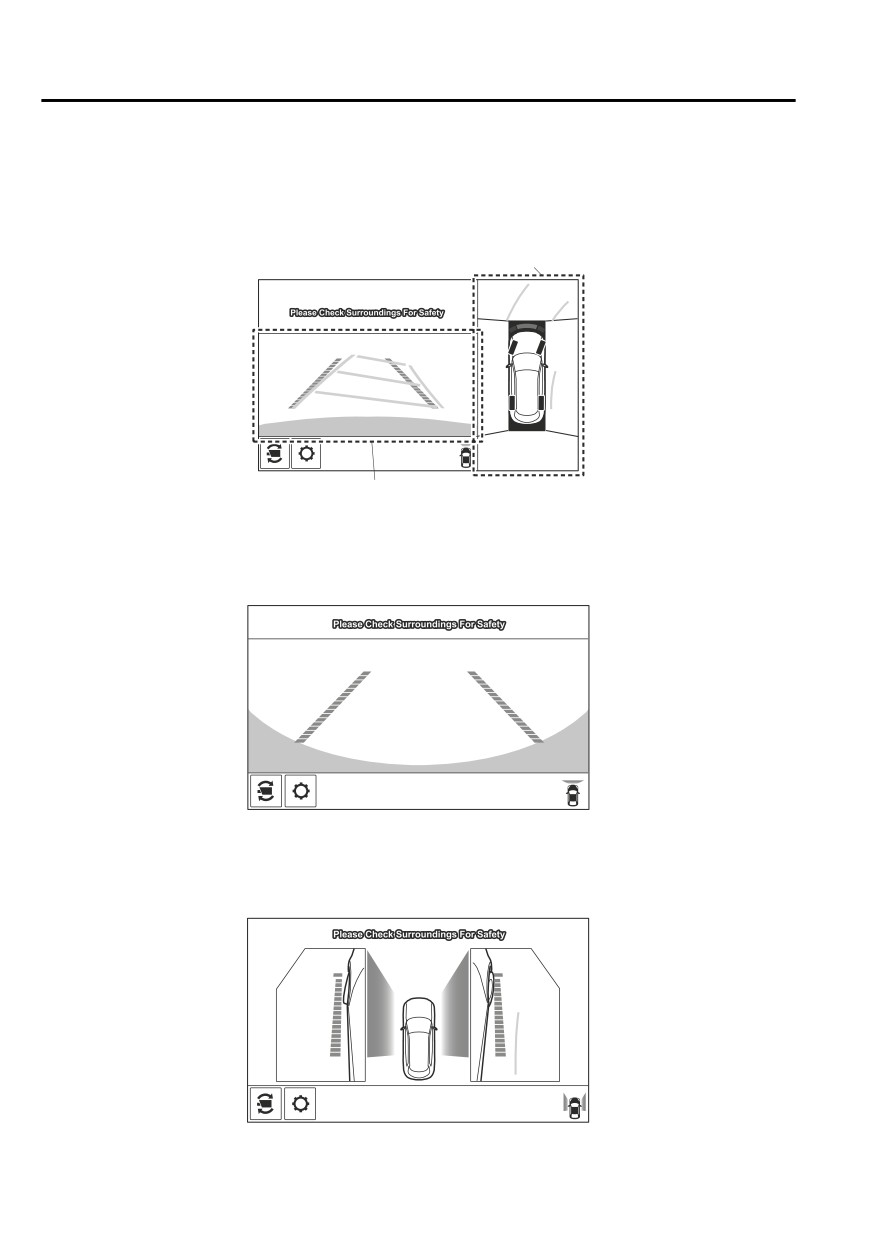

Top view
The top view displays an image of the vehicle from directly above on the center display
by combining the images taken from the 4 cameras set on all sides of the vehicle. The top
view displays on the right side of the screen when the front view or rear view screen is
being displayed. The top view assists the driver in checking the area surrounding the
vehicle when the vehicle is moving forward or in reverse.
Front view/front wide view
The image from the front of the vehicle is displayed on the center display.
The view from the front assists the driver in checking the front of the vehicle by
displaying guide lines on the displayed image taken from the front of the vehicle.
Side view
The images taken from the front left and right sides of the vehicle are displayed on the
center display.
The side view assists the driver in checking the front sides of the vehicle by displaying
guide lines on the displayed image taken from the front left and right sides of the vehicle.

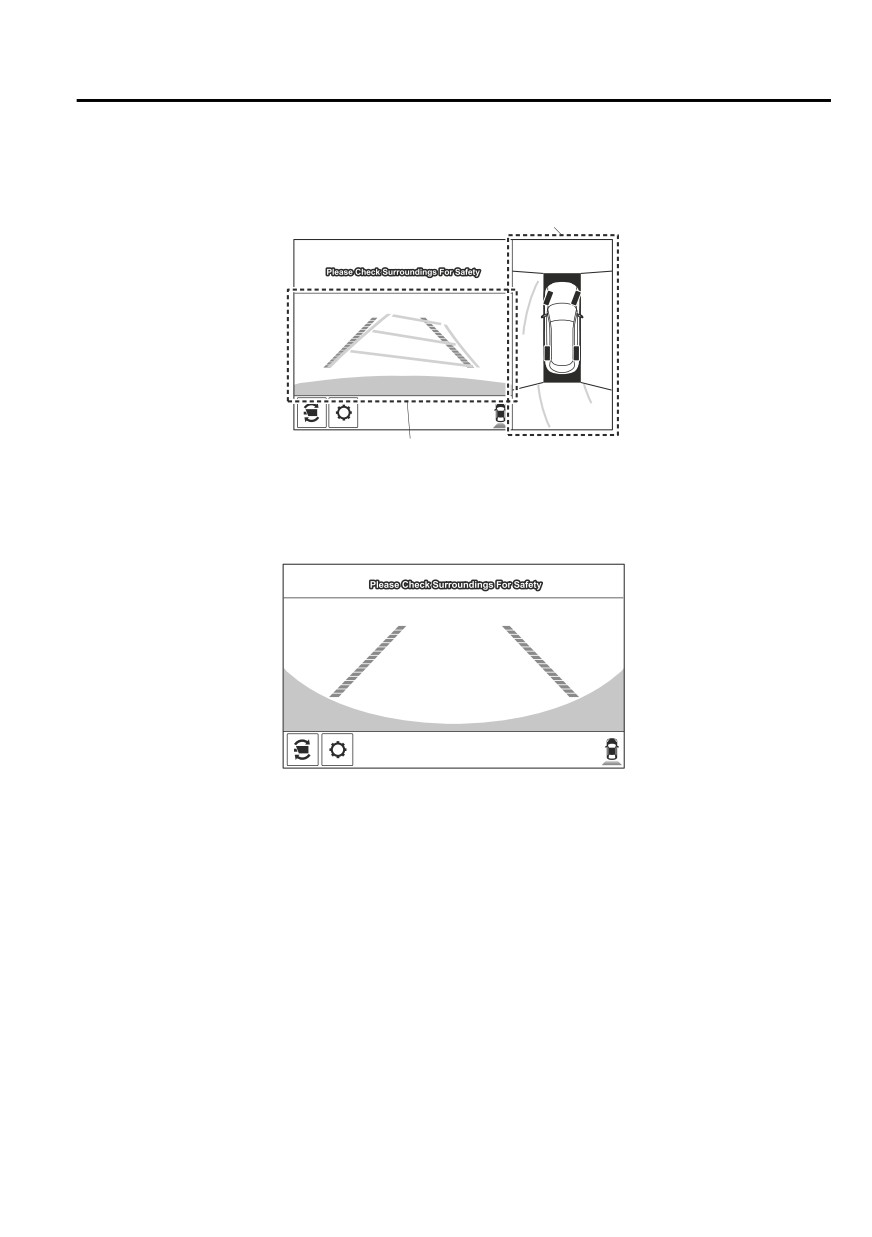

Rear view/rear wide view
The image from the rear of the vehicle is displayed on the center display.
The image from the rear assists the driver in checking the rear of the vehicle by displaying
guide lines on the displayed image taken from the rear of the vehicle.
Parking sensor
If there are any obstructions near the vehicle while the top view/side view is displayed, an
obstruction detection indication on the center display turns on.
The parking sensors use ultrasonic sensors to detect obstructions around the vehicle when
the vehicle is driven at low speeds, such as during garage or parallel parking, and notifies
the driver of the approximate distance from the vehicle to the surrounding obstruction
using sound and an obstruction detection indication.
Refer to Parking Sensor System on page 4-296.
Rear Cross Traffic Alert (RCTA)
If there is the possibility of a collision with an approaching vehicle while the rear view/
rear wide view is displayed, a warning is displayed on the center display.
The Rear Cross Traffic Alert (RCTA) uses radar sensors (rear) to detect vehicles
approaching from the rear left and right sides of the vehicle, and it assists the driver in
checking the rear of the vehicle while reversing by flashing the Blind Spot Monitoring
(BSM) warning lights and activating the warning sound.
Refer to Rear Cross Traffic Alert (RCTA) on page 4-142.
4-204
*Some models.
When Driving
i-ACTIVSENSE

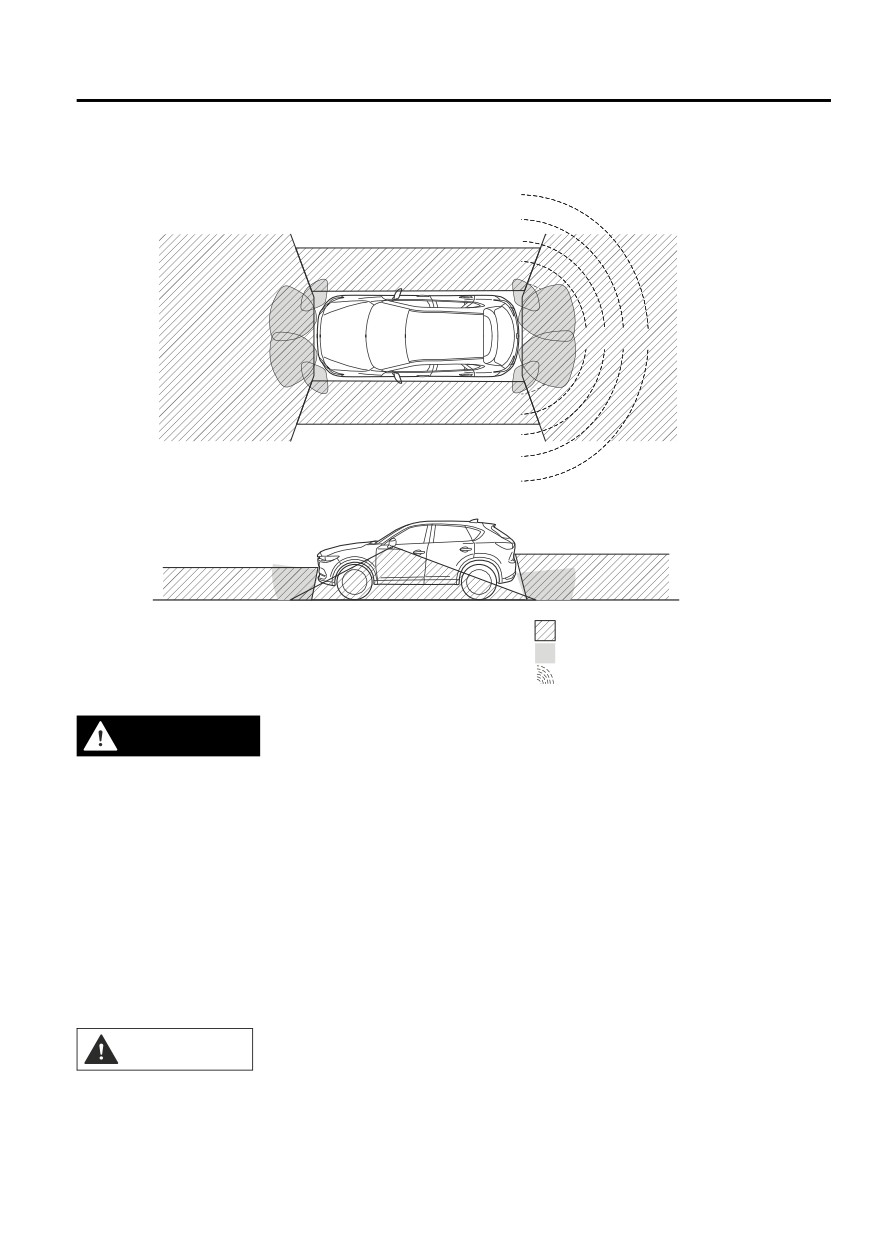

360°View Monitor Range
: Cameras
: Ultrasonic sensors
: Radar sensors (rear)
WARNING
Always confirm the safety of the area around the vehicle with the mirrors and directly with
your eyes when driving.
The 360°View Monitor is an auxiliary device which assists the driver in checking the safety of
the area around the vehicle.
The shooting range of the cameras and detection range of the sensors are limited. For
example, the areas in black at the front and rear of the vehicle image and the seams where
each of the camera images merge are blind spots where an obstruction may not be visible. In
addition, the extended vehicle width lines and projected vehicle path lines are only to be used
as references, and the images on the screen may differ from the actual conditions.
CAUTION
¾ Do not use the 360°View Monitor under any of the following conditions.
¾ Icy or snow-covered roads.
¾ Tire chains or a temporary spare tire is installed.
4-205
When Driving
i-ACTIVSENSE
¾ The front doors or the liftgate is not fully closed.
¾ The vehicle is on a road incline.
¾ The door mirrors are retracted.
¾ Do not hit the front/rear camera, front bumper, and door mirrors forcefully. The camera
position or installation angle may shift.
¾ The cameras are of a waterproof structure. Do not disassemble, modify, or remove a
camera.
¾ The camera cover is made of hard plastic, therefore do not apply oil film remover, organic
solvents, wax, or coating agents. If any such agent gets on the camera cover, wipe it off
using a soft cloth immediately.
¾ Do not rub the camera lens forcefully, or clean it with an abrasive or hard brush. Otherwise,
it could scratch the camera lens and negatively affect the images.
¾ Consult an Authorized Mazda Dealer for repair, painting, or replacement of the front/rear
camera, front bumper and door mirrors.
¾ Heed the following cautions to assure that the 360°View Monitor operates normally.
¾ Do not modify the vehicle suspensions or lower/raise the vehicle body, or both.
¾ Always use wheels of the specified type and size for the front and rear wheels. Consult an
Authorized Mazda Dealer for tire replacement.
¾ When the display is cold, images may leave trails or the screen might be darker than usual,
making it difficult to check the vehicle surroundings. Always confirm the safety at the front
and around the vehicle visually when driving.
¾ The method for parking/stopping the vehicle using the 360°View Monitor differs depending
on the road circumstances/conditions and the vehicle conditions. When and how much you
turn the steering wheel will differ depending on the situation, therefore always check the
vehicle surroundings directly with your eyes while using the system.
Also, before using the system, always make sure that the vehicle can be parked/stopped in
the parking/stopping space.
NOTE
If there are water droplets, snow, or mud on the camera lens, wipe it off using a soft cloth.
If the camera lens is especially dirty, wash it off with mild detergent.
If the area where the camera is installed, such as the liftgate or door mirrors, has been
damaged in a vehicle accident, the camera (position, installation angle) may have shifted.
Always consult an Authorized Mazda Dealer to have the vehicle inspected.
If the camera is subjected to excessive changes in temperature such as by pouring hot
water on the camera during cold weather, the 360°View Monitor may not operate
normally.
If the battery voltage is low, the screen might be temporarily difficult to view, however,
this does not indicate a problem.
4-206
When Driving
i-ACTIVSENSE
The 360°View Monitor has limitations. Objects under the bumper or near both ends of the
bumper cannot be displayed.
Obstructions above the upper image range of the camera are not displayed.
Under the following conditions, the screen might be difficult to view, however this does
not indicate a problem.
The temperature near the lens is high/low.
Rainy conditions, water droplets on the camera, or high humidity.
Mud or foreign matter near the camera.
Extremely bright light such as sunlight or headlights hitting the camera lens directly.
Because the 360°View Monitor camera uses a special lens, the distance displayed on the
screen differs from the actual distance.
Obstructions displayed on the screen may appear differently than in actuality.
(Obstructions may appear fallen, larger, or longer than they actually are.)
Do not apply stickers to a camera or the area around it. In addition, do not install
accessories or an illuminated number/character license plate to the area around a
camera. Otherwise, the camera may not correctly display the surrounding conditions.
4-207
When Driving
i-ACTIVSENSE
Types of Images Displayed on the Screen
Top view/Front view
Displays the image of the area around the vehicle and the vehicle front.
Top view screen
Front view screen
Front wide view
Displays the image of the front of the vehicle (wide-area).
Side view
Displays the image of the left and right sides of the vehicle.
4-208
When Driving
i-ACTIVSENSE
Top view/Rear view
Displays the image of the area around the vehicle and the rear of the vehicle.
Top view screen
Rear view screen
Rear wide view
Displays the image of the rear of the vehicle (wide-area).
4-209
When Driving
i-ACTIVSENSE
How to Use the System
Top view/Front view, Front wide view, Side view
Indication

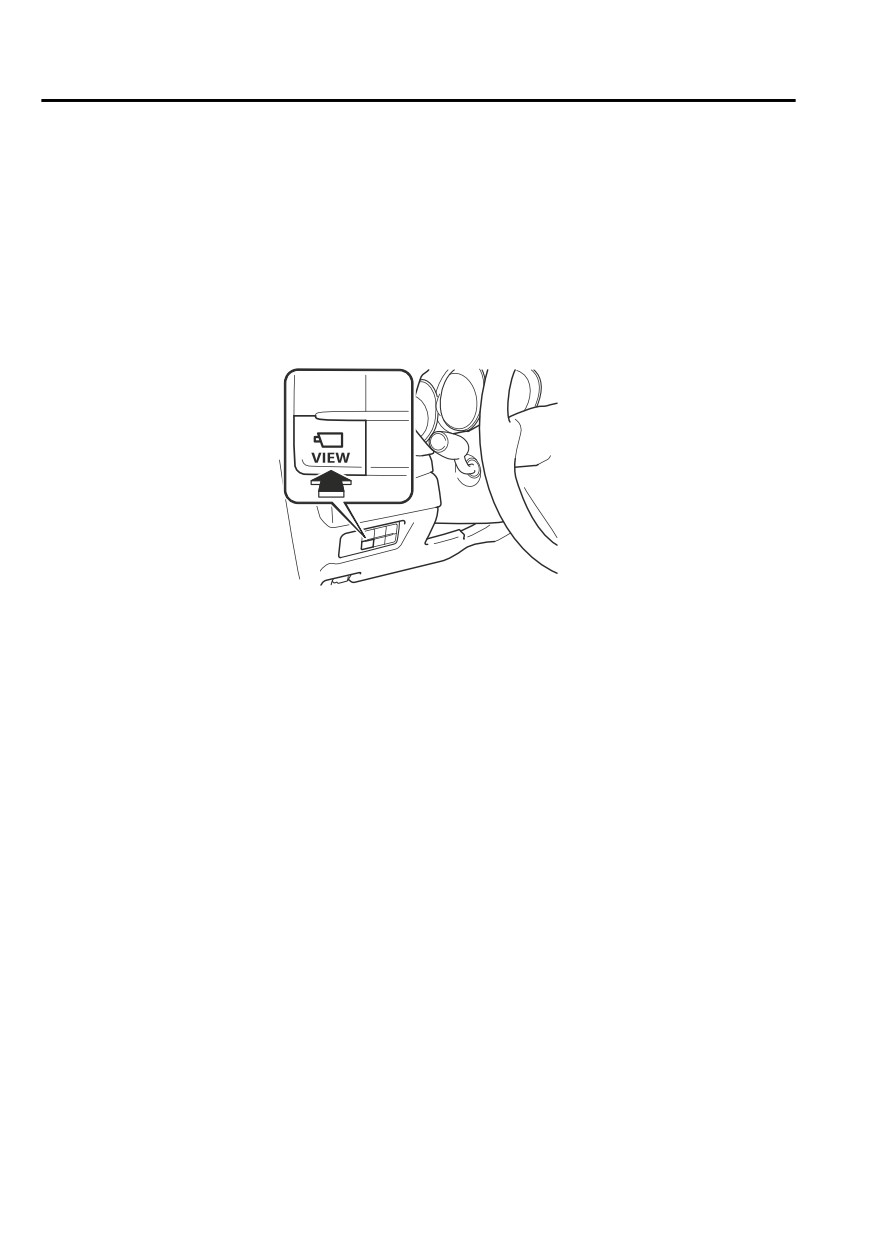

Images are displayed on the screen when the 360°View Monitor switch is pressed with all of
the following conditions met.
The ignition is switched ON.
The selector lever is in a position other than R.
4-210
When Driving
i-ACTIVSENSE

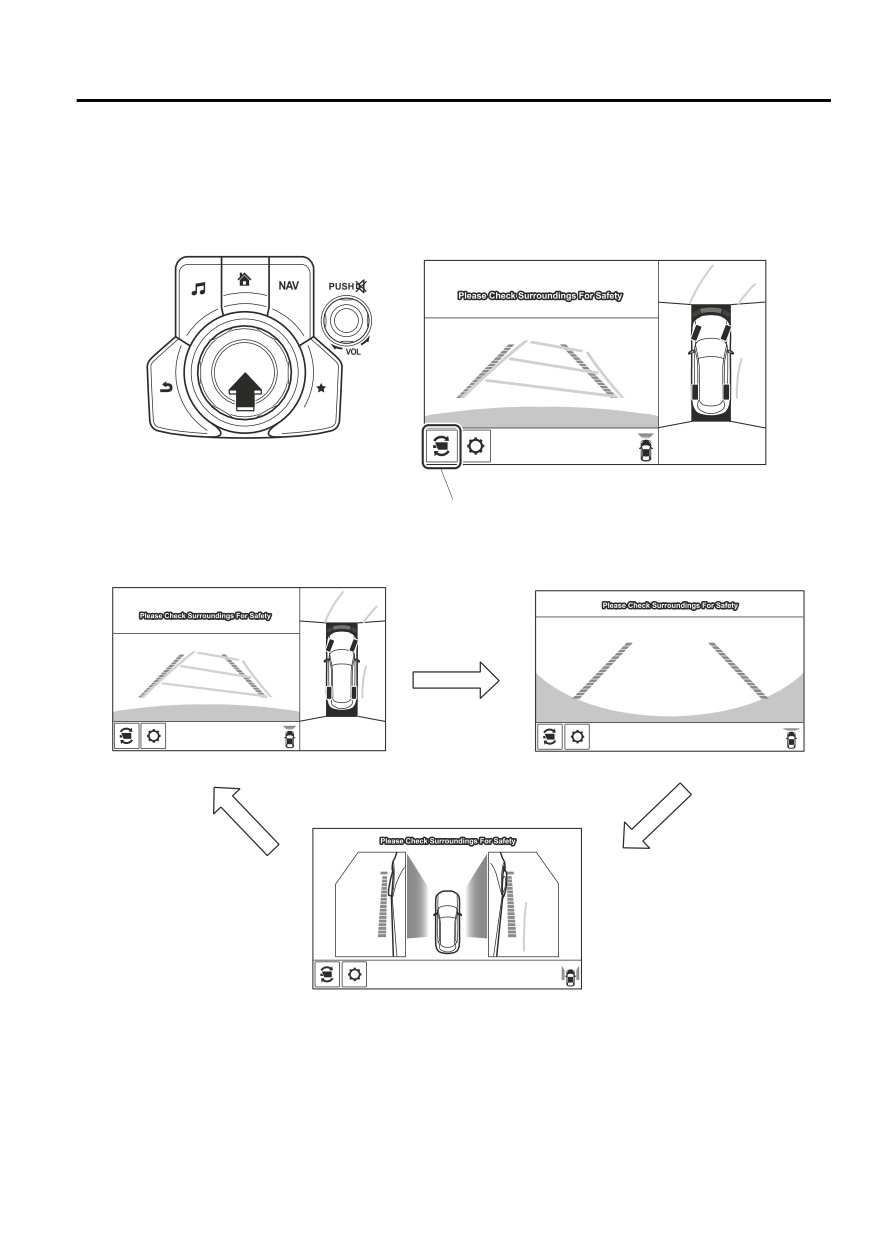

Display switching
You can change the displayed screen by pressing the commander knob or by touching the
switch camera icon on the screen while the top view/front view, front wide view, or the side
view is displayed.
Switch camera icon
Top view/Front view
Front wide view
Side view
NOTE
When the selector lever is in R position, the displayed screen does not switch to the top
view/front view, front wide view, or the side view.
Display of the top view/front view, front wide view, or the side view stops even with the
display conditions met if any of the following conditions occurs.
4-211
When Driving
i-ACTIVSENSE
When a switch around the commander knob is pressed.
The selector lever is shifted to P position (displayed when the selector lever is in a
position other than P).
(Displayed when vehicle speed is less than 15 km/h (9.3 mph))
4 minutes and 30 seconds have passed.
The vehicle speed is about 15 km/h (9.3 mph) or faster.
(Displayed when the vehicle speed is about 15 km/h (9.3 mph) or faster)
The vehicle speed is about 15 km/h (9.3 mph) or faster after 8 seconds have passed
since pressing the 360°View Monitor switch.
4 minutes and 22 seconds have passed from the point when the vehicle speed was less
than 15 km/h (9.3 mph) after 8 seconds have passed since pressing the 360° View
Monitor switch.
The 360°View Monitor displays the previously displayed screen.
The 360° View Monitor settings can be changed as follows.
Refer to the Settings section in the Mazda Connect Owner's Manual.
Automatic display of the 360°View Monitor when the ultrasonic sensor detects an
obstruction.
Automatic display of the 360°View Monitor when the ignition is switched ON.
Top view/Rear view, Rear wide view
The top view/rear view, rear wide view displays when all of the following conditions are
met.
The ignition is switched ON.
Selector lever is in R position.
4-212
When Driving
i-ACTIVSENSE

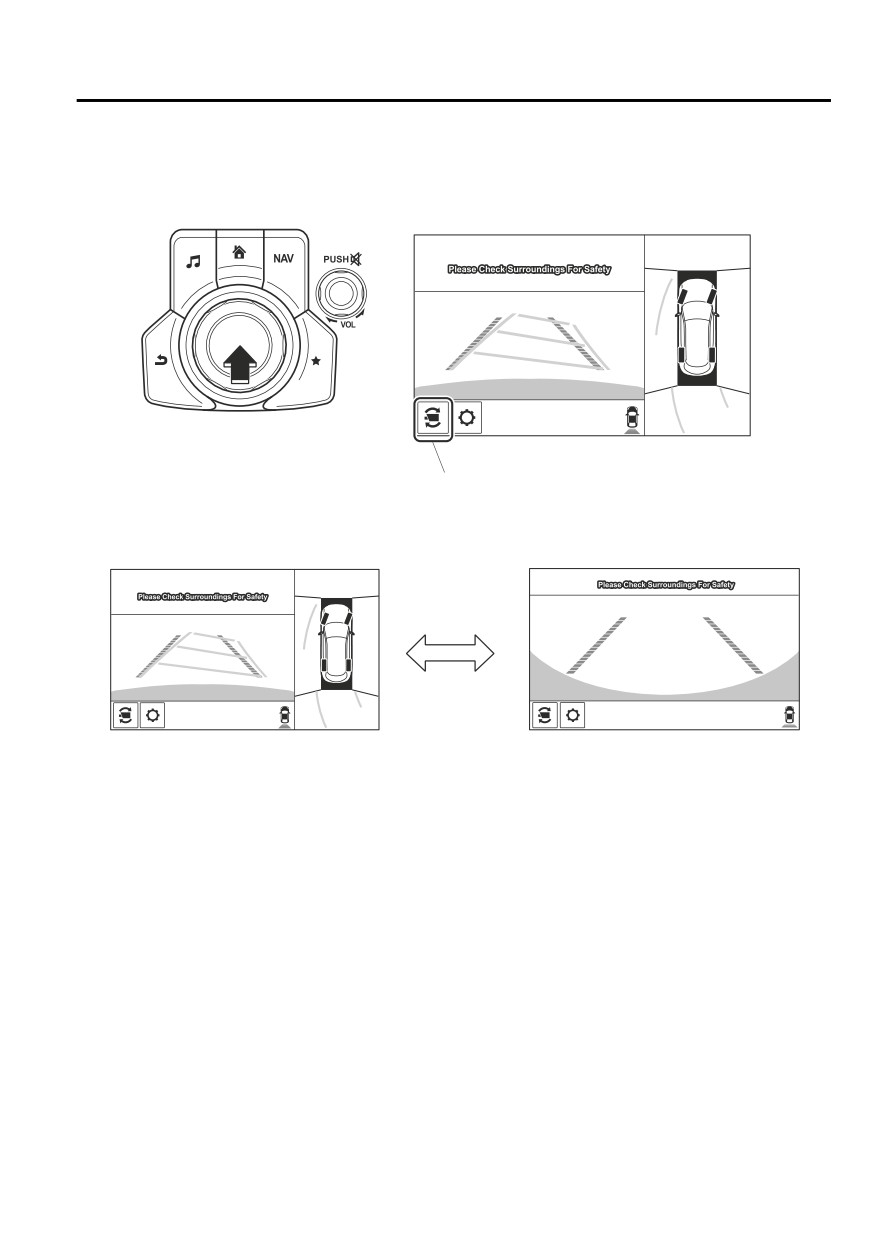

Display switching
The displayed screen can be switched by pressing the commander knob or by touching the
switch camera icon on the screen while the top view/rear view, rear wide view is displayed.
Switch camera icon
Top view/Rear view
Rear wide view
NOTE
The top view/rear view and rear wide view automatically display whether or not the 360°
View Monitor switch is turned on or off when shifting the selector lever to R position.
The setting can be changed to display the top view/front view when shifting from reverse
to a forward gear without operating the 360°View Monitor switch to check the front of the
vehicle while parallel parking.
Refer to the Settings section in the Mazda Connect Owner's Manual.
4-213















Content      ..     9      10      11      12     ..
