When Driving
i-ACTIVSENSE

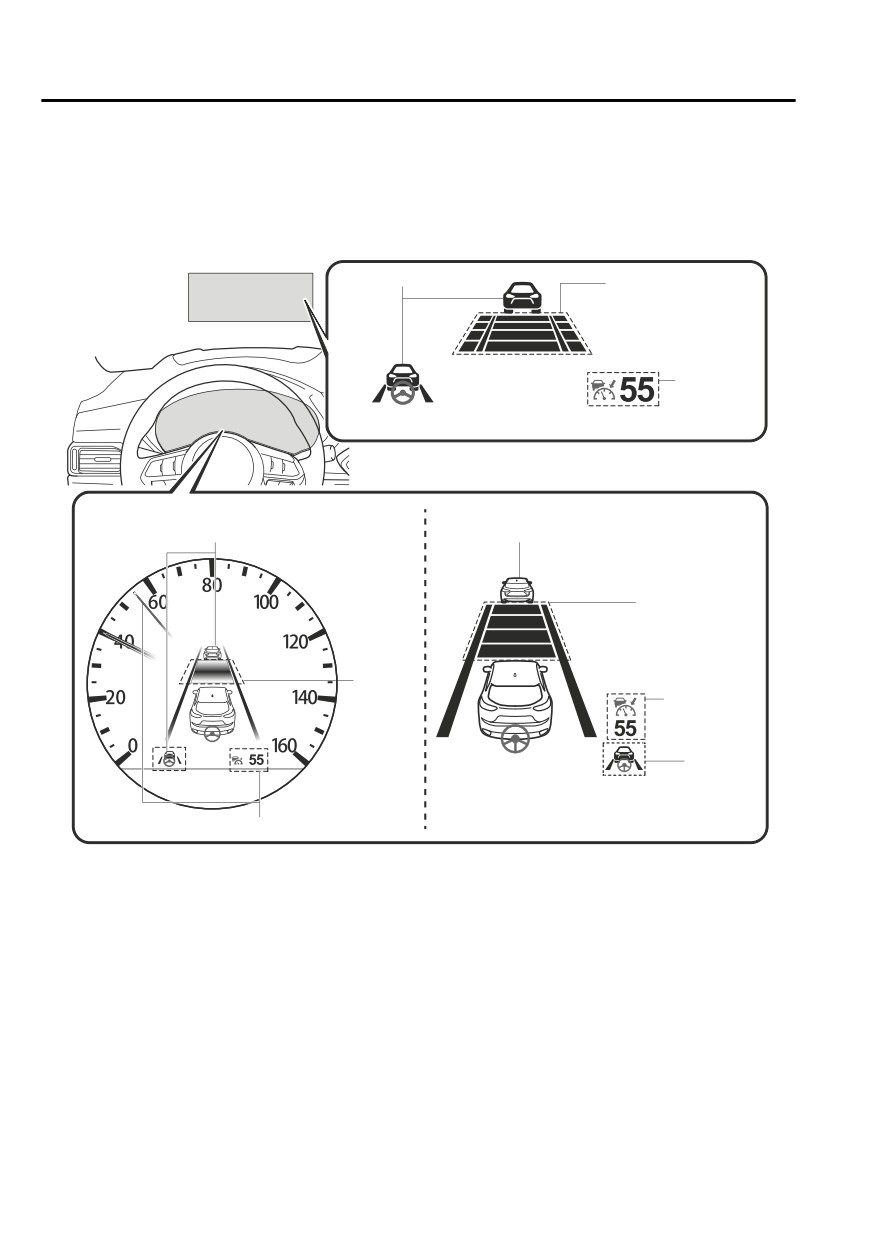

Instrument cluster (Type B)
Active driving display
Vehicle ahead display
MRCC Distance
between vehicle
display
MRCC Set
vehicle speed
Multi-information display
Vehicle ahead display
MRCC Distance
between vehicle
display
MRCC Set vehicle speed
*1
Vehicle ahead display
*1: If the indication on the active driving display has been
turned off using the personalization features, the indication
is displayed on the multi-information display.
If there is a problem with the MRCC with Stop & Go function system, a message is
displayed on the multi-information display. Check the center display to verify the problem
and then have your vehicle inspected by an Authorized Mazda Dealer.
Refer to Message Indicated on Display on page 7-39.

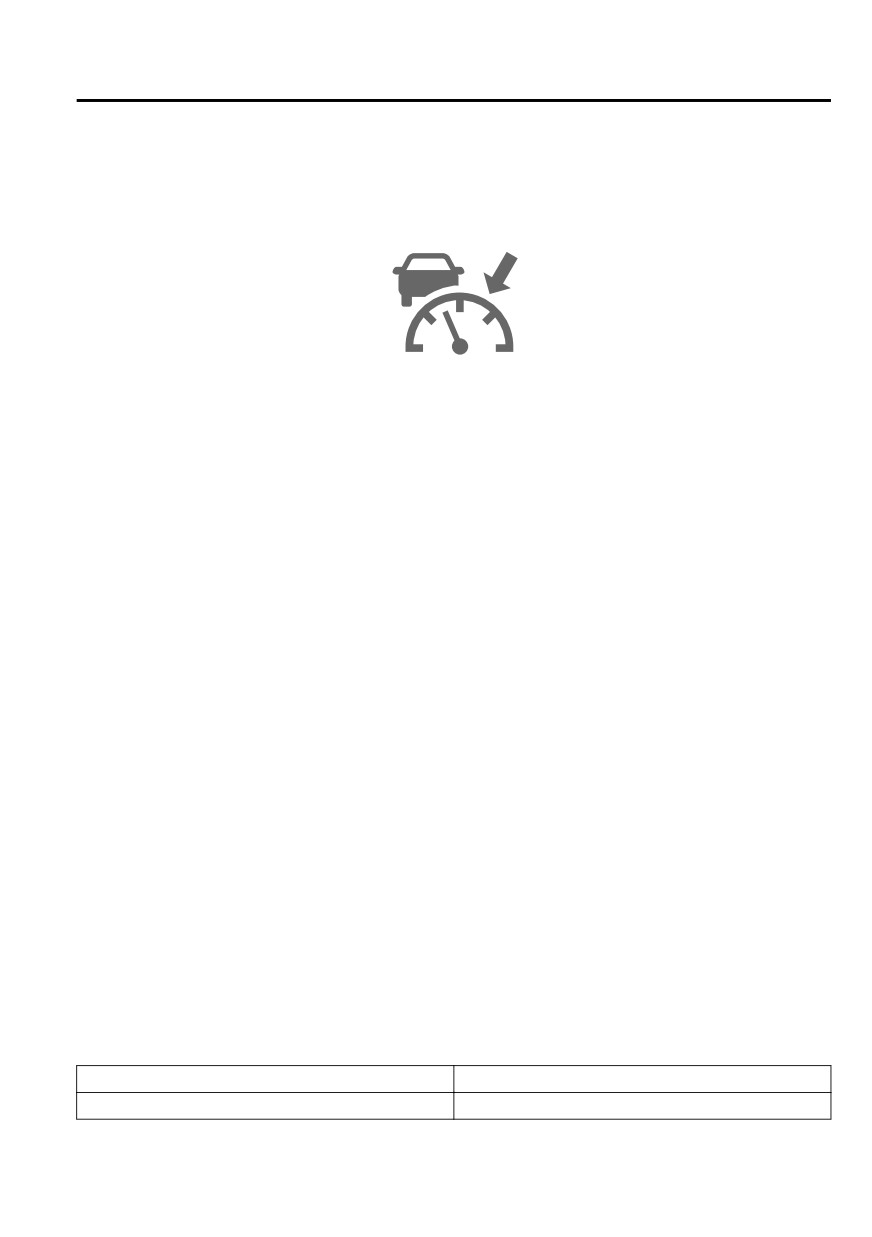

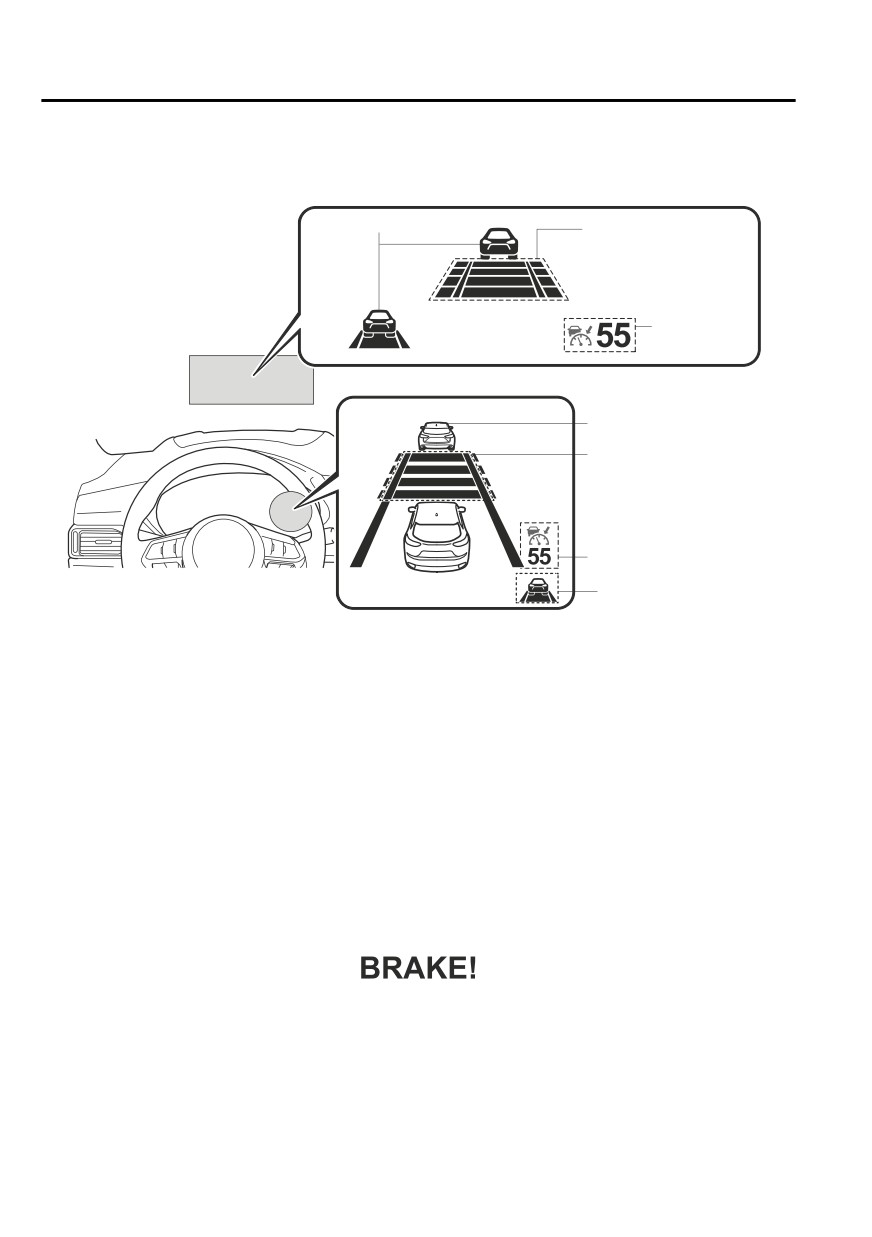

Close Proximity Warning
If your vehicle rapidly closes in on the vehicle ahead because the vehicle ahead applies the
brakes suddenly while you are traveling in headway control, the warning sound activates
and the brake warning is indicated in the display. Always verify the safety of the
surrounding area and depress the brake pedal while keeping a safer distance from the
vehicle ahead. Additionally, keep a safer distance from the vehicles behind you.
NOTE
In the following cases, the warnings and brakes may not operate even if your vehicle starts
closing in on the vehicle ahead.
You are driving your vehicle at the same speed as the vehicle ahead.
Directly after the MRCC with Stop & Go function system has been set.
Directly after the accelerator pedal is released.
4-150
When Driving
i-ACTIVSENSE
Another vehicle cuts into the driving lane.
Setting the System
The MRCC with Stop & Go function system operates when all of the following conditions
are met.
Vehicle speed is 0 km/h (0 mph) to 145 km/h (90 mph)
The MRCC with Stop & Go function is turned on.
The brake pedal is not depressed.
The parking brake is released (Electric Parking Brake (EPB) indicator light is turned off).
There is no problem with the DSC.
All the doors are closed.
The driver's seat belt is fastened.
The selector lever is in the drive (D) position or manual (M) position (manual mode).
NOTE
In the following cases, the MRCC with Stop & Go function system is canceled when the
vehicle is traveling at 30 km/h (20 mph) or less and “Mazda Radar Cruise Control
disabled under 30 km/h (20 mph)” is displayed in the multi-information display.
The Forward Sensing Camera (FSC) cannot detect target objects (There is problem
with the Forward Sensing Camera (FSC) or windshield is dirty).
There is a problem with the stop hold control function.
There is a problem with the Electric Parking Brake (EPB).
It may not be possible to set the MRCC with Stop & Go function system directly after
starting the engine, while the DSC operation is being checked.
4-151
When Driving
i-ACTIVSENSE

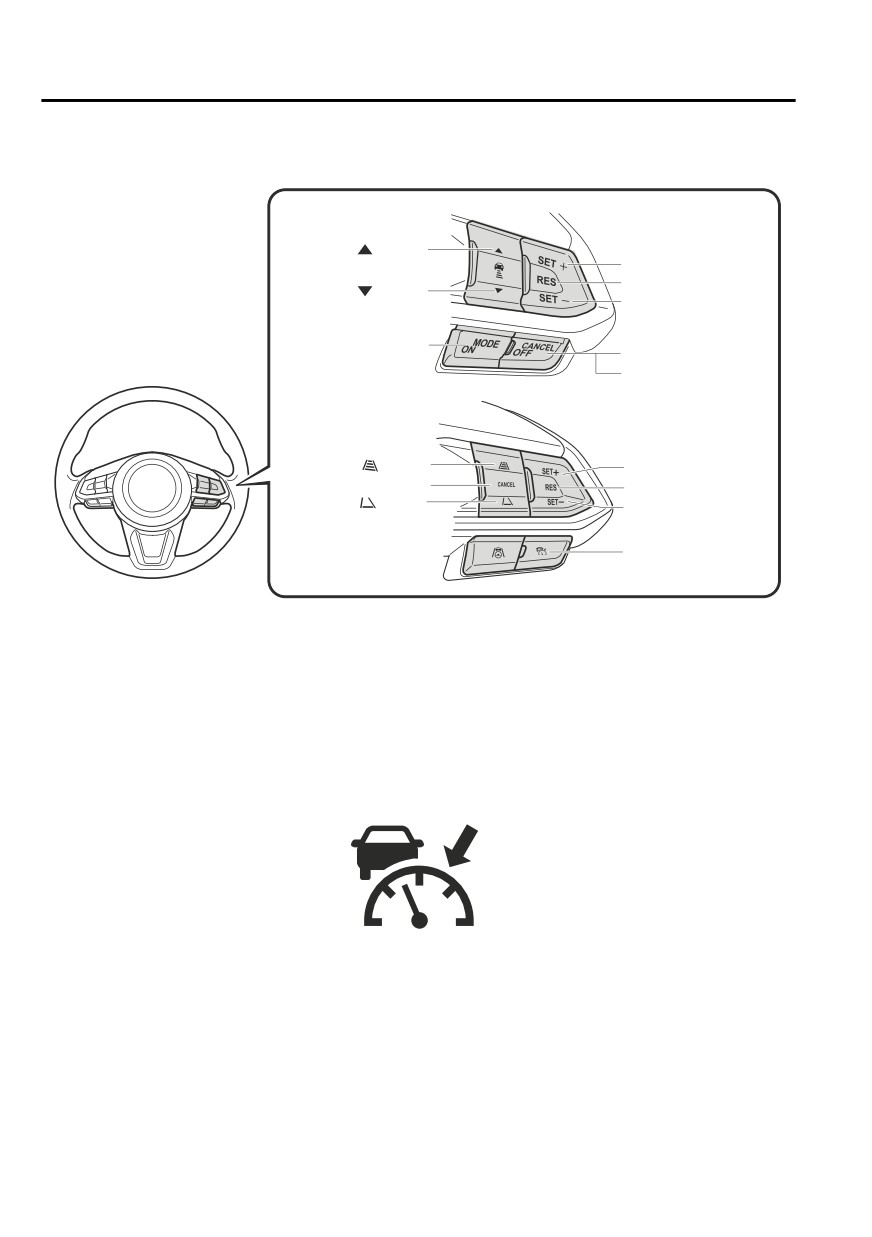

Turning on the system
Type A
switch
SET+ switch
RES switch
switch
SET- switch
MODE switch
CANCEL switch
OFF switch
Type B
switch
SET+ switch
CANCEL switch
RES switch
switch
SET- switch
MRCC switch
Steering wheel (Type A)
When the MODE switch is pressed once, the MRCC with Stop & Go function system turns
on, and the MRCC with Stop & Go function main indication (white) turns on and the
vehicle speed and the distance between the vehicles while in headway control can be set.

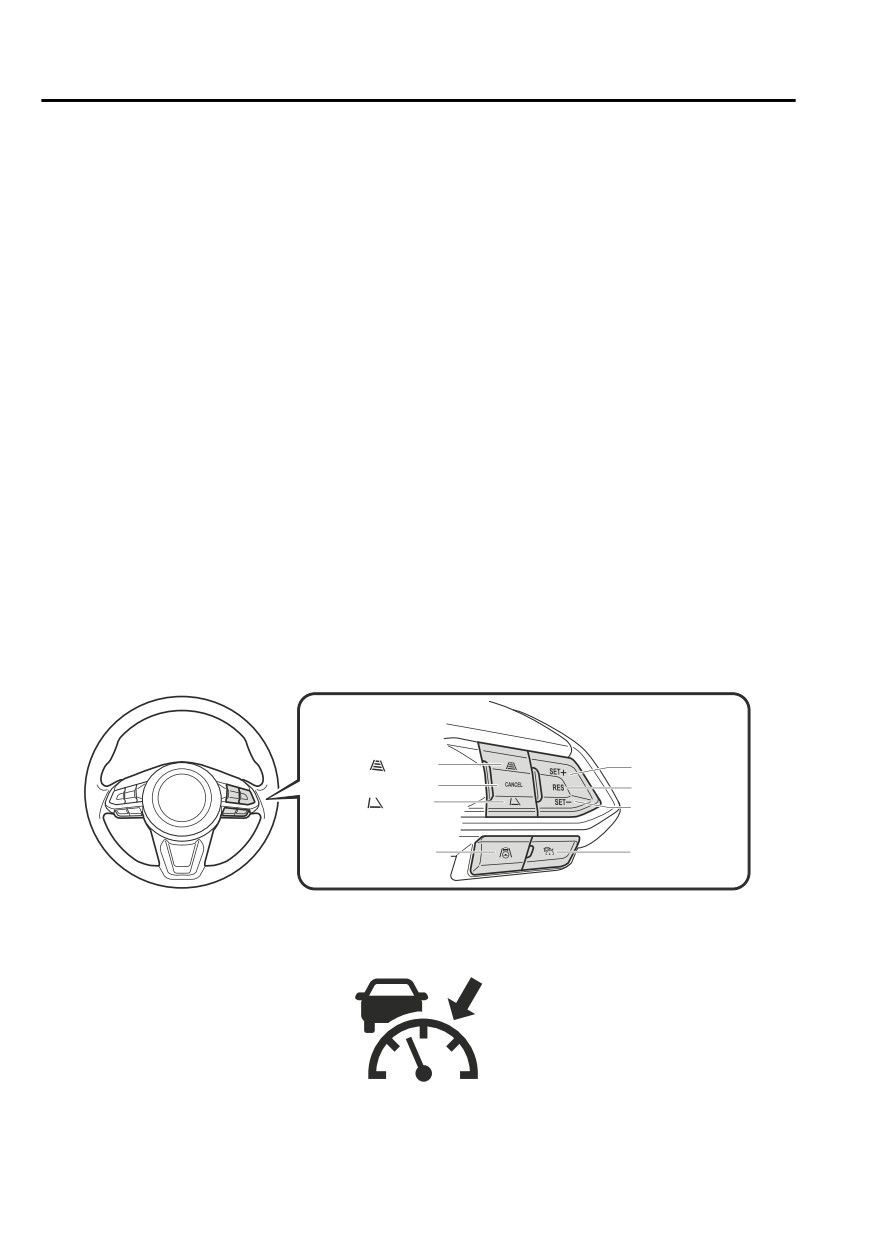

Steering wheel (Type B)
When the MRCC switch is pressed once, the MRCC with Stop & Go function system turns
on, and the MRCC with Stop & Go function main indication (white) turns on and the
vehicle speed and the distance between the vehicles while in headway control can be set.
In addition, the MRCC with Stop & Go function system display indication is displayed on
the multi-information display and the active driving display at the same time.
NOTE
If the ignition is switched off while the MRCC with Stop & Go function system is
operating, the system will be operable when the ignition is switched ON the next time.
The MRCC with Stop & Go function can switch to the cruise control function.
Refer to Cruise Control Function on page 4-158.
4-152
When Driving
i-ACTIVSENSE
How to set the speed
1. Adjust the vehicle speed to the desired setting using the accelerator pedal.
2. Headway control begins when the SET or SET switch is pressed.
The set speed and the inter-vehicle distance display filled with white lines is displayed.
The MRCC with Stop & Go function main indication (white) switches to the MRCC
with Stop & Go function set indication (green) at the same time.

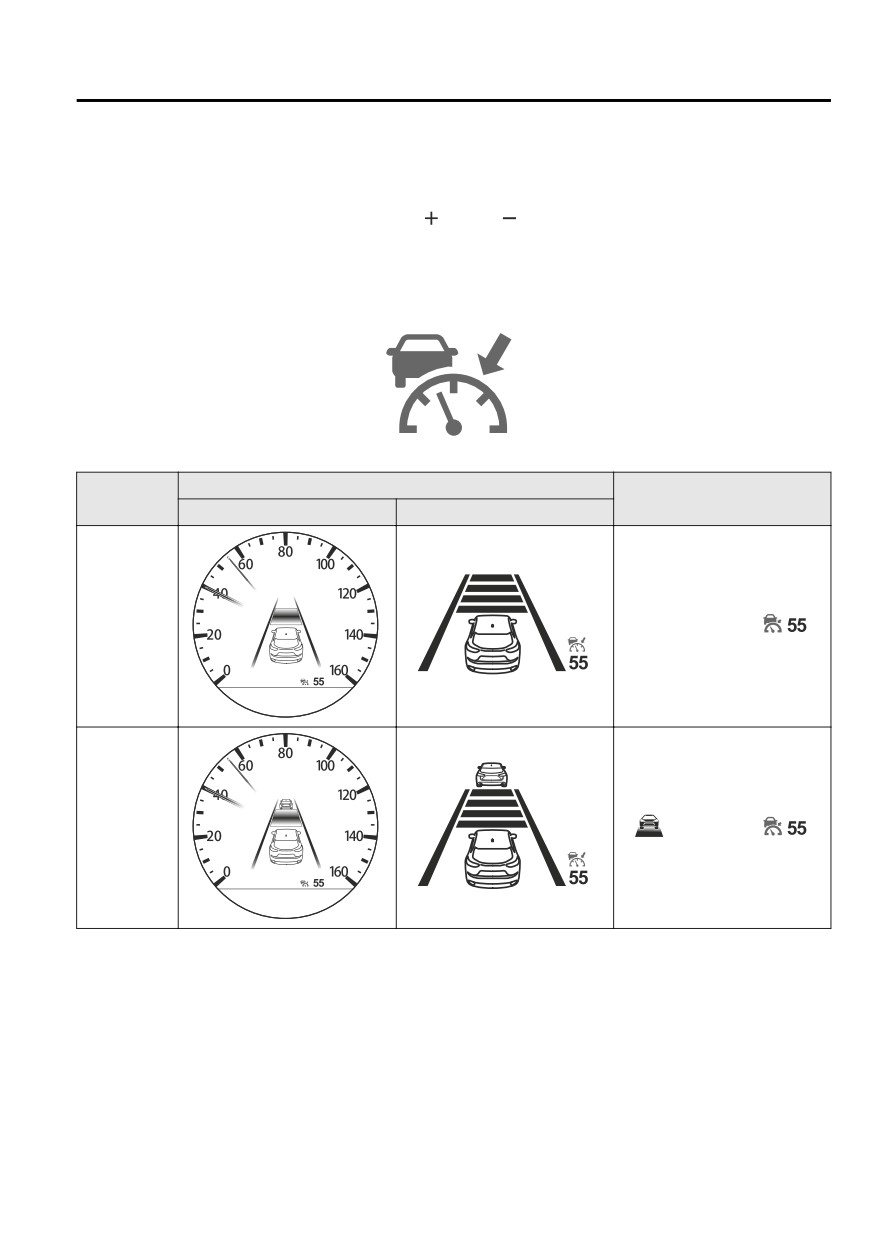

Indication on multi-information display
Indication on active driving
Travel status
Type A
Type B
display
During travel
at constant
speed
During travel
under head-
way control
NOTE
If a vehicle ahead is detected while traveling at a constant speed, the vehicle-ahead
indication is displayed and headway control is performed. Additionally, when a vehicle
ahead is no longer detected, the vehicle-ahead indication turns off and the system
switches back to travel at constant speed.
The lowest possible speed which can be set on the MRCC with Stop & Go function system
is 30 km/h (19 mph).
4-153
When Driving
i-ACTIVSENSE
Headway control is not possible if the vehicle ahead is driving faster than your vehicle's
set speed. Adjust the system to the desired vehicle speed using the accelerator pedal.

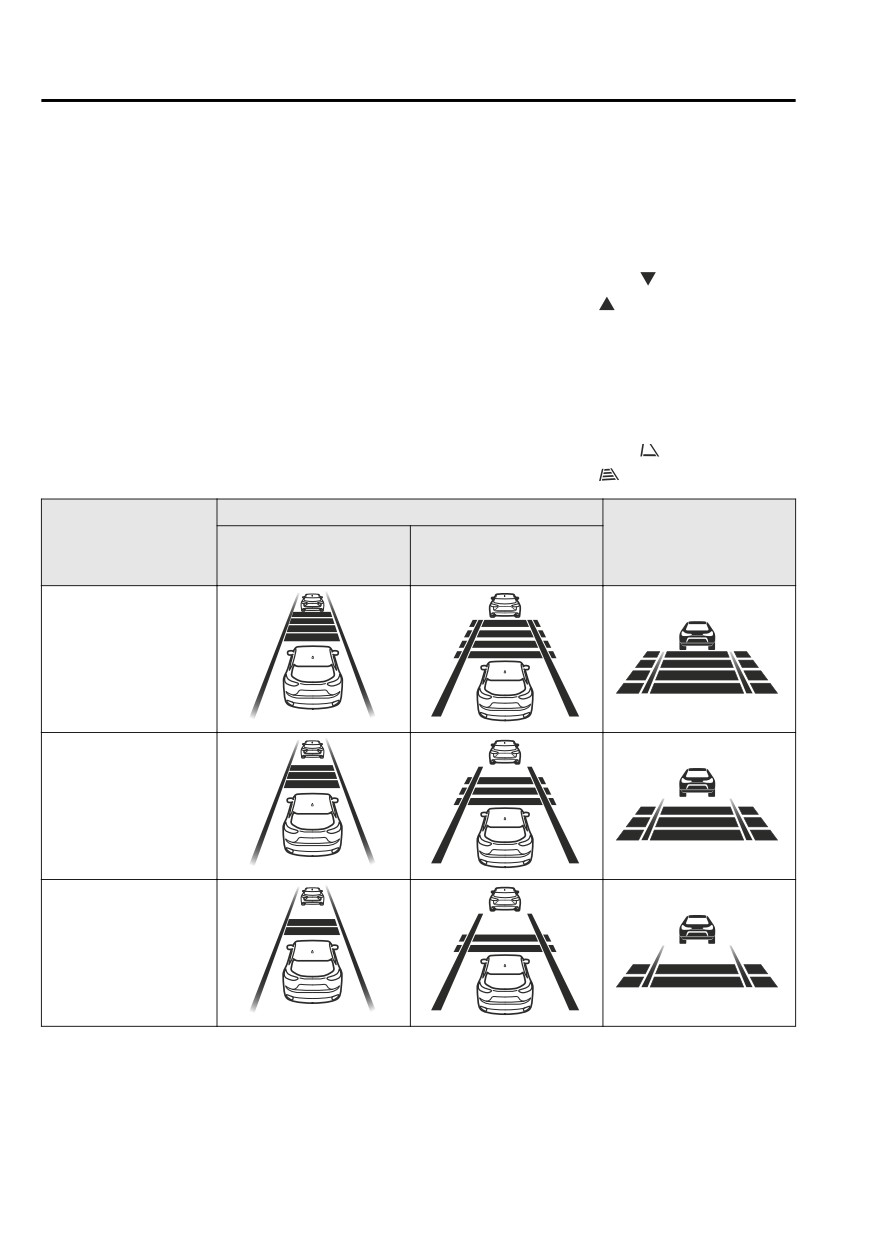

How to set the distance-between-vehicles during headway control
Steering wheel (Type A)
The distance-between-vehicles is set to a shorter distance by pressing the switch. The
distance-between-vehicles is set to a longer distance by pressing the switch. The
distance-between-vehicles can be set to 4 levels; Long, medium, short, and extremely short
distance.
Steering wheel (Type B)
The distance-between-vehicles can be set to 4 levels; Long, medium, short, and extremely
short distance.
The distance-between-vehicles is set to a shorter distance by pressing the switch. The
distance-between-vehicles is set to a longer distance by pressing the
switch.

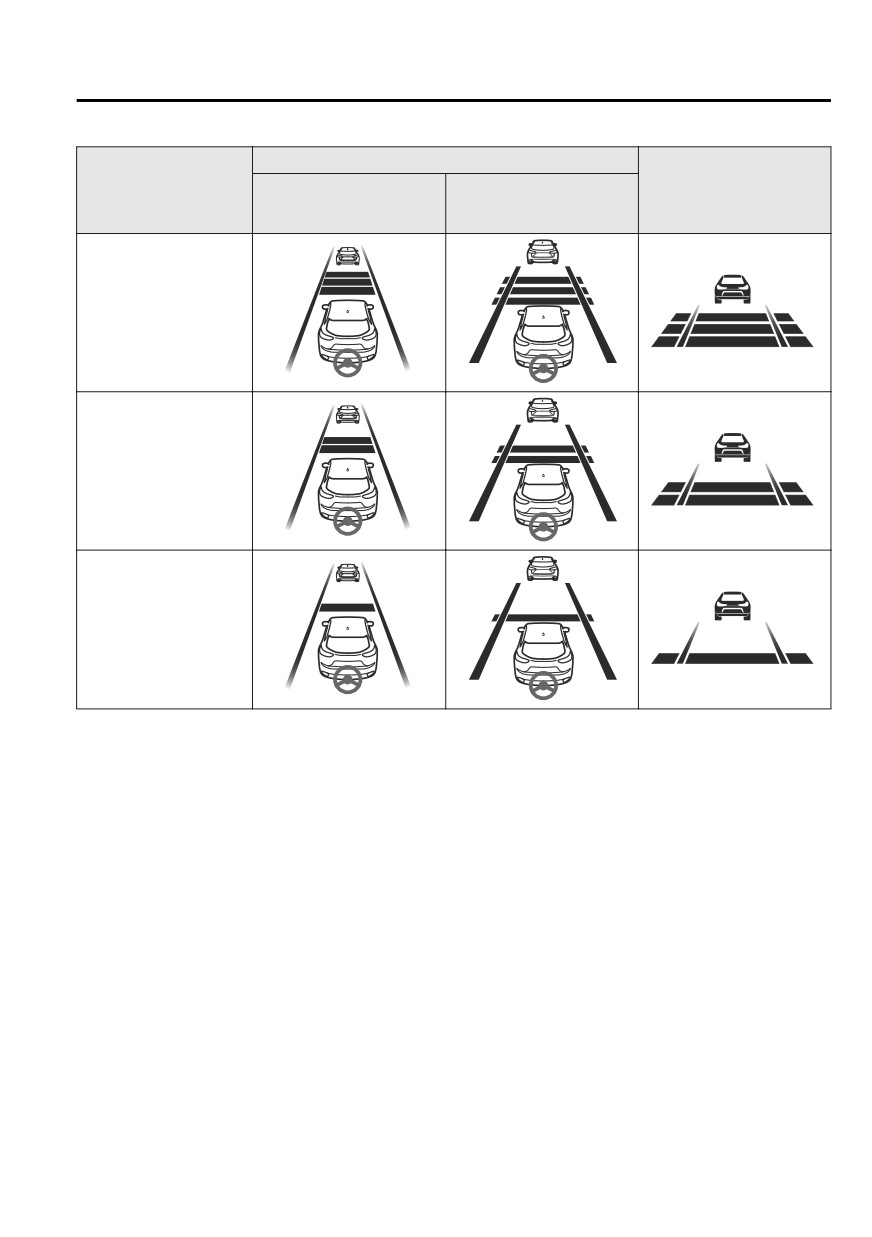

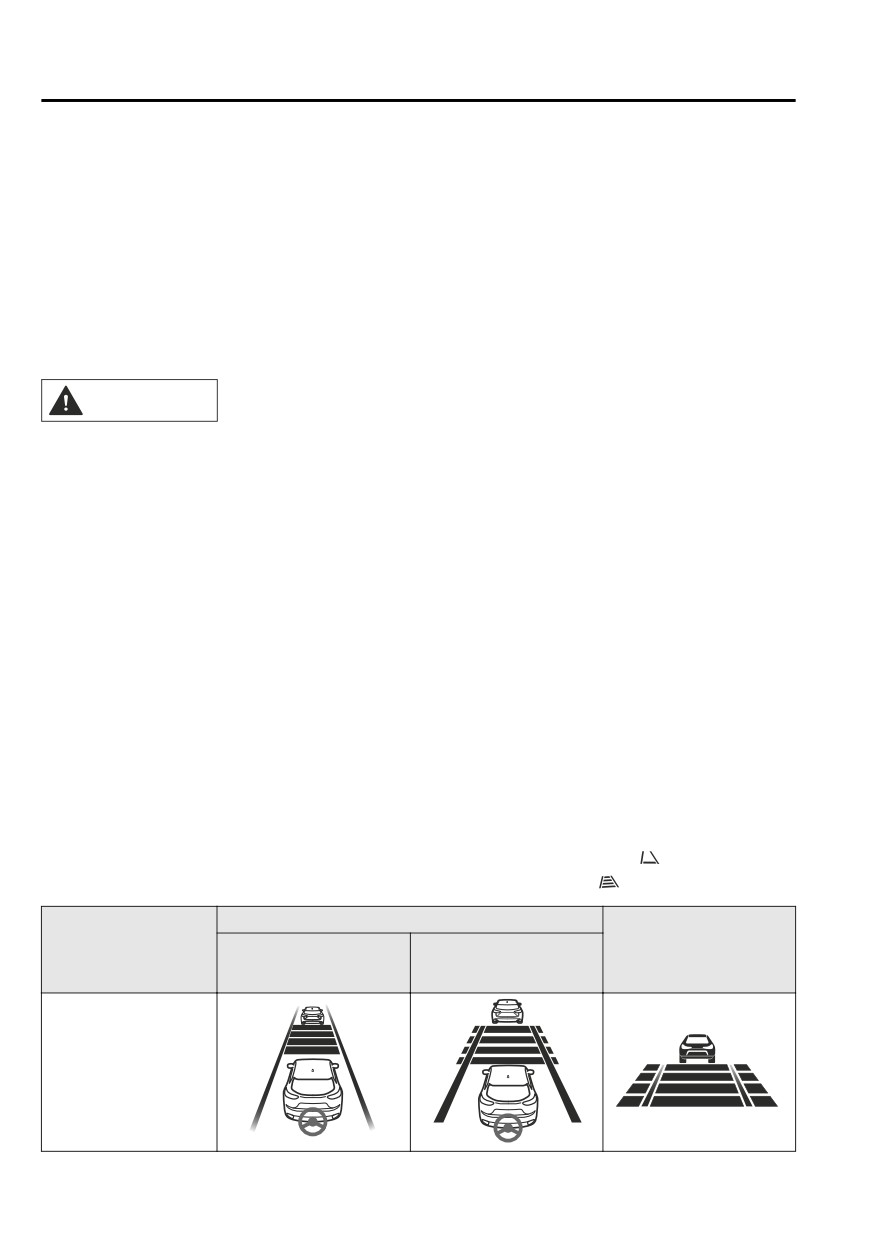

Distance-between-vehiဨ
Indication on multi-information display
cles guideline
Indication on active drivဨ
(at 80 km/h (50 mph)
Type A
Type B
ing display*1
vehicle speed)
Long (about 50 m (164
ft))
Medium (about 40 m
(131 ft))
Short (about 30 m (98
ft))
4-154
When Driving
i-ACTIVSENSE
Distance-between-vehiဨ
Indication on multi-information display
cles guideline
Indication on active drivဨ
(at 80 km/h (50 mph)
Type A
Type B
ing display*1
vehicle speed)

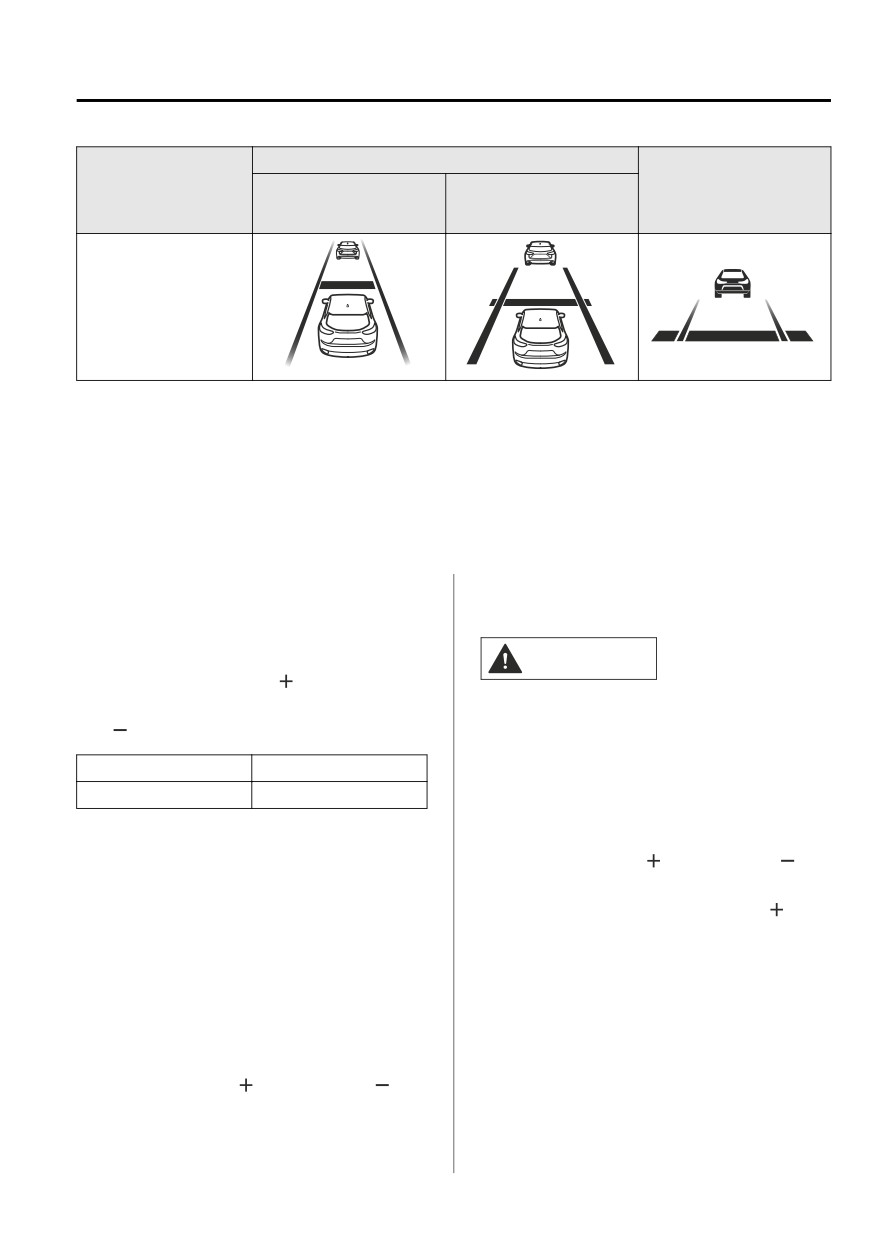

Extremely short (about
25 m (82 ft))
*1
Displays a pop-up image in the active driving display only when the driver operates the switch.
NOTE
The distance-between-vehicles differs depending on the vehicle speed, and the slower the
vehicle speed, the shorter the distance.
When the ignition is switched to ACC or OFF and then the engine is started again, the
system automatically sets the distance-between-vehicles to the previous setting.
How to change the set vehicle speed
speed after you release your foot from the
accelerator pedal.
To accelerate/decelerate using the SET
switch
CAUTION
When you press the SET switch, the
vehicle accelerates and when you press the
The warnings and brake control do not
SET switch, it decelerates.
operate while the accelerator pedal is
depressed.
Short press
1 km/h (1 mph)
Long press
10 km/h (5 mph)
NOTE
The setting speed can be changed by
NOTE
operating the SET switch or SET
For example, the set vehicle speed is
switch during stop hold control.
changed by pressing the SET switch four
When accelerating using the SET
times as follows:
The vehicle speed accelerates or
switch while in headway control, the set
vehicle speed can be adjusted but
decelerates by 4 km/h (4 mph).
acceleration is not possible. If there is
To increase speed using accelerator
no longer a vehicle ahead, acceleration
pedal
continues until reaching the set vehicle
Depress the accelerator pedal and press
speed. For the set vehicle speed, check
and release the SET switch or SET
the set vehicle speed indication in the
switch at the desired speed. If the switch is
display.
not operated, the system returns to the set
4-155
When Driving
i-ACTIVSENSE

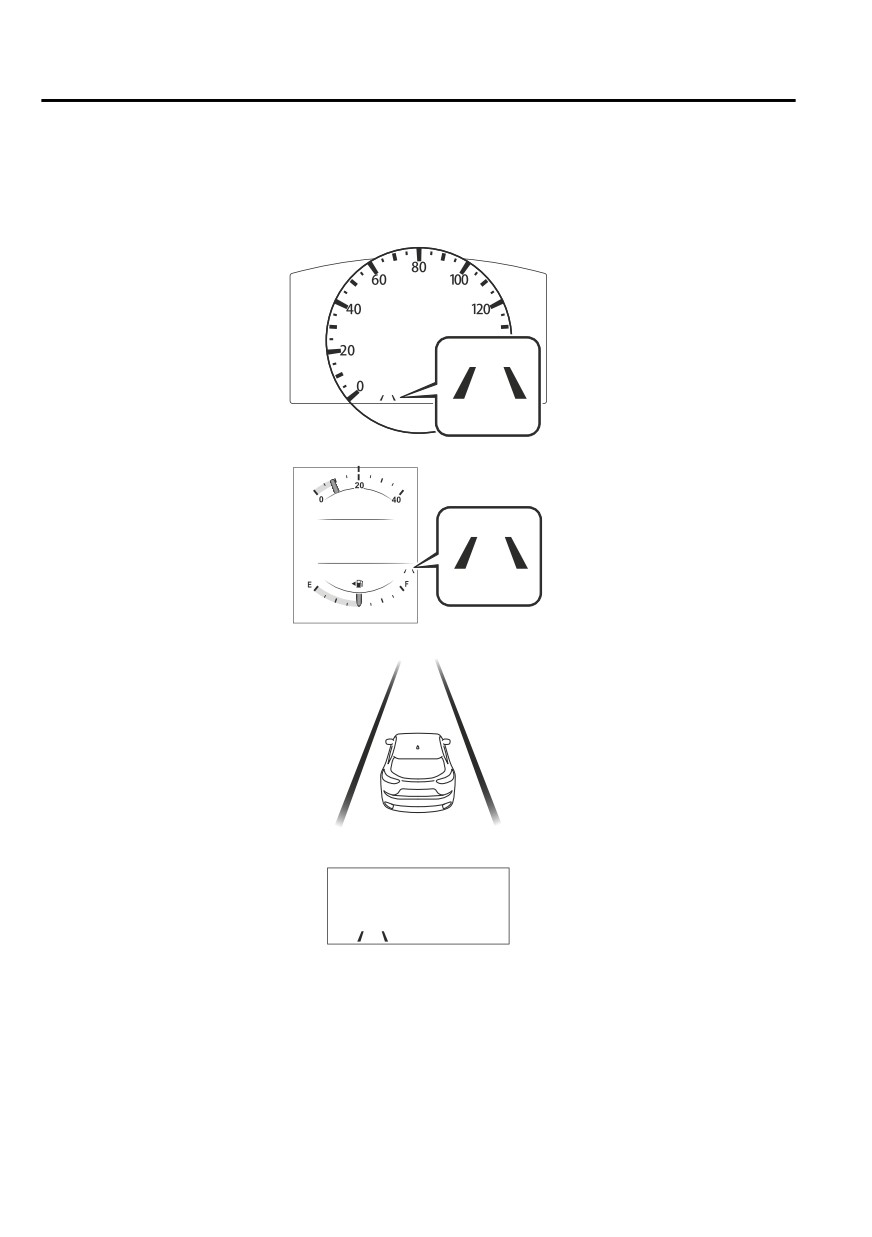

When depressing the accelerator pedal,
The radar sensor (front) cannot detect
the inter-vehicle distance indication in
target objects (during rain, fog, snow or
the display changes to the white-line
other inclement weather conditions, or
indication.
when the radiator grille is dirty).
Canceling the system
Resuming control
When the following operations are
If the MRCC with Stop & Go function
performed, the MRCC with Stop & Go
system is canceled, you can resume
function system is canceled, and the
control at the previously set speed by
MRCC with Stop & Go function set
pressing the RES switch and after all of
indication (green) switches to the MRCC
the operation conditions have been met.
with Stop & Go function main indication
NOTE
(white) at the same time.
If the set speed is not indicated in the
The CANCEL switch is pressed.
display, the control does not resume even
The brake pedal is depressed.
if the RES switch is pressed.
The parking brake is applied.
Turning off the system
The selector lever is in the P (Park), N
(Neutral), or R (Reverse) position.
Press the CANCEL switch 2 times while
the MRCC with Stop & Go function
system is operating to switch off the
Under the following conditions, the
system.
MRCC with Stop & Go function cancel
indication is displayed in the
multi-information display and a single
beep sound is heard.
The DSC has operated.
The Smart Brake Support (SBS) has
operated.
The Smart City Brake Support
[Forward] (SCBS F) or Advanced Smart
City Brake Support (Advanced SCBS)
has operated.
When traveling on a downslope for a
long period of time.
There is a problem with the system.
The engine has stalled.
Any of the doors is opened.
The driver's seat belt is unfastened.
The parking brake is automatically
applied during stop hold control.
4-156
When Driving
i-ACTIVSENSE

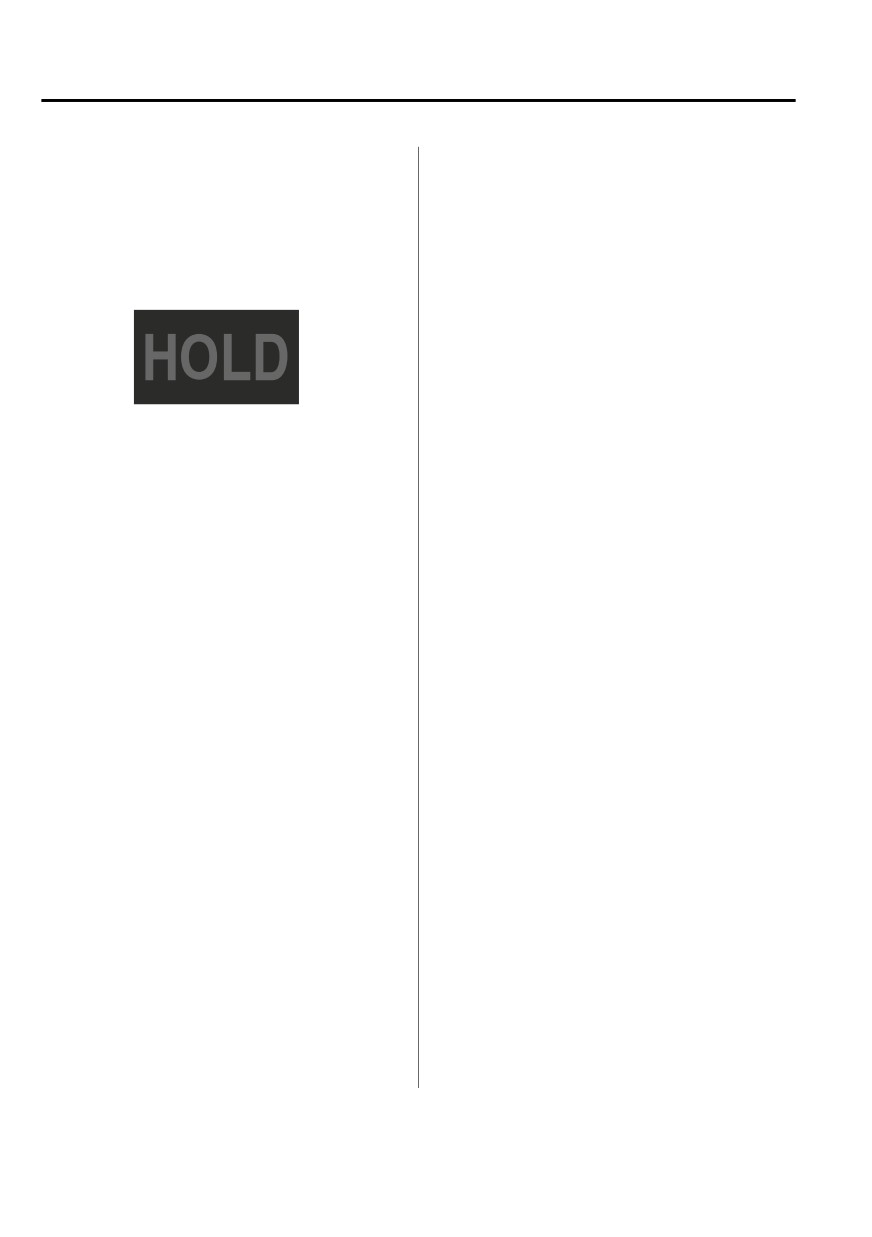

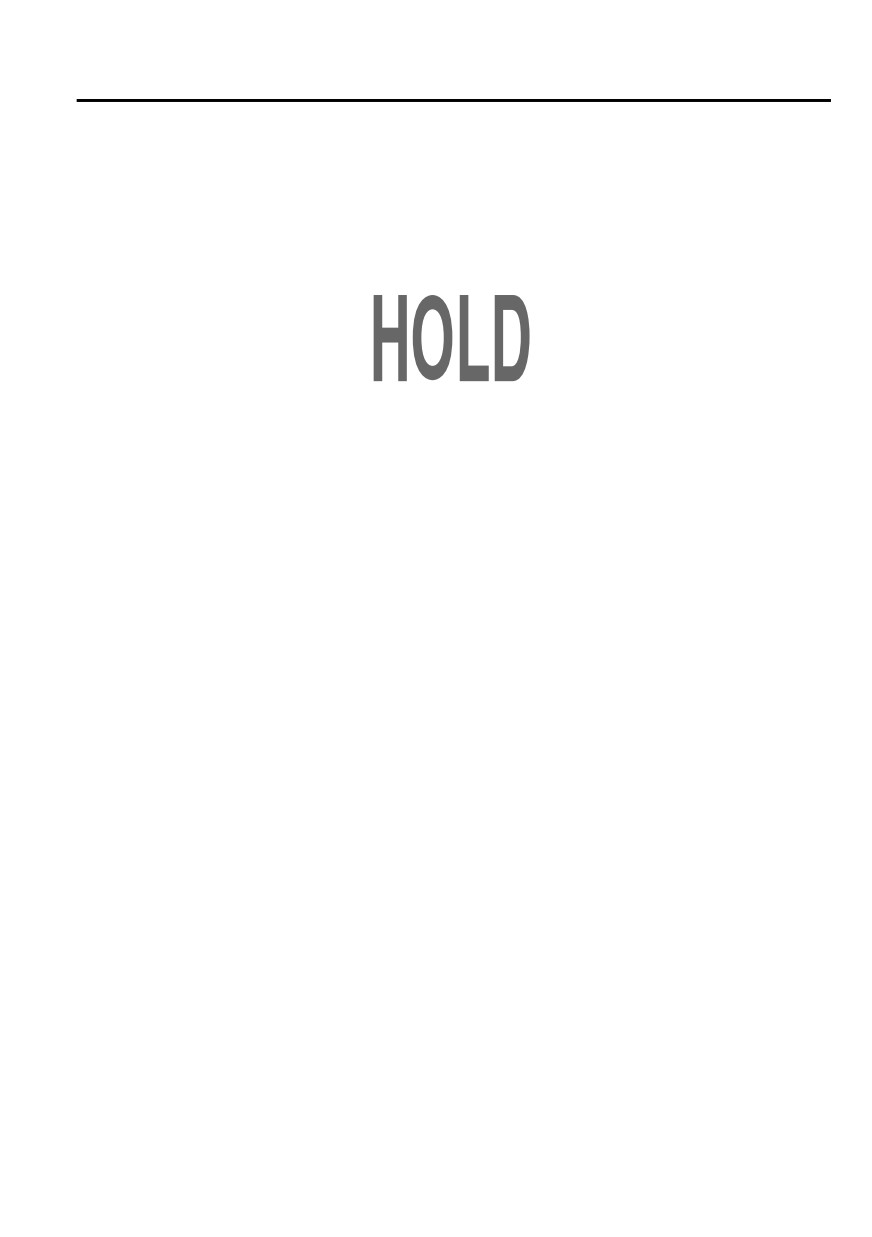

Stop Hold Control
While in headway control using the MRCC with Stop & Go function system, your vehicle
will stop when a vehicle ahead stops. When the vehicle is stopped and the stop hold control
operates, the MRCC with Stop & Go function indicator light turns on.
NOTE
If the MRCC with Stop & Go function system is canceled during stop hold control, the
vehicle is held in its stopped position. The stop hold control can be canceled by
performing one the following actions.
Press the accelerator pedal and resume driving the vehicle.
While forcefully depressing the brake, switch the MRCC with Stop & Go function
system off.
The parking brake is automatically applied and the vehicle is held in its stopped position
when 10 minutes have elapsed since the stop hold control operated. At this time, the
MRCC with Stop & Go function system is canceled.
The brake lights turn on during stop hold control.
To resume driving
After the vehicle ahead starts moving while your vehicle is stopped under stop hold control,
press the RES switch or depress the accelerator pedal to cancel the stop hold control and
resume driving.
NOTE
When you resume driving by pressing the RES switch, your vehicle does not start moving
until the distance between your vehicle and the vehicle ahead lengthens to the specified
distance or farther.
If the MRCC with Stop & Go function is temporarily canceled during stop hold control,
you cannot resume driving by pressing the RES switch when there are no vehicles in front
of your vehicle. Depress the accelerator pedal and resume driving the vehicle.
If the vehicle ahead starts moving within 3 seconds after your vehicle is stopped by the
stop hold control, headway control will resume even if you do not resume driving your
vehicle, such as by depressing the accelerator pedal.
4-157
When Driving
i-ACTIVSENSE
Resume driving information
If you do not resume driving within a few seconds after the vehicle ahead starts moving, the
multi-information display vehicle-ahead indication flashes to urge the driver to resume
driving.
Cruise Control Function
The warnings and brake control will not
operate after the headway control function
While this function is operating, the
is canceled and the system is switched to
headway control operation is canceled and
only the cruise control function. Depress
only the cruise control function operates.
the brake pedal to decelerate according to
The vehicle speed can be set more than
the surrounding conditions while keeping a
about 25 km/h (16 mph).
safer distance from the vehicle ahead and
Use the cruise control function on
always driving carefully.
expressways and other highways which do
not require a lot of repeated acceleration
Switching to cruise control function
and deceleration.
Steering wheel (Type A)
When the MODE switch is pressed until
WARNING
the system switches to the cruise main
indication (white) while the MRCC with
Do not use the cruise control function in
Stop & Go function system is turned on,
the following locations:
the system switches to the cruise control
Otherwise, it could lead to an accident.
function.
Steering wheel (Type B)
¾ Roads with sharp curves and where
Use Mazda Connect to switch to the cruise
vehicle traffic is heavy and there is
control function.
insufficient space between vehicles.
Refer to the Settings section in the Mazda
(Driving under these conditions using the
Connect Owner's Manual.
cruise control function is not possible)
¾ Steep down slopes (Set speed may be
When the system switches to the cruise
exceeded because sufficient engine
control function, the indicator and
braking cannot be applied)
multi-information display notify the driver
¾ Slippery roads such as ice or snow-bound
as follows:
roads (Tires could spin causing you to
lose vehicle control)
The MRCC with Stop & Go function set
indication (green) or the MRCC with
Always drive carefully:
Stop & Go function main indication
(white) is turned off, and the cruise main
indication (white) is turned on.
A message is displayed in the
multi-information display.
4-158
When Driving
i-ACTIVSENSE
To increase speed using accelerator
WARNING
pedal
Depress the accelerator pedal and press the
Always turn off the cruise control function
SET or SET switch at the desired
when it is not in use:
speed.
Leaving the cruise control function turned
If the switch is not operated, the system
on when it is not in use is dangerous as it
returns to the set speed after you release
could operate unexpectedly, resulting in an
your foot from the accelerator pedal.
accident.
How to Decrease the Set Speed
How to set the speed
Press the SET switch continuously and
Adjust the system to the desired vehicle
release the switch at the desired speed.
speed using the accelerator pedal.
The set speed can be adjusted
When the SET or SET switch is
incrementally (1 km/h (1 mph)
pressed, the cruise set indication (green) is
increments) by pressing the switch and
turned on and headway control begins.
releasing it immediately. For example, if
NOTE
the switch is pressed 4 times, the set
vehicle speed decreases by about 4 km/h
The system may not be able to maintain
(4 mph).
the set speed constantly depending on
driving conditions such as steep up or
Canceling the function
down slopes.
When the cruise control function is
The speed will continue increasing while
canceled and the RES switch is pressed
the SET switch is pressed and held.
while the vehicle speed is 25 km/h (16
The speed will continue decreasing
mph) or faster, the speed returns to the
while the SET switch is pressed and
original set speed.
held.
Canceling using CANCEL switch
How to increase the set speed
When the CANCEL switch is pressed
The set speed can be increased using the
once, the cruise control function is
following operations:
cancelled.
To increase speed using the SET
Automatically cancel
switch
The cruise control function is canceled
Press and hold the SET switch and
automatically in the following cases.
release the switch at the desired speed.
The set speed can be adjusted
The brake pedal is depressed.
incrementally (1 km/h (1 mph)
The parking brake is applied.
increments) by pressing the switch and
The selector lever is shifted to P or N
releasing it immediately. For example, if
position.
the switch is pressed 4 times, the set speed
increases by about 4 km/h (4 mph).
4-159
When Driving
i-ACTIVSENSE
NOTE
If the vehicle speed decreases by about
15 km/h (9.4 mph) or more than the set
speed, the cruise control function may
be canceled.
When the vehicle speed is less than 21
km/h (13 mph), the cruise control
function is canceled. In this case, the
vehicle speed will not return to the
original set speed even if the vehicle is
accelerated to 25 km/h (16 mph) or
higher and the RES switch is pressed.
Reset the cruise control function.
4-160
When Driving
i-ACTIVSENSE
Traffic Jam Assist (TJA)*
The TJA is a system which consists of a headway control function and a steering assist
function for reducing driver fatigue during traffic jams when driving on expressways or
highways.

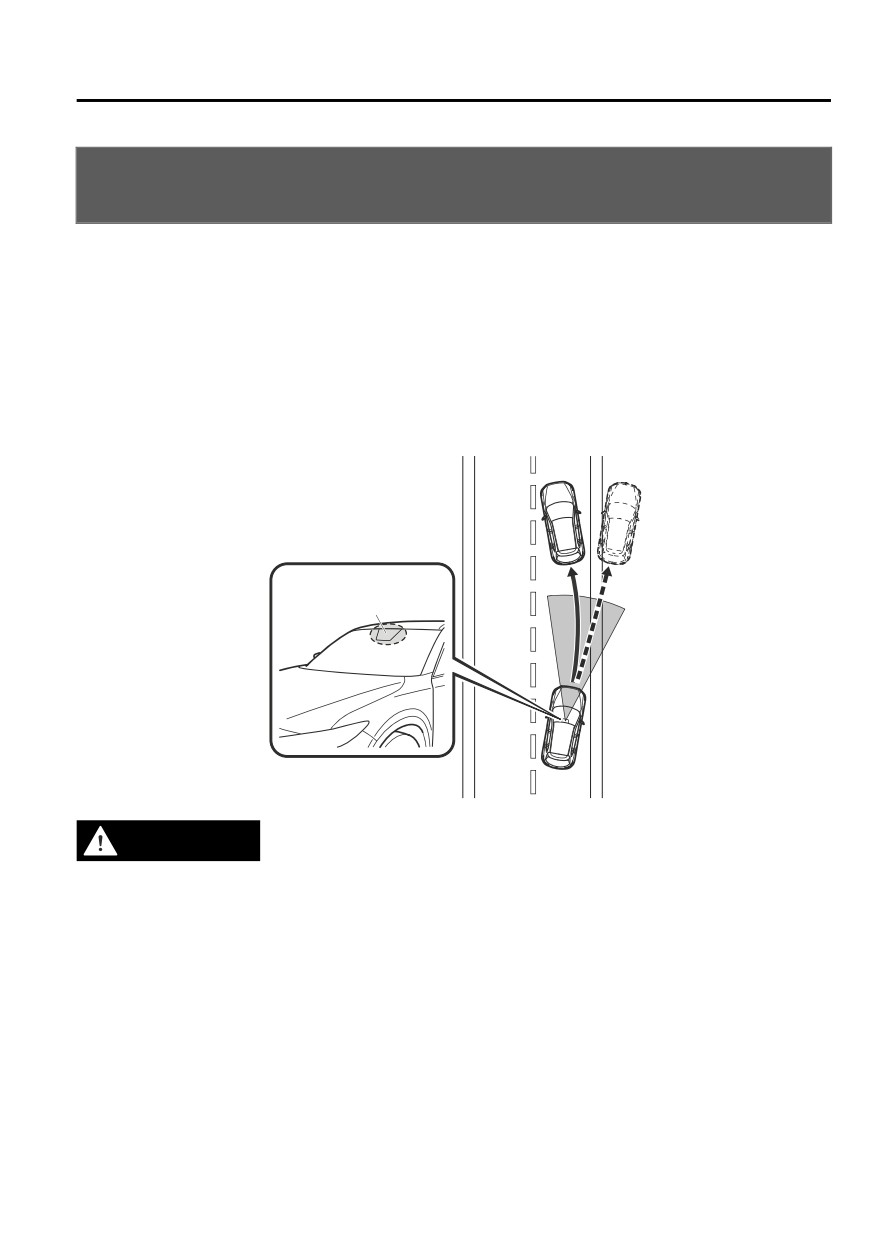

This system performs headway control to maintain a constant distance between your vehicle
and a vehicle ahead at a preset vehicle speed without you having to use the accelerator or
brake pedal. Even further, with the steering assist function, when vehicle lane lines are
detected, the function assists the driver in keeping the vehicle within the lane lines. If lane
lines are not detected, the function provides the driver driving assistance in keeping the
vehicle along the motion path with the vehicle ahead.
WARNING
Do not rely completely on TJA:
¾ The TJA is not an automated driving system. In addition, the functions have limitations. Do
not rely completely on the system and always stay on course using the steering wheel.
¾ Set a vehicle speed within the speed limit according to the road conditions and the weather
conditions.
¾ The TJA may not be able to detect a vehicle ahead depending on the type of vehicle ahead
and its conditions, the weather conditions, and the road conditions. Additionally, the
system might be unable to decelerate sufficiently if a vehicle ahead applies the brakes
suddenly, another vehicle cuts into the driving lane, or the difference in vehicle speed
between your vehicle and the vehicle ahead is larger, which could result in an accident.
Check the surrounding conditions and always drive carefully while keeping a safe distance
from vehicles ahead and on-coming vehicles.
For the purposes of safety, switch the TJA off when it is not being used.
Leaving the TJA turned on when it is not in use is dangerous as it could operate unexpectedly,
resulting in an accident.
Do not use the TJA under the following conditions. Otherwise, it may result in an accident.
¾ General roads other than expressways or highways (Driving under these conditions using
the TJA is not possible.)
¾ Roads with sharp curves and where vehicle traffic is heavy with insufficient space between
vehicles, or roads where frequent and repetitive acceleration and deceleration occur
(Driving under these conditions using the TJA is not possible).
*Some models.
4-161
When Driving
i-ACTIVSENSE
¾ When entering and exiting interchanges, service areas, and parking areas of expressways (If
you exit an expressway while headway control is in use, the vehicle ahead will no longer be
tracked and your vehicle may accelerate to the set speed).
¾ Slippery roads such as icy or snow-covered roads and unpaved roads (Tires could spin
causing you to lose vehicle control, or the stop hold control may not operate.)
¾ Long, descending slopes (to maintain distance between vehicles, the system automatically
and continuously applies the brakes which could result in the loss of brake power.)
¾ Two-wheeled vehicles such as motorcycles or bicycles are ahead.
¾ Slopes with a steep gradient (The vehicle ahead may not be detected correctly, your vehicle
may slip while stopped by the stop hold control, or it may accelerate suddenly after it starts
moving.)
¾ Driving under bad weather conditions (rain, fog, and snow).
¾ Tires of a different specified size are used, such as a temporary spare tire.
¾ Tires with insufficient tread are used.
¾ The tire pressures are not adjusted to the specified pressure.
¾ The vehicle is being used to tow a camper or boat trailer.
¾ Tire chains are used.
¾ The vehicle is driven on roads with lane lines other than white (yellow) lines, such as an
expressway.
Do not get out of the vehicle while the stop hold control is operating.
Getting out of the vehicle while the stop hold control is operating is dangerous as the vehicle
may move unexpectedly and result in an accident. Before getting out of the vehicle, switch the
TJA off, apply the parking brake, and then shift the selector lever to the P position.
CAUTION
Heed the following cautions so that the TJA can operate normally.
¾ Turn the system off when the vehicle is running on a chassis roller.
¾ Do not modify the vehicle's suspensions.
¾ Always use wheels of the specified size for the front and rear wheels. Consult an Authorized
Mazda Dealer for tire replacement.
NOTE
The headway control does not detect the following as physical objects.
Vehicles approaching in the opposite direction
4-162
When Driving
i-ACTIVSENSE
Pedestrians
Stationary objects (stopped vehicles, obstructions)
If a vehicle ahead is traveling at an extremely low speed, the system may not detect it
correctly.
If there is a structure on the road or an object (such as a monorail) at a low height off the
ground in front of the vehicle, the system may operate. Therefore, do not use the TJA.
Do not use the TJA under conditions in which close proximity warnings are frequently
activated.
If it is necessary to accelerate for a lane change or the vehicle ahead brakes suddenly
causing you to close in on the vehicle rapidly, accelerate using the accelerator pedal or
decelerate using the brake pedal depending on the conditions.
While the TJA is in use, any intended engine braking does not occur even if you shift the
selector lever. If deceleration is required, lower the vehicle speed setting or depress the
brake pedal.
While braking by the TJA control is operating, you might hear an operation sound,
however, this does not indicate a problem.
The brake lights turn on while braking by the TJA control is operating, however, they may
not turn on while the vehicle is on a down slope at the set vehicle speed or traveling at a
constant speed and following a vehicle ahead.
Under the following conditions, the TJA may not be able to detect white (yellow) lines or
vehicles ahead correctly and the TJA may not operate normally.
The forward sensing camera (FSC) cannot recognize the area in front of the vehicle due
to soiling or fog.
The white (yellow) lane lines are less visible because of dirt or paint flaking.
White (yellow) lane lines or vehicles ahead are less visible because of bad weather
(rain, fog, or snow).
The vehicle is driven on a temporary lane or section with a closed lane resulting from
construction where there might be multiple white (yellow) lane lines, or they are
interrupted.
The camera picks up an obscure line, such as a temporary line being used for
construction, or because of shade, unmelted snow, or grooves filled with water.
The road surface is wet and shiny after rain, or there are puddles on the road.
Heavy luggage is loaded in the luggage compartment or on the rear seat causing the
vehicle to tilt.
A vehicle in front of your vehicle is running near a white (yellow) lane line making it
less visible.
The windshield is dirty or foggy.
The vehicle is driven through an intersection, a junction, or a fork in the road.
While white (yellow) lane lines cannot be detected due to road or weather conditions.
The surrounding brightness suddenly changes such as when entering or exiting a
tunnel.
4-163
When Driving
i-ACTIVSENSE
The illumination of the headlights is weakened because of dirt or the optical axis is
deviated at night.
Back-light is reflected off the road surface or the road surface is wet and shiny after
rain.
The shade of a guardrail parallel to a white (yellow) lane line is cast on the road.
The width of a lane is excessively narrow or wide.
The road is excessively uneven.
The vehicle is shaken after hitting a road bump.
There are various road markings or division lines (lane markings) of various shapes
near an intersection.
The area in front of the forward sensing camera (FSC) is soiled or an object that
obstructs the field of view is installed.
Exhaust gas from the vehicle in front, sand, snow, and water vapor rising from
manholes and grating, and water splashed into the air.
The surroundings are dark such as during the early evening or early morning.
A vehicle ahead with a certain taillight shape.
A vehicle ahead veers off course from your vehicle's line of travel.
A vehicle ahead is driving erratically.
The vehicle is driven on roads with tight curves.
Headway control function
If a vehicle ahead is detected while traveling at a constant speed, the vehicle-ahead
indication is displayed and headway control is performed.
Steering assist function
When lane lines are detected, the function assists the driver in keeping the vehicle within the
lane lines. If lane lines are not detected, the function provides the driver driving assistance
in keeping the vehicle along the motion path with the vehicle ahead.
4-164
When Driving
i-ACTIVSENSE
NOTE

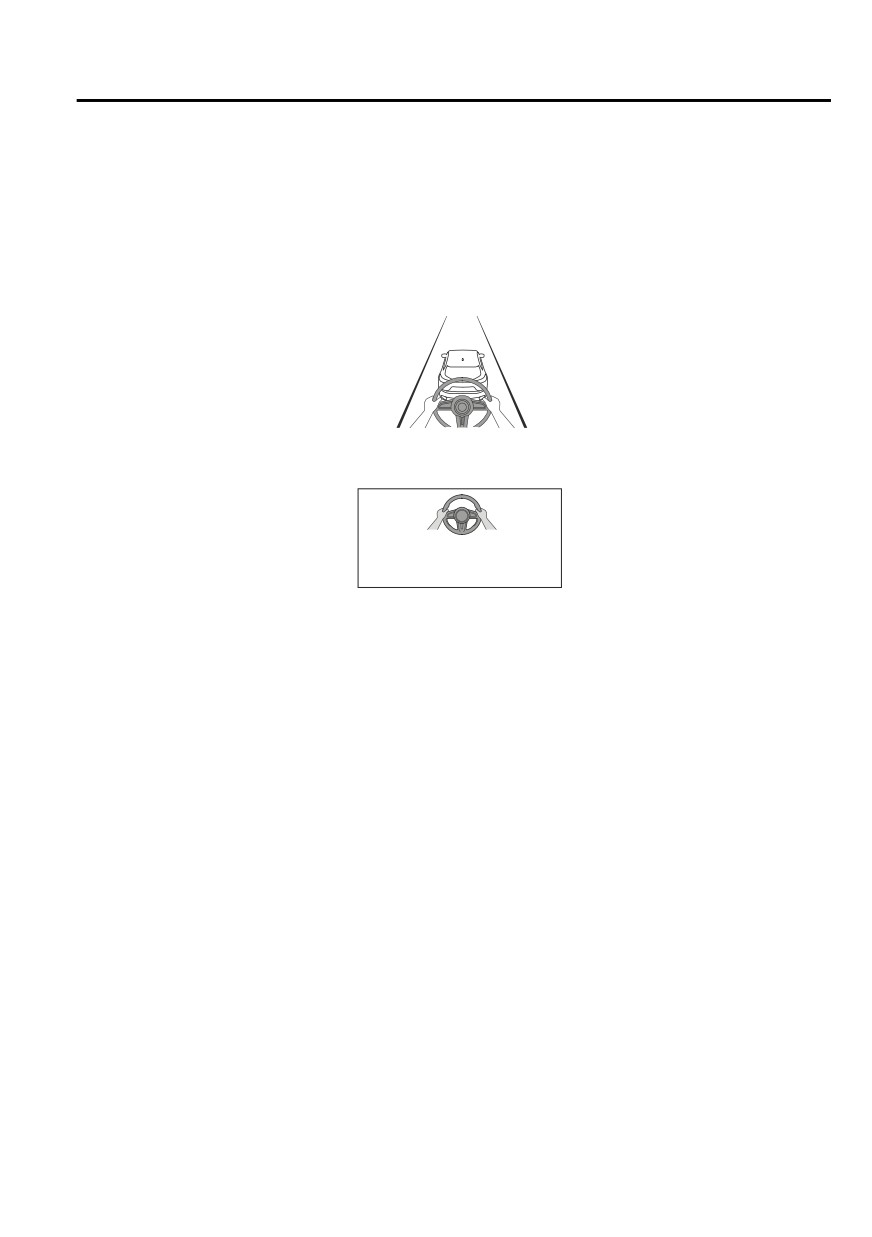

Steering assist limit warning
If the steering assist function cannot keep the vehicle within the lane lines while the steering
assist function is operating, a warning sound is activated and a warning is displayed on the
multi-information display to urge the driver to operate the steering wheel.
Instrument Cluster (Type A)
Instrument Cluster (Type B)
*1
*1
*1: Displayed on the basic display.
4-165
When Driving
i-ACTIVSENSE
Traffic Jam Assist (TJA) Display Indication
The TJA setting status and operation conditions are indicated on the multi-information
display and the active driving display.
Active driving display
Vehicle ahead display
TJA distance
between vehicle
display
TJA set
vehicle
speed
Multi-information display
Instrument Cluster (Type A)
Instrument Cluster (Type B)
Vehicle ahead display
Vehicle ahead display
TJA distance
between vehicle
display
TJA
distance
TJA set
between
vehicle
vehicle
speed
display
Vehicle
*1
*1
ahead
display
TJA set vehicle speed
*1: Displayed on the basic display.

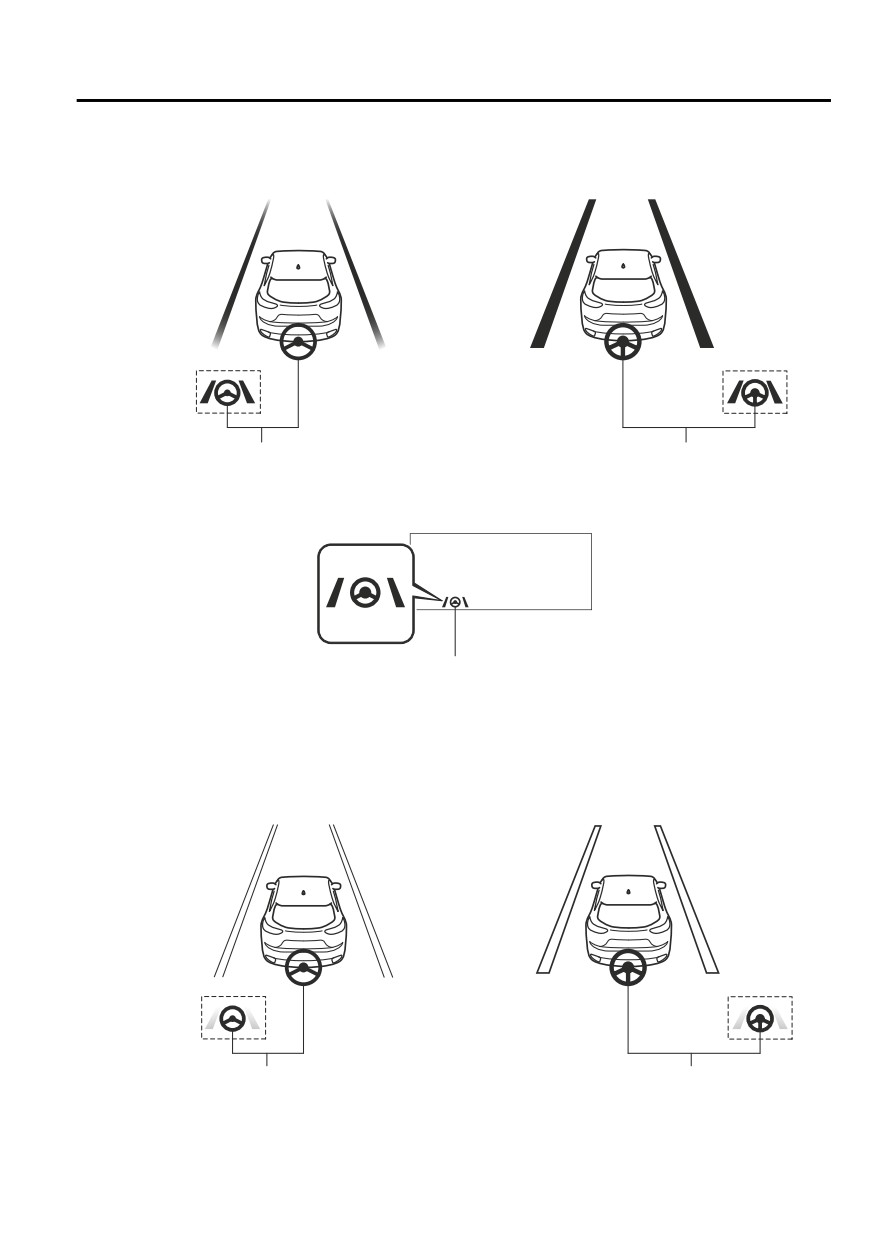

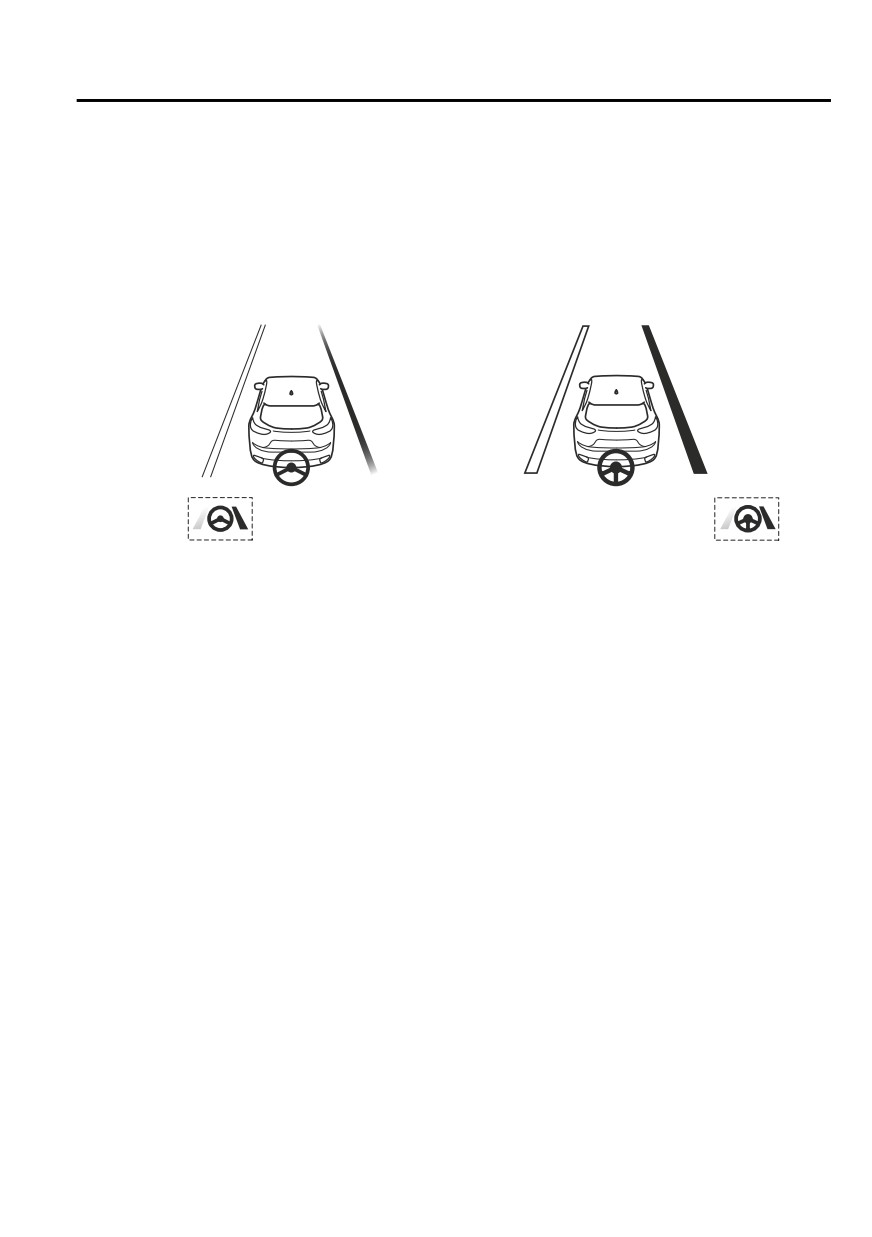

Steering assist function display
When the steering assist function operates, the steering assist operation display on the
display changes from white to green.
4-166
When Driving
i-ACTIVSENSE
Multi-information display
Instrument Cluster (Type A)
Instrument Cluster (Type B)
*1
*1
Steering assist operation display
Steering assist operation display
*1: Displayed on the basic display.
Active driving display
Steering assist operation display
NOTE
You can view the multi-information display to check whether the steering assist is
performing controls in conjunction with the traffic lane lines or a vehicle ahead.
Inactive
Instrument Cluster (Type A)
Instrument Cluster (Type B)
*1
*1
Steering assist operation
Steering assist operation
display (white)
display (white)
*1: Displayed on the basic display.
4-167
When Driving
i-ACTIVSENSE

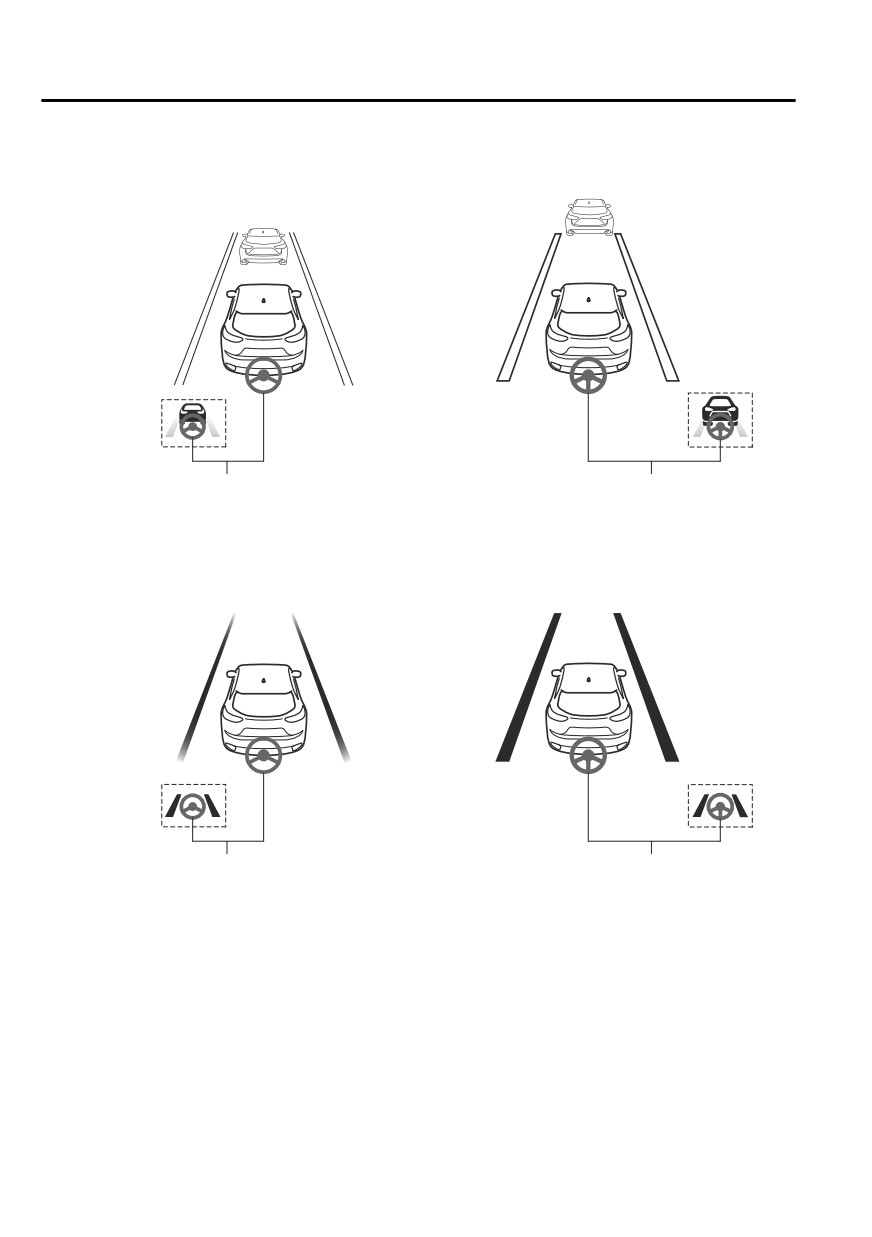

Active (vehicle ahead)
Instrument Cluster (Type A)
Instrument Cluster (Type B)
*1
*1
Steering assist operation
Steering assist operation
display (green)
display (green)
*1: Displayed on the basic display.
Active (lane line)
Instrument Cluster (Type A)
Instrument Cluster (Type B)
*1
*1
Steering assist operation
Steering assist operation
display (green)
display (green)
*1: Displayed on the basic display.
If there is a problem with the TJA, a message is displayed on the display. Check the details
of the problem and then have your vehicle inspected by an Authorized Mazda Dealer.
Close Proximity Warning
If your vehicle rapidly closes in on the vehicle ahead because the vehicle ahead applies the
brakes suddenly while you are traveling in headway control, the warning sound activates
and the brake warning is indicated in the display. Always verify the safety of the
4-168
When Driving
i-ACTIVSENSE
surrounding area and depress the brake pedal while keeping a safer distance from the
vehicle ahead. Additionally, keep a safe distance from the vehicles behind you.
NOTE
In the following cases, the warnings and brakes may not operate even if your vehicle starts
closing in on the vehicle ahead.
You are driving your vehicle at the same speed as the vehicle ahead.
Directly after the TJA has been set.
Directly after the accelerator pedal is released.
Another vehicle cuts into the driving lane.
Setting the System
Operation conditions
Headway control function
The TJA operates when all of the following conditions are met.
Vehicle speed is 0 km/h (0 mph) to 145 km/h (90 mph)
The headway control function of the Mazda Radar Cruise Control with Stop & Go
function (MRCC with Stop & Go function) is set to operable (if it was set to inoperable,
set it to operable using the personalization function).
The selector lever is in the D or M position (manual mode).
The TJA is operating.
The brake pedal is not depressed.
The parking brake is released (Electric Parking Brake (EPB) indicator light is turned off).
There is no problem with the DSC.
All the doors are closed.
The driver's seat belt is fastened.
NOTE
Under the following conditions, the TJA cannot be used when the vehicle speed is 30 km/h
(19 mph) or slower.
The Forward Sensing Camera (FSC) cannot detect target objects (There is problem
with the Forward Sensing Camera (FSC) or windshield is dirty).
There is a problem with the stop hold control function.
There is a problem with the Electric Parking Brake (EPB).
4-169
When Driving
i-ACTIVSENSE
The TJA may not launch directly after the engine starts.
Steering assist function
The steering assist function operates when all of the following conditions are met.
Your vehicle is moving and less than about 56 km/h (35 mph).
White (yellow) lane lines on both sides are detected and you are driving near the center of
the lane, or your vehicle detects a vehicle ahead.
The steering wheel is not turned sharply.
The turn signal lever is not operated.
The headway control function is operating.
The Off-Road Traction Assist is not operating.
When Off-road mode is not selected using Mazda intelligent Drive Select (Mi-Drive).
NOTE
The steering assist function operates so that the vehicle remains near the center of the
driving lane, however, depending on conditions such as the road curvature, road slope
and undulations, and vehicle speed, the function might not be able to keep the vehicle
near the center of the driving lane.
Setting method
switch
SET+ switch
CANCEL switch
RES switch
switch
SET- switch
TJA switch
MRCC switch
1. Press the TJA switch.
The TJA standby indication (white) turns on. In addition, the TJA display indication is
displayed on the multi-information display at the same time.
(White)
4-170
When Driving
i-ACTIVSENSE
2. Adjust the vehicle speed to the desired setting using the accelerator pedal and press the
SET+ switch or SET- switch to start headway control.
The set speed is indicated on the display. At the same time, the TJA standby indication
(white) changes to the TJA set indication (green).
(Green)
3. The headway control is operable when all of the conditions for it to operate are met, or
the steering assist function is operable when all of the conditions for it to operate are
met.
NOTE
If a vehicle ahead is detected while traveling at a constant speed, the vehicle-ahead
indication is displayed and headway control is performed. Additionally, when a vehicle
ahead is no longer detected, the vehicle-ahead indication turns off and the system
switches back to travel at constant speed.
The lowest possible speed which can be set on the TJA is 30 km/h (19 mph).
Headway control is not possible if the vehicle ahead is driving faster than your vehicle's
set speed. Adjust the system to the desired vehicle speed using the accelerator pedal.
When the ignition is switched OFF, the system status before it was turned off is
maintained. For example, if the ignition is switched OFF with the TJA operable, the TJA
remains operational the next time the ignition is switched ON.
When the TJA switch is pressed while the Mazda Radar Cruise Control with Stop & Go
function (MRCC with Stop & Go function) system is operating, the TJA operates. In
addition, when the MRCC switch is pressed while the TJA is operating, the Mazda Radar
Cruise Control with Stop & Go function (MRCC with Stop & Go function) system
operates.
Changing the set vehicle speed
To accelerate/decelerate using the SET switch
When you press the SET+ switch, the vehicle accelerates and when you press the SET-
switch, it decelerates.
Short press
1 km/h (1 mph)
Long press
10 km/h (5 mph)
4-171
When Driving
i-ACTIVSENSE
NOTE
For example, the set vehicle speed is changed by pressing the SET switch four times as
follows:
The vehicle speed accelerates or decelerates by 4 km/h (4 mph).
To increase speed using accelerator pedal
Depress the accelerator pedal and press and release the SET+ switch or SET- switch at the
desired speed. If the switch is not operated, the system returns to the set speed after you
release your foot from the accelerator pedal.
CAUTION
The warnings and brake control do not operate while the accelerator pedal is depressed.
NOTE
When accelerating using the SET+ switch while in headway control, the set vehicle speed
can be adjusted but acceleration is not possible. If there is no longer a vehicle ahead,
acceleration continues until reaching the set vehicle speed. For the set vehicle speed,
check the set vehicle speed indication in the display.
When depressing the accelerator pedal, the inter-vehicle distance indication in the display
changes to the white-line indication.
The setting speed can be changed by operating the SET+ switch or SET- switch during
stop hold control.
Changing the distance between vehicles during headway control
The distance-between-vehicles can be set to 4 levels; Long, medium, short, and extremely
short distance.
The distance-between-vehicles is set to a shorter distance by pressing the switch. The
distance-between-vehicles is set to a longer distance by pressing the
switch.
Distance-between-vehiဨ
Indication on multi-information display
cles guideline
Indication on active drivဨ
(at 80 km/h (50 mph)
Type A
Type B
ing display*1
vehicle speed)
Long (about 50 m (164
ft))
4-172
When Driving
i-ACTIVSENSE
Distance-between-vehiဨ
Indication on multi-information display
cles guideline
Indication on active drivဨ
(at 80 km/h (50 mph)
Type A
Type B
ing display*1
vehicle speed)
Medium (about 40 m
(131 ft))
Short (about 30 m (98
ft))
Extremely short (about
25 m (82 ft))
*1
Displays a pop-up image in the active driving display only when the driver operates the switch.
NOTE
The distance-between-vehicles differs depending on the vehicle speed, and the slower the
vehicle speed, the shorter the distance.
When the ignition is switched to ACC or OFF and then the engine is started again, the
system automatically sets the distance-between-vehicles to the previous setting.
The function is temporarily canceled
Headway control function
When the following operations are performed, the headway control function is temporarily
canceled and the TJA set indication (green) changes to the TJA standby indication (white) at
the same time.
The CANCEL switch is pressed.
The brake pedal is depressed.
4-173
When Driving
i-ACTIVSENSE
The parking brake is applied.
The selector lever is in the P, N, or R position.
Under the following conditions, the TJA cancel indication is displayed in the
multi-information display and a single beep sound is heard.
The DSC has operated.
The Smart Brake Support (SBS) has operated.
The Smart City Brake Support [Forward] (SCBS F) or Advanced Smart City Brake
Support (Advanced SCBS) has operated.
When traveling on a downslope for a long period of time.
There is a problem with the system.
The engine has stalled.
Any of the doors is opened.
The driver's seat belt is unfastened.
The radar sensor (front) cannot detect target objects (during rain, fog, snow or other
inclement weather conditions, or when the radiator grille is dirty).
The parking brake is automatically applied during stop hold control.
Steering assist function
If any of the following conditions occurs, the steering assist function is temporarily
canceled.
The headway control function is canceled.
White (yellow) lane lines cannot be detected or a vehicle ahead cannot be recognized.
Your vehicle speed is more than about 64 km/h (40 mph).
The accelerator pedal is operated.
The turn signal lever is operated.
The Off-Road Traction Assist has operated.
When Off-road mode is selected using Mazda intelligent Drive Select (Mi-Drive).
The vehicle is being driven on a sharp curve.
The width of a lane is excessively narrow or wide.
The vehicle crosses a lane line.
The driver takes his/her hands off the steering wheel.
The steering wheel is operated abruptly.
There is a problem with the system.
The temperature in the Forward Sensing Camera (FSC) is too high or too low.
The windshield around the Forward Sensing Camera (FSC) is foggy.
The windshield around the Forward Sensing Camera (FSC) is blocked by an obstruction,
causing poor forward visibility.
4-174
When Driving
i-ACTIVSENSE
NOTE
If you take your hands off the steering wheel, a warning is indicated on the
multi-information display and the active driving display. Then, if you continue to leave
your hands off the steering wheel, a warning is indicated on the multi-information display
and the active driving display and a warning sound is activated.
Multi-information Display
Active Driving Display
If the steering wheel is held lightly, or depending on the road conditions, the system
determines that you have released the steering wheel (not holding the steering wheel)
even if you are holding it, and an alert is indicated on the multi-information display and
the active driving display.
To resume operation
If the TJA is temporarily canceled, it will resume operation at the previously set speed by
pressing the RES switch after all of the operation conditions have been met.
NOTE
If the set speed is not indicated on the display, the system does not operate even if the RES
switch is pressed.
After the operation, the steering assist operation may not operate for a period of 5
seconds at the most until the lane lines are detected or a vehicle ahead is recognized.
Turning off
When the TJA switch is pressed while the TJA is operating, the TJA turns off.
4-175
When Driving
i-ACTIVSENSE
Stop Hold Control
NOTE
While in headway control using the TJA,
When you resume driving by pressing
your vehicle will stop when a vehicle
the RES switch, your vehicle does not
ahead stops. When the vehicle is stopped
start moving until the distance between
your vehicle and the vehicle ahead
and the stop hold control operates, the TJA
indicator light turns on.
lengthens to the specified distance or
farther.
If the TJA is temporarily canceled
during stop hold control, you cannot
resume driving by pressing the RES
switch when there are no vehicles in
NOTE
front of your vehicle. Depress the
accelerator pedal and resume driving
If the TJA system is canceled during
the vehicle.
stop hold control, the vehicle is held in
its stopped position. The stop hold
If the vehicle ahead starts moving within
control can be canceled by performing
3 seconds after your vehicle is stopped
one the following actions.
by the stop hold control, headway
control will resume even if you do not
Press the accelerator pedal and
resume driving your vehicle, such as by
resume driving the vehicle.
depressing the accelerator pedal.
While forcefully depressing the brake,
switch the TJA system off.
The parking brake is automatically
Resume driving information
applied and the vehicle is held in its
stopped position when 10 minutes have
If you do not resume driving within a few
elapsed since the stop hold control
seconds after the vehicle ahead starts
operated. At this time, the TJA system is
moving, the multi-information display
canceled.
vehicle-ahead indication flashes to urge
The brake lights turn on during stop
the driver to resume driving.
hold control.
To resume driving
After the vehicle ahead starts moving
while your vehicle is stopped under stop
hold control, press the RES switch or
depress the accelerator pedal to cancel the
stop hold control and start driving.
4-176
When Driving
i-ACTIVSENSE
Lane-keep Assist System (LAS) & Lane Departure
Warning System (LDWS)*
The LAS & LDWS alerts the driver that the vehicle may be deviating from its lane and it
provides steering assistance to help the driver stay within the vehicle lanes.
The Forward Sensing Camera (FSC) detects the white lines (yellow lines) of the vehicle
lane in which the vehicle is traveling and if the system determines that the vehicle may
deviate from its lane, it operates the electric power steering to assist the driver's steering
operation. The system also alerts the driver by activating a lane departure warning sound,
vibrating the steering wheel, and indicating an alert in the display. Use the system when you
drive the vehicle on roads with white (yellow) lines such as expressways and highways.
Refer to Forward Sensing Camera (FSC) on page 4-259.
Forward Sensing
Camera (FSC)
WARNING
Do not rely completely on the LAS & LDWS:
¾ The LAS & LDWS is not an automatic driving system. In addition, the system is not designed
to compensate for a driver's lack of caution, and over-reliance on the system could lead to
an accident.
¾ The detection ability of the LAS & LDWS is limited. Always stay on course using the steering
wheel and drive with care.
Do not use the LAS & LDWS in the following cases:
The system may not operate adequately according to the actual driving conditions, resulting
in an accident.
*Some models.
4-177
When Driving
i-ACTIVSENSE
¾ Driving on roads with tight curves.
¾ Driving under bad weather conditions (rain, fog, and snow).
¾ Slippery roads such as ice or snow-bound roads.
¾ Roads with heavy traffic and insufficient distance between vehicles.
¾ Roads with no white (yellow) lane lines.
¾ Narrow roads resulting from road construction or lane closures.
¾ The vehicle is driven on a temporary lane or section with a closed lane resulting from road
construction where there may be multiple white (yellow) lane lines or they are interrupted.
¾ Vehicle is driven on roads other than expressways and highways.
¾ The tire pressures are not adjusted to the specified pressure.
¾ The vehicle is being used to tow a camper or boat trailer.
¾ Tires of a different specified size are used, such as an emergency spare tire.
CAUTION
Heed the following cautions so that the LAS & LDWS can operate normally.
¾ Do not modify the suspensions.
¾ Always use wheels of the specified type and size for the front and rear wheels. Consult an
Authorized Mazda Dealer for tire replacement.
NOTE
When the turn signal lever is operated for a lane change, the LAS & LDWS is
automatically disabled. The LAS & LDWS becomes operational again when the turn
signal lever is returned and the system detects white (yellow) lane lines while the vehicle
is being driven normally within its vehicle lane.
If the steering wheel, accelerator pedal, or brake pedal is operated abruptly and the
vehicle moves close to a white (yellow) line, the system determines that the driver is
making a lane change and the LAS & LDWS operation is temporarily canceled. The LAS
& LDWS becomes operational again when the system detects white (yellow) lane lines
while the vehicle is being driven normally within its vehicle lane.
If the vehicle deviates from its lane repeatedly within a short period of time, the LAS &
LDWS may not operate.
When white (yellow) lane lines are not detected, the LAS & LDWS does not operate.
Under the following conditions, the LAS & LDWS may not be able to detect white (yellow)
lane lines correctly and it may not operate normally.
If an object placed on the dashboard is reflected in the windshield and picked up by the
camera.
Heavy luggage is loaded in the luggage compartment or on the rear seat and the
vehicle is tilted.
4-178
When Driving
i-ACTIVSENSE
The tire pressures are not adjusted to the specified pressure.
Tires other than conventional tires are equipped.
Vehicle is driven on an intersection or junction, or on a forked road.
The white (yellow) lane lines are less visible because of dirt or fading/patchiness.
A vehicle in front of your vehicle is running near a white (yellow) lane line making it
less visible.
A white (yellow) lane line is less visible because of bad weather (rain, fog, or snow).
The vehicle is driven on a temporary lane or section with a closed lane resulting from
construction where there may be multiple white (yellow) lane lines or they are
interrupted.
A misleading line is picked up on the road such as a temporary line for construction, or
because of shade, lingering snow, or grooves filled with water.
The surrounding brightness suddenly changes such as when entering or exiting a
tunnel.
The illumination of the headlights is weakened because of dirt or the optical axis is
deviated.
The windshield is dirty or foggy.
The windshield, camera is fogged (water droplets).
Back-light is reflected off the road surface.
The road surface is wet and shiny after rain, or there are puddles on the road.
The shade of a guardrail parallel to a white (yellow) lane line is cast on the road.
The width of the driving lane is narrow or wide.
Driving on roads with tight curves.
The road is excessively uneven.
The vehicle is shaken after hitting a road bump.
There are 2 or more adjacent white (yellow) lane lines.
There are various road markings or lane markings of various shapes near an
intersection.
System Operation
System operation
When the ignition is switched ON, the system goes on standby.
Drive the vehicle in the center of the vehicle lane while the system is on standby. When all
of the following conditions are met, and the system becomes operational.
The engine is running.
The vehicle speed is about 64 km/h (40 mph) or faster.
The system detects white (yellow) lane lines on both the right and left sides.
The driver is operating the steering wheel.
The driving lane is neither narrow nor wide.
The steering assist function of the Traffic Jam Assist (TJA) is not operating.
4-179
When Driving
i-ACTIVSENSE
When the system becomes operational, the LAS & LDWS indication (white) is displayed on
the multi-information display and active driving display.
Multi-information display (Basic display)
Instrument Cluster (Type A)
Instrument Cluster (Type B)
Multi-information display (i-ACTIVSENSE display)
Active driving display*
The LAS & LDWS goes on stand-by status in the following cases:
The system cannot detect white (yellow) lane lines.
The vehicle speed is less than about 56 km/h (35 mph).
The ABS/TCS is operating.
The TCS is turned off.
The Off-Road Traction Assist is turned on.
4-180
*Some models.
When Driving
i-ACTIVSENSE
When Off-road mode is selected using Mazda intelligent Drive Select (Mi-Drive).
The vehicle is making a sharp curve.
The brake pedal is depressed.
The steering wheel is operated abruptly.
The width of a lane is excessively narrow or wide.
The steering assist function of the TJA operated.
NOTE
The LAS & LDWS does not operate until the system detects white (yellow) lane lines on
either the left or right.
When the system detects a white (yellow) lane line on one side only, the system will not
operate the steering wheel operation assist and the warning for the lane line on the side
that is not being detected. The steering wheel operation assist and the warning is only for
a lane deviation on the side that is being detected.
When the system determines that the driver is driving the vehicle with his or her hands off
the steering wheel while the steering wheel operation assist is operating, and if the
condition continues several times within a certain period of time, the warning sound is
activated. The higher the number of times the steering wheel operation assist operates,
the longer the period of time the warning sound is activated.
The timing at which the lane departure warning is activated and the steering wheel
operation assist is performed varies.
The following settings for the LAS & LDWS can be changed. Refer to the Settings section
in the Mazda Connect Owner's Manual.
Steering operation assist operational/non-operational
(Mazda Connect (Type A) only)
Cancel sensitivity (likelihood of steering assist)
Vehicle lane line display
When the LAS & LDWS goes on standby, the vehicle lane lines are indicated on the
multi-information display and the active driving display. When white (yellow) lines on both
the left and right sides are detected and the system becomes operational, the vehicle lane
lines indicated on the multi-information display and the active driving display change to
white.
4-181















Content      ..     8      9      10      11     ..
