Mazda CX-5 (2023 year). Manual in english - page 5





Before Driving
Driving Tips
Driving In Flooded Area
Overloading
WARNING
WARNING
Dry off brakes that have become wet by
Be careful not to overload your vehicle:
driving slowly, releasing the accelerator
The gross axle weight rating (GAWR) and
pedal and lightly applying the brakes
the gross vehicle weight rating (GVWR) of
several times until the brake performance
the vehicle are on the Motor Vehicle Safety
returns to normal:
Standard Label on the driver's door frame.
Driving with wet brakes is dangerous.
Exceeding these ratings can cause an
Increased stopping distance or the vehicle
accident or vehicle damage. You can
pulling to one side when braking could
estimate the weight of the load by
result in a serious accident. Light braking
weighing the items (or people) before
will indicate whether the brakes have been
putting them in the vehicle.
affected.
CAUTION
Do not drive the vehicle on flooded roads
as it could cause short circuiting of
electrical/electronic parts, or engine
damage or stalling from water absorption.
If the vehicle has been immersed in water,
consult an Authorized Mazda Dealer.
3-51
Before Driving
Driving Tips
Driving on Uneven Road
Your vehicle's suspension and underbody can be damaged if driven on rough/uneven roads
or over speed bumps at excessive speeds. Use care and reduce speed when traveling on
rough/uneven roads or over speed bumps.

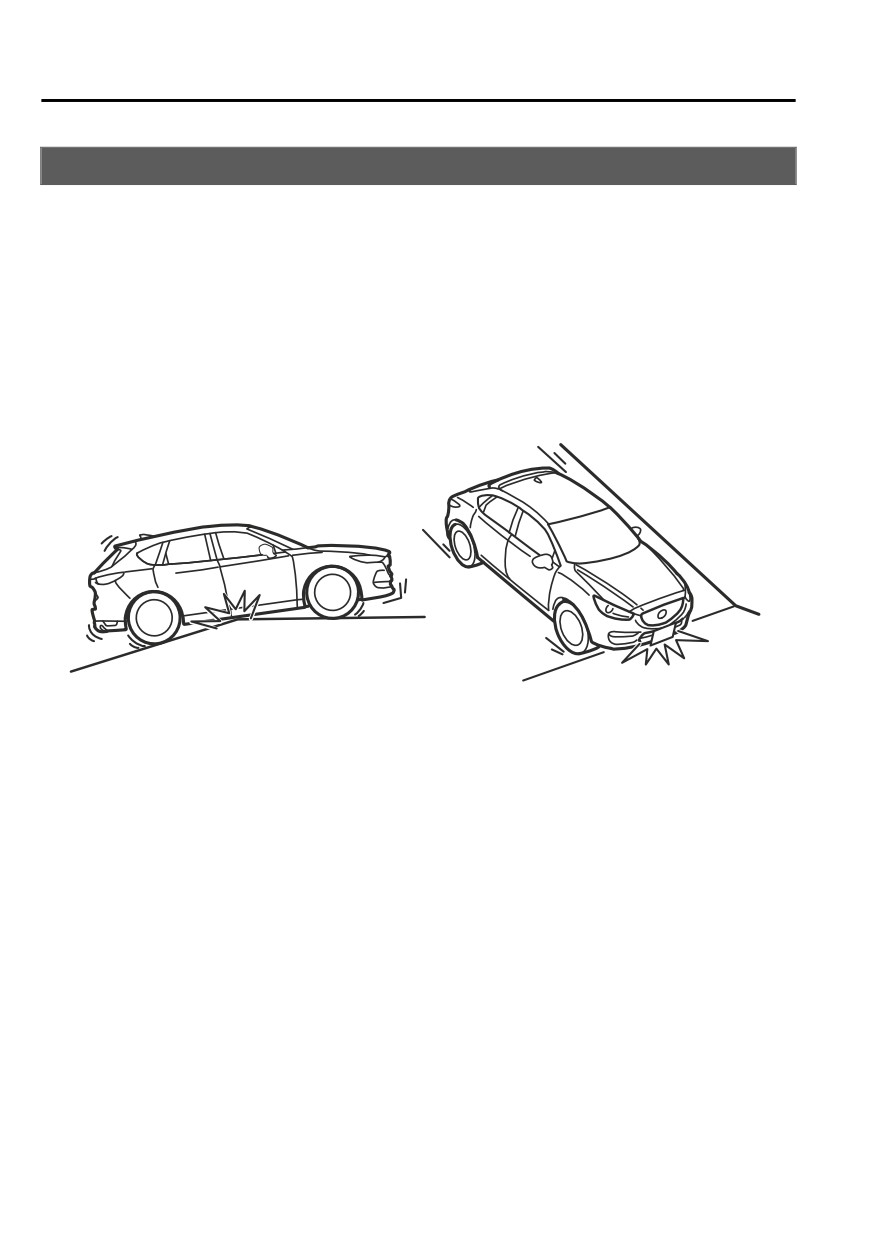

Use care not to damage the vehicle's underbody, bumpers or muffler(s) when driving under
the following conditions:
Ascending or descending a slope with a sharp transition angle
Ascending or descending a driveway or trailer ramp with a sharp transition angle
This vehicle is equipped with low profile tires allowing class-leading performance and
handling. As a result, the sidewall of the tires are very thin and the tires and wheels can be
damaged if driven through potholes or on rough/uneven roads at excessive speeds. Use care
and reduce speed when traveling on rough/uneven roads or through potholes.
3-52
Before Driving
Driving Tips
Turbocharger Information (SKYACTIV-G 2.5T)
CAUTION
¾ After driving at freeway speeds or up a long hill, trailer towing for a long time, idle the
engine at least 30 seconds before stopping it. Otherwise, the turbocharger could be
damaged.
¾ Racing or over-revving the engine, particularly after it's just been started, can damage the
turbocharger.
¾ To protect the engine from damage, the engine is designed so that it cannot be raced just
after starting it in extremely cold weather.
The turbocharger greatly enhances engine power. Its advanced design provides improved
operation and requires minimum maintenance.
To get the most from it, observe the following.
1. Change engine oil and filter according to Scheduled Maintenance (page 6-4).
2. Use only recommended engine oil (page 6-20). Extra additives are NOT recommended.
3-53
Before Driving
Towing
Trailer Towing (U.S.A. and Canada)
Your Mazda was designed and built primarily to carry passengers and cargo.
If you tow a trailer, follow these instructions because driver and passenger safety depends
on proper equipment and safe driving habits. Towing a trailer will affect handling, braking,
durability, performance, and fuel economy.
Never overload your vehicle or trailer. Consult an Authorized Mazda Dealer if you need
further details.
CAUTION
Do not tow a trailer during the first 1,000 km (600 miles) of your new Mazda. If you do, you
may damage the engine, transaxle, differential, wheel bearings, and other power-train
components.
NOTE
When towing, use of gasoline with a octane rating of 91 or higher is recommended.
Weight Limits
TTW and GCWR
The total trailer weight (TTW), gross combination weight rating (GCWR), gross axle
weight rating (GAWR), trailer load, and trailer tongue load must be within the
prescribed limits.
The total trailer weight (TTW) is the sum of the weights of the trailer load (trailer
weight plus cargo), trailer hitch, 2 passengers, and vehicle load (baggage, food, camp
gear, etc.). Never allow the total trailer weight (TTW) to exceed specifications in the
Trailer Towing-Load Table.
The maximum GCWR is the combination weight of the trailer and load plus the
towing vehicle (including trailer hitch, vehicle passengers, and load). It must not
exceed the specifications in the load table.
GAWR and GVWR
Do not exceed front and rear GAWR (gross axle weight rating) and GVWR (gross vehicle
weight rating). If you do, vehicle handling, braking, and performance will be affected. These
values are also on the Motor Vehicle Safety Standard Label posted on the driver's door
frame.
3-54
Before Driving
Towing
High-altitude operation
CAUTION
Be aware of the towing load weight differences when towing at high altitudes. For altitudes
exceeding 1,000 meter (3,280 ft 10 in), always reduce the towing load by 10 % for every 1,000
meter (3,280 ft 10 in) increase in altitude from the load indicated under the maximum GCWR
heading in the trailer towing-load table. If the determined maximum total towing load
weight is exceeded, the engine and other power-train parts may be damaged.

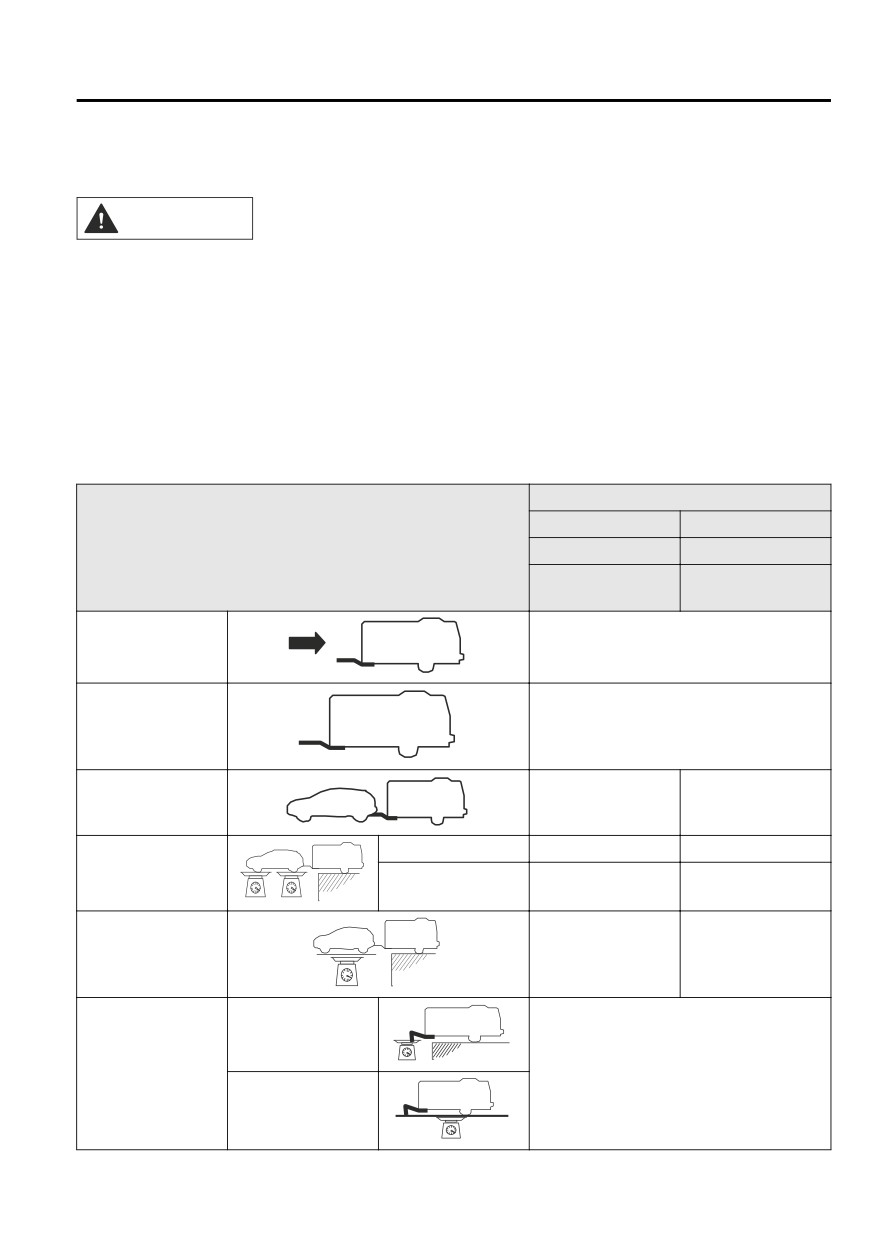

TRAILER TOWING-LOAD TABLE
Because vehicle weights vary, adjustments must be made to meet the requirements in this
table.
Model
SKYACTIV-G 2.5
SKYACTIV-G 2.5T
Item
AWD
AWD
Automatic transဨ
Automatic transဨ
axle
axle
MAX. FRONTAL
2.97 m2 (32 ft2)
AREA
MAX. TTW
907 kg (2,000 lb)
MAX. GCWR
2,784 kg (6,137.6 lb)
2,750 kg (6,062.6 lb)
Front
1,100 kg (2,425 lb)
1,145 kg (2,524 lb)
MAX. GAWR
Rear
1,043 kg (2,299 lb)
1,045 kg (2,304 lb)
MAX. GVWR
2,143 kg (4,724 lb)
2,190 kg (4,828 lb)
Tongue load
TRAILဨ
Tongue load/Trailer load × 100 = 10 % to
ER-TONGUE
15 %
LOAD
Trailer load
3-55
Before Driving
Towing
Model
SKYACTIV-G 2.5
SKYACTIV-G 2.5T
Item
AWD
AWD
Automatic transဨ
Automatic transဨ
axle
axle
Front
60 %
DISTRIBUTION
OF TRAILER
Rear
40 %
LOAD
WARNING
Always keep tow loads within specified limits as indicated in the Trailer Towing-Load Table:
Attempting to tow loads greater than those specified is dangerous as it may cause serious
handling and performance problems that could result in personal injury or vehicle damage,
or both.
Load your trailer with the weight about 60 % toward the front and 40 % toward the rear:
Loading the trailer with more weight in the rear than in the front is dangerous. Doing so could
cause you to lose control. The trailer tongue load must be 10 %15 % of the total trailer load
(sum of the weights of the trailer and cargo).
Always have the total trailer weight and tongue load determined prior to departure:
Attempting to tow loads without determining the total trailer weight and tongue load is
dangerous. Trailer sway from crosswinds, rough roads or other causes could result in loss of
control and a serious accident.
CAUTION
The total trailer weight and tongue load can be determined by weighing the trailer on
platform scales at a highway weight station or a trucking company.
Trailer Hitch
Use only a hitch ball recommended by the trailer manufacturer that conforms to the gross
trailer weight requirement.
When not towing a trailer, remove the trailer hitch (if detachable) to reduce the possibility of
damage as a result of the vehicle being rear-ended.
3-56
Before Driving
Towing
WARNING
Always make sure the trailer hitch is securely attached before departure:
An unsecured trailer hitch is dangerous as it causes greater trailer sway from crosswinds,
rough roads or other causes, resulting in loss of control and a serious accident.
Examine all trailer-hitch mounting bolts regularly and tighten any that are loose. If the hitch
is removed, seal any open mounting holes to prevent exhaust, dust, water, dirt and other
foreign elements from filtering in, possibly endangering personal safety and damaging your
vehicle.
Do not install a hitch that stiffens the bumper as it will reduce the bumper's performance.
Make sure there are no exhaust gas leaks into the passenger compartment if any mounting
bolts are connected to the body:
Modifying your vehicle exhaust system is dangerous. Exhaust gas entering the vehicle could
cause loss of consciousness or even death.
When mounting the trailer hitch, make no modifications to the vehicle exhaust system.
CAUTION
¾ Make all hitch adjustments with actual loads. Do not load and unload vehicle while
adjusting hitch. This action will change the vehicle height.
¾ Do not use an axle-mounted hitch. This may damage the axle and related parts.
Tires
When towing a trailer, make sure all tires are inflated to the recommended cold-tire
pressure, as indicated on the tire pressure chart on the driver's door frame. Trailer tire size,
load rating, and inflation pressures should conform to tire manufacturer specifications.
WARNING
Never use the temporary spare tire when towing:
Using the temporary spare tire on your vehicle when towing a trailer is dangerous as it could
result in tire failure, loss of control, and injury to vehicle occupants.
Safety Chains
Safety chains must be used as a precautionary measure should the trailer become
unintentionally unhitched. They should cross under the trailer tongue and attach to the hitch.
Leave enough slack to allow full turns. Consult literature published by your trailer or hitch
manufacturer for more details.
3-57
Before Driving
Towing
WARNING
Make sure the safety chain is securely attached to both the trailer and the vehicle prior to
departure:
Towing a trailer without using a safety chain securely attached to both the trailer and the
vehicle is dangerous. If damage occurs to the coupling unit or hitch ball, the trailer could
wander into another lane and cause a collision.
Trailer Lights
Trailer lights must comply with all federal, state, and local regulations. Equip your trailer as
required before towing it day or night.
CAUTION
Do not connect a trailer lighting system directly to the lighting system of your Mazda. This
may damage your vehicle's electrical system and lighting systems. Have a recreational vehicle
dealer or trailer rental agency connect the system, and inspect the brake lights and turn
signals yourself before each trip.
Trailer Brakes
If the total trailer weight exceeds 450 kg (1,000 lb), trailer brakes are required. If your trailer
has brakes, make sure they comply with all federal, state, and local regulations.
WARNING
Do not connect a hydraulic trailer-brake system to your vehicle's brake system:
Connecting a hydraulic trailer-brake system directly to the vehicle brake system is dangerous
and will result in inadequate braking and possible injury.
Trailer Towing Tips
Verify that your Mazda maintains a near-normal attitude when a loaded or unloaded trailer
is connected. Do not drive if it has an abnormal front-up or front-down position. Inspect
for incorrect tongue load, worn suspension parts, and trailer overloading.
Make sure the trailer is properly loaded and the cargo is secure to prevent it from shifting.
Make sure the mirrors conform to all government regulations. If they do not, install
required rear view mirrors appropriate for towing purposes.
The three main causes of vehicle-trailer accidents are driver error, excessive speed, and
improper trailer loading.
3-58
Before Driving
Towing
Before driving
Have your cooling and braking system checked by an Authorized Mazda Dealer.
Before starting out, inspect the operation of all vehicle and trailer lights and all
vehicle-to-trailer connections. Stop and re-inspect all lights and connections after driving
a short distance.
Driving
Your Mazda will handle differently with a trailer in tow, so practice turning, backing, and
stopping in a traffic-free area.
Take time to get accustomed to the extra weight and length.
Allow more room between your vehicle and the one in front because braking distance
increases with a trailer. For each 16 km/h (10 mph) of speed, allow at least one vehicle
and trailer length between your Mazda and the vehicle ahead.
Avoid jerky starts or sudden acceleration.
Avoid sudden braking. It may cause loss of control and result in jackknifing, especially so
on wet or slippery roads.
Shift the selector lever to the D position when towing a trailer in hilly terrain or when
heavily loaded.
The D position will allow operating the vehicle without frequent shifting.
Lane changes and turning
Avoid quick lane changes, sudden turns, and tight turns. Slow down before turning to avoid
the need of sudden braking.
A turning trailer will make a tighter arc than the tow vehicle. Compensate with turns that are
larger than normal.
Passing
Plan well ahead to pass other vehicles, and provide plenty of room before changing lanes.
Crosswinds from passing vehicles, especially larger ones, and the effects of rough roads will
affect handling.
If swaying occurs, firmly grip the steering wheel and reduce speed immediately, but
gradually.
Steer straight ahead. If no extreme correction of steering or braking is made, the
combination of less speed and firm steering will result in stability.
Backing up
Backing a vehicle with a trailer requires practice and patience. Back slowly, and have a
helper outside at the rear of the trailer to reduce the risk of an accident.
3-59
Before Driving
Towing
To turn the trailer, place your hand at the bottom of the steering wheel and turn it in the
direction you want the trailer to go. Make only slight movements to prevent sharp or
prolonged turning.
Ascending a hill
Shift into a lower gear to reduce the possibility of overloading or overheating the engine, or
both.
Descending a hill
Shift into a lower gear and use engine compression as a braking effect.
WARNING
Always use lower gears to reduce speed:
Holding the brake pedal down too long or too frequently is dangerous as it could cause the
brakes to overheat and lose power, resulting in loss of control and a serious accident. Use
lower gears to help reduce speed. Pull off the road and allow brakes to cool down whenever
braking performance feels reduced.
Overheated engine
The extra weight of the trailer may strain the engine on hot days and on long or steep
upgrades.
If the temperature gauge indicates overheating, turn off the air conditioner, drive safely to
the side of the road, park off the right-of-way and wait for engine to cool. Refer to
Overheating on page 7-17.
Parking
Always make sure the tires of the trailer and the tow vehicle are blocked while parked.
Apply the parking brake firmly and put the transaxle in P.
Avoid parking on an incline, but if you must, follow these instructions:
1. Depress and hold down the brake pedal.
2. Have a helper put wheel blocks against the downhill side of all vehicle and trailer tires.
3. Then release the brake pedal slowly until the blocks bear the load.
If the grade is downhill, turn the steering wheel so that the front of the front tires face
the curb.
If it is uphill, face the rear of the front tires against the curb.
4. Firmly apply the parking brake.
5. Shift the transaxle into P, and stop the engine.
3-60
Before Driving
Towing
To restart after parking on an incline:
1. With the transaxle in P, start the engine. (Be sure to depress and hold the brake pedal.)
2. Shift into gear.
3. Release the parking brake (also the foot brake) and pull away from the wheel blocks.
Stop; apply the parking brake and shift into P.
4. Have a helper retrieve the wheel blocks.
Fuel consumption
Trailer towing causes higher fuel consumption.
Maintenance
If you tow a trailer frequently, have your vehicle serviced as shown in Scheduled
Maintenance (page 6-4).
3-61
Before Driving
Towing
Recreational Towing
An example of "recreational towing" is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
"Towing Description" (page 7-19) and
"Tiedown Hooks" (page 7-20) and
carefully follow the instructions.
3-62
When Driving
4
Information concerning safer driving and stopping.
Start/Stop Engine
4-4
HomeLink Wireless Control System
Ignition Switch
4-4
(Type A)*
4-87
Starting the Engine
4-5
HomeLink Wireless Control System
Turning the Engine Off
4-10
(Type B)*
4-91

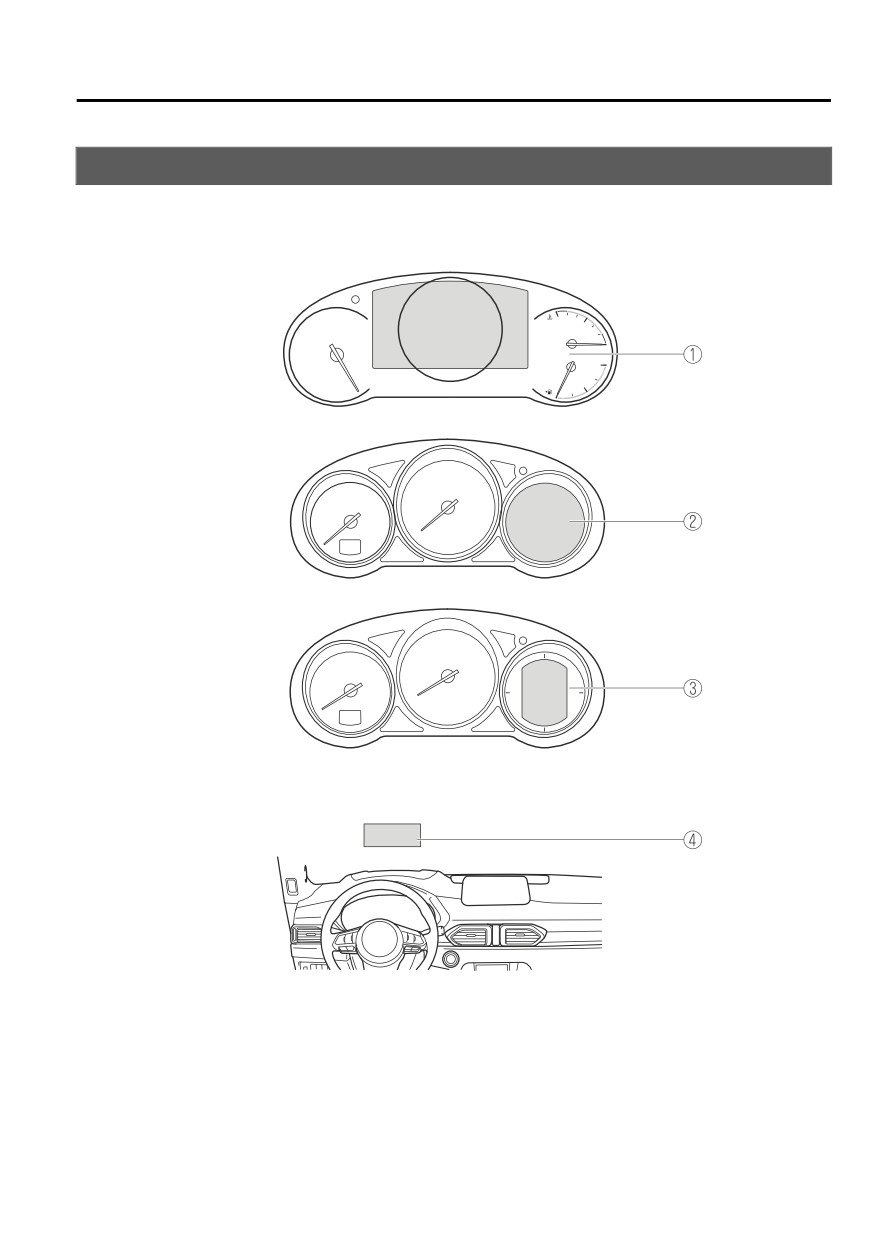

Instrument Cluster and Display
Brake
4-96
........................................................... 4-11
Brake System
4-96
Instrument Cluster and
AUTOHOLD
4-100
Display
4-11
Hill Launch Assist (HLA)
4-104

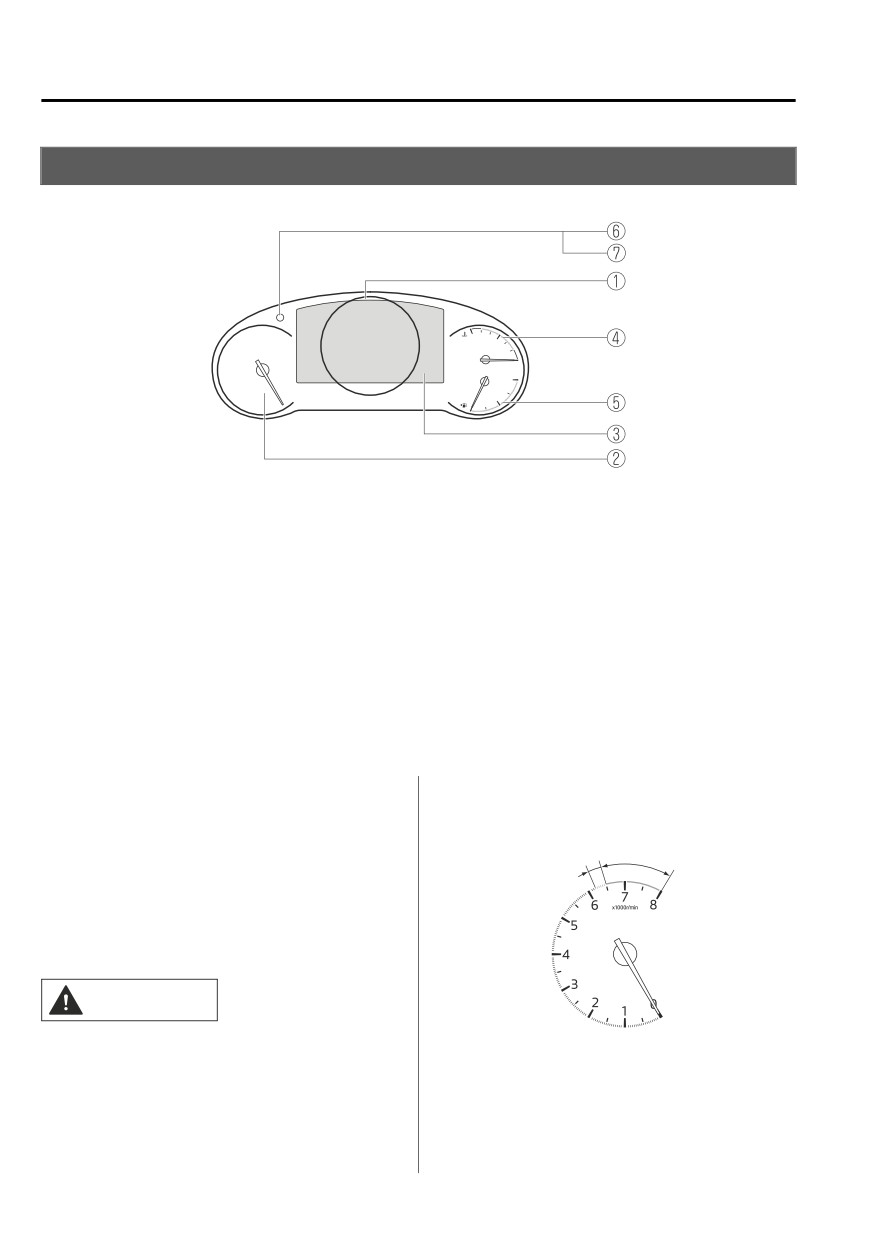

Instrument Cluster (Type A)
4-12
Instrument Cluster (Type B)
4-31
ABS/TCS/DSC/Off-Road Traction
Instrument Cluster (Type C)
4-47
Assist
4-106
Active Driving Display*
4-59
Antilock Brake System
(ABS)
4-106
Automatic Transaxle
4-61
Traction Control System
Automatic Transaxle
(TCS)
4-107
Controls
4-61
Dynamic Stability Control
Shift-Lock System
4-62
(DSC)
4-109
Transaxle Ranges
4-62
Off-Road Traction Assist*
4-110
Manual Shift Mode
4-64
Direct Mode*
4-70
Mazda intelligent Drive Select (Mi-
Driving Tips
4-71
Drive)
4-112
Mazda intelligent Drive Select (Mi-
Switches and Controls
4-72
Drive)
4-112
Lighting Control
4-72
Turn and Lane-Change
i-ACTIV AWD
4-115
Signals
4-79
i-ACTIV AWD Operation*
4-115
Windshield Wipers and
Washer
4-80
Power Steering
4-117
Rear Window Wiper and
Power Steering
4-117
Washer
4-83
Rear Window Defogger
4-84
Horn
4-86
i-ACTIVSENSE
4-118
Hazard Warning Flasher
4-87
i-ACTIVSENSE*
4-118
*Some models.
4-1
Adaptive Front Lighting System
Radar Sensors (Rear)*
4-267
(AFS)*
4-121
Ultrasonic Sensor (Rear)*
4-269
High Beam Control System
Front Camera/Side Cameras/Rear
(HBC)*
4-122
Camera*
4-270
Blind Spot Monitoring (BSM)*
.................................................. 4-125
Cruise Control
4-271
Traffic Sign Recognition System
Cruise Control*
4-271
(TSR)*
4-130
Distance Recognition Support
Tire Pressure Monitoring
System (DRSS)*
4-136
System
4-276
Driver Attention Alert (DAA)*
Tire Pressure Monitoring
.................................................. 4-140
System
4-276
Rear Cross Traffic Alert (RCTA)*
.................................................. 4-142
Rear View Monitor (Mazda Connect
Mazda Radar Cruise Control with
(Type A))
4-280
Stop & Go function (MRCC with
Rear View Monitor (Mazda Connect
Stop & Go function)*
4-146
(Type A))*
4-280
Traffic Jam Assist (TJA)*
4-161
Lane-keep Assist System (LAS) &
Lane Departure Warning System
Rear View Monitor (Mazda Connect
(LDWS)*
4-177
(Type B))
4-288
Advanced Smart City Brake Support
Rear View Monitor (Mazda Connect
(Advanced SCBS)*
4-191
(Type B))*
4-288
Smart City Brake Support [Forward]
(SCBS F)*
4-194
Parking Sensor System (Mazda
Smart City Brake Support [Reverse]
Connect (Type A))
4-296
(SCBS R)*
4-198
Parking Sensor System (Mazda
Smart Brake Support (SBS)*
4-202
Connect (Type A))*
4-296
360° View Monitor (Mazda Connect
(Type A))*
4-204
Parking Sensor System (Mazda
360° View Monitor (Mazda Connect
Connect (Type B))
4-305
(Type B))*
4-231
Parking Sensor System (Mazda
Forward Sensing Camera (FSC)*
Connect (Type B))*
4-305
.................................................. 4-259
Radar Sensor (Front)*
4-264
4-2
*Some models.
When Driving
Start/Stop Engine
Ignition Switch
WARNING

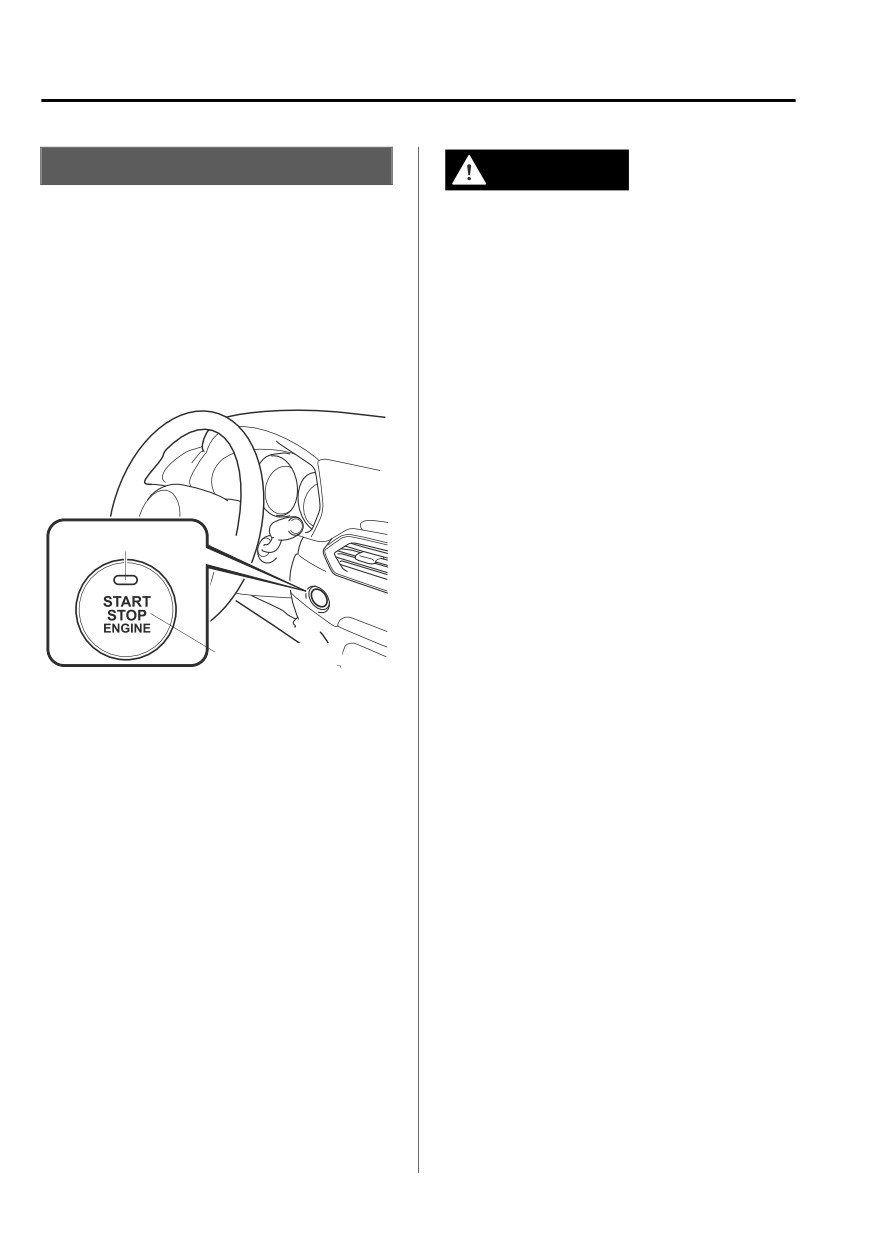

Push Button Start Positions
Before leaving the driver's seat, always
The system operates only when the key is
switch the ignition off, set the parking
within operational range.
brake, and make sure the selector lever is in
Each time the push button start is pressed,
P position:
the ignition switches in the order of off,
Leaving the driver's seat without switching
ACC, and ON. Pressing the push button
the ignition off, setting the parking brake,
start again from ON switches the ignition
and shifting the selector lever to P position
off.
is dangerous. Unexpected vehicle
movement could occur which could result
in an accident.
In addition, if your intention is to leave the
vehicle for even a short period, it is
important to switch the ignition off, as
Indicator light
leaving it in another position will disable
some of the vehicle's security systems and
run the battery down.
ACC (Accessory)
Push button start
Some electrical accessories will operate
and the indicator light (amber) illuminates.
NOTE
NOTE
The engine starts by pressing the push
The keyless entry system does not function
button start while depressing the brake
while the push button start has been
pedal. To switch the ignition position,
pressed to ACC, and the doors will not
press the push button start without
lock/unlock even if they have been locked
depressing the pedal.
manually.
Do not leave the ignition switched ON
while the engine is not running. Doing
ON
so could result in the battery going
This is the normal running position after
dead. If the selector lever is in the P
the engine is started. The indicator light
position, and the ignition is in ACC, the
(amber) turns off. (The indicator light
ignition switches off automatically after
(amber) illuminates when the ignition is
about 25 minutes.
switched ON and the engine is not
Off
running.)
Some indicator lights/warning lights
The power supply to electrical devices
should be inspected before the engine is
turns off and the push button start
started (page 4-11).
indicator light (amber) also turns off.
4-4
When Driving
Start/Stop Engine
NOTE
Starting the Engine
When the push button start is pressed to
ON, the sound of the fuel pump motor
operating near the fuel tank can be heard.
WARNING
This does not indicate an abnormality.
Radio waves from the key may affect
medical devices such as pacemakers:
Before using the key near people who use
medical devices, ask the medical device
manufacturer or your physician if radio
waves from the key will affect the device.
NOTE
The key must be carried because the key
carries an immobilizer chip that must
communicate with the engine controls at
short range.
The engine can be started when the push
button start is pressed from off, ACC, or
ON.
The push button start system functions
(function which can start the engine by
only carrying the key) can be
deactivated to prevent any possible
adverse effect on a user wearing a
pacemaker or other medical device. If
the system is deactivated, you will be
unable to start the engine by carrying
the key. Consult an Authorized Mazda
Dealer for details. If the push button
start system functions have been
deactivated, you can start the engine by
following the procedure indicated when
the key battery goes dead.

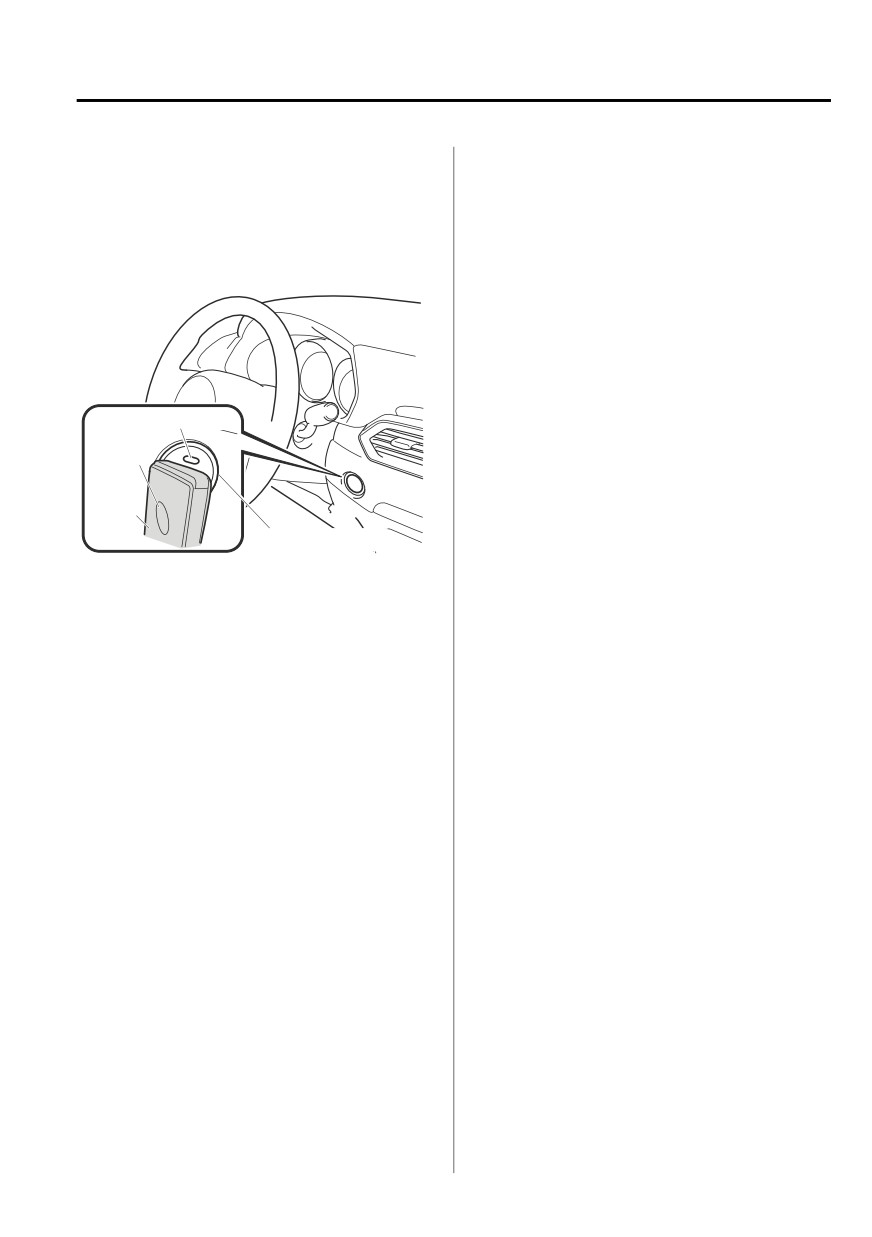

Refer to Engine Start Function When
Key Battery is Dead on page 4-8.
4-5
When Driving
Start/Stop Engine
After starting a cold engine, the engine
6.
Verify that the KEY indicator light
speed increases and a whining sound
(green) (if equipped) in the instrument
from the engine compartment can be
cluster and the push button start
heard.
indicator light (green) illuminate.
This is for improved exhaust gas
purification and does not indicate any
parts defect.
Engine-starting is controlled by the
spark ignition system.
This system meets all Canadian
Interference-Causing Equipment
Standard requirements regulating the
impulse electrical field strength of radio

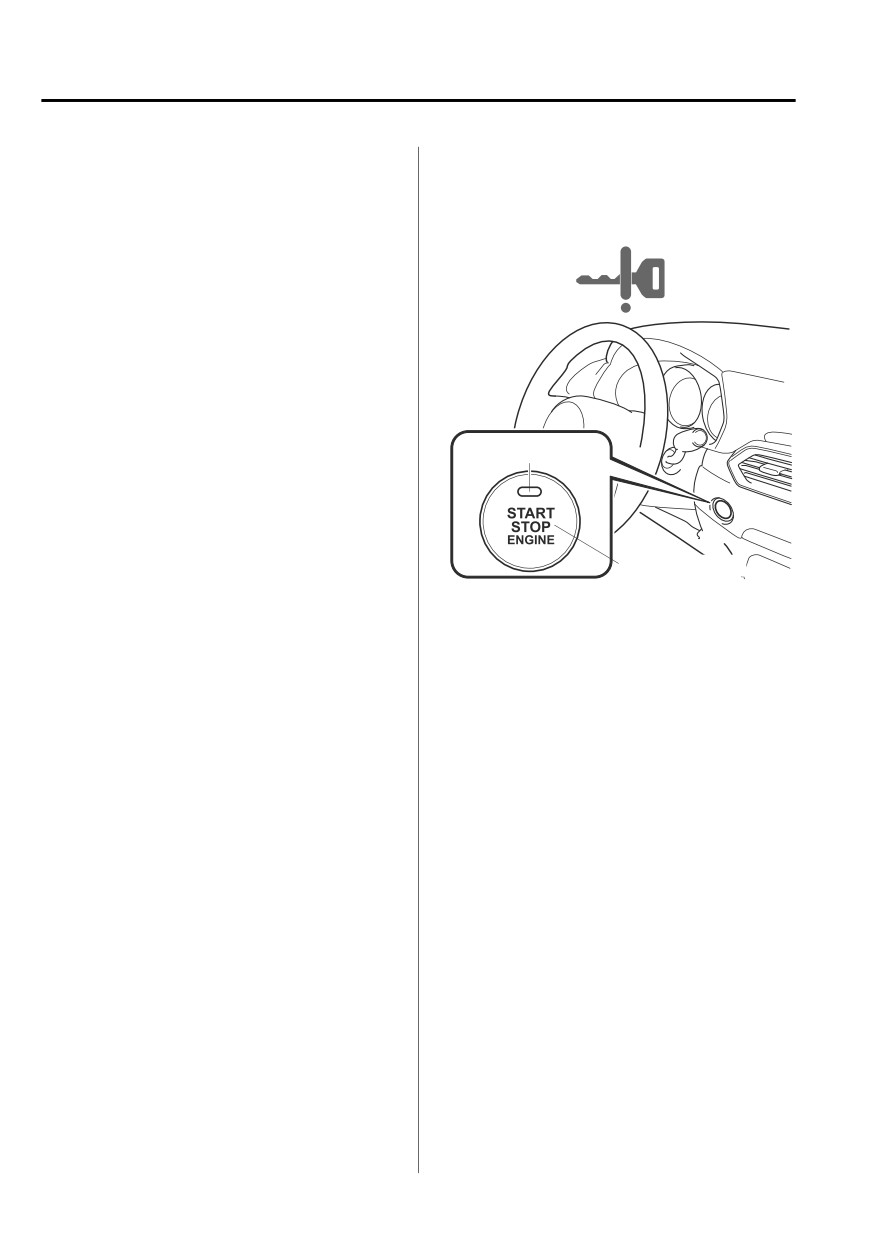

Indicator light
noise.
1.
Make sure you are carrying the key.
2.
Occupants should fasten their seat
belts.
Push button start
3.
Make sure the parking brake is on.
4.
Continue to press the brake pedal
NOTE
firmly until the engine has completely
If the push button start indicator
started.
light (green) flashes, make sure that
5.
Put the vehicle in park (P). If you must
the key is being carried (for vehicles
restart the engine while the vehicle is
with a type A/type B instrument
moving, shift into neutral (N).
cluster (page 7-22), messages are
NOTE
displayed in the instrument cluster).
The starter will not operate if the
If the push button start indicator
selector lever is not in P or N position
light (green) flashes with the key
and the brake pedal is not depressed
being carried, touch the key to the
sufficiently.
push button start and start the
engine (for vehicles with a type A/
type B instrument cluster (page
7-22), messages are displayed in
the instrument cluster). Refer to
Engine Start Function When Key
Battery is Dead on page 4-8.
4-6
When Driving
Start/Stop Engine
(Forced engine starting method)
CAUTION
If the KEY warning light (red)
illuminates, or the push button start
If the KEY warning light (red)
indicator light (amber) flashes, this
illuminates, or the push button start
could indicate that the engine may
indicator light (amber) flashes, this
not start using the usual starting
could indicate a problem with the
method (for vehicles with a type A/
engine starting system. This may
type B instrument cluster (page
prevent the engine from starting or
7-22), messages are displayed in
from switching the ignition to ACC or
the instrument cluster). Have your
ON (for vehicles with a type A/type B
vehicle inspected at an Authorized
instrument cluster (page 7-22),
Mazda Dealer as soon as possible. If
messages are displayed in the
this occurs, the engine can be
instrument cluster). Have your vehicle
force-started. Press and hold the
inspected at an Authorized Mazda
push button start until the engine
Dealer as soon as possible.
starts. Other procedures necessary
for starting the engine, such as
NOTE
having the key in the cabin, and
Under the following conditions, the
depressing the brake pedal are
KEY warning light (red) flashes after
required.
the push button start is pressed. This
When the engine is force-started, the
informs the driver that the push
KEY warning light (red) (if
button start will not switch to ACC,
equipped) remains illuminated and
even if it is pressed from off (for
the push button start indicator light
vehicles with a type A/type B
(amber) remains flashing.
instrument cluster (page 7-22),
When the selector lever is in the
messages are displayed in the
neutral (N) position, the KEY
instrument cluster).
indicator light (green) (if equipped)
and the push button start indicator
The key battery is dead.
light (green) do not illuminate.
The key is out of operational
range.
7.
Press the push button start after both
the KEY indicator light (green) (if
The key is placed in areas where it
equipped) in the instrument cluster and
is difficult for the system to detect
the push button start indicator light
the signal (page 3-8).
A key from another manufacturer
(green) illuminate.
similar to the key is in the
operational range.
4-7
When Driving
Start/Stop Engine
NOTE
Engine Start Function When Key
Battery is Dead
After starting the engine, the push
button start indicator light (amber)
turns off and the ignition switches to

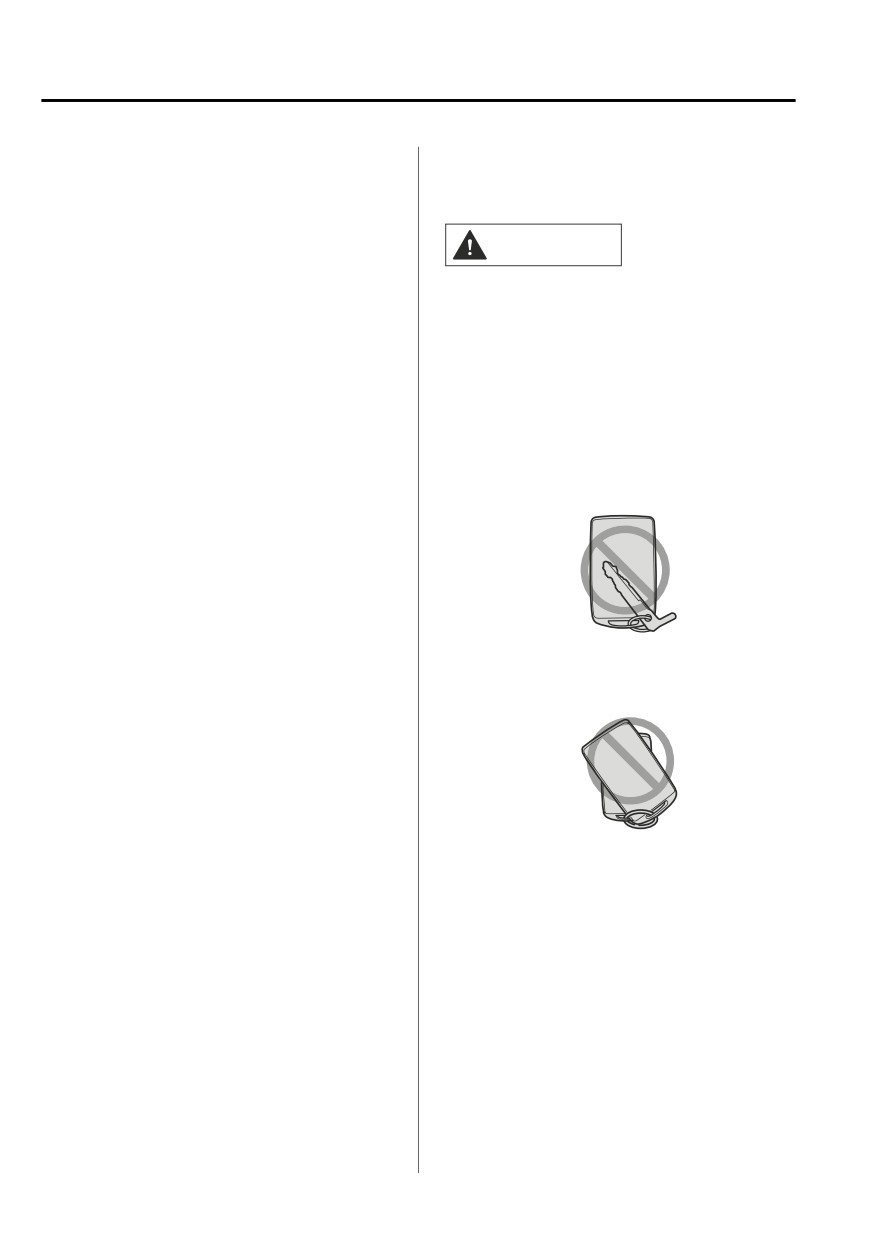

CAUTION
the ON position.
After pressing the push button start
When starting the engine by holding the
and before the engine starts, the
transmitter over the push button start due
operation sound of the fuel pump
to a dead key battery or a malfunctioning
motor from near the fuel tank can be
key, be careful not to allow the following,
heard, however, this does not
otherwise the signal from the key will not
indicate a malfunction.
be received correctly and the engine may
8.
After starting the engine, let it idle for
not start.
about 10 seconds.
¾ Metal parts of other keys or metal objects
NOTE
touch the key.
Do not use high engine speeds until
reaching the operating temperature.
Whether the engine is cold or warm,
it should be started without the use
of the accelerator.
¾ Spare keys or keys for other vehicles
If the engine does not start the first
equipped with an immobilizer system
time, refer to Starting a Flooded
touch or come near the key.
Engine under Emergency Starting. If
the engine still does not start, have
your vehicle inspected by an
Authorized Mazda Dealer (page
7-16).
¾ Devices for electronic purchases, or
security passage touch or come near the
key.
If the engine cannot be started due to a
dead key battery, the engine can be started
using the following procedure:
1. Continue to depress the brake pedal
firmly until the engine has completely
started.
2. Make sure that the push button start
indication light (green) flashes.
4-8
When Driving
Start/Stop Engine
3. Align the center area of the emblem on
To switch the ignition position
the transmitter with the center area of
without starting the engine, perform
the push button start while the push
the following operations after the
button start indicator light (green)
push button start indicator light
flashes.
(green) turns on.
1. Release the brake pedal.
2. Press the push button start to
switch the ignition position. The
ignition switches in the order of
ACC, ON, and off each time the
push button start is pressed. To
Indicator light
switch the ignition position
again, perform the operation
Emblem
from the beginning.
Key
Emergency Operation for Starting
Push button start
the Engine
4.
Make sure that the push button start
If the KEY warning light (red) illuminates,
indicator light (green) turns on.
or the push button start indicator light
5.
Press the push button start to start the
(amber) flashes, this could indicate that
engine.
the engine may not start using the usual
starting method (for vehicles with a type
NOTE
A/type B instrument cluster (page 7-22),
The engine cannot be started unless
messages are displayed in the instrument
the brake pedal is fully depressed.
cluster). Have your vehicle inspected at an
If there is a malfunction with the
Authorized Mazda Dealer as soon as
push button start function, the push
possible. If this occurs, the engine can be
button start indicator light (amber)
force-started. Press and hold the push
flashes. In this case, the engine may
button start until the engine starts. Other
start, however, have the vehicle
procedures necessary for starting the
checked at an Authorized Mazda
engine such as having the key in the cabin,
Dealer as soon as possible.
and depressing the brake pedal are
If the push button start indicator
required.
light (green) does not illuminate,
perform the operation from the
beginning again. If it does not
illuminate, have the vehicle checked
at an Authorized Mazda Dealer.
4-9
When Driving
Start/Stop Engine
(Vehicle equipped with Type A/B
Turning the Engine Off
instrument cluster)
A message is indicated in the display of
WARNING
the instrument cluster.
(Vehicle equipped with Type C
instrument cluster)
Do not stop the engine while the vehicle is
The KEY indicator light (green) flashes
moving:
for approximately 30 seconds.
Stopping the engine while the vehicle is
Refer to Taking Action on page 7-31.
moving for any reason other than in an
If the engine is turned off while the
emergency is dangerous. Stopping the
selector lever is in a position other than
engine while the vehicle is moving will
P, the ignition switches to ACC.
result in reduced braking ability due to the
loss of power braking, which could cause
Emergency Engine Stop
an accident and serious injury.
Continuously pressing the push button
1. Stop the vehicle completely.
start or quickly pressing it any number of
2. Shift the selector lever to the P
times while the engine is running or the
position and set the parking brake.
vehicle is being driven will turn the engine
3. Press the push button start to turn off
off immediately. The ignition switches to
the engine. The ignition position is off.
ACC.
CAUTION
¾ When leaving the vehicle, make sure the
push button start is off.
NOTE
The cooling fan in the engine
compartment could turn on for a few
minutes after the ignition is switched
from ON to OFF, whether or not the A/C
is on or off, to cool the engine
compartment quickly.
If the system detects that the remaining
battery power of the key is low when the
ignition is switched from ON to ACC or
OFF, the following is indicated.
Replace with a new battery before the
key becomes unusable.
Refer to Key Battery Replacement on
page 6-33.
4-10
When Driving
Instrument Cluster and Display
Instrument Cluster and Display
Instrument Cluster
Type A
Type B
Type C
Active Driving Display
Instrument Cluster (Type A)
page 4-12
Instrument Cluster (Type B)
page 4-31
Instrument Cluster (Type C)
page 4-47
Active Driving Display
page 4-59
4-11
When Driving
Instrument Cluster and Display
Instrument Cluster (Type A)
Speedometer
page 4-12
Tachometer
page 4-12
Multi-information Display (Type A)
page 4-14
Engine Coolant Temperature Gauge
page 4-17
Fuel Gauge
page 4-18
Dashboard Illumination
page 4-18
Speed Unit Selector
page 4-19
Free/Open Source Software Information
This product includes free/open sources. Information about the licensing and source code is
available at the following URL.
Speedometer
This may cause severe engine damage.
The speedometer indicates the speed of the
*1
*1
vehicle.
STRIPED ZONE RED ZONE
Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute (rpm).
CAUTION
Do not run the engine with the tachometer
*1 The range varies depending on the type
needle in the RED ZONE.
of gauge.
4-12
When Driving
Instrument Cluster and Display
NOTE
When the tachometer needle enters the
STRIPED ZONE, this indicates to the
driver that the gears should be shifted
before entering the RED ZONE.
4-13
When Driving
Instrument Cluster and Display

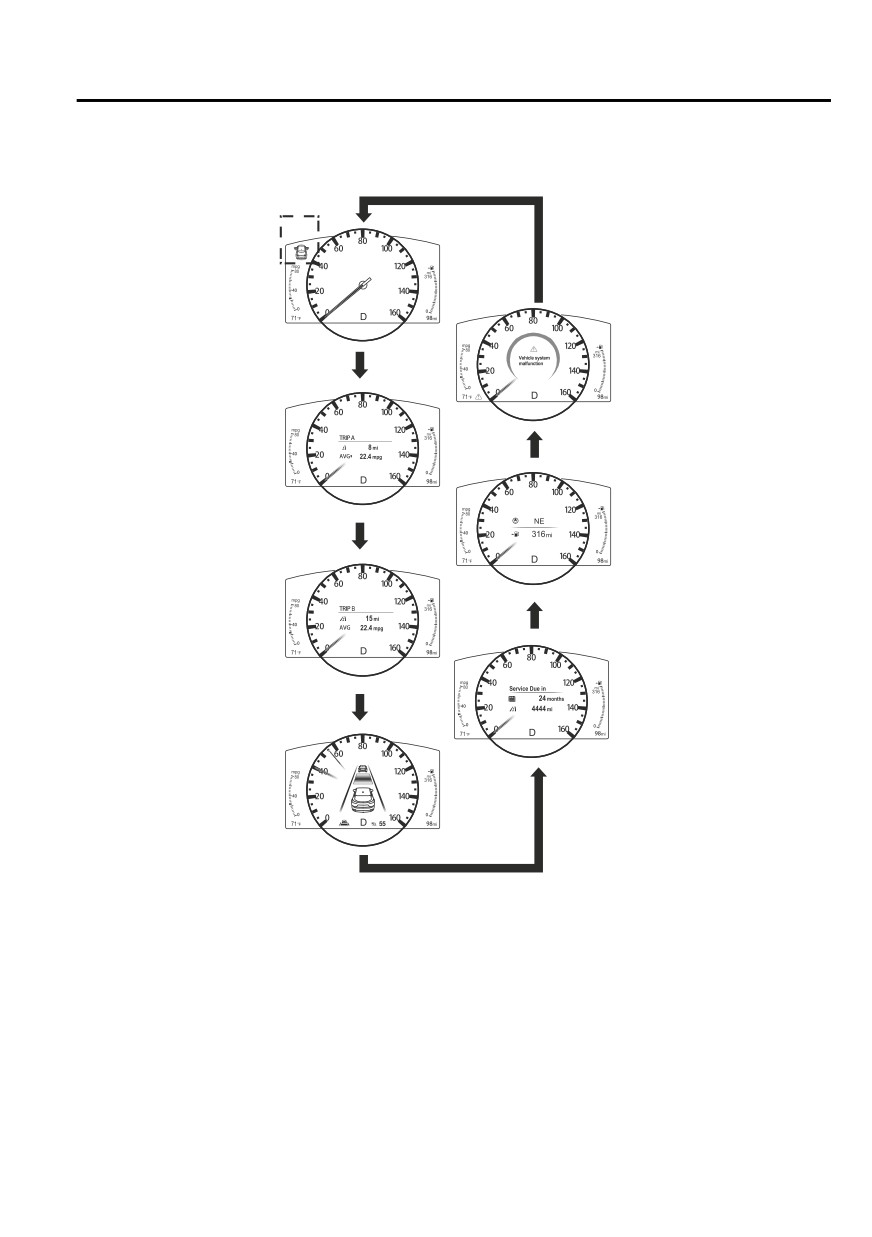

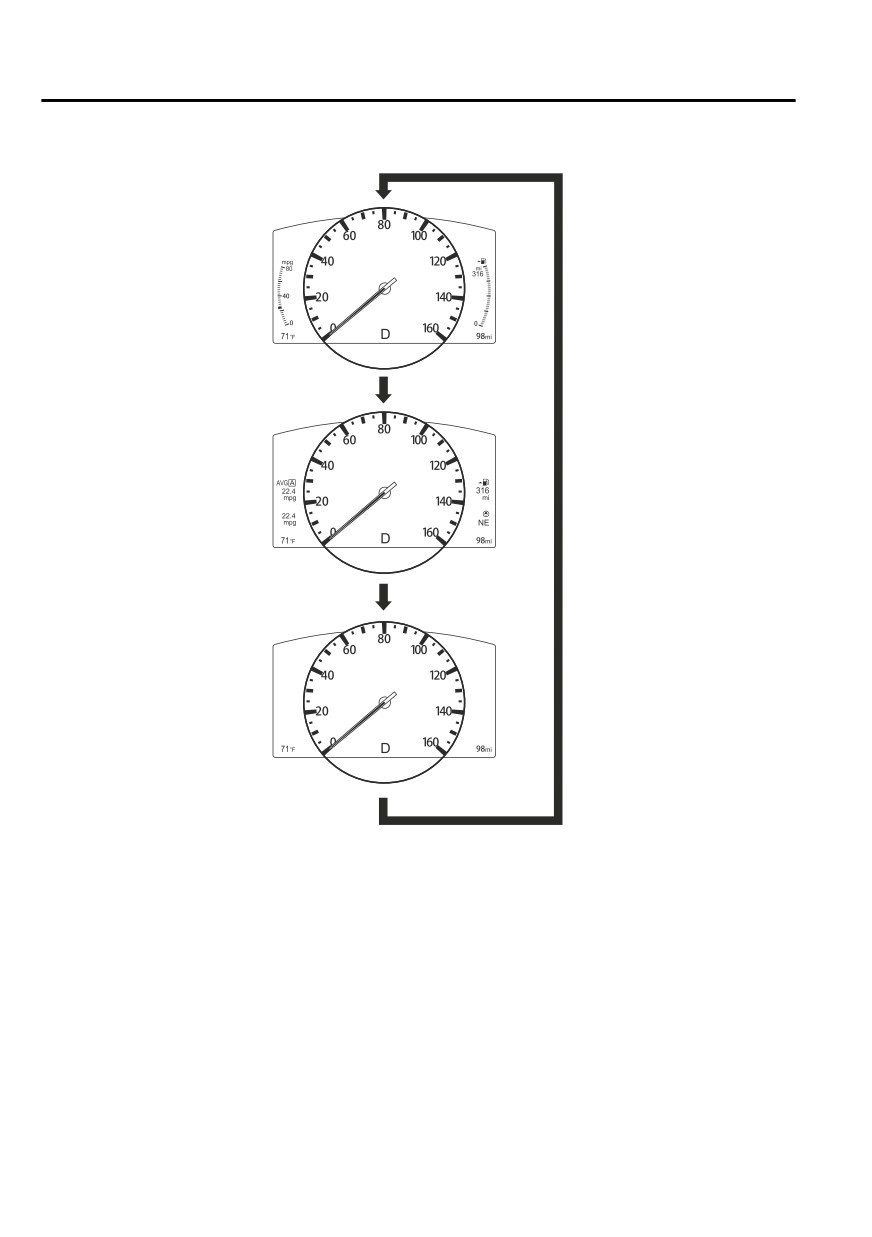

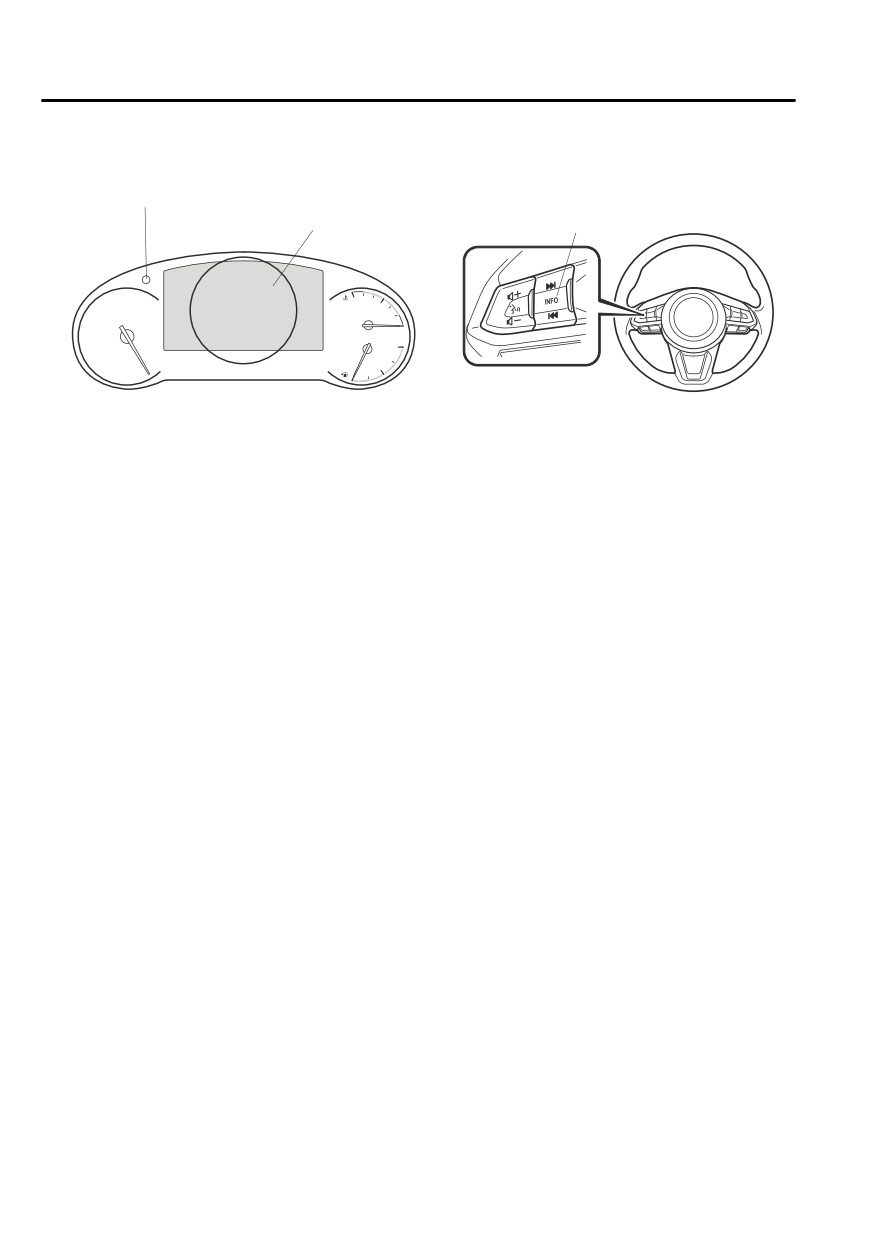

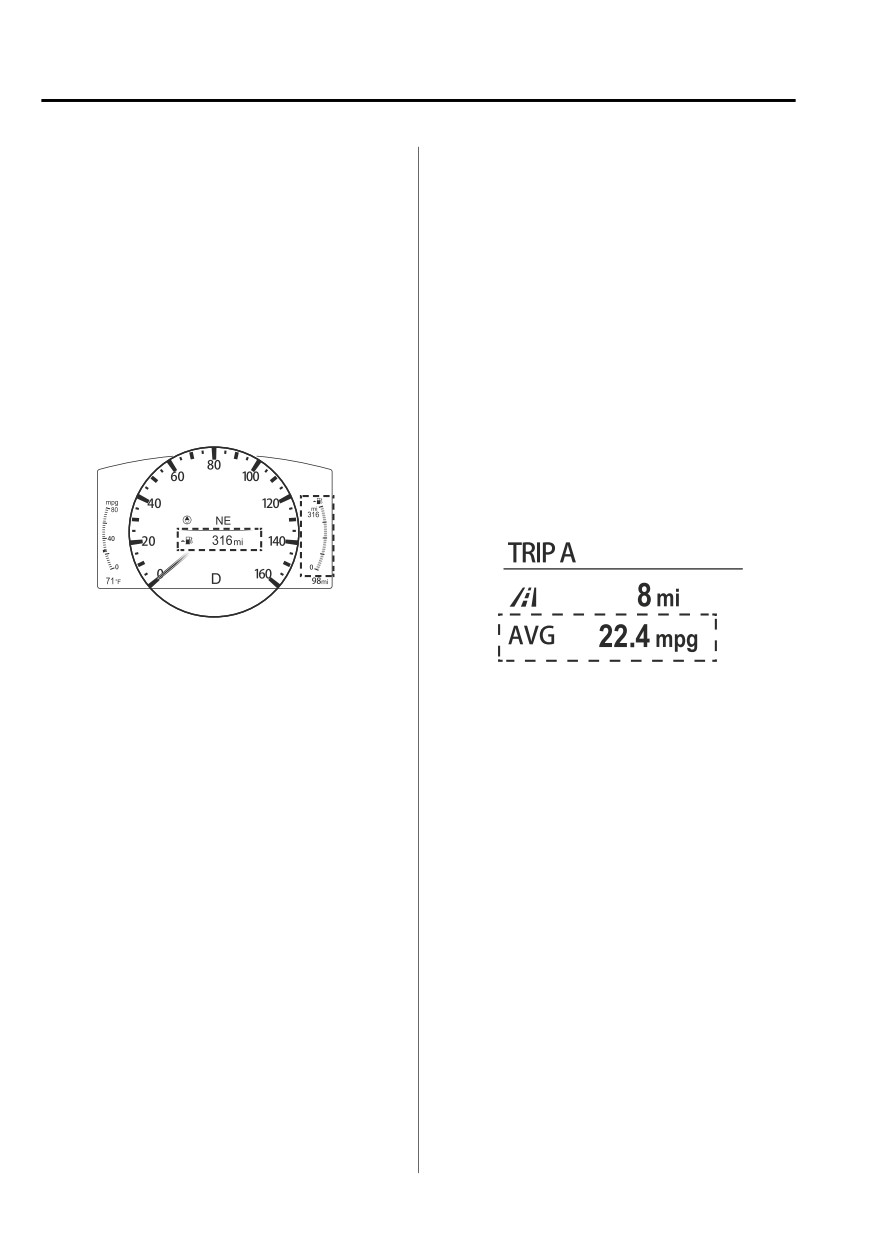

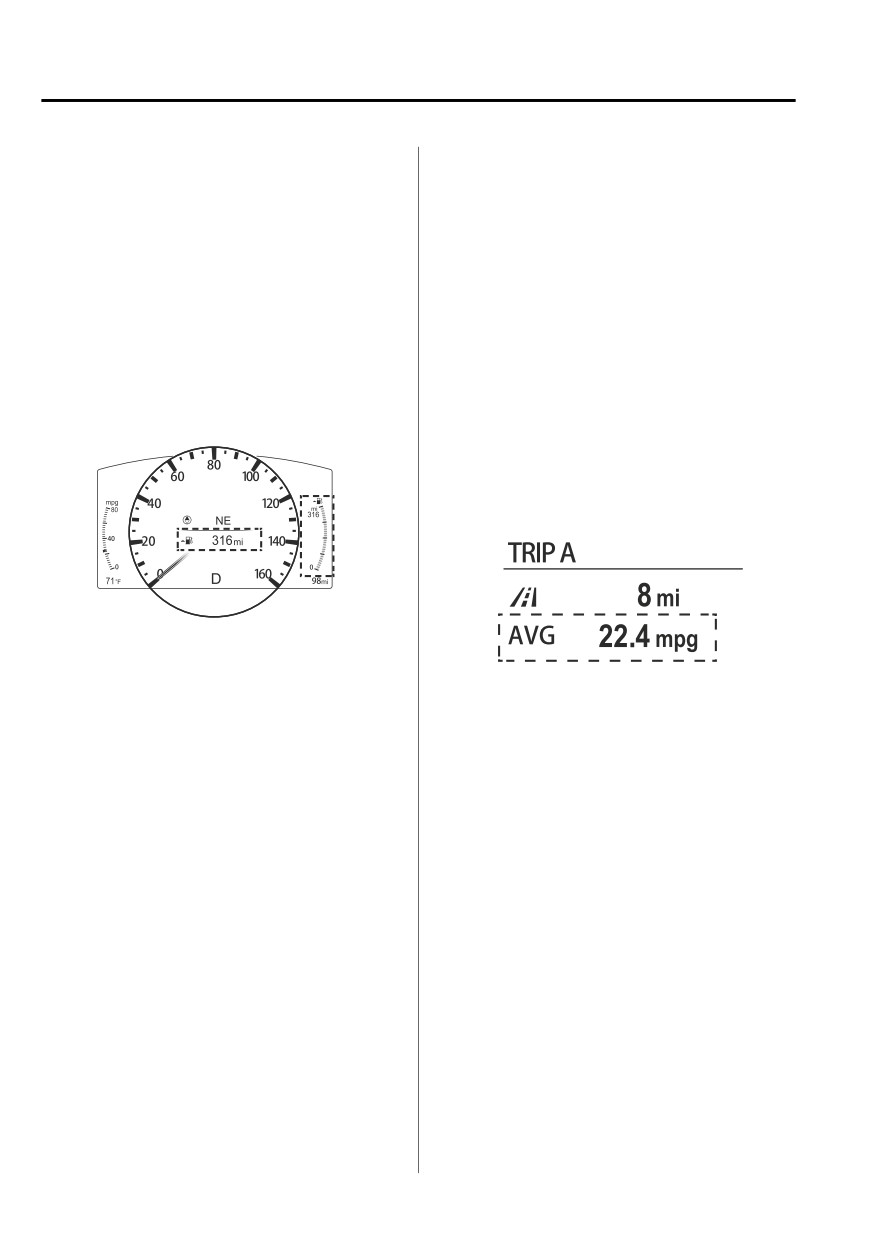

Multi-information Display (Type A)

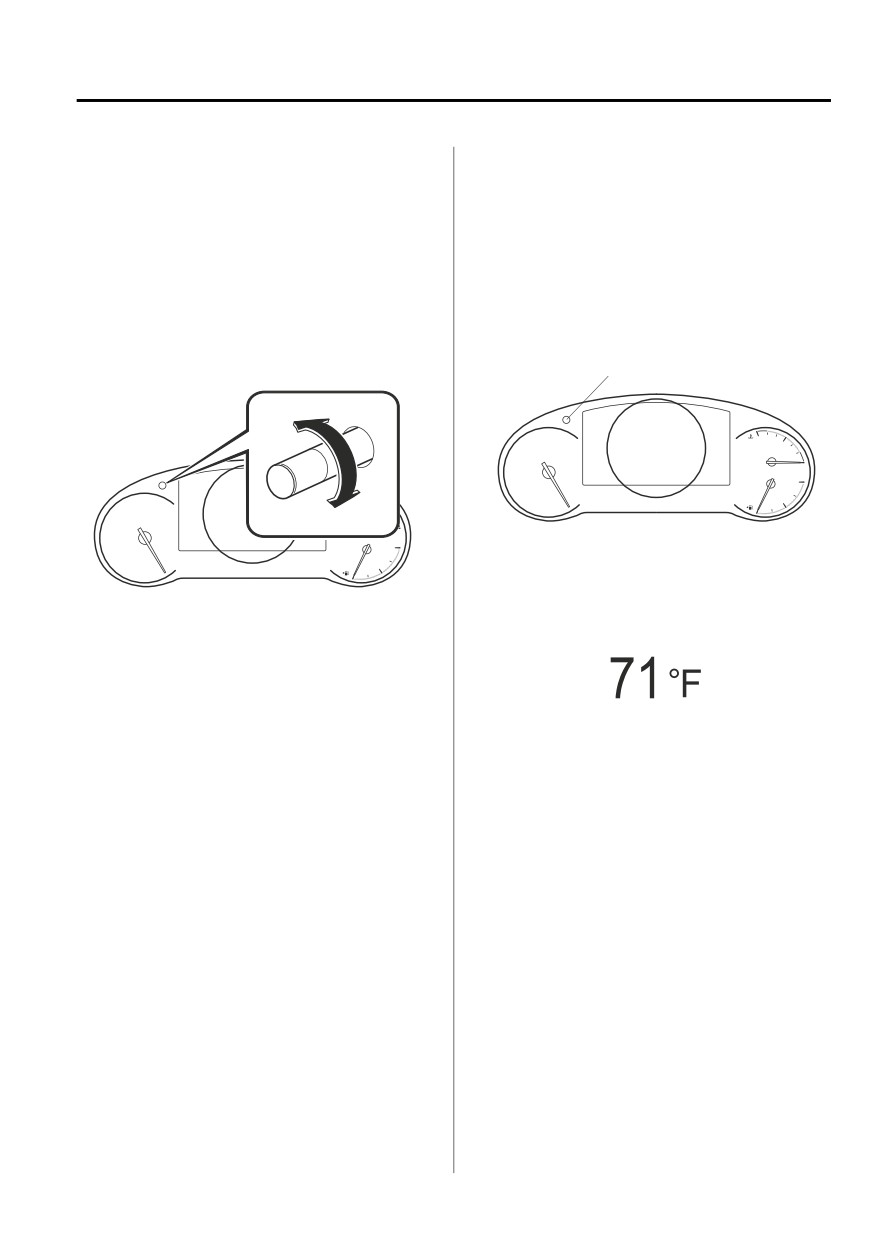

Dashboard illumination knob
Multi-information Display (Type A)
INFO switch
The multi-information display indicates the following information.
Speedometer
Odometer
Trip meter
Outside temperature
Distance-to-empty
Average fuel economy
Current fuel economy
Maintenance Monitor
Mazda intelligent Drive Select (Mi-Drive) Display
Blind Spot Monitoring (BSM) Display
Traffic Sign Recognition System (TSR) Display
Distance Recognition Support System (DRSS) Display
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function)
System Display
Traffic Jam Assist (TJA) Display
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display
Cruise Control Display
Compass Display
Door-Ajar/Liftgate-Ajar Warning Indication
Message Display
4-14
When Driving
Instrument Cluster and Display
The screen content changes each time the INFO switch is pressed.
Press the INFO switch
*1
Basic display
*2
Warning message
Press the INFO switch
display
Trip Meter A display
Press the INFO switch
Compass display
Press the INFO switch
Trip Meter B display
Press the INFO switch
Maintenance Monitor
Press the INFO switch
display
i-ACTIVSENSE display
Press the INFO switch
*1: Displayed when opening/closing door/trunk lid.
*2: Displayed only when a warning occurs.
4-15
When Driving
Instrument Cluster and Display
The screen content changes each time the dashboard illumination knob is pressed and held.
Gauge indication
Press and hold dashboard
illumination knob
Press and hold
Numerical indication
dashboard illumination
knob
Press and hold dashboard
illumination knob
Display off
4-16
When Driving
Instrument Cluster and Display

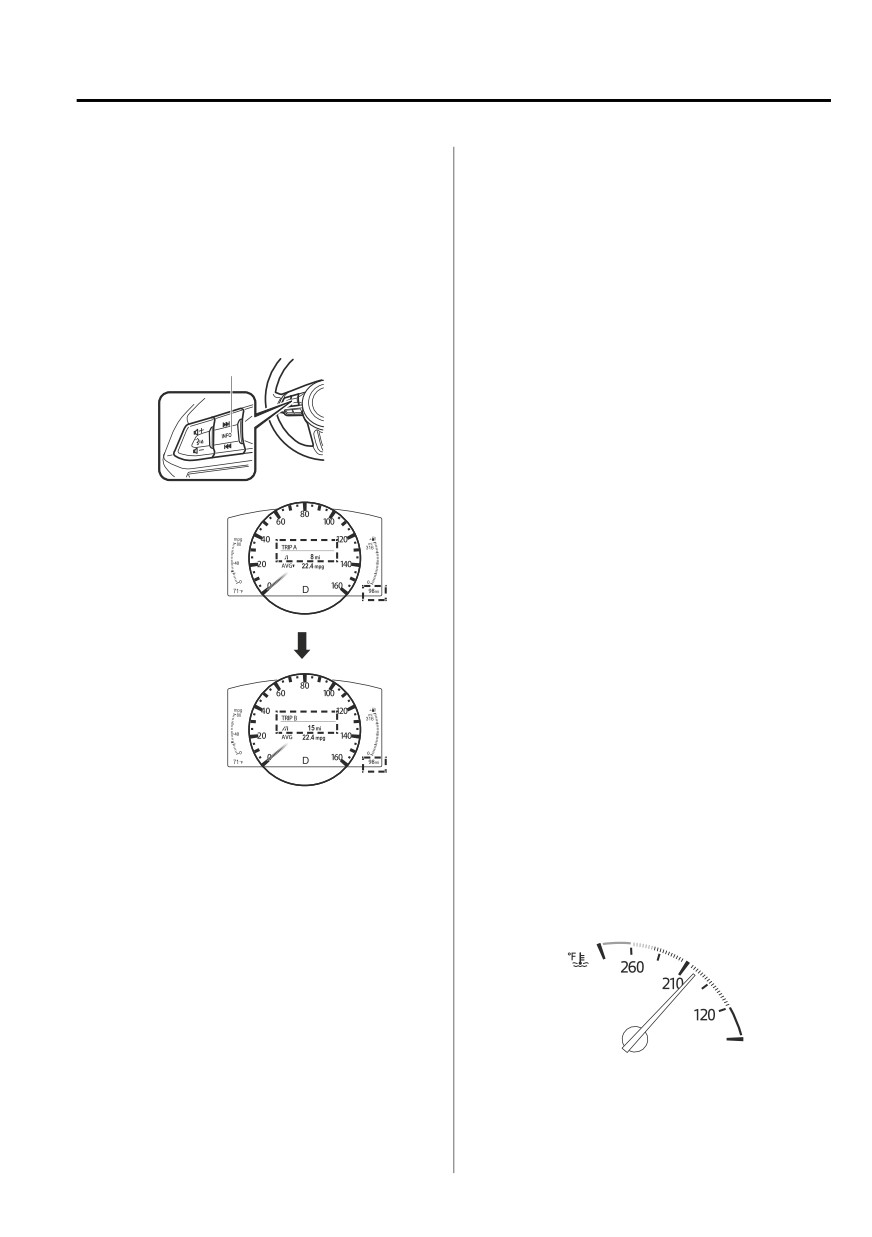

Odometer, Trip Meter and Trip
For instance, trip meter A can record the
Meter Selector
distance from the point of origin, and trip
meter B can record the distance from
The odometer is constantly displayed on
where the fuel tank is filled.
the screen when the ignition is switched
ON, and the TRIP A or TRIP B screen can
When trip meter A is selected, TRIP A
be displayed by operating the INFO
will be displayed. When trip meter B is
switch.
selected, TRIP B will be displayed.
INFO switch
The trip meter and average fuel economy
can be reset by pressing the INFO switch
for 1.5 seconds or more while in each
mode.
NOTE
Only the trip meters record tenths of
Trip Meter A
kilometers (miles).
display
The trip record will be erased when:
The power supply is interrupted
(blown fuse or the battery is
Press the INFO switch
disconnected).
The vehicle is driven over 9999.9 km
(mile).
Trip Meter B
display
Engine Coolant Temperature Gauge
Displays the engine coolant temperature.
The blue range of the gauge indicates that
Odometer
the engine coolant temperature is low, and
The odometer records the total distance
the red range of the gauge indicates that
the vehicle has been driven.
the engine coolant temperature is high and
overheating.
Trip meter
The driving distance for a specified
interval is indicated. Two types (TRIP A,
TRIP B) of interval distance and the
average fuel economy for each can be
measured.
4-17
When Driving
Instrument Cluster and Display
If the low fuel warning light illuminates or
CAUTION
the fuel level is very low, refuel as soon as
possible.
If the engine coolant temperature gauge needle is
If inconsistency in engine performance or
in the red range, there is the possibility of
stalling occurs due to low fuel level
overheating. Drive slowly to reduce engine load
conditions, refuel the vehicle as soon as
until you can find a safe place to stop the vehicle
possible and add at least 10 L (2.7 US gal,
and wait for the engine to cool down.
2.2 Imp gal) of fuel.
Refer to Overheating on page 7-17.
Refer to Taking Action on page 7-31.
NOTE
NOTE
(SKYACTIV-G 2.5T)
After refueling, it may require some time
for the indicator to stabilize. In addition,
If the engine coolant temperature is high
the indicator may deviate while driving
or the engine is hot, the engine output
on a slope or curve since the fuel moves
may be limited.
in the tank.

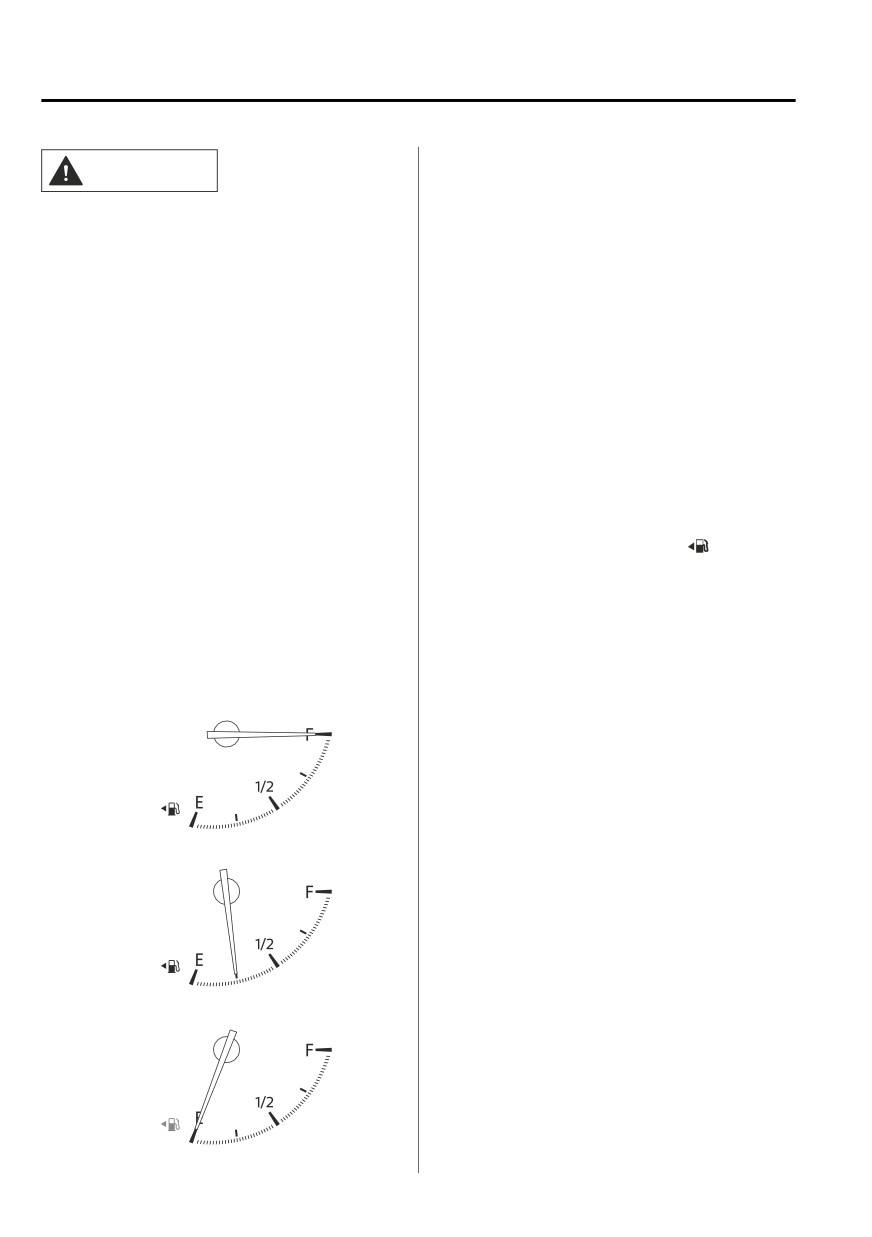

Fuel Gauge
The direction of the arrow (
) indicates
that the fuel-filler lid is on the left side
The fuel gauge shows approximately how
of the vehicle.
much fuel is remaining in the tank when
the ignition is switched ON. We
Dashboard Illumination
recommend keeping the tank over 1/4 full.
When the lights are turned on with the
ignition switched ON, the brightness of
Full
the dashboard illumination is dimmed.
However, when the light sensor detects
that the surrounding area is bright such as
when the lights are turned on in the
daytime, the dashboard illumination does
not dim.
1/4 Full
NOTE
When the ignition is switched ON in the
early evening or at dusk, the dashboard
illumination is dimmed for several
seconds until the light sensor detects the
brightness of the surrounding area,
Empty
however, the dimming may cancel after
the brightness is detected.
When the lights are turned on, the
lights-on indicator light in the
instrument cluster turns on.
Refer to Headlights on page 4-72.
4-18
When Driving
Instrument Cluster and Display
The brightness of the instrument cluster
Speed Unit Selector
and dashboard illuminations can be
In some countries, you may have to
adjusted by rotating the knob.
change the speed units between km/h and
The brightness decreases by rotating the
mph.
knob to the left. A beep sound will be
When pressing the dashboard illumination
heard when the knob has been rotated to
knob, the speed units in the instrument
the maximum dim position.
cluster will change.
The brightness increases by rotating the
knob to the right.
Dashboard illumination knob
Dim
Bright
Outside Temperature Display
When the ignition is switched ON, the
Function for canceling illumination
outside temperature is displayed.
dimmer
The illumination dimmer can be canceled
by rotating the dashboard illumination
knob to the right until a beep sound is
NOTE
heard while the instrument cluster is
Under the following conditions, the
dimmed with the ignition switched ON. If
outside temperature display may differ
the instrument cluster's visibility is
from the actual outside temperature
reduced due to glare from surrounding
depending on the surroundings and
brightness, cancel the illumination
vehicle conditions:
dimmer.
Significantly cold or hot temperatures.
NOTE
Sudden changes in outside
When the illumination dimmer is
temperature.
canceled, the instrument cluster cannot
The vehicle is parked.
be dimmed even if the lights are turned
The vehicle is driven at low speeds.
on.
Changing the Temperature Unit of the
When the illumination dimmer is
Outside Temperature Display
canceled, the screen in the center
display switches to constant display of
The outside temperature unit can be
the daytime screen.
switched between Celsius and Fahrenheit.
4-19
When Driving
Instrument Cluster and Display
Settings can be changed by operating the
If there is no past fuel economy
center display screen.
information such as after first
Refer to the Settings section in the Mazda
purchasing your vehicle or the
Connect Owner's Manual.
information is deleted when the battery
cables are disconnected, the actual
Distance-to-empty
distance-to empty/range may differ from
This displays the approximate distance
the amount indicated.
you can travel on the remaining fuel based
Average Fuel Economy
on the fuel economy.
The distance-to-empty will be calculated
The average fuel economy is calculated
and displayed every second.
every minute from the total traveled
distance on the trip meter and the total fuel
consumption, and the average fuel
economy for either TRIP A or TRIP B is
displayed.
NOTE
Even though the distance-to-empty
The average fuel economy and trip meters
display may indicate a sufficient amount
can be reset by pressing the INFO switch
of remaining driving distance before
for 1.5 seconds or more while in each
refueling is required, refuel as soon as
mode. After the data is cleared, the fuel
possible if the fuel level is very low or
consumption is recalculated and the - - -
the low fuel warning light illuminates.
km/L (- - - mpg) for the 1 minute prior to
The display will not change unless you
it being displayed is indicated.
add more than approximately 9 L (2.3
US gal, 1.9 Imp gal) of fuel.
The distance-to-empty is the
approximate remaining distance the
vehicle can be driven until all the
graduation marks in the fuel gauge
indicating the remaining fuel supply
disappear.
4-20
When Driving
Instrument Cluster and Display

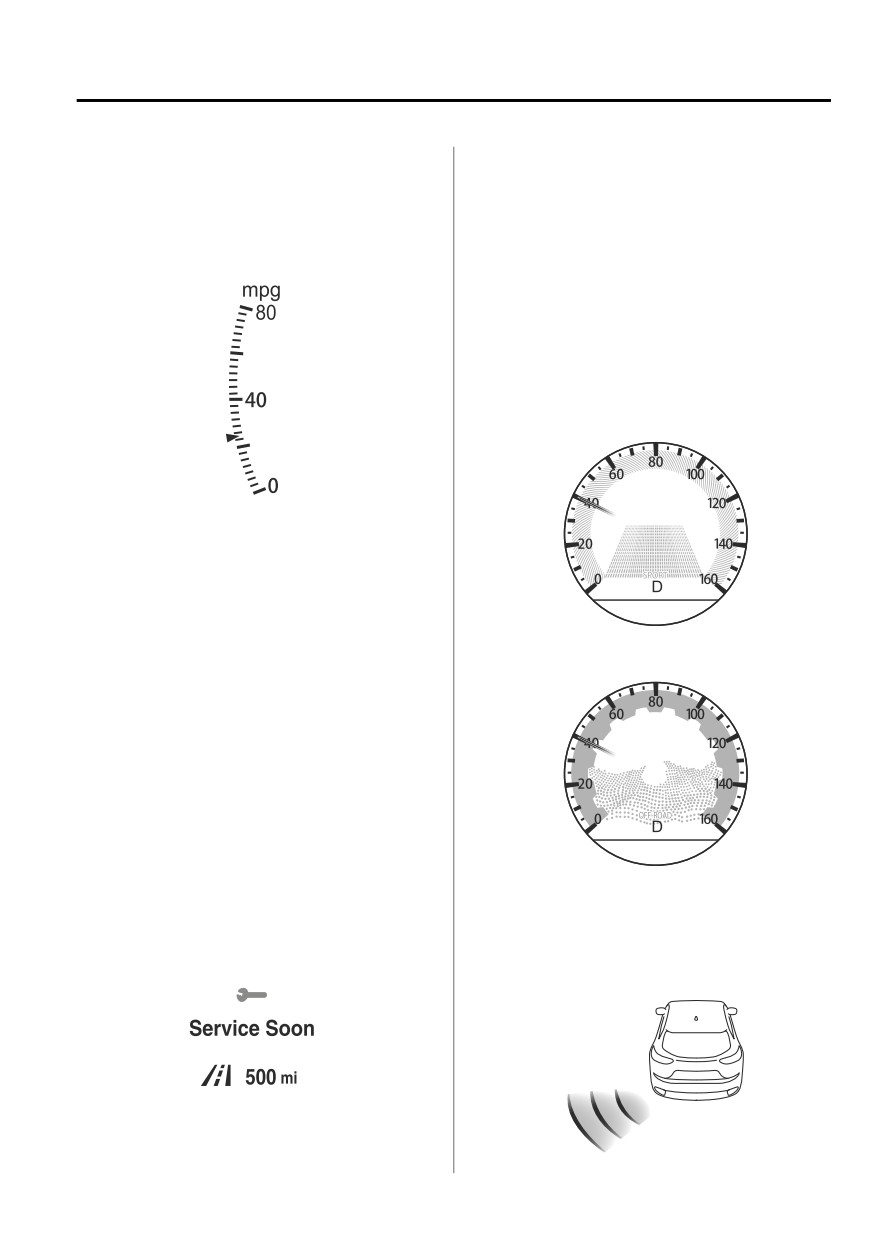

Current Fuel Economy
Refer to the Applications (Mazda Connect
(Type A))/Information (Mazda Connect
This displays the current fuel economy by
(Type B)) section in the Mazda Connect
calculating the amount of fuel
Owner's Manual.
consumption and the distance traveled.
Mazda intelligent Drive Select
(Mi-Drive) Display
The display changes depending on the
driving mode.
Sport mode
NOTE
Indicates the 0 position when the vehicle
speed is about 5 km/h (3 mph) or slower.
The arrow on the scale indicates the
average fuel economy.
Off-road mode
Maintenance Monitor
The following maintenance period
notifications can be displayed by turning
the Maintenance Monitor on.
Scheduled Maintenance
Tire Rotation
Oil Change
When the remaining days to the
maintenance period is 15 days or less, or
Blind Spot Monitoring (BSM)
the remaining distance is 1,000 km (600
Display
miles) or shorter, a message is indicated
Displays the system status.
when the ignition is switched ON.
For the setting method and indications for
the maintenance monitor, refer to the
Maintenance Monitor.
4-21















Content      ..     3      4      5      6     ..
