When Driving
Instrument Cluster and Display
When the illumination dimmer is
Distance-to-empty
canceled, the screen in the center
This displays the approximate distance
display switches to constant display
you can travel on the remaining fuel
of the daytime screen.
based on the fuel economy.
Outside Temperature Display
The distance-to-empty will be
calculated and displayed every second.
When the ignition is switched ON, the
outside temperature is displayed.
NOTE
NOTE
Even though the distance-to-empty
display may indicate a sufficient
Under the following conditions, the
amount of remaining driving distance
outside temperature display may
before refueling is required, refuel as
differ from the actual outside
soon as possible if the fuel level is
temperature depending on the
very low or the low fuel warning light
surroundings and vehicle conditions:
illuminates.
Significantly cold or hot
The display will not change unless
temperatures.
you add more than approximately 9
Sudden changes in outside
L (2.3 US gal, 1.9 Imp gal) of fuel.
temperature.
The distance-to-empty is the
The vehicle is parked.
approximate remaining distance the
The vehicle is driven at low speeds.
vehicle can be driven until all the
graduation marks in the fuel gauge
Changing the Temperature Unit of the
indicating the remaining fuel supply
Outside Temperature Display
disappear.
The outside temperature unit can be
If there is no past fuel economy
information such as after first
switched between Celsius and
Fahrenheit.
purchasing your vehicle or the
information is deleted when the
Settings can be changed by operating
the center display screen.
battery cables are disconnected, the
actual distance-to empty/range may
Refer to the Settings section in the
Mazda Connect Owner's Manual.
differ from the amount indicated.
Average Fuel Economy
This mode displays the average fuel
economy by calculating the total
4-25
When Driving
Instrument Cluster and Display
traveled distance and the total fuel
Except M Hybrid
consumption since the vehicle was
purchased or the past data was reset.
The average fuel economy is calculated
and displayed every 30 seconds.
The average fuel economy is also
displayed by a red arrow in the
instantaneous fuel economy display.
NOTE
Indicates the 0 position when the
vehicle speed is about 5 km/h (3
mph) or slower.
The arrow on the scale indicates the
average fuel economy.
The average fuel economy can be reset
Deceleration Regeneration Charge
by pressing the INFO switch for 1.5
Display (M Hybrid)
seconds or more. After the data is
cleared, the fuel consumption is
This displays the status of the charging
recalculated and the - - - L/100 km
produced by deceleration
(- - - mpg) for the 30 seconds prior to
regeneration.
it being displayed is indicated.
Current Fuel Economy
This displays the current fuel economy
by calculating the amount of fuel
consumption and the distance
traveled.
M Hybrid
Refer to M Hybrid on page 4-49.
4-26
When Driving
Instrument Cluster and Display
i-ACTIVSENSE Display*
Compass Display
Displays the system status.
The direction the vehicle is moving is
displayed in one of eight directions
while the vehicle is being driven.
Refer to Lane Departure Warning
System (LDWS) on page 4-104.
Refer to Blind Spot Monitoring
Display
Direction
(BSM) on page 4-108.
N
North
Refer to Traffic Sign Recognition
System (TSR) on page 4-112.
S
South
Refer to Distance & Speed Alert
E
East
(DSA) on page 4-117.
W
West
Refer to Driver Attention Alert (DAA)
NE
Northeast
on page 4-119.
Refer to Driver Monitoring (DM) on
NW
Northwest
page 4-120.
SE
Southeast
Refer to Front Cross Traffic Alert
SW
Southwest
(FCTA) on page 4-121.
Refer to Mazda Radar Cruise Control
with Stop & Go function (MRCC
with Stop & Go function) on page
4-130.
Refer to Traffic Jam Assist (TJA) on
page 4-141.
Refer to Lane-keep Assist System
(LAS) on page 4-154.
Refer to Smart Brake Support (SBS)
on page 4-156.
Refer to Cruise Control on page
4-209.
*Some models.
4-27
When Driving
Instrument Cluster and Display
Message Display
A message such as the system
operation status, a malfunction, or an
abnormality is indicated.
Warning/indicator light in instrument
cluster turns on/flashes or symbol is
indicated on display at same time as
message
Check the information regarding the
warning/indicator light or indicated
symbol.
Refer to If a Warning Indication/
Warning Lights on page 4-29.
Refer to If a Indication/Indicator Lights
on page 4-31.
Message only is indicated on display
Follow the instructions indicated on
the display. For the display content,
refer to the next page.
Refer to If a Message Indicated on
Multi-information Display on page
7-35.
Warning/Indicator Lights
Instrument Cluster varies depending
on model and specifications.
1. Instrument Cluster
2. Front Center of Headliner
Warning lights will appear in any of the
highlighted areas
4-28
When Driving
Instrument Cluster and Display
Warning Indication/Warning Lights
These lights turn on or flash to notify the user of the system operation status or a
system malfunction.
Signal
Warning
Refer to
Brake System Warning Indication/Warning Light*1
7-22
Electronic
Brake Force
Distribution
System Warn-
ABS Warning Indication/Warning Light*1
ing
7-23
ABS warning
7-25
Charging System Warning Indication/Warning Light*1
7-24
Engine Oil Warning Indication/Warning Light*1
7-24
High Engine Coolant Temperature Warning Indication
7-24
Power Steering Malfunction Indication/Indicator Light*1
7-25
Master Warning Indication
7-25
Brake Control System Warning Indication/Warning Light*1
7-26
Brake Override Warning Indication
7-26
Check Engine Indication/Light*1
7-26
*i-stop Warning Indication/Warning Light*1
7-27
(Amber)
Automatic Transmission Warning Indication/Warning Light
*1
7-27
*Some models.
4-29
When Driving
Instrument Cluster and Display
Signal
Warning
Refer to
*AWD Warning Indication/Warning Light*1
7-27
Air Bag/Front Seat Belt Pretensioner System Warning Indication/
7-28
Warning Light*1
Flashing
Tire Pressure Monitoring System (TPMS) Warning Indication/Warning
7-28
Light*1
Turns on
7-32
KEY Warning Indication/Warning Light*1
7-29
(Red)
*High Beam Control System (HBC) Warning Indication/Warning
7-30
Light*1
(Amber)
*i-ACTIVSENSE Warning Indication/Warning Light*1
7-30
Exterior Light Warning Indication/Warning Light*1
7-30
Low Fuel Warning Indication/Warning Light
7-30
Check Fuel Cap Warning Indication/Warning Light*1
7-31
Engine Oil Level Warning Indication/Warning Light*1
7-31
Seat Belt Warning Indication/Warning Light (Front seat)
7-31
Seat Belt Warning Light (Rear seat)
7-32
(Red)
*Low Washer Fluid Level Warning Indication/Warning Light
7-32
Door-Ajar Warning Indication
7-32
4-30
*Some models.
When Driving
Instrument Cluster and Display
Signal
Warning
Refer to
Liftgate-Ajar Warning Indication
7-32
Door-Ajar Warning Light
7-32
*1
The light turns on when the ignition is switched on for an operation check, and turns off a few
seconds later or when the engine is started. If the light does not turn on or remains turned on, have
the vehicle inspected at an Authorized Mazda Dealer.
Indication/Indicator Lights
These lights turn on or flash to notify the user of the system operation status or a
system malfunction.
Signal
Indicator
Refer to
Seat Belt Indicator Light (Rear seat)
2-25
(Green)
*Front Passenger Air Bag Deactivation Indicator Light
2-67
Immobilizer
System
3-47
Theft-Deterrent
Security Indicator Light
System
3-48
Malfunction
7-29
KEY Indicator Light
4-5
(Green)
*i-stop Indicator Light
4-16
(Green)
Wrench Indication/Indicator Light*1
4-34
*Shift Position Indication
4-40
*Some models.
4-31
When Driving
Instrument Cluster and Display
Signal
Indicator
Refer to
Lights-On Indicator Light
4-53
Headlight
High-Low
Beam
Headlight High-Beam Indicator Light
4-56
Flashing the
Headlights
4-56
Turn and
Lane-Change
Signals
Turn Signal/Hazard Warning Indicator Lights
4-58
Hazard Warn-
ing Flasher
4-66
Electric Parking Brake (EPB) Indication/Indicator Light*1*2
7-26
AUTOHOLD Active Indicator Light*1
4-80
*Mazda Radar Cruise Control with Stop & Go function (MRCC with
4-136
Stop & Go function) indicator Light
*Traffic Jam Assist (TJA) indicator Light
4-151
Traction Con-
trol System
(TCS)
4-85
Dynamic Sta-
TCS/DSC Indication/Indicator Light*1
bility Control
(DSC)
4-87
Turns on
7-28
TCS OFF Indicator Light (FWD) *1
4-86
Off-Road Traction Assist Indicator Light (AWD) *1
4-88
4-32
*Some models.
When Driving
Instrument Cluster and Display
Signal
Indicator
Refer to
*Select Mode Indicator Light
4-91
(White)
*i-ACTIVSENSE Status Symbol (Warning/Risk Avoidance Support Sys-
4-97
tem)
(Green)
(Amber)
*i-ACTIVSENSE OFF Symbol (Warning/Risk Avoidance Support Sys-
4-97
tem)
*High Beam Control System (HBC) Indicator Light
4-101
(Green)
*Mazda Radar Cruise Control with Stop & Go function (MRCC with
4-132
Stop & Go function) Standby Indication
(White)
*Traffic Jam Assist (TJA) Standby Indication
4-144
*Mazda Radar Cruise Control with Stop & Go function (MRCC with
4-132
Stop & Go function) Set Indication
(Green)
*Traffic Jam Assist (TJA) Set Indication
4-144
*Smart Brake Support (SBS) OFF Indicator Light*1
4-163
*Cruise Standby Indication
4-208
(White)
*Cruise Set Indication
4-208
(Green)
*1
The light turns on when the ignition is switched on for an operation check, and
turns off a few seconds later or when the engine is started. If the light does not
turn on or remains turned on, have the vehicle inspected at an Authorized
Mazda Dealer.
*Some models.
4-33
When Driving
Instrument Cluster and Display
2 The light turns on continuously when the parking brake is applied.
Wrench Indication/Indicator Light
The wrench indication/indicator light
is displayed/turns on under the
following conditions.
When the preset maintenance
period has arrived.
Refer to the Information section in
the Mazda Connect Owner's
Manual.
CAUTION
¾ When the maintenance period
arrives, have your vehicle inspected
by an Authorized Mazda Dealer as
soon as possible. If maintenance is
neglected, a decrease in vehicle
performance may occur which
could cause damage. Have your
vehicle inspected before the
maintenance period arrives.
¾ If the vehicle continues to be
driven after the engine oil
replacement period has passed, it
could cause damage to the engine.
Replace the engine oil before the
maintenance period arrives.
NOTE
The wrench indication/indicator
light may display/turn on earlier than
the preset period depending on
vehicle usage conditions.
Whenever the engine oil is replaced,
a reset of the vehicle engine control
unit is necessary.
Refer to the Information section in
the Mazda Connect Owner's
Manual.
4-34
When Driving
Instrument Cluster and Display
Active Driving Display*
Active Driving Display
1. Display
2. Dust-proof sheet
WARNING
Always adjust the display brightness and position with the vehicle stopped:
Adjusting the display brightness and position while driving the vehicle is dangerous
as doing so could distract your attention from the road ahead and lead to an
accident.
CAUTION
¾ Do not place beverages near the dust-proof sheet of the active driving display. If
water or other liquids are splashed on the dust-proof sheet, it could cause
damage.
¾ Do not place objects or apply stickers above the active driving display or to the
dust-proof sheet as they will cause interference.
NOTE
Wearing polarized sunglasses will reduce the visibility of the active driving display
due to the characteristics of the display.
If the battery has been removed and re-installed or the battery voltage is low, the
adjusted position may deviate.
The display may be difficult to view or temporarily affected by weather conditions
such as rain, snow, light, and temperature.
If the audio system is removed, the active driving display cannot be operated.
*Some models.
4-35
When Driving
Instrument Cluster and Display
The active driving display indicates the following information:
Lane Departure Warning System (LDWS) Warnings*
Refer to Lane Departure Warning System (LDWS) on page 4-104.
Blind Spot Monitoring (BSM) Operation Conditions and Warnings*
Refer to Blind Spot Monitoring (BSM) on page 4-105.
Traffic Sign Recognition System (TSR) traffic signs and Warnings*
Refer to Traffic Sign Recognition System (TSR) on page 4-110.
Front Cross Traffic Alert (FCTA) Operation Conditions and Warning*
Refer to Front Cross Traffic Alert (FCTA) on page 4-121.
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go
function) Operation Conditions and Warnings*
Refer to Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop
& Go function) on page 4-128.
Traffic Jam Assist (TJA) Operation Conditions and Warnings*
Refer to Traffic Jam Assist (TJA) on page 4-138.
Lane-keep Assist System (LAS) Warnings*
Refer to Lane-keep Assist System (LAS) on page 4-152.
Smart Brake Support (SBS) Operation Conditions and Warnings*
Refer to Smart Brake Support (SBS) on page 4-156.
Cruise Control Operation Conditions
Refer to Cruise Control on page 4-208.
Navigation Guidance (vehicles with navigation system)
Intersection Name (vehicles with navigation system)
Street name (vehicles with navigation system)
Lane Guidance (vehicles with navigation system)
Speed limit indicator (vehicles with navigation system)
Vehicle Speed
The active driving display settings can be changed or adjusted.
Refer to the Settings section in the Mazda Connect Owner's Manual.
NOTE
The desired driving position (display position, brightness level, display
information) can be called up after programming the position.
Refer to Driving Position Memory on page 2-10.
The street name may not be displayed depending on the market and region.
4-36
*Some models.
When Driving
Automatic Transmission
Automatic Transmission Controls
Automatic Transmission Controls
NOTE
The Sport AT has an option that is not
included in the traditional automatic
transmission that gives the driver the
option of selecting each gear instead of
leaving it to the transmission to shift
gears. Even if you intend to use the
automatic transmission functions as a
traditional automatic, you should also
be aware that you can inadvertently
shift into manual shift mode and an
1. Lock-release button
inappropriate gear may be retained as
2. Selector lever
the vehicle speed increases. If you
notice the engine speed going higher
or hear the engine racing, confirm you
have not accidentally slipped into
manual shift mode (page 4-41).
Indication
Various Lockouts
Indicates that you must depress
the brake pedal and hold in the
lock-release button to shift (The ig-
nition must be switched ON).
Indicates the selector lever can be
shifted freely into any position.
Indicates that you must hold in the
lock-release button to shift.
4-37
When Driving
Automatic Transmission
Shift-Lock Override
Shift-Lock System
If the selector lever will not move from
Shift-Lock System
P position using the proper shift
The shift-lock system prevents shifting
procedure, continue to hold down the
out of P unless the brake pedal is
brake pedal.
depressed.
1. Remove the shift-lock override
cover using a cloth-wrapped flat
To shift from P:
head screwdriver.
1. Depress and hold the brake pedal.
2. Insert a flat screwdriver and push it
2. Start the engine.
down.
3. Press and hold the lock-release
button.
4. Move the selector lever.
NOTE
When the ignition is switched to
ACC or the ignition is switched off,
the selector lever cannot be shifted
from P position.
The ignition cannot be switched to
OFF if the selector lever is not in P
position.
1. Cover
3. Press and hold the lock-release
button.
4. Move the selector lever.
Take the vehicle to an Authorized
Mazda Dealer to have the system
checked.
4-38
When Driving
Automatic Transmission
When the selector lever is shifted to
Transmission Ranges
the R position with the ignition
switched ON, the parking sensor
Transmission Ranges
system is activated and a beep sound is
The shift position indication in the
heard.
instrument cluster illuminates.
Refer to Parking Sensor System on page
Refer to Shift Position Indication on
4-231.
page 4-40.
N (Neutral)
Shift the selector lever to the P or N
position to start the engine.
In N, the wheels and transmission are
not locked. The vehicle will roll freely
P (Park)
even on the slightest incline unless the
P locks the transmission and prevents
parking brake or brakes are on.
the front wheels from rotating.
WARNING
WARNING
If the engine is running faster than
Always set the selector lever to P
idle, do not shift from N or P into a
position and set the parking brake:
driving gear:
Only setting the selector lever to the P
It's dangerous to shift from N or P into
position without using the parking
a driving gear when the engine is
brake to hold the vehicle is dangerous.
running faster than idle. If this is done,
If P fails to hold, the vehicle could
the vehicle could move suddenly,
move and cause an accident.
causing an accident or serious injury.
Do not shift into N when driving the
CAUTION
vehicle:
¾ Shifting into P, N or R while the
Shifting into N while driving is
vehicle is moving can damage your
dangerous. Engine braking cannot be
transmission.
applied when decelerating which
¾ Shifting into a driving gear or reverse
could lead to an accident or serious
when the engine is running faster
injury.
than idle can damage the
transmission.
CAUTION
R (Reverse)
Do not shift into N when driving the
In position R, the vehicle moves only
vehicle. Doing so can cause
backward. You must be at a complete
transmission damage.
stop before shifting to or from R,
except under rare circumstances as
NOTE
explained in Rocking the Vehicle (page
Apply the parking brake or depress the
3-53).
brake pedal before moving the selector
lever from N position to prevent the
NOTE
vehicle from moving unexpectedly.
(With parking sensor system)
4-39
When Driving
Automatic Transmission
D (Drive)
shifting could be delayed or not occur,
however, this does not indicate a
D is the normal driving position. From
problem because the AAS mode will
a stop, the transmission will
maintain the optimum gear position.
automatically shift through a 6-gear
sequence.
M (Manual)
M is the manual shift mode position.
Gears can be shifted up or down by
operating the selector lever.
Refer to Manual Shift Mode on page
4-41.
Shift Position Indication
1. Shift position indication
The selector position is indicated when
the ignition is switched ON.
Gear position indication
In manual shift mode, the “M” of the
shift position indication illuminates
and the numeral for the selected gear
is displayed.
Active Adaptive Shift (AAS)
Active Adaptive Shift (AAS)
automatically controls the transmission
shift points to best suit the road
conditions and driver input. This
improves driving feel. The transmission
may switch to AAS mode when driving
up and down slopes, cornering, driving
at high elevations, or depressing the
accelerator pedal quickly while the
selector lever is in the D position.
Depending on the road and driving
conditions/vehicle operations, gear
4-40
When Driving
Automatic Transmission
Indications
Manual Shift Mode
Manual Shift Mode
The manual shift mode gives you the
feel of driving a manual transmission
vehicle by allowing you to operate the
selector lever manually. This allows you
to control engine rpm and torque to
the drive wheels much like a manual
1. Manual shift mode indication
transmission when more control is
2. Gear position indication
desired.
To change to manual shift mode, shift
Manual shift mode indication
the lever from D to M.
In manual shift mode, the “M” of the
shift position indication in the
instrument panel illuminates.
Gear position indication
The numeral for the selected gear
illuminates.
NOTE
If the gears cannot be shifted down
when driving at higher speeds, the
gear position indication will flash
NOTE
twice to signal that the gears cannot
be shifted down (to protect the
Changing to manual shift mode
transmission).
while driving will not damage the
If the automatic transmission fluid
transmission.
(ATF) temperature becomes too
If you change to manual shift mode
high, there is the possibility that the
when the vehicle is stopped, the gear
transmission will switch to automatic
will shift to M1.
shift mode, canceling manual shift
If you change to manual shift mode
mode and turning off the gear
without depressing the accelerator
position indication illumination. This
pedal when driving in D range, 5th
is a normal function to protect the
gear/6th gear, the gear will shift to
AT. After the ATF temperature has
M4/M5.
decreased, the gear position
To return to automatic shift mode, shift
indication illumination turns back on
the lever from M to D.
and driving in manual shift mode is
restored.
4-41
When Driving
Automatic Transmission
Manually Shifting Up
Putting your hands inside the rim of
the steering wheel when using the
You can shift gears up by operating the
steering shift switches is dangerous. If
selector lever or the steering shift
the driver's air bag were to deploy in a
switches*.
collision, your hands could be
M1 M2 M3 M4 M5 M6
impacted causing injury.
Using selector lever
NOTE
To shift up to a higher gear, tap the
selector lever back + once.
When driving slowly, the gears may
not shift up.
Do not drive the vehicle with the
tachometer needle in the RED ZONE
while in manual shift mode. In
addition, manual shift mode
switches to automatic shift mode
while the accelerator pedal is
completely depressed.
This function is canceled while the
TCS is turned off or the Off-Road
Traction Assist* is turned on.
However, if the vehicle is
continuously driven at a high rpm,
Using steering shift switch*
the gears may automatically shift up
To shift up to a higher gear with the
to protect the engine.
steering shift switches, pull the UP
The steering shift switch can be used
switch (+/OFF) toward you once with
temporarily even if the selector lever
your fingers.
is in the D position while driving. In
addition, it returns to automatic shift
mode when the UP switch (+/OFF)
is pulled rearward for a sufficient
amount of time.
Manually Shifting Down
You can shift gears down by operating
the selector lever or the steering shift
switches*.
M6 M5 M4 M3 M2 M1
1. UP switch (+/OFF)
WARNING
Keep your hands on the steering
wheel rim when using fingers on the
steering shift switches:
4-42
*Some models.
When Driving
Automatic Transmission
Using selector lever
Shifting down while driving on wet,
snowy, or frozen roads, or while
To shift down to a lower gear, tap the
driving at high speeds causes sudden
selector lever forward - once.
engine braking, which is dangerous.
The sudden change in tire speed could
cause the tires to skid. This could lead
to loss of vehicle control and an
accident.
Keep your hands on the steering
wheel rim when using fingers on the
steering shift switches:
Putting your hands inside the rim of
the steering wheel when using the
steering shift switches is dangerous. If
the driver's air bag were to deploy in a
Using steering shift switch*
collision, your hands could be
impacted causing injury.
To shift down to a lower gear with the
steering shift switches, pull the DOWN
NOTE
switch (-) toward you once with your
fingers.
When driving at high speeds, the
gear may not shift down.
During deceleration, the gear may
automatically shift down depending
on vehicle speed.
When depressing the accelerator
fully, the transmission will shift to a
lower gear, depending on vehicle
speed. However, the transmission
does not kickdown while the TCS is
turned off or the Off-Road Traction
Assist* is operating.
1. DOWN switch (-)
WARNING
Do not use engine braking on slippery
road surfaces or at high speeds:
*Some models.
4-43
When Driving
Automatic Transmission
Second Gear Fixed Mode
When the selector lever is moved back
+ while the vehicle speed is about 10
km/h (6.2 mph) or less, the
transmission is set in the second gear
fixed mode. The gear is fixed in second
while in this mode for easier
acceleration from a stop and driving on
slippery roads such as snow-covered
roads.
If the selector lever is moved back + or
forward - while in the second gear
fixed mode, the mode will be
canceled.
4-44
When Driving
Automatic Transmission

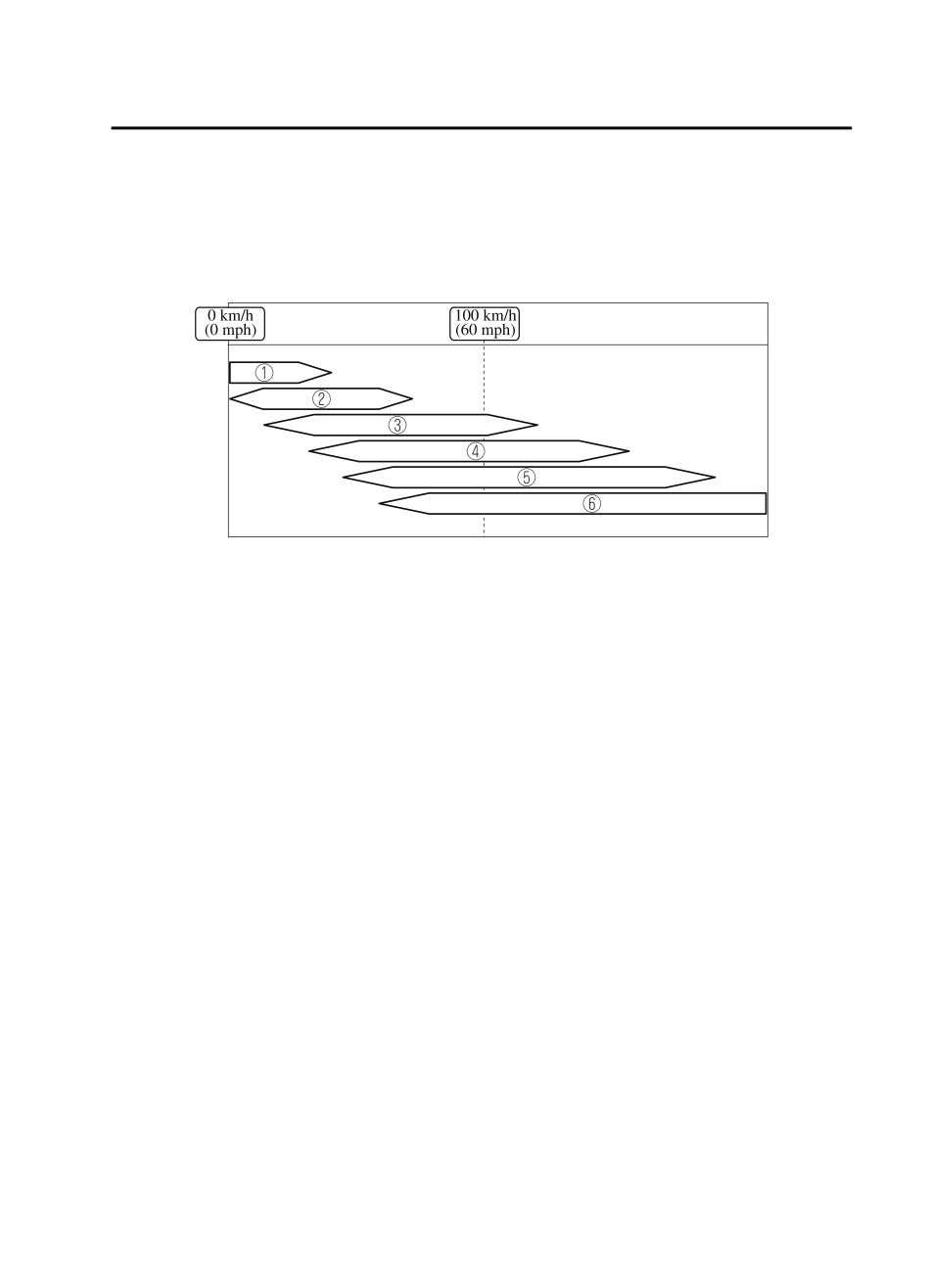

Shift Gear (Shifting) Speed Limit
For each gear position while in the manual mode, the speed limit is set as follows:
When the selector lever is operated within the range of the speed limit, the gear is
shifted.
1.
1st
2.
2nd
3.
3rd
4.
4th
5.
5th
6.
6th
Shift up
The gear does not shift up while the vehicle speed is lower than the speed limit.
Shift down
The gear does not shift down while the vehicle speed exceeds the speed limit.
If the vehicle speed exceeds the speed limit and the gear does not shift down, the
gear position indication flashes 2 times to notify the driver that the gear cannot be
shifted.
Kickdown
When the accelerator pedal is depressed fully while driving, the gear shifts down.
However, the transmission does not kickdown while the TCS is turned off or the
Off-Road Traction Assist* is operating.
NOTE
The gear also shifts down using kickdown while in the second gear fixed mode.
Auto-shift down
The gear shifts down automatically depending on the vehicle speed during
deceleration.
*Some models.
4-45
When Driving
Automatic Transmission
NOTE
If the vehicle comes to a stop while in the second gear fixed mode, the gear remains
in second.
Recommendations for Shifting
Upshifting
For normal acceleration and cruising, Mazda recommends these shift points:
(U.S.A. and Canada)
Gear
Vehicle speed*1
M1 to M2
24 km/h (15 mph)
M2 to M3
40 km/h (25 mph)
M3 to M4
65 km/h (40 mph)
M4 to M5
73 km/h (45 mph)
M5 to M6
81 km/h (50 mph)
*1
Always observe local speed limit regulations.
Downshifting
When you must slow down in heavy traffic or on a steep upgrade, downshift before
the engine starts to overwork. This gives better acceleration when you need more
speed.
On a steep downgrade, downshifting helps maintain safe speed and prolongs brake
life.
4-46
When Driving
Automatic Transmission
NOTE
Direct Mode*
Shifting up and down while in direct
mode may not be possible depending
Direct Mode
on the vehicle speed. In addition,
Direct mode can be used for
because direct mode is canceled
temporarily switching gears by
(released) depending on the rate of
operating the steering shift switch
acceleration or if the accelerator is fully
while the vehicle is being driven with
depressed, use of the manual shift
the selector lever in the D position.
mode is recommended if you need to
While in direct mode, the D and M
drive the vehicle in a particular gear for
indication illuminate and the gear
long periods.
position in use is illuminated.
1. Direct mode indication
2. Gear position indication
Direct mode is canceled (released)
under the following conditions.
The UP switch (+/OFF) is pulled
rearward for a certain amount of
time or longer.
The vehicle is driven for a certain
amount of time or longer (time
differs depending on the driving
conditions while operating).
The vehicle is stopped or moving at a
slow speed.
*Some models.
4-47
When Driving
Automatic Transmission
Climbing steep grades from a stop
Driving Tips
To climb a steep grade from a stopped
Driving Tips
position:
1. Depress the brake pedal.
2. Shift to D or M1, depending on the
WARNING
load weight and grade steepness.
3. Release the brake pedal while
Do not let the vehicle move in a
gradually accelerating.
direction opposite to the direction
selected by the selector lever:
Descending steep grades
Do not let the vehicle move backward
When descending a steep grade, shift
with the selector lever in a forward
to lower gears, depending on load
position, or do not let the vehicle
weight and grade steepness. Descend
move forward with the selector lever in
slowly, using the brakes only
the reverse position. Otherwise, the
occasionally to prevent them from
engine may stop, causing the loss of
overheating.
the power brake and power steering
functions, and make it difficult to
control the vehicle which could result
in an accident.
Passing
For extra power when passing another
vehicle or climbing steep grades,
depress the accelerator fully. The
transmission will shift to a lower gear,
depending on vehicle speed.
NOTE
The accelerator pedal may initially
feel heavy as it is being depressed,
then feel lighter as it is depressed
further. This change in pedal force
aids the engine control system in
determining how much the
accelerator pedal has been
depressed for performing kickdown,
and functions to control whether or
not kickdown should be performed.
4-48
When Driving
M Hybrid
M Hybrid*
M Hybrid
M Hybrid uses the Integrated Starter-Generator (ISG) with excellent power
generation efficiency to generate electricity from the kinetic energy generated when
the vehicle decelerates. The system uses the electrical power stored in the M Hybrid
battery, which is a large-capacity battery to improve driveability and fuel economy by
reducing engine load and providing motor assist. In addition, the ISG provides quiet
engine restarting after the engine is stopped by the i-stop function (idling stop).

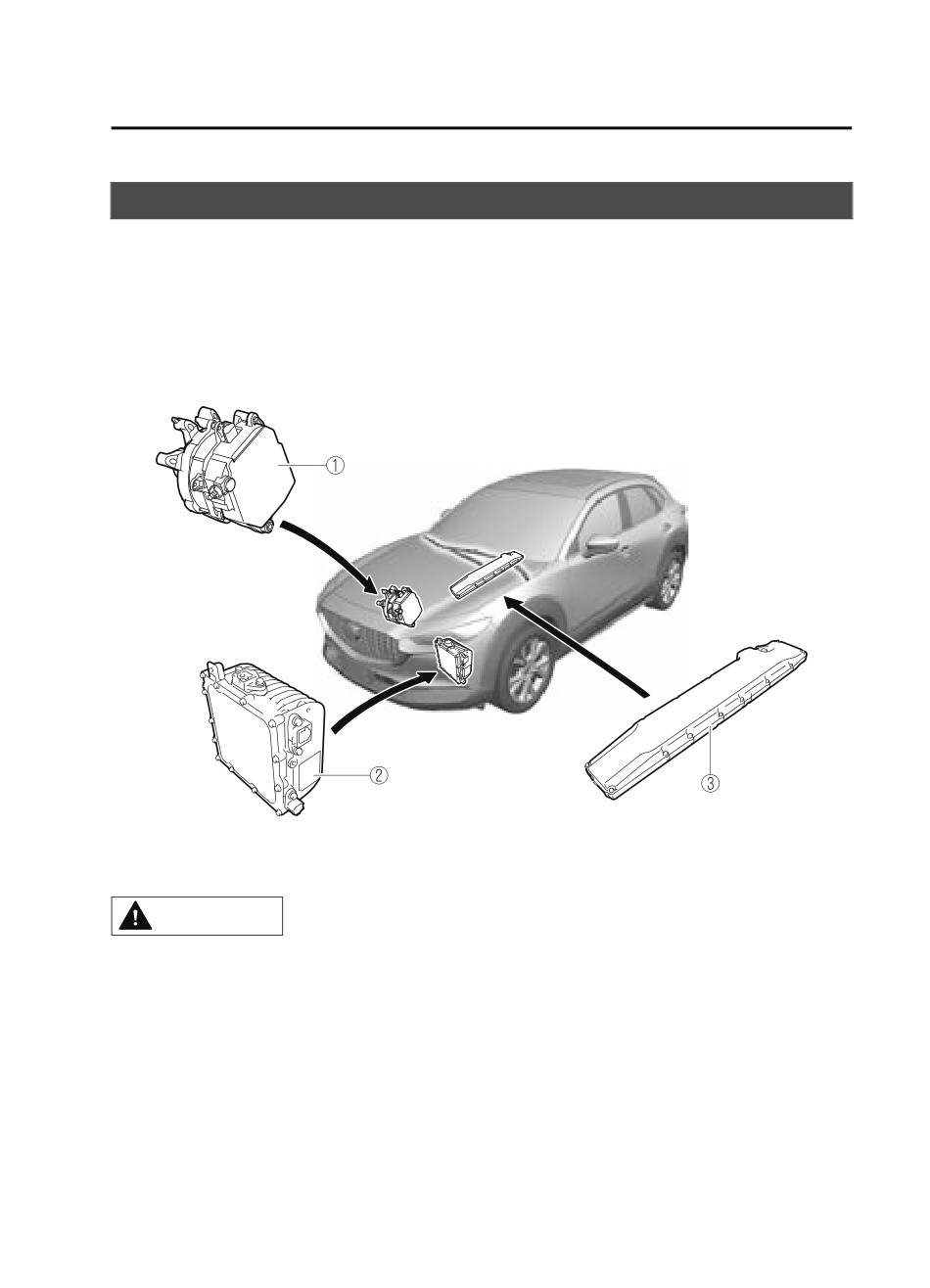

1. ISG
2. DC-DC Converter
3. M Hybrid battery
CAUTION
¾ The following parts are extremely hot and have high-current electricity flowing
through them, therefore do not touch them.
¾ ISG
¾ DC-DC Converter
¾ M Hybrid battery
¾ If the driver's door is opened under the following conditions, the vehicle
determines that the driver is trying to leave the driver's seat, a warning sound
notifying the driver of possible danger is activated, and the warning indication is
displayed.
*Some models.
4-49
When Driving
M Hybrid
¾ The engine is running.
¾ The selector lever is in a position other than P or N.
¾ If there is a problem with M Hybrid, a warning indication is displayed.
¾ M Hybrid operation status is displayed on the system operation status display of
the fuel efficiency monitor.
Refer to the Information section in the Mazda Connect Owner's Manual.
Unique M Hybrid Handling
Occurrence status/loca-
Characteristic
tion
M Hybrid vehicles have a unique
sound and vibration which differ from
Operational feedback
normal vehicles. The following may
through brake pedal
occur, however, this is unique to M
might be felt under the
Operational feed-
Hybrid and it does not indicate a
following conditions.
back through brake
problem.
The ignition is switch-
pedal
ed ON.
Occurrence status/loca-
Characteristic
The brake pedal is op-
tion
erated.
An operational sound
Operation sound of
can be heard from the
M Hybrid battery
deceleration regen-
engine compartment
eration
M Hybrid is equipped with a special
during deceleration.
battery.
An operational sound
Relay operation
can be heard from the
WARNING
sound of M Hybrid
vehicle underfloor when
battery
the engine is started and
Heed the following cautions to
stopped.
prevent burns and electrical shock:
Sound can be heard from
¾ Never remove and disassemble the
the front of the vehicle
brackets and connectors securing the
under the following con-
terminal part, wiring harness, and
ditions:
the M Hybrid battery.
The driver's door is
¾ Never touch the M Hybrid battery
opened.
because it becomes extremely hot
The ignition is switch-
Operation sound of
under direct sunlight or after driving.
ed ON.
brake system
¾ Because the M Hybrid battery is
The brake pedal is op-
especially dangerous when wet,
erated.
never touch it.
The brake system op-
erates automatically.
NOTE
Several minutes have
The M Hybrid battery has a certain
passed since the en-
battery life. Battery life differs
gine was stopped.
depending on how the vehicle is used
and the driving conditions.
4-50
When Driving
M Hybrid
Charging the M Hybrid battery
¾ Touching an unattended or illegally
abandoned M Hybrid battery may
The M Hybrid battery is charged
cause electrocution.
automatically during engine operation
¾ If the M Hybrid battery is used on a
and by deceleration regeneration.
vehicle other than one equipped
Therefore, it is not necessary to charge
with M Hybrid (including modified
the battery from outside of the vehicle.
vehicles), accidents such as
electrocution, heat generation,
CAUTION
smoking, combustion, and
Drive the vehicle for about 30 minutes
explosions, or an electrolyte leakage
once every few months because
may occur.
self-discharge occurs gradually if the
Scrapping Your Vehicle and Disposing
vehicle is not driven for a long period
of the M Hybrid battery
of time. If the M Hybrid battery
becomes completely discharged and
The M Hybrid battery must be recycled
M Hybrid cannot be activated, contact
to prevent accidents involving it. When
an Authorized Mazda Dealer.
scrapping your vehicle, replacing the M
Hybrid battery, or disposing of the M
M Hybrid Precautions
Hybrid battery, consult an Authorized
For vehicle maintenance or repairs, or
Mazda Dealer. Please cooperate in
when scrapping the vehicle, consult an
ensuring that the vehicle's M Hybrid
Authorized Mazda Dealer.
battery is recycled.
Handling the M Hybrid battery
WARNING
Technical knowledge and skill are
necessary in handling the M Hybrid
Dispose of the M Hybrid battery
battery.
appropriately:
If the M Hybrid battery is not recycled
WARNING
appropriately, such as by leaving it
unattended or illegally abandoning it,
some other person may touch it which
To ensure safe and correct handling of
could cause electrocution leading to
the M Hybrid battery, always heed the
serious injury.
following precautions:
¾ Do not remove the M Hybrid battery.
If an Accident Occurs
¾ Do not resell, transfer, or modify the
If the vehicle is involved in a collision,
M Hybrid battery.
M Hybrid may stop operating. In this
¾ Do not use the battery on vehicles
case, the charging system warning light
other than those equipped with the
turns on and M Hybrid cannot activate.
M Hybrid battery.
Park the vehicle in a safe place
immediately and contact an
If the M Hybrid battery is not handled
Authorized Mazda Dealer.
properly, the following may occur and
cause serious injury:
4-51
When Driving
M Hybrid
If the vehicle catches fire, extinguish
WARNING
the fire using an ABC fire
extinguisher:
Never touch the areas where high
Only extinguish a fire with water when
current is flowing:
a high volume of water is available
Never touch a M Hybrid related part.
such as from a fire hydrant.
Otherwise, it could lead to an
electrical shock or burns causing
M Hybrid Control Status Display
serious injury.
The driver is notified of the M Hybrid
operation status by the control status
Never touch electrical wiring that may
display.
be protruding into or outside of the
The M Hybrid operation status is
cabin:
displayed in the center display.
Otherwise, it could lead to an
Refer to the Information section in the
electrical shock or burns causing
Mazda Connect Owner's Manual.
serious injury.
Never touch any area where
electrolyte is visible or electrolyte is
leaking from the area:
If any electrolyte from the M Hybrid
battery gets in the eyes or on the skin,
it could cause loss of vision or skin
reactions. In the unlikely event that
electrolyte comes into contact with the
eyes or skin, flush with large quantities
of water immediately and seek
immediate medical attention.
Do not come near the vehicle if
electrolyte is leaking from the M
Hybrid battery:
Even if the M Hybrid battery is
damaged, large quantities of
electrolyte will not flow out due to the
internal structure of the battery,
however, in the unlikely event that it
does, it will produce steam. The steam
contains properties that can irritate the
eyes and skin, and could cause acute
poisoning if absorbed.
Never approach objects that are on
fire or extremely hot:
Electrolyte in the M Hybrid battery may
cause a fire.
4-52
When Driving
Switches and Controls
Lighting Control
Headlights
Turn the headlight switch to turn the headlights and other exterior lights on or off.
When the taillights, parking lights, license plate lights, and the side-marker lights are
turned on, the lights-on indicator light in the instrument cluster turns on.
NOTE
If the light switch is left on, the lights will automatically switch off approximately
30 seconds after switching the ignition off.
The time setting can be changed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
To prevent discharging the battery, do not leave the lights on while the engine is
off unless safety requires them.
Without auto-light control
Ignition Position
ACC or OFF
ON
Switch Position
OFF
OFF
Headlights
Off
Off
Off*1
Off
Off
On
Daytime running
Off
Off
Off
On*2
On*2*3
Off
lights
Taillights
Parking lights
Off
On*1
On*1
Off
On
On
License plate lights
Side-marker lights
*1
The lights are turned on for the specified period by the auto headlight off function.
4-53
When Driving
Switches and Controls
2
When the light switch is switched to a different position from the OFF,
position while the
vehicle is stopped, the daytime running lights turn off. When starting to drive the vehicle, the daytime
running lights turn on again.
*3
When the light switch is switched to the OFF position, and then to the
position again, the
daytime running lights turn off directly after starting the engine. The daytime running lights turn on
when you begin driving the vehicle.
With auto-light control
Ignition Position
ACC or OFF
ON
Switch Position
OFF*1
AUTO
OFF*1
AUTO
Headlights
Off
Off*2
Off
Off*2
On
Daytime running
Off
Off
Off
Off
Off
lights
Auto*3*5
Auto*4*5
Taillights
Parking lights
Off
Off*2
On*2
On*2
On
License plate lights
Side-marker lights
*1
The light switch returns to the AUTO position automatically.
*2
The lights are turned on continuously if the ignition is switched from ON to any other position with
the lights turned on. The lights are turned on for the specified period by the auto headlight off
function.
*3
During the daytime, the daytime running lights turn on automatically. During the nighttime, the
headlights, parking lights, taillights, license plate lights, and the side-marker lights turn on
automatically.
*4
During the daytime, the daytime running lights, parking lights, taillights, license plate lights, and the
side-marker lights turn on automatically. During the nighttime, the headlights, parking lights,
taillights, license plate lights, and the side-marker lights turn on automatically.
*5
When the light switch is switched to the OFF position while the vehicle is stopped, all of the lights
that are turned on turn off. When the light switch is switched from a position other than
to the
position while the vehicle is stopped, the running lights or the headlights turn off. When
starting to drive the vehicle, the lights that are turned off turn on again.
4-54
When Driving
Switches and Controls
Auto-light control*
When the headlight switch is in a position other than
and the ignition is
switched ON, the light sensor senses the surrounding lightness or darkness and
automatically turns the headlights and other exterior lights on or off.
CAUTION
¾ Do not shade the light sensor by adhering a sticker or a label on the windshield.
Otherwise the light sensor will not operate correctly.
¾ The light sensor also works as a rain sensor for the auto-wiper control. Keep hands
and scrapers clear of the windshield when the wiper lever is in the AUTO position
and the ignition is switched ON as fingers could be pinched or the wipers and
wiper blades could be damaged when the wipers activate automatically. If you are
going to clean the windshield, be sure the wipers are turned off completely when
it is particularly tempting to leave the engine running. This is particularly important
when clearing ice and snow.
NOTE
The headlights and other exterior lights may not turn off immediately even if the
surrounding area becomes well-lit because the light sensor determines that it is
night time if the surrounding area is continuously dark for several minutes such as
inside long tunnels, traffic jams inside tunnels, or in indoor parking lots.
If the headlight switch and the windshield wiper switch are in AUTO, and the
wipers are operated at low or high speed by the auto wiper control for several
seconds, bad weather conditions are determined and the headlights may be
turned on.
The sensitivity of the auto-light control may be changed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
*Some models.
4-55
When Driving
Switches and Controls
Headlight High-Low Beam
will return to the normal position when
released.
The headlights switch between high
and low beams by moving the lever
forward or backward.
Coming Home Light
The coming home light turns on the
headlights (low beams) when the lever
is operated.
1. High beam
2. Low beam
To turn on the lights
When the lever is pulled with the
When the headlight high-beams are
ignition switched to ACC or OFF, the
on, the headlight high-beam indicator
low beam headlights turn on.
light is turned on.
The headlights turn off after a certain
period of time has elapsed after all of
the doors are closed.
Flashing the Headlights
When the ignition is switched ON, and
regardless of the headlight position,
the headlights switch to high beams
NOTE
while the lever is being pulled.
The time until the headlights turn off
after all of the doors are closed can
be changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
If no operations are done for 3
minutes after the lever is pulled, the
headlights turn off.
1. OFF
The headlights turn off if the lever is
2. Headlight flashing
pulled again while the headlights are
illuminated.
The headlight high-beam indicator
light in the instrument cluster
illuminates simultaneously. The lever
4-56















Content      ..     4      5      6      7     ..
